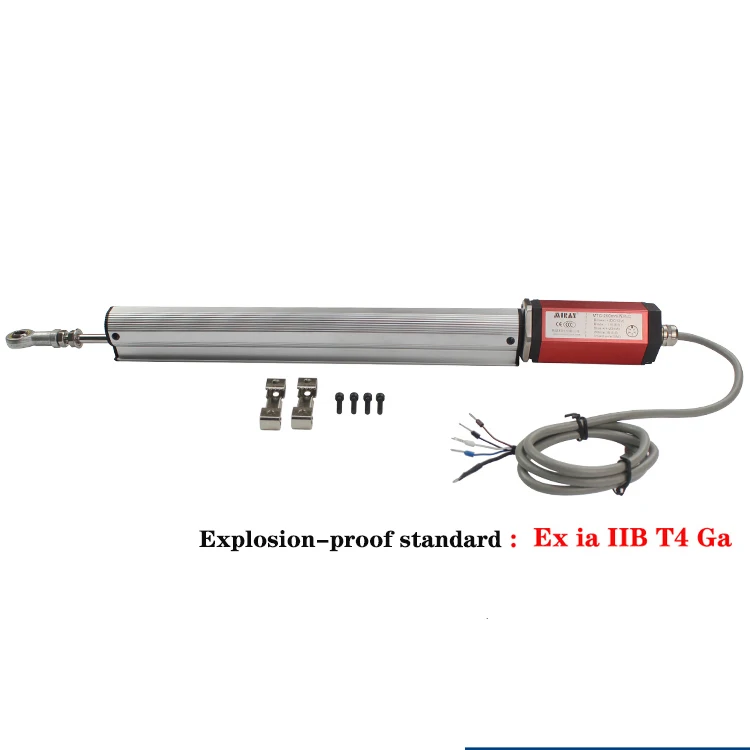

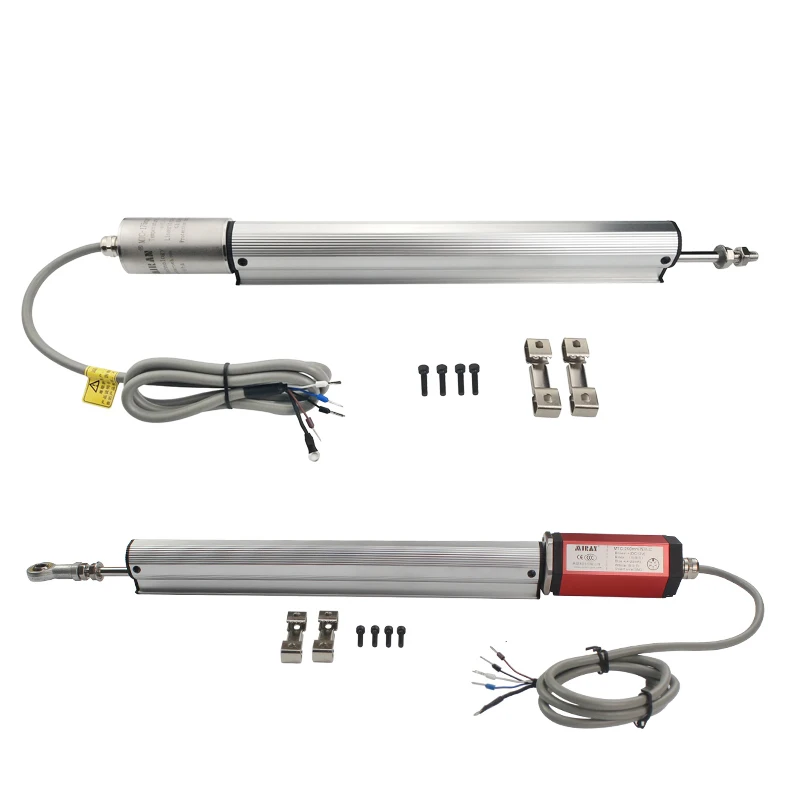

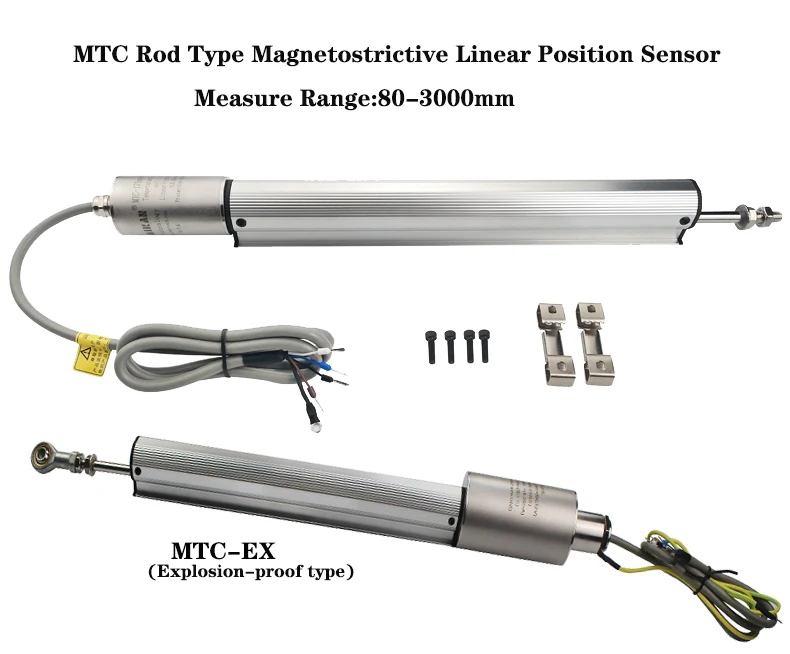

Stainless Steel Magnetic Sensor Position Pressure Resistant Outer Tube Magnetostrictive Displacement Sensor

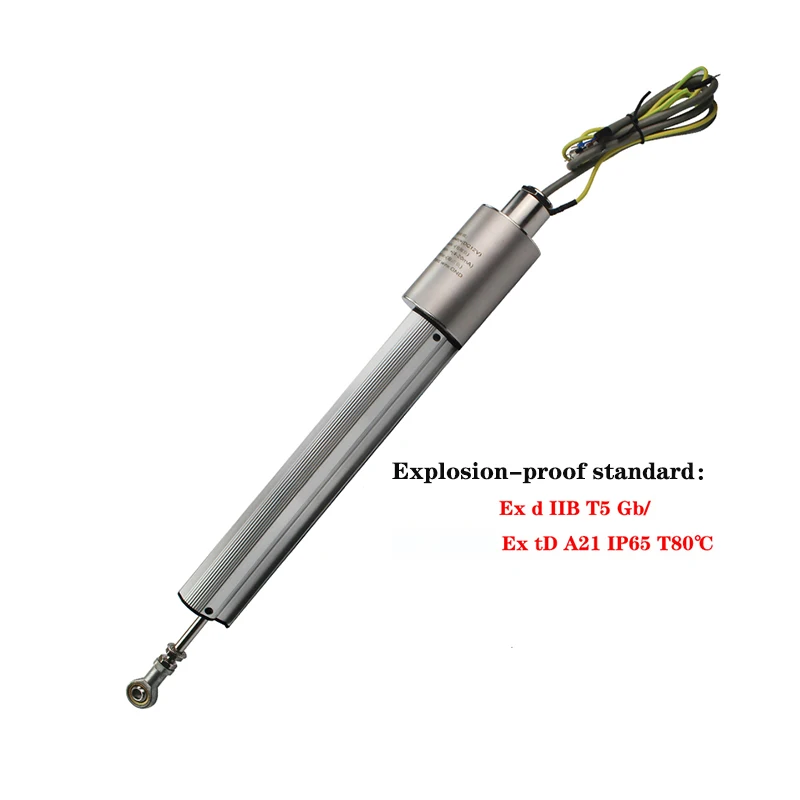

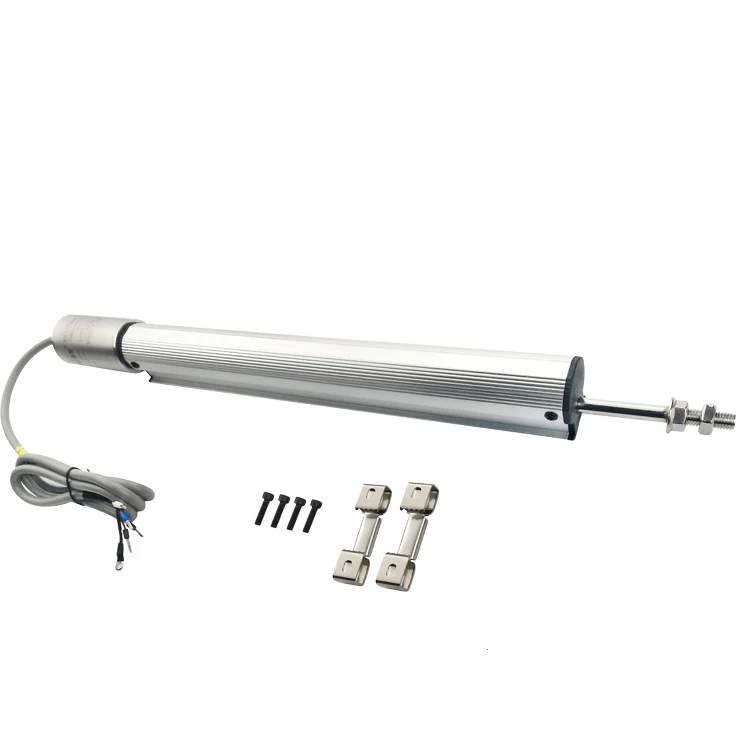

MTC flameproof magnetostrictive displacement sensor Overview:

The change in the direction of magnetization in the ferromagnetic material will cause the change in the lattice spacing of the medium, so that the length and volume of the ferromagnetic material will change, that is, the magnetostriction phenomenon, also known as the Wiederman effect, and its inverse effect is called the Villari effect.

The principle of magnetostrictive displacement sensor is to generate a strain pulse signal when two different magnetic fields intersect, and then calculate the time period required for this signal to be detected, so as to convert the accurate position. The two magnetic fields, one from the permanent magnet in the magnetic ring, and the other from the excitation pulse generated by the electronic components in the sensor's electronic compartment. The excitation pulse travels at the speed of sound along a waveguide filament made of magnetostrictive material inside the sensor. When intersecting with the permanent magnet field in the magnetic ring, the mechanical vibration generated by the waveguide wire forms a strain pulse due to magnetostriction. The strain pulse is quickly detected by a sensing circuit in the electronic chamber. From the moment when the excitation pulse is generated to the total time when the strain pulse is detected by a fixed sound speed, we can accurately calculate the position change of the magnet. This process is continuous, so whenever the position of the magnetic ring changes, the new position is quickly measured. Since the output signal is a true position value, rather than a proportional or reamplified signal, there is no signal drift or variation, let alone the need to periodically re-label as with other sensors.

Magnetostrictive sensors are non-contact and never wear out. It has the advantages of high resolution, high precision, high stability, high reliability, fast response time and long working life. Sensors do not need to be re-calibrated or regularly maintained.

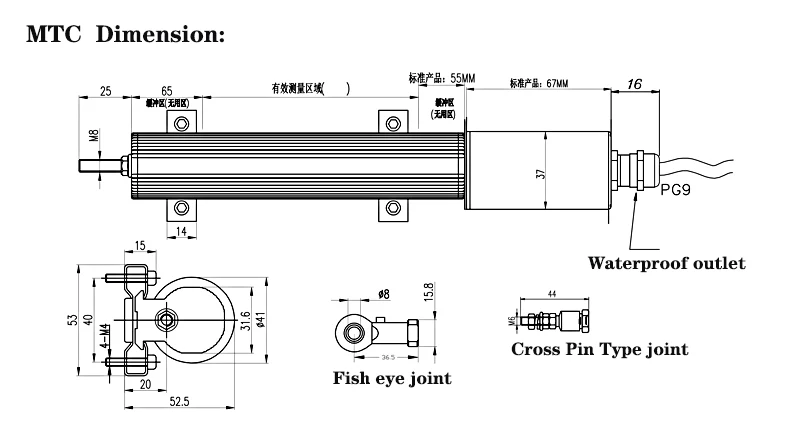

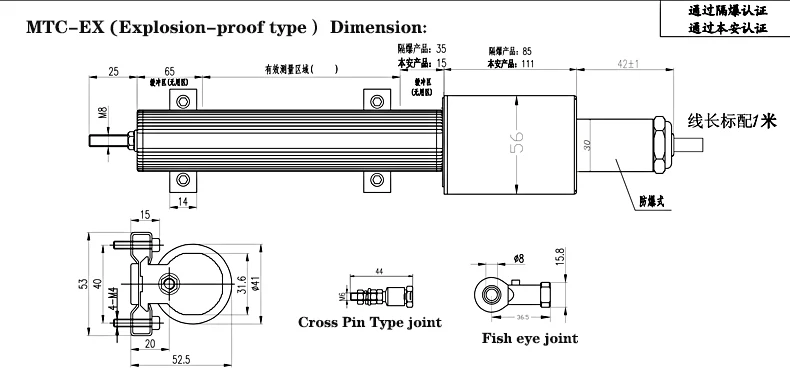

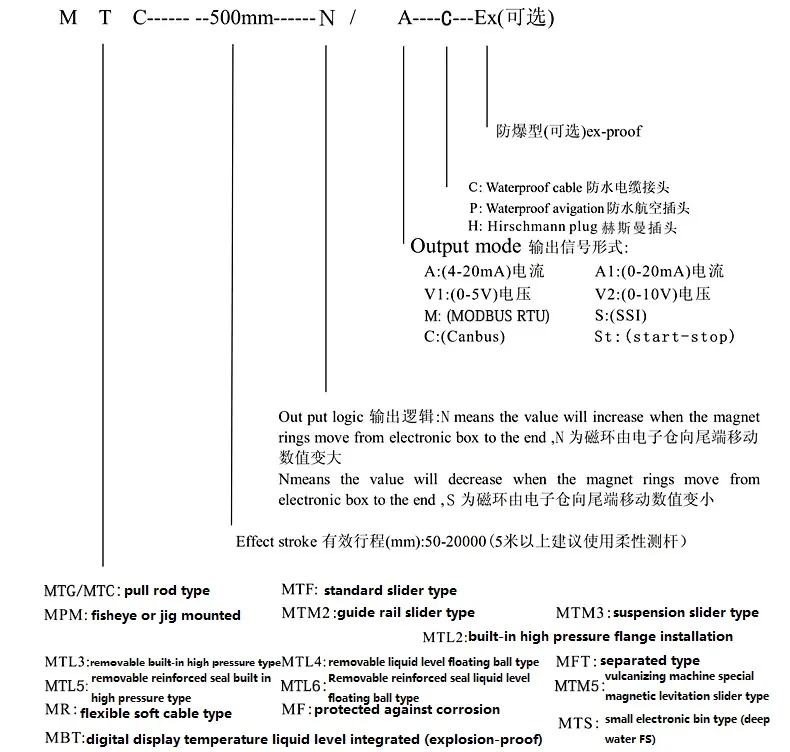

MTC flameproof magnetostrictive displacement sensor Standard parameters:

1.Measuring range :30 ~ 5000mm

2. Power supply voltage: +24VDC

3. Output form/analog signal: current 4-20mA and 0-20mA, voltage 0-5V and 0-10V,

Digital signal: RS485, MODBUS-RTU, CANopen, Start-stop

4. Load capacity: voltage signal output load ≥4KΩ Current signal output load ≤500Ω

5. Nonlinear error :≤0.05%FS

6. Repeatability error :≤0.005%FS

7. Resolution :≤0.038mm

8. Hysteresis :≤0.001%FS

9. Temperature stability: ≤0.002%/℃

10. Working current: ≤16mA

11. Working pressure: continuous working pressure ≤35MPa (MTL built-in high pressure series)

12. Working temperature :T1: -20 ~ +55℃, T2: -40 ~ +80℃,

13. Measuring rod material: 0Cr18Ni9 (304) 316 stainless steel (special custom)

14. Electronic warehouse shell material :0Cr18Ni9 (304) 316 stainless steel (special custom)

15. Lead mode: high temperature resistant twisted-pair shielded cable (default length: 1m, can also be provided according to user requirements)

16. Shell protection grade: IP65, IP67

MTC flameproof magnetostrictive displacement sensor wiring mode:

Before connecting cables, ensure that the power supply meets the following requirements: +12VDC and that the output power of the power supply is greater than the total power consumption. The output power of each sensor must be less than or equal to 95mA in different ranges. If the power supply fails to meet requirements, replace the power supply to ensure that the sensor works properly.

Analog signal output wiring mode of MTC flameproof magnetostrictive displacement sensor:

The sensor has five contacts: power supply positive (brown), power supply negative (black), signal output positive (blue), signal output negative (white), housing ground (shielded wire)

Digital signal output wiring mode of MTC flameproof magnetostrictive displacement sensor:

The sensor has five contacts: positive power supply (brown), power supply ground (black), RS485A(blue), RS485B (white), housing ground (shielded wire)

Application fields:

Servo hydraulic cylinder piston position preset and feedback, servo cylinder piston position preset and feedback, grinding machinery position preset and feedback, casting and forging machine position preset and feedback, other machinery such as gantry machine position preset and feedback, boring machine, shield machine, coal mine mechanical cylinder position preset and feedback, engineering lifting mechanical cylinder position preset and feedback, Position presetting and feedback of mechanical cylinder in steel mills such as rolling mills, position presetting and feedback of oil cylinder in blow molding, position presetting and feedback of injection molding machinery, adjustment of railway and bridge, detection of water level, control of sluice gates, position presetting and feedback of wood machinery, position presetting and feedback of cylinder level, position presetting and feedback of chemical container level, drinking water and sewage treatment system, Geodetic system, gate opening position preset and feedback, cylinder level measurement.

Zaoyang City Milang Science & Technology Co., Ltd. is  the production bases of the SHENZHEN MIRAN technology Co.,Ltd.Since Miran establishment in 2003,Miran has long been committed to the design,development,production and sales of displacement sensors.it has 20 years of rich experience and has become a world-leading sensor exporter.our main production and operation:potentiometer/resistance principle displacement sensor (electronic ruler), magnetoresistive displacement sensor, pull

rope/line displacement sensor (pull rope/wire type electronic ruler), magnetostrictive displacement sensor (no contact) Magnetic induction electronic ruler, magnetostrictive

principle liquid level sensor (level gauge measurement and control system), angle sensor (angle ruler) and supporting V/A conversion module, LVDT differential transformer

displacement sensor, eddy current displacement sensor, ultrasonic Displacement sensors, inclination displacement sensors, magnetic scales, display controllers and related

application products, centralized lubrication system products (lubricating oil pumps), oil circuit accessories and other products. Companies adhering to the "quality first, customer first, integrity-based" purpose, We can offer you the competitive perfect products.We also support to put your logo on the products if you need.Welcome to visit our factory,Hope we can build up the long-term and harmonious business relationship!

  Apply to a lot of industrial branch, especially in OEM market, such as: Plastic (Injecting molding machine), glass machine, printing machine, medical machine, wood and coal mine machine and so on. our products can be used with PLC industrial control systems, servo, frequency converter, singlechip microcomputer, supporting the use of achieve frequency control, the precise position detection and control signal feedback ect.
