Ruida Controller System Laser Cnc Machine RDC6332M Mixed Laser Cutting Control Card
- Category: >>>
- Supplier: Anhui Codos Laser Technology Development Co. Ltd.
Share on (1601052465327):
Product Overview
Description
Products Description
RDC6332M Mixed Laser Cutting Control Card
Ruida RDC6332M hybrid cutting controller is a hybrid cutting system based on the proven RDC6332G co2 laser controller, which is specially developed to combine the processing of sheet metal and non-metal cutting. Based on this co2 laser DSP controller, it can realize metal cutting and non-metal cutting.
Product parameter
Laser source | High power CO2 glass tube and RF lasers |
Axis | 3 |
Laser channel | 2 |
Double heads asynchronous | Support |
Communication interface | Ethernet, USB and WIFI (optional) |
Panel | 3.5” color screen + keys, Linus operating system |
Feeding | Z axis feeding, sheet feeding |
Height control system | Metal following height control system |
Auxiliary gas | Support multi-channel auxiliary gas control |
Installment encryption | Support |
Onboard clock | Support |
Firmware upgrade | Remote upgrade of panel and mainboard program |
Camera | None |
Light source system | None |
Cutting function | Metal and non-metal mixed cutting |
Engraving function | Plane engraving, slope engraving and gray engraving |
Software | MetalCut, support punching, lead, bridge and micro connection, RDWorksV8 |
Operating system | WinXP, Win7, Win8, Win10, 32-bit or 64-bit |
Language | 11 languages including simplified Chinese, traditional Chinese, English, French, Russian, Portuguese, Turkish, German, Spanish, Korean, and Italian |
Size | Panel: L170mm*W120mm*H38.6mm Mainboard: L220.5mm*W134mm*H29.6mm |
Optional Accessories | Wireless handheld box, RD-APP and RD-WIFI |
• digital laser control signal, differential output, TTL level, 20mA drive capability.
• PWM frequency 2.5K ~ 100K adjustable, PWM duty cycle 1% ~ 99% adjustable.
• analog laser control signal 0 ~ 5V automatic following adjustment, TTL level, 20mA drive capability motor control pulse
frequency up to 400KHZ.
• USB maximum transmission rate of 12M, the longest distance of 5 meters.
• linear/circular / B sample interpolation accuracy + / – 0.5 pulse.
• 4-way universal Opto-isolated OC gate output, maximum 300mA drive capability.
• 4-way general-purpose Opto-isolated input, TTL level.
• On-board system encryption control, onboard parameter storage, and file storage capacity of up to 256M RDC6332M hybrid cutting control system is a set of hybrid cutting systems specially developed by RuiDa Technology based on the mature RDC6332G control system, combined with the processing technology of metal sheet and non-metal cutting. Based on this controller, it can realize metal cutting and non-metal cutting.
• PWM frequency 2.5K ~ 100K adjustable, PWM duty cycle 1% ~ 99% adjustable.
• analog laser control signal 0 ~ 5V automatic following adjustment, TTL level, 20mA drive capability motor control pulse
frequency up to 400KHZ.
• USB maximum transmission rate of 12M, the longest distance of 5 meters.
• linear/circular / B sample interpolation accuracy + / – 0.5 pulse.
• 4-way universal Opto-isolated OC gate output, maximum 300mA drive capability.
• 4-way general-purpose Opto-isolated input, TTL level.
• On-board system encryption control, onboard parameter storage, and file storage capacity of up to 256M RDC6332M hybrid cutting control system is a set of hybrid cutting systems specially developed by RuiDa Technology based on the mature RDC6332G control system, combined with the processing technology of metal sheet and non-metal cutting. Based on this controller, it can realize metal cutting and non-metal cutting.
Company Profile
Vank laser technology is a high-tech enterprise with years of experience in R&D, production, sales and technical maintenance in the laser equipment industry. With the professional laser technology as the backing, the company constantly absorbs advanced technology and design concept, and produces and sells laser equipment suitable for various industrial automation production needs.
Our company's main products are optical fiber laser cutting machine, fiber laser marking machine, CO2 laser engraving&cutting machine. All products through the CE certification, safe and reliable product quality. In addition to providing standardized products for our customers, we can also provide customized solutions to meet the needs of different customers.
Our laser equipment are widely used in industries of electronic, medical, sheet metal, furniture, advertising, craft gifts,
architectural model, industrial mold, luxury, decoration, identification, clothing, leather and other industries.
We make the high quality advanced machines, we are providing the best after-sale service in China. And we are also offering the most competitive price to all of the customers. "VANK" is known by more and more people. At present, our products have been exported to many countries and regions such as Europe, South America, North America and so on. We have enjoyed the mutual benefit and will move on, and we hope to establish a long term business relations with more and more oversea customers.
Our company's main products are optical fiber laser cutting machine, fiber laser marking machine, CO2 laser engraving&cutting machine. All products through the CE certification, safe and reliable product quality. In addition to providing standardized products for our customers, we can also provide customized solutions to meet the needs of different customers.
Our laser equipment are widely used in industries of electronic, medical, sheet metal, furniture, advertising, craft gifts,
architectural model, industrial mold, luxury, decoration, identification, clothing, leather and other industries.
We make the high quality advanced machines, we are providing the best after-sale service in China. And we are also offering the most competitive price to all of the customers. "VANK" is known by more and more people. At present, our products have been exported to many countries and regions such as Europe, South America, North America and so on. We have enjoyed the mutual benefit and will move on, and we hope to establish a long term business relations with more and more oversea customers.

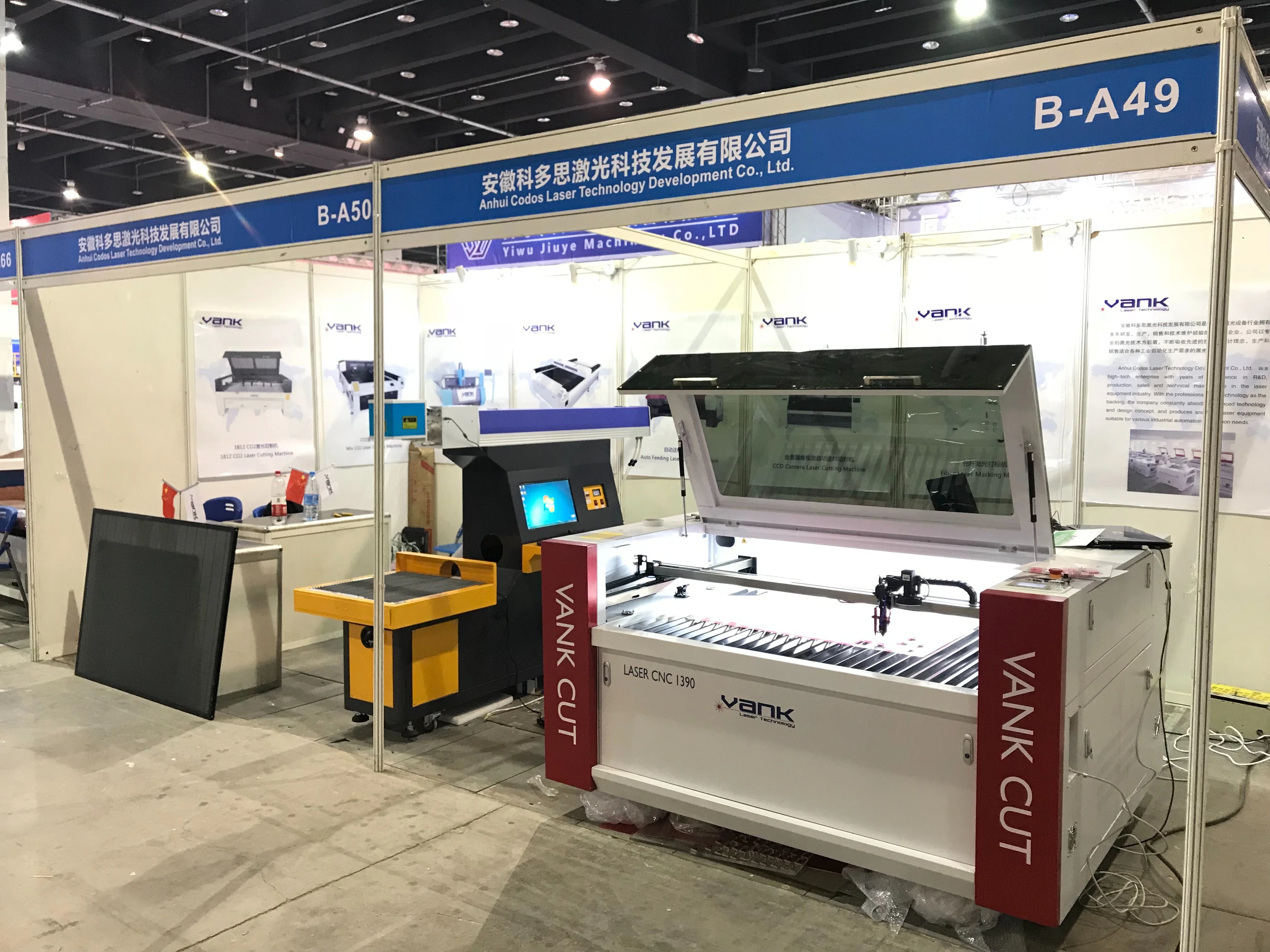

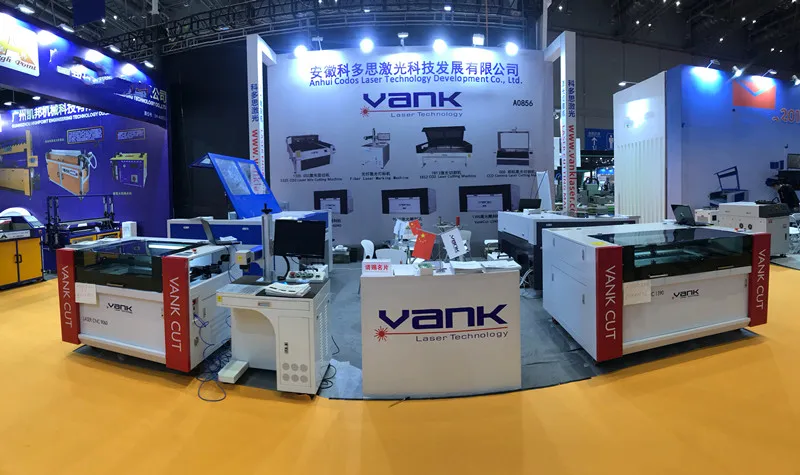

Vanklaser at Dubai FEASPA2024 exhibition
Vanklaser at Printing United Expo 2023
Vanklaser at 2023 Canton Fair
Producting Process
Product packaging
FAQ
1.Q:I am looking for fiber laser machine, any recommendation?
A:Hi, there. Thank you for your concern about our laser cutting
machine. It's essential to mention us about your cutting requests (materials, thickness, application and your expectation), our sales experts provides customized consulting service in term of your demand.
2.Q:When I got this machine, but I don't know how to use it. What should I do?
A:We will send video and English manual with the machine. If you still have some doubts, we can talk by telephone or skype and e-mail.
3.Q:How can I get the sample to check you quality ?
A:If you want to marking sample to check the quality, we can help you do this. first you need to provide the logo or design to us,free mark samples can be provided.
4.Q:Do the machine can be customized according my requirements?
A:Sure,we have a strong technical team and have rich experience. Our goal is to make you satisfied.
5.Q:Can you arrange the shipment for me?
A:We can arrange the shipment for our clients accordingly by sea and air. Trading terms FOB, CIF, EXW are available.
6.Q:Why should you choose us?
A:We have the high attention and faster response of post-sales in 24hrs. We offer two years-warranty for all products to ensure their activities and after-sales.
machine. It's essential to mention us about your cutting requests (materials, thickness, application and your expectation), our sales experts provides customized consulting service in term of your demand.
2.Q:When I got this machine, but I don't know how to use it. What should I do?
A:We will send video and English manual with the machine. If you still have some doubts, we can talk by telephone or skype and e-mail.
3.Q:How can I get the sample to check you quality ?
A:If you want to marking sample to check the quality, we can help you do this. first you need to provide the logo or design to us,free mark samples can be provided.
4.Q:Do the machine can be customized according my requirements?
A:Sure,we have a strong technical team and have rich experience. Our goal is to make you satisfied.
5.Q:Can you arrange the shipment for me?
A:We can arrange the shipment for our clients accordingly by sea and air. Trading terms FOB, CIF, EXW are available.
6.Q:Why should you choose us?
A:We have the high attention and faster response of post-sales in 24hrs. We offer two years-warranty for all products to ensure their activities and after-sales.
