Low cost One Channel Portable 1080P 60 FPS Recoding SRT RTSP RTMP 4 streaming Live Encoder
- Category: >>>
- Supplier: Hangzhou Dtvane Technology Co. Ltd.
Share on (1601052827438):
Product Overview
Description
Product Description
PLS PAY ATTENTION
THE PRICE ON THIS LINK NOT INCLUDING THE LICENSE COST OF WEBRTC FUNCTION, WEBRTC FUNCTION IS EXTRA COST

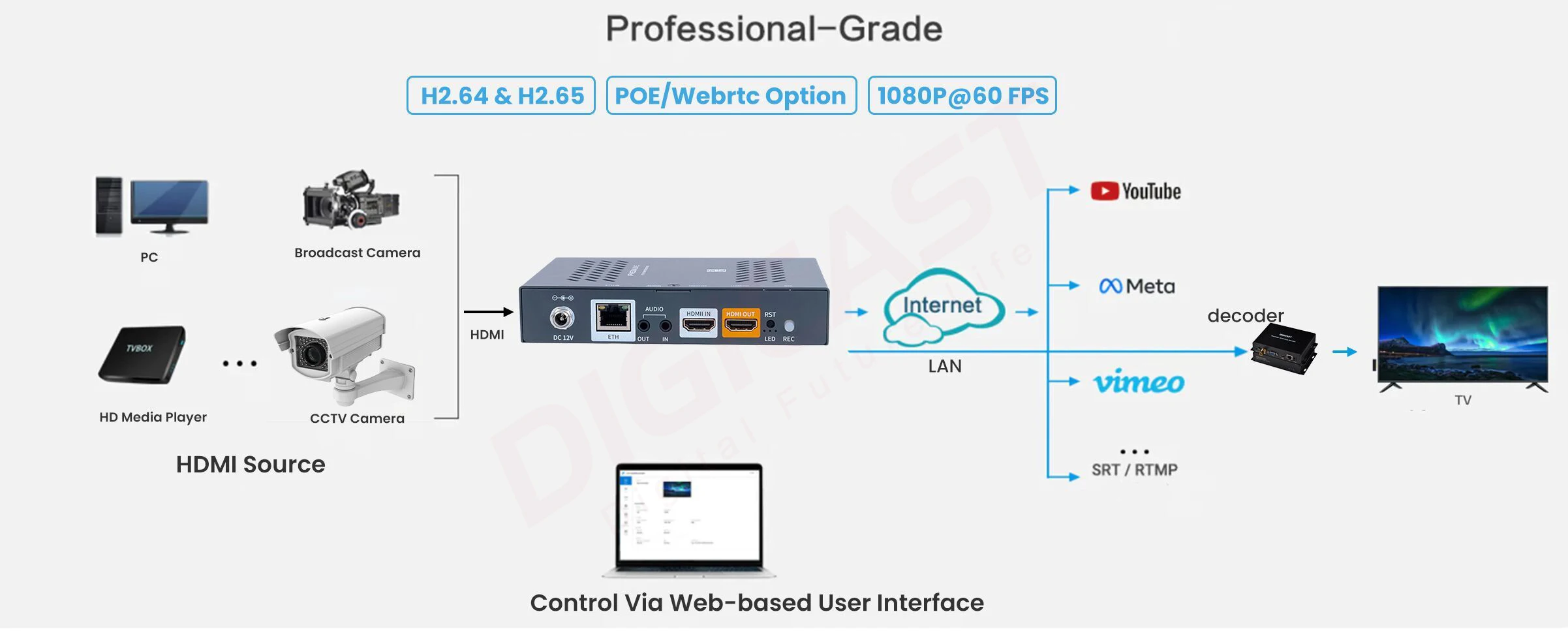

DMB-8900A-L mini ProVideo Streaming Encoder features high performance, low latency and low bit rates for IPTV/OTT systems, realized Video & Audio real-time transmission via internet, and adopts state-of-the-art compression technology of H.265/HEVC, which realizes its resolution to be up to 1080P. With powerful video pre-compression and efficient adaptive video compression algorithm, it is able to provide clear-delicate, high quality video even at lower bit rate within limited bandwidth.
DMB-8900A-L is a one channel HDMI input and outputs 4 channels TS over IP in H.265/H.264 format with multi-protocol, multi-resolution which can be freely adjusted according to your needs. Moreover, it provides username and password matching function required from a destination server, aiming at avoiding unauthorized streaming.
This Encoder support HDMI input HDMI Loop out, resolution max to 1080P@60 FPS , NDI,POE option, Webrtc support HTTPS play by 3 terminals over WAN with ultra low latency ! Support Recording function that storage the recorded streaming to USB external U-disk and TF card.
DMB-8900AL provides fully functional second development package, which can be applied to education, health care, IPTV, conference, remote education, news interview, court, public security, banking, transportation and other industry application.
FEATURES

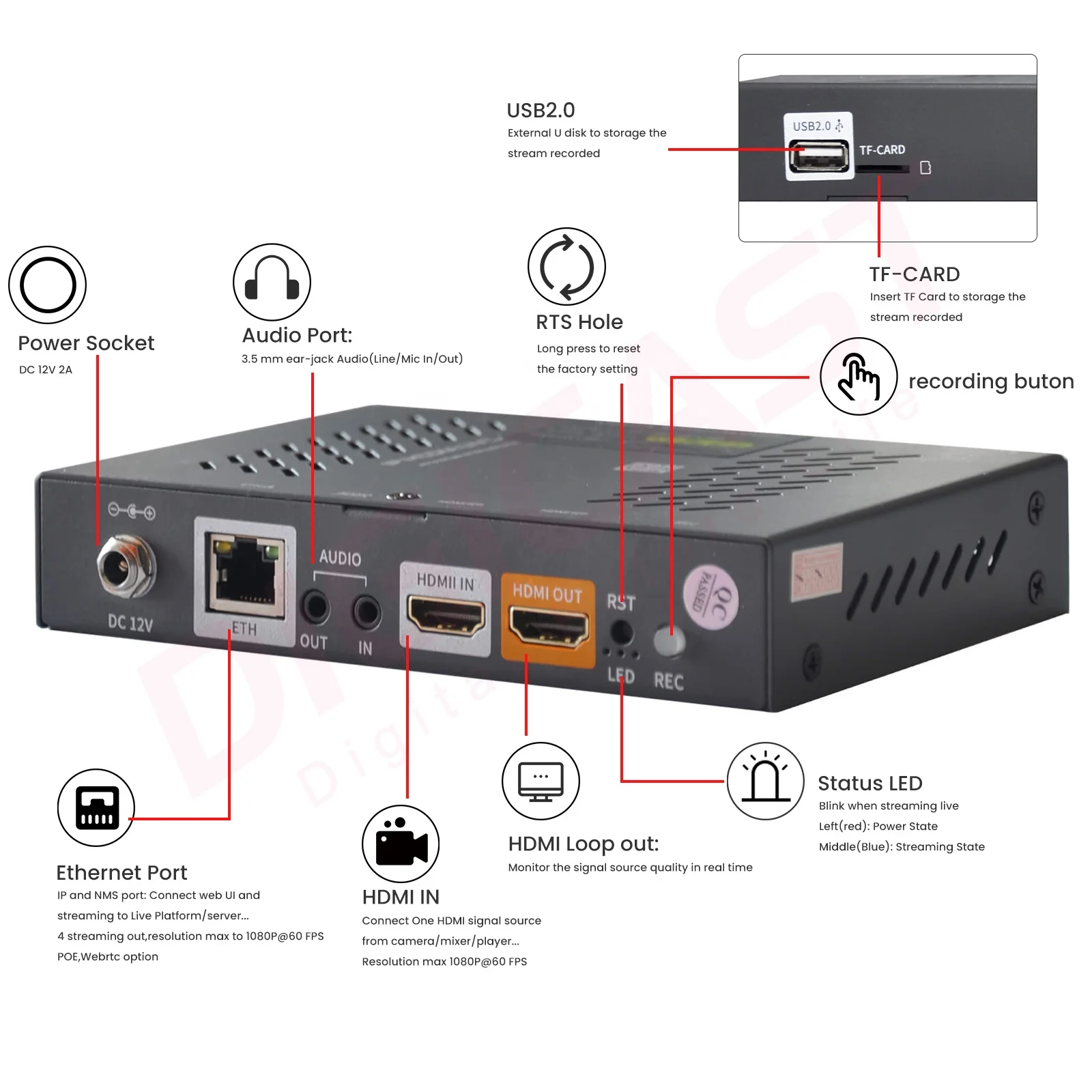

* 1*HDMI+3.5mm audio input with HDMI loop out
* Supporting up to 4 TS over IP stream out, 4 streaming out version price different support max 1080P@60 fps).
* Encoding level: Level 1/2/3/4/5(the higher level, the higher stream fluctuation rate)
* Switchable audio output mode: Left, right and Stereo
* Display on multi-screens from a computer is available
* Up to full HD 1080P output.
* Workable under HLS, RTSP/HTTP/UDP, RTMP unicast and multicast(Username and password verification allowed
* Supporting up to 4 TS over IP stream out, 4 streaming out version price different support max 1080P@60 fps).
* Encoding level: Level 1/2/3/4/5(the higher level, the higher stream fluctuation rate)
* Switchable audio output mode: Left, right and Stereo
* Display on multi-screens from a computer is available
* Up to full HD 1080P output.
* Workable under HLS, RTSP/HTTP/UDP, RTMP unicast and multicast(Username and password verification allowed
under RTMP)
* Support ONVIF network video protocol
* Multi-protocol, multi-resolution and multi-bitrate are configurable
* Any iOS device browser (iPhone, iPad, MacBook etc) is able to have streams from IPTV Streaming Encoder Anytime,
* Multi-protocol, multi-resolution and multi-bitrate are configurable
* Any iOS device browser (iPhone, iPad, MacBook etc) is able to have streams from IPTV Streaming Encoder Anytime,
Anywhere by HLS protocol without installing any software players
* Any terminal device/decoder is able to have streams from IPTV Streaming Encoder directly by RTMP protocol with
* Any terminal device/decoder is able to have streams from IPTV Streaming Encoder directly by RTMP protocol with
software players(such as VLC)
* Audio encoded bit-rate: 48kbps/64kbps /96kbps/128kbps/160kbps/192kbps /256kbps
* Bit-rate mode CBR/VBR,16Kbps~12Mbps
* Video packing: FFMPEG/VLC
* Transport method: TCP,UDP,1000M (RJ45 duplex interface)
* Web-based management easy for configuration.
* Scrollable English OSD ,picture overlay and logos are supported so that letters and symbols can be displayed anywhere
* Audio encoded bit-rate: 48kbps/64kbps /96kbps/128kbps/160kbps/192kbps /256kbps
* Bit-rate mode CBR/VBR,16Kbps~12Mbps
* Video packing: FFMPEG/VLC
* Transport method: TCP,UDP,1000M (RJ45 duplex interface)
* Web-based management easy for configuration.
* Scrollable English OSD ,picture overlay and logos are supported so that letters and symbols can be displayed anywhere
in the screen
* Allowing DHCP to automatically obtain IP, offering one key recovery & upgrading and remote maintenance.
* Image setup: contrast, brightness, hue, saturation, noise inspection, sharpness, wave filtering
* Audio: embedded or line in; left & right; built-in audio gain for independent volume adjustability
* Able to encode with absence of video signal
* The setting comes into effect once finished while reboot is unnecessary
* Default configuration can be done by one key recovery
* WINDOWS XP/VISTA/SERVER 2003/SERVER 2008/WIN7 32 and WIN7 64, LINUX are supported
* Allowing DHCP to automatically obtain IP, offering one key recovery & upgrading and remote maintenance.
* Image setup: contrast, brightness, hue, saturation, noise inspection, sharpness, wave filtering
* Audio: embedded or line in; left & right; built-in audio gain for independent volume adjustability
* Able to encode with absence of video signal
* The setting comes into effect once finished while reboot is unnecessary
* Default configuration can be done by one key recovery
* WINDOWS XP/VISTA/SERVER 2003/SERVER 2008/WIN7 32 and WIN7 64, LINUX are supported
Highlight

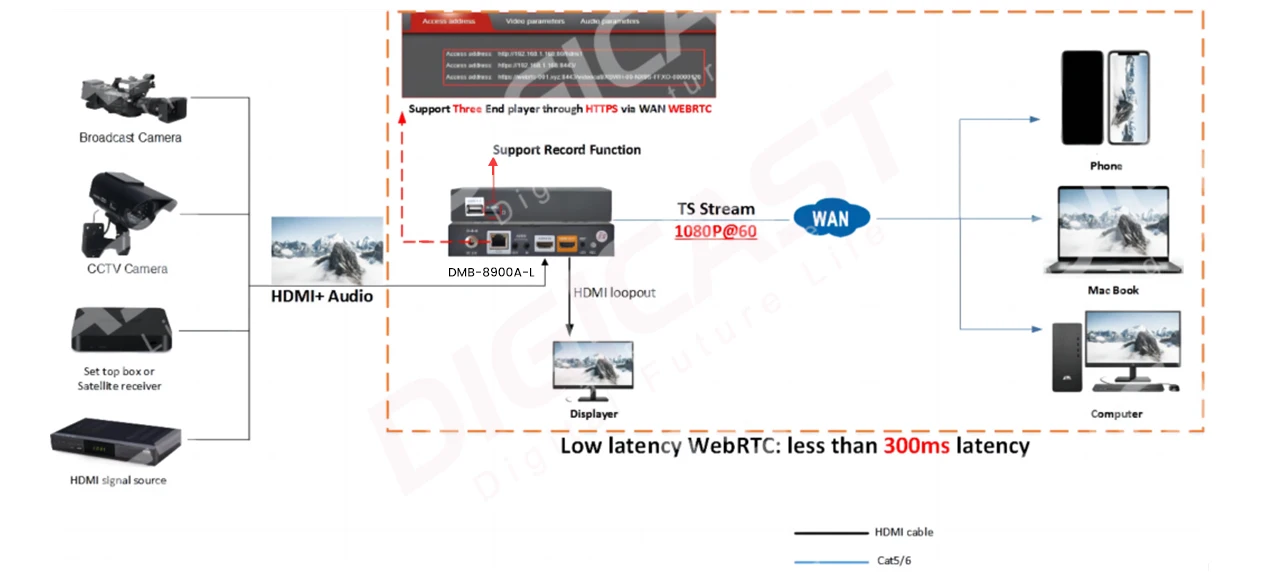

Webrtc for ultra low latency over WAN in 3 terminals, play by browser in 3 terminals over WAN by HTTPS URL
Low latency transmission for live streaming application
Highlights :

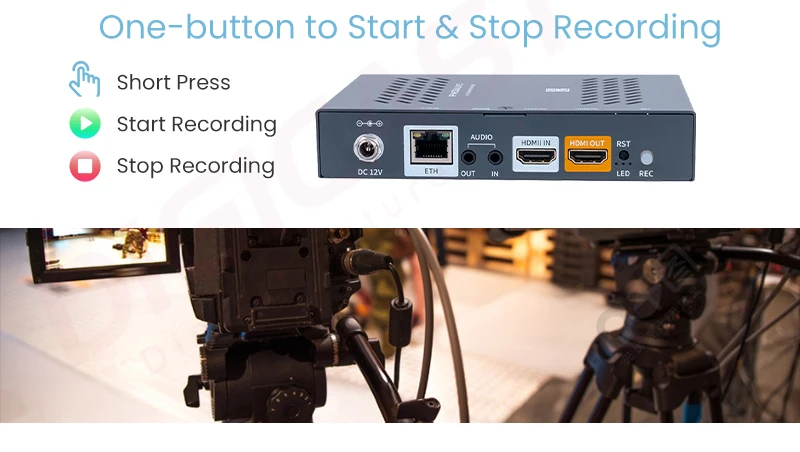

Recording Function

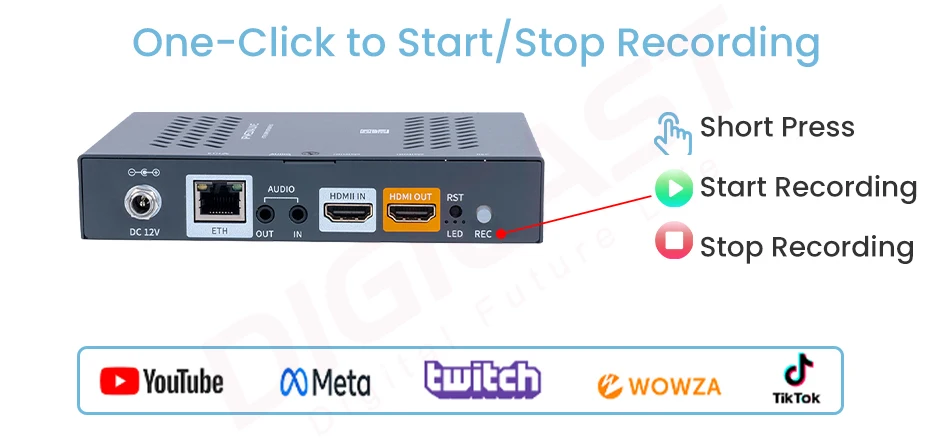

One Click to start/stop recording function
Storage the recorded Content to the external U-disk or TF card
Highlight
4 streaming out with different resolution/IP protocol/bitrate for multiscreen live application
Four streaming output at the same time with max resolution 1080P@60 FPS
