CINCO 350W 360W 370W mono solar panel with cheap price can do customization for 3KW 5KW on off grid solar system
CINCO 350W 360W 370W mono solar panel with cheap price can do customization for 3KW 5KW on off grid solar system
CINCO 350W 360W 370W mono solar panel with cheap price can do customization for 3KW 5KW on off grid solar system
CINCO 350W 360W 370W mono solar panel with cheap price can do customization for 3KW 5KW on off grid solar system
CINCO 350W 360W 370W mono solar panel with cheap price can do customization for 3KW 5KW on off grid solar system
CINCO 350W 360W 370W mono solar panel with cheap price can do customization for 3KW 5KW on off grid solar system
CINCO 350W 360W 370W mono solar panel with cheap price can do customization for 3KW 5KW on off grid solar system

CINCO 350W 360W 370W mono solar panel with cheap price can do customization for 3KW 5KW on off grid solar system

Share on (1601052885035):


Price:$0.18 - $0.20

Quantity:


Product Overview

Description





Products Description



High Quality Solar Panel
Mono crystalline
Poly crystalline

1. Rigorous quality control meeting the highest international standards
2. High-transmissivity low-iron tempered glass, strong aluminium frame Using UV-resistant silicon
3. Aesthetic appearance with excellent efficiency based on innovative photovoltalic technologies
4. High quality,strong aluminium frame,passing mechanical load testing 5400 Pa and wind pressure 2400Pa






5BB/12BB Mono/Poly Solar Cell

PV Junction Box
Aluminum frame
High transmission glass


Details Images








Product Paramenters


 Electrical Characteristics
Model
CNCB350W
Maximum Power at STC (Pmax)
350W
Optimum Operating Voltage (Vmp)
39.0V
Optimum Operating Current (Imp)
8.98A
Open-Circuit Voltage (Voc)
47.4V
Short-Circuit Current (Isc)
9.56A
Solar Module Efficiency (%)
18.04
Operating Temperature
-40 to 85℃
Maximum System Voltage
DC1000
Maximum Series Fuse Rating
15A
Power Tolerance
+/-3%
 Mechanical Characteristics
Solar cell
Mono-Crystalline156*156mm
No.of cells
72 (6×12)
Front glass
3.2mm tempered glass
Frame
Anodized aluminium alloy
Dimensions
1956mm*992mm*45mm
Weight
24kg
 Temperature Coefficient
Nominal Operating Cell Temperature (NOCT)
45℃+/-2℃
Temperature Coefficient of Pmax
-0.39%/℃
Temperature Coefficient of VOC
-0.29%/℃
Temperature Coefficient of ISC
+0.049%/℃
STC:Irradiance 1000W/㎡,Modules Temperature 25℃,AM=1.5

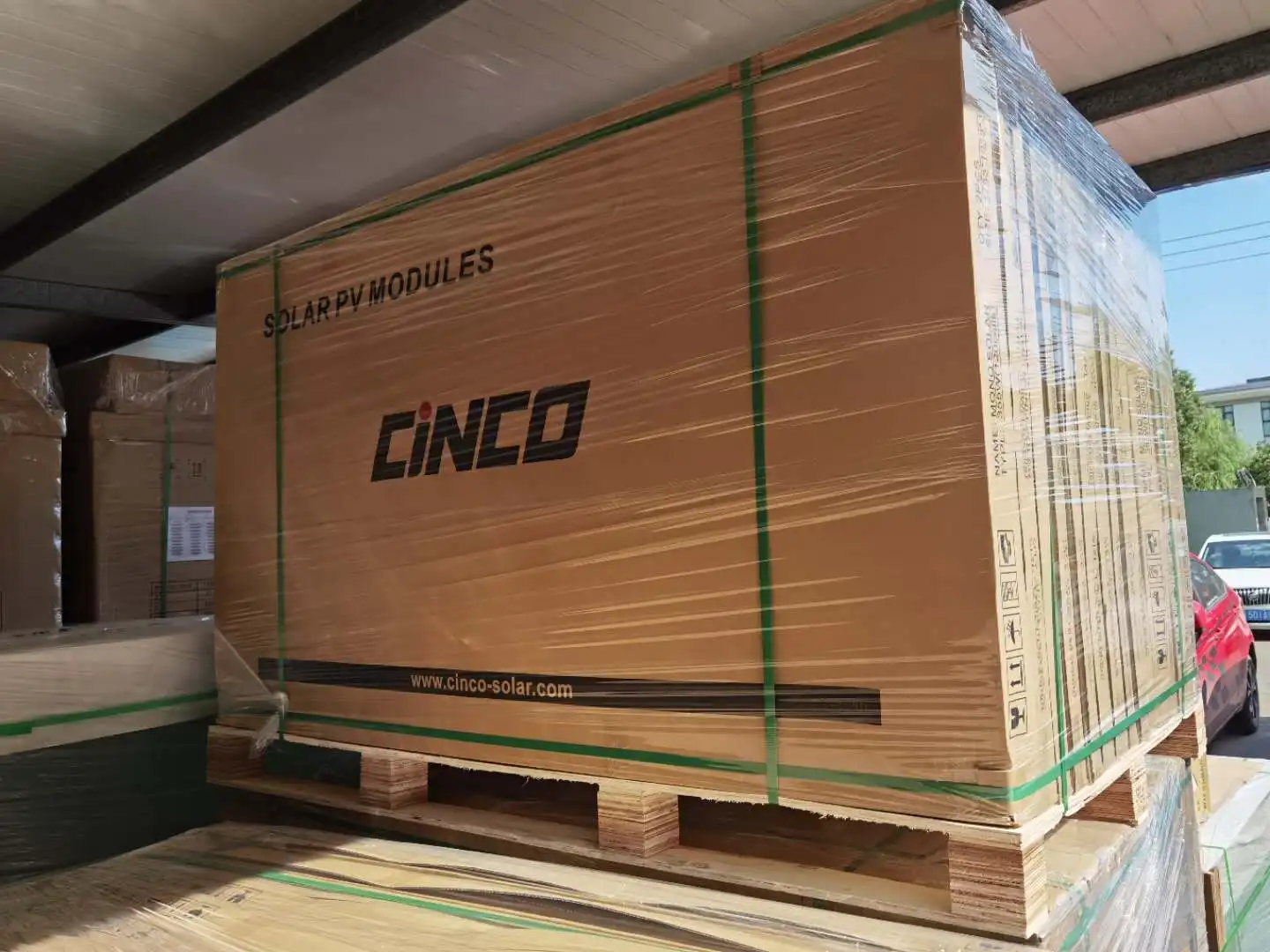

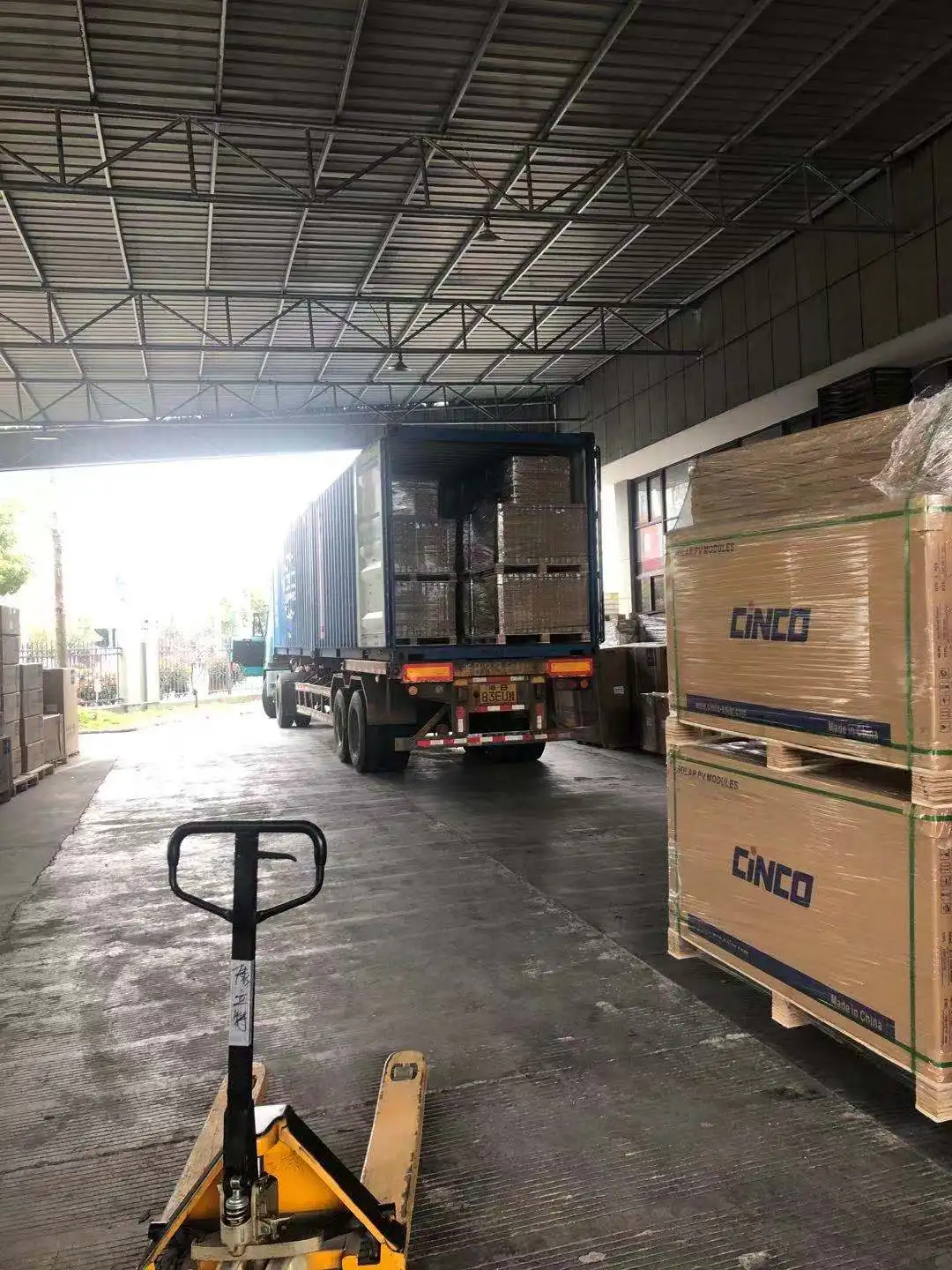

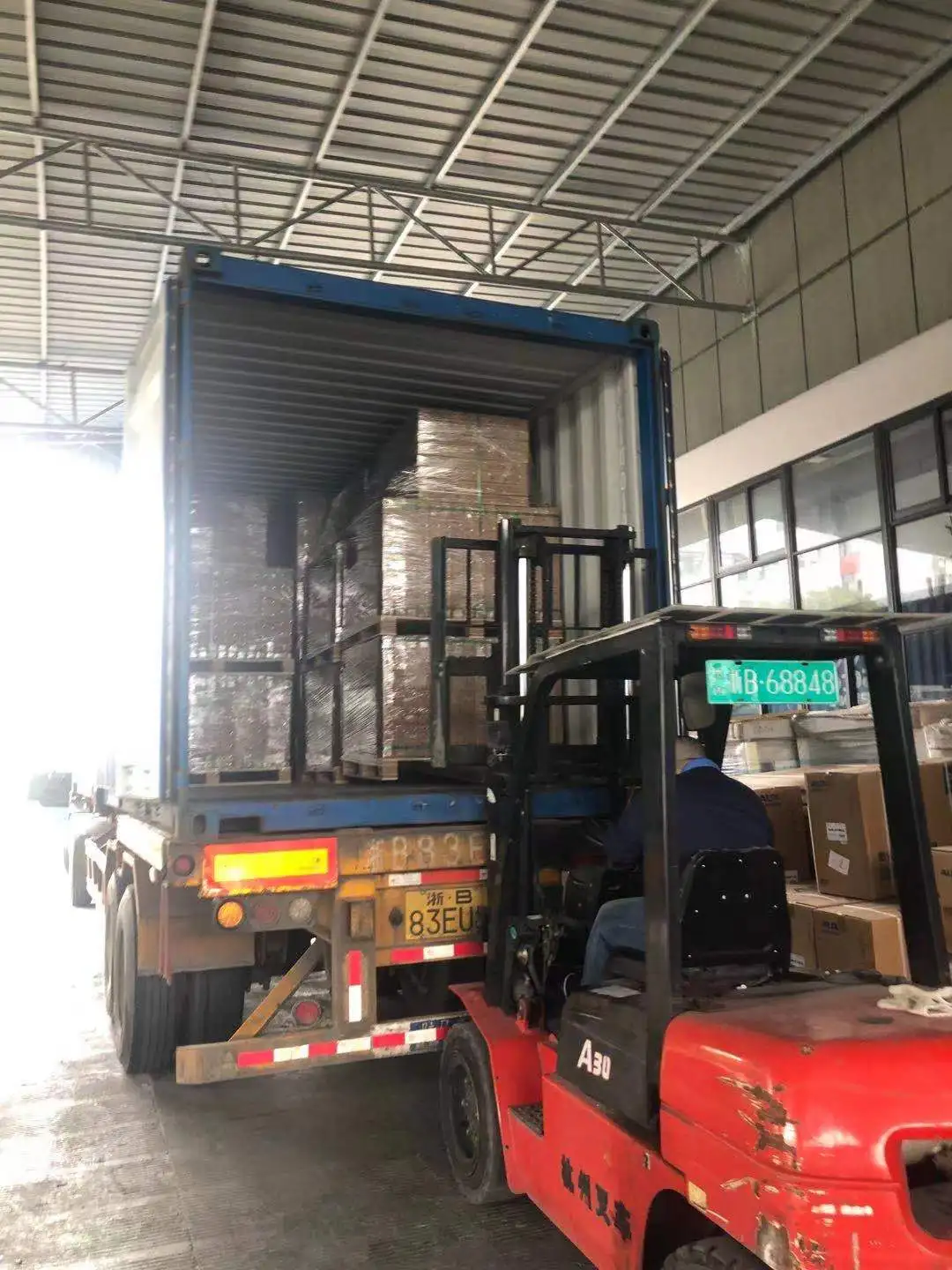

Product packaging






Customer Photos


Norway--Solar Tracking System
Saudi Arabia-Wind Solar Hybrid System
Hungary-Off Grid Solar System


Panama-Off Grid Solar System
South Africa-Energy Storage System
China-On Grid Solar System


USA-Grid Tied Solar System
Indonesia-Rooftop Solar Power Station


Ukraine-On Grid Solar System
UK-Ground Solar Power Station
