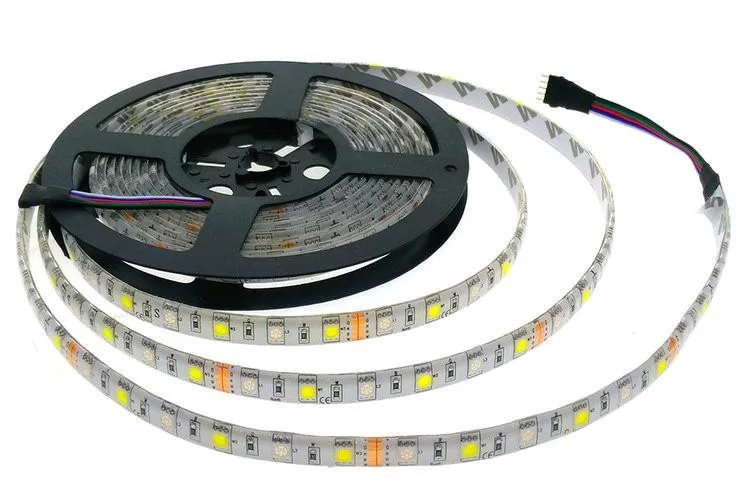

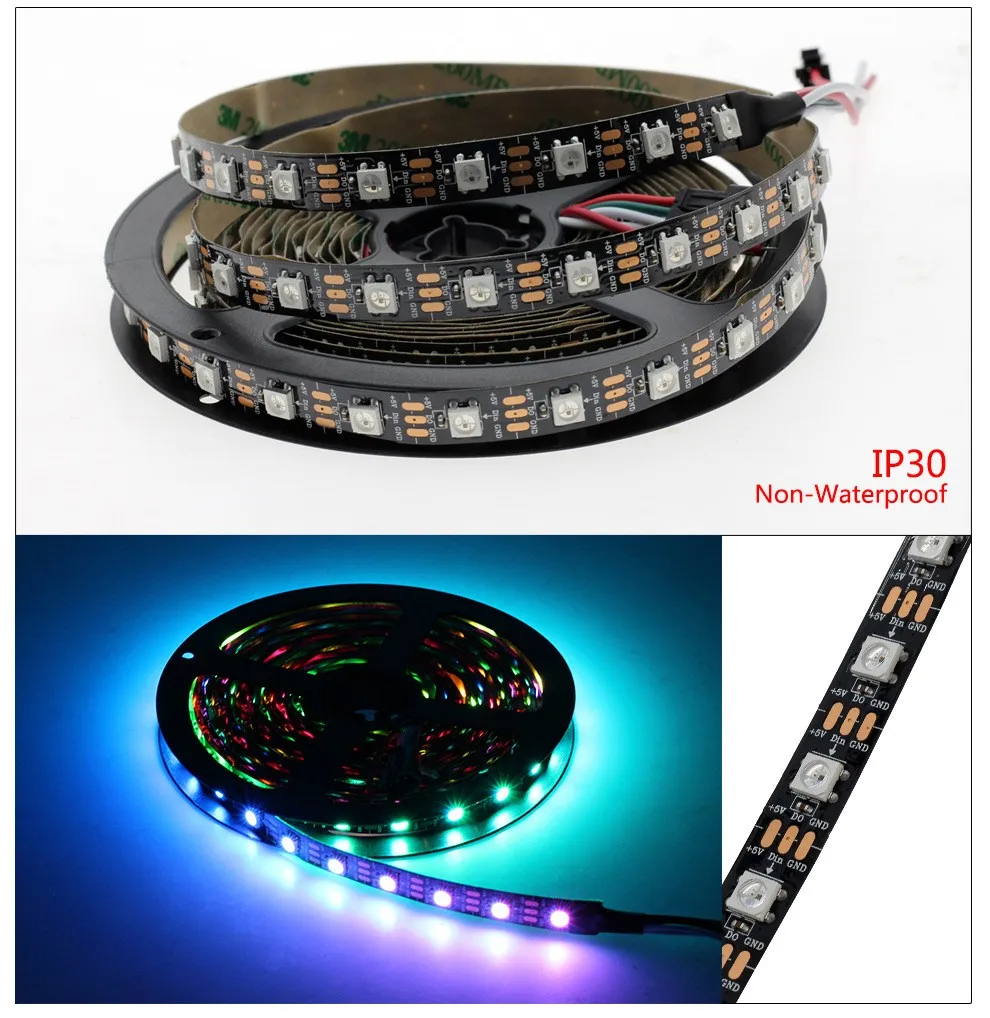

SMD 5050 5V RGB LED Strip Copper Body SK6812 WS2812B Addressable Pixel for Light Strings Lighting Circuitry Design Solutions

smd 5050 5V rgb led pixel addressable SK6812 ws2812b LED strip

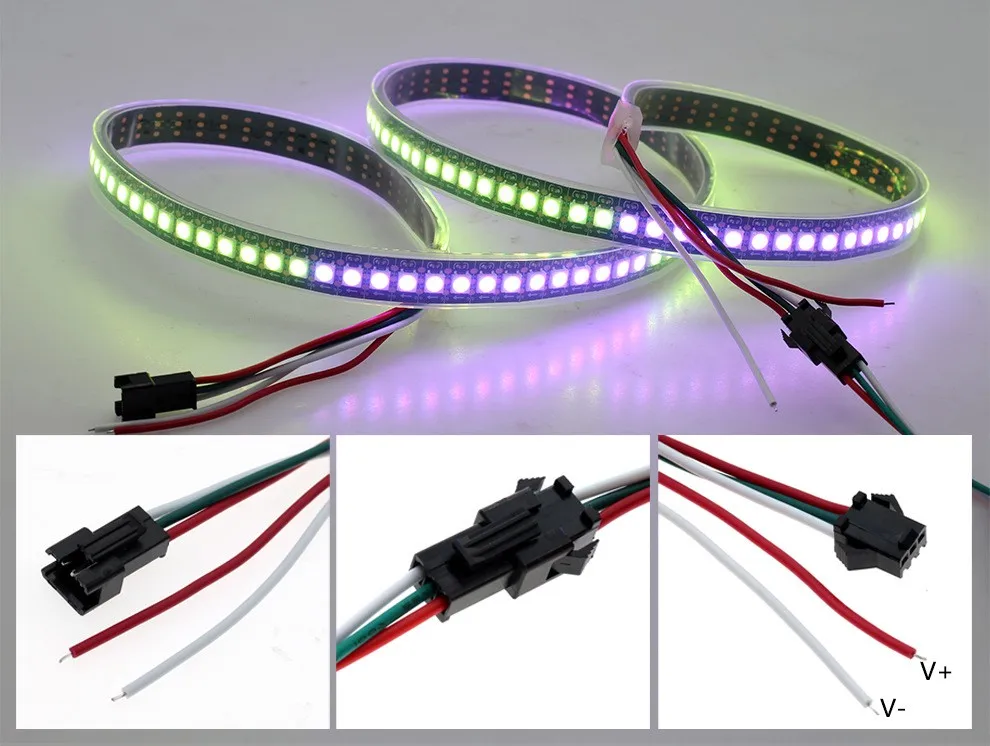

Name: SK6812RGB LED pixel strip
Working Voltage: DC5V
Power: 9W +/- 10% /Meter

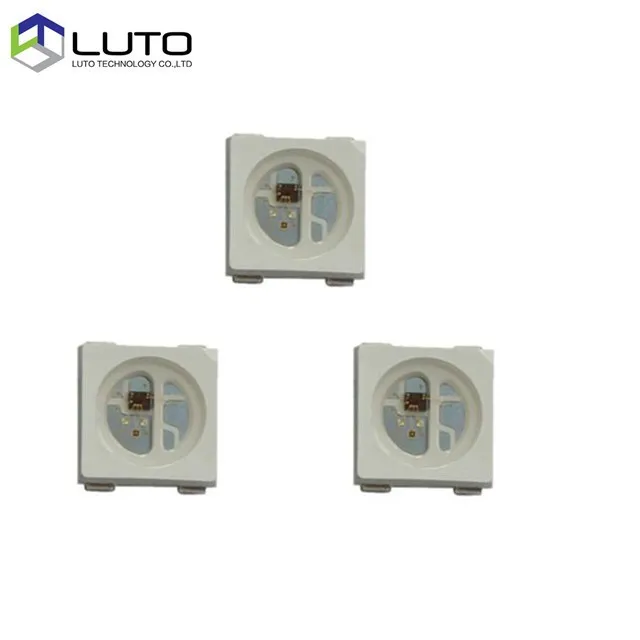

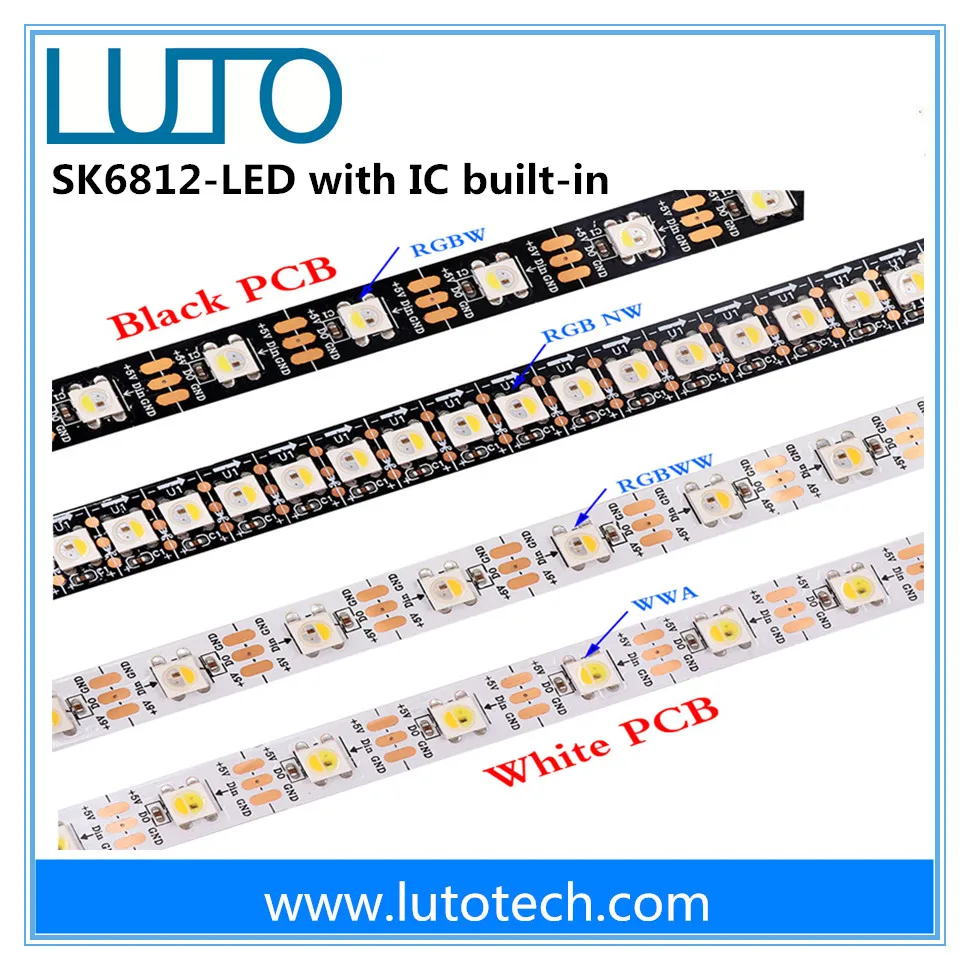

LEDs: SMD 5050 RGB LED with IC SK6812 or WS2812 built-in
PCB material: FPCB
Chips: Epistar
IC: SK6812
Gray Level: 256
Beam Angle: 120degree
Emitted Color: full color, flexibly controlled by controller
PCB size: 5000mm*10mm*3mm

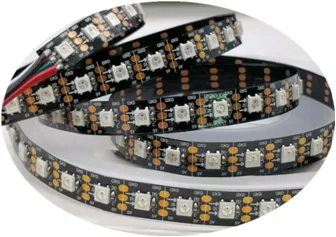

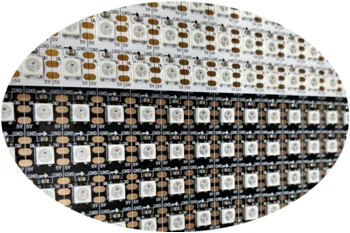

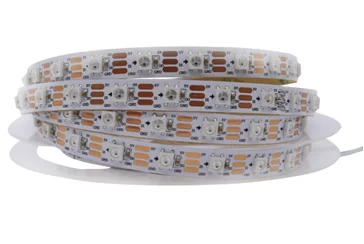

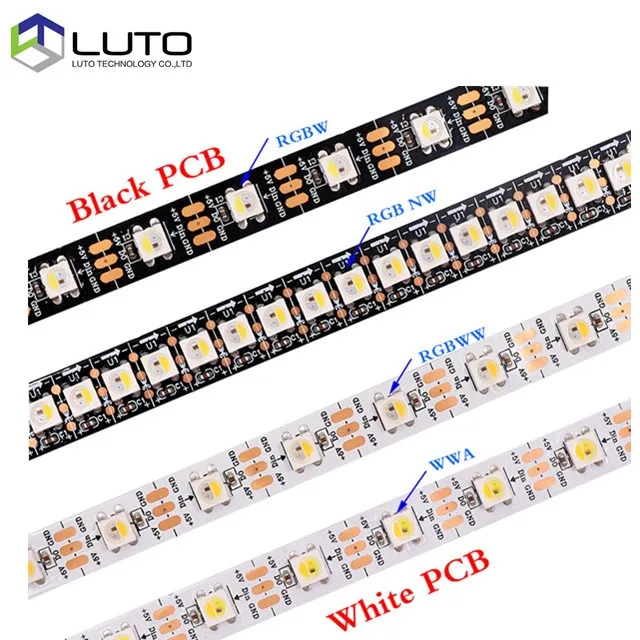

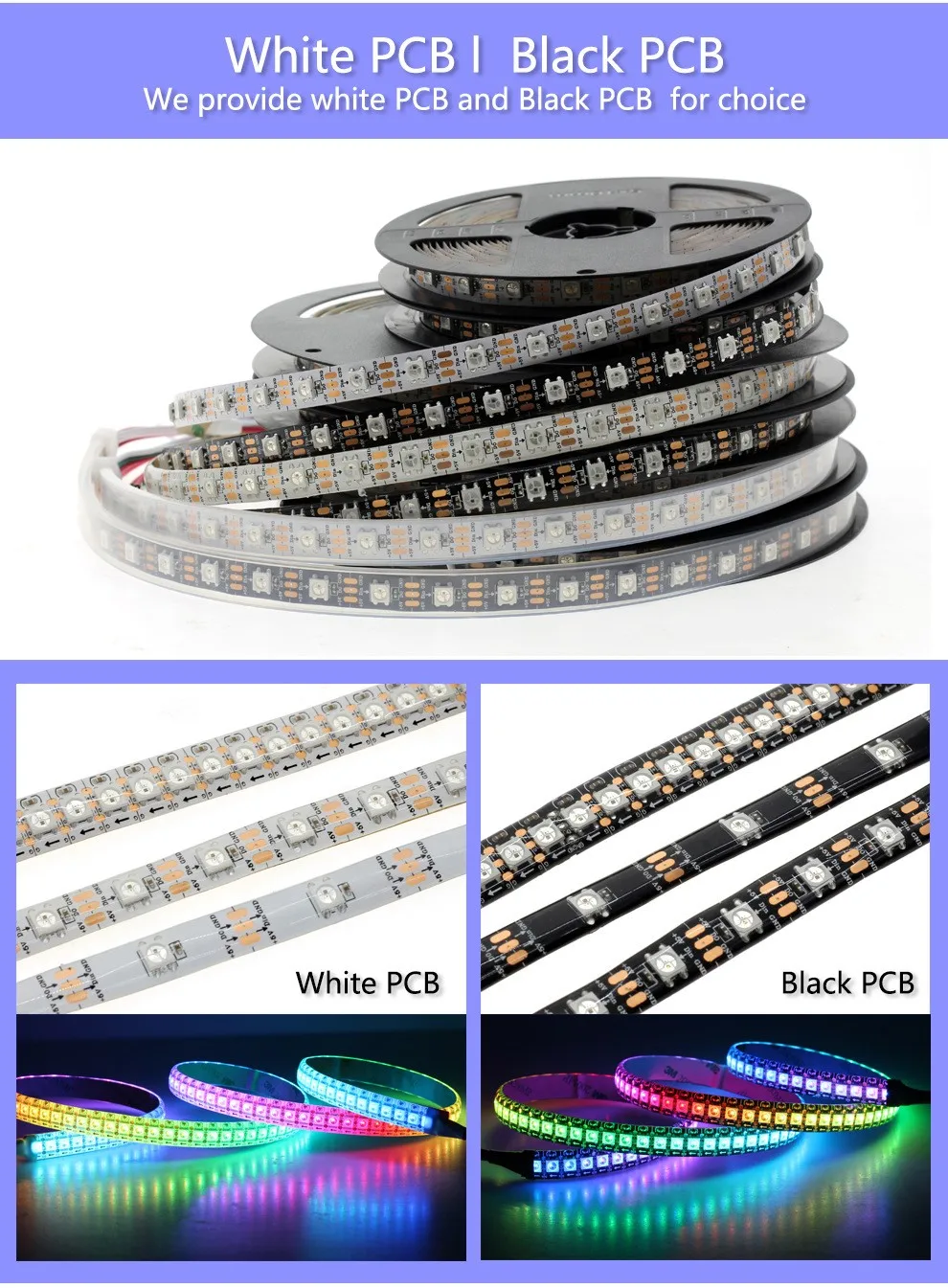

FPCB color available: white or black

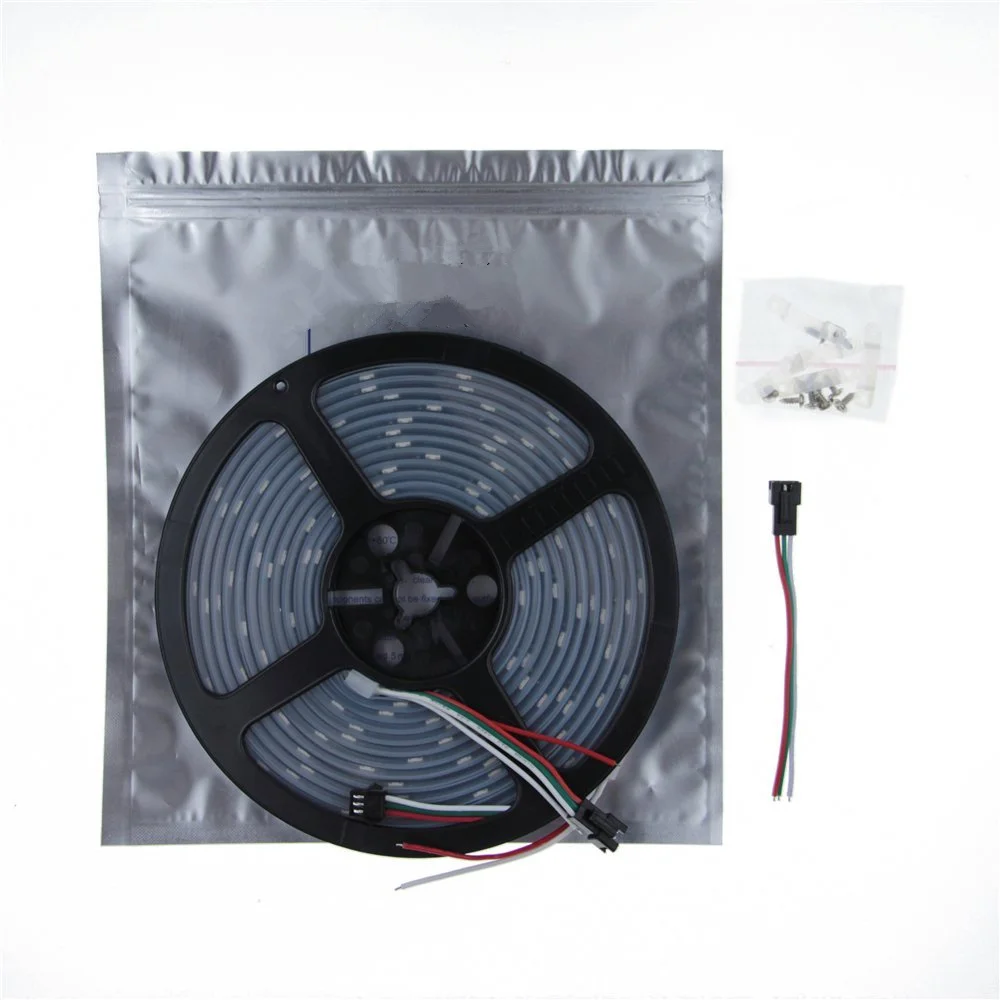

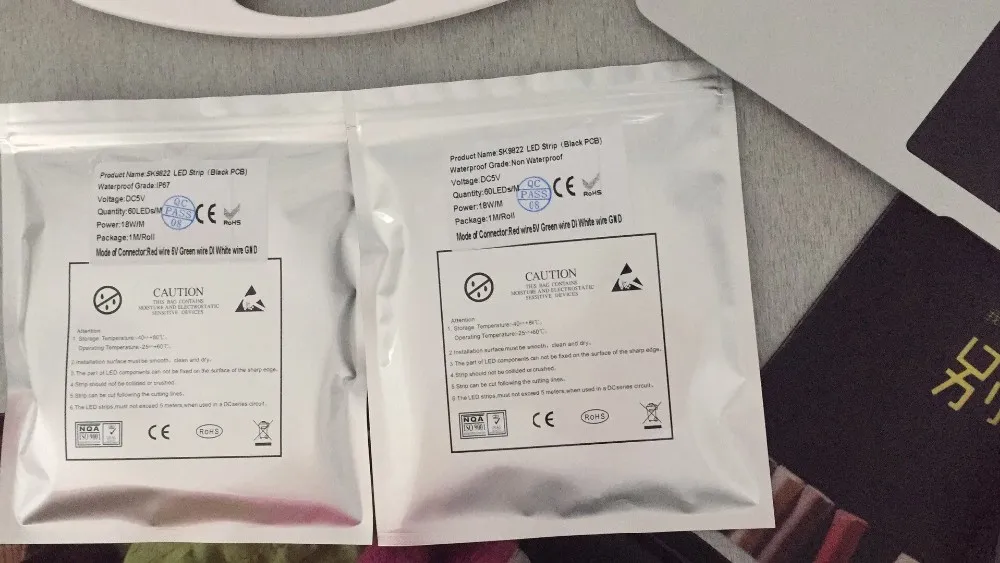

Package: 0.5M, 1M, 2M, 3M, 5M /roll available. Anti-static bag
Magic controller and power supply(UL and non-UL) are available from our company.

Features:

1. Control principle: IC is built right into LED. An IC controls one LED and they form a group of loop. the controller is controlled by the controlling circuit of IC inside the FPCB, so as to control the LED strip changes with different effects;

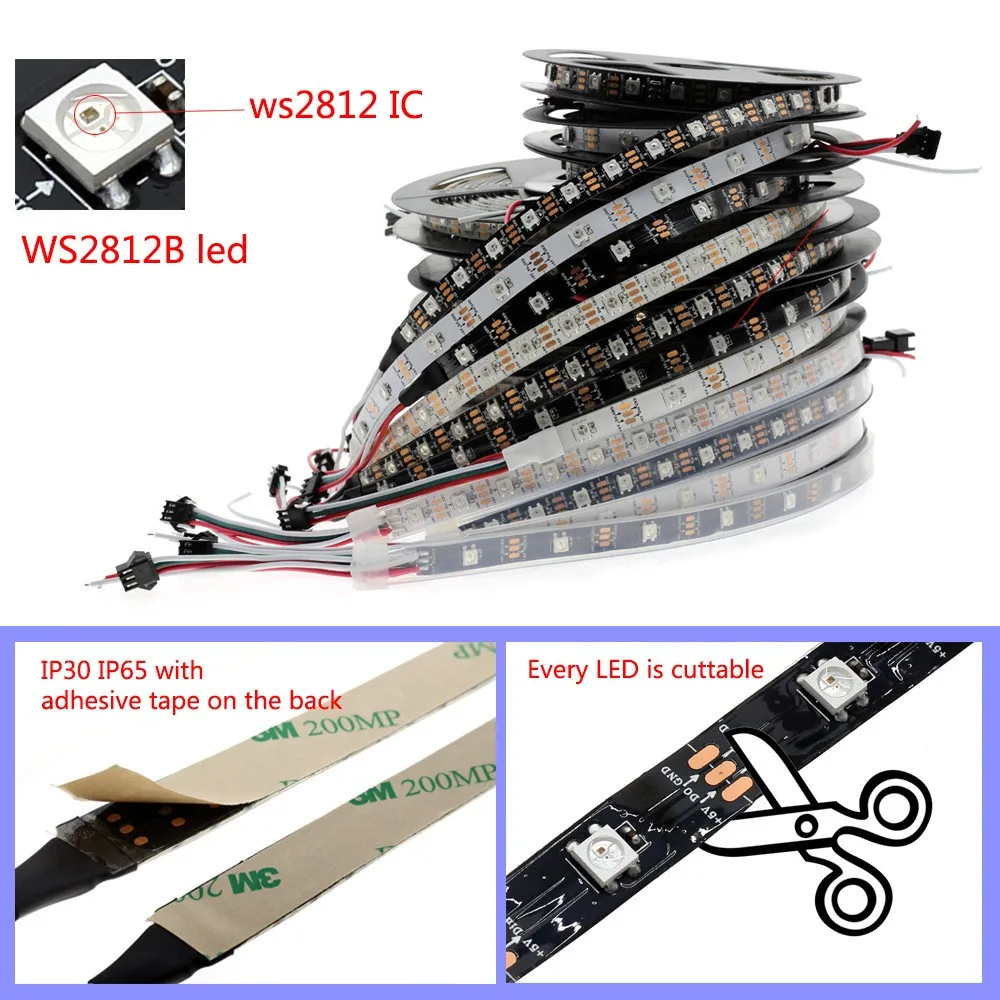

2. 1 LED/Unit can be cut

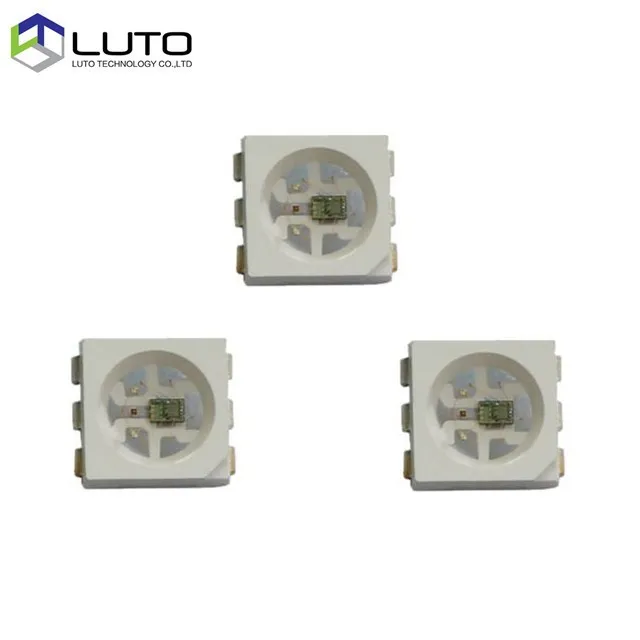

3. R,G,B and IC are encapsulated in 4PIN or 8 PIN LED.
4.IC is built-in LED. One LED is one pixel. Every single LED is addressable. It is programmable.
5. It can achieve single pixel control, point by point scanning, reach magic RGB chase, horse racing, gradual change and other effects.
6. Data transmission speed can reach 800Kbps
7. Uniform lighting, low failure rate and very cost effective.
8. Environmental safety and Energy Saving: no pollution, small power consumption
9. Light and thin: suitable for installation in the narrow space inside

30leds/M

LEDs: 5050 RGB with IC SK6812 or WS2812 built-in

Working Voltage: DC5V

Power: 7.2W/M

Color: RGB Full color

PCB Color: white or black

PCB size: 5000*10mm

Standard Package: 5M/roll

One LED per unit can be cut-able.

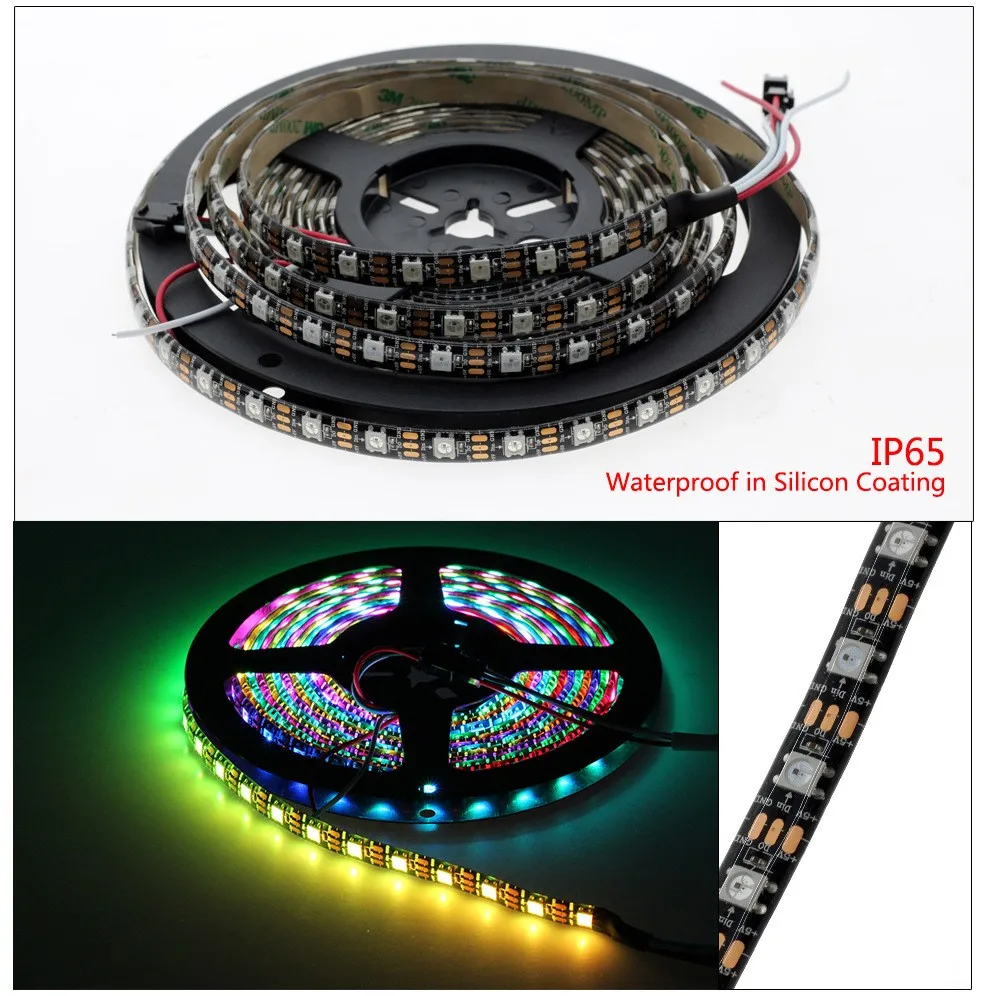

Price: IP20: USD1.98/M, IP65&IP67: USD2.28/M

60leds/M

LEDs: 5050 RGB with IC SK6812 or WS2812 built-in
Working Voltage: DC5V
Power: 14.4W/M
PCB size: 5000*10mm
Standard Package: 5M/roll
Price: IP20: USD3.42/M, IP65&IP67: USD3.72/M

74leds/M

LEDs: 5050 RGB with IC SK6812 or WS2812 built-in
Working Voltage: DC5V
Power: 18W/M
PCB Color: white or black
PCB size: 5000*12mm
Standard Package: 5M/roll
Price: IP20: USD4.87/M, IP65&IP67: USD5.17/M

96leds/M

LEDs: 5050 RGB with IC SK6812 or WS2812 built-in
Working Voltage: DC5V
Power:23W/M
PCB size: 5000*12mm
Standard Package: 2M/roll
One LED per unit can be cut-able.
Price: IP20: USD6.25/M, IP65&IP67: USD6.55/M

144leds/M: IP20: USD9.51/M, IP65&IP67: USD9.81/M
