High Quality Customized Size HD LED Display Screen Video Wall for Conference
- Category: >>>
- Supplier: Shenzhen Tianji Photoelectric Technology Co. Ltd.
Share on (1601053202746):
Product Overview
Description
Products Description
1000X500mm Box size data | ||||||||||
Indoor | ||||||||||
Pixel pitch | 1.56 | 1.95 | 2.604 | 2.976 | 3.91 | |||||
LED Lamp | SMD 1212 | SMD 1515 | SMD 1515 | SMD 2020 | SMD 2020 | |||||
Density(dots/m²) | 410881 | 262144 | 147456 | 112896 | 65536 | |||||
brightness | ≤800nits | ≤800nits | ≤800nits | ≤800nits | ≤800nits | |||||
IP Rating | IP45 | IP45 | IP45 | IP45 | IP45 | |||||
Cabinet Materiel | Die-casting Aluminum | |||||||||
Scan | 40 Scan | 32 Scan | 32 Scan | 21 Scan | 16 Scan | |||||
Module Weight | 0.5Kg | 0.5Kg | 0.5Kg | 0.5Kg | 0.5Kg | |||||
Cabinet Weight | 15Kg | 15Kg | 15Kg | 15Kg | 15Kg | |||||
Module Size(mm) | 250*250 | 250*250 | 250*250 | 250*250 | 250*250 | |||||
Cabinet Size(mm) | 500*1000*85 | 500*1000*85 | ||||||||
Module Pixel(dots) | 160*160 | 128*128 | 96*96 | 84*84 | 64*64 | |||||
Cabinet Pixel(dots) | 320*640 | 256*512 | 192*384 | 168*336 | 128*256 | |||||
Max power | 600w/sqm | 600w/sqm | 600w/sqm | 600w/sqm | 600w/sqm | |||||
Average power | 360w/sqm | 360w/sqm | 360w/sqm | 360w/sqm | 360w/sqm | |||||
Viewing angle | H140(+70/ -70)deg V140 (+70/ -70)deg | |||||||||
Control way | Synchronous/Asynchronous | |||||||||
Gray scale | 16 bit | |||||||||
Operating system | AV，S -Video,VGA ，Ypbpr,HDMI，SDI | |||||||||
Work humidity | 10%~90% | |||||||||
Work temperature | -20~+65℃ | |||||||||
Advantage | Energy saving screen 60% | |||||||||
Specifications
If you want to know more product information parameters, please click here to contact us，go now＝＝＝＝＝﹥

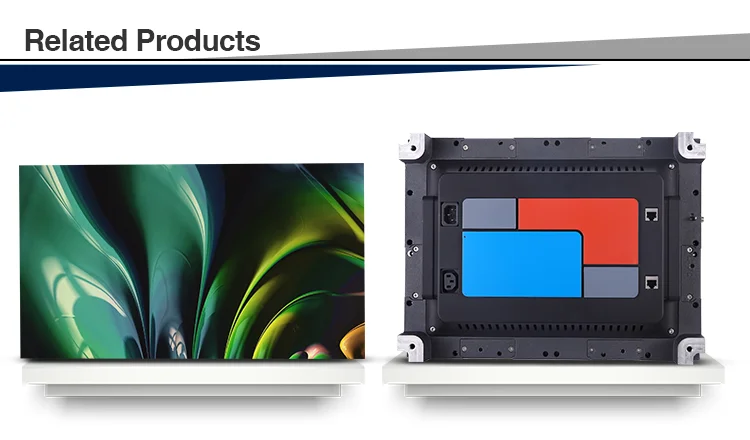

Recommend Products

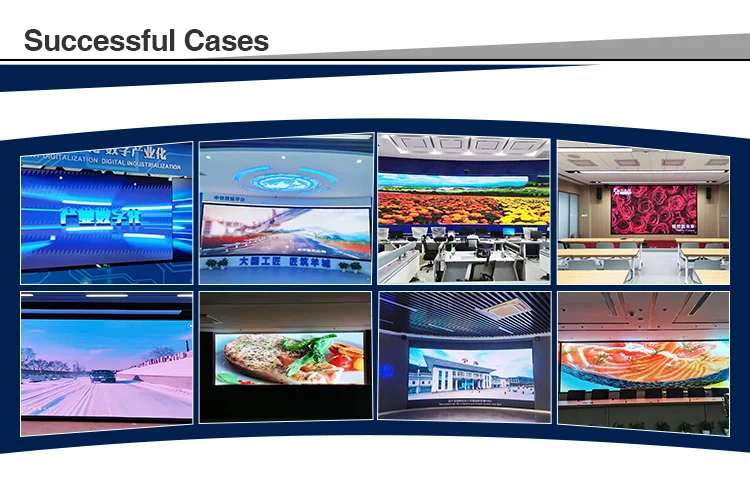

Engineering Case
Our products are all customizable categories, if you need products of different sizes, please contact us, we have professional designers, engineers and perfect production process. TJLeddisplay offers one-stop service for your projects which help your business become easier, more professional and more competitive.
Company Profile
Certifications

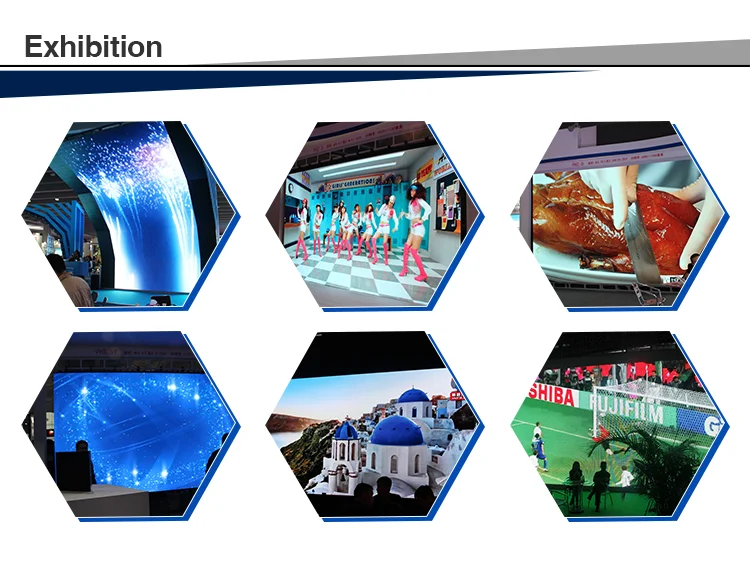

Exhibition
