PP filter plate and filter frame Oil plate and frame pressurised filter
- Category: >>>
- Supplier: Shenyang Great Wall Filtration Co. Ltd.
Share on (1601053326547):
Product Overview
Description
Product description

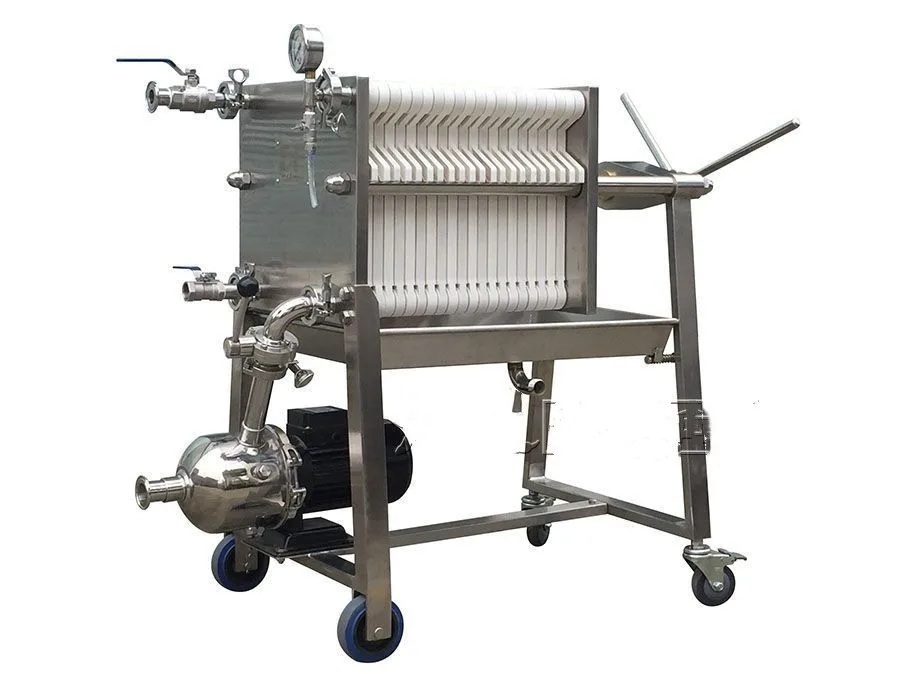

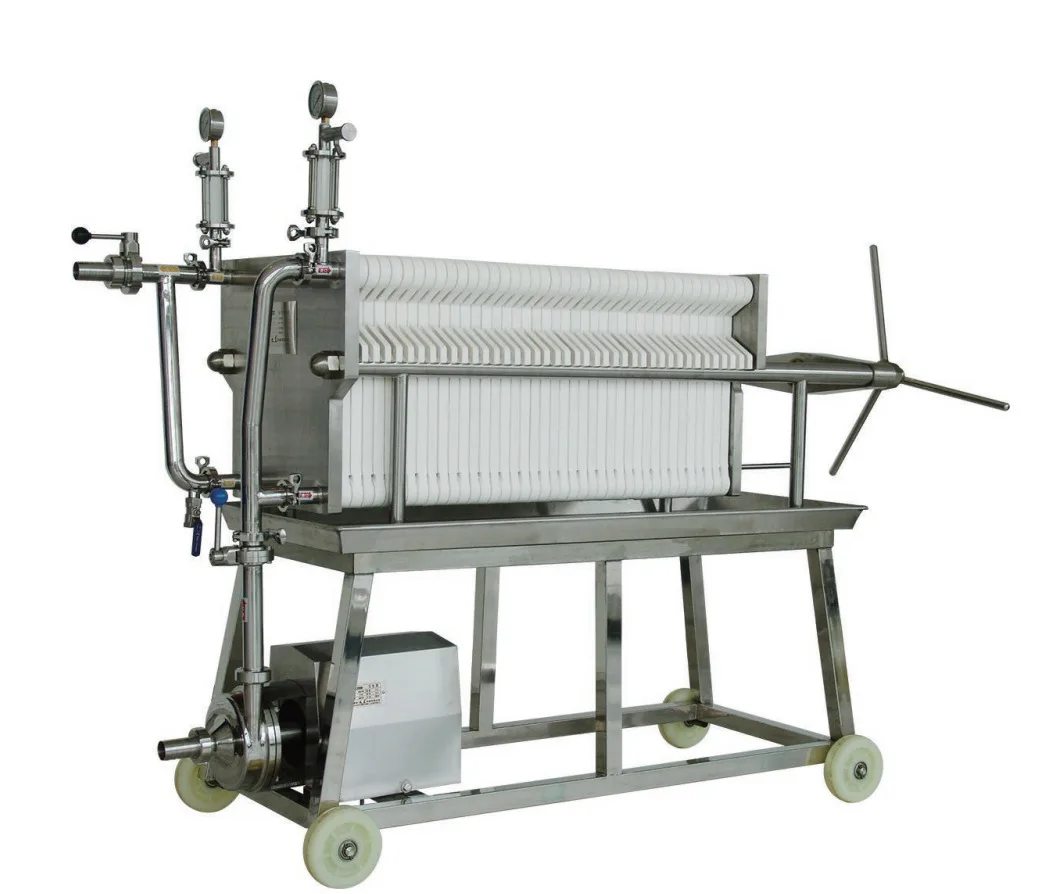

Polypropylene plate and frame filter
Polypropylene plate and frame filter is sealed without dripping and leakage, and the channel is smooth without dead angle, which ensures the effect of filtration, cleaning and sterilization. The sealing ring of medical and health grade can be used to clamp various thin and thick filter materials, and it is more suitable for the heat filtration of high temperature liquid materials such as beer, red wine, beverage, medicine, syrup, gelatin, tea beverage, grease, etc.
Filter effect comparison
Specific Advantages
Sheet filter BASB400UN is an enclosed filtration system. The design is based on the high hygiene and purity requirements.
• Without any leakage using filter sheet
• Applicable to a variety of filter media
• Variable application options
• Wide range of application
• Easy handling and good cleanability
• Without any leakage using filter sheet
• Applicable to a variety of filter media
• Variable application options
• Wide range of application
• Easy handling and good cleanability
Outlet plate

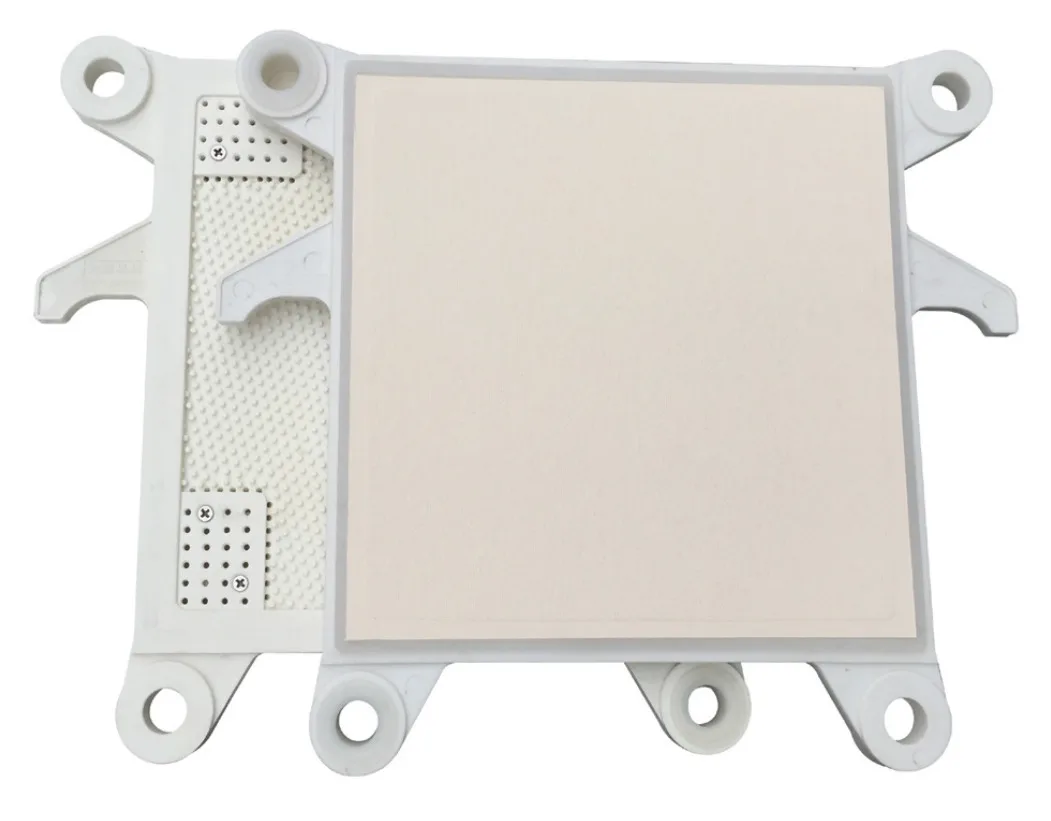

Filter sheet embedded on the outlet plate
Applicable filter media | ||
Thickness | Type | Function |
Thick filter media (3-5 mm) | Filter sheet | Clear Fine Sterile Pre-coating Filtration |
Thin filter media （≤1MM） | Filter paper /PP microporous membrane/ Filter cloth |
Filter size (mm) | Filter plate / Filter frame(Pieces) | Filter area （M²） | Cake frame volume (L) | Reference filtration volume(t/h) | Pump motor power(kW) | Dimensions LxWxH (mm) |
BASB400UN-2 | ||||||
400x400 | 20 | 3 | / | 1-3 | / | 1550x670x1100 |
400x400 | 30 | 4 | / | 3-4 | / | 1750x670x1100 |
400x400 | 44 | 6 | / | 4-6 | / | 2100x670x1100 |
400x400 | 60 | 8 | / | 6-8 | / | 2500x670x1100 |
400x400 | 70 | 9.5 | / | 8-10 | / | 2700x670x1100 |
Polypropylene plate and frame filter Application Applications
• Pharmaceutical
API, preparations
pharmaceutical intermediates
• Liquor & alcohol
wine, beer, spirit, fruit wine
• Food &beverage
juices, olive oil, syrup, gelatin
• Biological
herbal & natural extracts, nzymes
Company Profile
Shenyang Great Wall Filtration Co.,Ltd was established in 1989, it is manufacturer specializing in the production of Filter paper and Filter sheets. The product is used for filtration in the food and beverage industry, Oil industry, pharmaceutical industry, chemical industry and food additives and other industries
We have production workshop and Research and Development department, and have the ability to develop new product series with customers.Also, our company is the drafting unit of China's filter paper industry board standard and the first brand of China's filter paperboard.
At present, our company cooperates with many well-known domestic and foreign corporate brands such as: beverages Pepsi and Coca-Cola, beer Budweiser InBev and Tsingtao Brewery, WACKER chemical industry, etc.,
Our company has professional technicians who are very experienced in filtration; we can provide your company with technical support for filter paper at any time.
We have production workshop and Research and Development department, and have the ability to develop new product series with customers.Also, our company is the drafting unit of China's filter paper industry board standard and the first brand of China's filter paperboard.
At present, our company cooperates with many well-known domestic and foreign corporate brands such as: beverages Pepsi and Coca-Cola, beer Budweiser InBev and Tsingtao Brewery, WACKER chemical industry, etc.,
Our company has professional technicians who are very experienced in filtration; we can provide your company with technical support for filter paper at any time.
Our Exhibition
Packing & Delivery
Our customer
FAQ
1.Q: Are you a factory or a trading company?
A: We are a professional manufacturing factory of Filter sheets, we are able to supply you with top quality and perfect
workmanship. OEM and ODM products.
2.Q: What is your Product material?
A: Our products are made up from high quality wood pulp, cotton pulp, cellulose, diatomaceous earth and so on.
3. Q:What’s you sample policy?
A: We can provide some samples free for your test, freight will be paid by your side.
4.Q: Can you do any size?
A: Yes, we can do any size according to your request.
5.Q: What are your manufacturing and shipping time?
A: About 15-25 days after confirming the details.
6.Q: What certification do you have?
A: 1).Quality Management System ISO 9001 and Environmental Management System ISO 14001.
2). Food contact certificates
3). Meet testing Lab requirements
The products are pure natural raw materials, and can be tested according to customer requirements, including calcium and magnesiumion and heavy metal detection
A: We are a professional manufacturing factory of Filter sheets, we are able to supply you with top quality and perfect
workmanship. OEM and ODM products.
2.Q: What is your Product material?
A: Our products are made up from high quality wood pulp, cotton pulp, cellulose, diatomaceous earth and so on.
3. Q:What’s you sample policy?
A: We can provide some samples free for your test, freight will be paid by your side.
4.Q: Can you do any size?
A: Yes, we can do any size according to your request.
5.Q: What are your manufacturing and shipping time?
A: About 15-25 days after confirming the details.
6.Q: What certification do you have?
A: 1).Quality Management System ISO 9001 and Environmental Management System ISO 14001.
2). Food contact certificates
3). Meet testing Lab requirements
The products are pure natural raw materials, and can be tested according to customer requirements, including calcium and magnesiumion and heavy metal detection
