JNKEVO LBC3015 cnc laser fiber cut 6000w 6kw metal sheet plate tube laser cutting machine with raycus laser source
- Category: >>>
- Supplier: Jinan Kevo Machinery Co. Ltd.
Share on (1601053373467):
Product Overview
Description
Product Description
Pneumatic Chuck Design
The front and rear chuck clamping design is convenient for installation, labor-saving, and no wear and tear. Ensure the stability of feeding and cutting accuracy; Automatic adjustment of the center, suitable for various pipes, high chuck rotation speed, can improve processing efficiency.
High Strength Welding Bed
The bed adopts an open-web integral profile welding structure that has been verified and verified by CAE analysis. 600℃ High temperature annealing and natural aging are used to eliminate welding stress, prevent deformation, reduce vibration, and ensure cutting accuracy.
The aerospace aluminum is manufactured under aerospace standards. After artificial aging and solution treatment, it is finished.
Light in weight, convenient for high-speed movement during processing, and is highly flexible. It can greatly increase the processing speed when the accuracy is met.
Light in weight, convenient for high-speed movement during processing, and is highly flexible. It can greatly increase the processing speed when the accuracy is met.
The full set of imported servo transmission systems from Japan.Higher accuracy, faster speed, more stable.
Using excellent guide rails, racks, motors, reducers etc as transmission mechanism components, the positioning accuracy of the machine is ±0.01mm.
Using excellent guide rails, racks, motors, reducers etc as transmission mechanism components, the positioning accuracy of the machine is ±0.01mm.
Easy To Operate
Control system operation is easy to learn, high compatibility, more comprehensive, more flexible and efficient
Brand Laser Generator
IPG, JPT, MAX, Raycus for option.
Stable performance, more than 100,000 hours service life.
Energy Saving & Environment Protection
High conversion efficiency, less processing waste, automatic collection of smoke and dust, protecting the environment.
Sheet & Tube Fiber Laser Cutting Machine Features
1. Fiber laser cutting speed is fast, low operation and maintenance cost, and easy to learn.
2. The machine adopts the dynamic dragon door structure, gear rack and linear guide, and the transmission is stable, and the precision is high.
3. The machine tool and the beam pass high temperature, precision gantry, can maintain high strength, high precision, and long-term work is not deformable.
4. X, Y, Z axis use imported servo motors, high precision, high speed, large torque, high inertia, and stable and durable. The high speed and acceleration of the whole machine are guaranteed.
5. The special CNC system of Shanghai Bochu fiber laser cutting machine based on Windows operating system is integrated with laser cutting control dedicated function modules, powerful, human-machine interface, simple operation.
6. Front and rear dual drive automatic clamping card disc, automatic clamping, automatic centering, suitable for various specifications symmetric cross-section pipe.
2. The machine adopts the dynamic dragon door structure, gear rack and linear guide, and the transmission is stable, and the precision is high.
3. The machine tool and the beam pass high temperature, precision gantry, can maintain high strength, high precision, and long-term work is not deformable.
4. X, Y, Z axis use imported servo motors, high precision, high speed, large torque, high inertia, and stable and durable. The high speed and acceleration of the whole machine are guaranteed.
5. The special CNC system of Shanghai Bochu fiber laser cutting machine based on Windows operating system is integrated with laser cutting control dedicated function modules, powerful, human-machine interface, simple operation.
6. Front and rear dual drive automatic clamping card disc, automatic clamping, automatic centering, suitable for various specifications symmetric cross-section pipe.
Aluminum Copper CS Metal CNC 3015 Double Table Desktop Fiber Laser Cutting Machine,Stainless Steel Laser Cutter
Product Details
Fiber laser cutting head
Our fiber laser cutter equip RAYTOOLS cutting head ,the positioning accuracy is 0.01mm, you can also choose PRECITEC | WXS or other band if needed, we cooperate with top brands to ensure the cutting quality of metal thickness 0.2-30mm.

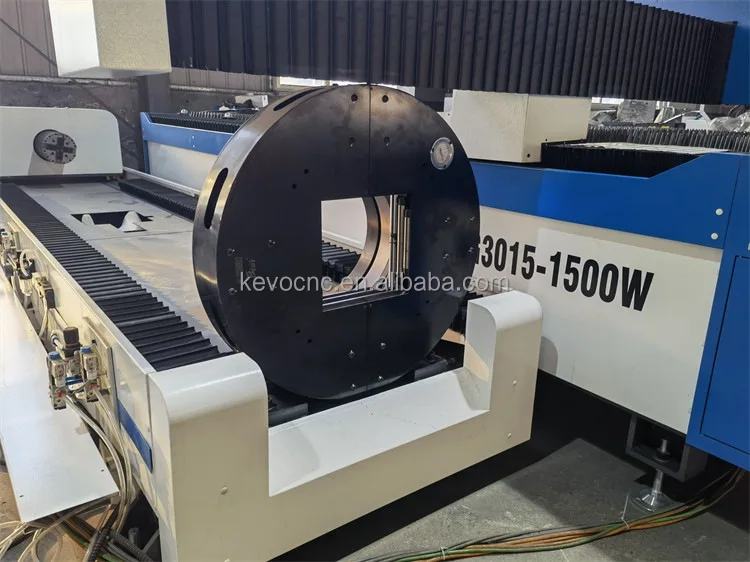

Tube Cutting Rotary
The front and rear chuck clamping design is convenient for installation. Ensure the stability of feeding and cutting accuracy; Automatic adjustment of the center, suitable for various pipes.
Water Chiller
S&A water chiller with excellent quality and leading research strength, S&A has become a leading enterprise in the China industrial refrigeration industry.
Taiwan Guide
Adopted Taiwan linear guide rail, high positioning accuracy, high carbon content, high compressive strength and high hardness, reduce wear to maintain accuracy for a longer time.

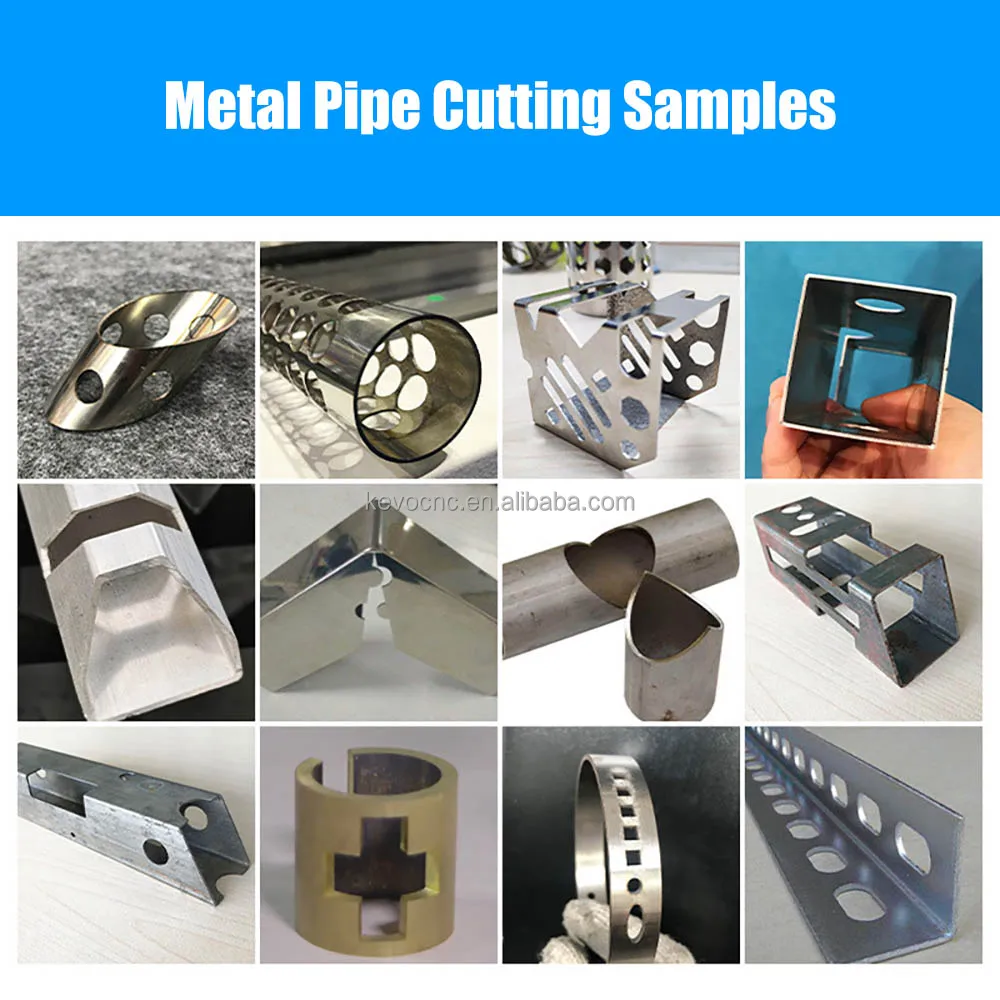

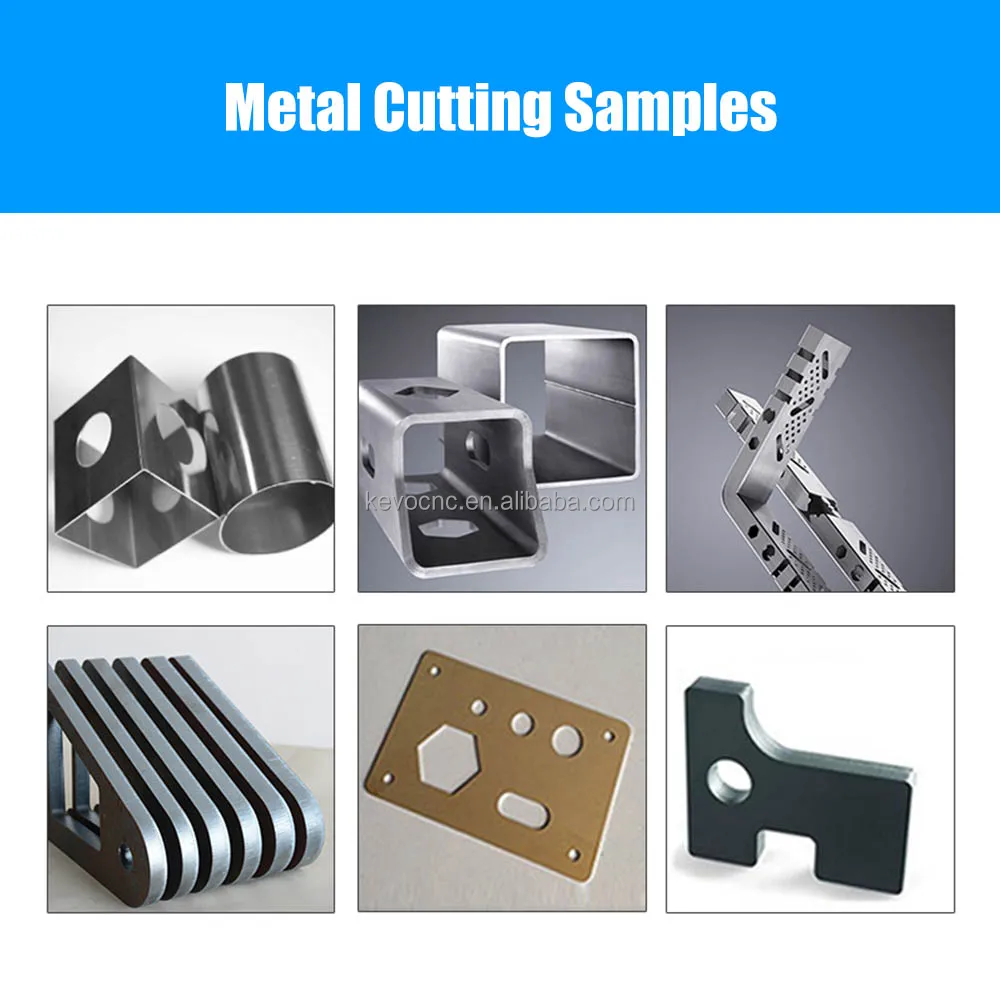

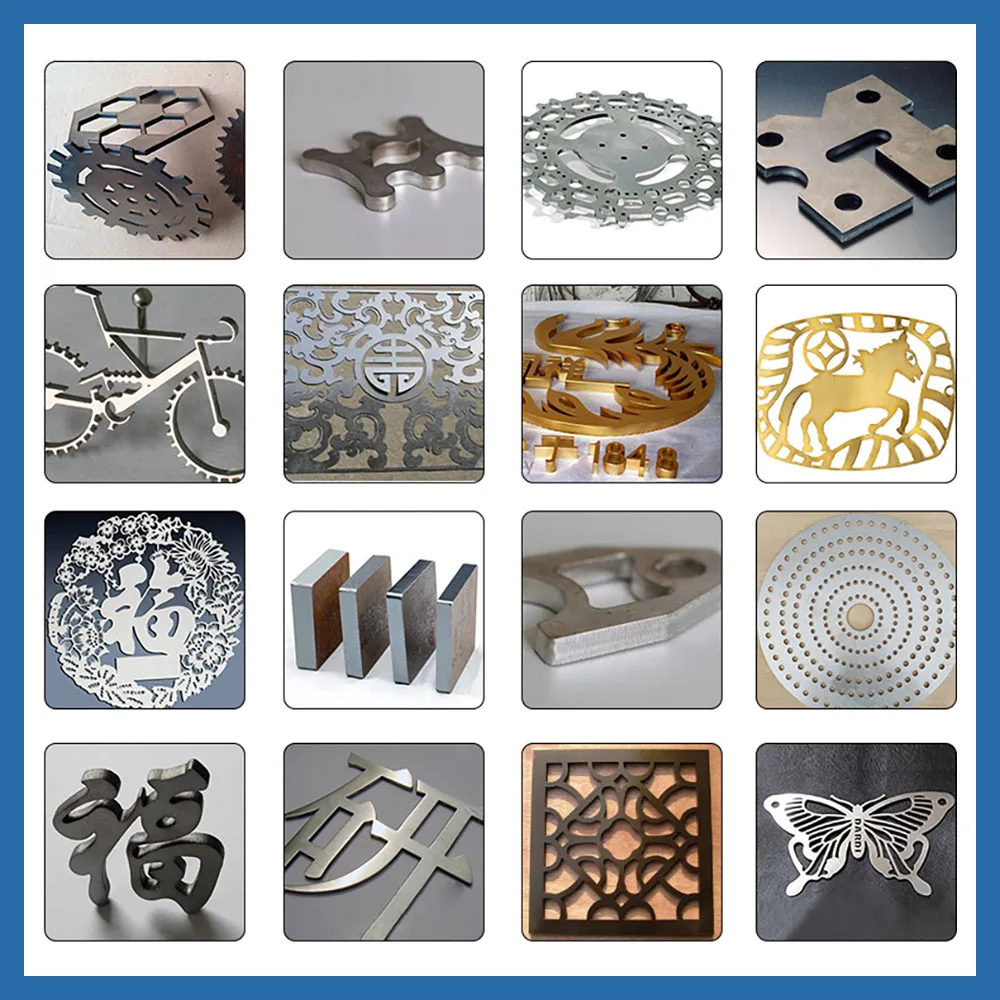

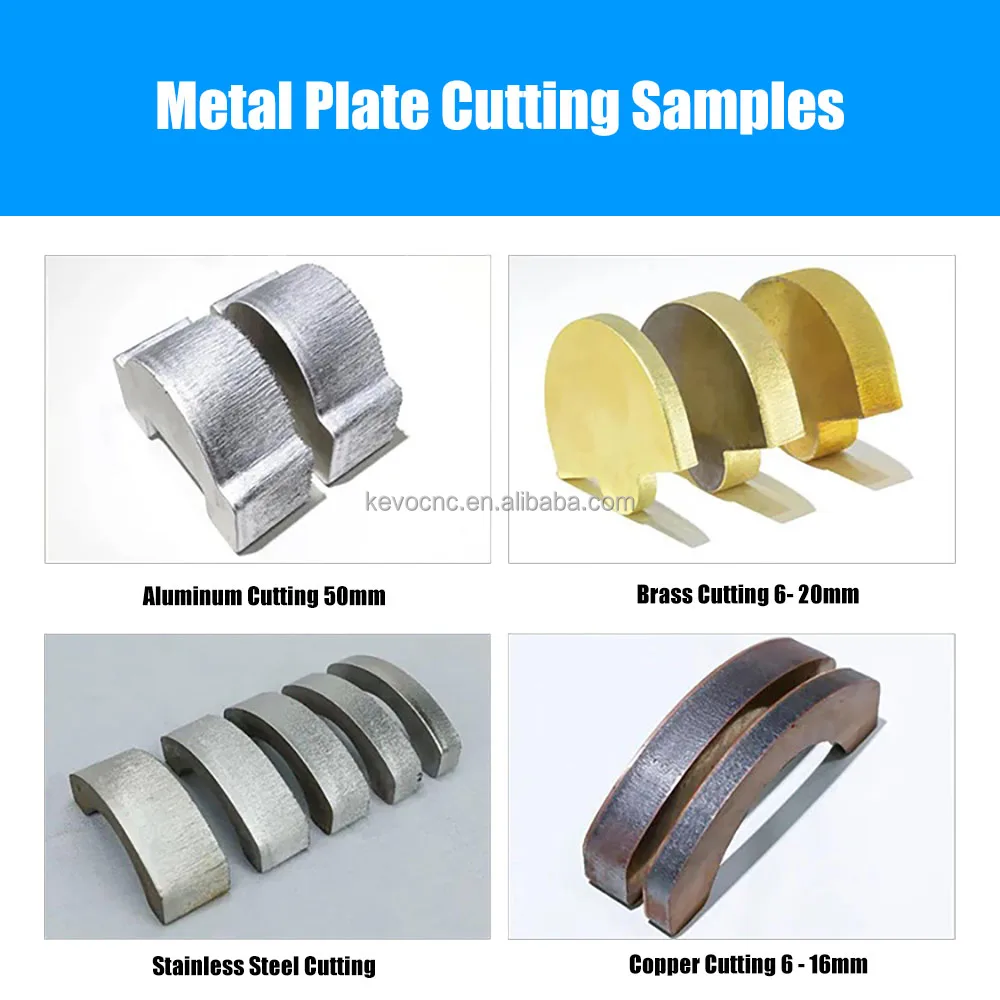

Cutting Samples
Applications
Laser cutting machines are widely used in: electric electrical, automotive manufacturing, mechanical equipment, electrical equipment, hotel kitchen equipment, elevator equipment, advertising logo, automotive decoration, precision parts, chassis cabinets, furniture, lighting, process ornaments and other industries.
Aluminum Copper CS Metal CNC 3015 Double Table Desktop Fiber Laser Cutting Machine,Stainless Steel Laser Cutter
Specification
Item | Sheet And Tube Fiber Laser Cutting Machines Parameters | |
Laser Power | 500W - 20,000W | |
Laser Generator | IPG, JPT, MAX, Raycus | |
Sheet Cutting Size | Width: 1500 - 2500mm, Length: 3000 - 6000mm | |
Tube Cutting Diameter | Round tube: 20 - 160mm, Square tube: 20 - 110mm | |
Tube Cutting Length | 6000mm | |
Max Cutting Speed | 100m / min | |
Max Acceleration | 0.85G | |
Repeatability | ±0.03mm / 1000m | |
Cutting Material Thickness | 0.2 - 12mm ( carbon steel ) 0.2 - 6mm ( stainless steel ) | |
Control System | CypCut / Weihong | |
Laser Generator Consumption Power | < 4kw | |
Total Power | < 12kw | |
Power Supply | 380V / 50Hz / 60Hz / 60A | |
Continuous Working Time | 24 hours | |
Machine parameters and configurations can also be customized according to your requirements. Please feel free to CONTACT US ! | ||
Packing & Delivery
More than one unit packing
For the order more than one unit fiber laser cutter, we will make a packing plan according to your model and quantity.
Customs Clearance Documents
After the departure of the goods, we will send the confirmed electronic documents to you as soon as possible.
If you need the paper document, please tell us before delivery.
" CLICK HERE " to know more !
Recommend Products
FAQ
Warranty
3 years , and we offer a 24-hour online service.
Lead Time
Usually within 7 - 30 days after deposit, it depends on the product model.
Payment Term
1. Alibaba Trade Assurance ( recommended )
2. TT bank transfer, 30% deposit , 70% balance before shipment.
3. LC at sight, Please contact us to determine the details of the terms.
3. LC at sight, Please contact us to determine the details of the terms.
Mode of Payment
Visa, Mastercard, PAYPAL, APPLE_PAY, GOOGLE_PAY TT bank transfer etc
Supported Currencies
USD, EUR, AUD, GBP, CAD, HKD, JPY, SGD, CNY. Please contact us for other currencies.
Accurate Price
Our products can be customized according to customer's requirements ( working size, power needed
etc ), and the package is also different depends on the quantity.
So it would be best to contact with us for your detail requirements, quantity, shipping address etc,
so that we can quote accurately according to your requirements.
Whether The Product Meet Your Requirements
We can take a VIDEO according to your requirements , so you can see our product and test result.
MOQ
The MOQ for each product is ONE unit.
Customization
We can customize products based on customer's requirements.
Delivery To Door
The machine can be delivered to door in some countries. Please provide your detailed address,
we will confirm and give you reply ASAP.
Aluminum Copper CS Metal CNC 3015 Double Table Desktop Fiber Laser Cutting Machine,Stainless Steel Laser Cutter
