CNG dispenser 3 way high pressure coupling ball valve swagelok gun valve natural gas ball valve CNG dispenser and repair kit
- Category: >>>
- Supplier: Changsha Runda Hitech Co. Ltd.
Share on (1601053376400):
Product Overview
Description
Products Description

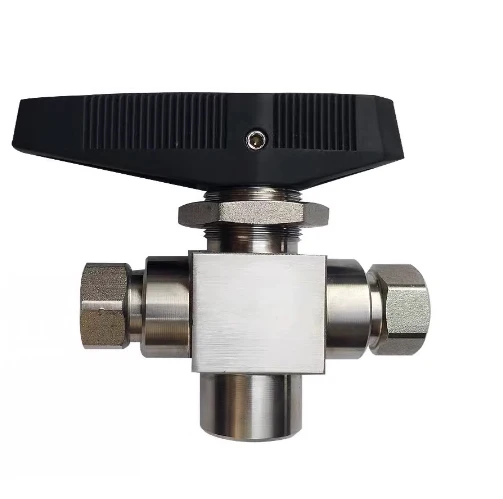

CNG dispenser 3 way ball valve cng swagelok type 3 way gun valve natural gas ball valve CNG dispenser and repair kit

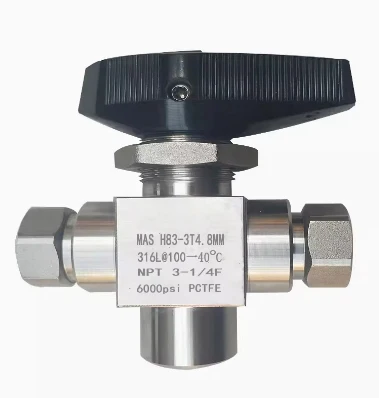

Item | CNG 3 way gun valve |
Size | 1/4 NPT |
Material | Stainless Steel 316 |
Pressure | 6000PSI |
Packing | PCTFE, PTFE,PEEK |
Application | Laboratories,Semiconductor,Biopharma, Medical industry,etc |
What are the types of CNG filling stations?
CNG refueling station is a place that provides fuel to Natural Gas vehicles and large CNG sub-station vehicles in the form of compressed natural gas (CNG), which is generally divided into conventional stations, mother stations and sub-stations.
1. Regular station
The conventional station is built in the place where natural gas pipelines can pass through, and the gas is directly taken from the natural gas pipeline, and the incoming pressure is 0.4MPa. The natural gas is compressed into the compressor after desulfurization, dehydration and other processes, and the compressed pressure is 25MPa. Then enter the gas selling machine to fill the gas vehicle. The gas is usually added between 600 and 1000Nm3/h (standard cubic per hour).
2. Mother station
The mother station takes gas directly from the natural gas pipeline, and the inlet pressure is 1~1.5MPa. The natural gas enters the compressor for compression after desulfurization, dehydration and other processes, and then is transported to the sub-station by a tank truck with a gas storage cylinder group (25MPa) to gas the car, which has the function of a conventional station. The mother station is mostly built near the city station, and the usual gas intake of the mother station is between 2500 and 4000Nm3/h (standard cubic per hour).
3. Sub-station
The sub-station is built in the place where there is no natural gas pipeline around the filling station, generally built in the city to facilitate the vehicle filling or that is located in the township industrial zone without gas pipeline laying, to supply natural gas as energy. The gas source is mainly provided by the mother station, which is mainly shipped to the sub-station by natural gas sled, connected to the gas unloading column system to enter the CNG pressure regulator, and then the high-pressure gas is reduced to the user's required pressure 0.2~4MPa by the decompression sled, and then enters the transmission network to supply the user with natural gas.
The CNG gas valve produced by our company have the advantages of high pressure resistance, corrosion resistance, low temperature resistance, good sealing, long service life and so on. CNG two-position three-way high pressure pneumatic valve is well received by domestic filling station users and exported to Europe, America and Southeast Asia
CNG refueling station is a place that provides fuel to Natural Gas vehicles and large CNG sub-station vehicles in the form of compressed natural gas (CNG), which is generally divided into conventional stations, mother stations and sub-stations.
1. Regular station
The conventional station is built in the place where natural gas pipelines can pass through, and the gas is directly taken from the natural gas pipeline, and the incoming pressure is 0.4MPa. The natural gas is compressed into the compressor after desulfurization, dehydration and other processes, and the compressed pressure is 25MPa. Then enter the gas selling machine to fill the gas vehicle. The gas is usually added between 600 and 1000Nm3/h (standard cubic per hour).
2. Mother station
The mother station takes gas directly from the natural gas pipeline, and the inlet pressure is 1~1.5MPa. The natural gas enters the compressor for compression after desulfurization, dehydration and other processes, and then is transported to the sub-station by a tank truck with a gas storage cylinder group (25MPa) to gas the car, which has the function of a conventional station. The mother station is mostly built near the city station, and the usual gas intake of the mother station is between 2500 and 4000Nm3/h (standard cubic per hour).
3. Sub-station
The sub-station is built in the place where there is no natural gas pipeline around the filling station, generally built in the city to facilitate the vehicle filling or that is located in the township industrial zone without gas pipeline laying, to supply natural gas as energy. The gas source is mainly provided by the mother station, which is mainly shipped to the sub-station by natural gas sled, connected to the gas unloading column system to enter the CNG pressure regulator, and then the high-pressure gas is reduced to the user's required pressure 0.2~4MPa by the decompression sled, and then enters the transmission network to supply the user with natural gas.
The CNG gas valve produced by our company have the advantages of high pressure resistance, corrosion resistance, low temperature resistance, good sealing, long service life and so on. CNG two-position three-way high pressure pneumatic valve is well received by domestic filling station users and exported to Europe, America and Southeast Asia

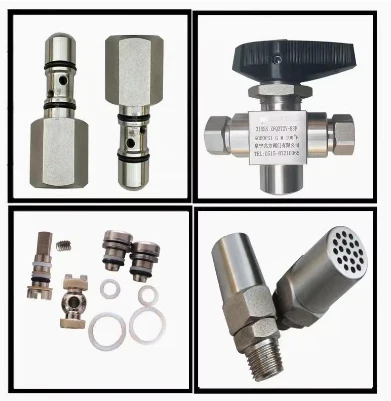

Details Images
Company Profile
Exhibition

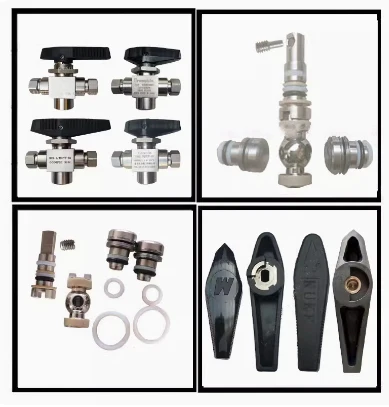

Main Products
Payment&Delivery
Payment: We accept T/T , L/C, Western Union, PayPal and online order in Alibaba.
Delivery: We usually arrange delivery in 15 days after receipt of advanced payment.
