NUZHUO High Quality 99.999% Nitrogen Gas Generator Pure Nitrogen Gas Plant With Psa Technology Sale
- Category: >>>
- Supplier: Hangzhou Nuzhuo Technology Group Co. Ltd
Share on (1601053466235):
Product Overview
Description
Products Description
Video Description
NUZHUO High Efficient Nitrogen Generator N2 Production Machine For Food Package Nitrogen Plant

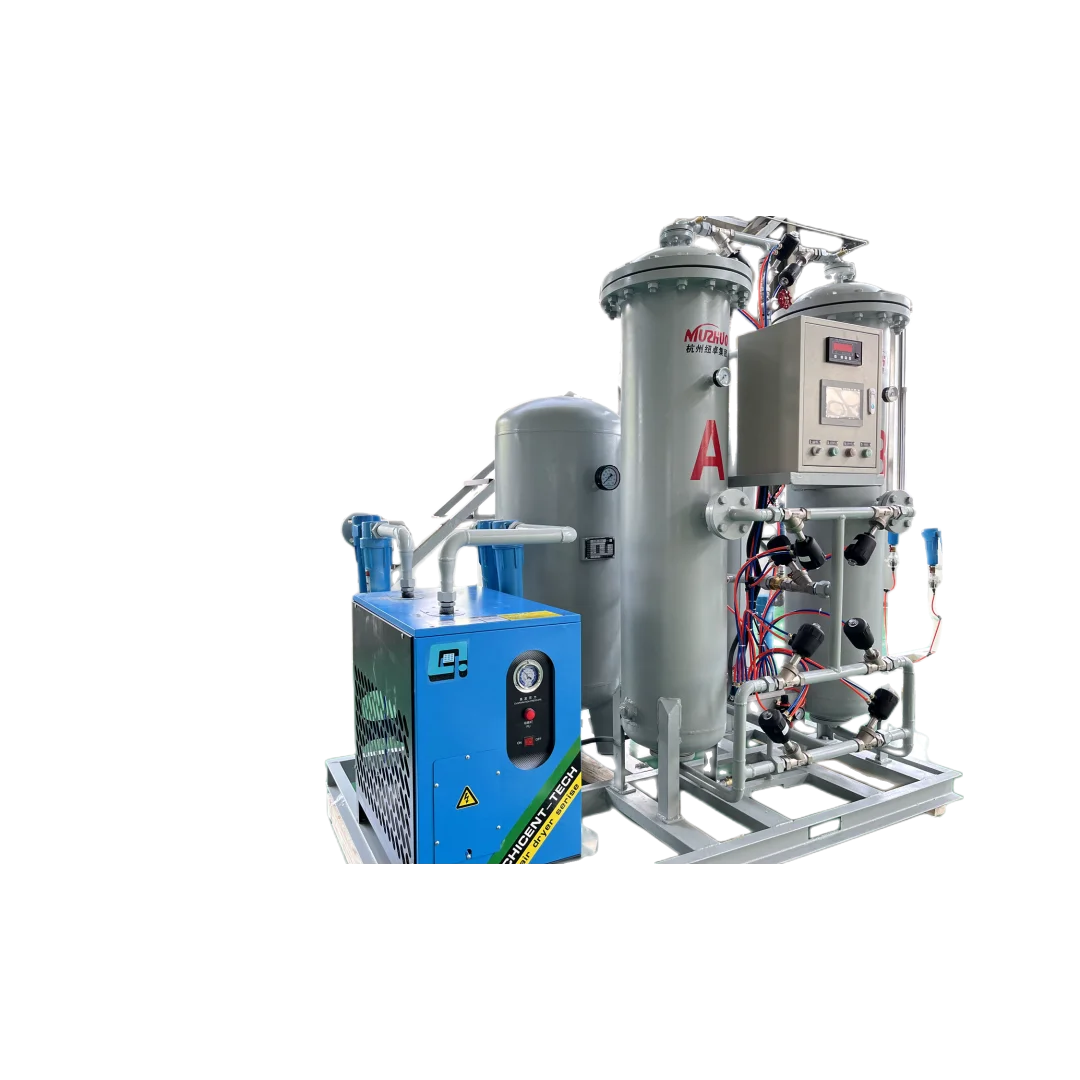

Main configuration

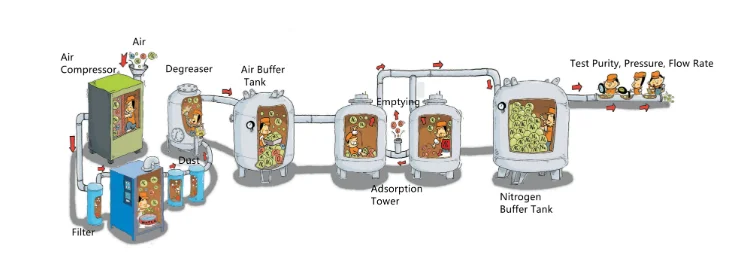

PSA Technology
PSA full name: Pressure Swing Adsorption, Chinese meaning: Pressure swing adsorption. PSA is a new gas separation technology, since the late 60's and early 70's in foreign countries has been rapid development, its principle is the use of molecular sieve on different gas molecules "adsorption" performance differences and separate the gas mixture, it is based on air as raw material, Nitrogen and oxygen are separated from the air by the selective adsorption of nitrogen and oxygen with an efficient and highly selective solid adsorbent.
Product Name | PSA Nitrogen Generator | ||||||
Model No. | NZN; NZN97; NZN99; NZN39; NZN49; NZN59 | ||||||
Nitrogen Production | 3~2000Nm3/h | ||||||
Nitrogen Purity | 95~99.9995% | ||||||
Nitrogen Pressure | 0~0.8Mpa (0.8~6.0MPa alternative) | ||||||
Dew Point | ≤-45 degree C ( Normal Pressure) | ||||||
Specification | Output (Nm3/h) | Effective gas consumption ( Nm3/h ) | Air cleaning system | Inlet/outlet caliber(mm) | ||
NZN59-5 | 5 | 0.78 | KJ-1 | DN25 | DN15 | |
NZN59-10 | 10 | 1.75 | KJ-2 | DN25 | DN15 | |
NZN59-20 | 20 | 3.55 | KJ-6 | DN40 | DN15 | |
NZN59-30 | 30 | 5.25 | KJ-6 | DN40 | DN25 | |
NZN59-40 | 40 | 7.0 | KJ-10 | DN50 | DN25 | |
NZN59-50 | 50 | 8.7 | KJ-10 | DN50 | DN25 | |
NZN59-60 | 60 | 10.5 | KJ-12 | DN50 | DN32 | |
NZN59-80 | 80 | 13.75 | KJ-20 | DN65 | DN40 | |
NZN59-100 | 100 | 16.64 | KJ-20 | DN65 | DN40 | |
NZN59-150 | 150 | 24.91 | KJ-30 | DN80 | DN40 | |
NZN59-200 | 200 | 33.37 | KJ-40 | DN100 | DN50 | |
NZN59-300 | 300 | 49.82 | KJ-60 | DN125 | DN50 | |
Application
Recommend Products
Packing & Delivery
Why Choose Us
Our service for Wholesale OEM service provided all kinds of nitrogen generator, oxygen generator, VPSA, cryogenic air separation
series.
1. Reply in 24 hours.
2. Customized oxygen generator size. And stamping is accepted.
3. Every oxygen generator will be tested before the delivery.
4. Delivery on time and excellent after-sales service
5. High quality, reliable price.
series.
1. Reply in 24 hours.
2. Customized oxygen generator size. And stamping is accepted.
3. Every oxygen generator will be tested before the delivery.
4. Delivery on time and excellent after-sales service
5. High quality, reliable price.
FAQ
Q1: Are you a trading company or manufacturer?
A:We are professional gas generator factory ,we produce nitrogen generator,oxygen generator hydrogen generator, cryogenic air separation series.
Q2: What is your term of payment?
A: 30%T/T in advance and balance before shipment.
B. 30% T/T in advance and Irrevocable L/C at Sight.
C. Accept negotiation.
Q3: How long is your delivery time?
A: Depending on what type of machine you are purchased.
A: Depending on what type of machine you are purchased.
1. 5L-50L/min series, the delivery time is 5-10days.
2. PSA oxygen generator with 3-60Nm3/h capacity, the delivery time is 15-20days.
3. PSA oxygen generator with 60-200Nm3/h capacity, the delivery time is 35-40days.
4. PSA oxygen plant with O2 cylinder filling station whose delivery time is 25-30 days.
5. PSA oxygen plant settle into standard container whose delivery time is 30-35days.
Q4: What is your product quality assurance policy?
Q4: What is your product quality assurance policy?
A: We offer a warranty period of 1 year, free lifetime technology support.
B.Supporting third-part to have a inspection, also provide SGS, TUV certificated.
C. Accept negotiation.
Q5: Do you offer OEM/ODM service?
A: Yes, please let's know your specific require. Our engineer will follow your requirement to design for you and provide detailed
technical specification and commercial quotation.
Q6: Does your product used or new? RTS product or customized product?
A:Our machine is new unit, and following your specific require to design and make it.
Q7: How to get a prompt quotation of Oxygen Generator?
A: When you send inquiry to us, please kindly send it with below technical information.
1) O2 flow rate: _____Nm3/hr( or How many cylinders do you want to fill per day(24hours))
2) O2 purity: _____%
3) O2 discharge pressure: _____Bar
4) Voltages and Frequency : ______V/PH/HZ
5) Application: .
Q5: Do you offer OEM/ODM service?
A: Yes, please let's know your specific require. Our engineer will follow your requirement to design for you and provide detailed
technical specification and commercial quotation.
Q6: Does your product used or new? RTS product or customized product?
A:Our machine is new unit, and following your specific require to design and make it.
Q7: How to get a prompt quotation of Oxygen Generator?
A: When you send inquiry to us, please kindly send it with below technical information.
1) O2 flow rate: _____Nm3/hr( or How many cylinders do you want to fill per day(24hours))
2) O2 purity: _____%
3) O2 discharge pressure: _____Bar
4) Voltages and Frequency : ______V/PH/HZ
5) Application: .
