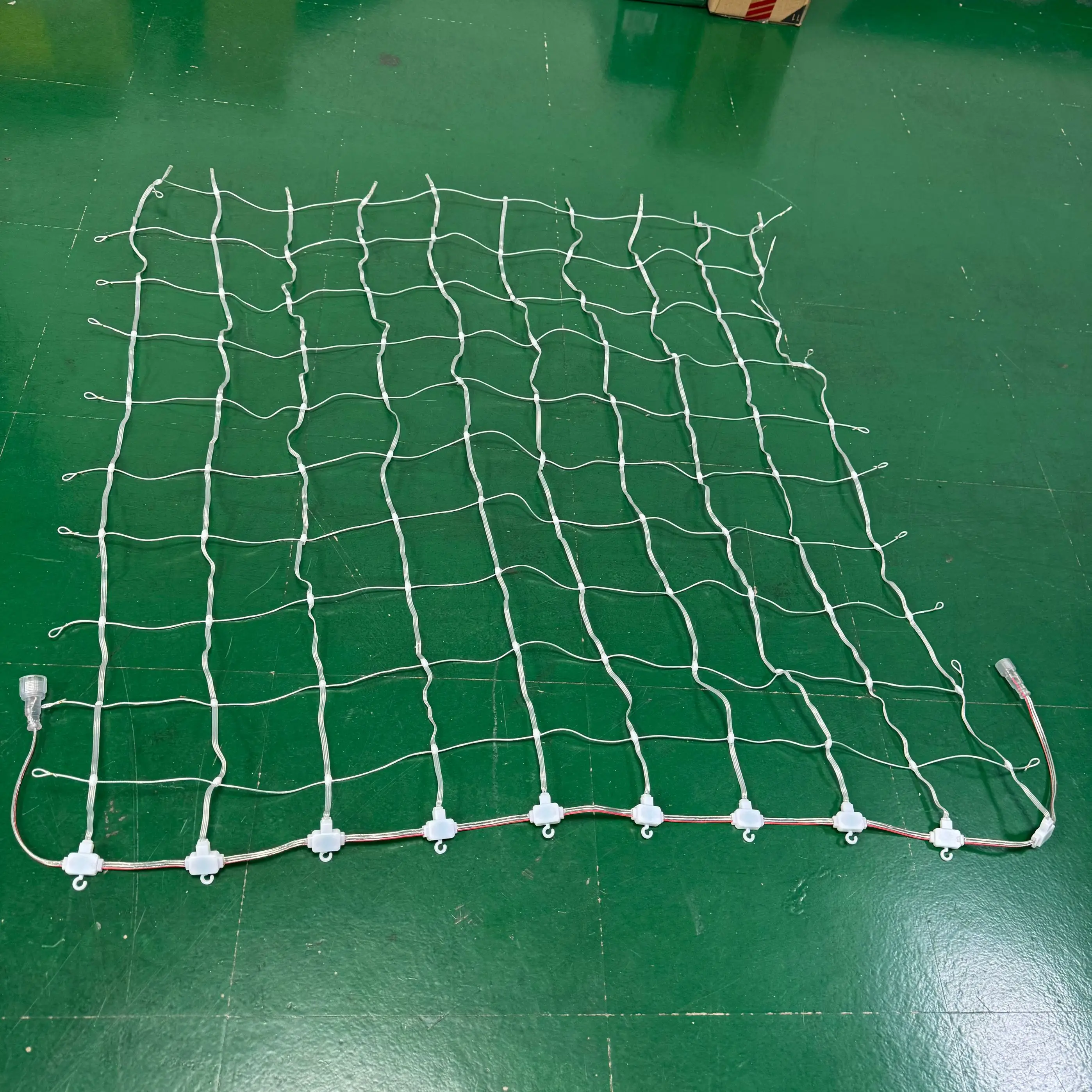

1M*1M: 100cm Long(10 Pixels) and 100cm Wide(10 Pixels),total 100 Pixels with 10cm wire Pixel Spacing;
2M*1M: 200cm Long(20 Pixels) and 100cm Wide(10 Pixels),total 200 Pixels with 10cm wire Pixel Spacing;
3M*1M: 300cm Long(30 Pixels) and 100cm Wide(10 Pixels),total 300 Pixels with 10cm wire Pixel Spacing;
Waterproof rating: IP67
Voltage: DC12V
LED Quantity: 100 LEDs/200 LEDs/300 LEDs

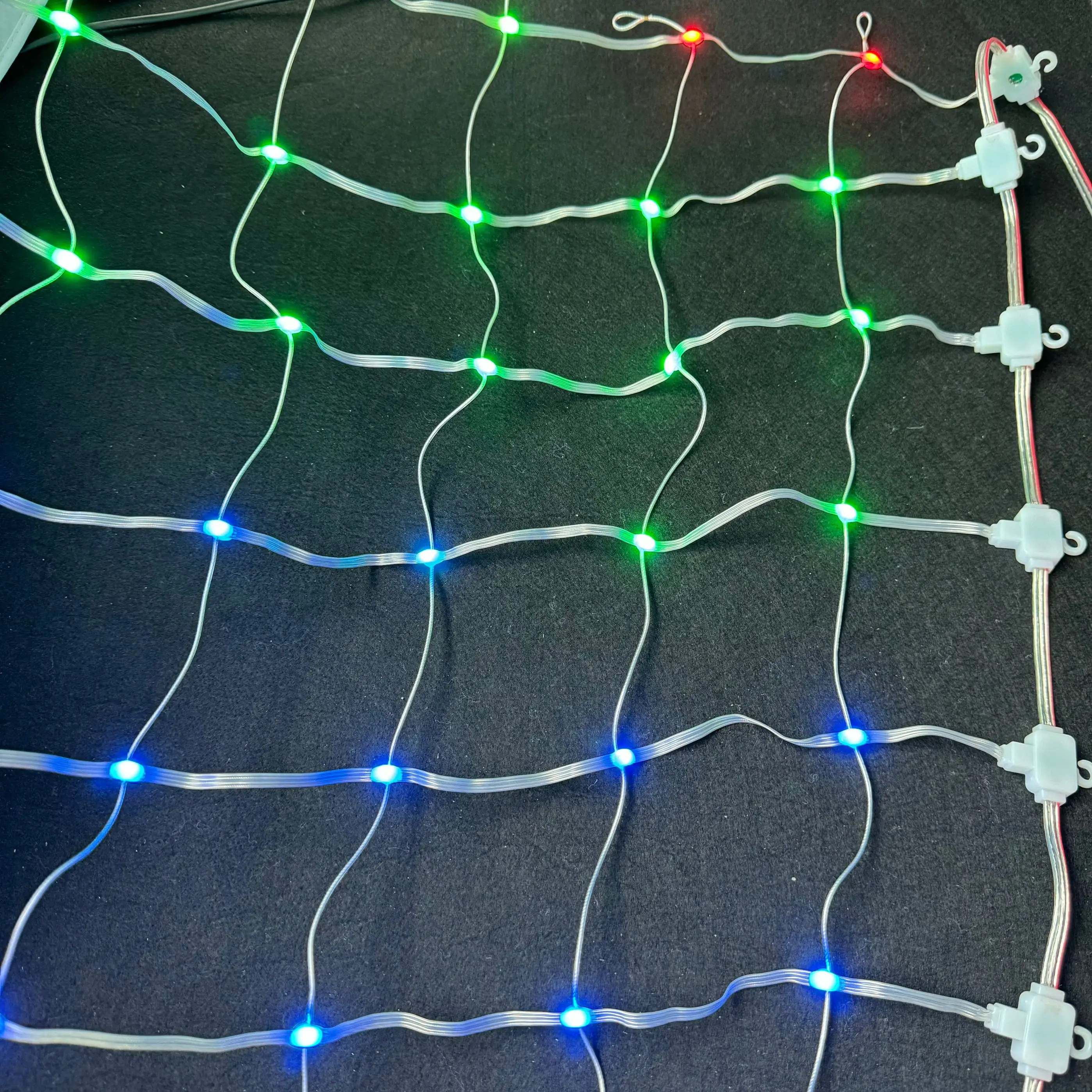

LED color: addressable rgb full color

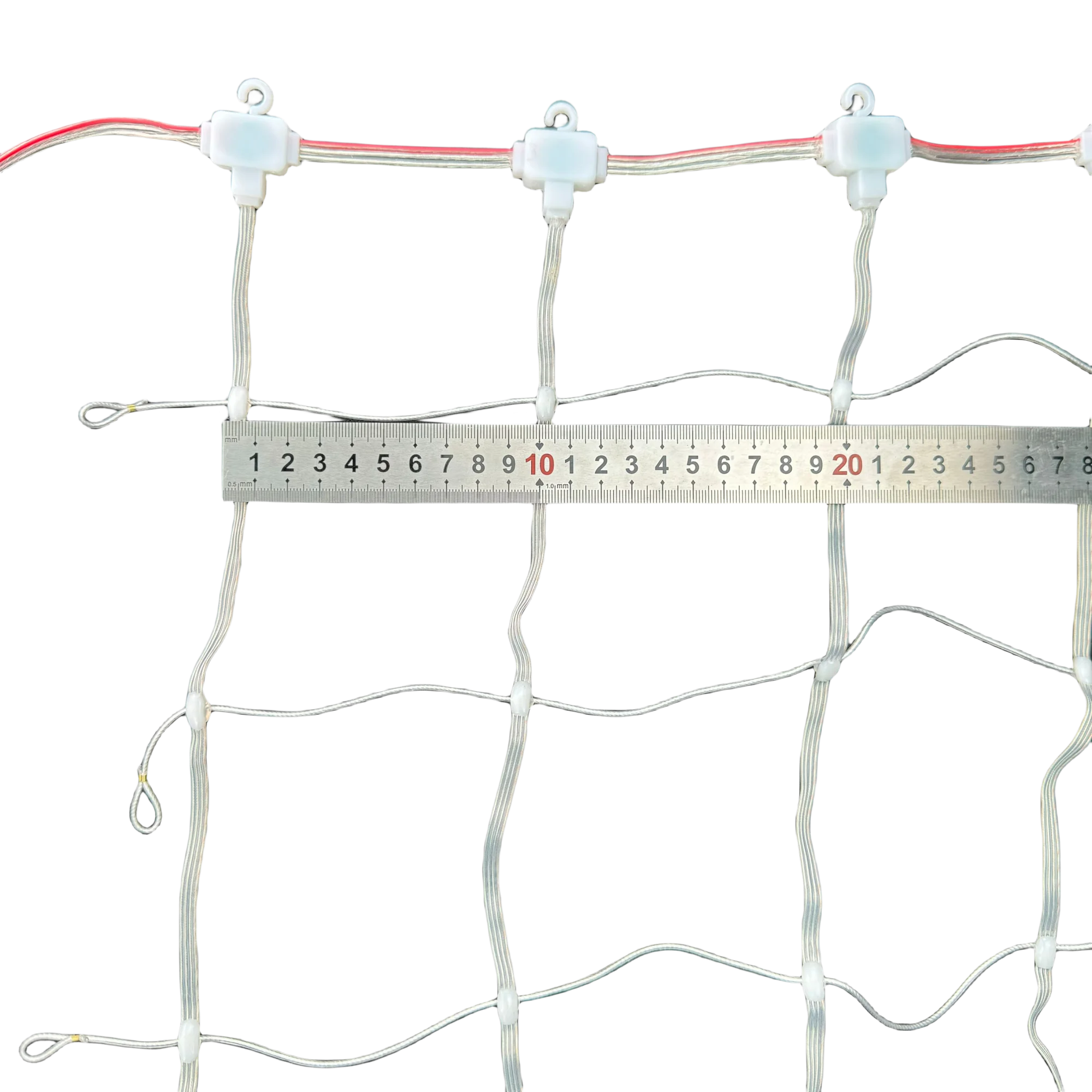

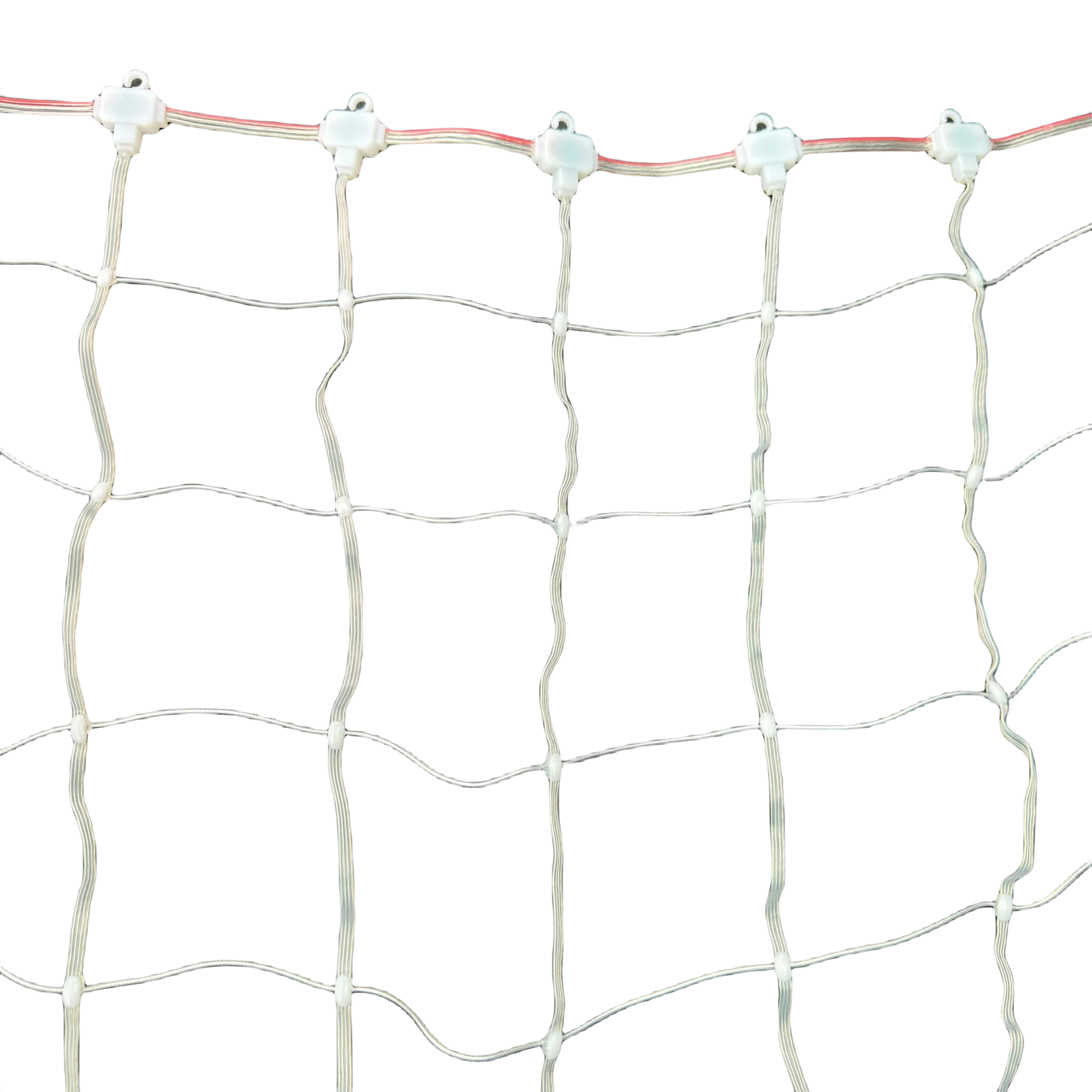

wire spacing: 10cm spacing between pixels
Lifespan: 50000 hours
IC protocol: WS2811/WS2812B
Power/Pixel: 12V/8.5mA/Pixel=0.1W

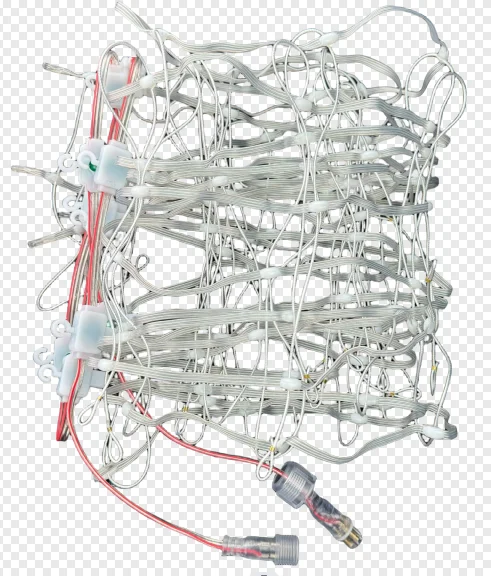

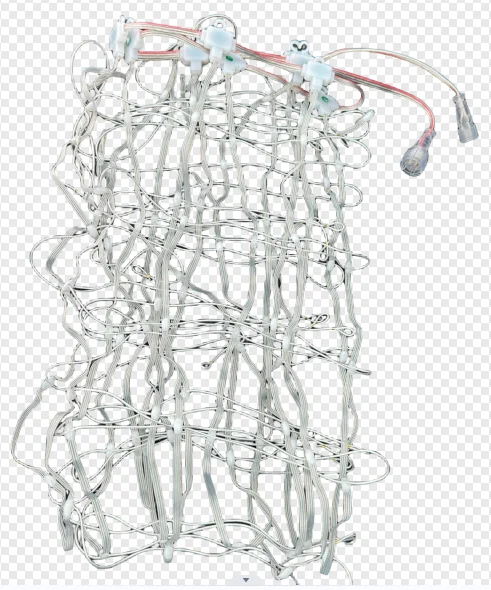

please note: this light has no controller or PSU included, eacg set lights with 3 core waterproof connectors on the ends.

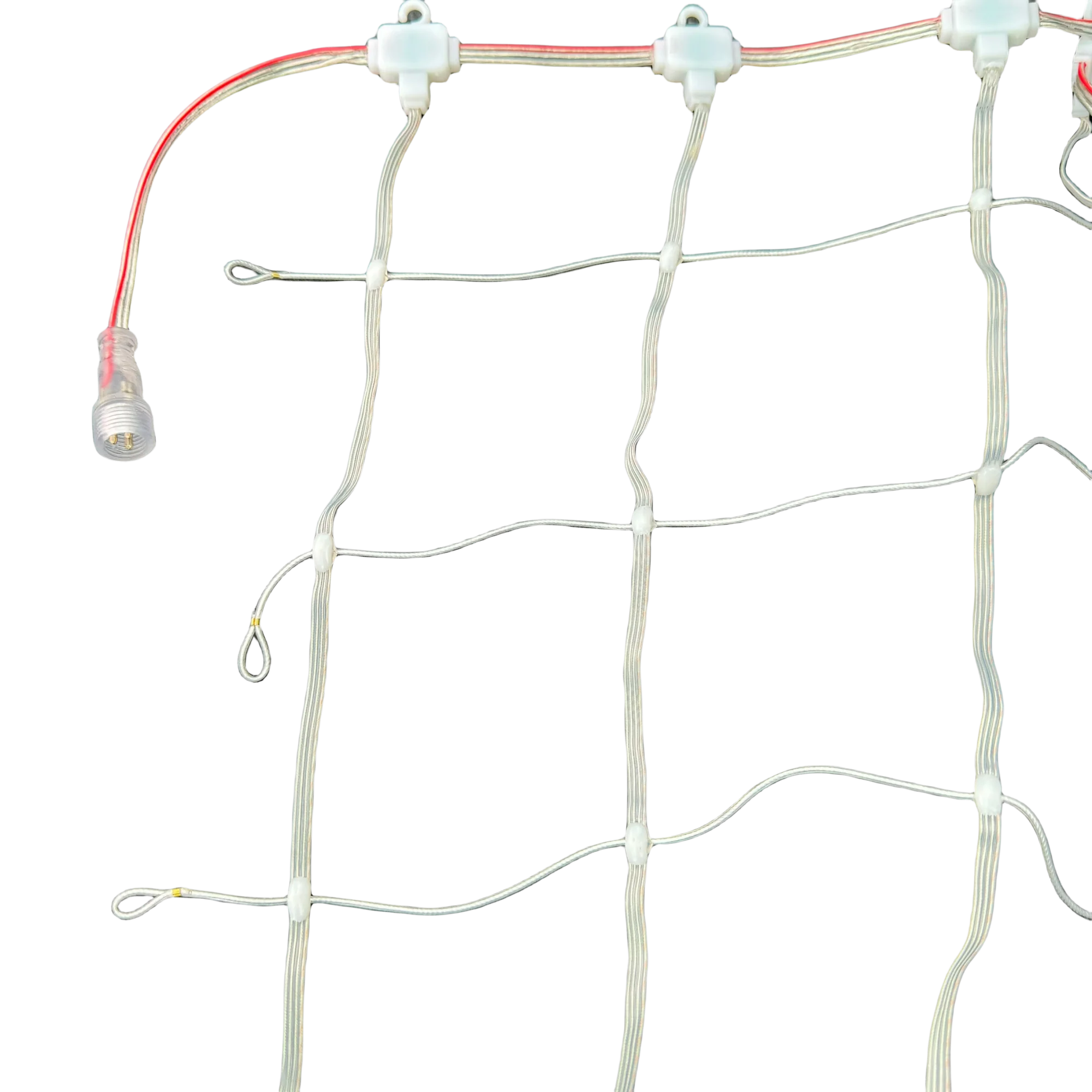

waterproof connector at the ends:
3 core xConnect pigtails 20cm long:
https://www.aliexpress.us/item/2251832869744835.html
input end: 0.2m long male connector with clear flat wire
output end: 0.2m long female connector with clear flat wire
standard pinout diagram for our pixel lights:
for pigtails:
Brown:- 12v +
Yellow: data
Blue: GND
Input end: male connector(screw end with bare pin)
Output end: female connector(with hole)
Recommended Controllers:
APP bluetooth & WIFI/SD card/Artent SPI etc
