IP55 100KW 215KWh solar battery industrial & commercial Power Storage Container energy storage system all in one ess 500kw
- Category: >>>
- Supplier: Lovsun Solar Energy Co.Ltd
Share on (1601053548464):
Product Overview
Description
Product Description
Specification

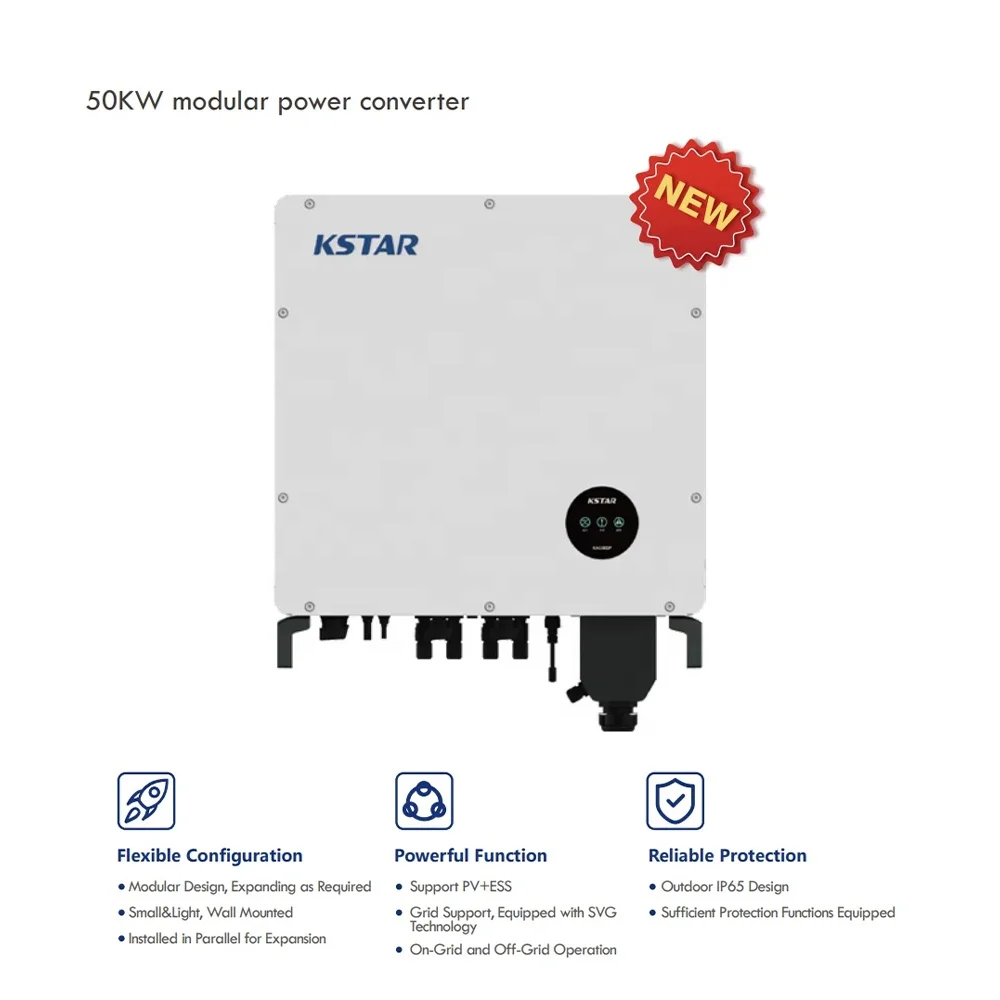

Product Specifications | KAC50DP | |
PV Side | ||
Max. Input Voltage | 1000V | |
MPPT Voltage Range | 350V~800V | |
Max. Current per MPPT | 36A | |
Number of MPPT | 3 | |
Number of Inputs Per MPPT | 2 | |
Battery Side | ||
Max. Input Voltage | 750V | |
Min. Input Voltage | 350V | |
DC Voltage at Nominal Operation | 500V~750V | |
Max. DC Current | 55A*2 | |
Max. DC Input Power | 55kW | |
Number of DC Inputs | 2 | |
AC Side(On Grid) | ||
Nominal AC Output Power | 50kW | |
Max. AC Output Power | 55kVA | |
Max. AC Current | 80A | |
Nominal AC Voltage | 400V | |
AC Voltage Range | 340V~440V | |
Nominal Grid Frequency/Frequency Range | 50/60Hz±5Hz | |
AC Side(Off Grid) | ||
Nominal AC Voltage | 230/400V±3%; 3L+N+PE | |
Nominal AC Output Power | 50/60Hz | |
Max. AC Output Power | 55kVA | |
Efficiency | ||
Max. Efficiency | 97.5% | |
Protection | ||
DC Switch | Yes | |
Over-Temperature Protection | Yes | |
Grid Monitoring/ Earthing Fault Detection | Yes | |
DC/AC Surge Protection | DC Type II;AC Type III | |
General Parameters | ||
Dimensions(WxHxD) | 650*715*325mm | |
Weight | 75KG | |
Topology | Transformerless | |
IP Protection | IP65 | |
Communication Port | RS485/CAN | |
Cooling method | Intelligent Air Cooling | |
Standards | IEC62477;IEC61000;CE;GB/T;IEC62109;IEC61683;IEC60068;IEC61727;IEC62116;EN50549;VDE4105;G99 | |

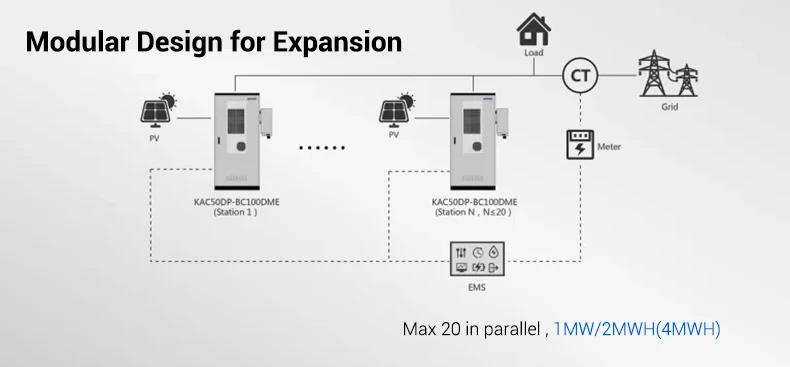

System Diagram
Company Profile

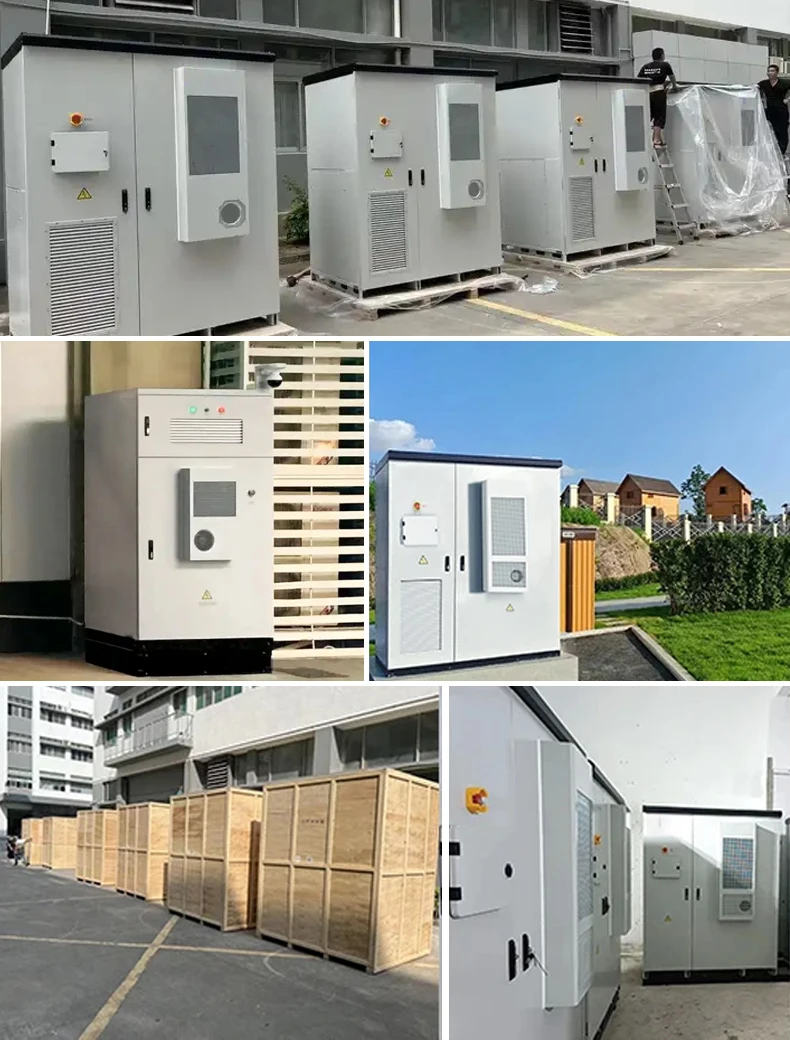

Global Projects
Payment Terms
Payment Terms | T/T | EXW | 30% in advance for deposit payment, the balance payments will be paid before shipment. | ||||
FOB | |||||||
CFR/C&F | 30% in advance for deposit payment, the balance will be paid against copy of B/L | ||||||
CIF | |||||||
L/C | For the amount of one shipment above 50,000 usd, L/C at sight is acceptable. | ||||||
West Union | For the amount less than 5000 usd | ||||||
Paypal | |||||||
Delivery Time | 7~25 days after receiving the payment or the deposit payment | ||||||
