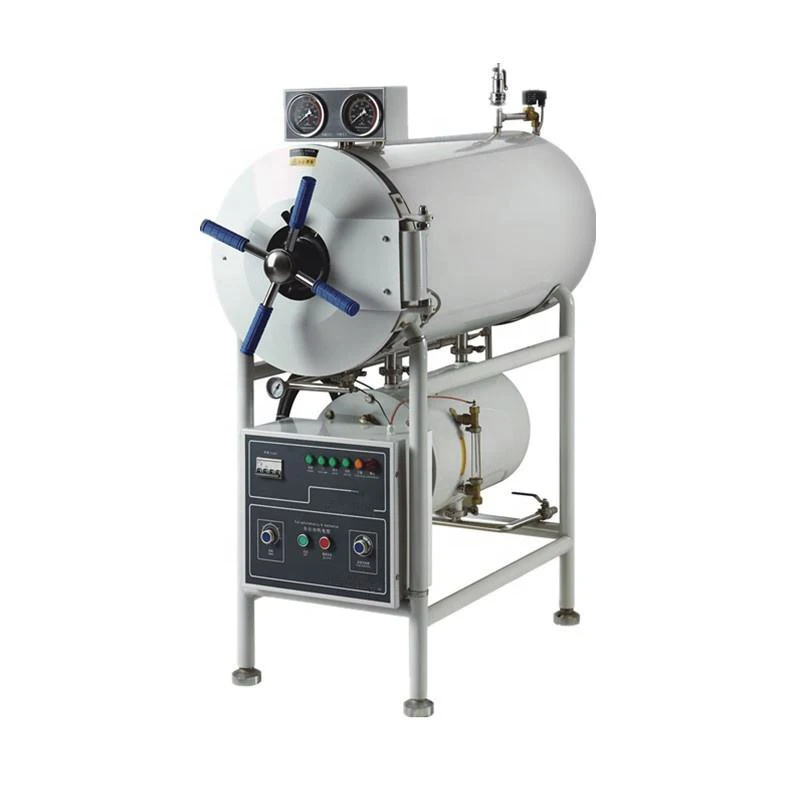

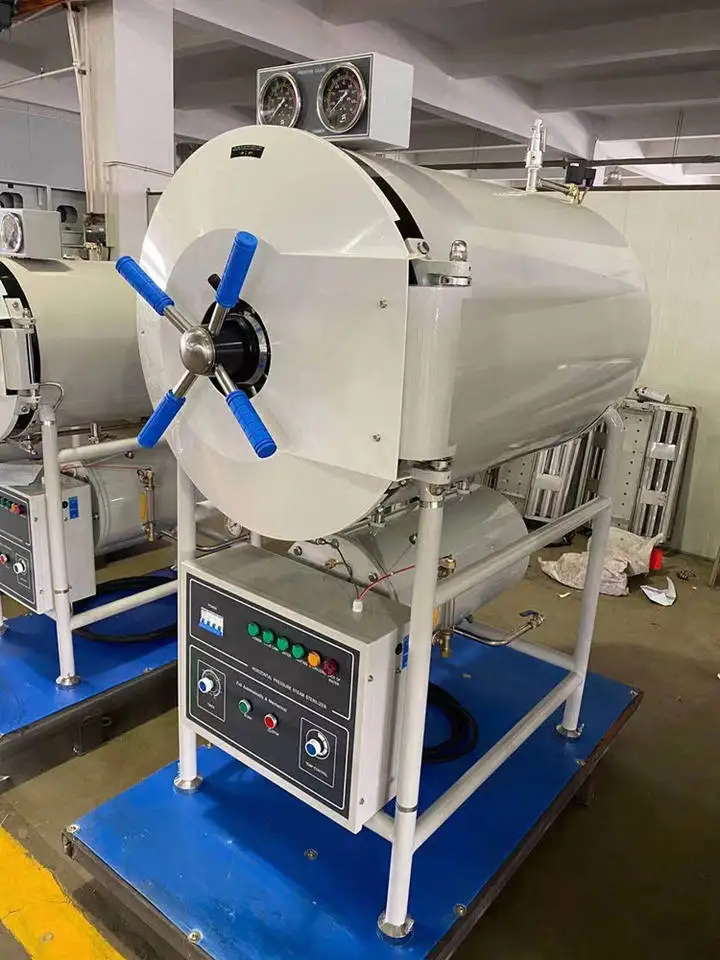

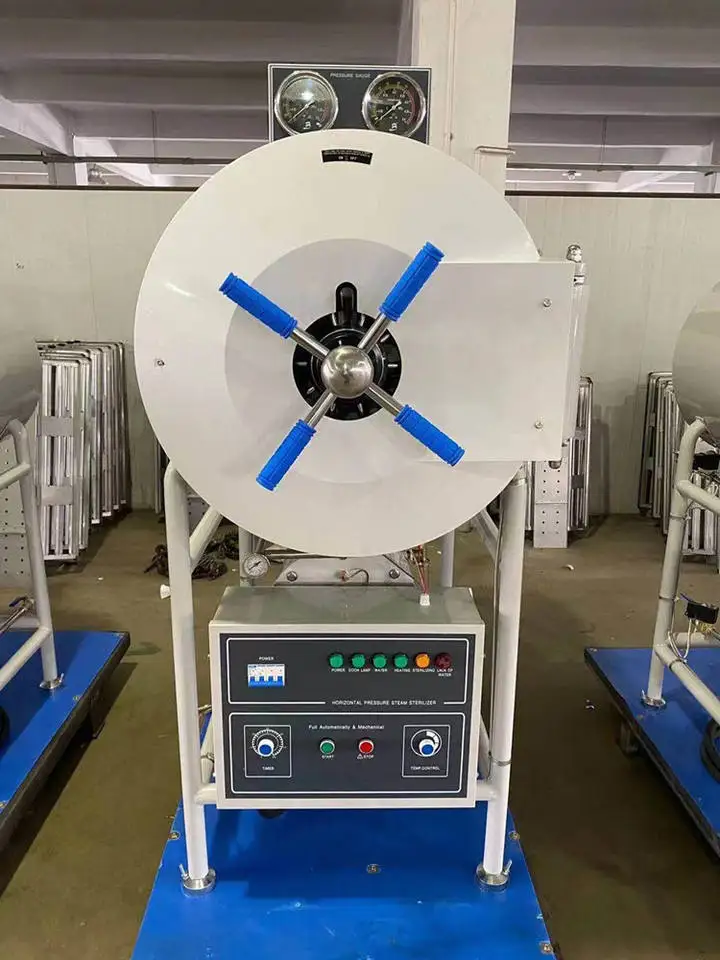

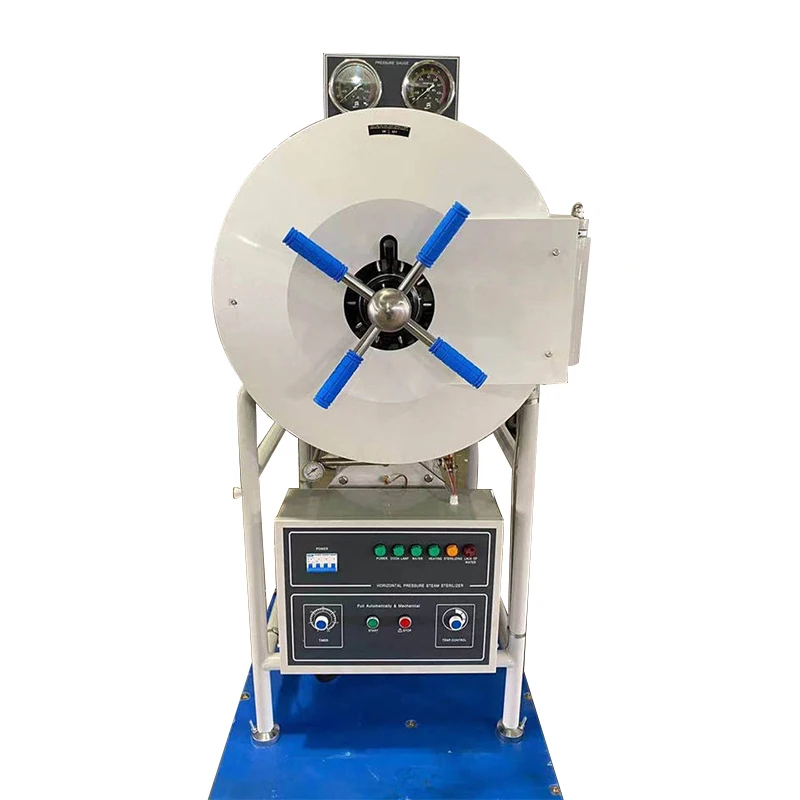

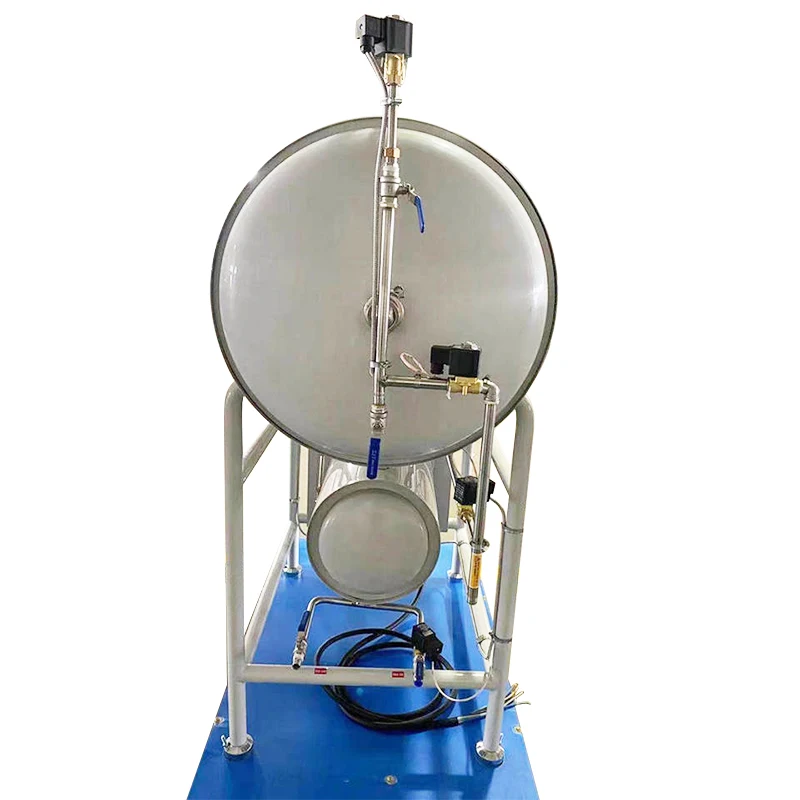

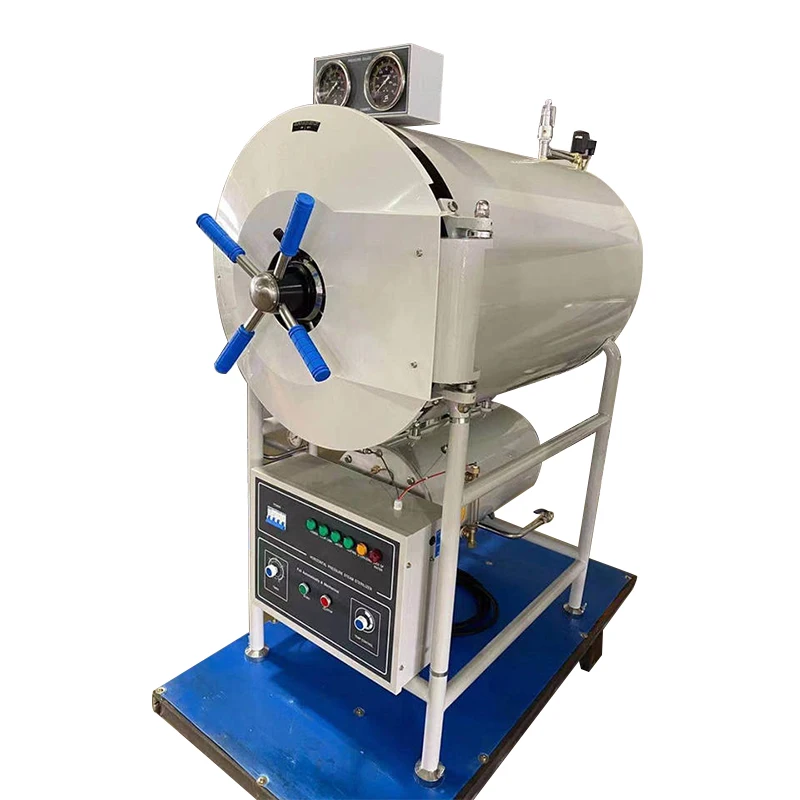

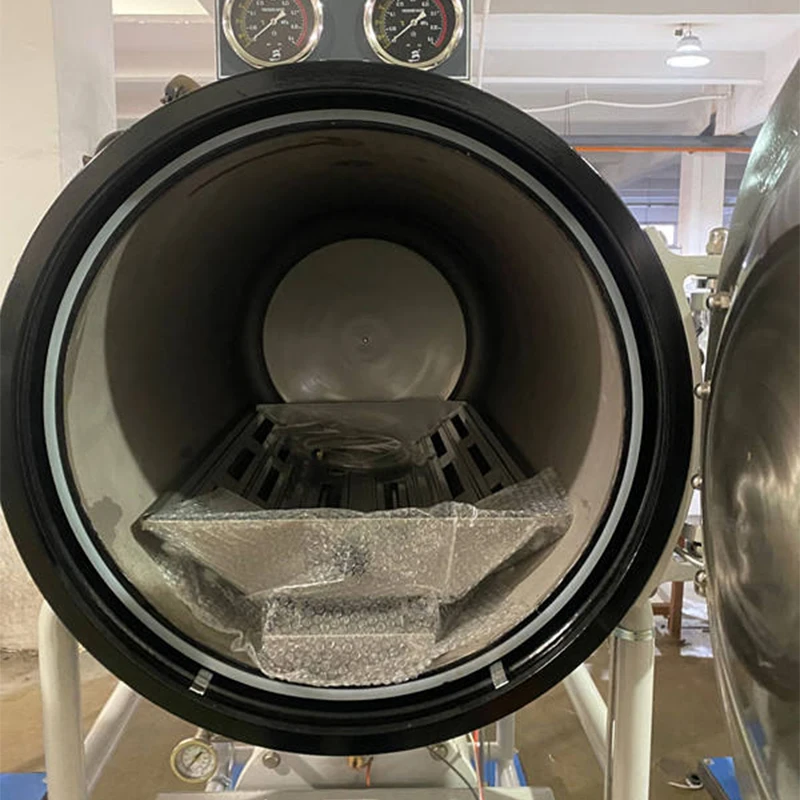

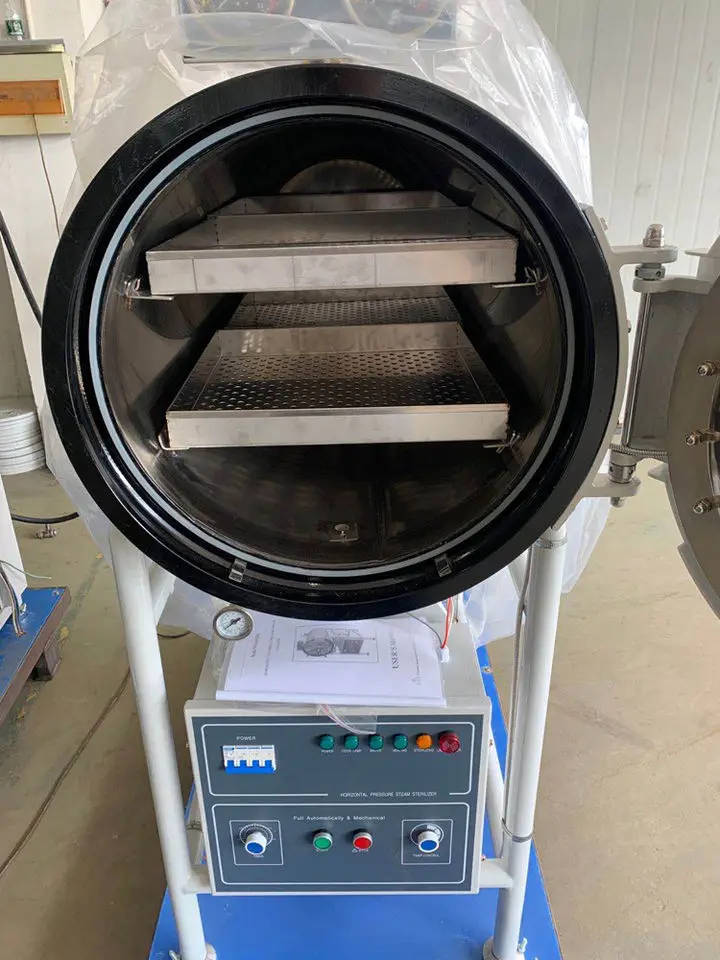

Modern design 500L medical steam sterilizing horizontal autoclave with vacuum sterilize
- Category: >>>
- Supplier: Hefei Sada Medical Equipment Co. Ltd.
Share on (1601053565751):
Product Overview
Description
Model | HA-BC150 | HA-BC200 | HA-BC260 | HA-BC400 | HA-BC500 | ||||
Sterilizing chamber volume | 150L | 200L | 260L | 400L | 500L | ||||
Ф440*1000mm | Ф515*1000mm | Ф600*1000mm | Ф700*1100mm | Ф700*1300mm | |||||
Working pressure | 0.22Mpa | ||||||||
Working temperature | 134℃ | ||||||||
Temperature adjust range | 40℃-134℃ | ||||||||
Time for sterilization | 0~60min | ||||||||
Time for drying | 0~60min | ||||||||
Heat average | ≤±2℃ | ||||||||
Power | 9kw/380V 50Hz | 9kw/380V 50Hz | 12kw/380V 50Hz | 18kw/380V 50Hz | 18kw/380V 50Hz | ||||
Dimension(MM) | 1400x600x1300 | 1400x670x 1650 | 1400x770x 1780 | 1430x880x1830 | 1800x900x1820 | ||||
Transport dimension(MM) | 1550x750x1850 | 1560x820x1850 | 1680x920x2100 | 1600x1050x2100 | 1850x1050x2100 | ||||
G.W/N.W | 320/240kg | 350/260kg | 465/365kg | 530/420kg | 580/470kg | ||||
Use
Horizontal ulsating vacuum sterilizer uses saturated steam as the sterilization medium, through the method of pulsating vacuum, the saturated steam completely penetrates to the surface of the object, and the high-temperature saturated steam under high pressure is used to kill all microorganisms and their spores, sterilizing.
The effect of cold air on temperature is eliminated by means of pulsating vacuum exhaust, and finally vacuum dehumidification is combined with jacket to dry sterilized items.
It can be widely used in pharmaceutical, bioengineering, medical and health care, scientific research and other fields, and can be sterilized aseptic clothing, sterilization boxes, medical appliances, rubber, liquids, medical dressings and other items.
The effect of cold air on temperature is eliminated by means of pulsating vacuum exhaust, and finally vacuum dehumidification is combined with jacket to dry sterilized items.
It can be widely used in pharmaceutical, bioengineering, medical and health care, scientific research and other fields, and can be sterilized aseptic clothing, sterilization boxes, medical appliances, rubber, liquids, medical dressings and other items.
Features:
1、Sterilizing course automatic sterilization controlled,easy to operate.
2、With drying function,suitable dressing drying.
3、With over-temperature,over-pressure auto-protect device.
4、The door opening mechanism cannot be operated until the pressure in the chamber is reduced to 0.027MPa. It can’t
be start on if the door doesn’t close well.
5、The safety value will be open automatically when the inner pressure over 0.24MPa,and the steam be exhausting to the water tank.
6、The power will be cut-off automatically,cut-off the water and alarm when the machine lacking water.

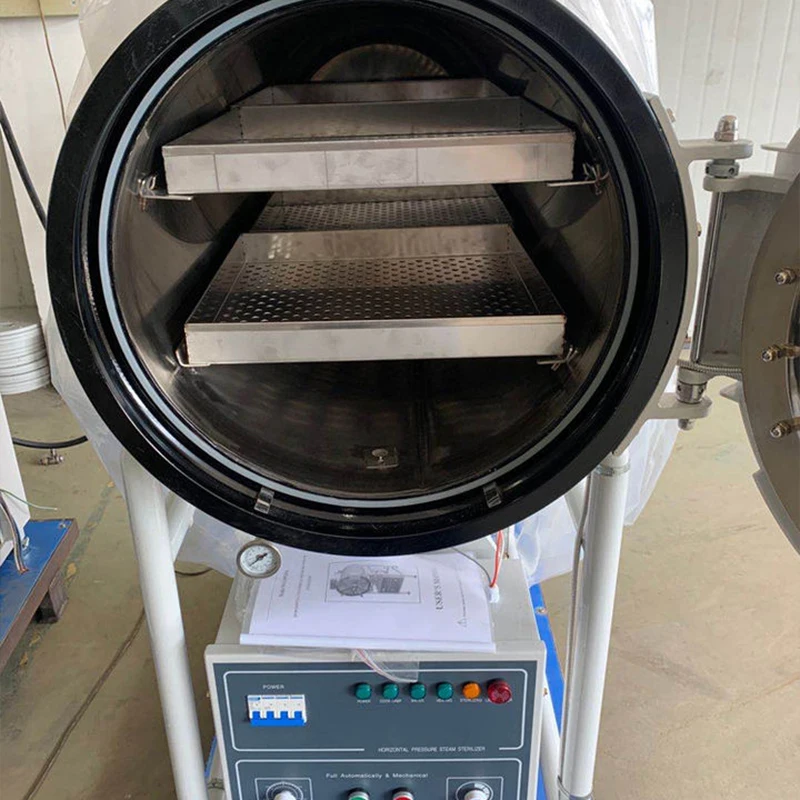

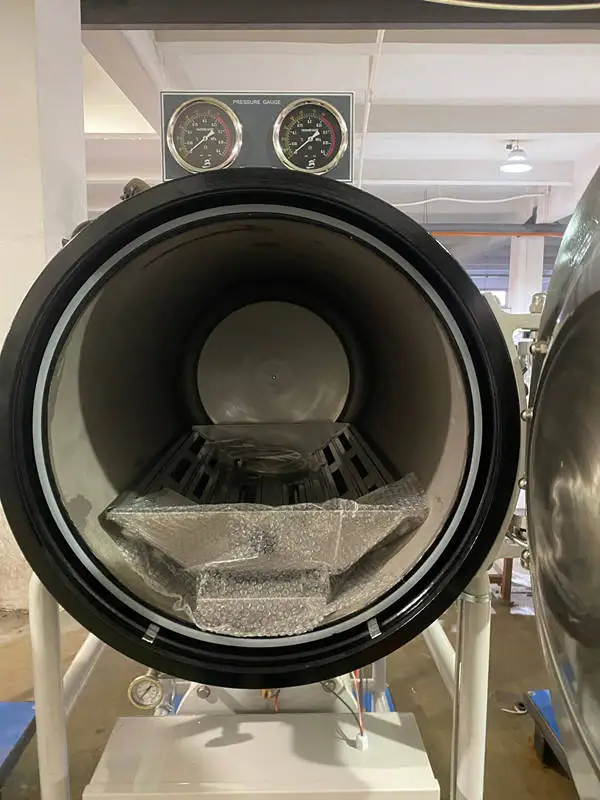

7、The chamber of the sterilizer is made of stainless steel.
2、With drying function,suitable dressing drying.
3、With over-temperature,over-pressure auto-protect device.
4、The door opening mechanism cannot be operated until the pressure in the chamber is reduced to 0.027MPa. It can’t
be start on if the door doesn’t close well.
5、The safety value will be open automatically when the inner pressure over 0.24MPa,and the steam be exhausting to the water tank.
6、The power will be cut-off automatically,cut-off the water and alarm when the machine lacking water.
7、The chamber of the sterilizer is made of stainless steel.
