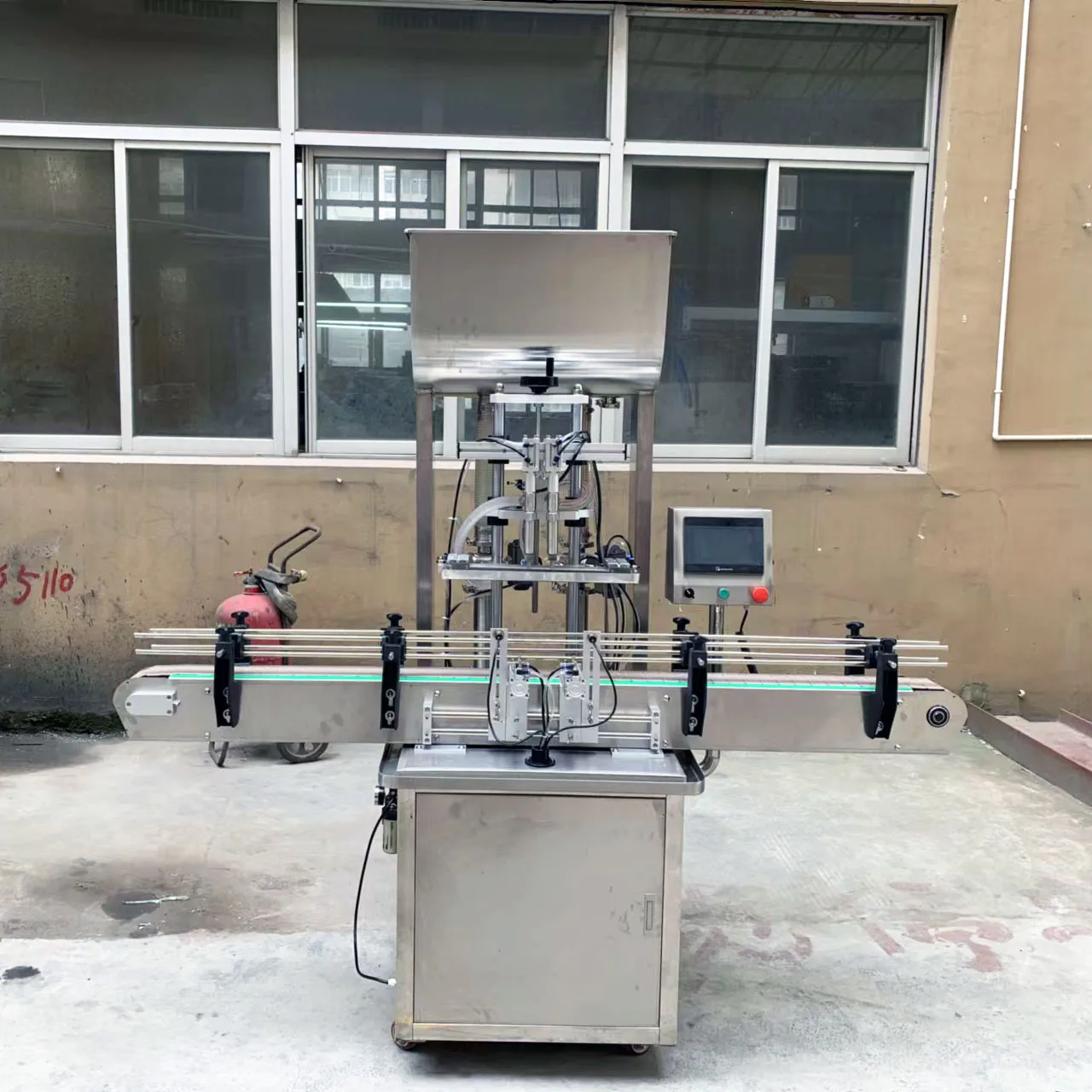

High quality fruit juice beverage quantitative filling equipment cosmetic bottle liquid filling machine
- Category: >>>
- Supplier: Sinoped (beijing) Biotech Co. Ltd.
Share on (1601053576809):
Product Overview
Description

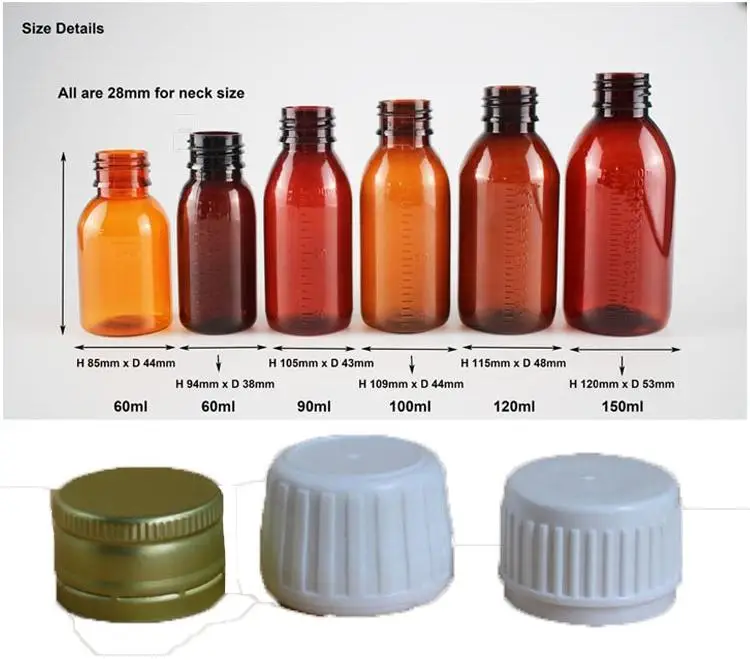

Application products
Product Application
The machine is developed on the basis of foreign advanced technology, and is specially used for the filling of water essence. The machine can be used for the filling & capping for round/ irregular-shape bottles (which can be made of all kinds of materials) and droppers (no matter the size). With advantages of accurate filling, stable capping, and simple operate, the machine is widely used in industries of or daily chemical, etc.

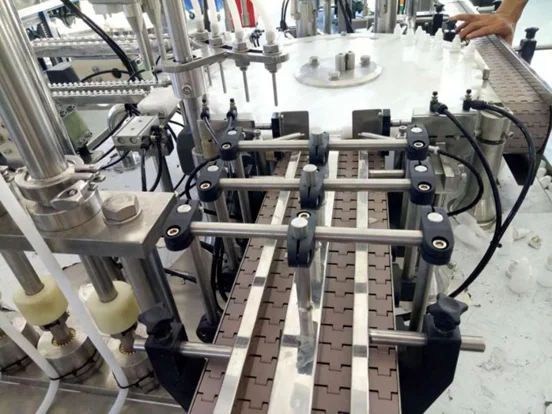

Conveying belt
In this machine, the conveying belt is used to automatically feed bottles. The belt is connected with the front bottles unscrambling machine, and with the interlocking device, when the bottles are full, the machine will be stopped. The chain plate of the belt is made of POM engineering plastic. The speed of the conveying belt’s motor can be regulated steplessly, and the application is wide.

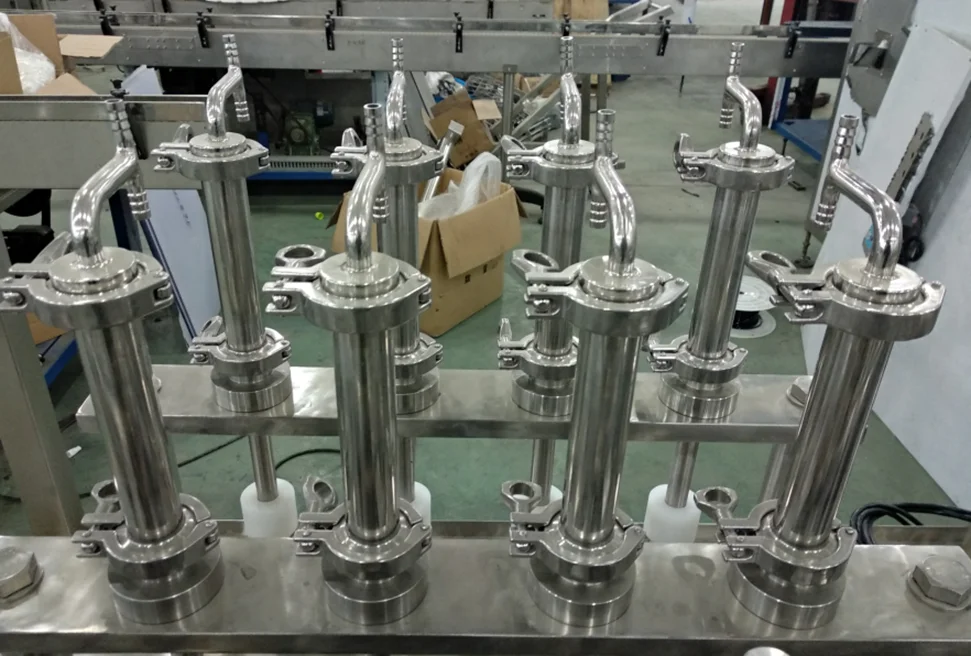

Measuring pump
The SS steel piston pump is used, the measuring is accurate, the error is little, and the quality warranty will be for the whole life. With the linking structure, the filling accuracy is high.

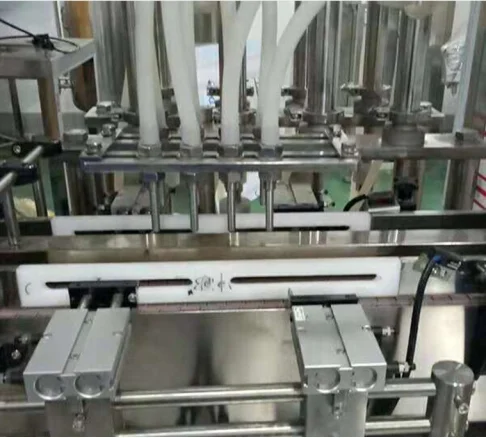

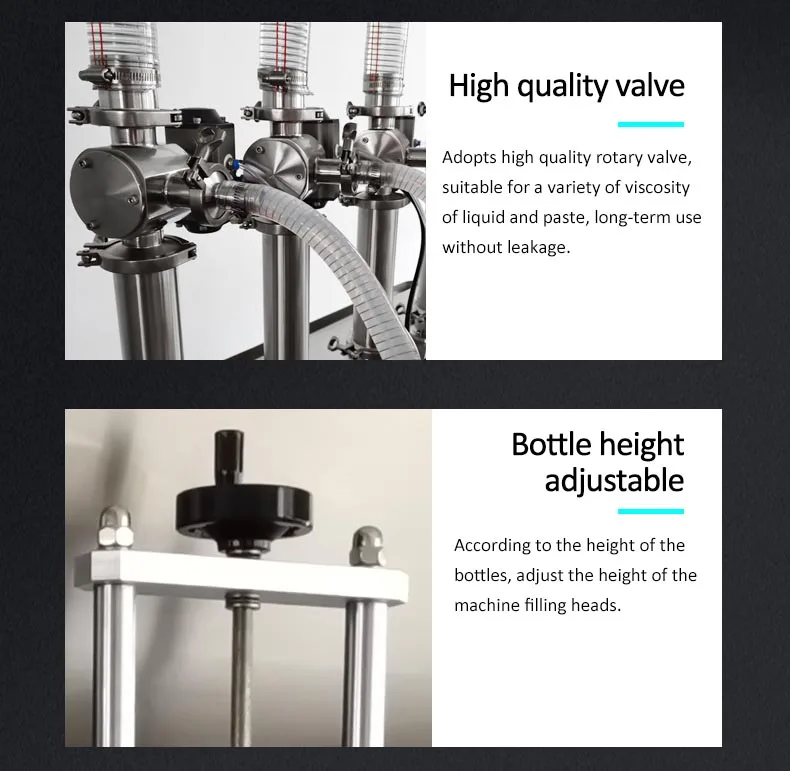

Filling head
The linear-type filling is adopted. When a bottle gets to the filling station, it will be automatically stopped, the filling head moves down, and the filling is started, and the filling needle will rise along the liquid level. There is the optoelectronic sensor, there is no filling when there is no bottle, and the waste is avoided.
The turntable is made of high polymer material, and the size is customized. Driven by the indexer, the turntable will have the fixed-point rotation, which provide correct positioning for the lids feeding & the capping, and the pass rate is high.

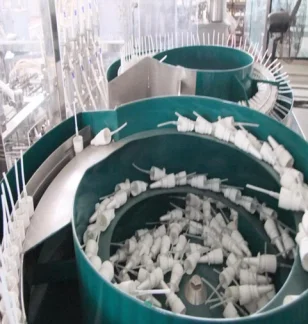

The lids unscrambling & feeding devices
The vibrating-type lids unscrambling device is adopted. After lids are poured into the hopper by manual, lids will be managed automatically by one direction, and then be conveyed on the straight track. The manipulator is used for the vacuum lids taking, then the lid is horizontally moved until above the bottle neck, and is put on the bottle neck. During the putting rocedure, there is the guiding device, so it’s ensured that every lid can be put on the bottle neck correctly.
Low noise, low loss, stable operation and stable output. It is especially suitable for small and medium-sized batch production.
Technical Parameters
Filling range | 30~500ml(different size of bottle, different mold) |
Filling accuracy | ≤±1% |
Power supply | 220V 50Hz; Other power supplies can be customized |
Total power/Filler | 2.0KW |
Compressed air pressure | 0.4-0.6mpa;The dosage of 10 to 25 l/min |
Total weight | 1000 kg |

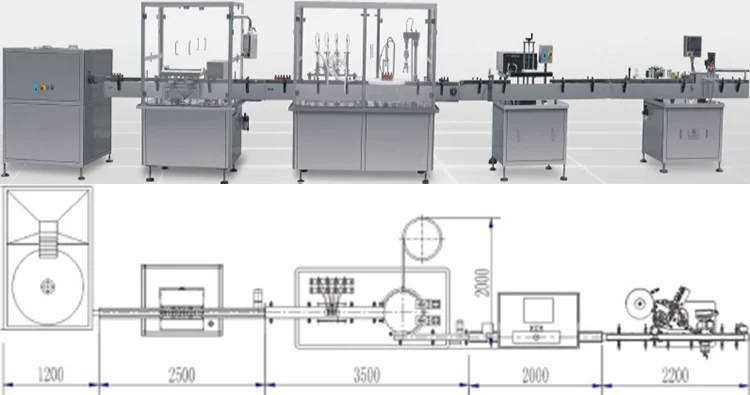

Dimensions | 3000×2000×1700mm |
Detailed Information
Features:
Suitable for the packaging process of liquid filling in , cosmetics,beverages, health products, food and other industries. It can be used for round bottles and special-shaped bottles. Quantitative filling and accurate measurement; 316L stainless steel needle and grade silicone tube are used; Mechanical transmission, accurate and stable transmission, no air source pollution and error in the cooperation of various mechanisms.
Company Profile
FAQ
Q1: Are you a dealer or manufacturer?
A1: We are manufacturer, welcome you come to visit our factory!
Q2: How can I know your machine is suitable for you product?
A2: We have a professional technical team, pre-sales to provide you with professional design and solutions.
A2: We have a professional technical team, pre-sales to provide you with professional design and solutions.
If possible, you can send us samples and we will test on machines.
Q3: How can I trust you for the first-time business?
A3: You can check our business license and certificates. And we suggest using Alibaba Trade Assurance Service for all transactions to protect your money rights and interests.
Q4: How about the after service and guarantee period？
A4: We make the warranty of 12 months from the machine's arrival in buyer's facility. With a professional team of
experienced technicians, we can serve abroad and do the best after-sale service to assure the machine's perfect operation.
experienced technicians, we can serve abroad and do the best after-sale service to assure the machine's perfect operation.
We were established in 1947 and have rich export experience. We have been a sincereenterprise for 14 years on the Alibaba platform, with a credit line of more than 1 million US dollars. We have the endorsement of Alibaba to let you More peace of mind, TOP10 in the equipment industry, more professional; multilingual foreign trade team, 1-to-1 service, 7*24 hours online at any time. Provide you with the perfect solution for the industry!
