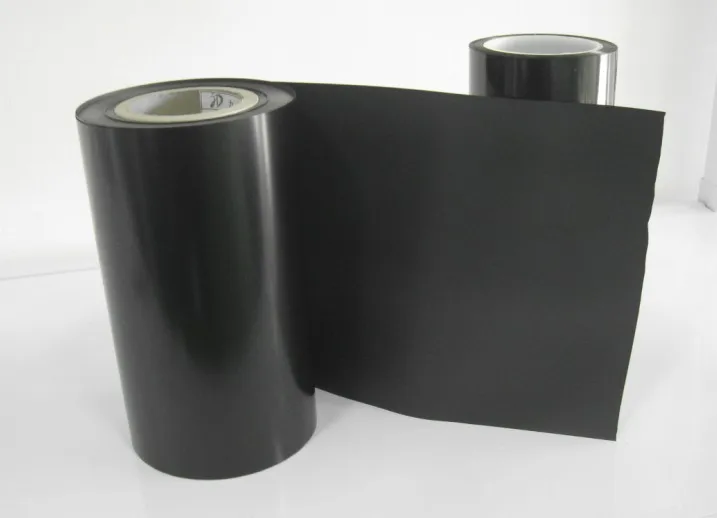

Both sides Matte Surface Black Color Mylar Polyester Insulation Film For Electro Acoustic
- Category: >>>
- Supplier: Shijiazhuang Dadao Packaging Materials Co. ltd.
Share on (1601053711005):
Product Overview
Description
Product Description
Both sides Matte Surface Black Color Mylar Polyster Insulation Film For Electro Acoustic
The PET black film is a very good insulation material, it can be used in the insulation industry Automotive components, adapters, automation equipment, batteries, etc.

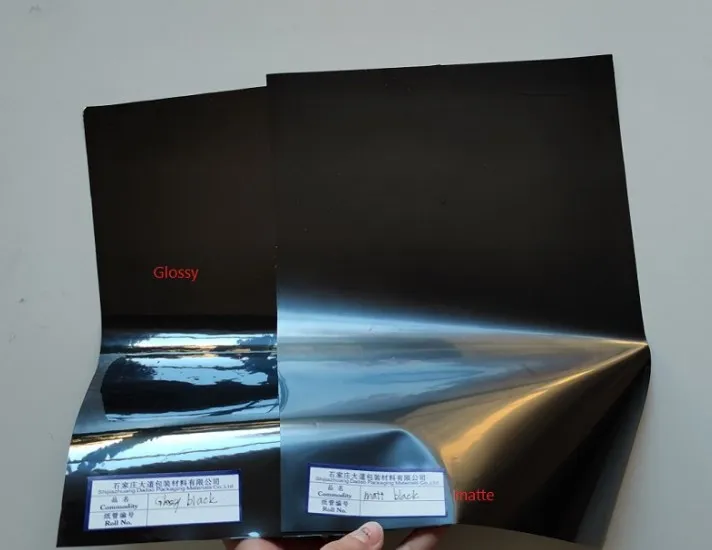

We can produce Both sides matte PET Black film , Both sides Glossy Black Mylar pet film and one side matt , another side is glossy PET Black insulation film .
High Glossy Black PET Film Or matte Black Mylar film is kind of PET Mylar Film .The black mylar film have High coverage of black,Even、permanent black color，smooth、bright surface and High mechanical property and heat resistance. Black Polyester Film is made from a special color masterbatch. It has high black coverage, high mechanical property, and heat stability. It is widely used for insulation tape, insulation application,light-shielding or shade tape
PET black film performance characteristics:
◆ Good black coverage, full shading, uniform color
◆ The surface has fine sand effect, dark color, matte effect
◆ Good dimensional stability at high temperature, close to zero secondary shrinkage, heating can still maintain good flatness
◆ To ink, silicone oil, coating has good adhesion, acid and alkali corrosion resistance does not fade
◆ Good black coverage, full shading, uniform color
◆ The surface has fine sand effect, dark color, matte effect
◆ Good dimensional stability at high temperature, close to zero secondary shrinkage, heating can still maintain good flatness
◆ To ink, silicone oil, coating has good adhesion, acid and alkali corrosion resistance does not fade
Technical Data Sheet
Thickness :50 um, 75 um 100 um, 125 um, 150 um, 175 um, 188 um and 250 um, 300um.
Standard width: 1000mm/1010mm/1020mm etc.
Standard width: 1000mm/1010mm/1020mm etc.
Item | Test methods | Units | Typical value | ||
Thickness | GB/T6672 | μm | 25 | ||
Tensile strength | MD | GB/T13022 | Mpa | 186 | |
TD | 196 | ||||
Elogation at break | MD | GB/T13022 | % | 127 | |
TD | 111 | ||||
Heat shrinkage | MD | GB/T16958 | % | 1.7 | |
TD | 0.3 | ||||
Friction of coefficient | GB/T10006 | - | 0.3 | ||
Electrical strenghth | GB/T2410 | V/um | 146 | ||
Dielectrical loss tangent(50Hz) | GB/T8807 | 2.6X10-3 | |||
Relative dielectrical constant (50Hz) | GB/T14216 | 3.4 | |||

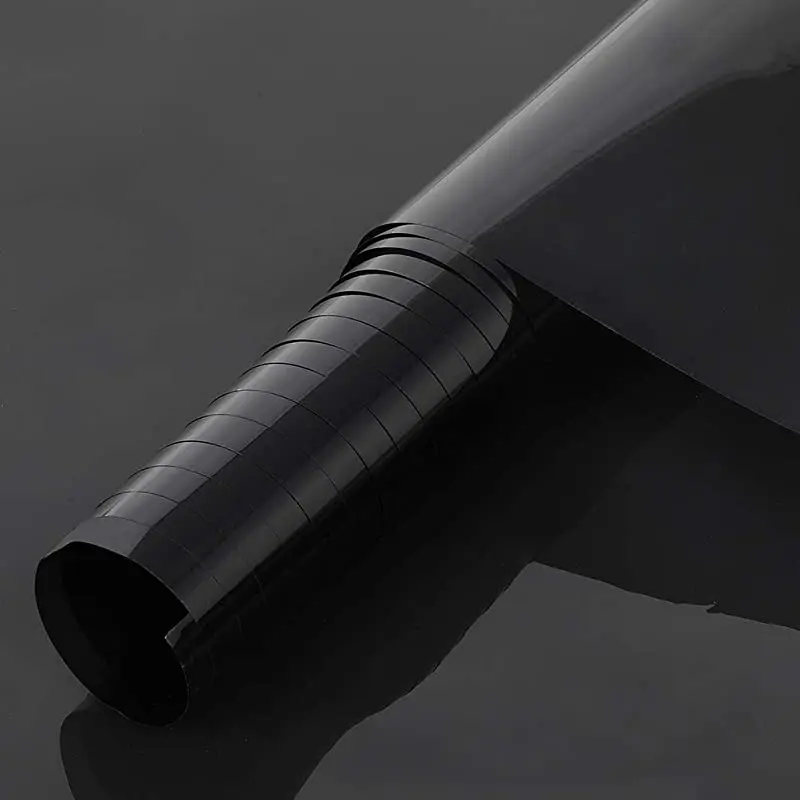

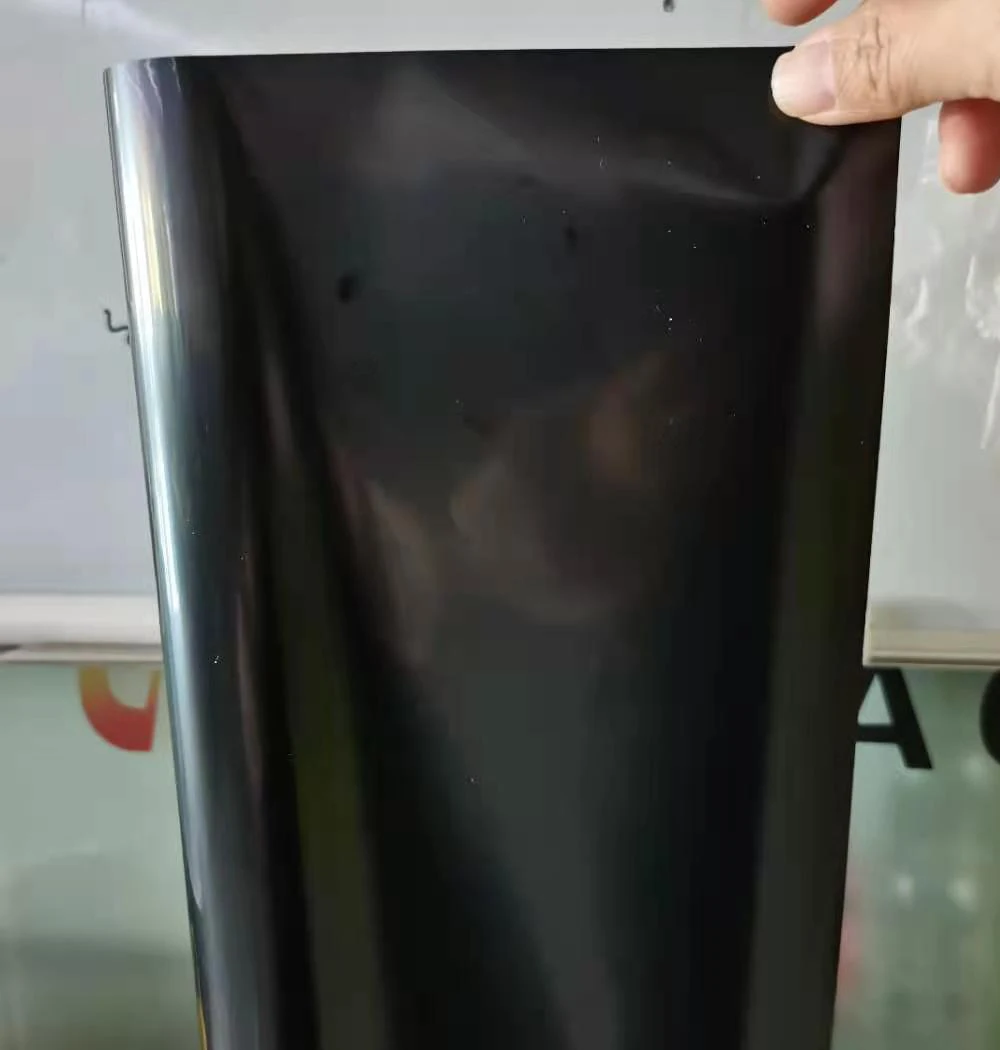

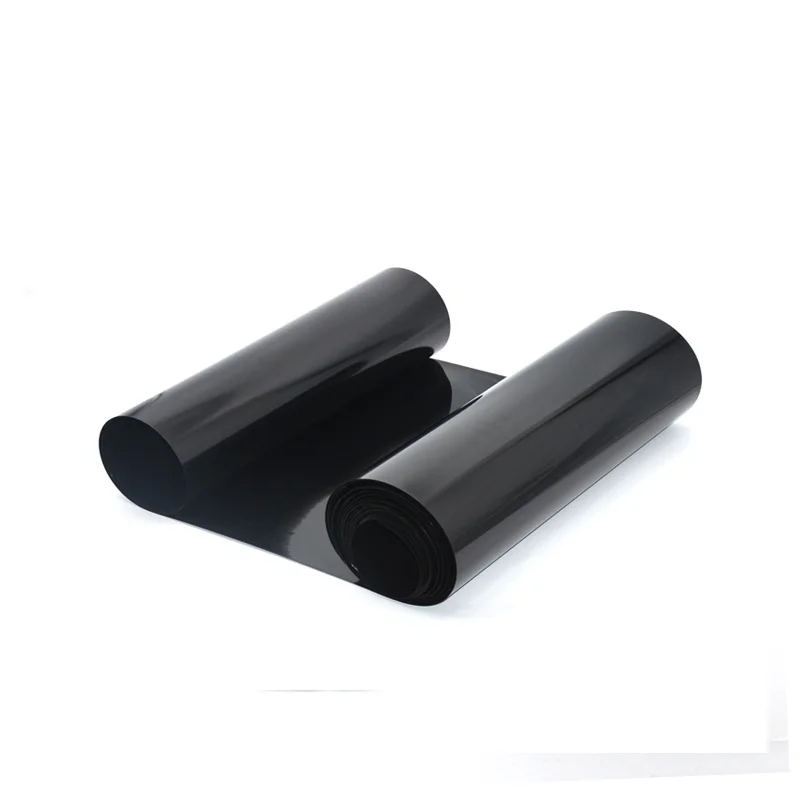

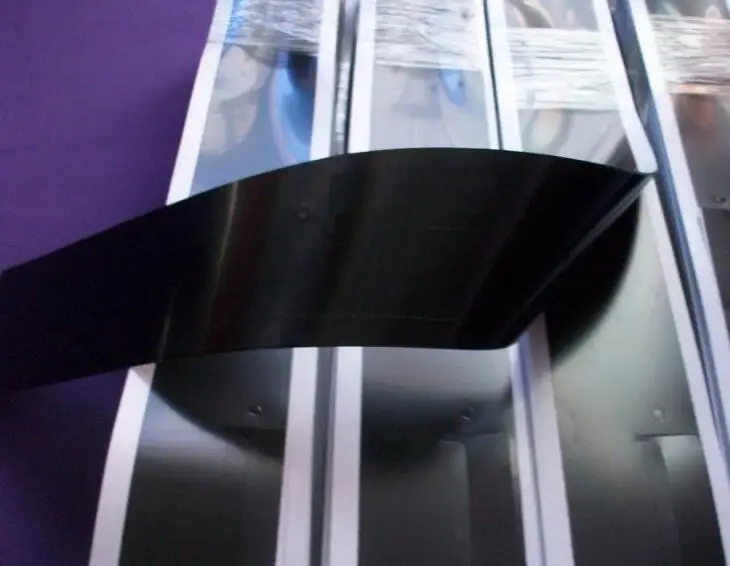

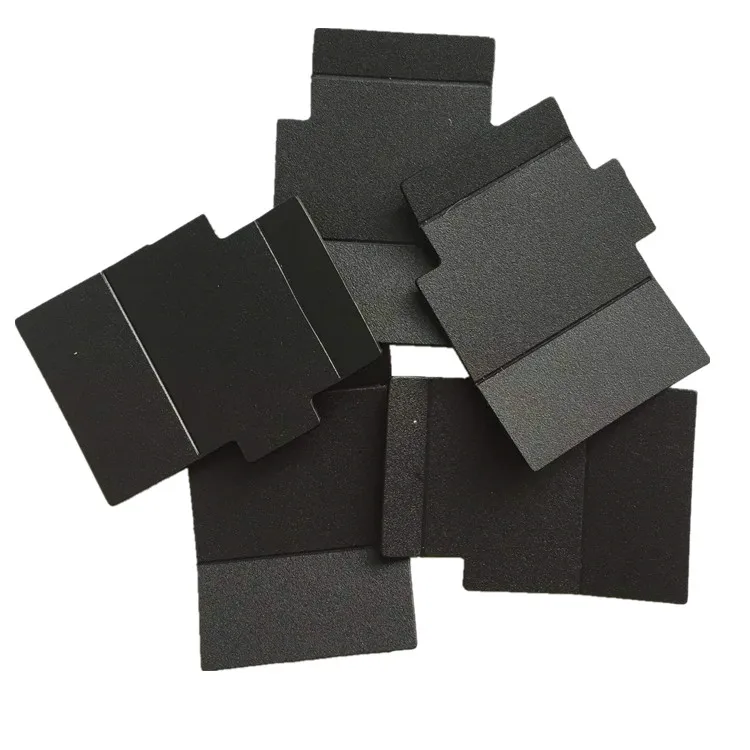

Details Images

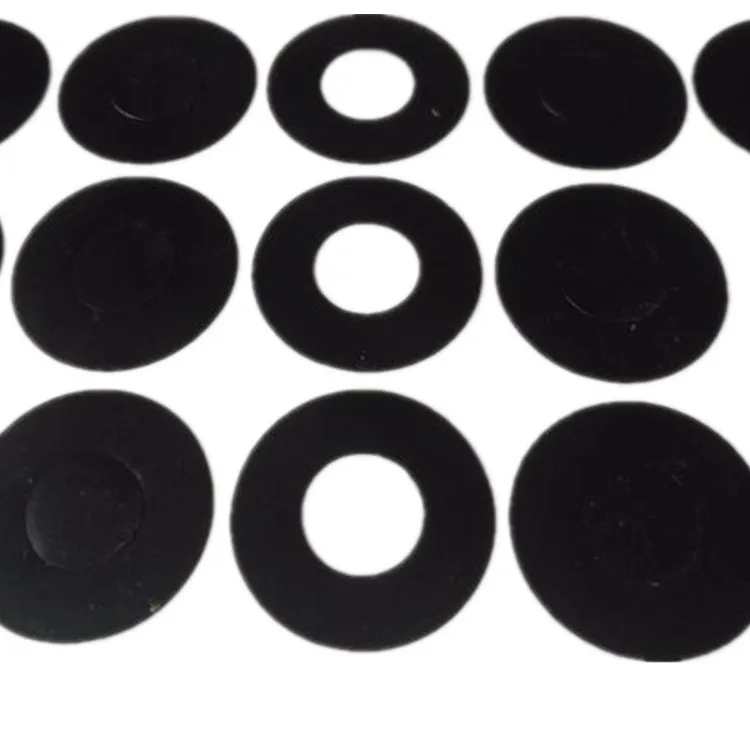

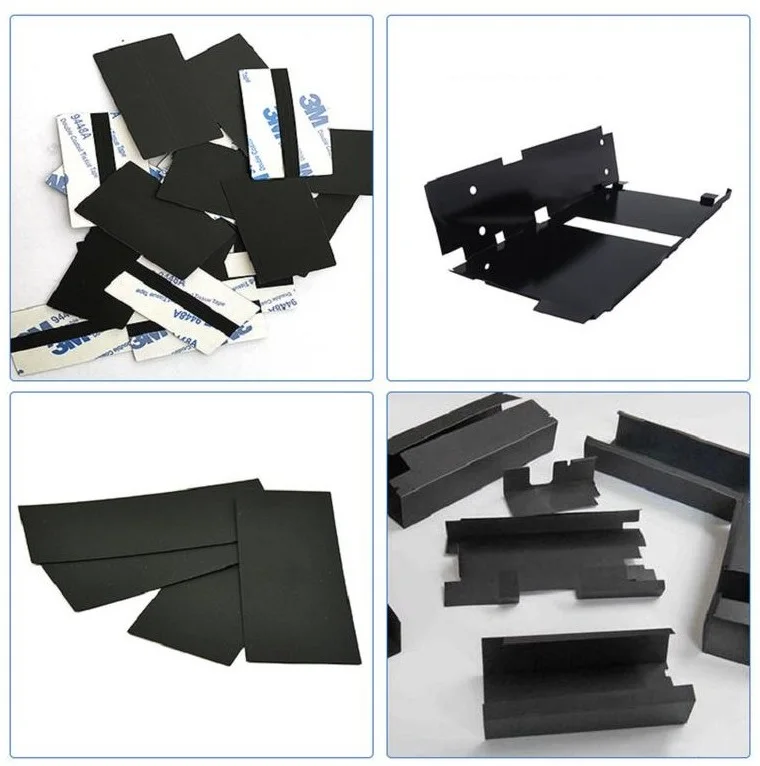

PET black film application
Apply to make black tape, tape black slippery paper, shading piece, electrical insulation, electronic equipment, R type transformer Outsourcing, sound film diaphragm manufacturing, and shading screen, etc,It is used for insulating films, Electro-acoustical equipment ,anti-dazzling screen etc.
Apply to make black tape, tape black slippery paper, shading piece, electrical insulation, electronic equipment, R type transformer Outsourcing, sound film diaphragm manufacturing, and shading screen, etc,It is used for insulating films, Electro-acoustical equipment ,anti-dazzling screen etc.
