Smart Design Imu 3D Modelling Um980 1408 Channels Gps Gnss Receiver Vrtk2 Hi Target Vrtk
- Category: >>>
- Supplier: Shanghai Apekstool Optoelectronic Technology Co. Ltd.
Share on (1601053859636):
Product Overview
Description
Product Description
Factory Price Dual Cameras For Image Survey And Live View Stakeout 3D Modelling Gnss Rtk Vrtk2 Hi Target Vrtk
*the New IMU GNSS RTK with Visual Positioning Technology
Equipped with professional dual cameras, vRTK is Hi-Target’s first lightweight and innovative visual RTK receiver product, which not only enables non-contact image surveying, breaking through the objective constraints of previous work, but also improves the speed of stakeout with the function of Live View Stakeout. It greatly improves the work efficiency of engineering users.
* Dual Cameras for Image Survey and Live View Stakeout
Non-contact measurement greatly improves the usable range of GNSS and efficient safe operation.
*Strong Signal and High-quality Data
New generation GNSS SOC chip with 1408 channels, supports new frequency points B1C, B2a, and B2b RTK decoding for Beidou-3 Satellites.
Introduction of multi-frequency anti-jamming technology and multi-step adaptive filtering technology to ensure strong signals, high-quality data, fast fix, and high accuracy.
*Abundant Industry Data Results
Abundant types of data results meet the needs of different industry applications.
Compatible with the mainstream modelling software to attain point cloud and 3D modelling in one step.
Compatible with the mainstream modelling software to attain point cloud and 3D modelling in one step.
Specification
Easy Use 1408 Channels Dual Cameras Visual GPS RTK Surveying Instruments vRTK/V5/vRTK2 gnss rtk base and rover | ||||
Configuration | Channels: 1408 | |||
BeiDou: BDS ： B1I，B2I，B3I，B1C，B2a，B2b | ||||
GPS: L1C/A，L1C，L2P(Y)，L2C，L5 | ||||
GLONASS: L1，L2 | ||||
GALILEO: E1，E5a，E5b，E6 | ||||
SBAS: L1，L2，L5 | ||||
IRNSS ：L5 | ||||
QZSS ： L1，L2，L5，L6 | ||||
Support the PPP service | ||||
Output format | ASCII: NMEA-0183, binary data | |||
Positioning output frequency | 1-20Hz | |||
Static data format | GNS and Rinex | |||
Differential format | RTCM2.X，RTCM3.X | |||
Network model | VRS, FKP, MAC; support NTRIP | |||
System Configuration | Operating system | Linux | ||
Data storage | Built-in 8GB ROM, support automatic cycle storage of static data | |||
Accuracy and Reliability | RTK Positioning | Horizontal: ±（8+1×10-6D）mm | ||
Vertical: ±（15+1×10-6D）mm | ||||
Static Positioning | Horizontal: ±（2.5+0.5×10-6D）mm | |||
Vertical: ±（5+0.5×10-6D）mm | ||||
DGPS Positioning | Horizontal:±0.25m+1ppm | |||
Vertical: ±0.50m+1ppm | ||||
SBAS Positioning | 0.5m | |||
Tilt measurement accuracy | 8mm+0.7mm/°tilt | |||
Image stakeout accuracy | Typical accuracy: 2cm | |||
Image measurement accuracy | 2cm ~ 4cm | |||
initialization time | ＜10s | |||
Initialization reliability | >99.99% | |||
Continued test at breakpoint | RTK measurements are still available during differential signal interruptions | |||
Pixels | Professional Dual HD Camera, 2MP & 5MP | |||
Futures | Support real scene stakeout, image measurement, working distance 2~15m | |||
Built-in Sim card Internal 4G mobile network:TDD-LTE，FDD-LTE，WCDMA，TD-SCDMA, EDGE，GPRS，GSM | ||||
I/O ports | USB type C interface; SMA interface | |||
WiFi | 802.11 b/g access point and client mode, WiFi hotspot available | |||
Bluetooth | Bluetooth® 4.0/2.1+EDR, 2.4GHz | |||
Transmitting power: 0.5W/1W/2W adjustable | ||||
Frequency: 410MHz-470MHz | ||||
Protocol: HI-TARGET，TRIMTALK450S，TRIMMARKⅢTRANSEOT，SOUTH，CHC，SATEL | ||||
Bands: 116 bands(16 bands are configurable) | ||||
Working Range: Typically 7km | ||||

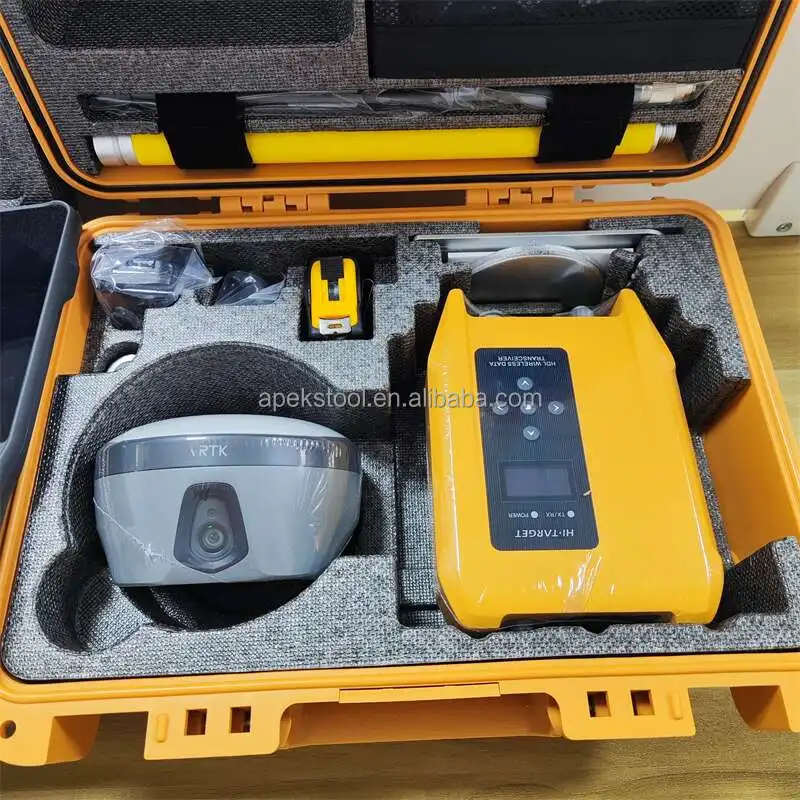

HDL460A radio | Transmitting power: 10W/30W adjustable | |||
Working voltage: 9-16V | ||||
Frequency: 403MHz-473MHz | ||||
Protocol: HI-TARGET，TRIMTALK450S，TRIMMARKⅢTRANSEOT，SOUTH，CHC，SATEL | ||||
Bands: 116 bands(16 bands are configurable) | ||||
Transmission rate: 19.2kbps, 9.6kbps adjustable | ||||
Working Range: Typically 8-10 km ,optimal 15-20 km | ||||
Electronic bubble | Intelligent levelling | |||
Tilt correction system will continue to monitor the inclination of the centering rod, and compensate to correct the coordinates | ||||
User Interface | Button | Single button | ||
LED Lamp | LED light: satellite light, signal light, power light | |||
Advanced function | NFC IGRS, WebUI interaction, U disk firmware upgrade | |||
Intelligence application | intelligent voice, function self-test | |||
Remote service | Message push, online upgrade, remote control | |||
Cloud services | device management, location services, collaborative work, data analysis | |||
Operating temperature | -45℃~+75℃ | |||
Storage temperature | -55℃~+85℃ | |||
Humidity | 100% non-condensing | |||
Water/dustproof | IP68 dustproof, protected from temporary | |||
Anti-drop | Anti-2m high measuring rod natural drop | |||
GNSS battery | high-capacity li-ion battery 7000mAh, working time is better than 15 hours | |||
External power supply | USB 15W charging | |||
Dimensions | Φ130mm×80mm | |||
Weight | ≤0.97kg | |||
Power | 2.6W | |||
Material | The shell is made of magnesium alloy material | |||

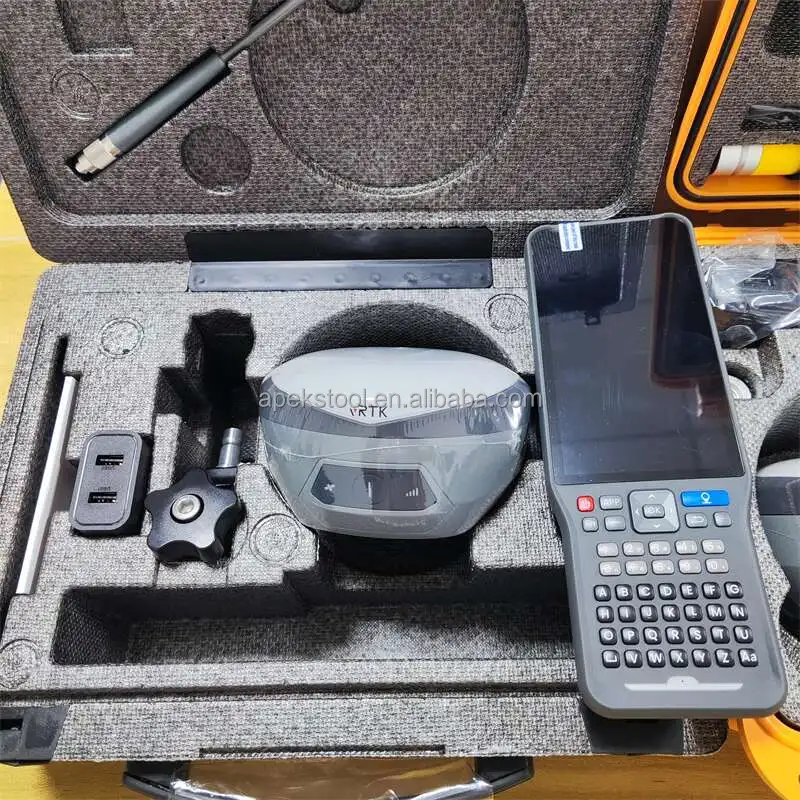

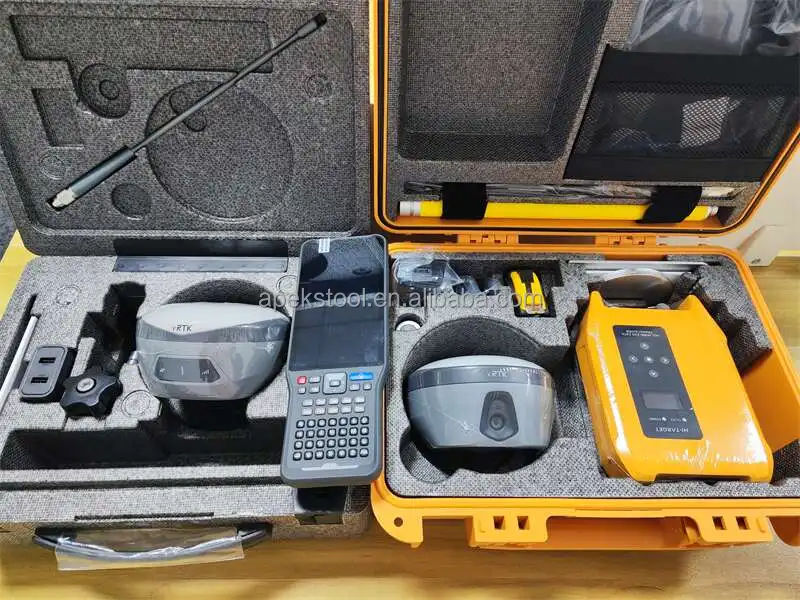

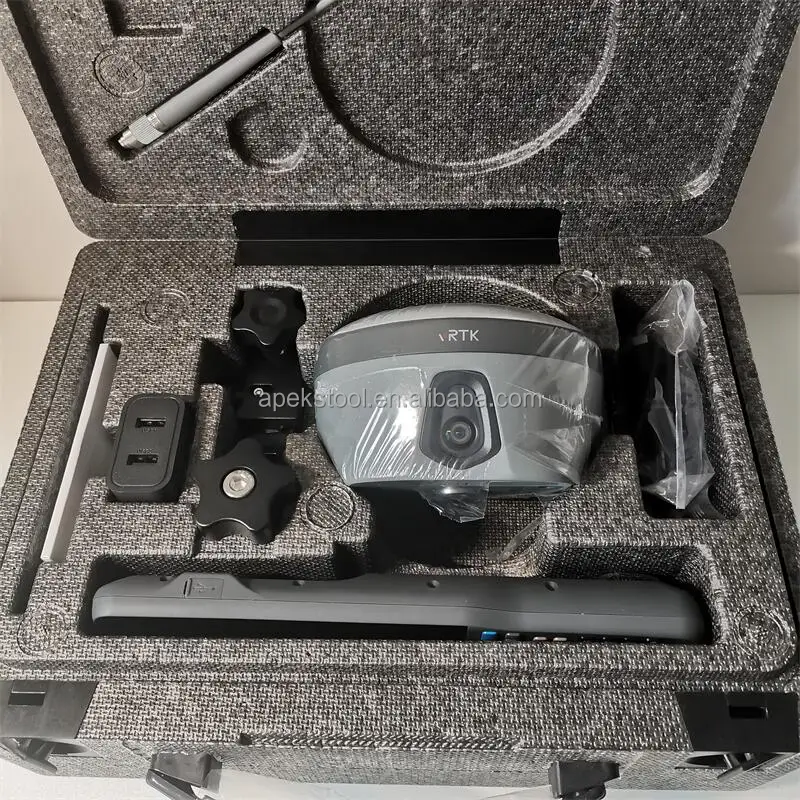

Packages
