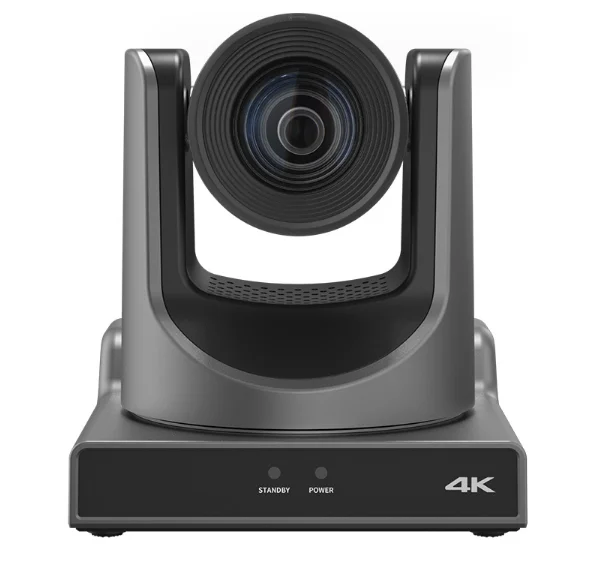

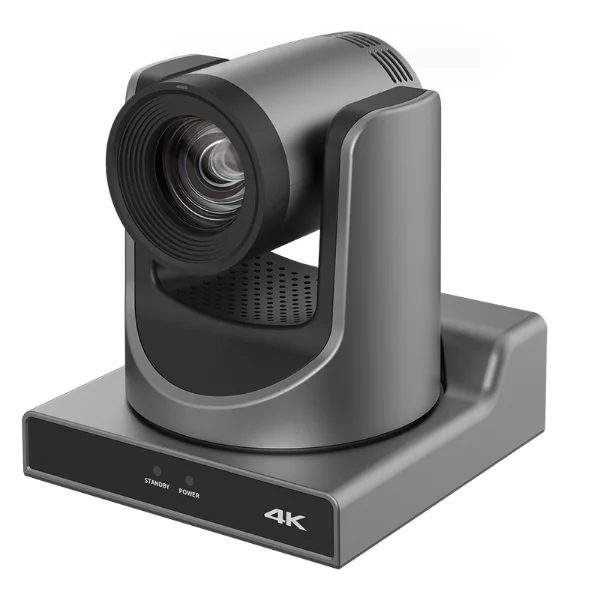

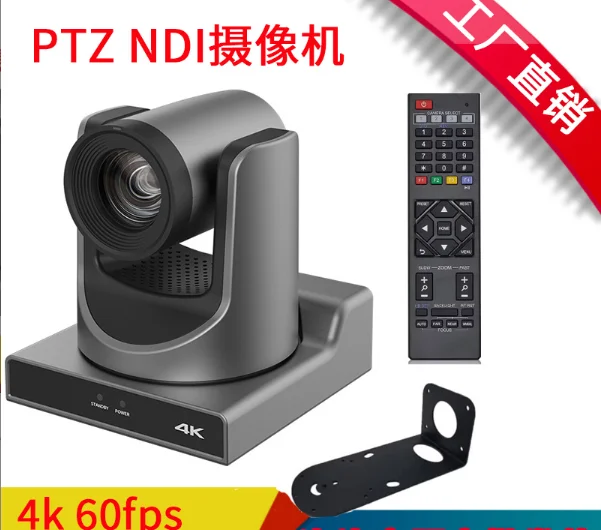

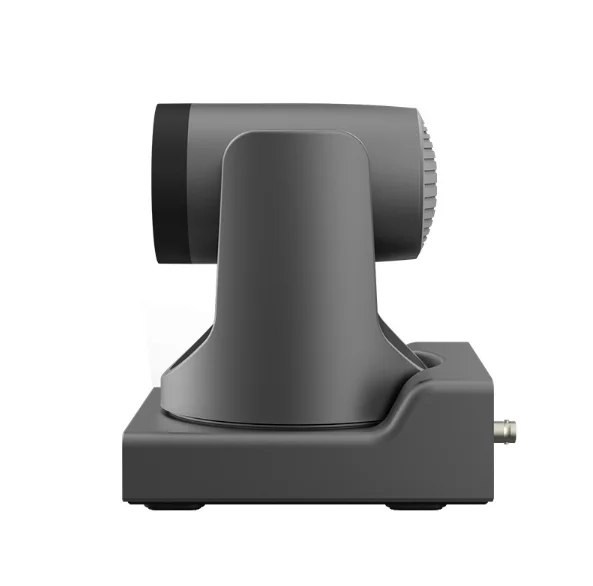

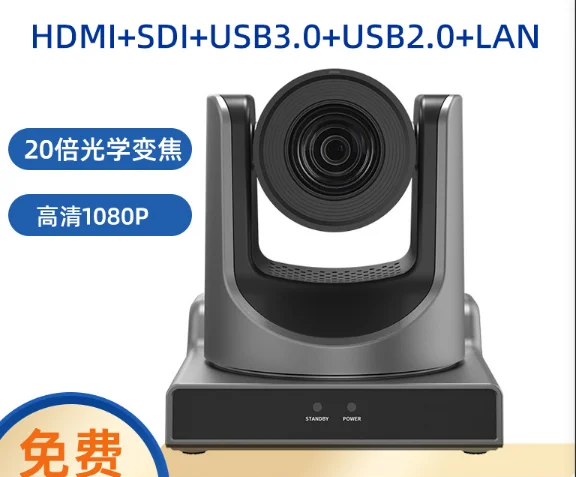

20X HDMI PTZ Camera IP Live Streaming SDI USB 1080P 60fps Optical Zoom PoE Supports for Church Services

Product Overview

Description

Sensor: 1/1.8 inch, CMOS, effective pixels: 8.42 million
Lens focal length: 20×, f=6.25mm~125mm, F1.58~F3.95
signal system
HDMI: 4KP60, 4KP59.94, 4KP50, 4KP30,4KP25, 4KP29.97, 1080P60, 1080P50, 1080I60,
1080I50, 1080P30, 1080P59.94, 1080I59.94, 1080P29.97, 720P60, 720P59.94;
3G-SDI: 1080P60, 1080P50, 1080P30, 1080P29.97, 1080P59.94, 1080P25;
1080I60, 1080I50, 1080I59.94;720P60, 720P59.94;
Scanning mode: progressive
Digital zoom: 20X 16×
Minimum illumination: 0.5Lux @ (F1.8, AGC ON)
Shutter:1/30s ~ 1/10000s
White balance: automatic, indoor, outdoor, one-touch, manual, specified color temperature
Backlight compensation: support
Digital noise reduction: 3D digital noise reduction
Signal-to-noise ratio: ≥ 55dB
Horizontal rotation range:±170°
Vertical rotation range: -30° ~ +90°
Horizontal rotation speed range: 1.7° ~ 100° /s
Vertical rotation speed range: 1.7° ~ 69.9° /s
Horizontal and vertical flip: support
Image Freeze:Supported
PoE+ power supply: supported
Number of preset positions: 255
Preset position accuracy: 0.1°
Video encoding standards: H.265 / H.264 / MJPEG
Video stream: first stream, second stream
First stream resolution
3840×2160, 1920×1080, 1280×720 etc.
Second stream resolution
720×480, 320×240, etc.
Video bit rate
First path: 32kbps~51200kbps
Second path: 32kbps~20480kbps
Code rate control: variable code rate, fixed code rate
Frequency: 50Hz: 1fps~50fps, 60Hz: 1fps~60fps
Audio compression standards: AAC, G711A
Audio bit rate: 96Kbps, 128Kbps
