230V IGBT DC MIG Welding Multi functional 3IN1 Welder
- Category: >>>
- Supplier: Beijing Aland Welding Co. Ltd.Beijing Ltd.
Share on (1601053896324):
Product Overview
Description
DESCRIPTION
■ Adopt Advanced IGBT inverter and PWM technology.
■ MIG/MMA/Lift-TIG 3 IN 1 machine. Built-in arc force and hot start.

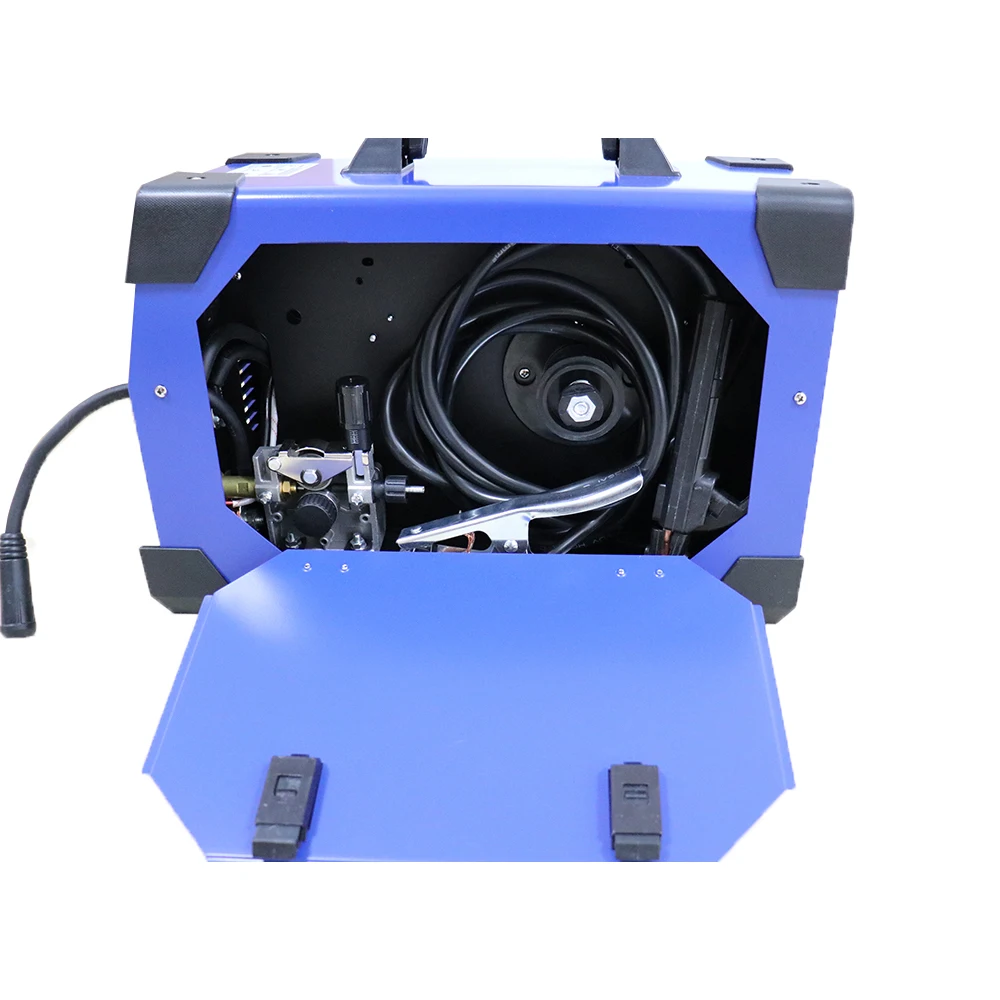

■ Internal wire feeder, gear driven, support MAX 5kgs wire feeding.
■ Burn-back function is adjustable, easy to remove tip ball.
■ With GAS(solid) and GASLESS (flux) wire function.
■ 3PC structure is available, high duty cycle and easy to repair.
■ MIG/MMA/Lift-TIG 3 IN 1 machine. Built-in arc force and hot start.
■ Internal wire feeder, gear driven, support MAX 5kgs wire feeding.
■ Burn-back function is adjustable, easy to remove tip ball.
■ With GAS(solid) and GASLESS (flux) wire function.
■ 3PC structure is available, high duty cycle and easy to repair.
MIG-180S2 | MIG-200S2 | MIG -250S2 | |
Power supply voltage | AC110/230V±10%(50/60HZ) | AC1 10/230V±10%(50/60HZ) | AC110/230V±10%(50/60HZ) |
Max.Power consumption | 4.3KVA | 5.2KVA | 6.1KVA |
Rated input current | 110V : 37.0A 230V : 27.6A | 110V : 41.1A 230V : 38.0A | 110V : 43.1A 230V : 38.5A |
No-load voltage | 16.5-23V | 16.5-24V | 16.5-25.5V |
Wire Size | 0.8mm , 0.9mm , 1 .0mm | 0.8mm , 0.9mm , 1.0mm | 0.8mm , 0.9mm , 1 .0mm |
Protective class | IP21S | IP21S | IP21S |
Wire Feeder | Inside | Inside | Inside |
Weight | 14Kg | 14.5Kg | 14.5Kg |
Output current | 110V : 30-130A 230V : 40-180A | 110V : 40-140A 230V : 40-200A | 110V : 40-140A 230V : 40-200A |
Wire feeding speed | 2.5-14m/min | 2.5-14m/min | 2.5-14m/min |
Usable thickness | 0.8above(mm) | 0.8above(mm) | 0.8above(mm) |

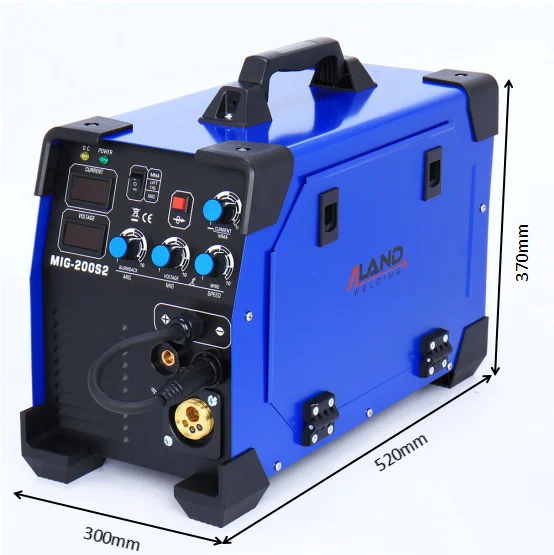

Dimension | 520mmx300mmx370mm | 520mmx300mmx370mm | 520mmx300mmx370mm |
Power factor | Insulation class | Duty Cycle at 40°C | Efficiency |
0.85 | F | 30% | 85% |
