Tobee Effluent Handling
$12,600
High Efficiency Chemical 304 316 SS Centrifugal Acid Pump Stainless Steel Submersible Corrisive Water Pump
- Category: >>>
- Supplier: Ocean Pump Co. Ltd.
Share on (1601054292702):
Product Overview
Description
Products Description
WQ/QW high pressure sump pump
Main Datas:Dia. : 1 inch ~ 25 inches
Capacity: 8 ~ 2600 m³/h
Head : 7 ~ 60 m
1. Summarize:
WQ series waste water are used as single or double flow channel impeller and wide pump body ,allow solids passing through easily and fibre uneasily wound ,making it most suitable to discharge sewage and dirt . It mainly composed of pump ,motor and mechanical seals. And it's distinctive design of double channel and large pasage impeller effects high efficiency .
The pumps are mainly used in municiple engineering, building ,industrial drainage , sewage .treatment ,waterworks and other watersupply and discharge sewage ,waste water and rainwater containing solidsand long fibre .
WQ series waste water are used as single or double flow channel impeller and wide pump body ,allow solids passing through easily and fibre uneasily wound ,making it most suitable to discharge sewage and dirt . It mainly composed of pump ,motor and mechanical seals. And it's distinctive design of double channel and large pasage impeller effects high efficiency .
The pumps are mainly used in municiple engineering, building ,industrial drainage , sewage .treatment ,waterworks and other watersupply and discharge sewage ,waste water and rainwater containing solidsand long fibre .
2. Application conditions:
1.The medium temperature not exceeding 60°C,density at 1-1.3 kg/cm³ , PH valve between 5-9 .
2.The motor surfaced not exceeding 1/2 if without the cooling circulation pump .
Any special requests may be brought out upon placing an order of our convenience
to arrange you more dependable products.
1.The medium temperature not exceeding 60°C,density at 1-1.3 kg/cm³ , PH valve between 5-9 .
2.The motor surfaced not exceeding 1/2 if without the cooling circulation pump .
Any special requests may be brought out upon placing an order of our convenience
to arrange you more dependable products.
3. Performance Parameters:
Model | Diameter (mm) | Capacity (m/h) | Head (M) | Speed (r/min) | Power (KW) | Coupler |
25WQ8-22-1.1 | 25 | 8 | 22 | 2825 | 1.1 | |
32WQ12-15-1.1 | 32 | 12 | 15 | 2825 | 1.1 | |
40WQ15-15-1.5 | 40 | 15 | 15 | 2840 | 1.5 | GAK-40 |
40WQ15-30-2.2 | 40 | 15 | 30 | 2840 | 2.2 | GAK-40 |
50WQ20-7-0.75 | 50 | 20 | 7 | 2840 | 0.75 | GAK-50 |
50WQ10-10-0.75 | 50 | 10 | 10 | 2840 | 0.75 | GAK-50 |
50WQ20-15-1.5 | 50 | 20 | 15 | 2840 | 1.5 | GAK-50 |
50WQ15-25-2.2 | 50 | 15 | 25 | 2840 | 2.2 | GAK-50 |
50WQ18-30-3 | 50 | 18 | 30 | 2880 | 3 | GAK-50 |
50WQ25-32-5.5 | 50 | 25 | 32 | 2900 | 5.5 | GAK-50 |
50WQ42-10-3 | 50 | 42 | 10 | 2900 | 3 | GAK-50 |
65WQ37-13-3 | 65 | 37 | 13 | 2840 | 3 | GAK-65 |
65WQ25-30-4 | 65 | 25 | 30 | 2880 | 4 | GAK-65 |
65WQ30-40-7.5 | 65 | 30 | 40 | 2890 | 7.5 | GAK-65 |
65WQ35-50-11 | 65 | 35 | 50 | 2900 | 11 | GAK-65 |
65WQ35-60-15 | 65 | 35 | 60 | 2930 | 15 | GAK-65 |
80WQ40-7-2.2 | 80 | 40 | 7 | 1420 | 2.2 | GAK-80 |
80WQ43-13-3 | 80 | 43 | 13 | 2880 | 3 | GAK-80 |
80WQ40-15-4 | 80 | 40 | 15 | 2890 | 4 | GAK-80 |

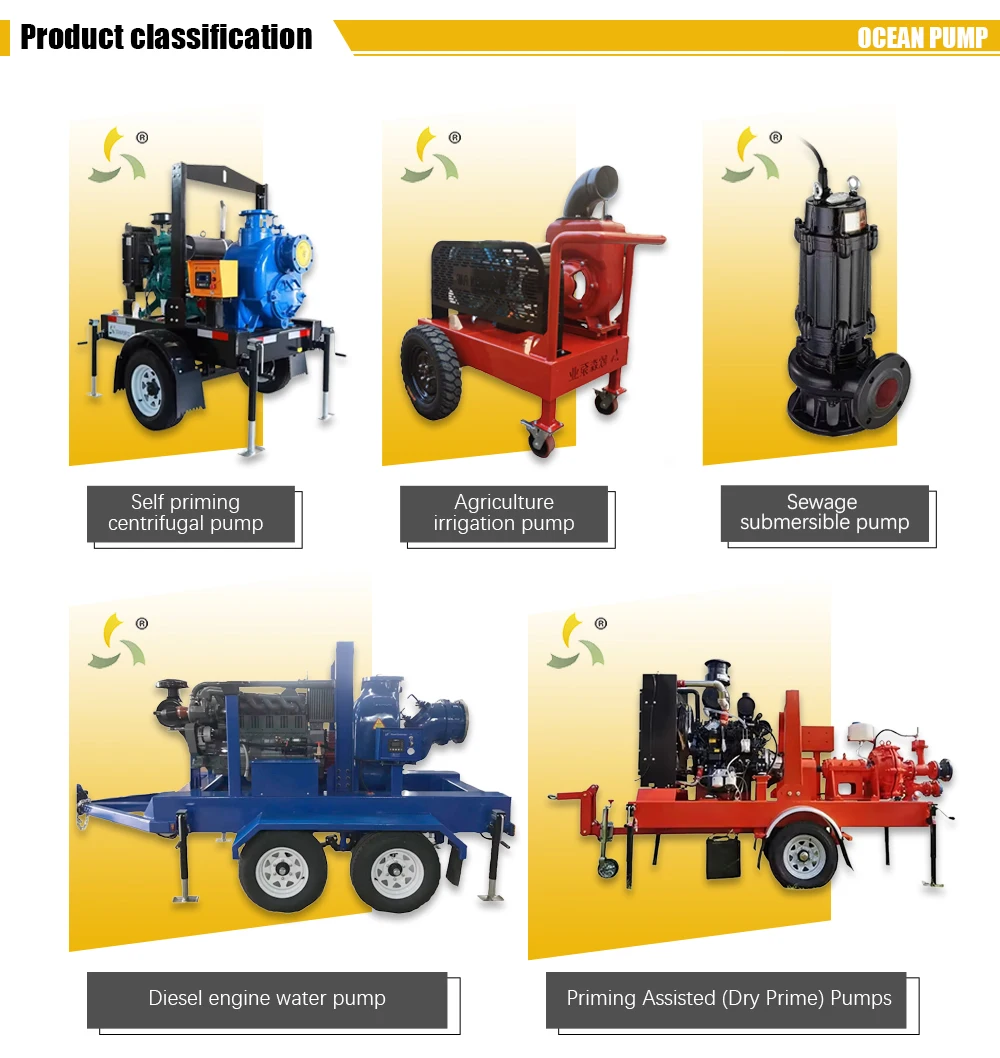

Product classification
Company Profile
Exhibition
Cooperative customer
Packing and transportation
FAQ
1. Who Are We?
We are based in Zhejiang, China, start from 2015,sell to Domestic Market(70.00%),North America(8.00%),South America(5.00%),Oceania(5.00%),Mid East(5.00%),Southeast Asia(3.00%),Africa(2.00%),South Asia(2.00%). There are total about 51-100 people in our office.
2. How Can We Guarantee Quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.What Can You Buy From Us?
Diesel Engine Water Pump,Submersible Sewage Pump,Gear Pumps,Chemical Pump,Self Priming Pump
4. Why Should You Buy From Us Not From Other Suppliers?
Zhejiang Ocean Pump Co., Ltd supply pump widely which used in chemical, petroleum, pharmaceutical, electroplating, environmental protection, printing and dyeing, food and other industries. The company has a professional technical team, R & D.
5. What Services Can We Provide?
We are based in Zhejiang, China, start from 2015,sell to Domestic Market(70.00%),North America(8.00%),South America(5.00%),Oceania(5.00%),Mid East(5.00%),Southeast Asia(3.00%),Africa(2.00%),South Asia(2.00%). There are total about 51-100 people in our office.
2. How Can We Guarantee Quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.What Can You Buy From Us?
Diesel Engine Water Pump,Submersible Sewage Pump,Gear Pumps,Chemical Pump,Self Priming Pump
4. Why Should You Buy From Us Not From Other Suppliers?
Zhejiang Ocean Pump Co., Ltd supply pump widely which used in chemical, petroleum, pharmaceutical, electroplating, environmental protection, printing and dyeing, food and other industries. The company has a professional technical team, R & D.
5. What Services Can We Provide?
Accepted Delivery Terms: FOB,CIF,Express Delivery；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
