Product Overview
Description

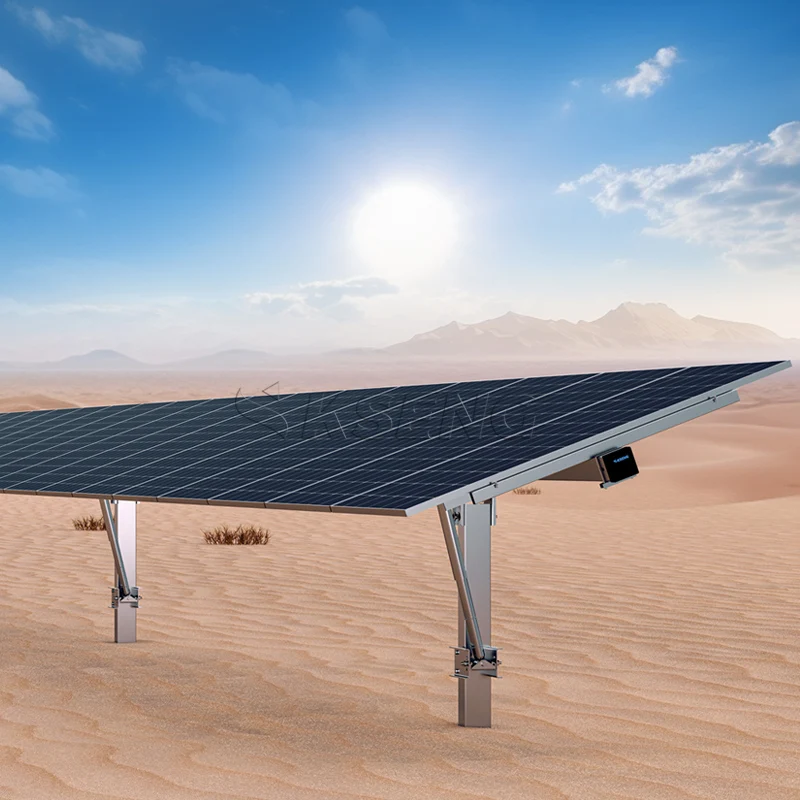

Single Axis Slewing Drive Solar Tracker Kit Solar Powered Tracker Single Axis Solar Tracking System
Products Description

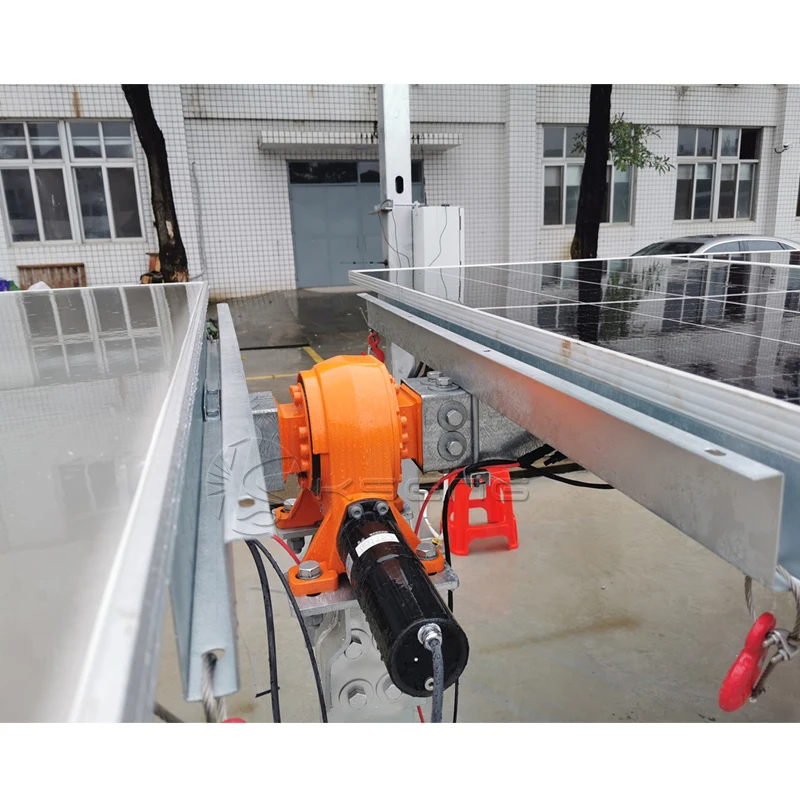

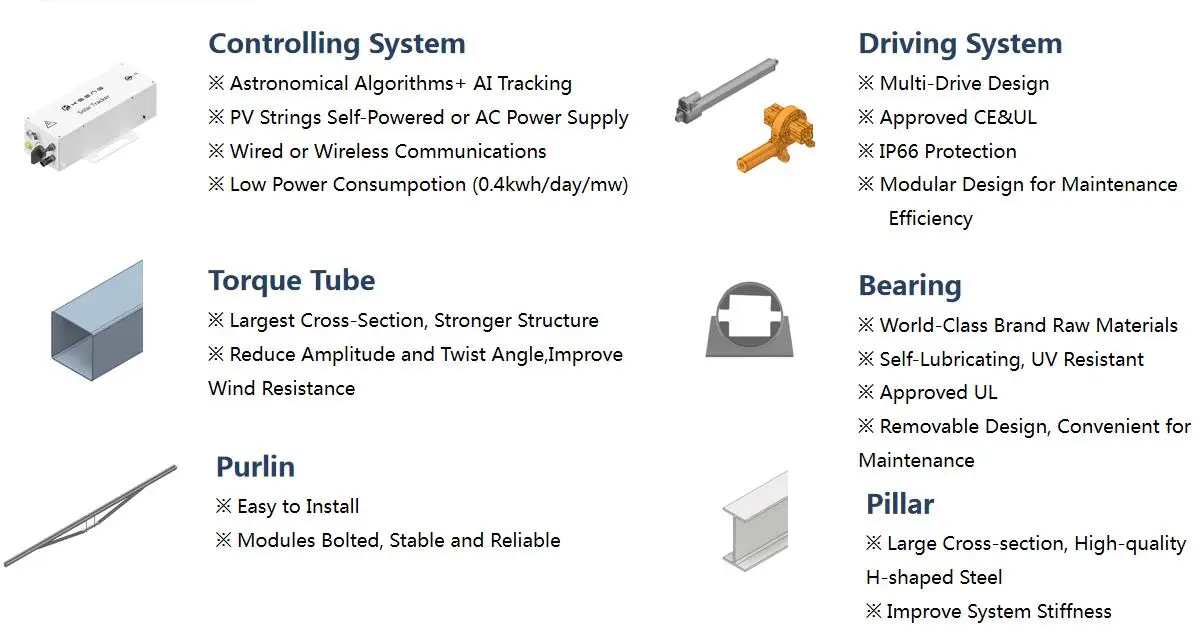

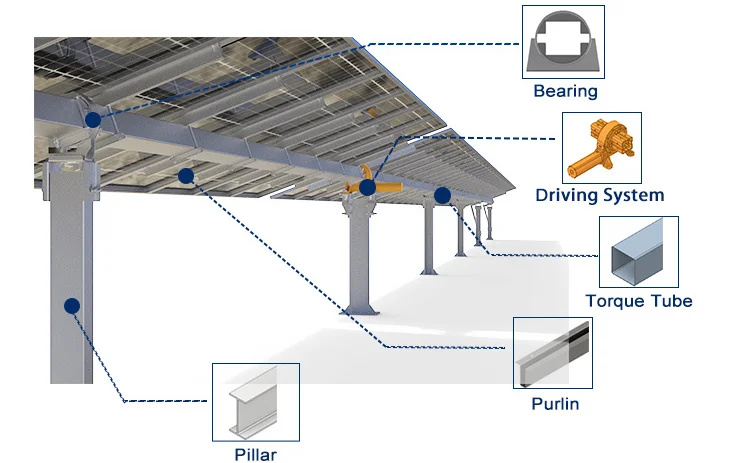

Main Structural Parts
① Fully fit for 210 larger modules.
② Intelligent AI algorithm,can increase 15%-30% yield gain
③ Adopt ion to various terrains allowing a north-south slope up to 10%-20%.
④ Easy installation and easy maintenance. ⑤ Stable and reliable operation.

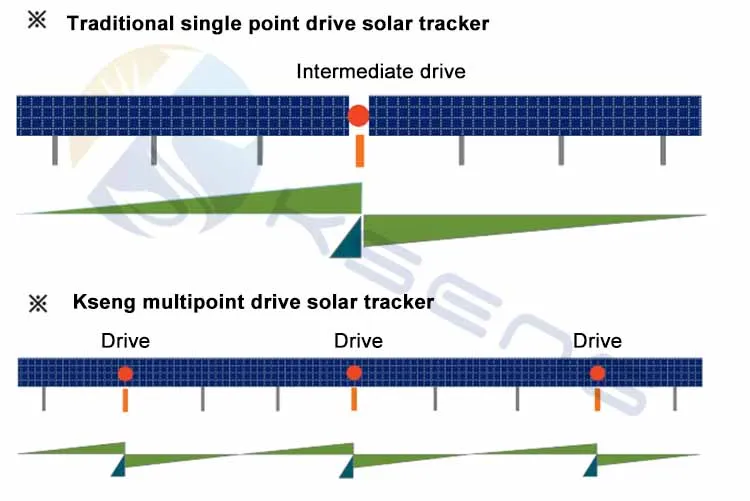

Kseng Solar Tracking System Advantages
3. Reduce the force on the drive column by 50%.
4. Reduce spindle torsion angle by 60%.
5. Better system wind resistance.

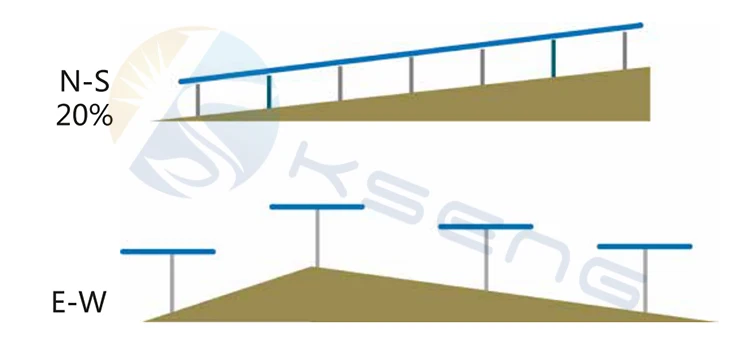

Terrain adaptability
1. Flexible arrangement, make full use of irregular land and can improve land utilization.
2. North and South can adapt to 20% slope.
3. Unlimited slope in the east-west.
3. Unlimited slope in the east-west.

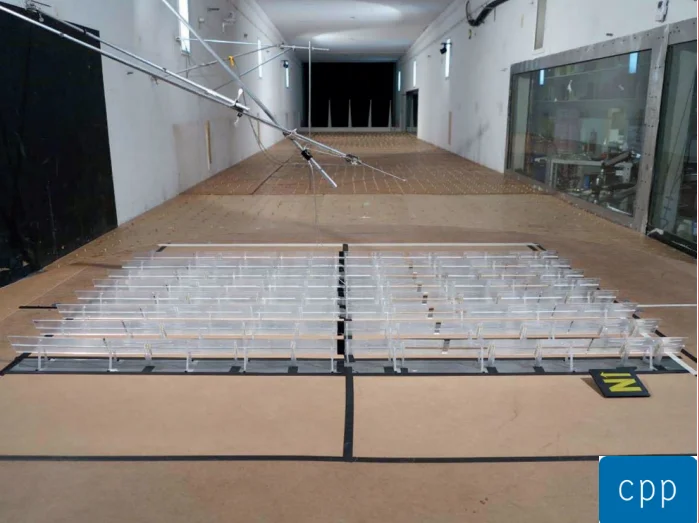

CPP Wind Tunnel Test
Kseng established a partnership with CPP WIND ENGINEERING，the first American company to provide wind engineering services to
architects and engineers. Combining the frequency and characteristics of damping ratio of the KS-tracker tracking system, study
the results caused by the KS-tracker system under the action of aerodynamics, and analyze the influence and instability during the
operation of the system.
architects and engineers. Combining the frequency and characteristics of damping ratio of the KS-tracker tracking system, study
the results caused by the KS-tracker system under the action of aerodynamics, and analyze the influence and instability during the
operation of the system.

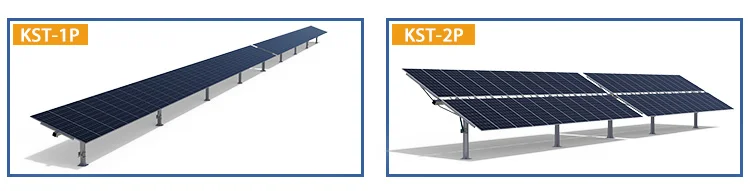

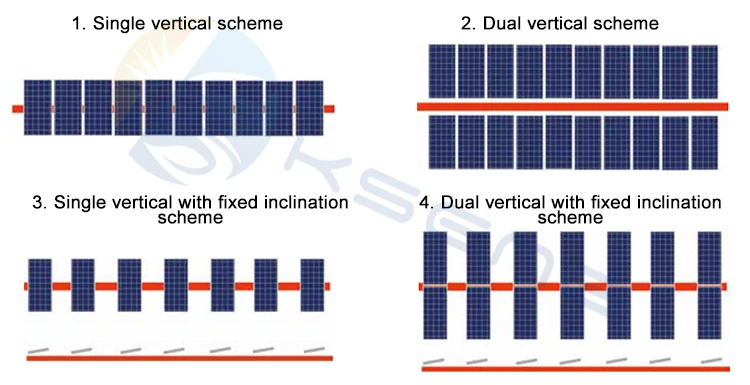

Component arrangement scheme
Tracking Structure Parameters | ||||||||
Tracking Technology | Dual-Portrait Horizontal flat single-axis tracking system | Maximum capacity per row | 72KWp(3 or 4 Strings of 210 Type Module) | |||||
PV-Modules quantity per row | 45PCS (2Px45) or 60PCS (2PX60) | Tracking range | ±45°to ±60° | |||||
Tracking accuracy | ±1° | Terrain Adaptability | 10°north-south, east -west unlimited | |||||
Protection of wind speed | 18m/s | Foundation form | Concrete (customizable all steel foundation) | |||||

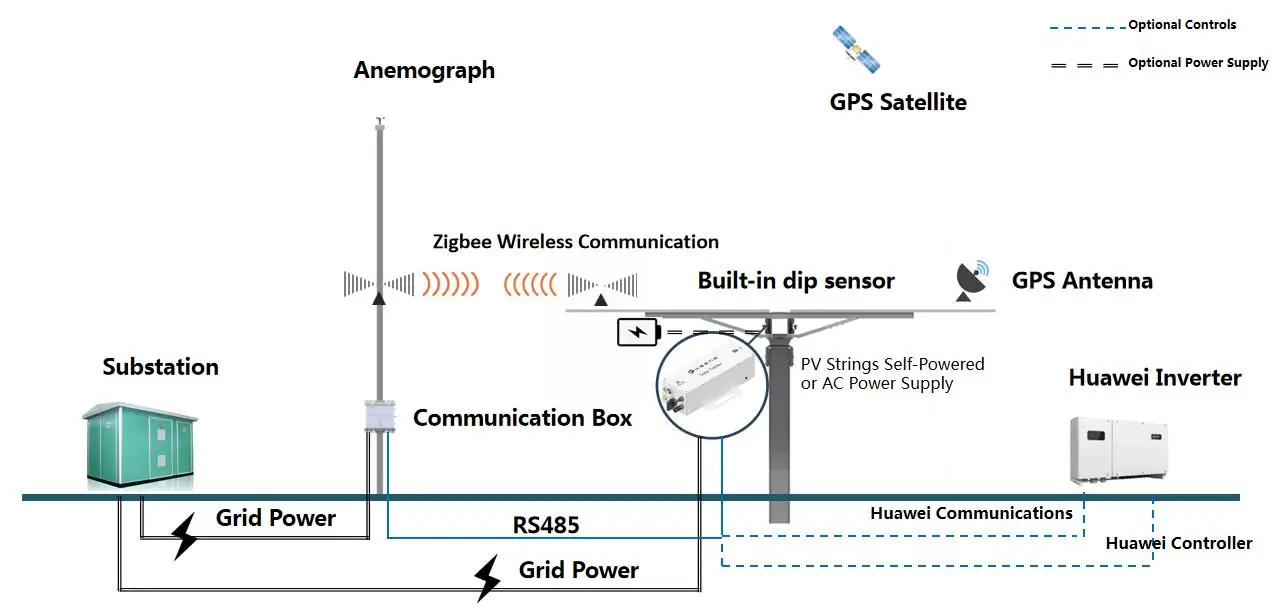

Tracking Controller Parameters | ||||||||
Control system | MCU | Communication type | RS485 or wireless Zigbee | |||||
Night stow mode | Have | Backtracking algorithm | Have | |||||
Overload prevention | Have | Self trouble checking Function | Have | |||||
System voltage | DC24 | Drive System | Linear Motor | |||||
Power Acquisition Mode | External Supply/Self-Powered supply | Control algorithm | Astronomical Multi-point algorithm + closed loop（AI Control） | |||||

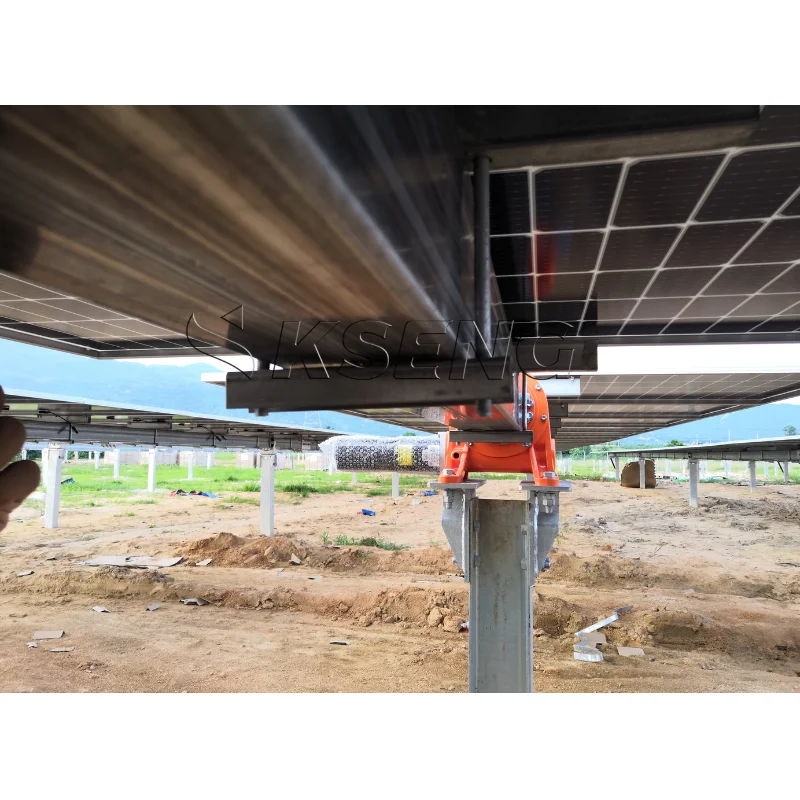

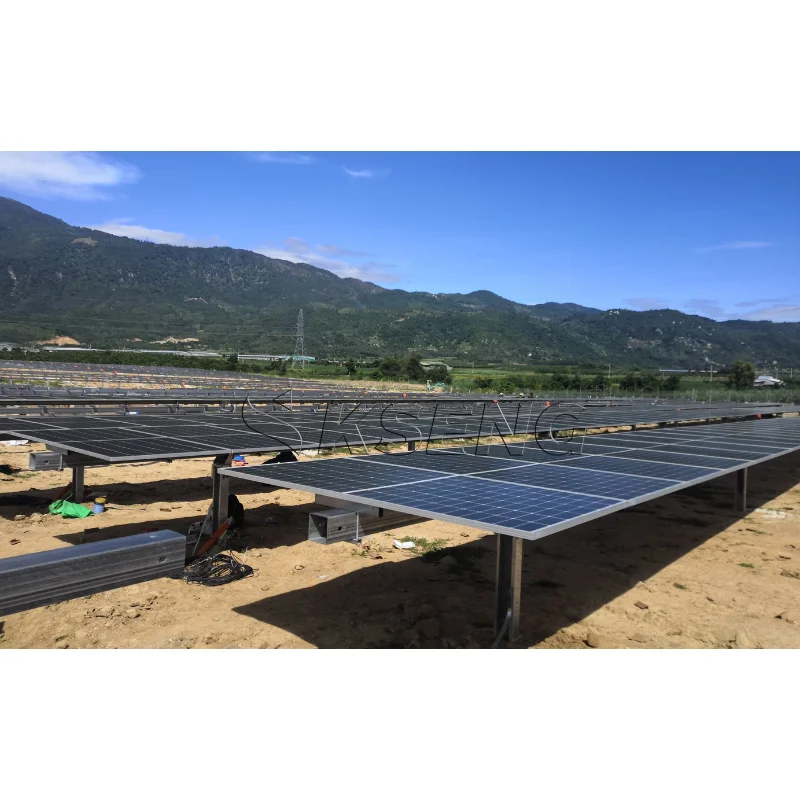

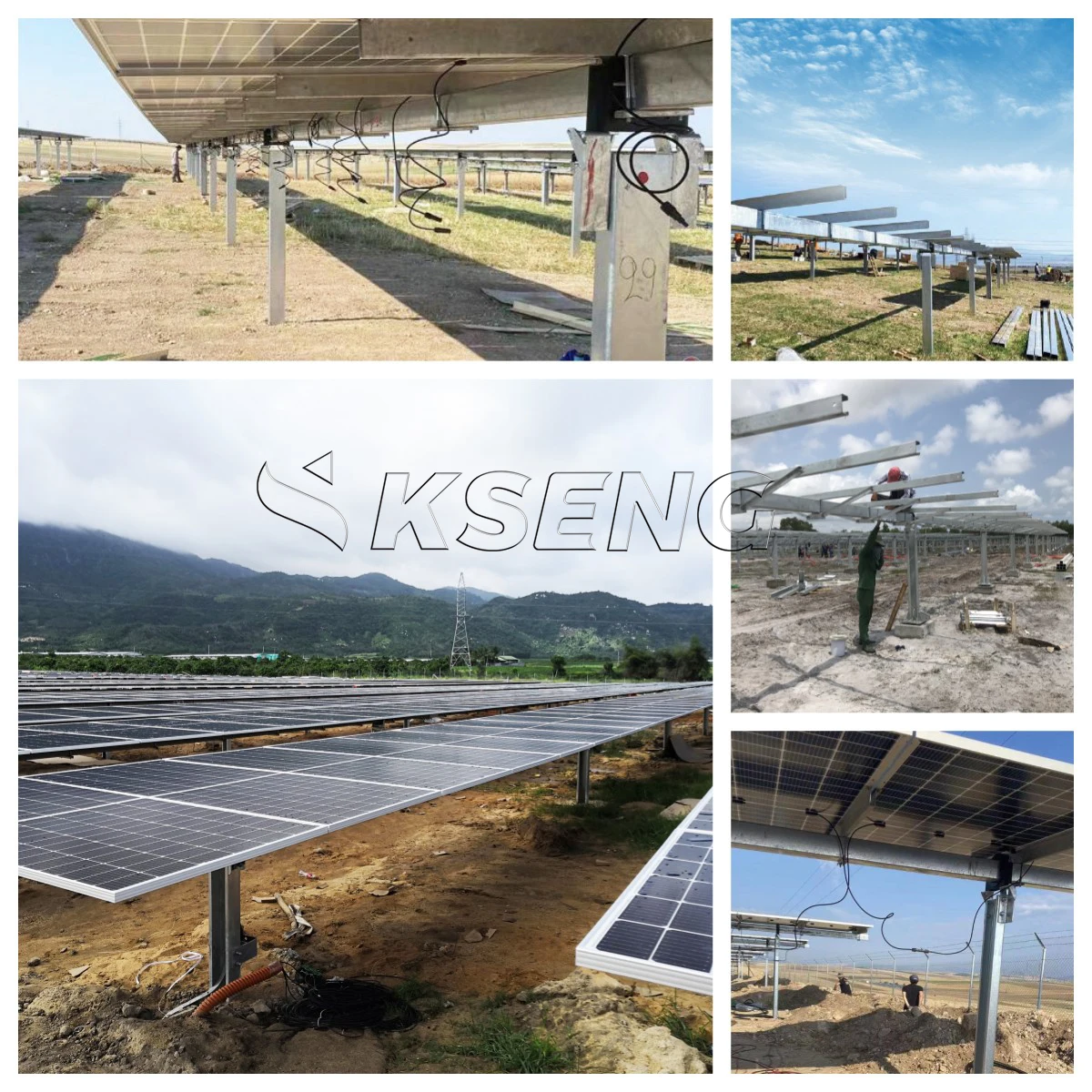

Project Gallery

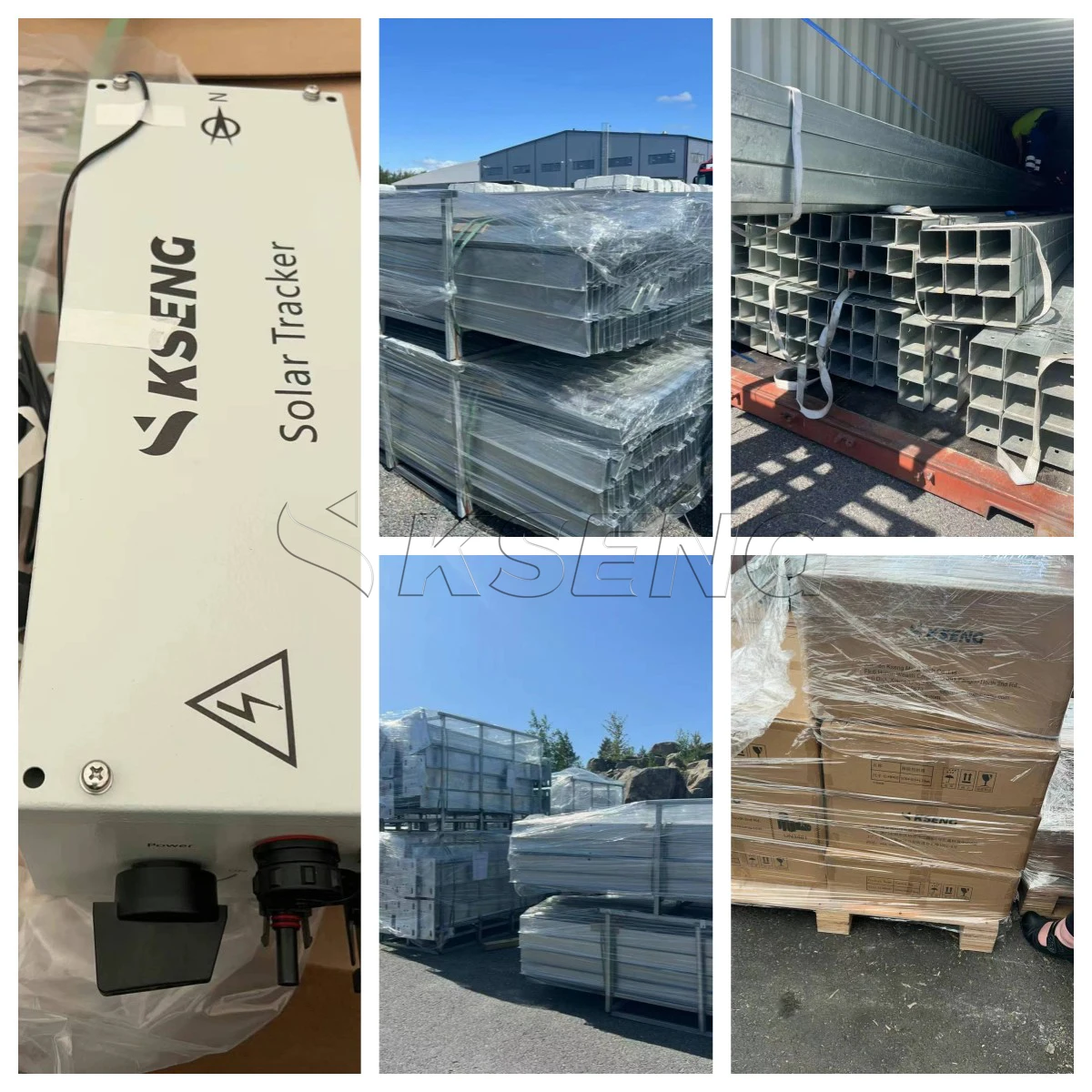

Product packaging

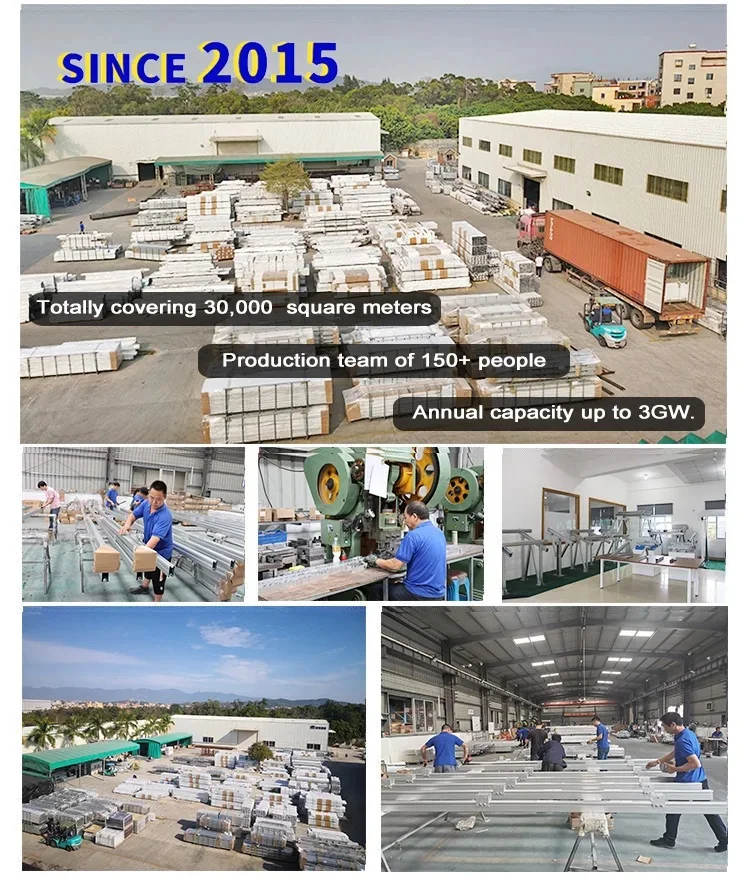

Company Profile
Xiamen Kseng New Energy Co.,Ltd , is a high-tech enterprise integrate R&D, manufacture and marketing. One stop solar system for residential and medium-sized commercial solar applications. Annual production capacity can reach 5GW. Located in Xiamen in China, enjoying convenient transportation and beautiful environment, and offices in Hong Kong S.A.R, Australia, Malaysia, Japan,South Korea, Vietnam and other countries and regions. We set up warehouses in Europe. Kseng also has its own independent factory covering an area of 30000 square meters and has several hundred employees. Our company has abundant experience in the solar PV industry. Our main products contain solar panels, inverters, mounting systems, batteriesy and all in one solar power systems, all of them are mainly exported to 100 plus countries and regions, such as Japan, Korea, Brazil, Australia, Southeast Asia, Europe and so on. We have an internal R&D team of more than 80 people, Every year we invest massive capital in research and develop new products to meet customers’ different and special requirements. Last but not least, we adhere to the business principle of mutual
benefits, entitledanda professional and reliable reputations among our customers all the way because of our experienced and considerate services, top quality products and competitive prices. Willingly to work together with the new and old customers to contribute to the development of solar applications, and to strive to create a beautiful green, pollution-free environment for human society. Make a contribution to the green world.
benefits, entitledanda professional and reliable reputations among our customers all the way because of our experienced and considerate services, top quality products and competitive prices. Willingly to work together with the new and old customers to contribute to the development of solar applications, and to strive to create a beautiful green, pollution-free environment for human society. Make a contribution to the green world.
