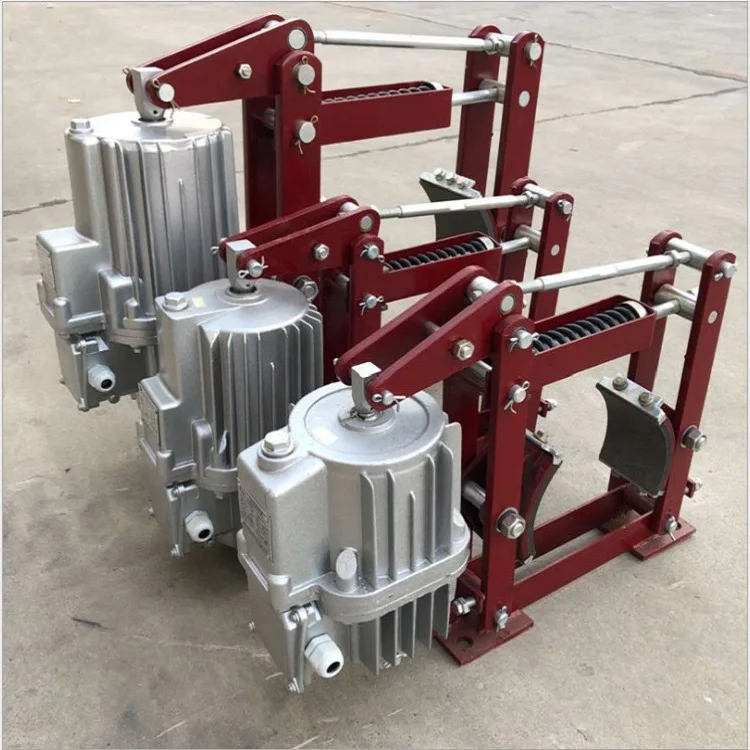

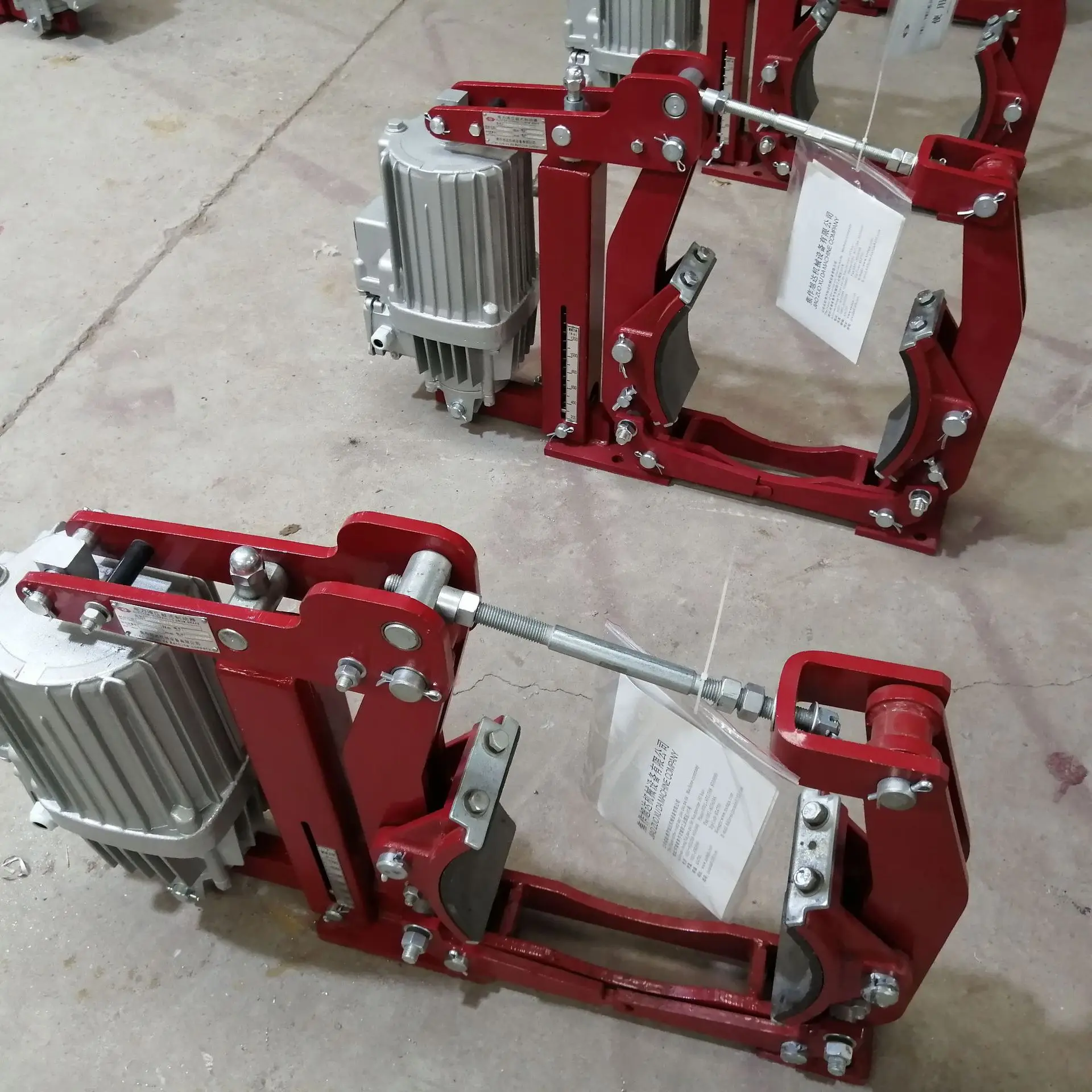

HOT sale 24v Mechanical electromagnetic brake Drum With Hydraulic Thrusters pneumatic brake
- Category: >>>
- Supplier: Xinxiang Hongxin Industrial And Mining Equipment Co. Ltd.
Share on (1601054440146):
Product Overview
Description
Electromagnetic Brake Motor Crane Hydraulic Power Operating And Electric Micro Universal Motorsheet Metal Brakes Output Clutch
Product Description

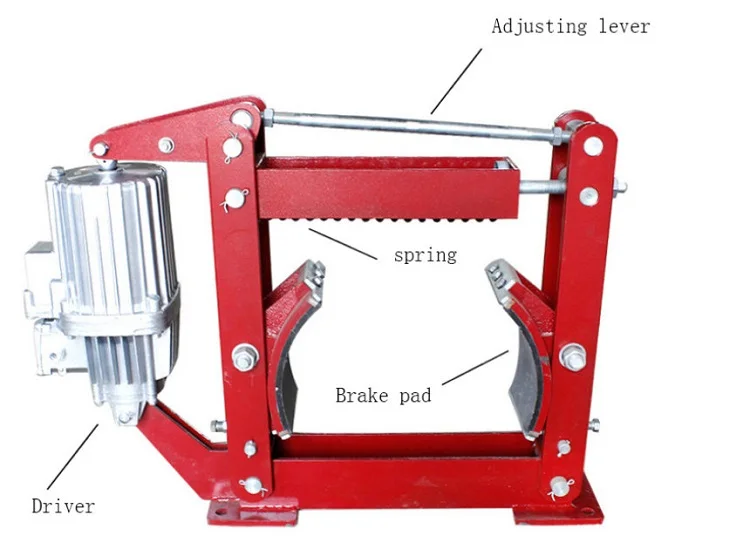

Main Feature: 1. Safe performance, brake smoothly and high frequency movement, high transmission efficiency; 2. It has self-lubricated bearing in move joints, so no need lubrication; 3. Long lifetime and performance well; 4. Use insert method between brake lining and brake shoes, so it is more safe and easy to change brake lining. Use condition:
1. When working, the surrounding environment can not have flammable, explosive and corrosive gases, otherwise it should use some anti-corrosion products; 2. Air humidity should not be greater than 90%; 3. Ambient temperature should be between -20℃ and -50℃. 4. Generally use three-phase AC power supply: 380 V, 50 Hz;
Use condition:
1. When working, the surrounding environment can not have flammable, explosive and corrosive gases, otherwise it should use some anti-corrosion products; 2. Air humidity should not be greater than 90%; 3. Ambient temperature should be between -20℃ and -50℃. 4. Generally use three-phase AC power supply: 380 V, 50 Hz;
Product Parameters
Brake Type | Thrustor Type | torque(Nm) | clearanceε | Weight(kg) |
YWZ4 | ||||
YWZ4-100/E23 | Ed23/5 | 40 | 0.6 | 21 |
YWZ4-100/E30 | Ed30/5 | 100 | 24 | |
YWZ4-150/E23 | Ed23/5 | 100 | 0.6 | 25 |
YWZ4-150/E30 | Ed30/5 | 120 | 29 | |
YWZ4-200/E23 | Ed23/5 | 200 | 0.7 | 31 |
YWZ4-200/E30 | Ed30/5 | 230 | 34 | |
YWZ4-300/E30 | Ed30/5 | 320 | 0.7 | 65 |
YWZ4-300/E50 | Ed50/6 | 630 | 78 | |
YWZ4-300/E80 | Ed80/6 | 750 | 79 | |
YWZ4-400/E50 | Ed50/6 | 1000 | 0.8 | 128 |
YWZ4-400/E80 | Ed80/6 | 1600 | 140 | |
YWZ4-400/E121 | Ed121/6 | 2000 | 155 | |
YWZ4-500/E121 | Ed121/6 | 2500 | 0.8 | 210 |
YWZ4-500/E201 | Ed201/6 | 3600 | ||
YWZ4-600/E121 | Ed121/6 | 3200 | 0.8 | 390 |
YWZ4-600/E201 | Ed201/6 | 5000 | ||
YWZ4-700/E201 | Ed201/6 | 8000 | 0.8 | 465 |
YWZ4-700/E301 | Ed301/12 | 8650 | 466 | |
YWZ4-800/E301 | Ed301/12 | 12500 | 0.9 | 885 |

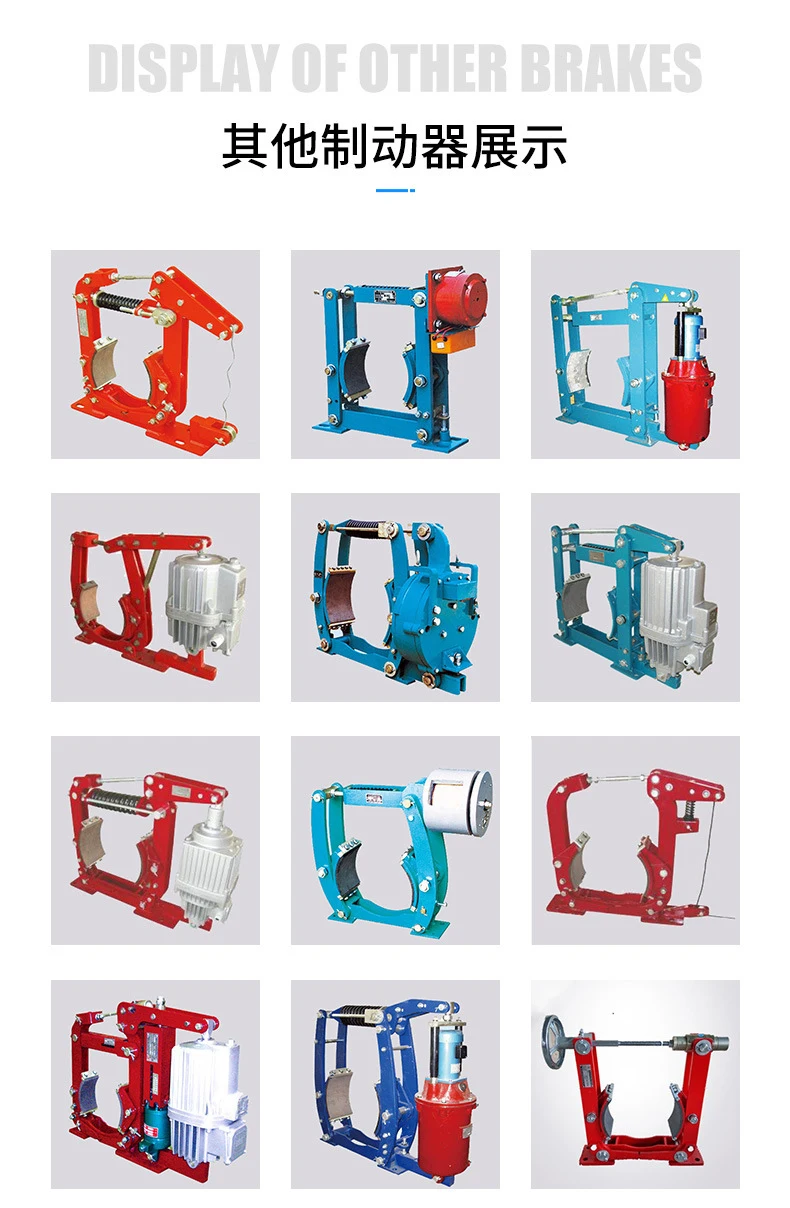

More Products

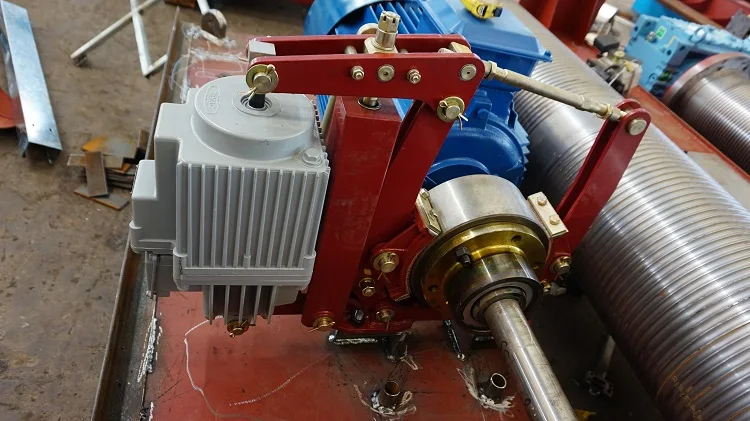

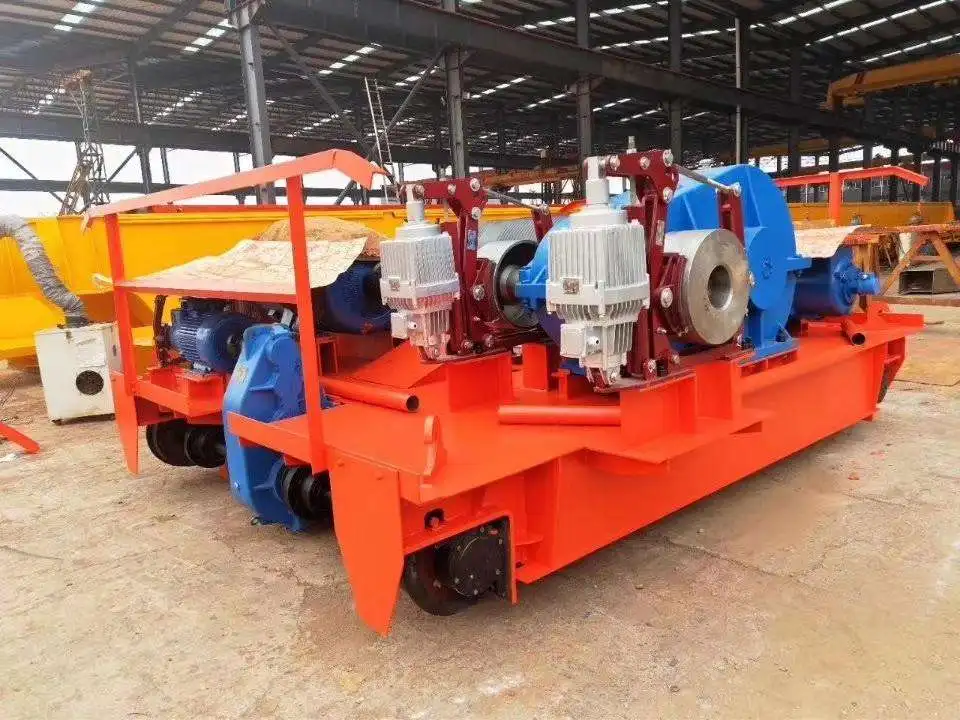

Application
Packaging & Shipping
Company Information
FAQ
1.Q:MOQ?
A:One set is ok.
2.Q:Delivery time?
A:About 15~20 days ;
3.Q:Can you provide OEM/ODM?
A:Allowed OEM/ODM;
4.How about your quality control before shipment?
All products will have been strictly quality checked and tested in house before packing.All products will be well packed before shipping.
