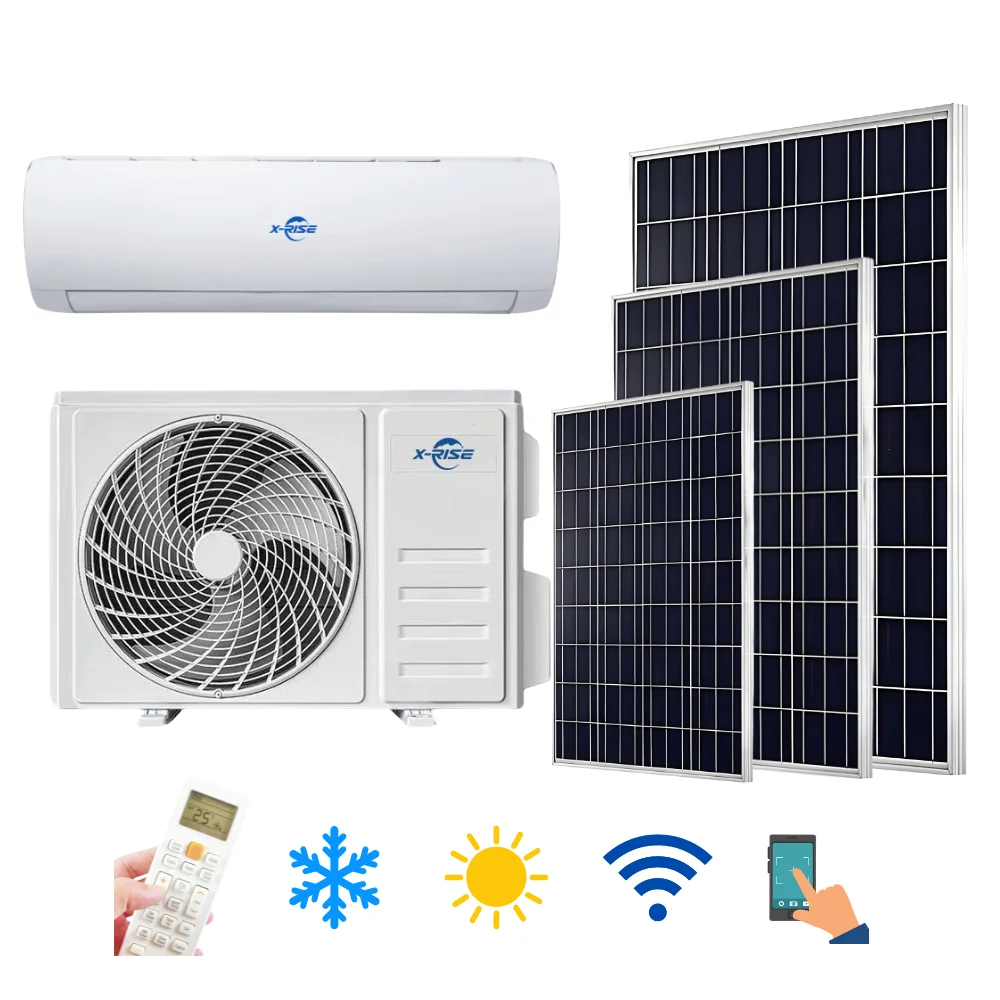

9000Btu Pure DC Split Solar Household Air Conditioner 100% Solar Energy Utilization Efficient Use of Solar Panels
9000Btu Pure DC Split Solar Household Air Conditioner 100% Solar Energy Utilization Efficient Use of Solar Panels
9000Btu Pure DC Split Solar Household Air Conditioner 100% Solar Energy Utilization Efficient Use of Solar Panels
9000Btu Pure DC Split Solar Household Air Conditioner 100% Solar Energy Utilization Efficient Use of Solar Panels
9000Btu Pure DC Split Solar Household Air Conditioner 100% Solar Energy Utilization Efficient Use of Solar Panels
9000Btu Pure DC Split Solar Household Air Conditioner 100% Solar Energy Utilization Efficient Use of Solar Panels
9000Btu Pure DC Split Solar Household Air Conditioner 100% Solar Energy Utilization Efficient Use of Solar Panels

9000Btu Pure DC Split Solar Household Air Conditioner 100% Solar Energy Utilization Efficient Use of Solar Panels

Share on (1601054454292):


Price:$458.00 - $605.00

Quantity:


Product Overview

Description





Products Description

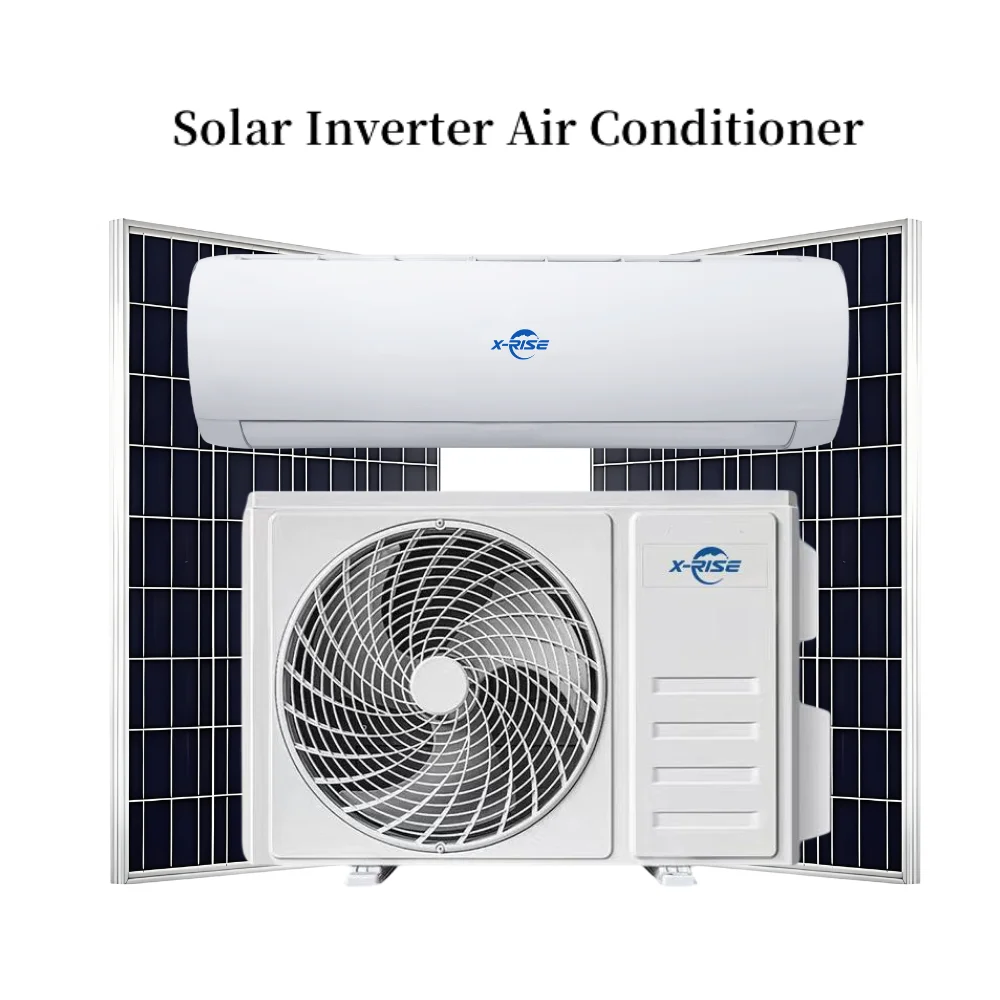

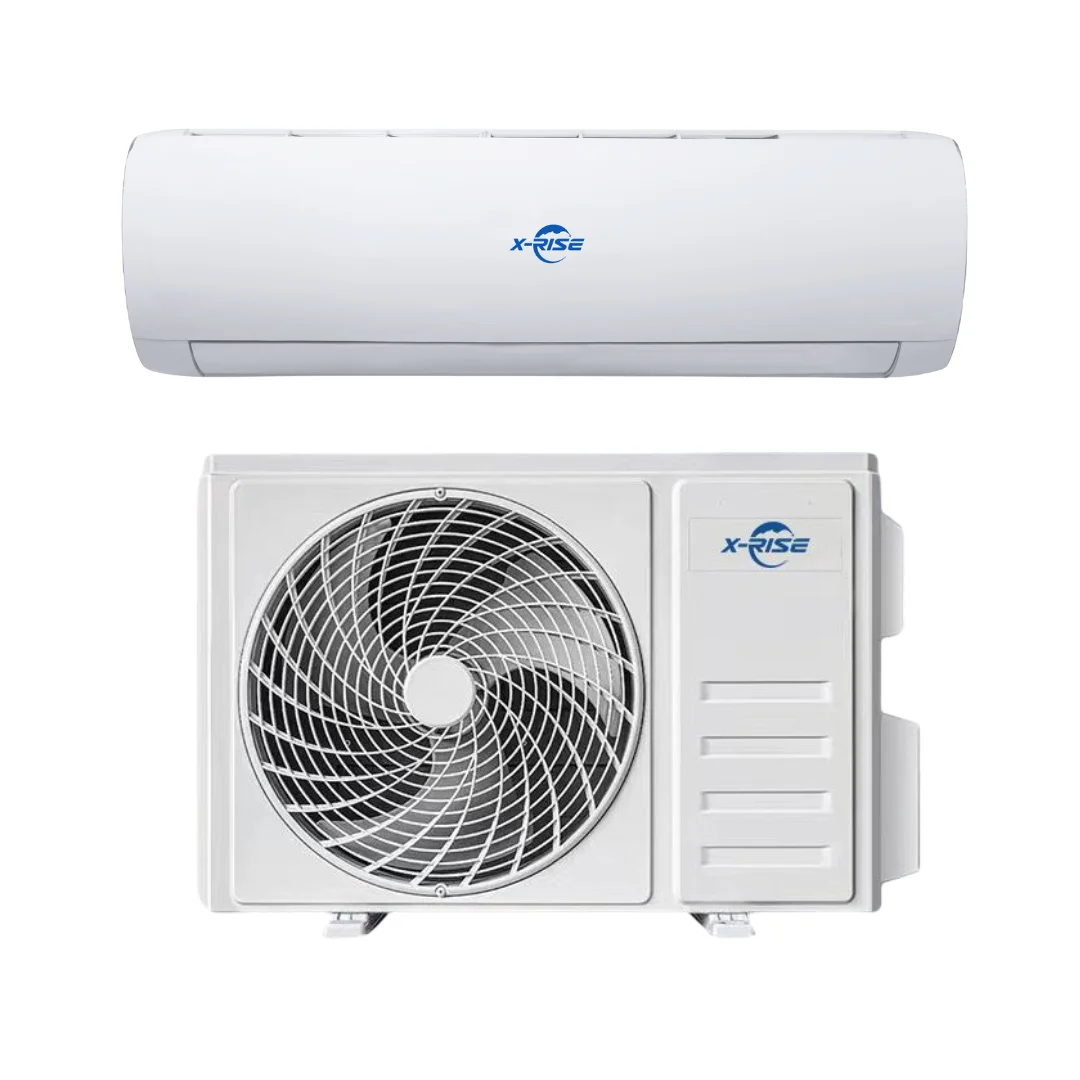

DC Off-grid solar inverter air conditioner

DC Off-Grid solar inverter air conditioner is ideal for areas and regions lack/short of power, especially for remote telecom stations, container houses, motor homes, remote locations, load shedding places, boating
and island locations, ect.. Due to the latest
advancement of the electronic control and power shifting technology, this DC Off Grid solar air conditioner will realise operating by 100% solar power.




Product Paramenters


Model No.
XRIAC9000-V2
XRIAC12000-V2
XRIAC18000-V2
XRIAC24000-V2
Power Supply
V
DC48V
DC48V
DC72V
DC96V
Cooling
Capacity
Btu/h
9000
12000
18000
24000
Inverter Capacity Range
Btu/h
3071-9570
3071-12966
3412-19449
4094-23200
Power Input
W
660
960
1420
1830
Rated Current
A
13.8
20
19.7
19.1
SEER
Btu/h
23
22
21
20
EER
Btu/h
13.6
12.5
12
12
Heating
Capacity
Btu/h
9000
12000
18000
24000
Inverter Capacity Range
Btu/h
3753~9894
3753~13306
4435~19789
5100~23542
Power input
W
670
1028
1375
1820
Rated Current
A
14
21.4
19.1
19
HSPF
/
10
11
10
11
COP
Btu/h
13.4
11.7
12.4
12.08
Dehumidification
L/H
1
1.3
1.9
2.3
Indoor air flow(Hi/Mi/Lo)
cfm
360/340/295
360/340/295
810/320/278
910/340/270
Indoor Noise (Hi/Mi/Lo)
dB(A)
41/38/32
41/38/32
48/40/32
49/41/35
Outdoor fan motor
Model
/
D-40-8
D-40-8
D-69-8
D-69-8
Input
W
82
82
102
93
Outdoor Noise
dB(A)
53
53
56
60
Max Refrigeration Pipe Length
ft/m
49/15
49/15
49/15
49/15
Max Refrigeration Pipe Rise/Fall
ft/m
16/5
16/5
16/5
16/5
Max Elevation Difference
/
49/15
49/15
49/15
49/15
Refrigerant Charge
(g/oz)
1150/41
1150/41
1600/56
2100/74
Design Pressure(Hi/Lo)
psig
550 / 340
550 / 340
550 / 340
550 / 340
Operation
temperature
Indoor
(Cooling/Heating)
℃
10-52℃/-15~33 ℃
10-52℃/-15~33℃
10-52℃/-15~33℃
10-52℃/-15~33℃
Outdoor
(Cooling/Herating)
℃
10-52℃/-15~33 ℃
10-52℃/-15~33 ℃
10-52℃/-15~33℃
10-52℃/-15~33℃
Indoor Unit
Dimension(W*D*H)
mm
850*290*205
850*290*205
970*315*235
1100*330*235
inch
33.46"*11.42"*8.07"
33.46"*11.42"*8.07"
38.19"*12.40"*9.25"
38.19"*12.40"*9.25"
Packing(W*D*H)
mm
920*370*285
920*370*285
1045*385*320
1160*390*300
inch
36.22"*14.57"*11.22"
36.22"*14.57"*11.22"
41.14"*15.16"*12.60"
45.67"*15.35"*11.81"
Packing(W*D*H)
kg
10/12
10/12
14/16.5
16/18
lb
22/26
22/26
31/36
35/40
Outdoor Unit
Dimension(W*D*H)
mm
860*325*540
860*325*540
890*320*670
890*320*670
inch
33.86"*12.80"*21.26"
33.86"*12.80"*21.26"
35.04"*12.60"*26.38"
35.04"*12.60"*26.38"
Packing(W*D*H)
mm
920*395*605
920*395*605
1020*430*755
1020*430*755
inch
36.22"*15.55"*23.82
36.22"*15.55"*23.82
40.16"*16.93"*29.72"
40.16"*16.93"*29.72"
Packing(W*D*H)
kg
32/36
32/36
48/53
53.5/58
lb
71/79
71/79
106/117
118/128
Application Area
㎡/sq.ft
8~15/86~161
12~25/129~269
20~40/215~430
33~49/355~527
Loading Qty by 20'GP/40'GP/40'HQ
pcs
80/160/194
80/160/194
58/120/135
58/120/135
Certification
/
ETL/DOE/ AHRI Certified

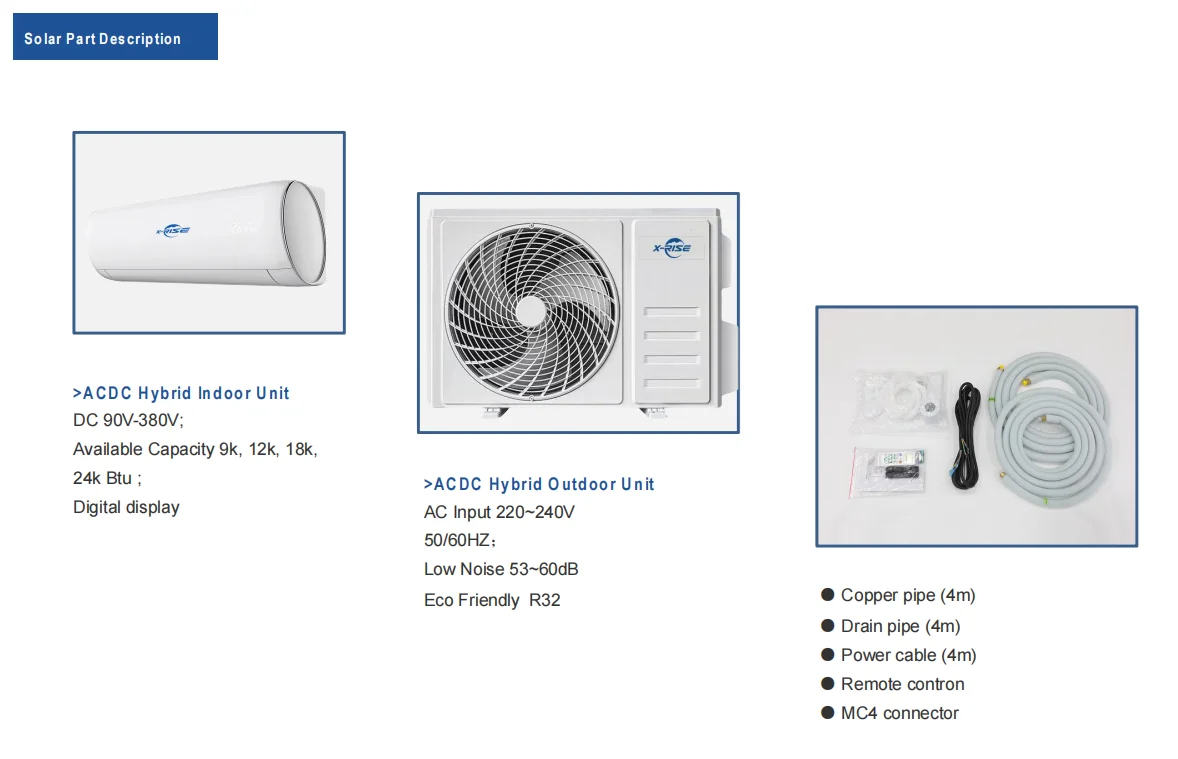

Related accessories

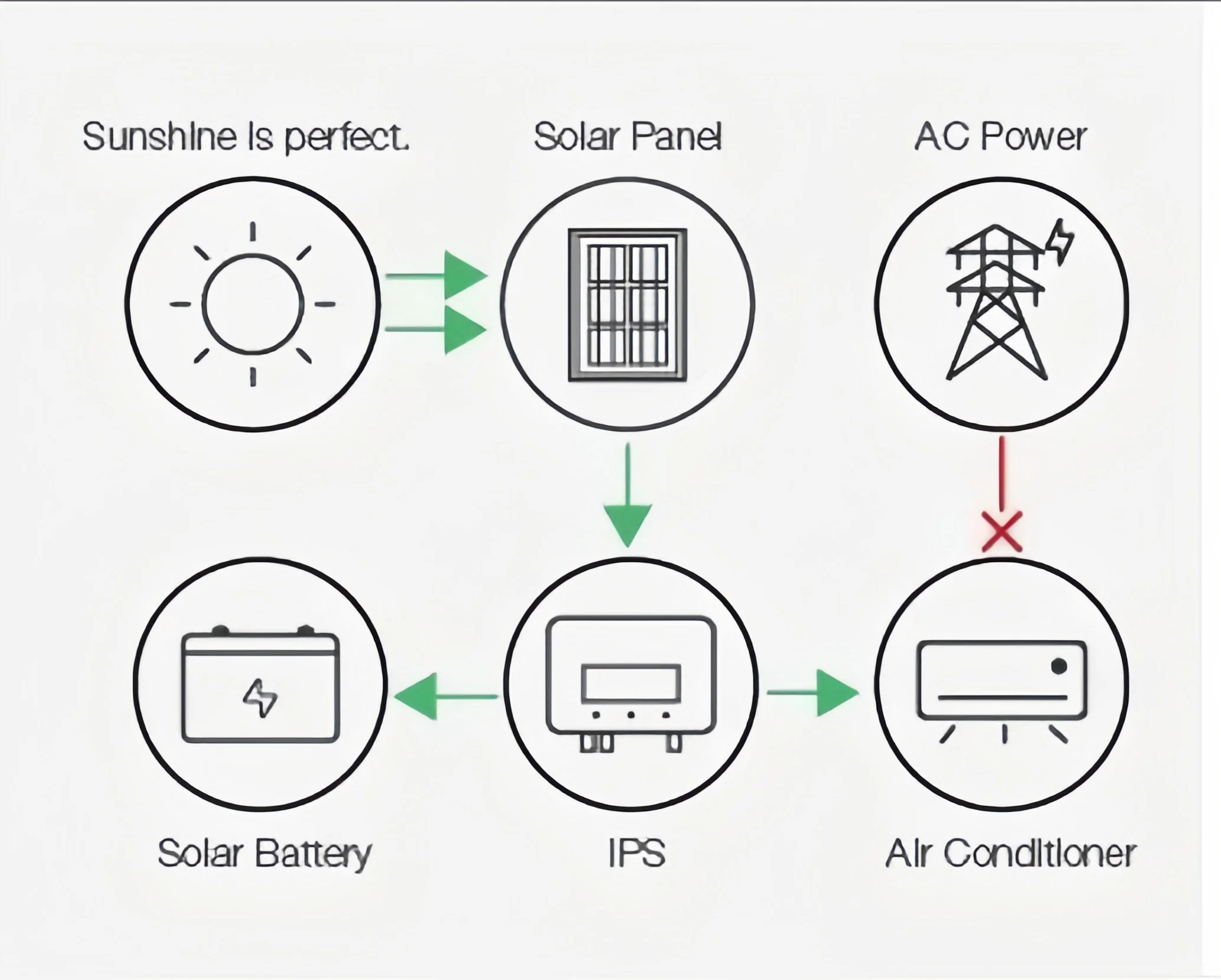

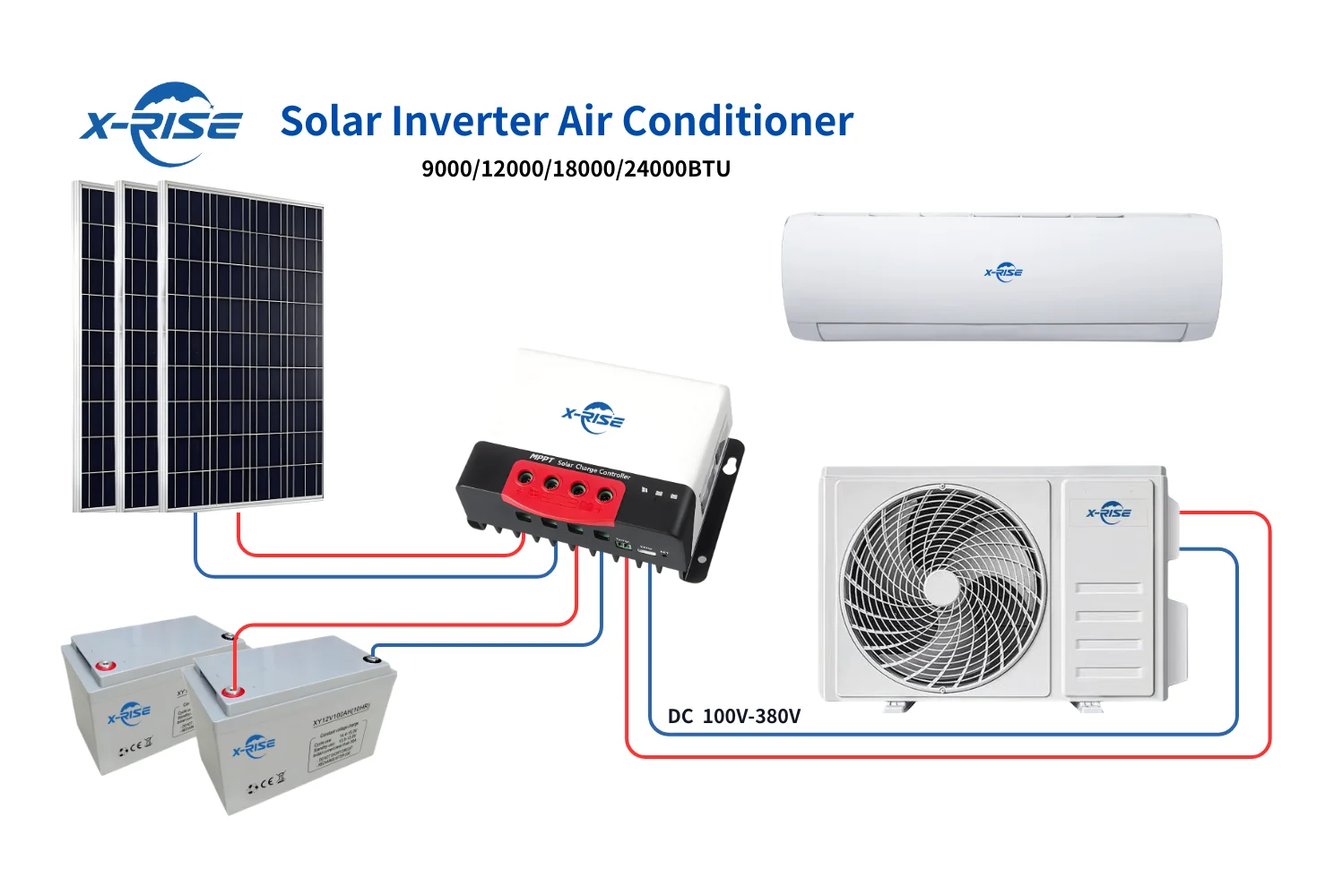

Off-grid air conditioner and accessories
The first part of solar air conditioner is the indoor and outdoor machine; The outdoor can connect the MPPT or solar charge used for charging battery
The accessories also have pipe cable which used for connecting the indoor and outdoor and air conditioner controller;




Item:PV1-F 1×4mm2Nominal cross-sectional area of conductor: 4mm2
Conductor size: 56/0.3
Conductor DC resistance: 5.09Ω/km
Max. Permit Voltage: 1000VDC
Max. operating current: 8AEnvironment: -40℃~+120℃
Model: JHS Waterproof
No. of cores: 4 cores
Rated power-frequency voltage: 300/500V
No. of cores*sectionalarea:3*4mm+1*2.5mm
admissible operating temperature of the conductor:-20~+65℃


Model
XRI-MPPT-4840
XRI-MPPT-9650
Max. PV voltage
100V
300V
System voltage
48V
96V
MPPT voltage range
48V~85V
125V~300V
Floating voltage
55.2V
109.6V
Balance voltage
57.2V
/
Protection grade
IP20
IP20


MPPT Description
RC-MPPT is a kind of intellectual, high-efficiency and
high-speed solar controller.
It adopts advanced MPPT arithmetic which make it absorb as large energy as possible from solar array.
It can be used in the 3KW off-grid solar
Solar Panel for Solar Air Conditioner System
system and promote 30% efficiency
MPPT Features
Advanced MPPT technology with efficiency up to 99.5%
Max. efficiency 98%, and full load efficiency 97%
Adapt to variable kind of battery
Intellectual discharge control
3-state charge method prolongs the life of battery
LCD display
Multiple protection functions: over discharge, over load,
short circuit etc.


Products feature

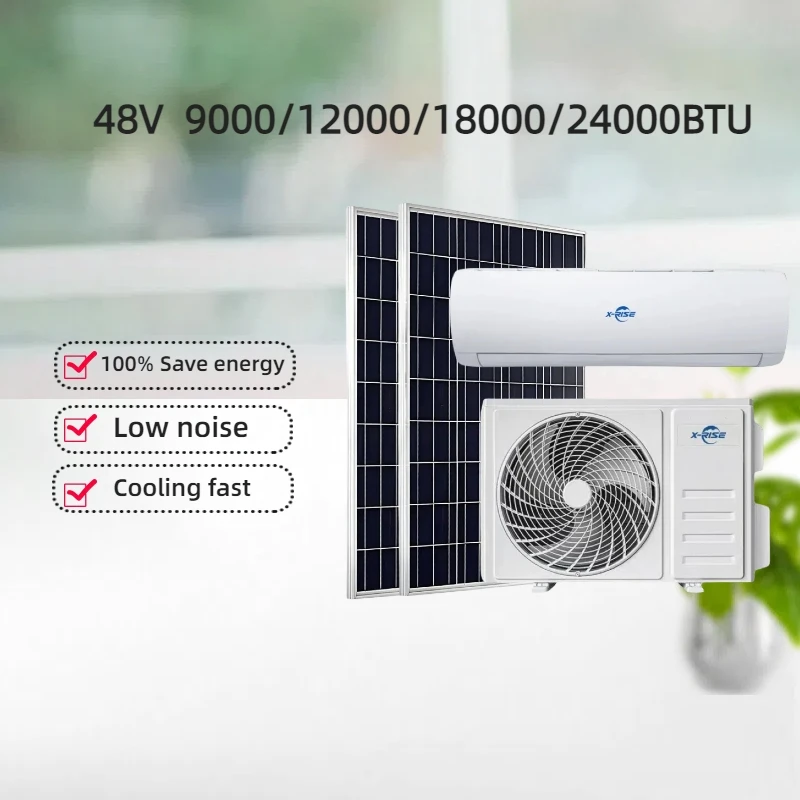

OFF-GRID solar inverter air conditioner


Embracing the 100% Off Grid 48V/72V/96V DC
Inverter Solar Air Conditioners will reduce operating
costs by up to 100% during the day and night due to
ZERO consumption of utility power. The 100% Off Grid
Units use a combination of solar power and power bank

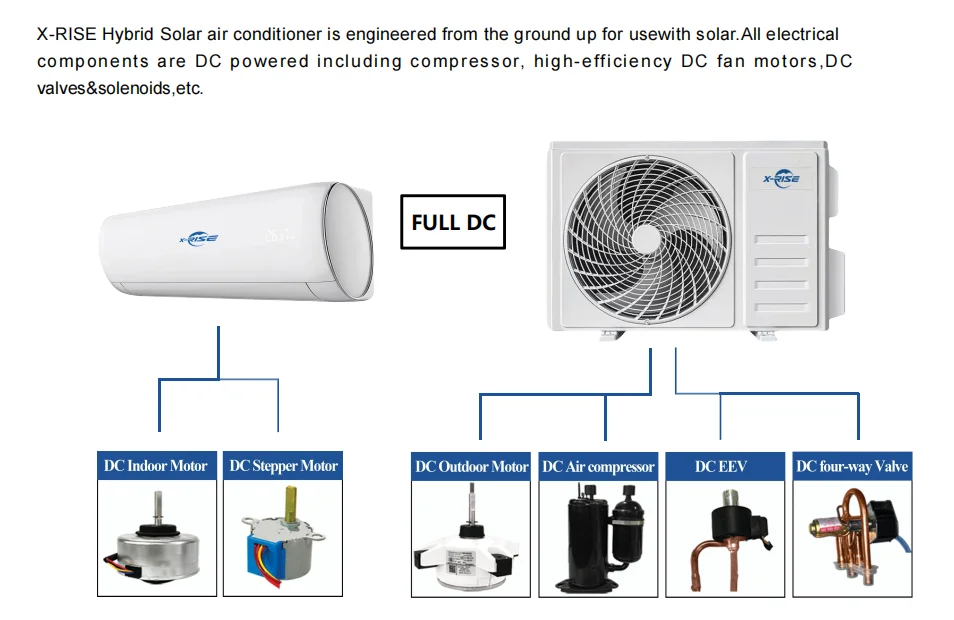

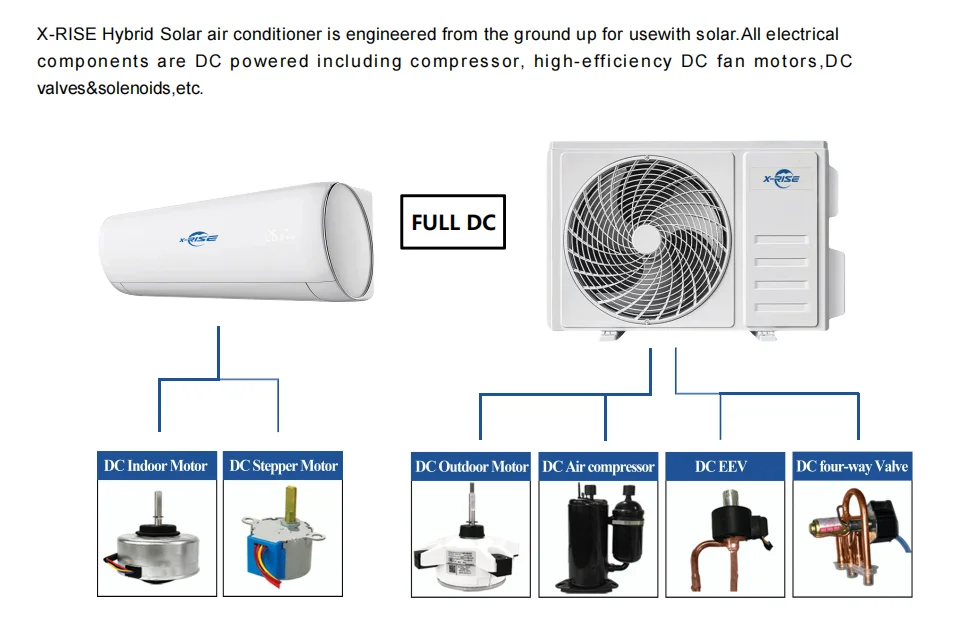

100% DC Inverter System = No Waste of Energy
√ 9,000/12,000/18,000/ 24,000BTU Capacity with or without a heat pump
√ All DC generating&operating = No Inverter needed
√ 48V/72V/96V Power supply
√ High energy efficiency up to SEER 23
√ VRF system=Variable Capacity&Low noise(As Low As 26dB)
√ Eco-Friendly Refrigerant R410a
√ Low-voltage protection to avoid over discharge of batteries
√ Automatic energy-saving operation at low-power mode
√ Washable Filters
√ Digital Wireless Remote
√ Easy installation


Product packaging

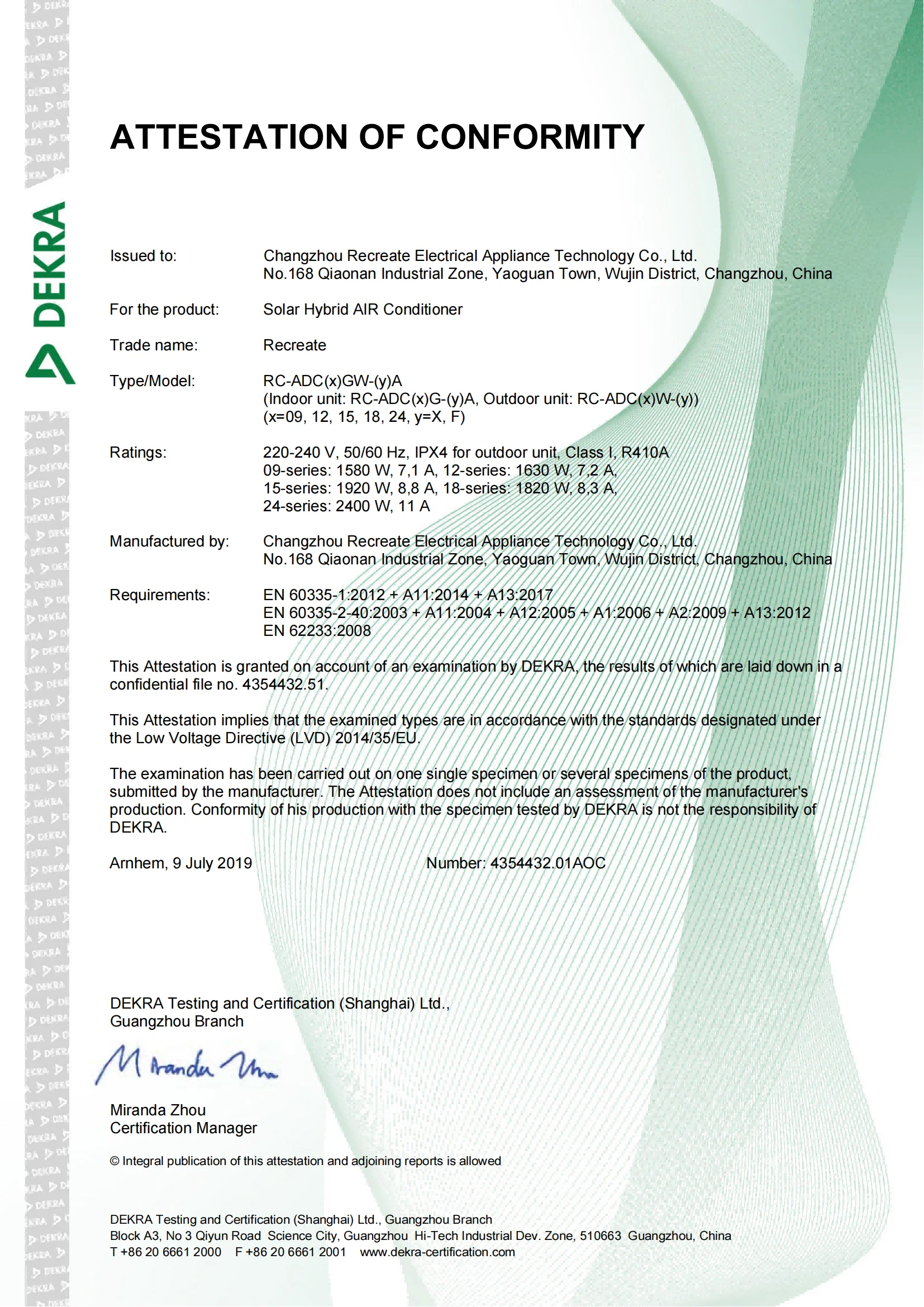

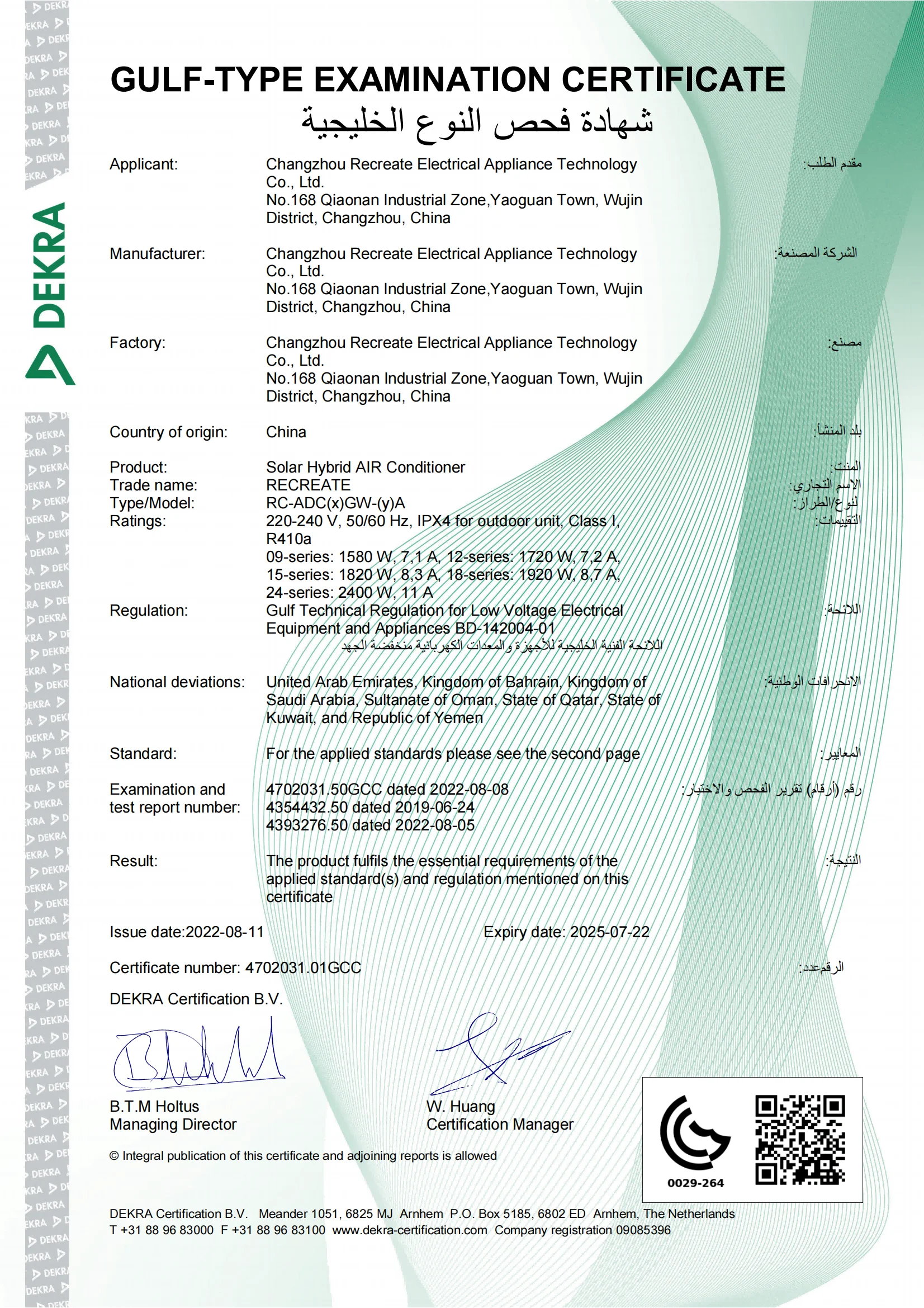

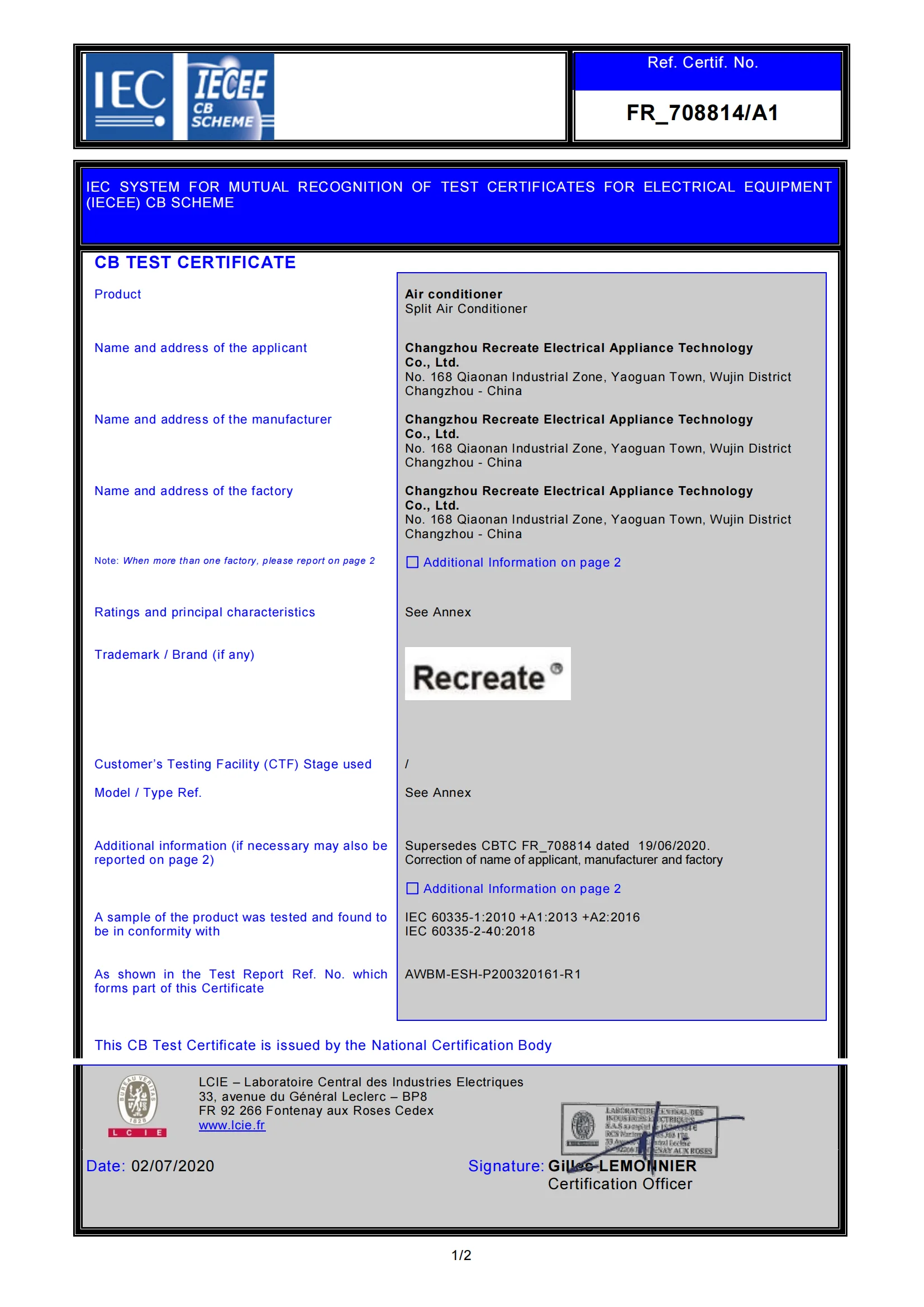

Certifications

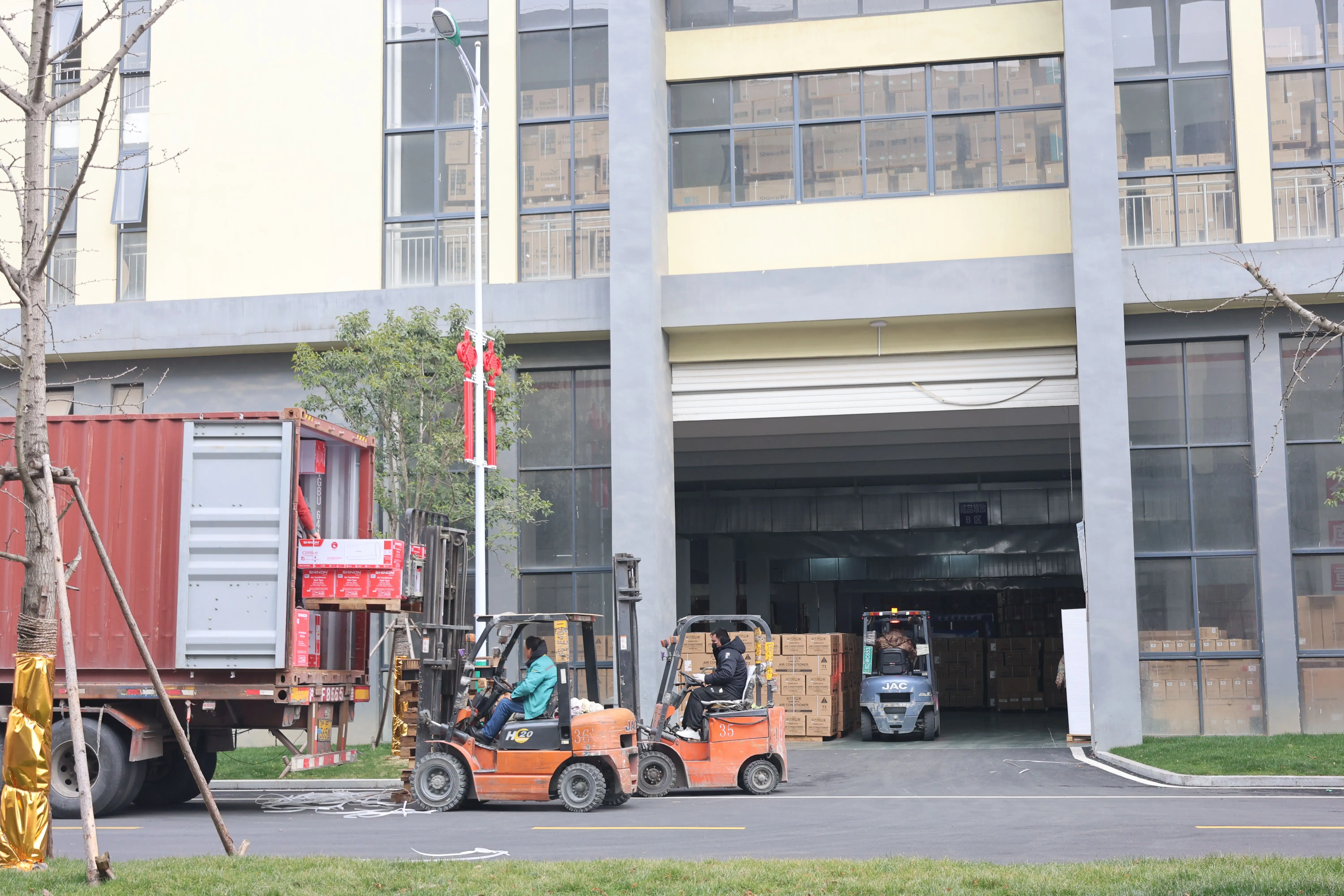

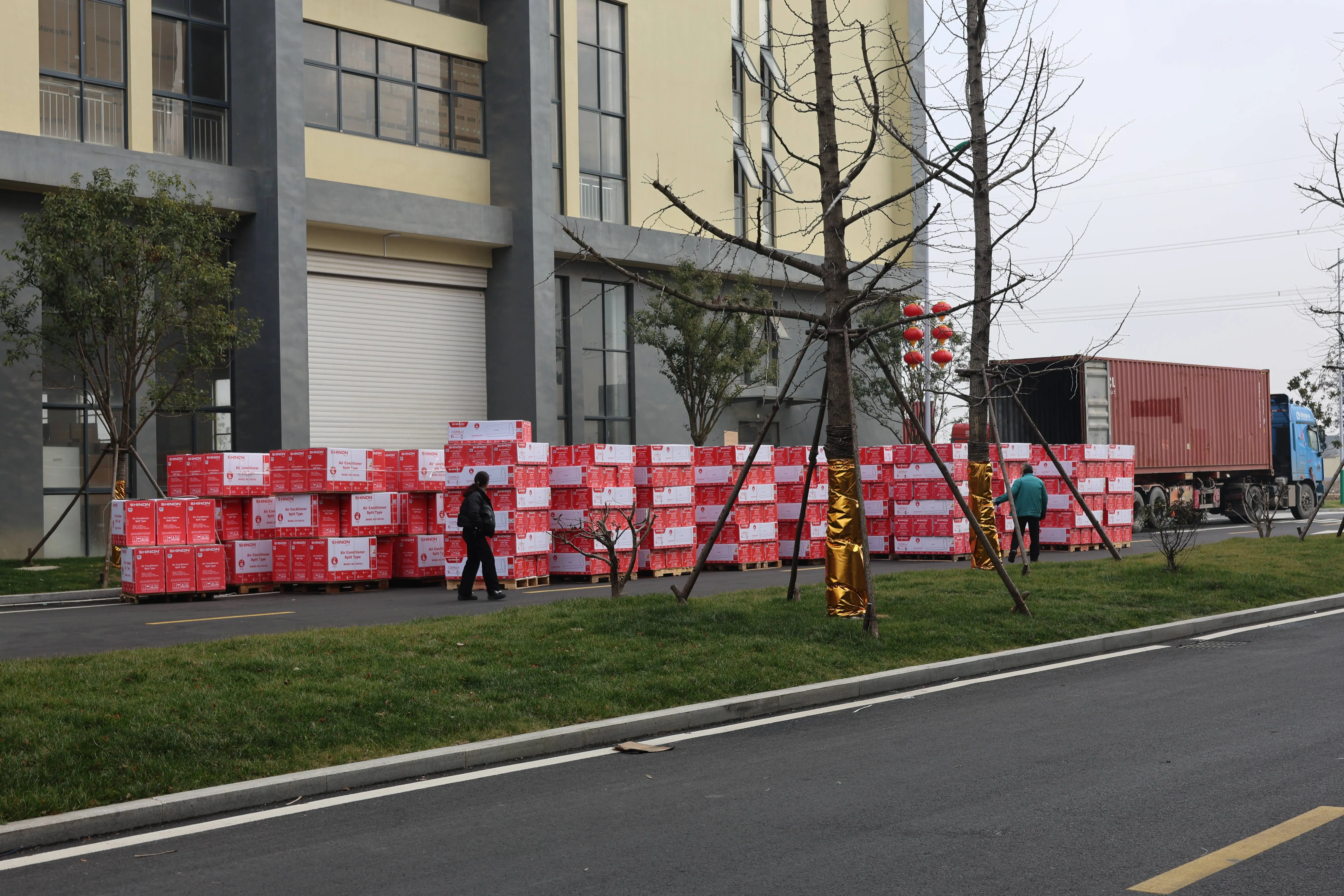

Why Choose Us
