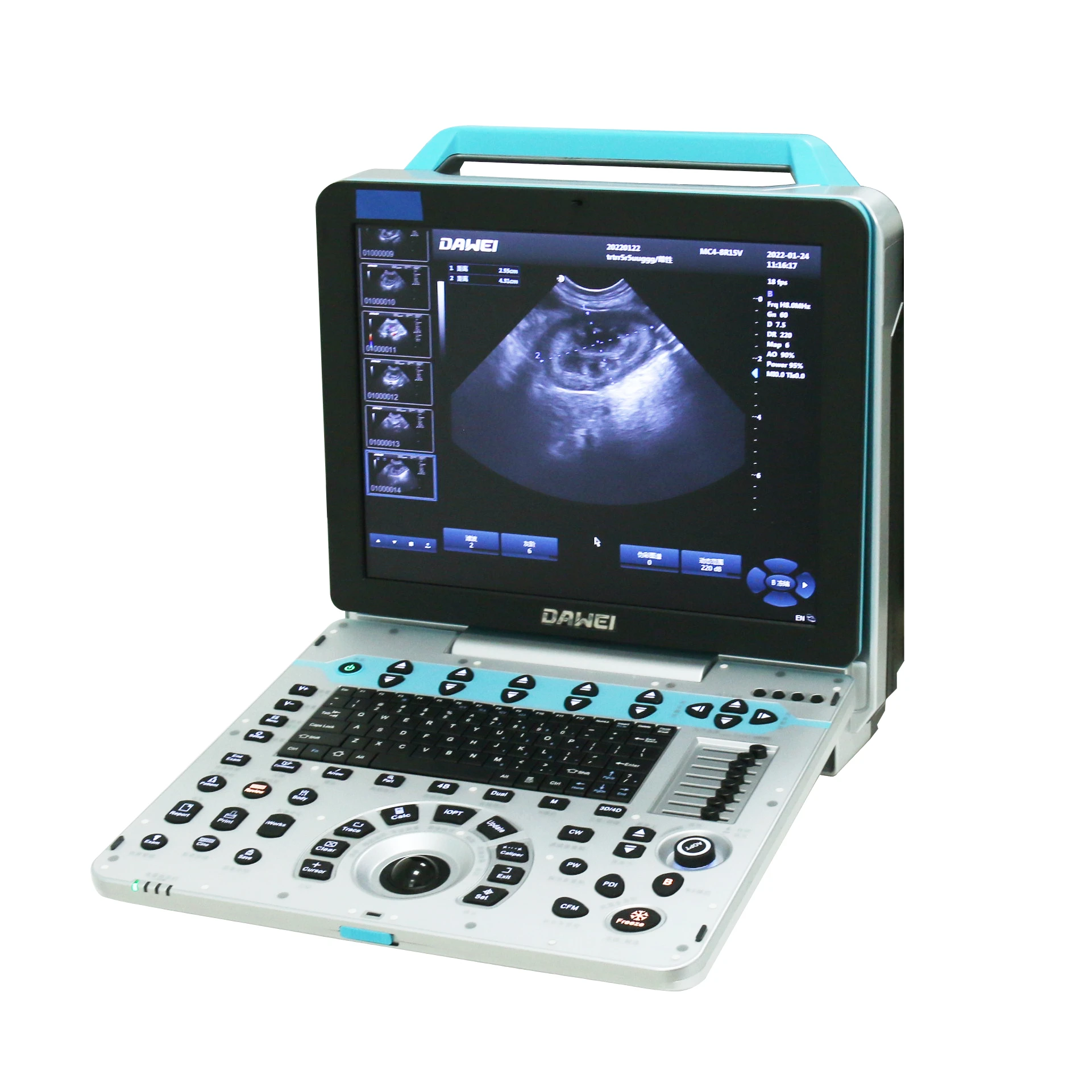

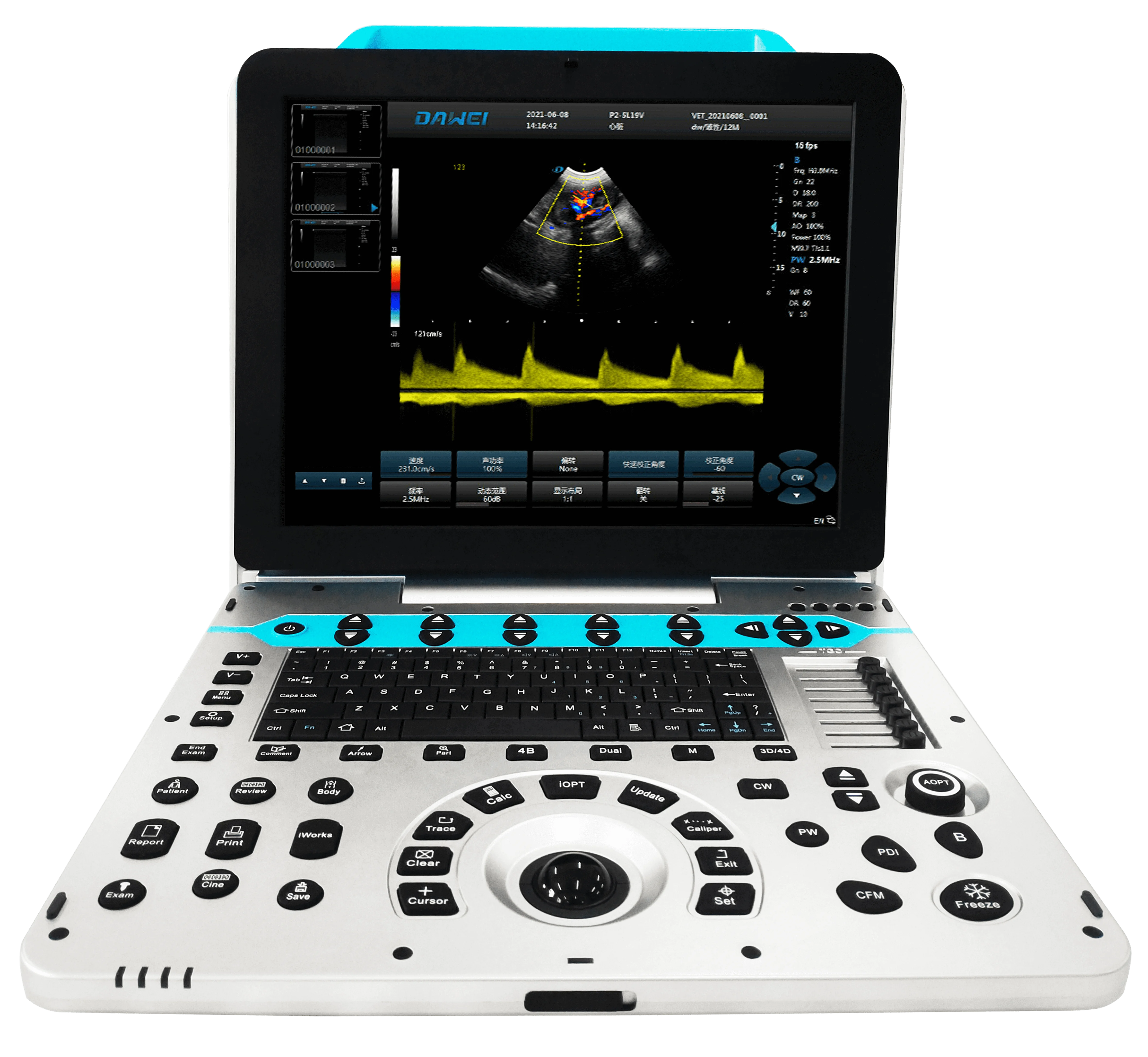

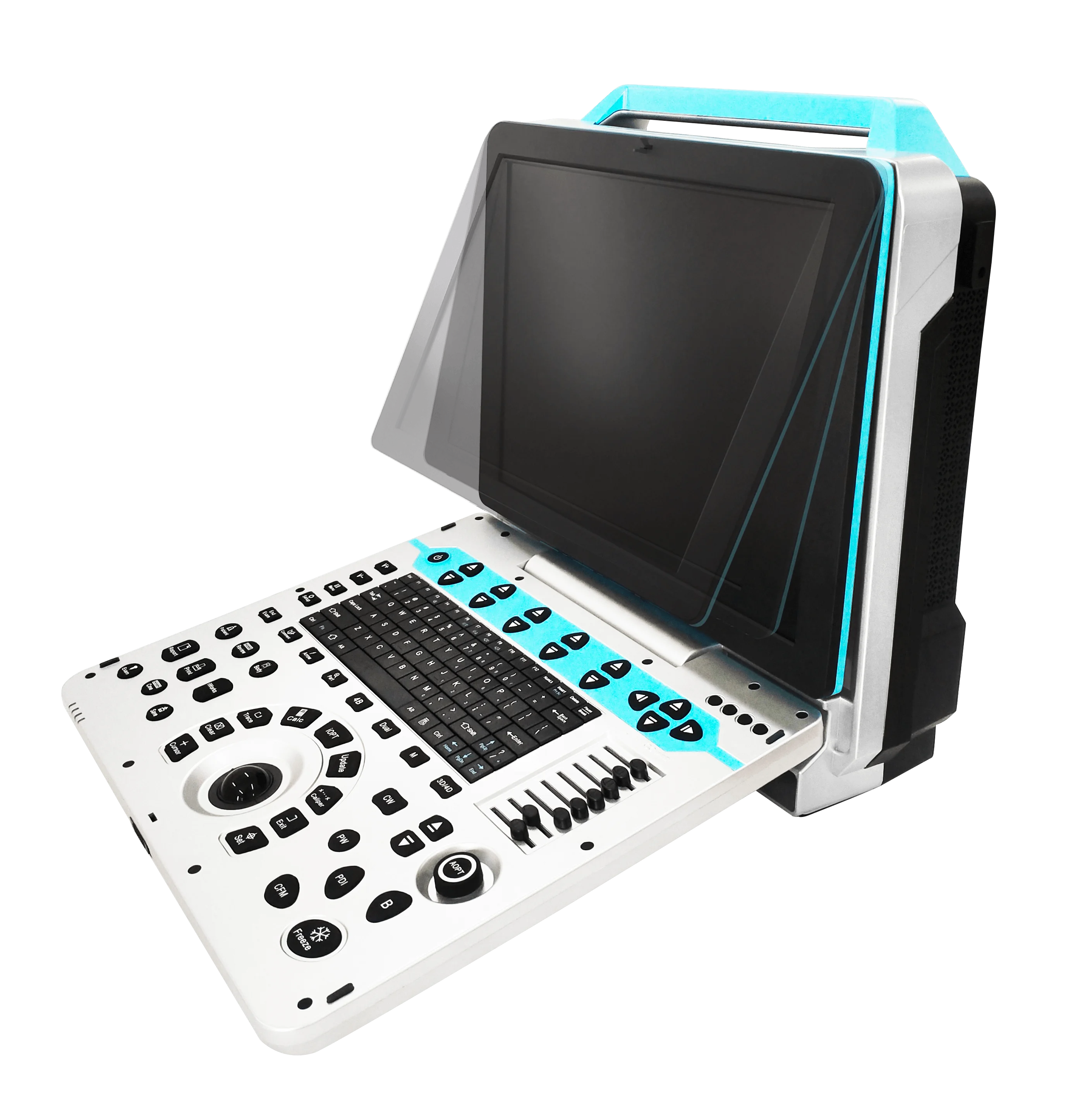

Dawei Veterinary Equipment Vet Full Digital Portable Ultrasound Scanner Machine For Animal
- Category: >>>
- Supplier: Dawei Veterinary Medical (Jiangsu) Co. Ltd.
Share on (1601054499223):
Product Overview
Description
Products Description
Dawei Veterinary Equipment Vet Full Digital Portable Ultrasound Scanner Machine For Animal
It's applicable for animals' examination and diagnosis on digestive system,
reproductive system, urinary system for animal hospitals and scientific institutions.
reproductive system, urinary system for animal hospitals and scientific institutions.
·Tissue Harmonic Imaging (THI)
·B/C real-time split screen mode
·Spatial Compound Imaging
·Color Doppler Imaging (CFM, TDI, PDI) ·Spectral Doppler Imaging (PW, HPRF PW, CW) ·Gain: 0-100, Step 1 adjustable
·Four-dimensional Supersonic Image Formation
·Color Doppler Imaging (CFM, TDI, PDI) ·Spectral Doppler Imaging (PW, HPRF PW, CW) ·Gain: 0-100, Step 1 adjustable
·Four-dimensional Supersonic Image Formation
·Color Frame correlation: 0-12, 12 levels adjustable
·Presettable Conditions:Preset optimal image inspection conditions to reduce adjustment during operation.
·One Key Smart Optimization
Introducing the Dawei P3, a cutting-edge Pet Dog Pig Sheep Pregnancy Ultrasound Scanner designed for veterinary excellence.
This Portable Machine is a game-changer, widely utilized in pet hospitals, animal research, and a variety of settings for small animals like cats, dogs, mice, rabbits, turtles, and fish.
Operates on a secure and stable Windows OS, with solid-state storage for faster and more reliable data processing, handling complex calculations with ease.
Real-time Triple Synchronous Imaging: Simultaneous imaging in 2D, color, and spectral modes.
Probe Options
CONVEX PROBE
Used for abdominal organs and pregnancy examination of pigs, sheep and large dogs.
MICRO-CONVEX PROBE
Used for abdominal organ and pregnancy examination of cats and small and medium-sized dogs.
LINEAR PROBE
Used for abdominal organs, musculoskeletal and subcutaneous tissues of small animals.
RECTAL PROBE
Used for pregnancy check and reproductive system of cattle and horses.
BACK FAT PROBE
Used for back fat and muscles of pigs and cattle.
PHASED ARRAY PROBE
Used for cardiac diagnosis.
Imaging

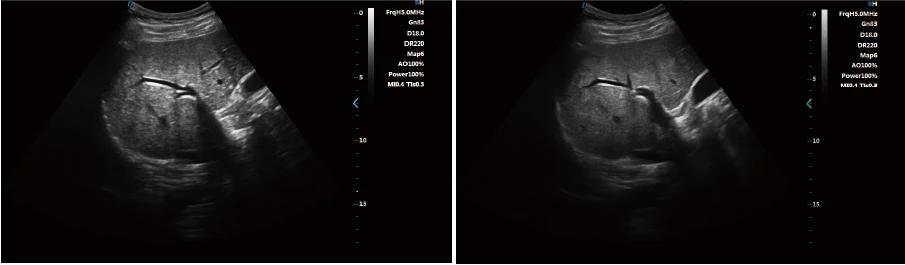

Micron imaging technology
Micron imaging technology, real-time tracking of specific signals at the edges of different tissues, to achieve edge enhancement, and monitor each pixel at the same time; optimize the internal signal of the organization and perfectly integrate the edge information and the internal pixel information of the organization to restore the real and delicate, excellent level contrast Two-dimensional image.

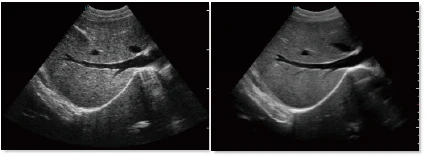

Harmonic imaging technology（THI）
It improves image clarity by improving tissue contrast resolution, spatial resolution, and eliminating near-field artifacts. It is mainly used for the diagnosis of cardiovascular and abdominal diseases. It plays an important role in evaluating the lesion area and boundary division of patients with imaging difficulties. The technology has been fully approved by clinicians. Harmonic technology retains the second harmonic signal to the greatest extent based on removing the fundamental signal, which increases the signal strength by more than 30% compared with the traditional signal processing, reduces noise and artifacts, and improves the contrast resolution of tissue images.

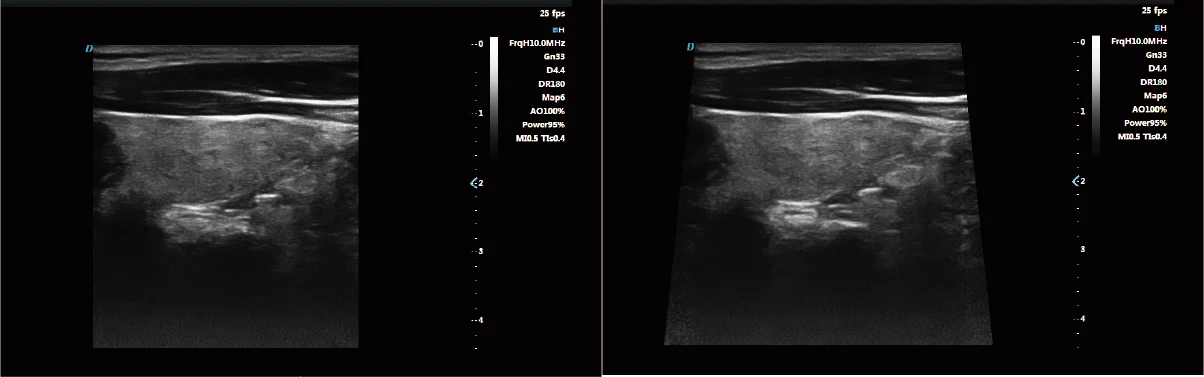

Trapezoid imaging
rapezoid imaging is a kind of expanded imaging, which is transformed into a trapezoid based on the original rectangle, and the left and right sides are expanded to a certain extent, achieving a wider field of view.
The principle of ultrasound imaging is to scan the human body with ultrasonic sound beams, and obtain images of internal organs by receiving and processing the reflected signals.
The principle of ultrasound imaging is to scan the human body with ultrasonic sound beams, and obtain images of internal organs by receiving and processing the reflected signals.

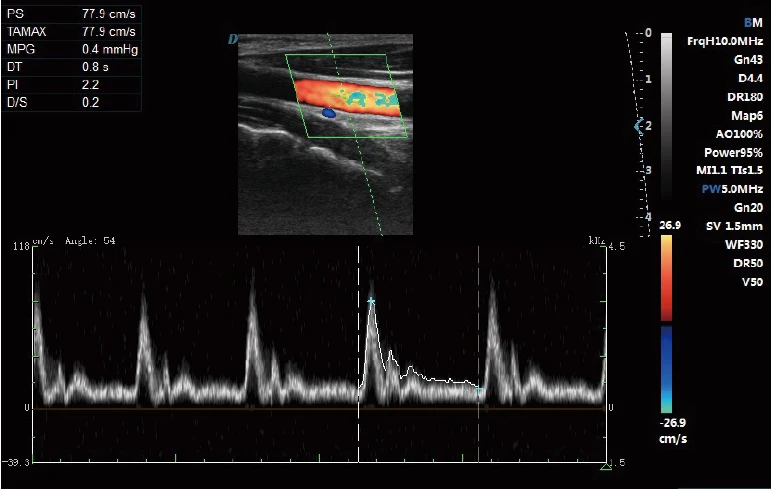

Automatic spectrum tracking measurement technology
Ultrasound Doppler technology is used in the ultrasound system for examining the heart and arteries and veins. It is necessary to extract relevant parameters from the Doppler spectrogram to evaluate the hemodynamic status of the heart and blood vessels. The disadvantage of manual detection is that the operator's marking of the peak velocity is relatively monotonous and time-consuming, with poor repeatability and low estimation accuracy; and during the detection, in order to mark the peak velocity, the operator needs to interrupt the acquisition of Doppler signals, which makes it impossible to estimate in real time.
This host contains an automatic envelope detection module, which can automatically track the time-related changes of the peak blood flow velocity and average velocity, and display them in real time on the Doppler spectrogram.
This host contains an automatic envelope detection module, which can automatically track the time-related changes of the peak blood flow velocity and average velocity, and display them in real time on the Doppler spectrogram.
Weight | 8600g |
Size | 376.7*166.7*386.4mm |

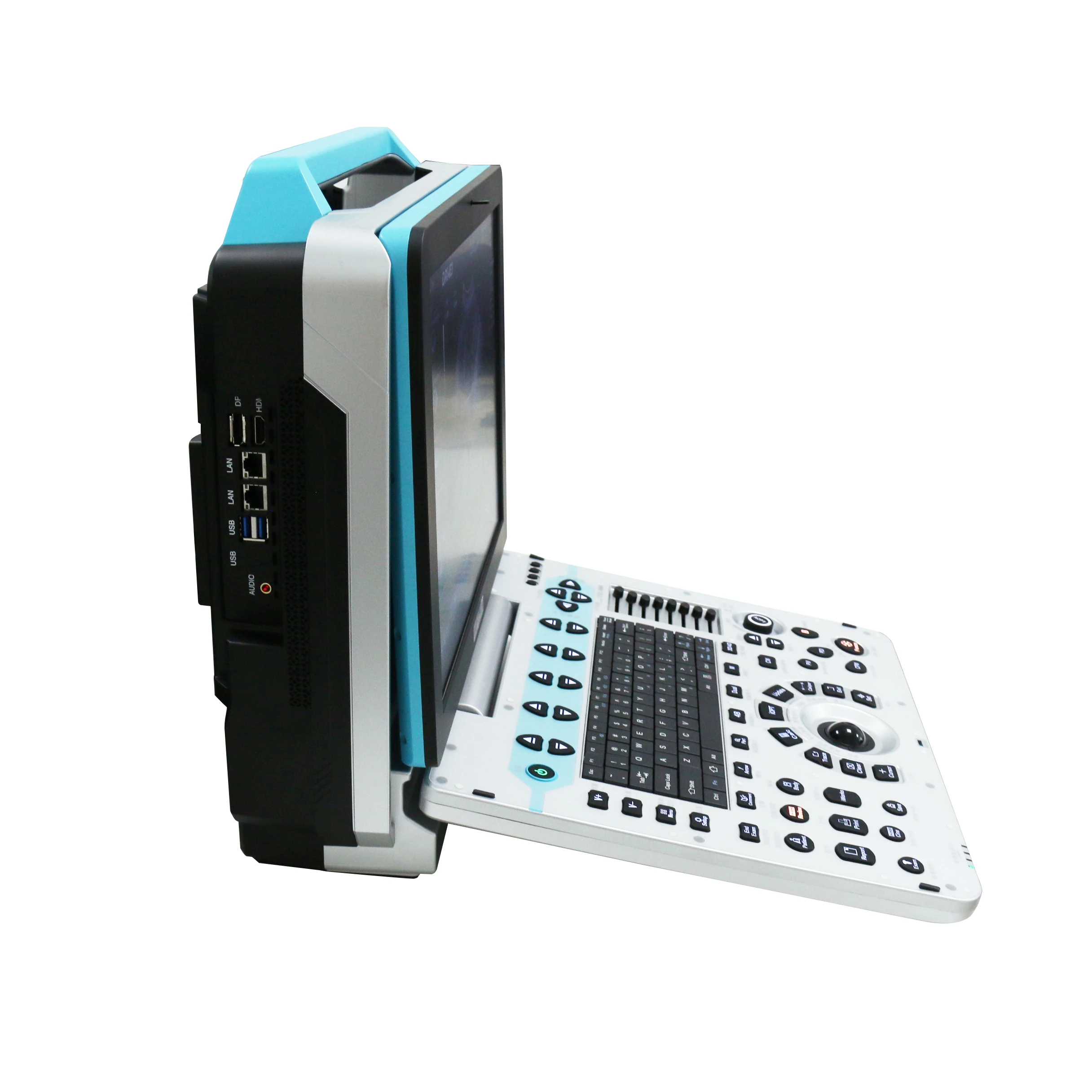

Interface | USB3.0:4 ；USB2.0:2 ；LAN:1； HDMI:1； AUDIO:1 ；VIDEIO:1 |
Display | 15-inch medical display |
Display mode | B, BB, 4B, M, BM |
Color doppler display mode | B/C, B/C/M, B/POWER, B/C/PW |
Imaging | Coherent Contrast imaging（CCI） B/C/D Real-time three synchronous imaging Power Doppler imaging（PDI） Direct power Doppler imaging（DPDI） Tissue Doppler imaging（TDI） Strain rate imaging (SRI) |
Language | 中文, English, français, Русский, Español |
System | Win 10 |
Obstetric measurement | Bovine(BTD, BUD), Equine(EGSD, ESD), Swine(HLA, SLA), Ovine(SCRL), Canine(HD, BD, GSD, CRL), Feline(HD, BD) |
Packing & Delivery

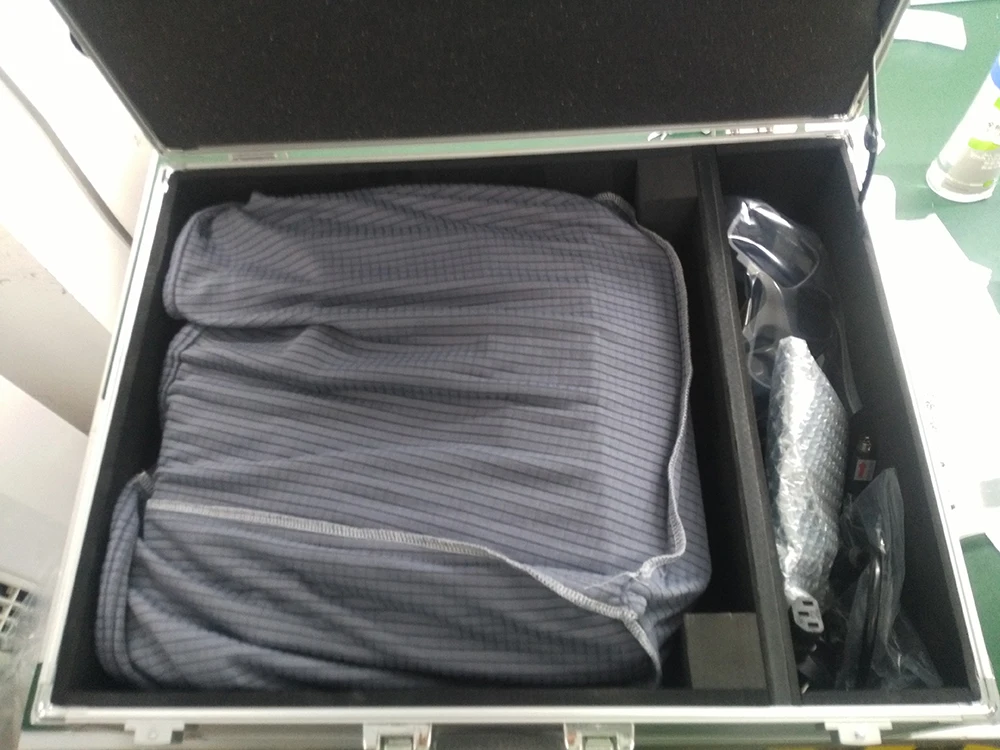

Standard configuration
machine (including one lithium battery);
one probe;
one operation manual;
one adapter;
one aluminum suitcase.
Company Profile
After more than 10 years, Dawei has developed into a leading domestic manufacturer of High-tech Ultrasound Equipment. Now our products are sold to more than 30 domestic provinces and exported to over 160 countries and regions."Profession creates more splendidness." Dawei has met the standards of ISO13485, received CE certification, and also gainedvarious of invention patents and software copyrights.
Production Line
Matherboard
Probe Assembly
QC
Warehouse
Certifications
CE
ISO
FAQ
Which organs can be diagnosed by P3-VET?
It's applicable for animals' examination and diagnosis on digestive system, reproductive system, urinary system for animal hospitals and scientific institutions.
How long can it be used for a full charge？
It can be used for four hours when fully charged.
What is the waterproof rating of probe?
IP7(soaking-proof)
What is the warranty？
Two-year free warranty, lifetime paid warranty.
What kind of technical support is provided？
We provide online technical support, all your problems are solved satisfactorily.
How long can it be used for a full charge？
It can be used for four hours when fully charged.
What is the waterproof rating of probe?
IP7(soaking-proof)
What is the warranty？
Two-year free warranty, lifetime paid warranty.
What kind of technical support is provided？
We provide online technical support, all your problems are solved satisfactorily.
