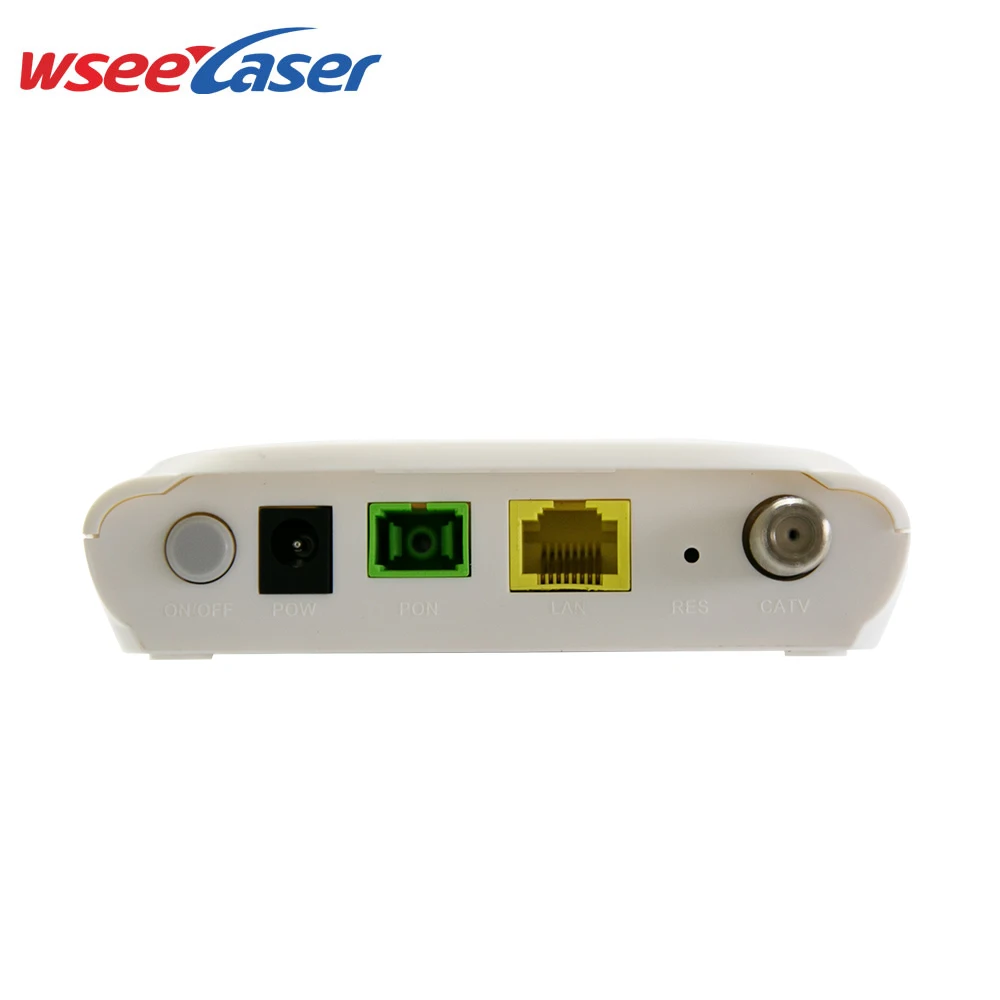

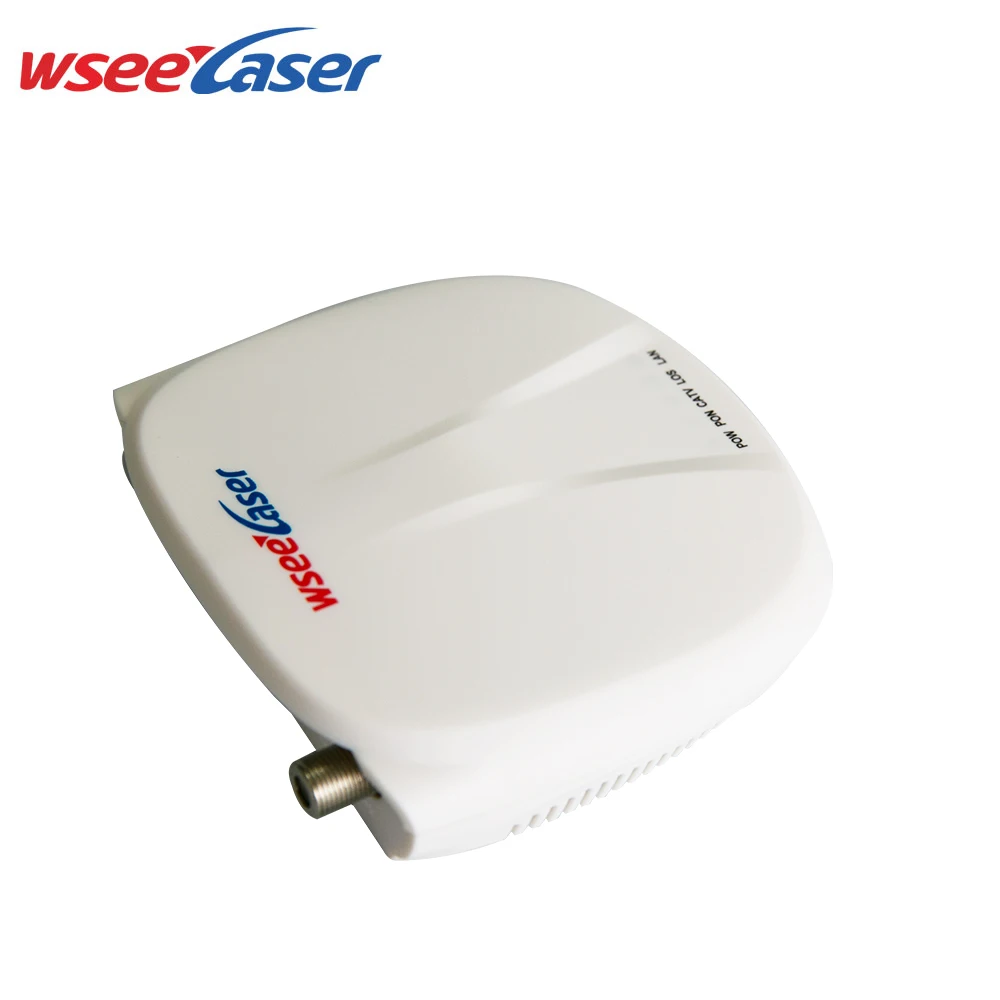

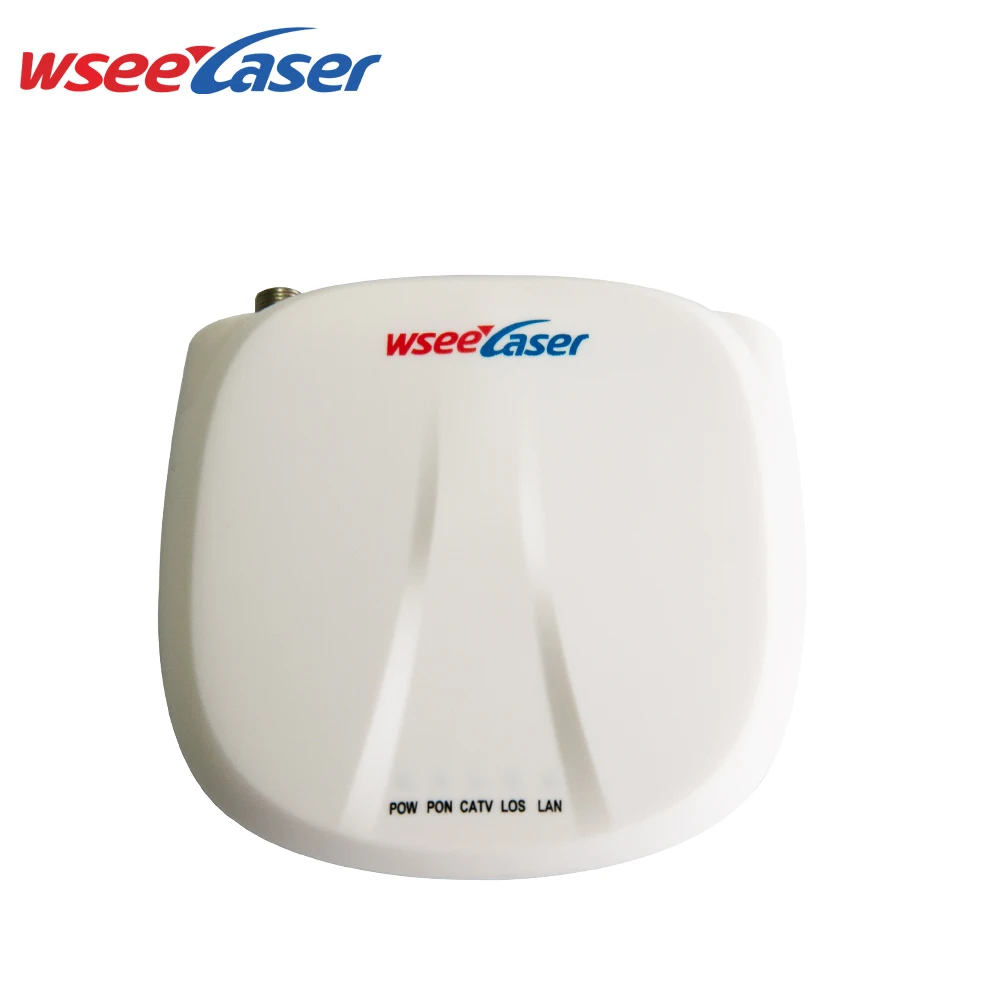

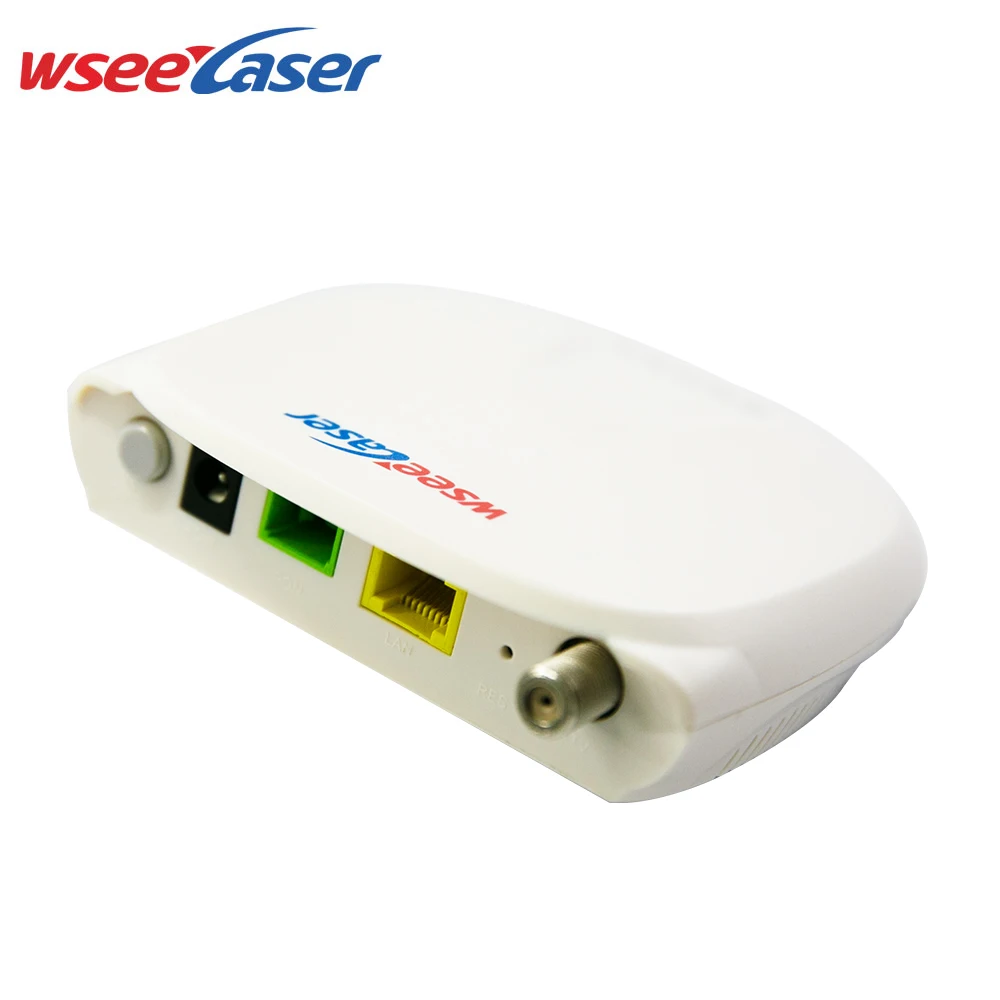

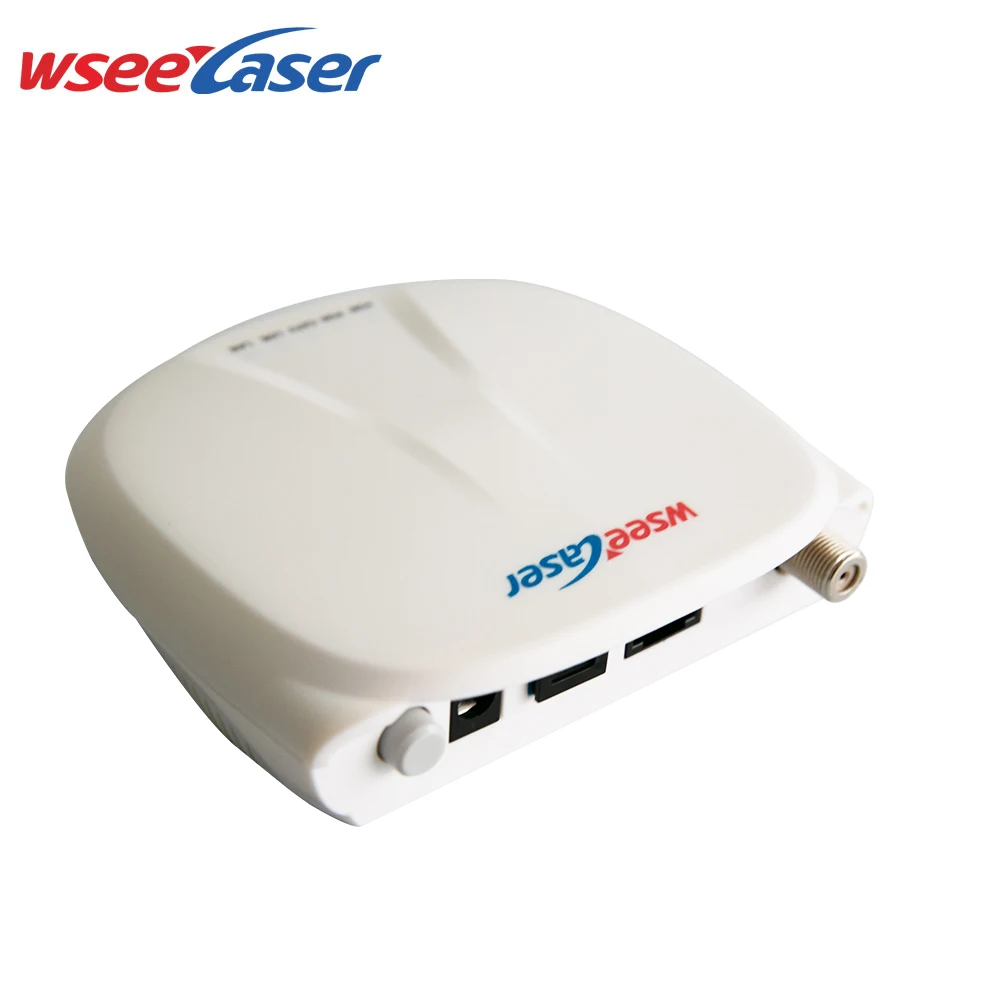

New WSEE 2024 product ONU WSR1 XPON Factory Direct Sale ONT
- Category: >>>
- Supplier: Shandong Wanshuo Optoelectronic Equipment Co Ltd.
Share on (1601054554150):
Product Overview
Description
Product Description
Specification
Sports event | Typology | Technical Parameters |
Pon | Interface Type | No Catv Sc/Upc With Catv Sc/Apc |
Receiver Sensitivity | ≤-27dbm | |
Luminous Power | +1~+4dbm | |
Transmission Distance | 20Km | |
Operating Wavelength | Tx: 1310nm Rx: 1490nm | |
Catv (Optional) | Operating Wavelength | 1550nm |
Input Optical Power | 0~-12dbm | |
Optical Reflection Loss | ＞45dbm | |
Frequency Range | 47-1006Mhz | |
Flatness | ±1 Dbm (47-1006 Mhz) | |
Output Level | ≥80dbuv | |
Output Impedance | 75Ω | |
Agc | 0~-12dbm | |
Carrier-To-Noise Ratio | ≥51db | |
Ctb | ≥65db | |
Cso | ≥62db | |
Lan | Interface Type | 1 Gigabit Rj45 Port |
Transfer Mode | 10/100/1000 Adaptive | |
Power Supply Related | Connector | Dc005 φ2.1mm |
Input Voltage | 12V0.5A | |
Power Wastage | ≤4W | |
Environment-Related | Operating Temperature | 0~+50°C |
Operating Humidity | 10~85% (Non-Condensing) | |
Storage Temperature | -30~+60℃ | |
Size Weight | Product Size | 110*104*27.5 |
Package Size | 210*140*35 | |
Net Weight | ≤0.2Kg | |
Total Weight | ≤0.5Kg |
Company Profile

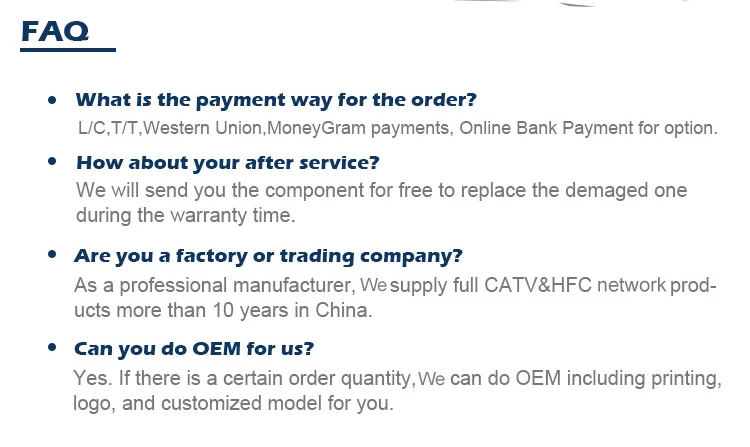

FAQ
