Automatic bottle cola soda beverage carbonated drink filling machine production line carbonated soft drink making machine
- Category: >>>
- Supplier: Zhangjiagang Beyond Machinery Co. Ltd.
Share on (1601054586019):
Product Overview
Description

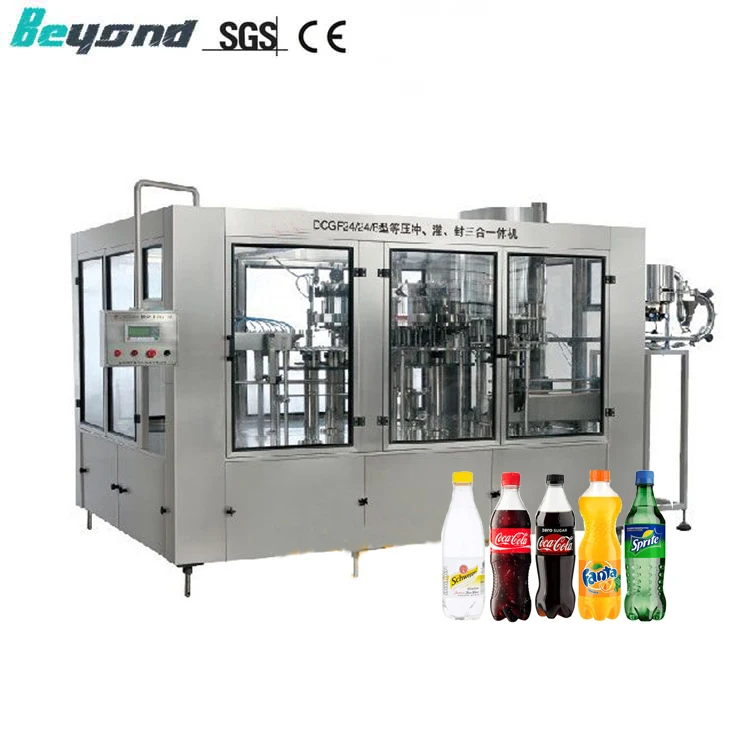

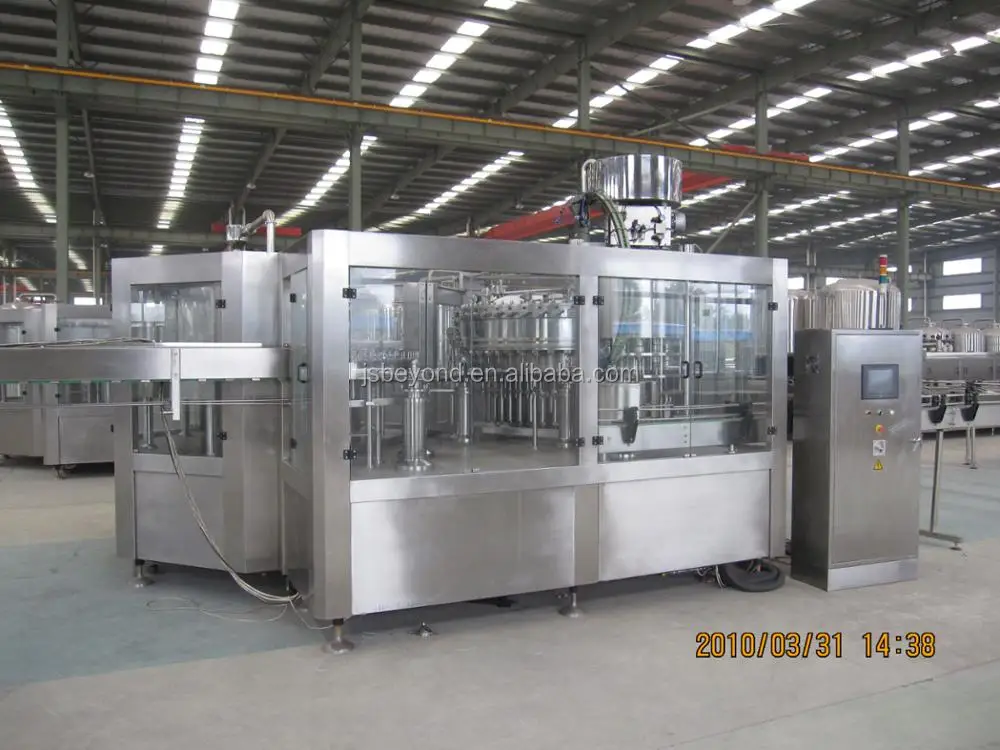

Carbonated drink Filling Machine
Product Description

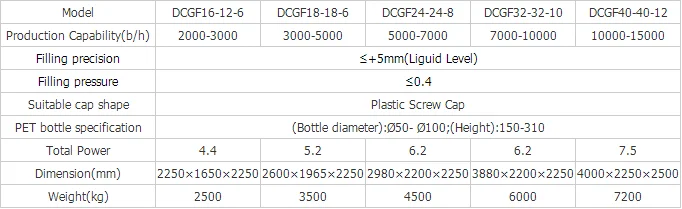

Specification
Different filling capacities
8-8-3 Bottle Filling Line Capacity:1000-2000 bottles per hour.
14-12-5 Bottle Filling Line Capacity:2000-3000 bottles per hour.
16-12-6 Bottle Filling Line Capacity:4000-6000 bottles per hour.24-24-8 Bottle Filling Line Capacity:10000-12000 bottles per hour.
18-18-6 Bottle Filling Line Capacity:6000-8000 bottles per hour.40-40-12 Bottle Filling Line Capacity:20000-24000 bottles per hour
32-32-10 Bottle Filling Line Capacity:12000-15000 bottles per hour.
Soda pop processing Feature :
* This cola drink filling machine is mainly used in the carbonted beverage filling with gas.
* It is mainly used in washing, filling and sealing carbonated beverage such as carbonated drinks, cola, iced tea and carbonated drink water and so on.

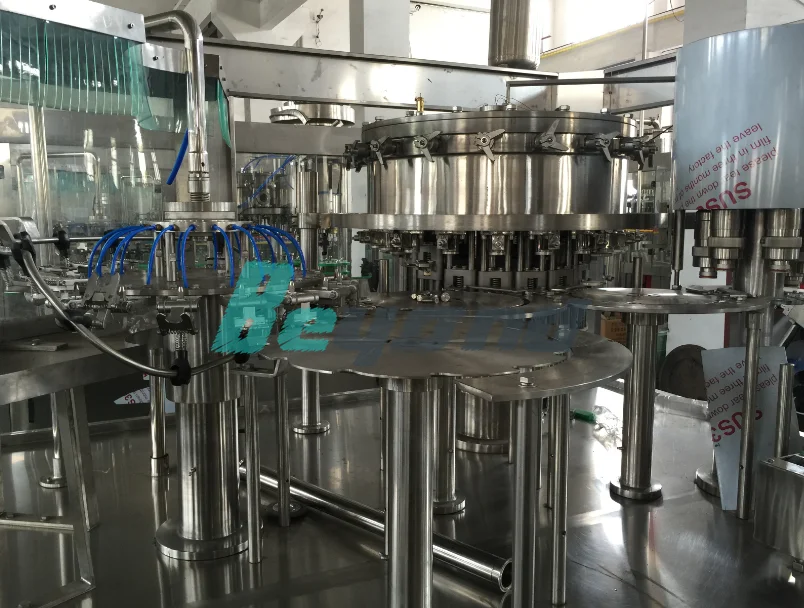

* It is composed by rotary washer, balanced pressure filler, screw type sealer and conveying system. The automatic carbonated beverage filling machine capacity is from 8000b/h to 15000b/h
* The cola drink filling machine construction is advanced, The performance is stable. The operation and maintain are easy. And the speed of automatic carbonated beverage filling machine can be adjusted infinitively and accords with the standards.
* This cola drink filling machine is mainly used in the carbonted beverage filling with gas.
* It is mainly used in washing, filling and sealing carbonated beverage such as carbonated drinks, cola, iced tea and carbonated drink water and so on.
* It is composed by rotary washer, balanced pressure filler, screw type sealer and conveying system. The automatic carbonated beverage filling machine capacity is from 8000b/h to 15000b/h
* The cola drink filling machine construction is advanced, The performance is stable. The operation and maintain are easy. And the speed of automatic carbonated beverage filling machine can be adjusted infinitively and accords with the standards.
Soda pop processing Application:
1.The series equipment is used in production gas containing water of PET polyester bottle-packing carbonated beverage, such as Coca cola, Pepsi-cola, Spirit drink etc.
2.It carries out washing bottle, filling and capping on one machine. The whole machine designing is reasonable. The appearance is beautiful and the maintenance is convenient.
3.It adopts bottle handing technology to make changing bottle more convenient, faster and easier. The main machine adopts advanced PLC control ,Touch screen and no-bottle, no-cap system.
4.The key electric elements are from famous international brand.
1.The series equipment is used in production gas containing water of PET polyester bottle-packing carbonated beverage, such as Coca cola, Pepsi-cola, Spirit drink etc.
2.It carries out washing bottle, filling and capping on one machine. The whole machine designing is reasonable. The appearance is beautiful and the maintenance is convenient.
3.It adopts bottle handing technology to make changing bottle more convenient, faster and easier. The main machine adopts advanced PLC control ,Touch screen and no-bottle, no-cap system.
4.The key electric elements are from famous international brand.
Configuration list | supply | Brand |
No. Name | Manufacturer | Remark |
1 Main motor | Wannan | stand |
2 Rinsing pump | Nanfang pump | stand |
3 Liquid input pump | Nanfang pump | stand |
4 transducer | Mitsubishi | Electric cabinet |
5 PLC | Mitsubishi | Electric cabinet |
6 Cable | China | Connection cable |
7 AC contactor | siemens | Electric cabinet |
8 thermo relay | Schneider | Electric cabinet |
9 buzzer | Taiwan | Electric panel |
10 Proximity switch | China | Cap-feeder and cap tester |
11 Photoelectric switch | China | Cap testing system |
12 Photoelectric switch | China | Cap unscrambling system |
13 Photoelectric switch | China | Bottle stopping system |
14 Liquid level switch | Taiwan | Hydraulic cylinder |
15 Magnetic valve | Airtac | Filling valve |

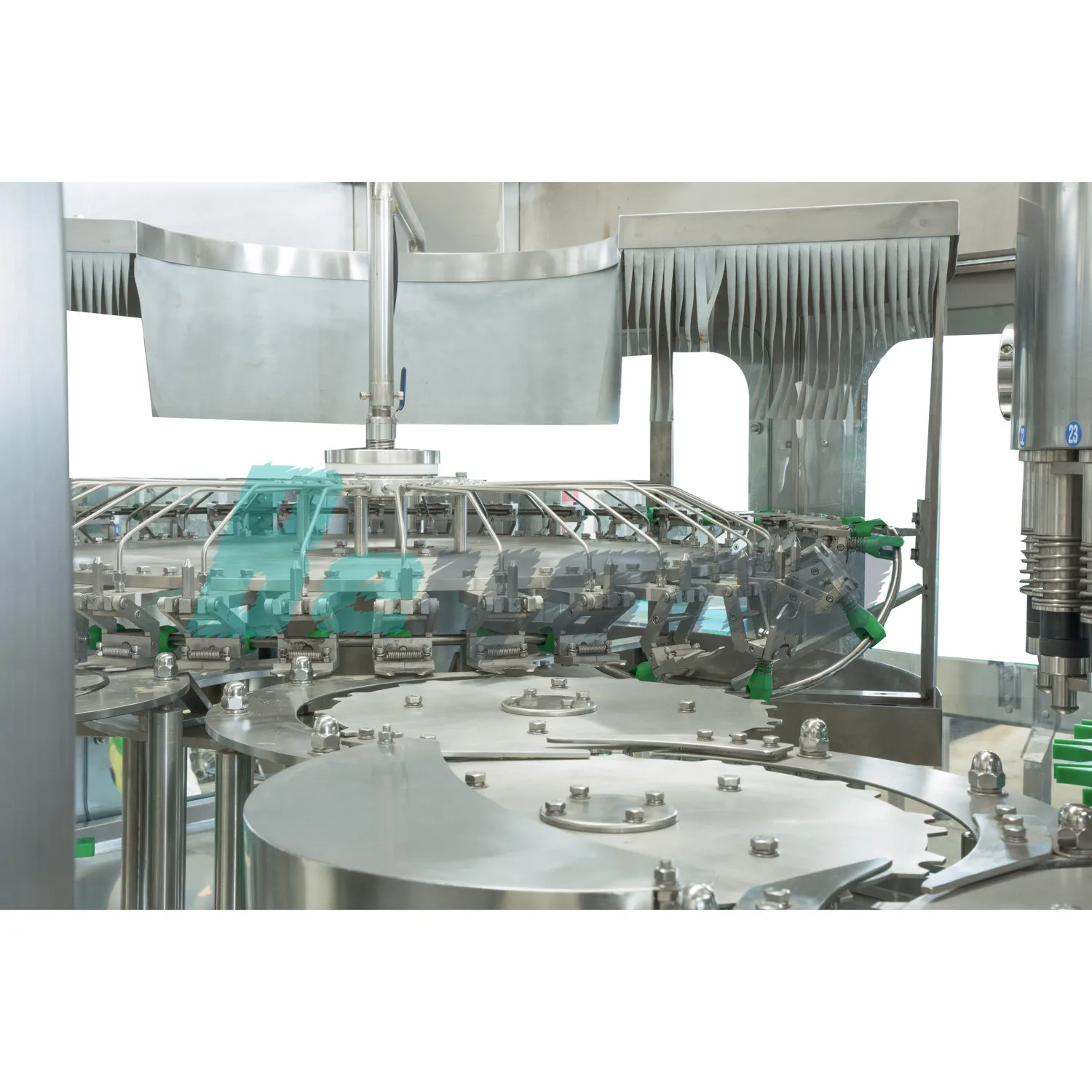

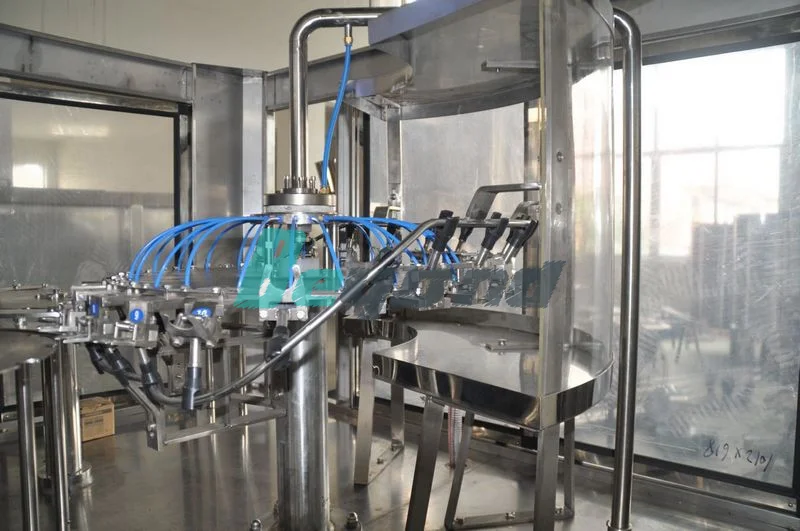

Overturning mechanism of bottle washing machine
It mainly composes of bottle washing clamp, upper rotary plate, guide rail, water distributing plate, shield, water spraying device, water tray etc.
Bottle washing clamp rotates with the upper rotary plate, and open the bottle mouth clamp with elastic distortion when contacting the bottle feeding star-wheel, which can clamp the bottle neck, then overturns at 180° along the guide rail, bottle mouth may become downwards for cleaning and drying the bottle with water, then overturn for 180°, bottle mouth becomes upwards and then conveyed with the star-wheel; shield can prevent sprinkling of cleaning water; water distributing plate can deliver the cleaning water from the still parts to the rotary parts.
Bottle washing clamp rotates with the upper rotary plate, and open the bottle mouth clamp with elastic distortion when contacting the bottle feeding star-wheel, which can clamp the bottle neck, then overturns at 180° along the guide rail, bottle mouth may become downwards for cleaning and drying the bottle with water, then overturn for 180°, bottle mouth becomes upwards and then conveyed with the star-wheel; shield can prevent sprinkling of cleaning water; water distributing plate can deliver the cleaning water from the still parts to the rotary parts.

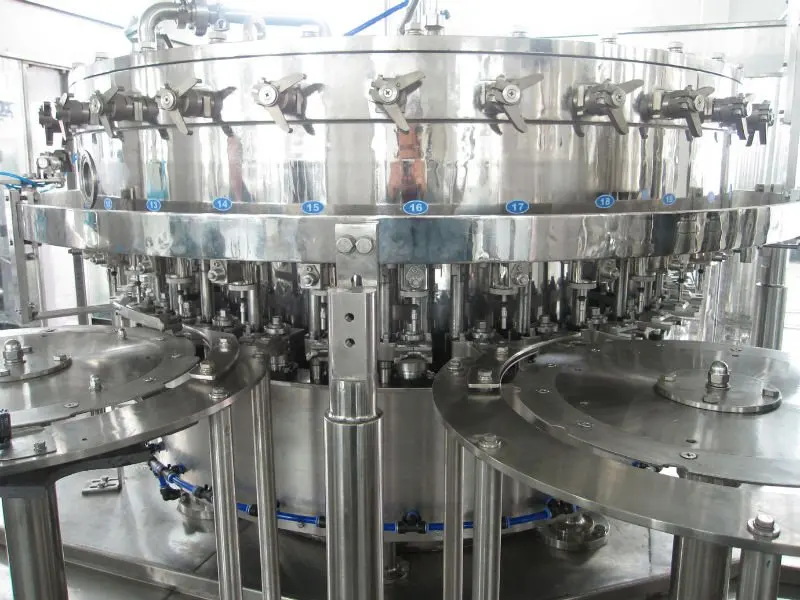

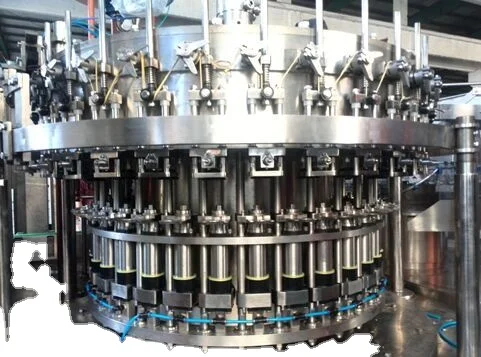

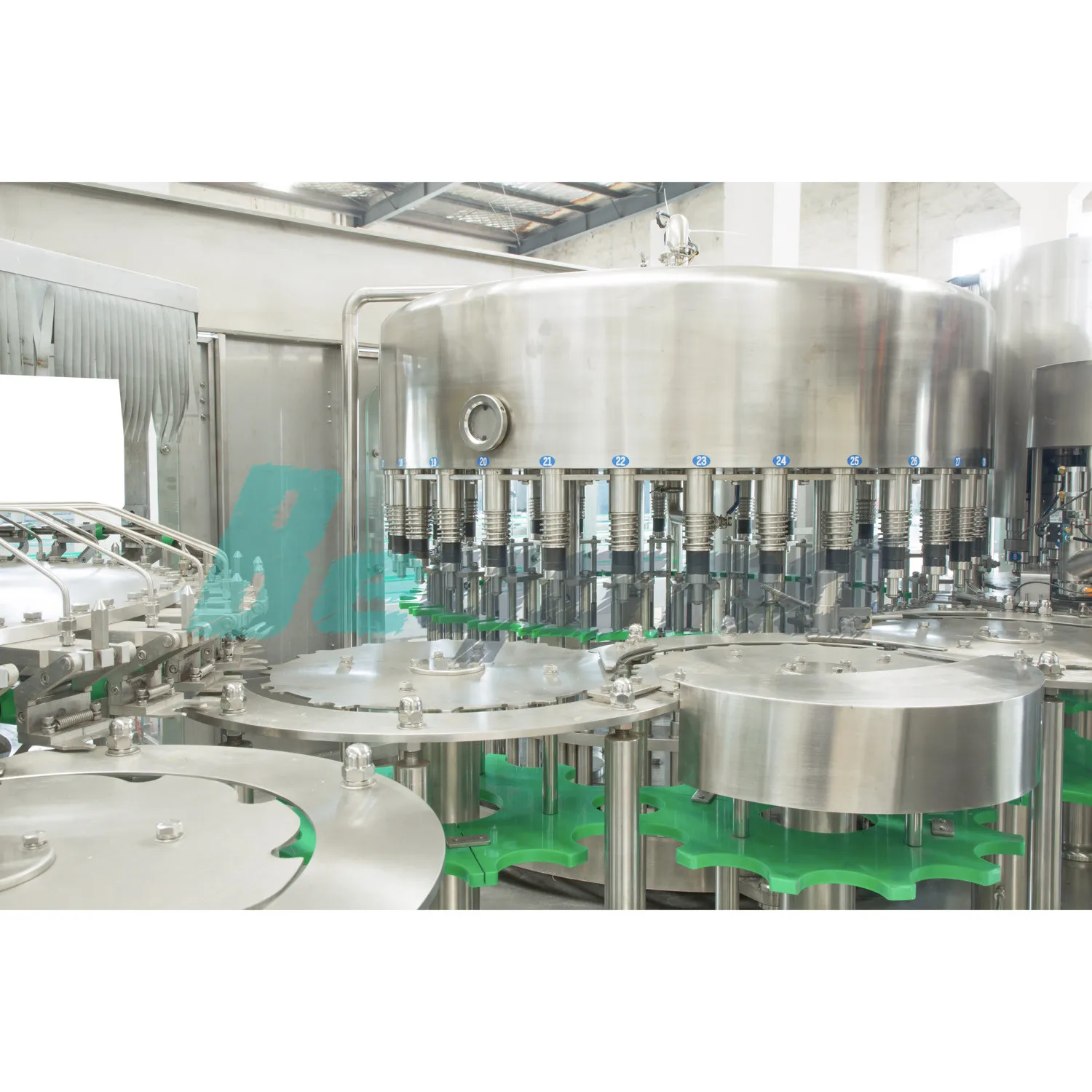

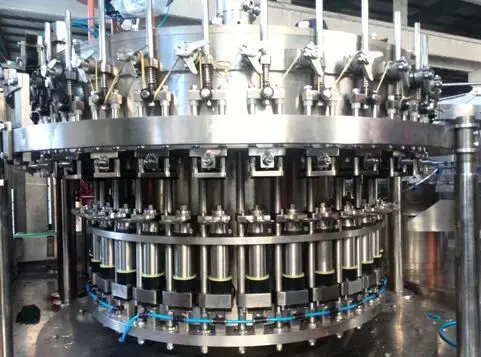

Bottle filling mechanism
It has 8 filling valves. It is quick, steady and accurate. The beverage feedback system is well designed, the gas can be fed back separately, has no contact with beverage, reduce the second time pollution and oxidation..

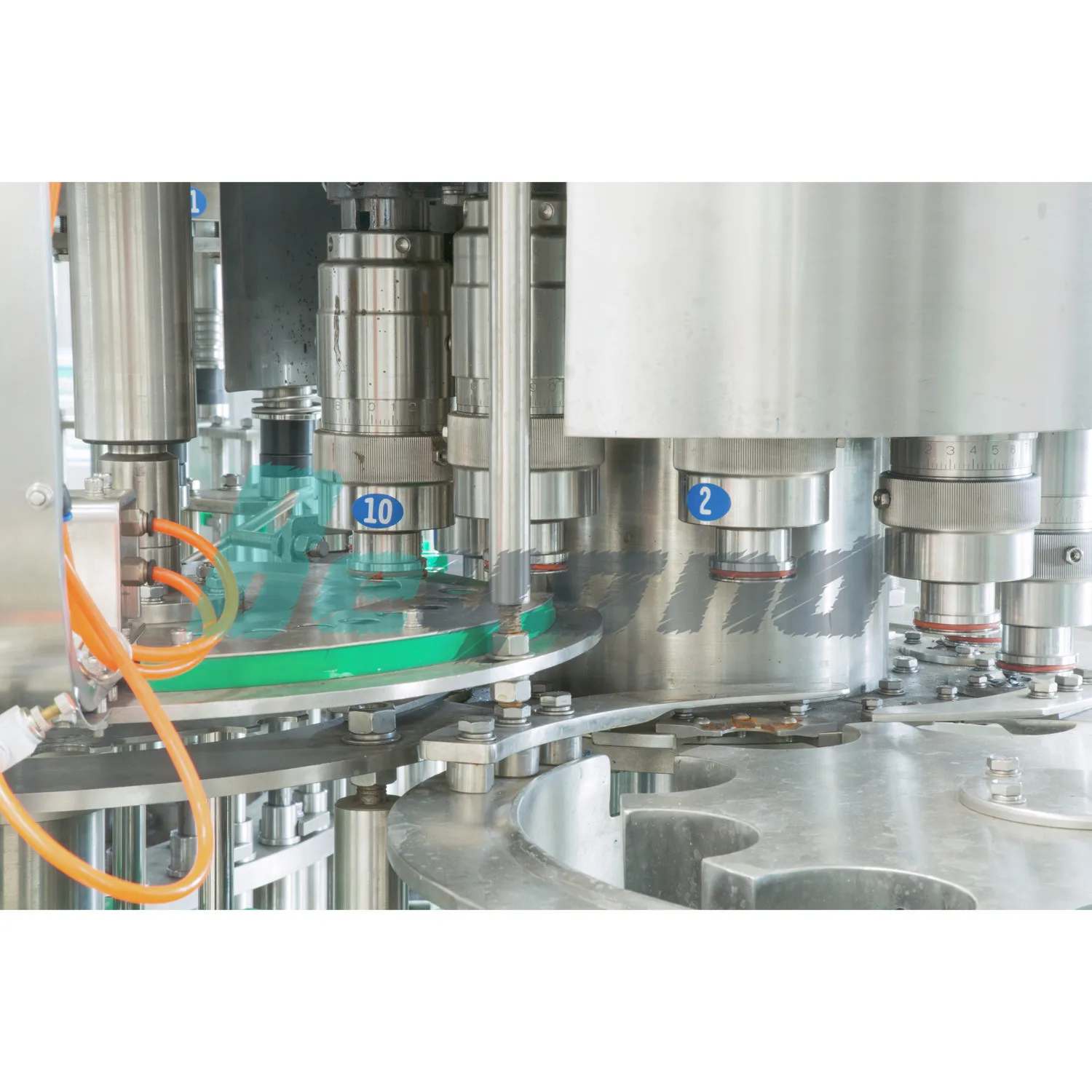

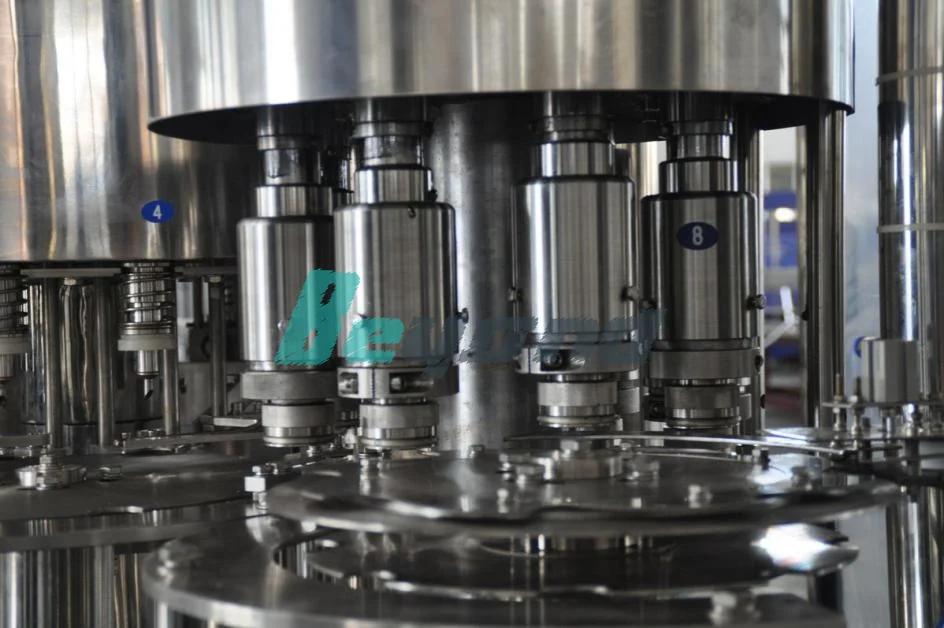

Capping mechanism
Capping mechanism composes of cap separating mechanism, capping machine and cap arranging mechanism.
The machine is designed on the base of Alcoa (France) technology. It adopts magnetic moment capping, which has the function of unload the overloading force on the cap, so the capping head have the function of protect the cap from damage. If the neck size and cap of your bottle is the same, you do not need to change any part.
The machine is designed on the base of Alcoa (France) technology. It adopts magnetic moment capping, which has the function of unload the overloading force on the cap, so the capping head have the function of protect the cap from damage. If the neck size and cap of your bottle is the same, you do not need to change any part.
Additionnal Information
We also provide water treatment system ,bottle blowing machine ,conveyor，Ink printer ,labeling machine,packing machine, to build the complete production line.
Company Profile
Zhangjiagang Beyond Machinery Co., Ltd. is experienced in beverage filling and packing machinery such as water/juice/cola processing line. We devote ourselves to the development, research and production of liquid food and beverage packing and filling industry in China.
Our certificates include CE SGE Utility model patent certificate BCC high-tech enterprises etc.
For beverage machine, we have the capacity of 2000-40000 BPH for hot filling (juice and tea filling) and mid-temp filling and aseptic cold filling lines; the capacity of 2000-40000 BPH for mineral water and purified water producing line; the capacity of 2000-36000 BPH for carbonated beverage and cold filling producing line; the capacity of 1000-8000BPH for vinegar and alcohol producing line; the capacity of 100-2000 BPH for 1 to 5 gallon barrel producing line; the capacity of 2000-10000 BPH for milk producing line; all kinds of water treatment equipment; PET perform inject and blowing-stretching machine; plate and tube UHT device, and CIP system.
We also carry a strict quality management system in accordance with ISO9001 requirements. We have established a complete processing line including design and manufacture and sales and after-sales service. Our products are sold well around the world.
We are proud to adhere to our company slogan "Engineering Excellence". Please be free to contact us for more information and we are ready for making business relationships with you in the near further.
Our certificates include CE SGE Utility model patent certificate BCC high-tech enterprises etc.
For beverage machine, we have the capacity of 2000-40000 BPH for hot filling (juice and tea filling) and mid-temp filling and aseptic cold filling lines; the capacity of 2000-40000 BPH for mineral water and purified water producing line; the capacity of 2000-36000 BPH for carbonated beverage and cold filling producing line; the capacity of 1000-8000BPH for vinegar and alcohol producing line; the capacity of 100-2000 BPH for 1 to 5 gallon barrel producing line; the capacity of 2000-10000 BPH for milk producing line; all kinds of water treatment equipment; PET perform inject and blowing-stretching machine; plate and tube UHT device, and CIP system.
We also carry a strict quality management system in accordance with ISO9001 requirements. We have established a complete processing line including design and manufacture and sales and after-sales service. Our products are sold well around the world.
We are proud to adhere to our company slogan "Engineering Excellence". Please be free to contact us for more information and we are ready for making business relationships with you in the near further.
FAQ
1. who are we?
We are based in Jiangsu, China, start from 2010,sell to South America(19.42%),Africa(19.42%),Domestic Market(19.42%),Southeast Asia(9.71%),Eastern Europe(9.71%),Mid East(7.77%),Southern Europe(7.77%),Eastern Asia(4.84%),North America(1.94%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Beverage filling machine and packing machine (water treatment equipment,filling machine,packing machine)
4. why should you buy from us not from other suppliers?
Plant design,we can design the line according to ur layout. And your market requirement.
Line improvement:we can help you produce new products on existing lines with no impact on product quality or safety. These services include:Line conversions Moulds
5. what services can we provide?
Accepted Delivery Terms: FOB；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese,Spanish,Russian
We are based in Jiangsu, China, start from 2010,sell to South America(19.42%),Africa(19.42%),Domestic Market(19.42%),Southeast Asia(9.71%),Eastern Europe(9.71%),Mid East(7.77%),Southern Europe(7.77%),Eastern Asia(4.84%),North America(1.94%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Beverage filling machine and packing machine (water treatment equipment,filling machine,packing machine)
4. why should you buy from us not from other suppliers?
Plant design,we can design the line according to ur layout. And your market requirement.
Line improvement:we can help you produce new products on existing lines with no impact on product quality or safety. These services include:Line conversions Moulds
5. what services can we provide?
Accepted Delivery Terms: FOB；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese,Spanish,Russian
