China Manufacture Approved 4 Stroke UTV Quadski Jetski Vehicle Crosski Amphibious Vehicles for Sale

Share on (1601054690033):


Price:$18,000.00-25,000.00

Quantity:


Product Overview

Description







Product Information




Power parameters

1. Engine displacement: ≥ 1500cc;
2. Maximum speed in water: ≥ 60km/h;
3. Maximum speed on land: ≥ 70km/h;
4. Fuel grade: 92 or higher grade gasoline;
5. Fuel capacity: ≥ 50L;
6. Fuel consumption: ≤ 13L/h;
7. Engine type: DOHC four stroke;
8. Transmission: (on land) 6-speed mechanical shift transmission; Single gear and continuously variable transmission (on water)
9. Fuel supply method: electronic fuel injection
10. Cooling: circulating water cooling+open circuit water cooling
11. Oil capacity: ≥ 3.5L;
12. Water land mode conversion time: ≤ 5s;
13. Starting battery specification: 12V, 45AH;

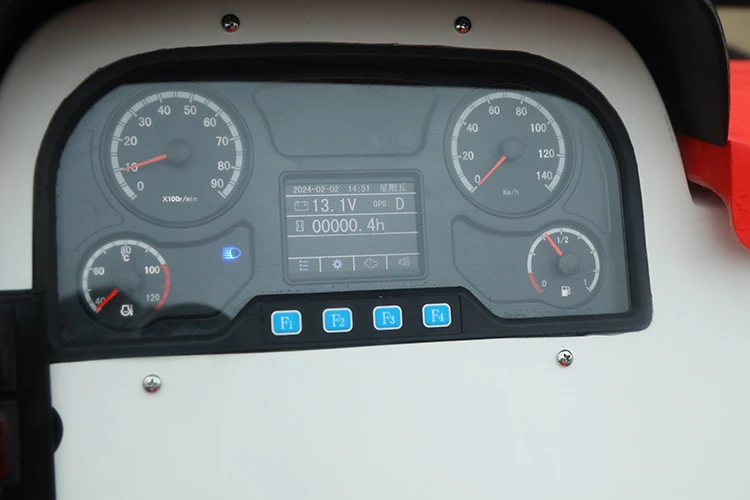

14. Instrument panel: The instrument panel displays data such as driving speed, engine speed, fuel volume, etc
15. Vehicle size: 3750 * 1700 * 1850 (mm)
Land vehicle parameters

(1) Wheelbase mm: ≤ 2300; Track width: 1700
(2) Minimum ground clearance mm: ≥ 200;
(3) Curb weight kg: ≤ 650KG;
(4) Top speed km/h: ≥ 70 on land;
(5) Minimum stable vehicle speed km/h: ≤ 10;
(6) Climbing ability: ≥ 25 °;
(7) Starting time (at room temperature) s: ≤ 5;
(8) Maximum lateral stability angle (left/right): ≥ 25 °;
(9) Rated load capacity kg: ≥ 500;
(10) Number of passengers: ≥ 5;
(11) Land driving form: wheeled (4x2);
(12) Brake type and operation mode (front/rear): disc brake/foot control (linkage control);
(13) Direction control method: steering wheel and electronic power assist control
Water vehicle parameters

(1) Maximum load capacity (on water) kg: ≥ 240 (2 people); ≥ 500 (4 people) (with floating body)
(2) Net weight (kg): ≥ 600;
(3) Maximum speed (km/h): ≥ 55;
(4) Four wheel folding conversion time ≤ 5s
(5) Spray pump type: single-stage axial flow pump;
(6) Spray pump diameter: D155mm;
(7) Operation/propulsion method: steering wheel/spray pump (all four wheels retracted);
(8) Water depth requirement ≥ 1000mm
(9) Operation/propulsion method: steering wheel/spray pump (all four wheels retracted);
(10) Electric reverse control
(11) Electrically controlled adjustable angle nozzle


Product Pictures






Company Introduction




Products Recommend






Company Certification




Packaging And Shipping




FAQ




Q:What are the benefits of being a Hison distributor?
A: - Special discount。
. Marketing protection.
- Priority of launching new design.
- Point to point technical suports and after sales services.
. Become a member of Hison Water sports Club.
Q: How many distributors do we have now in Hison?
A: Hison just starts to establish distributors worldwide from this year. So if you are
interested in this business, please be quick.
Q: How can i become a distributor of Hison?
A: Contact us immediately for further details by sending us an inquiry.
