Manufacturer 0.6M PCB Handling Machine PCB NG Reject Conveyor Buffer Conveyor YX 350C For PCB Production Line
- Category: >>>
- Supplier: Wenzhou Yingxing Import&Export Co. Ltd.
Share on (1601054796561):
Product Overview
Description
Product Description
Feature

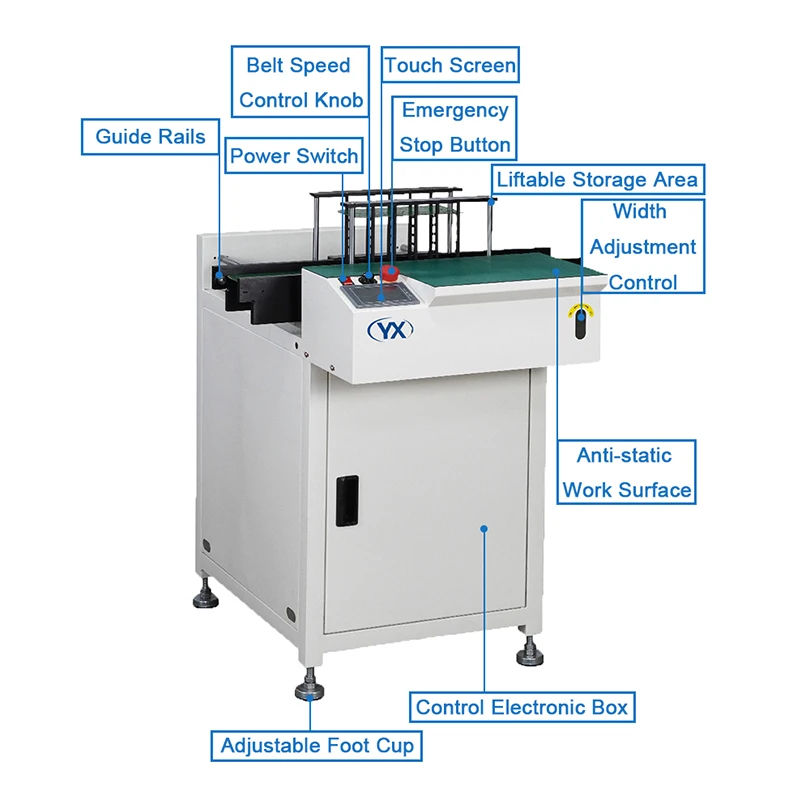

1. Appearance structure: The sheet metal structure and aluminum profile are integrated into the frame, and the surface is sprayed with a ripple white color.
2. The microcomputer PLC control system works stably and reliably.
3. Touch screen display operation, with automatic fault diagnosis function, convenient human-machine dialogue.
4. Multiple sound, light, and touch screen alarm functions.

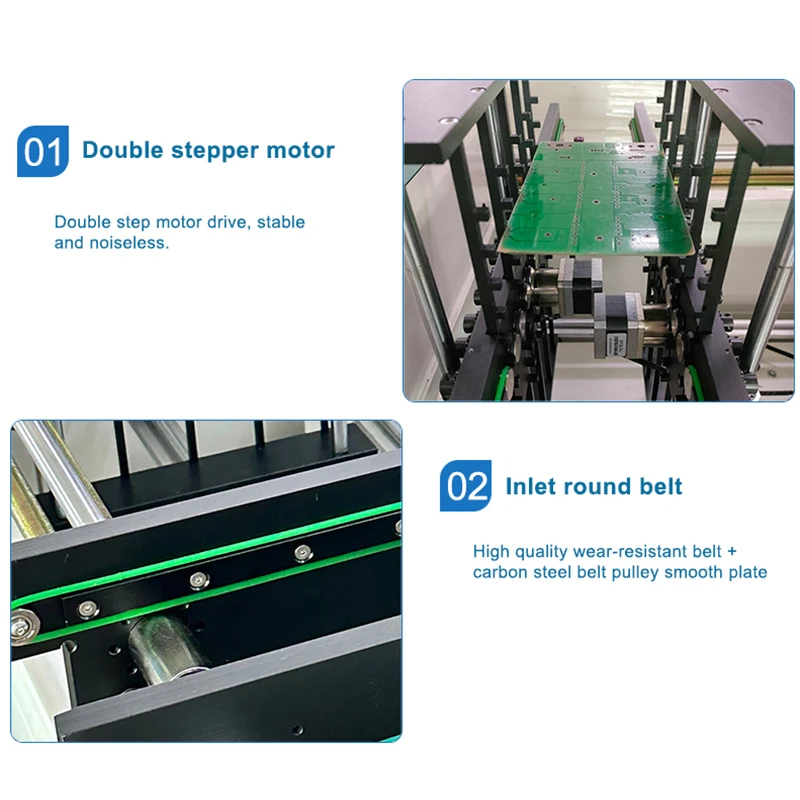

5. Using a stepper motor for transmission,

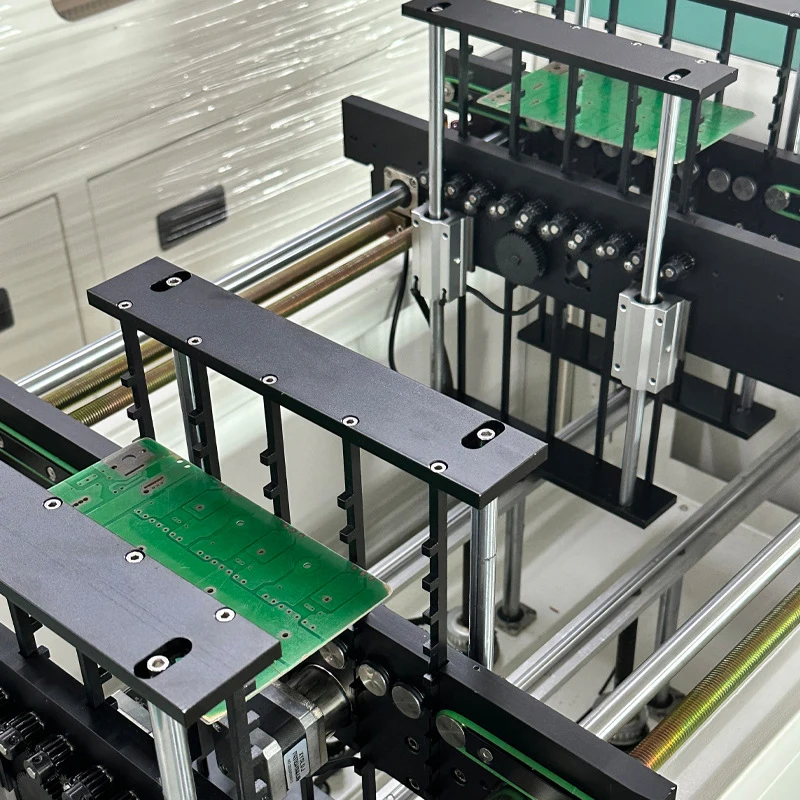

6. A good board can store up to 10pcs by ascending with a bad board,
7. It can be used behind AOI and SPI devices,
8. Double line number differentiation NG \\ OK
1. Appearance structure: The sheet metal structure and aluminum profile are integrated into the frame, and the surface is sprayed with a ripple white color.
2. The microcomputer PLC control system works stably and reliably.
3. Touch screen display operation, with automatic fault diagnosis function, convenient human-machine dialogue.
4. Multiple sound, light, and touch screen alarm functions.
5. Using a stepper motor for transmission,
6. A good board can store up to 10pcs by ascending with a bad board,
7. It can be used behind AOI and SPI devices,
8. Double line number differentiation NG \\ OK
Items | Content |

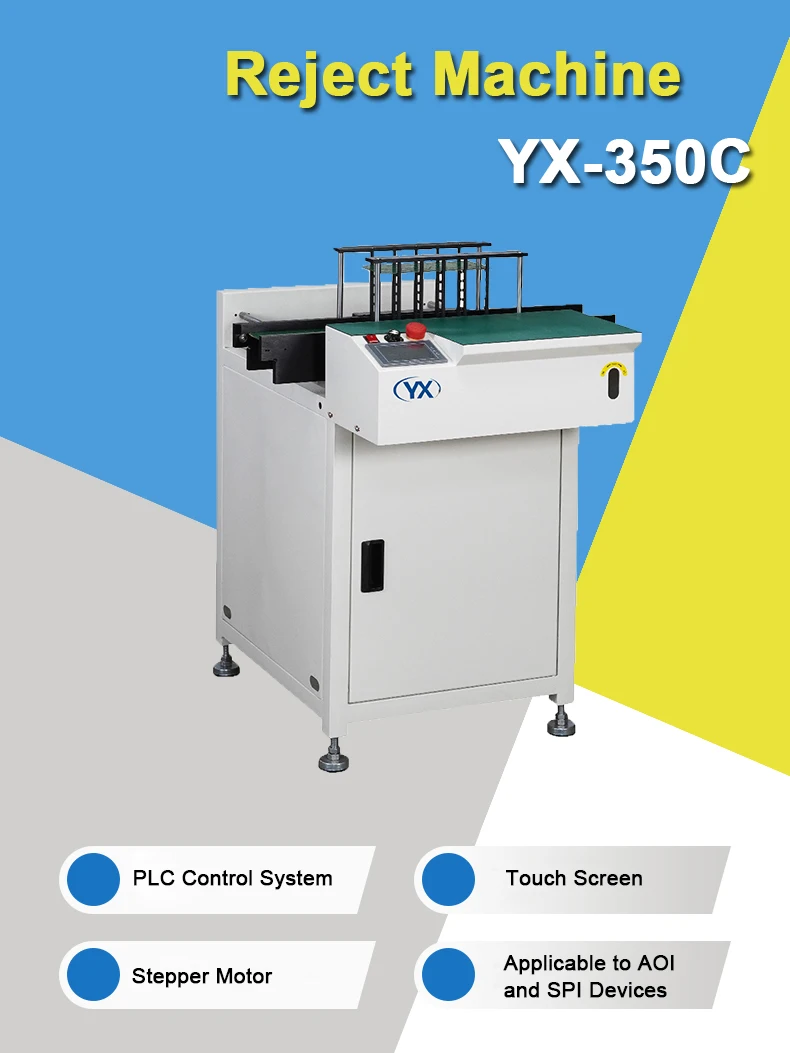

Model | YX-350C |
Outline Dimension | 600*900*950mm |
PCB Plate Size | 50*50~450*350mm |
PCB Plate Supply Height | 900 ± 30mm, cup adjust height |
The PCB Board Transfer Direction | Left-right or right-left |
The PCB Delivery Track | Use the special guide rail and the inlet circular φ 3mm belt |
Transmission Motor | 15W speed control motor (1 set) |
Navar | Panasonnic plc |
Distance Distance | The highest spacing of each layer is 20MM |
Store the NG Board Quantity | 10 Pieces |
Source | AC 220V / 50-60 HZ (independent electric box control) |
Frame Material | Full sheet metal welding, electrostatic spray surface |
Standard Signal | The standard four-core signal line, can be directly connected with other equipment |
Product Details
Company Information
Exhibition
Certifications
Product packaging
FAQ
Q:How is the training?
A:After buying our machines,your engineers can go to our company or it is so easy to operate the machine according the training video and user manual,the user manual will come with the machine together.
Q:Is it hard to use these machines?
A:After buying our machines,your engineers can go to our company or it is so easy to operate the machine according the training video and user manual,the user manual will come with the machine together.
Q:Is it hard to use these machines?
A:No,not hard at all.For our previous clients,at most 2 days is enough to learn to operate the machines.
Q:Does your machines have quality certificate?
A:All of our machines have passed CE certificate,ISO14001(BCC),ISO9001(IQNET) and have own patent.
Q:The Warranty of the machine?
A:One year,then the parts will be free for the buyer in the warranty.
Q:English version for these machines?
A:Yes
Q:Does your machines have quality certificate?
A:All of our machines have passed CE certificate,ISO14001(BCC),ISO9001(IQNET) and have own patent.
Q:The Warranty of the machine?
A:One year,then the parts will be free for the buyer in the warranty.
Q:English version for these machines?
A:Yes
