New SUNCOMM SRT853A 4G 5G Outdoor CPE 2.5Gbps LAN POE power supply ODU Waterproof IP65 FWA Wireless Outdoor CPE
- Category: >>>
- Supplier: SHENZHEN SUNCOMM INDUSTRIAL CO. LTD.
Share on (1601055010276):
Product Overview
Description
Why Choose Us
Product Details

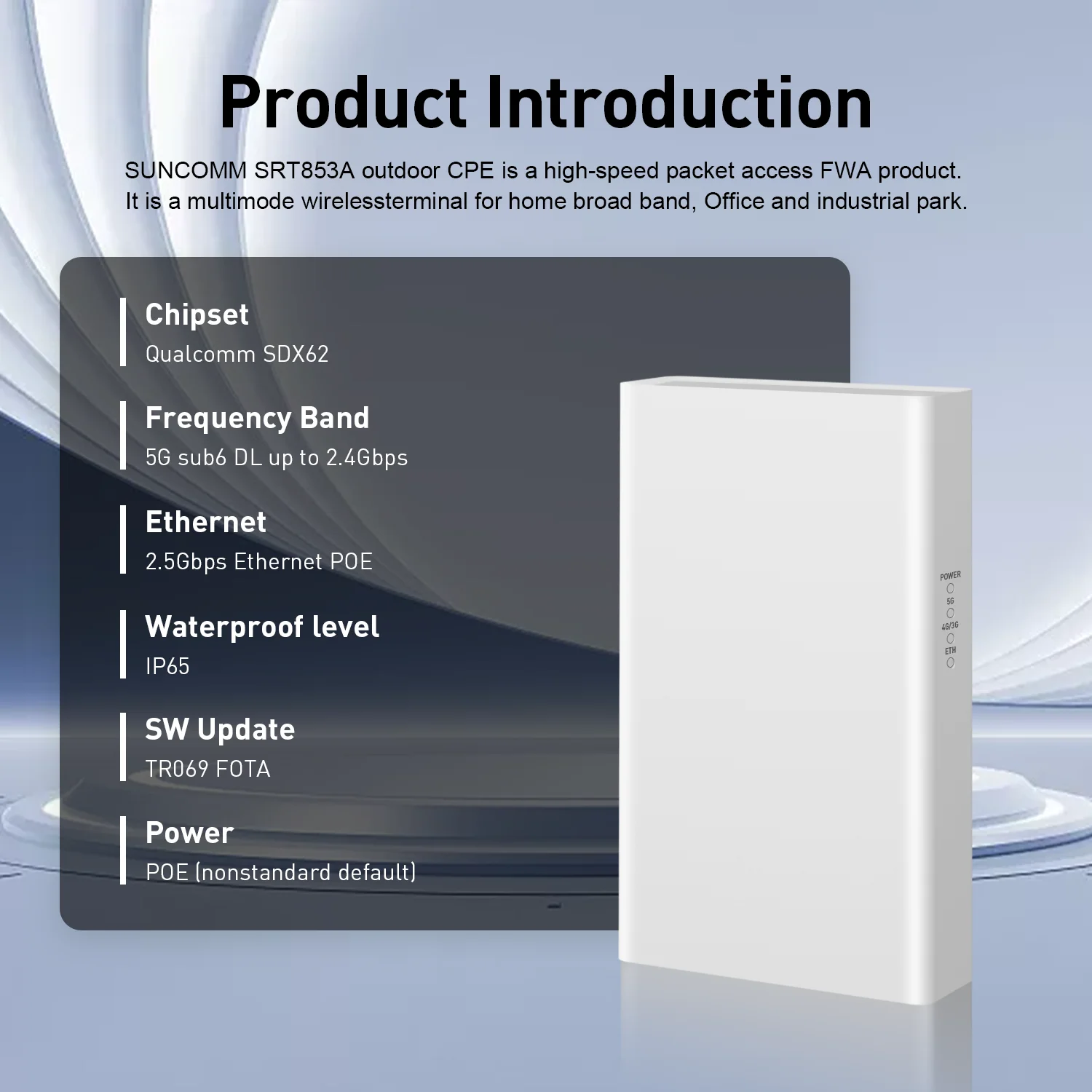

SUNCOMM SRT853A outdoor CPE is a high-speed packet access FWA product. It is a multi mode wirelessterminal for home broad band, Office and industrial park. | ||||
You can connect the SRT853A with the RJ45 interface of indoor CPE, or connect the SRT853A with a computer. In the service area of the 5G-Sub6/LTE/UMTS network, you can surf the Internet and send/receive emails cordlessly. The SRT853A is fast, reliable and easy to Smart 5G ODU operate. | ||||

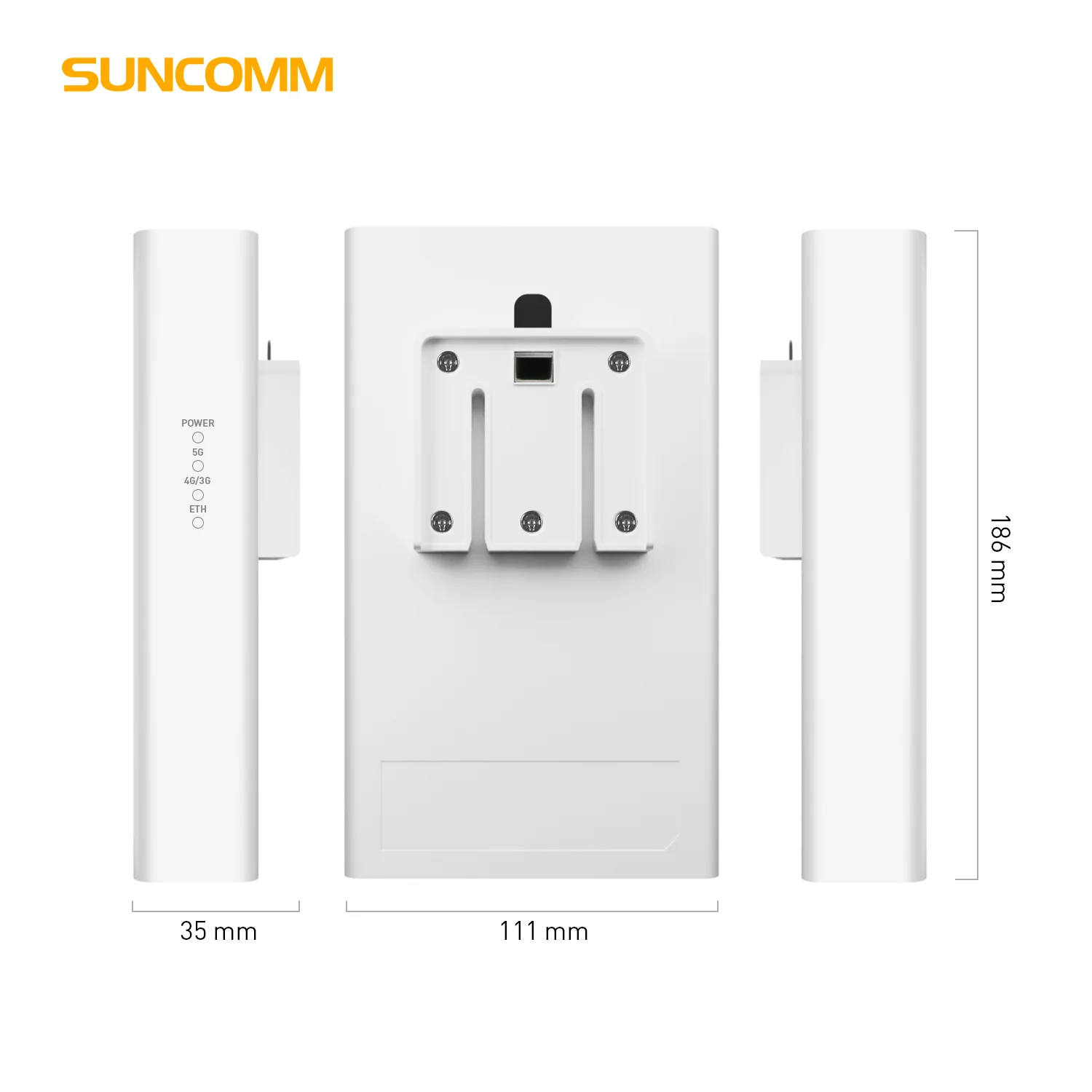

Basic Information | Dimension | 186*111*35 mm | ||
Weight | About 700g | |||
Color | White | |||
Air Interface | Technical Standard | 5G NR Sub-6G，LTE,WCDMA | ||
Operating Frequency | 5G NR Sub-6G SA&NSA: N1/N3/N5/N7/N8/N20/N28/N38/N40/N41/N77/N78/N79 LTE: FDD: B1/B3/B5/B7/B8/B18/B19/B20/B28/B32 TDD: B34/B38/B39/B40/B41/B42 WCDMA: Operating Frequency B1/B5/B8 | |||
Performance Hardware | 5G Peak Data Throughput (theoretical value) | sub6G: DL:BW 100MHz 2.4Gbps UL: BW 100MHz 0.9Gbps LTE：CAT19 DL：1.6Gbps UL:200Mbps | ||
Receive Diversity | Support | |||
MIMO | Support DL 4x4 MIMO | |||
Internal Memory | 4Gb+4Gb | |||
BB Chipset | Qualcomm SDX62 | |||
USIM | 1*4FF SIM (nano card) | |||
Power consumption | Max power consumption <20W | |||
Ethernet | 2.5G LAN*1 | |||
Power | POE(nonstandard default) | |||
LED | Power Indication 5G network Indication 4G network Indication ETH status | |||
USB | USB 2.0 micro (for Debug only) | |||
Antenna | Internal Antenna:5G/4G Gain： 600MHz~960MHz: 0~2dBi 1400MHz~1550MHz: 1~3dBi 1710MHz~2690MHz: 2~4dBi 3300MHz~5000MHz: 3~5dBi | |||
Buttons | Reset hole | |||
Software | ESD | ESD Protection circuit; 8kV contact / 10kV air discharge | ||
SW Update | Local Update/FOTA/WebUI | |||
IP-Passthrough | Support | |||
IPv4/IPv6 | Support | |||
UI | WebUI | |||
Data Statistics | Support | |||
Automatic APN Match | Support | |||
Install | Pole/Wall | |||
Environment | Waterproof level | IP65 | ||
Environment | Operating Temperature | -40°C ~ +50°C | ||
Storage Temperature | -40°C ~ +70°C | |||
Humidity | 5%~ 95% | |||
