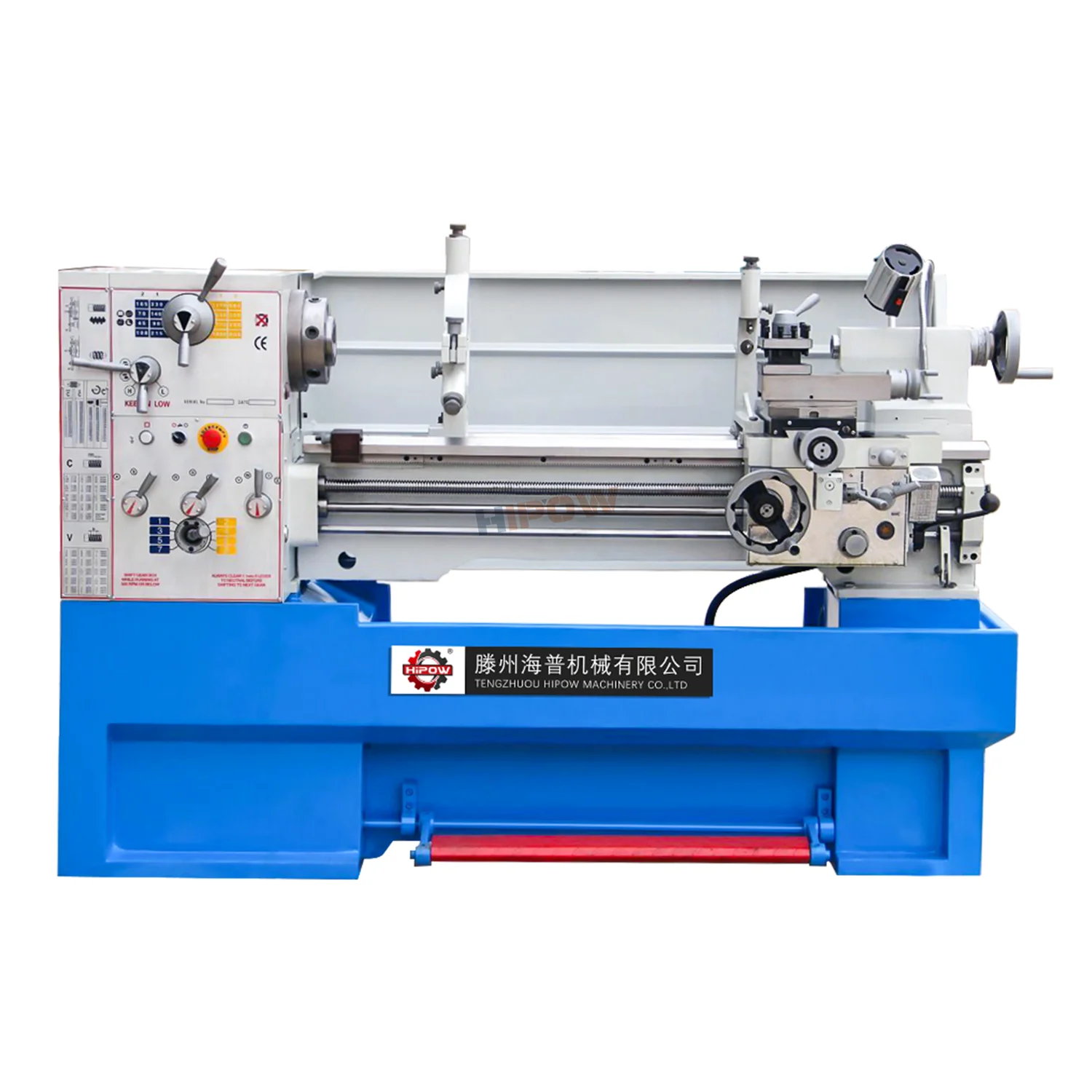

High Quality Horizontal Manual Lathe Machine CM6241 X1000mm Bench Lathe
- Category: >>>
- Supplier: Tengzhou Hipow Machinery Co. Ltd.
Share on (1601055014263):
Product Overview
Description
Products Description
Main Feature
★This series of horizontal lathes are widely used to process of various shaft and disc parts.used to turning internal and external cylindrical surface, conical surface, and other rotating surface, turning various metric and inch, modulus and pitch thread, and the pitch diameter of the thread and pull the drilling and oil tank etc.
★The machine tool bed head box lubrication uses the pump to carry on the circulation forced lubrication, guarantee the bed head box cleanliness and the heat radiation characteristic, has effectively extended the bearing and gear's service life.
★The rigidity of the machine tool structure and the transmission stiffness are higher than the general lathe, the power utilization rate is high, which is suitable for the strong cutting.
★Before shipment , the machine tool is tested strictly according to the inspection procedure, and the machine tool is tested to ensure that the machine tool has good stability and reliability.
★The rigidity of the machine tool structure and the transmission stiffness are higher than the general lathe, the power utilization rate is high, which is suitable for the strong cutting.
★Before shipment , the machine tool is tested strictly according to the inspection procedure, and the machine tool is tested to ensure that the machine tool has good stability and reliability.
Specification
Model | CM6241x1000mm |
Max.swing over bed | 410mm |
Max.swing over cross slide | 255mm |
Max.swing over gap | 580mm |
Effective length of gap | 190mm |
Center Distance | 1000mm |
Bed Width | 250mm |
Spindle hole | 52mm |
Spindle nose | ISO-D6 |
Spindle taper | MT6 |
Spindle speed(Number) | (16steps)45-1800rpm |
Max.travel of top slide | 140mm |
Max.travel of cross slide | 210mm |
Max.size of toolshank | 20*20mm2 |
Longitudinal metric feeds range | 17kinds 0.05-1.7mm/r |
Longitudinal inch feeds range | 17kinds 0.002-0.067inch/r |
Cross metric feeds range | 17kinds 0.025-0.85mm/r |
Cross inch feeds range | 17kinds 0.001-0.0335inch/r |
Metric threads range | 39kinds 0.2-14mm |
Inch threads range | 45kinds 2-72inch |
Moudle threads range | 18kinds 0.3-3.5M.P |
Dia. threads range | 21kinds 8-44D.P |
Dia.of tailstock sleeve | 50mm |
Taper of tailstock sleeve | MT4 |
Max.travel of tailstock | 120mm |
Main drive motor | 2.2/3KW |
Coolant pump motor | 90W |
L*W*H | 200*100*175cm |
N.W/G.W | 1200/1400kgs |
Details Images

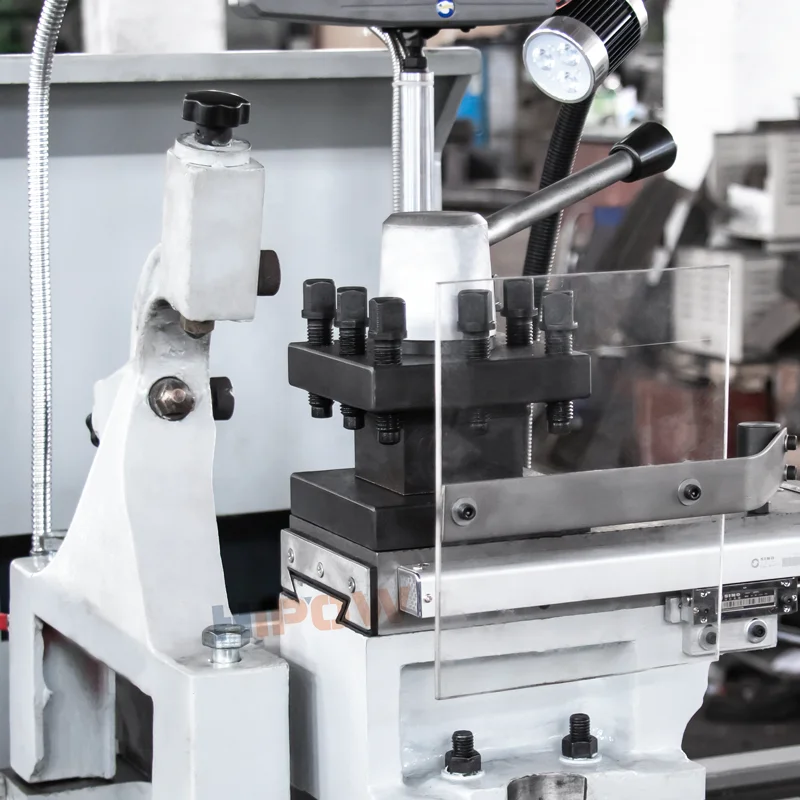

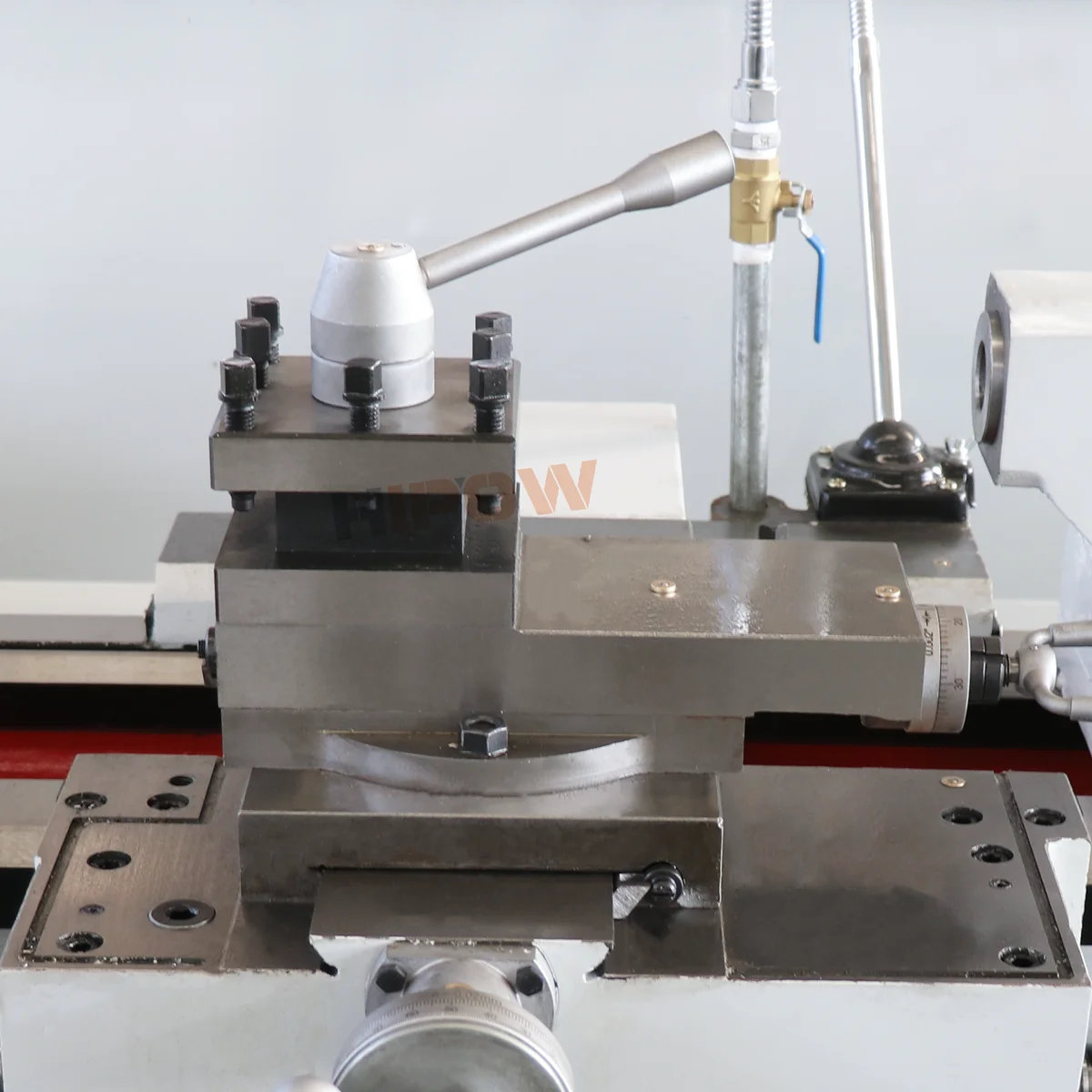

1、25x25mm Section Size Tool Post with Automatic Feed

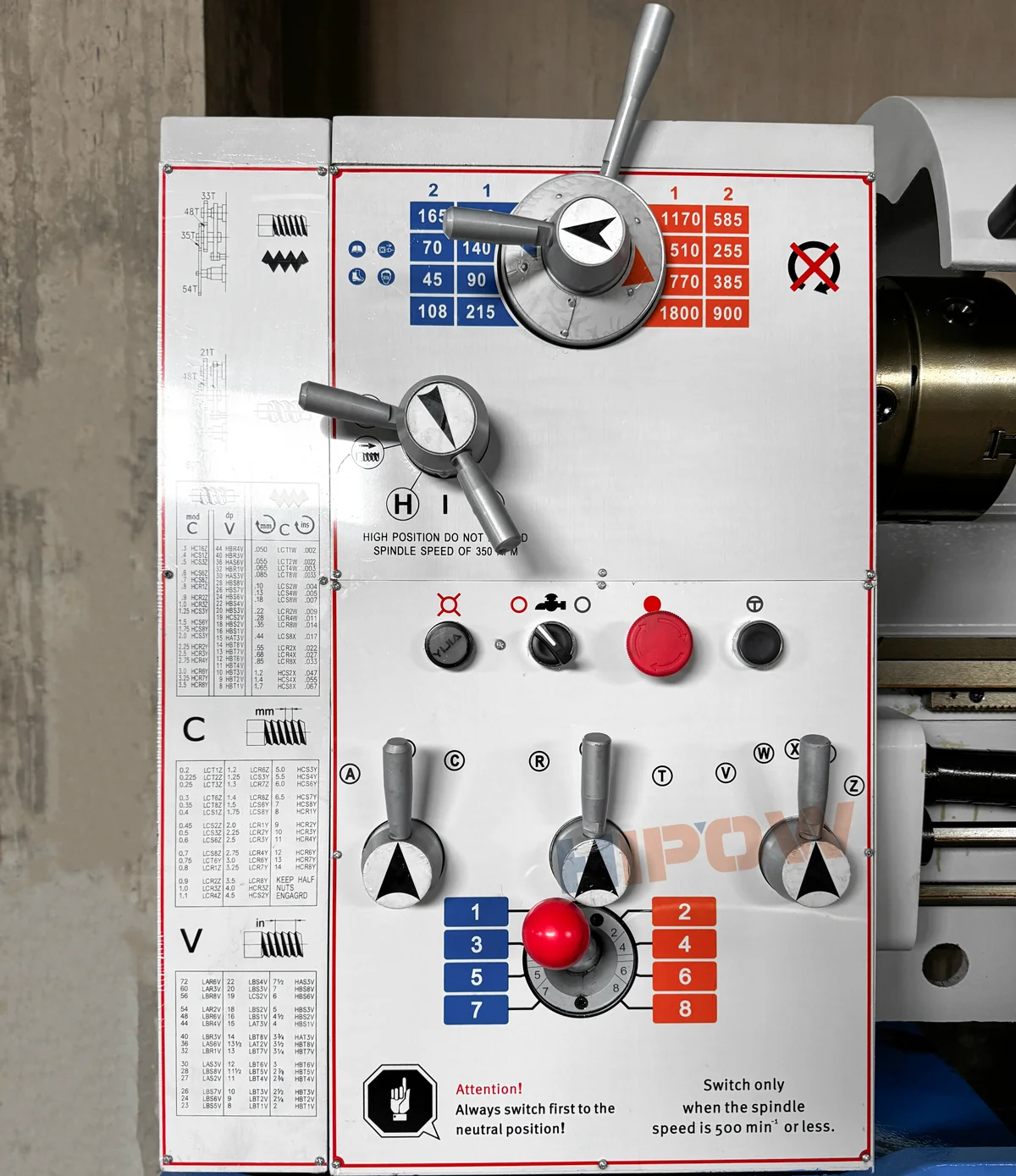

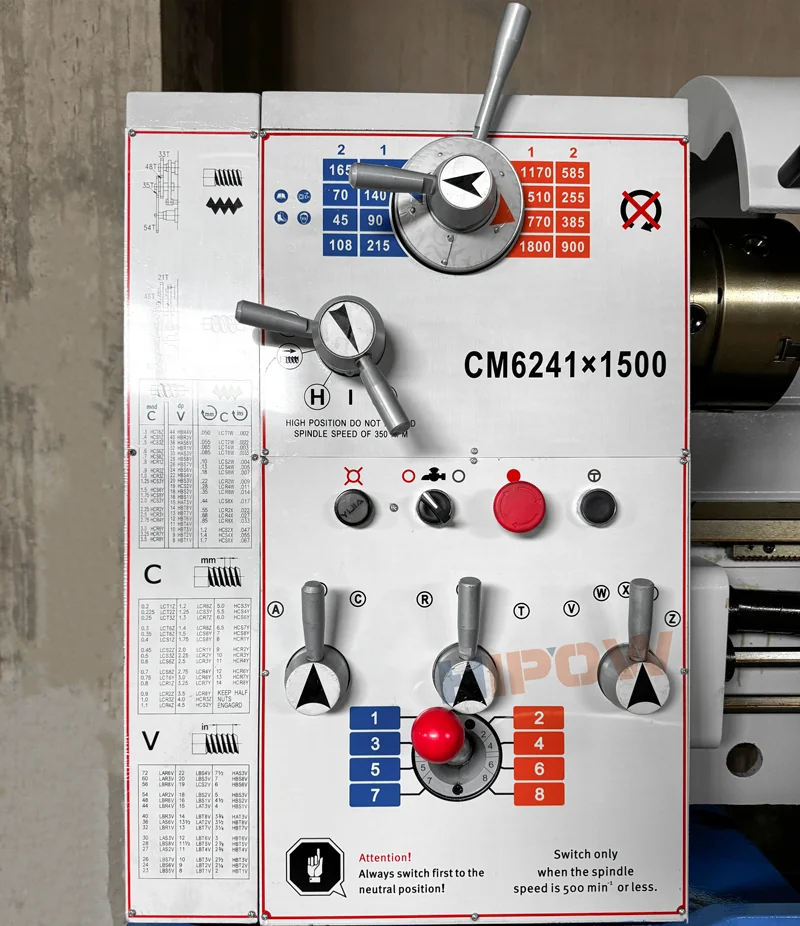

2、52mm Spindle bore , 16 steps 45-1800 rpm,Spindle Speed

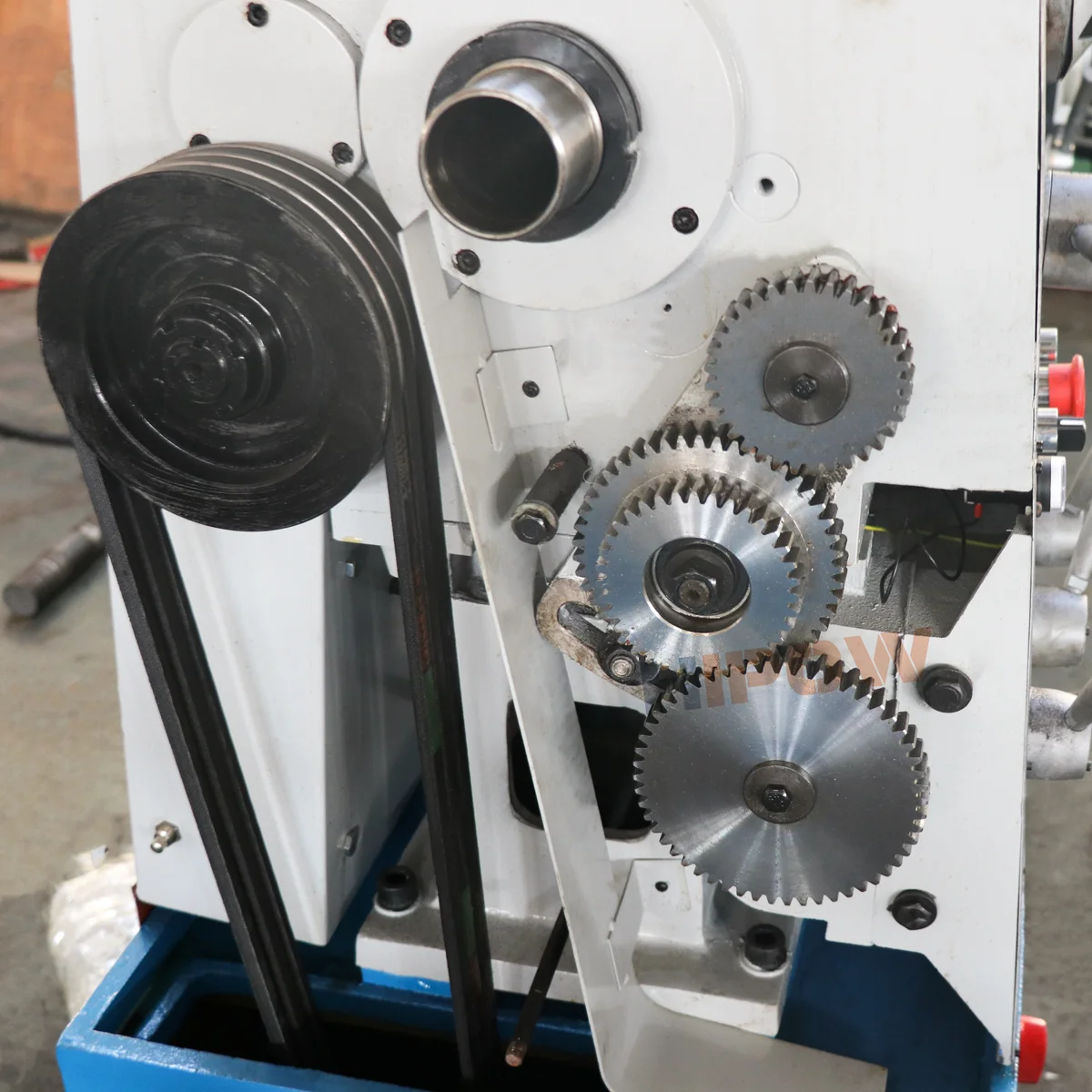

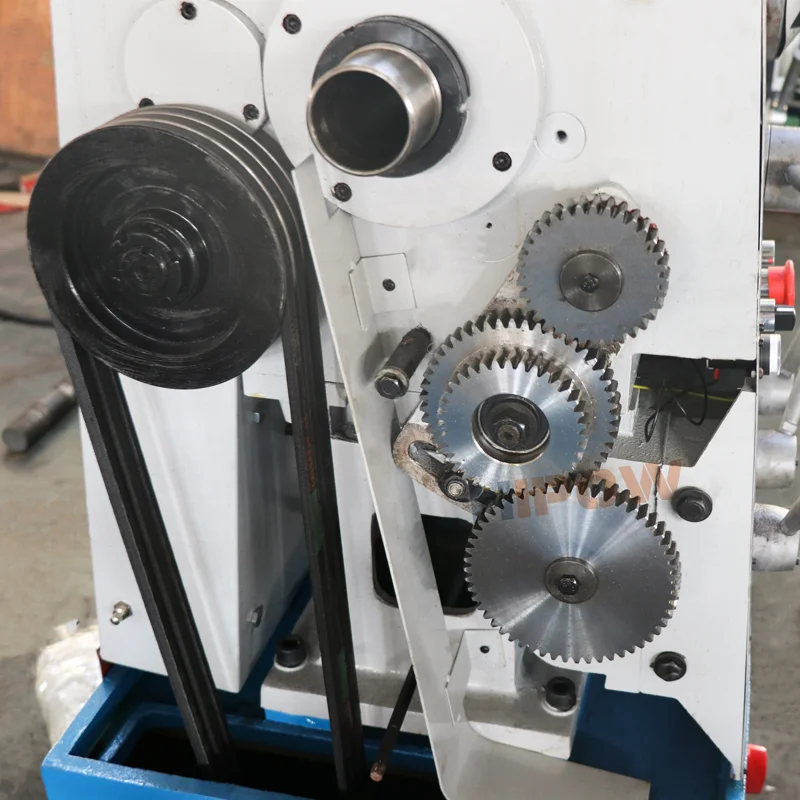

3、Spindle Head Box with processed Hardened-tempered casting gears

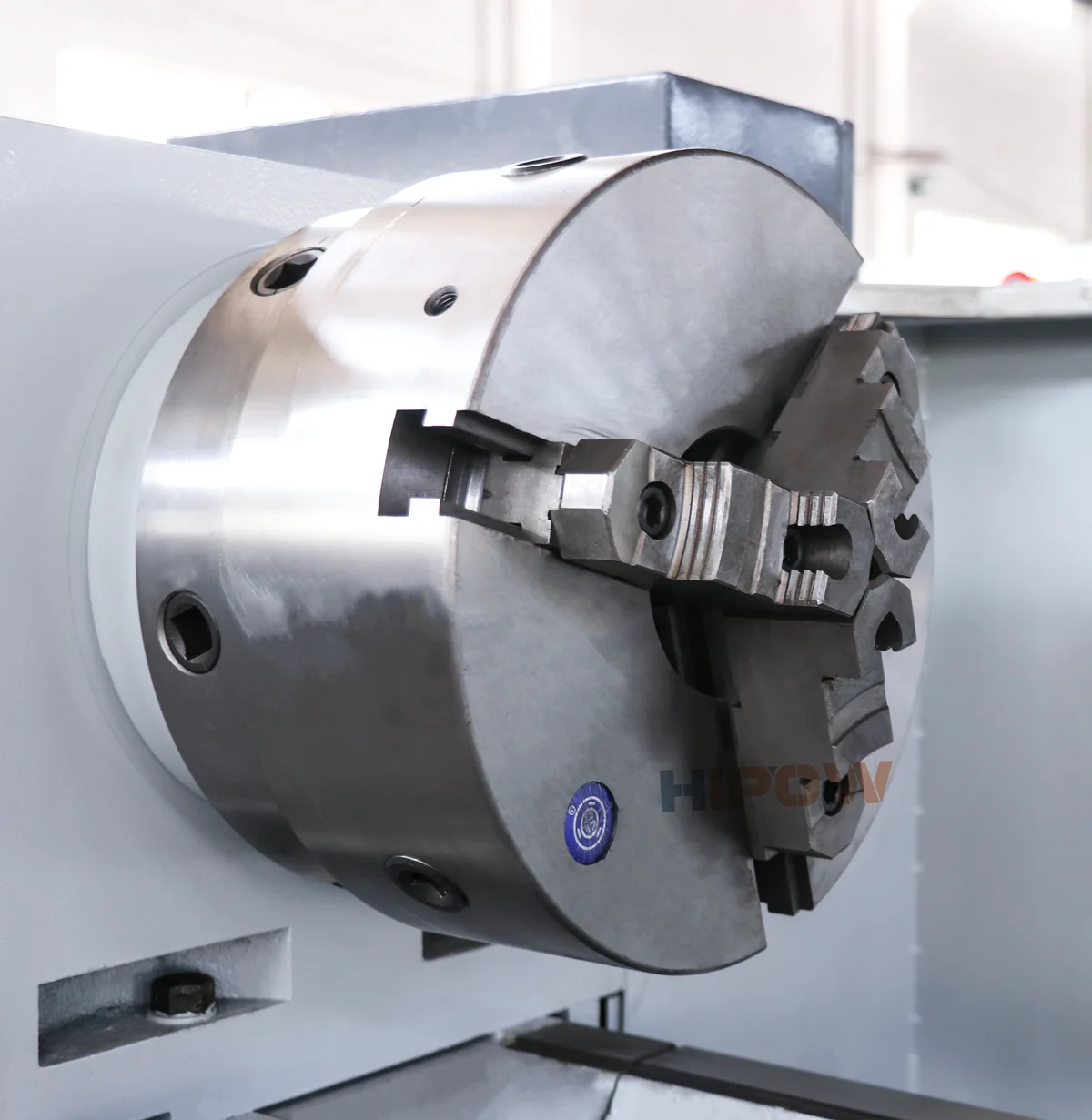

4、3-jaw 200mm chuck,4-jaw 200mm chuck are the standard accessories

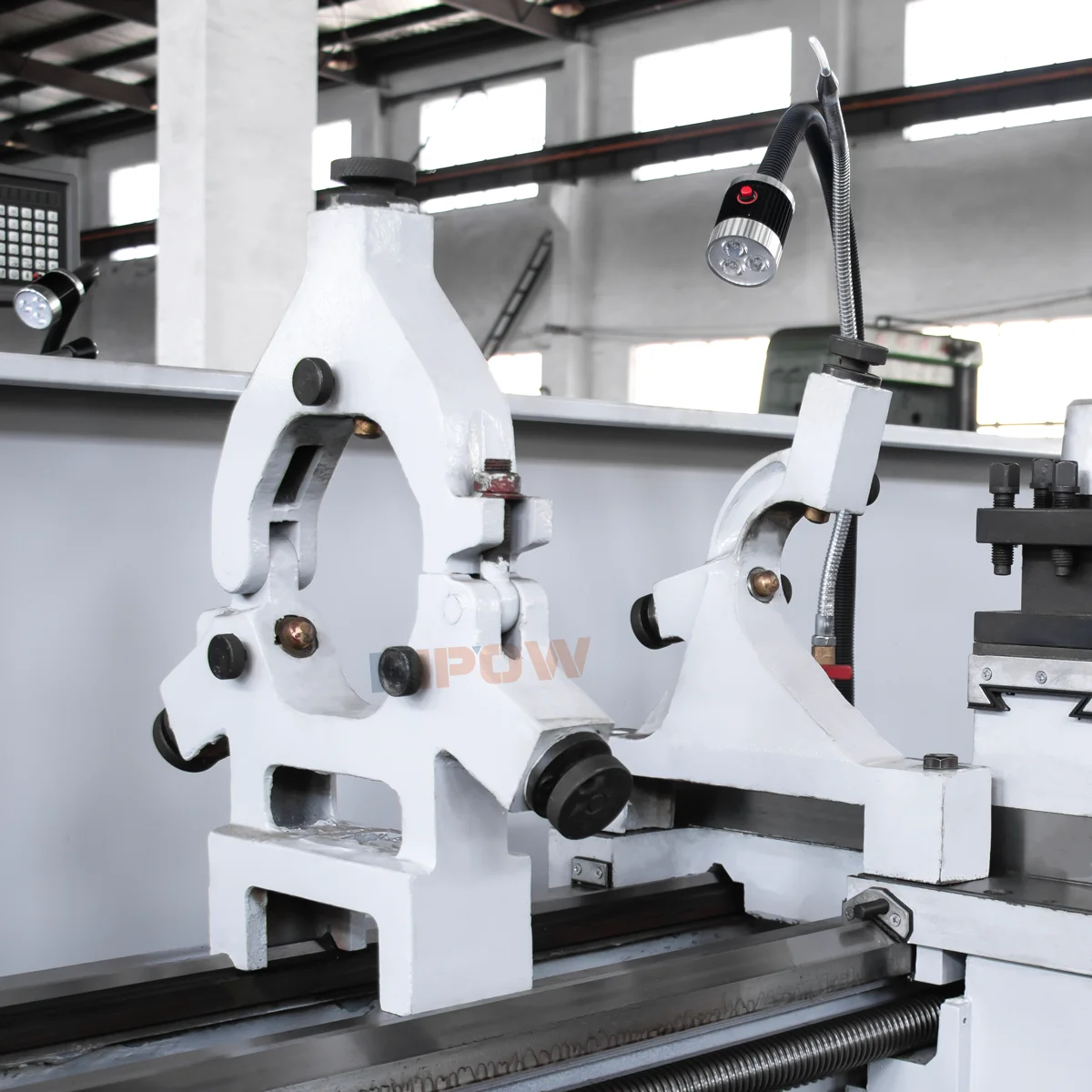

5、Steady Rest and Follow Rest are standard parts

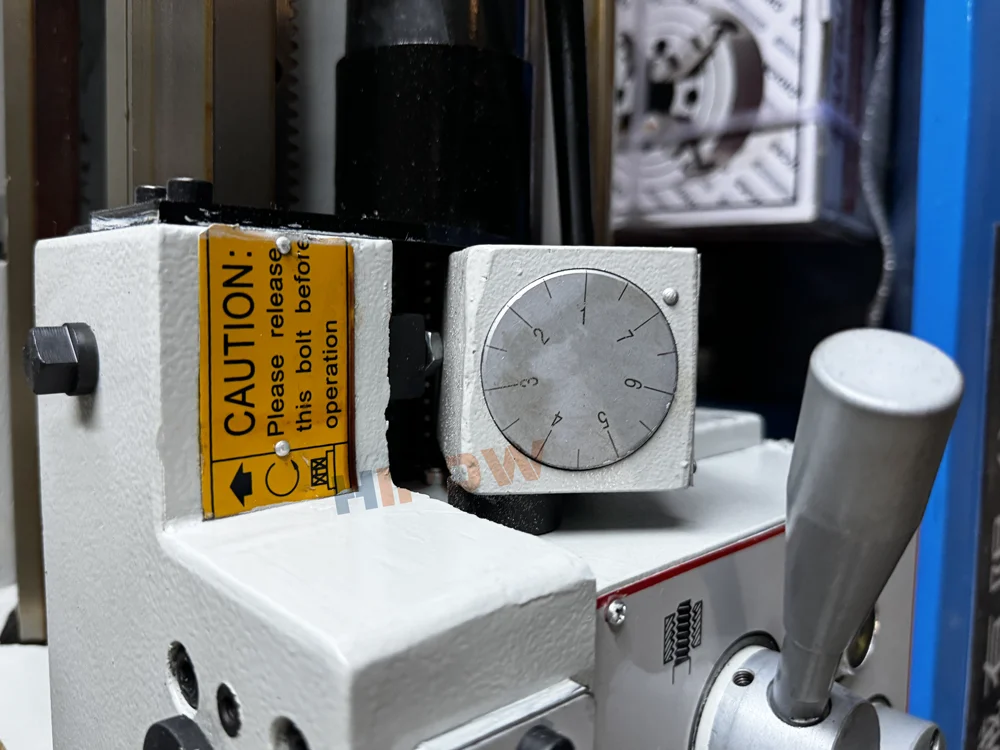

6、Threading Cutting Meter are standard parts

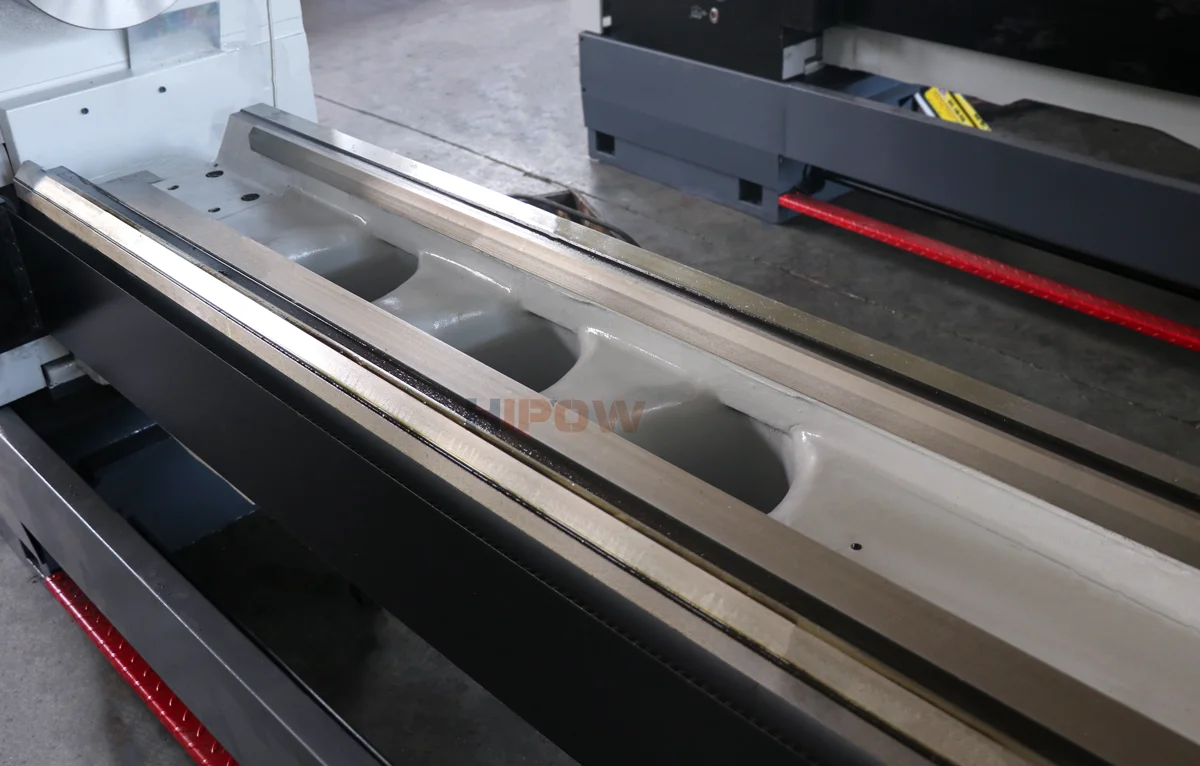

7、250mm Hardened-tempered casting body
