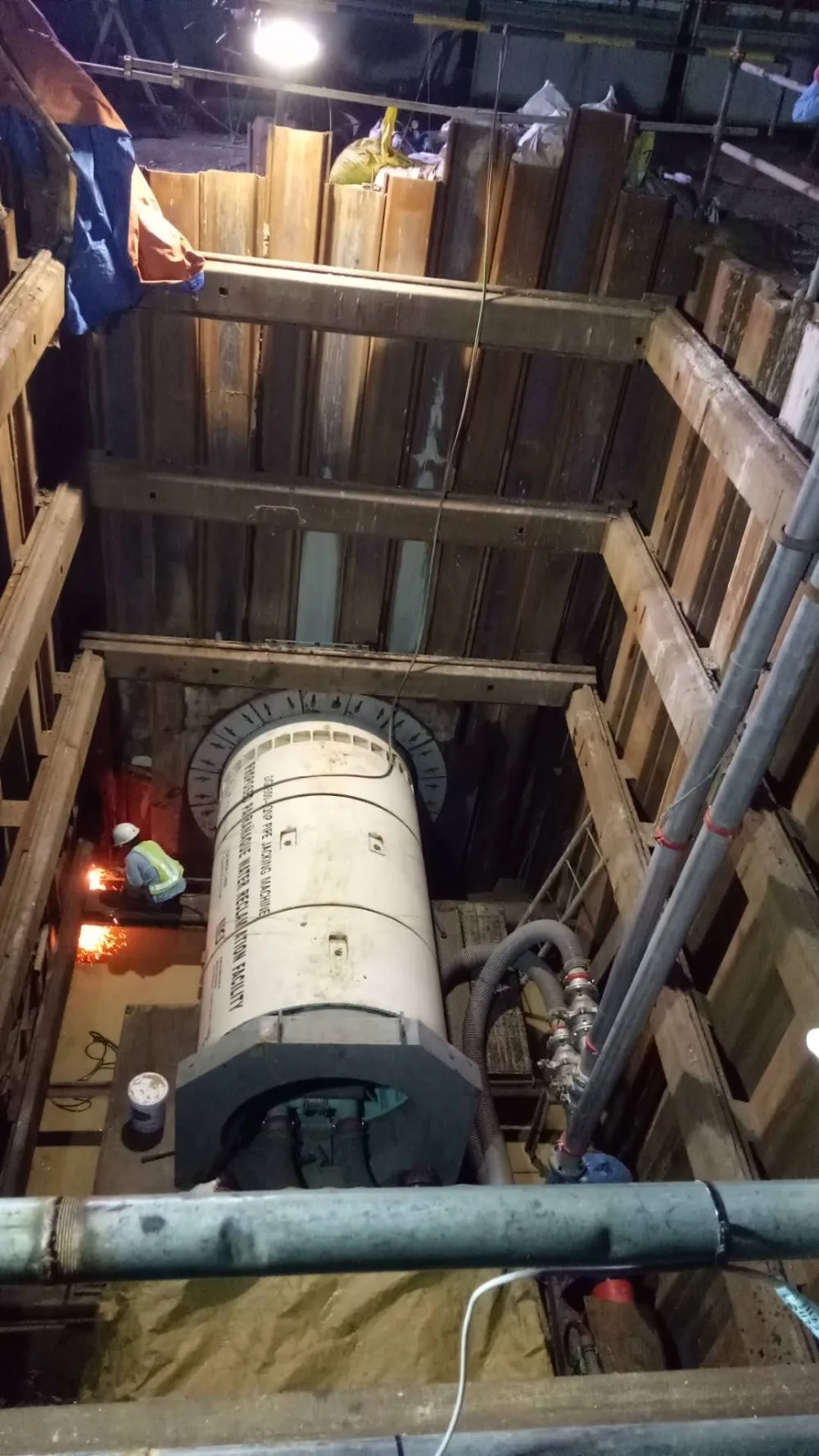

1. Introduction:
Remote-controlled Slurry Balance Pipe-Jacking Tunneling Machine is a new advanced non-digging-equipment with high technology.
It combines multi-disciplinary technologies in one, such as the machinery units, hydraulic system, electric controller (including PLC), Laser system, measuring device, etc.
Besides the high efficiency, it also has no effect on the traffics on surface. Furthermore, it is good for the environment, and can lower the cost of the construction.
2. Application scope:
For trenchless underground pipe laying projects, eg. sewage, water supply, discharging projects, cables, tunnel.....
3. Specifications:

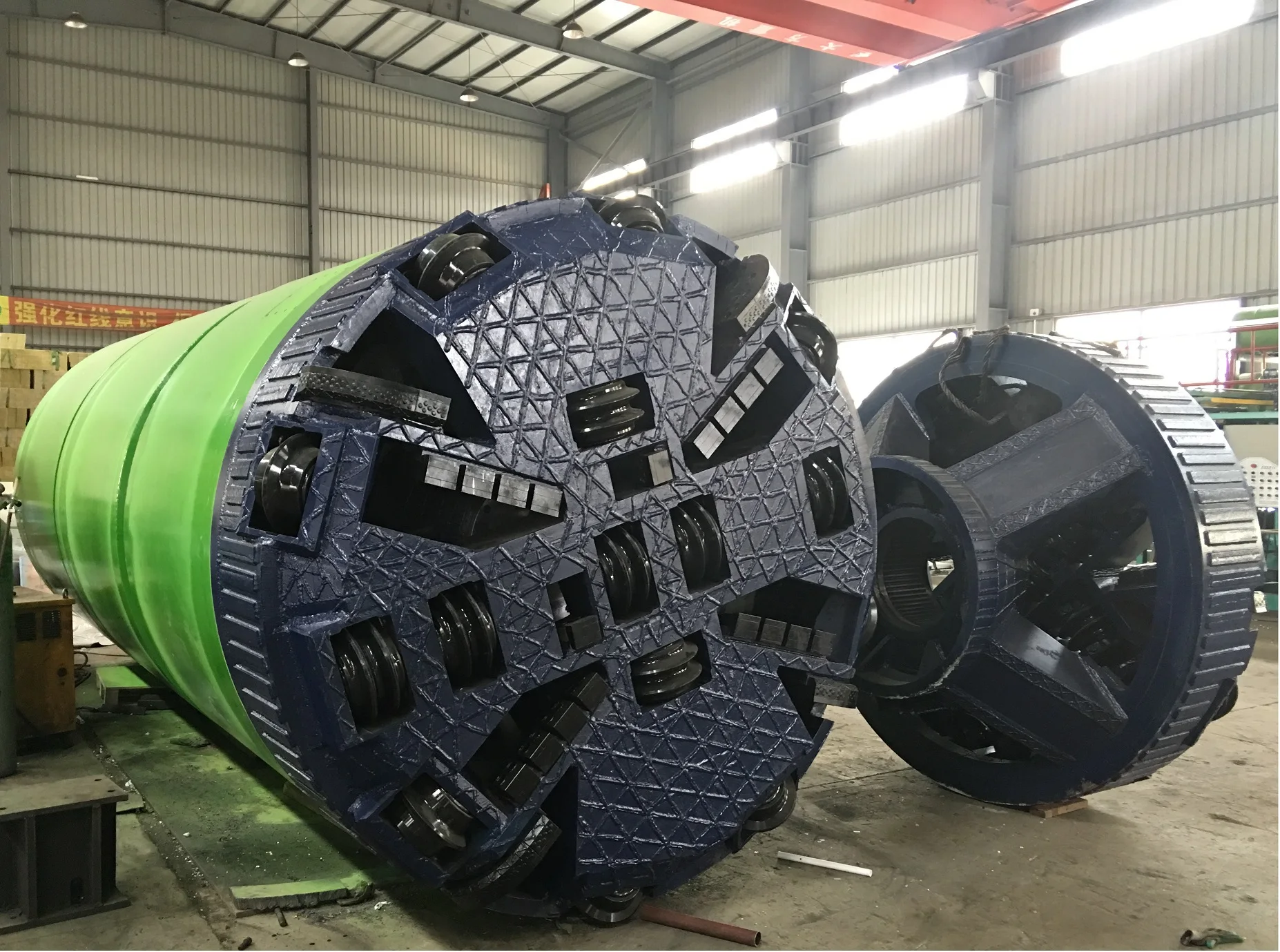

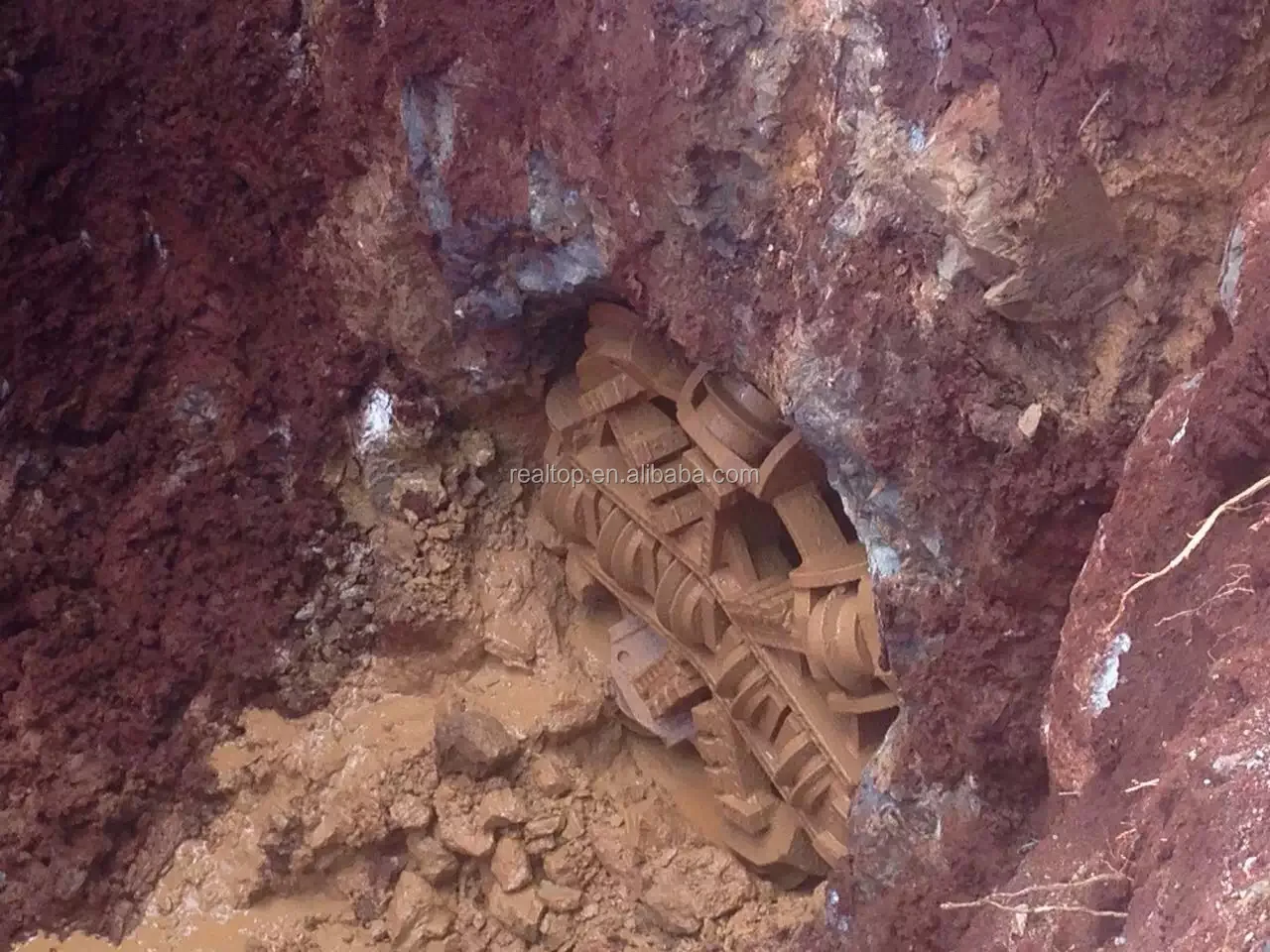

-3.1 Fit in soft soil, clay, sandy soil, gravel soil, hard soil, etc. wide range of soil body.
-3.2 Breakage ability strong, breakage particle size and number more.
-3.3 With independence water and slurry injection system and washing clean device for cutter in particular;fit for big N value hard soil.
-3.4 Jacking speed is very fast, theory max, speed is 120mm per min.
-3.5 Operation precision high, adjust the direction from up and down, left and right, Max. corrective angle is 2.5 degree.
-3.6 jacking distance can be long.
-3.7 Adopt ground operation system, safe, intuition and convenient!
-3.8 Structure firm, use and maintain easy, convenient for dismantling in work tunnel receiving tunnel.
Model:DG1500-QNP | Parameter | |
Main machine dimension | Inner diameter (mm) | 1500 |
Outer diameter (mm) | 1820 | |
Total length (mm) | 3800 | |
Cutting Part | Electromotor Power (kW) | 45 |
Cutterhead Torque (kN·m) | 81.8 | |
Cutterhead Rotating Speed (r/min) | 5.25 | |
oil cylinder of rectifying | Qty | 4 |
Thrust Force (kN) | 1000 | |
Stroke (mm) | 60 | |
Rectifying Angle (°) | ±2 | |
Hydraulic System | Electromotor Power (kW) | 1.5 |
Work Pressure (MPa) | 25 | |
Slurry system | Water Supply Pump Power (kW) | 22 |
Mud Pump Power (kW) | 37 KW (22KW+15KW) | |
Diameter of Side Mud pipes (mm) | 100 | |
Main Jacking system | Jacking Speed (mm/min) | 0--80 |
Work Pressure (MPa) | 31.5 | |
Rated Jacking Force (kNm) | 2000×4 | |
Timing Way | Adopt Frequency Control | |
Total Power (KW) | 18.5KW |
Main Features
Our Products Advantages:
Pipe-Jack Machine.
Fit for trenchless underground pipe laying.
Easily control above ground, continuous work underground.
Fast speed safe!
Diameter from 250-5000mm.
Certifications
Detailed Images
Main operation station.
Pipe jacking monitoring system.
Main jacking pump.
Main cylinder.
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* We will send professional technicist to project site to operate the machine and train operators for the first section of the project, usually 100m/150/200m etc. (free of charge)
* Longer distance service is available in charge.
Information needed for quotation accordingly:
1. Total jacking distance, how many sections will be built, the longest jacking distance?
2. Pipe material and dimension, outer and inner diameter, single pipe length ?
3. Projects information: for water supply, sewage project?
4. Soil report, underground water level.
5. Do you have pipe jacking work experience before?

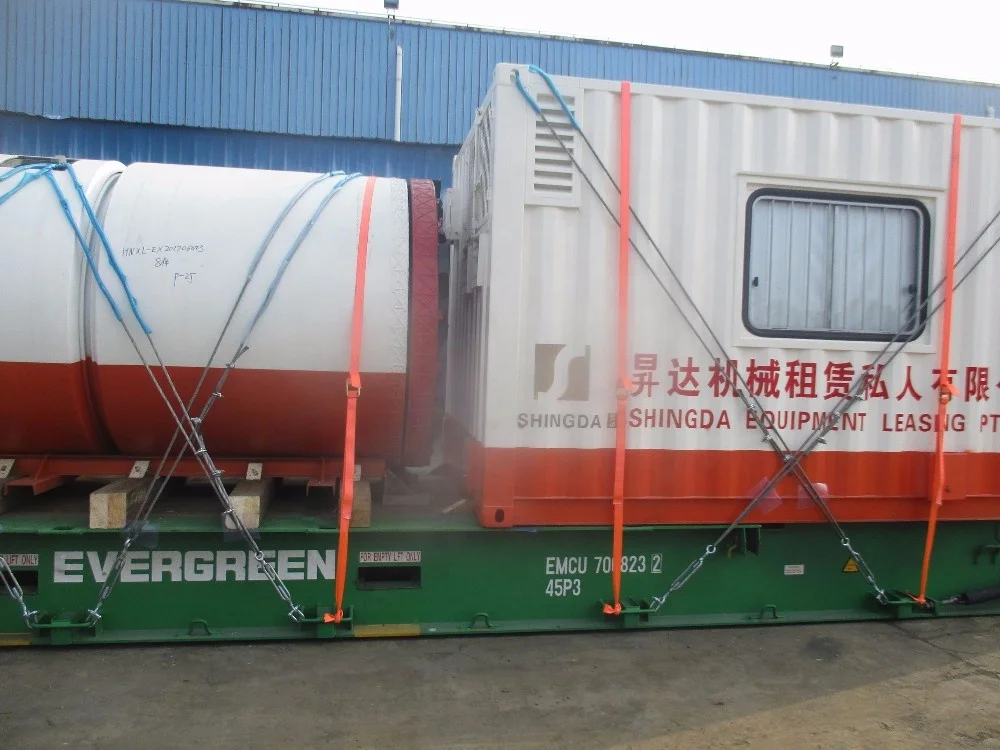

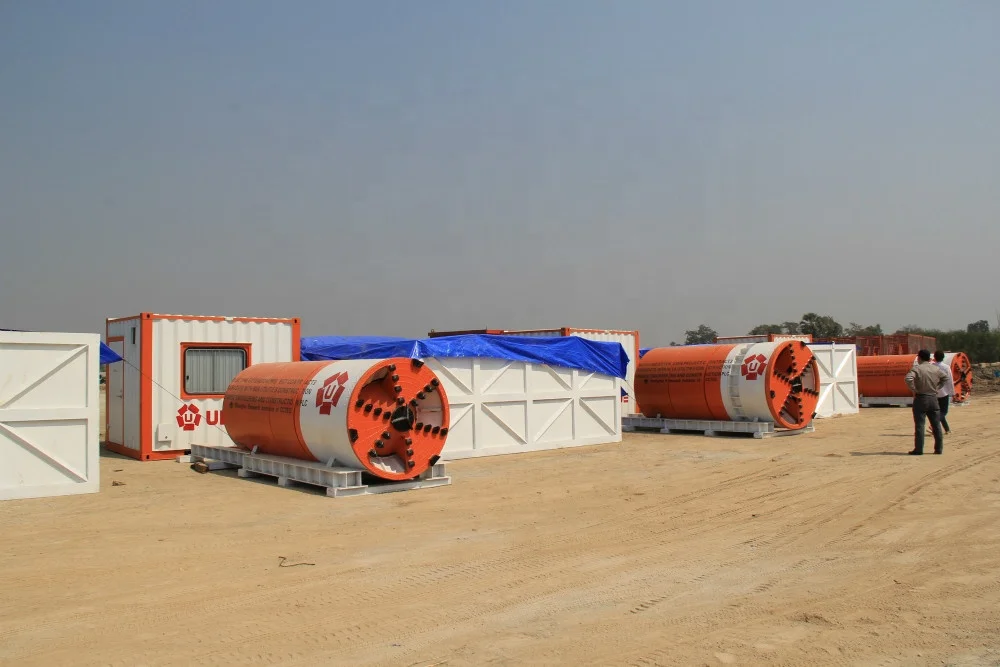

Packing & Delivery
Packaging | ||
Size | 1810* 3900 mm + parts | |
Weight | 9T ~ 19T | |
Packaging Details | Normally delivery by FR, or small size pipe jacking machine will be delivery by normal containers. | |
