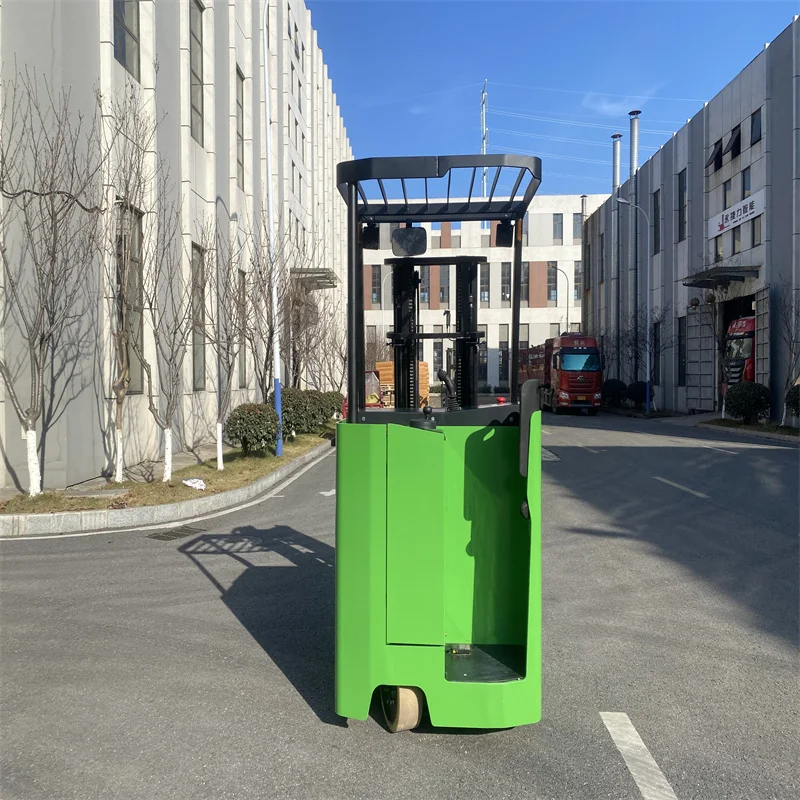

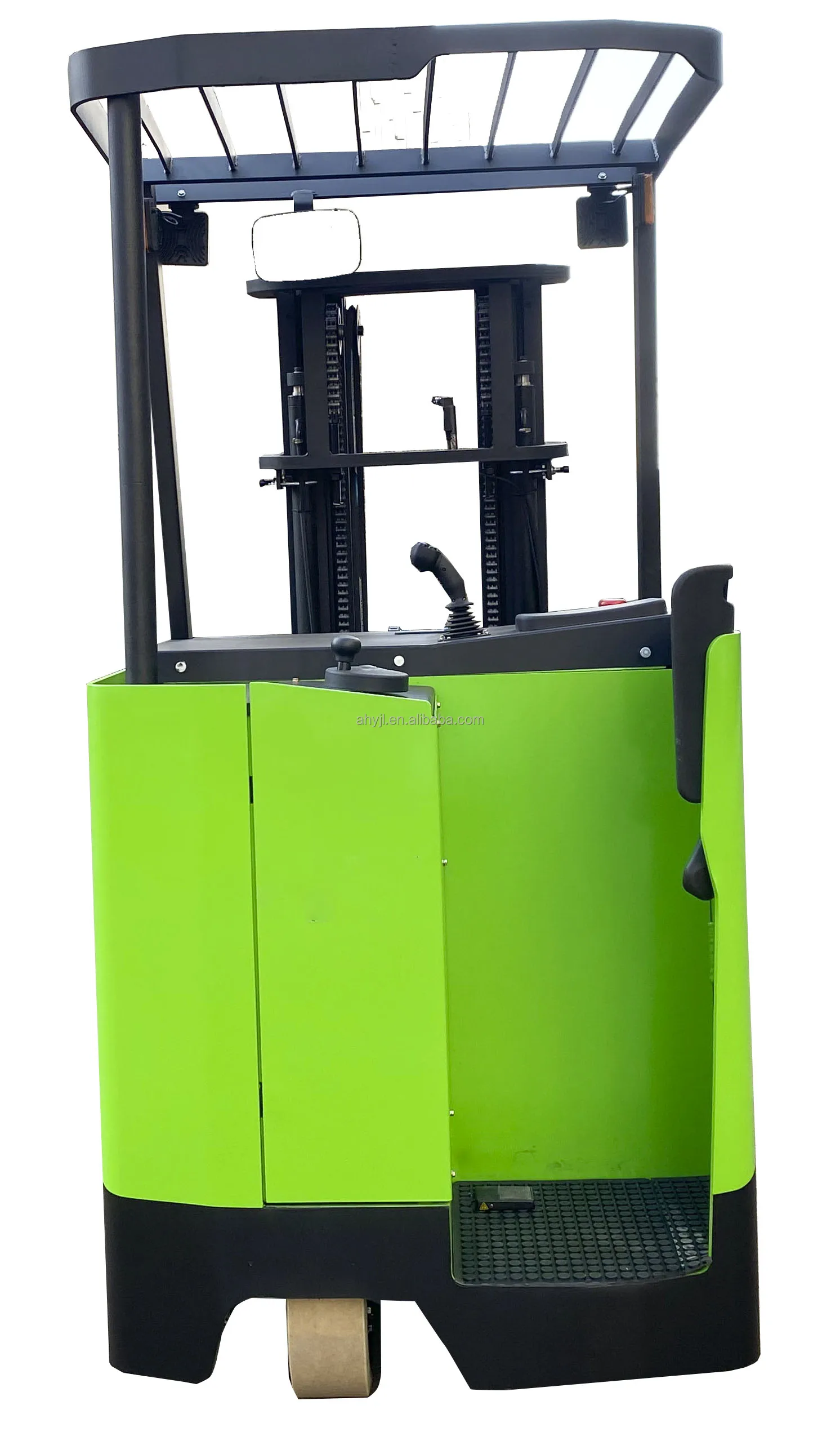

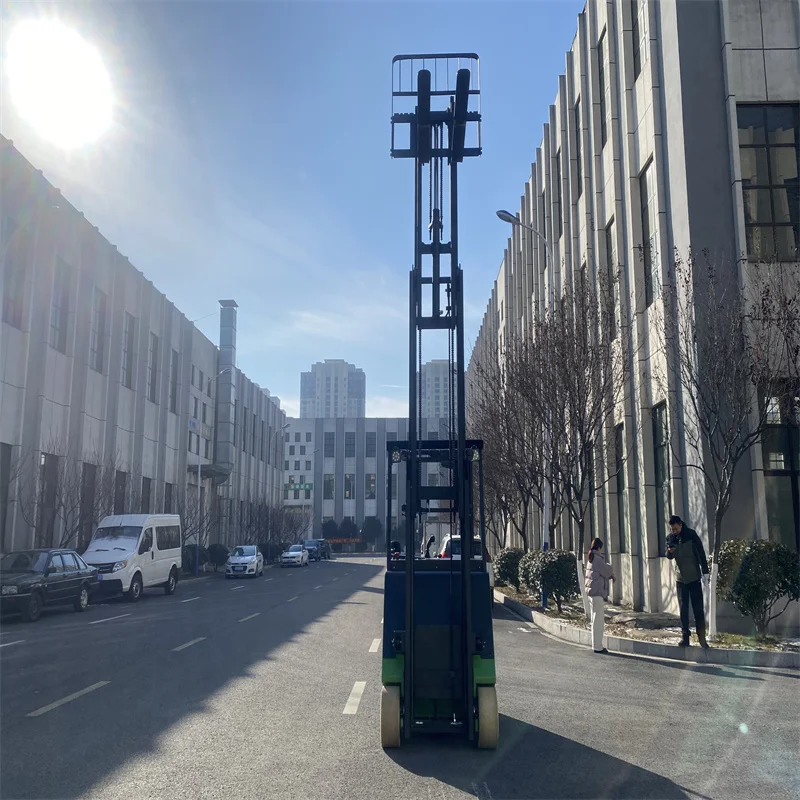

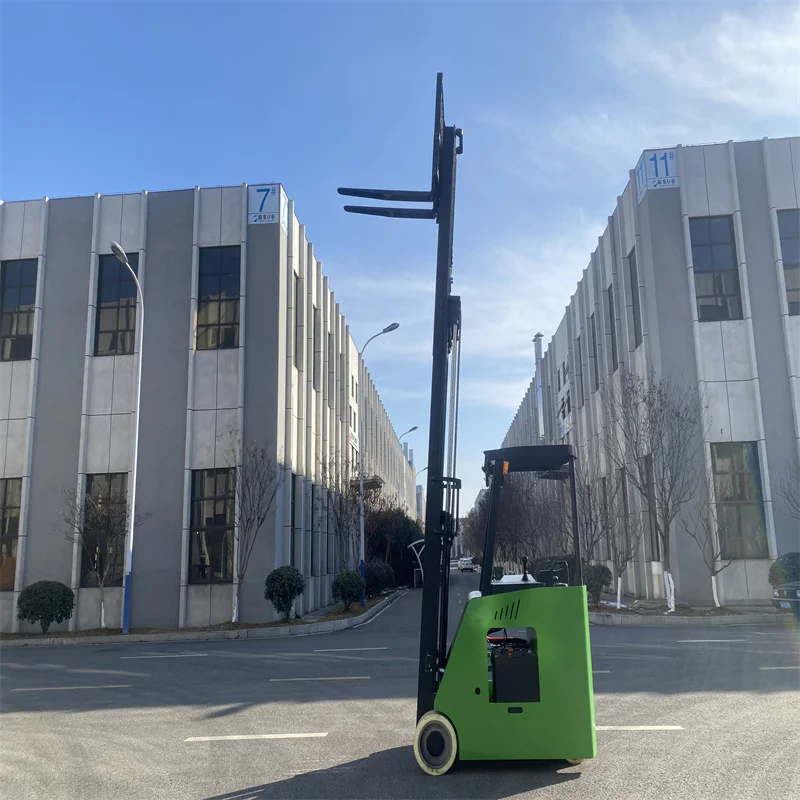

3 Wheel Counterbalance Stacker 2T Electric Stacker Forklift 6m 3 Wheel Electric Forklift
- Category: >>>
- Supplier: Anhui Younglift Intelligent Equipment Co. Ltd.
Share on (1601055333554):
Product Overview
Description

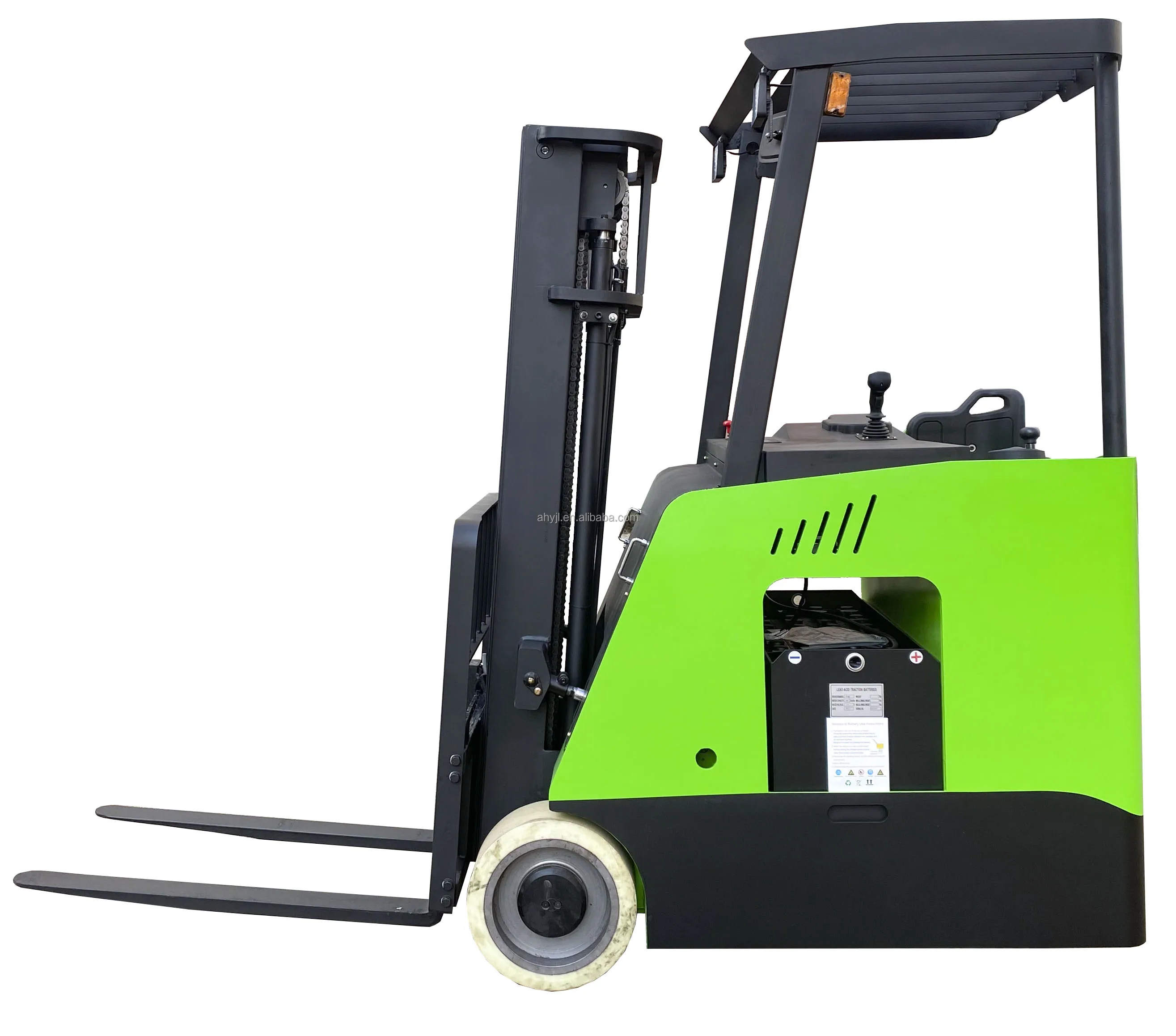

3 wheels stand-up electric counterbalance forklift electric reach truck
Please tell me your needs.
Or do you want something else?
Products Description
Characteristics | Model | CPD18B | CPD20B | |
Drive mode | Electric | Electric | ||
Operation method | Side stand type | Side stand type | ||
Rated load capacity | Q(kg) | 1800 | 2000 | |
load center | c(mm) | 500 | 500 | |
front overhang | X(mm) | 295 | 300 | |
Wheelbase | Y(mm) | 1240 | 1300 | |
Weight | Self-weight (including battery) | kg | 3850 | 4050 |
Dimensions | Mast/fork tilt forward/tilt back | ɑ/β( °) | 3/5. | 3/5. |
Mast retracted height | h1(mm) | 2100 | 2100 | |
Free lifting height (the mast does not move | )h2(mm) | 1527 | 1532 | |
Lift height | h3(mm) | 4500 | 4500 | |
Maximum height after the mast is raised | h4(mm) | 5532 | 5532 | |
Overhead guard height | h6(mm) | 2260 | 2260 | |
Stand height | h7 (mm) | 280 | 280 | |
Vehicle length | l1 (mm) | 2825 | 2890 | |
Body length | l2(mm) | 1755 | 1820 | |
Vehicle width | b1/b2 (mm) | 1080 | 1080 | |
Fork size | s/e/l(mm) | 35/100/1070 | 40/122/1070 | |
Fork width | b3（mm) | 220-920 | 265-920 | |
Ground clearance below mast | m1(mm)) | 90 | 90 | |
Ground clearance at wheelbase center | m2(mm) | 100 | 100 | |
Channel width: 1000×1200 pallet | Ast(mm) | 2983 | 3045 | |
Channel width: 800×1200 pallet | Ast(mm) | 3183 | 3245 | |
Turning radius | Wa(mm) | 1490 | 1550 | |
Performance | Traveling speed, full/unloaded | (km/h) | 7.5/8 | 7.5/8 |
Lift speed, full/empty | (mm/s) | 210/260 | 210/260 | |
Descending speed, full/unloaded | (mm/s) | 350/200 | 350/200 | |
Gradeability, full/unladen | （%） | 6/10. | 5/10. | |
Brake type | electromagnetic brake | electromagnetic brake | ||
Motors | Drive motor power | (kW) | 6.5 | 6.5 |
Lifting motor power | (kW) | 8.6 | 8.6 | |

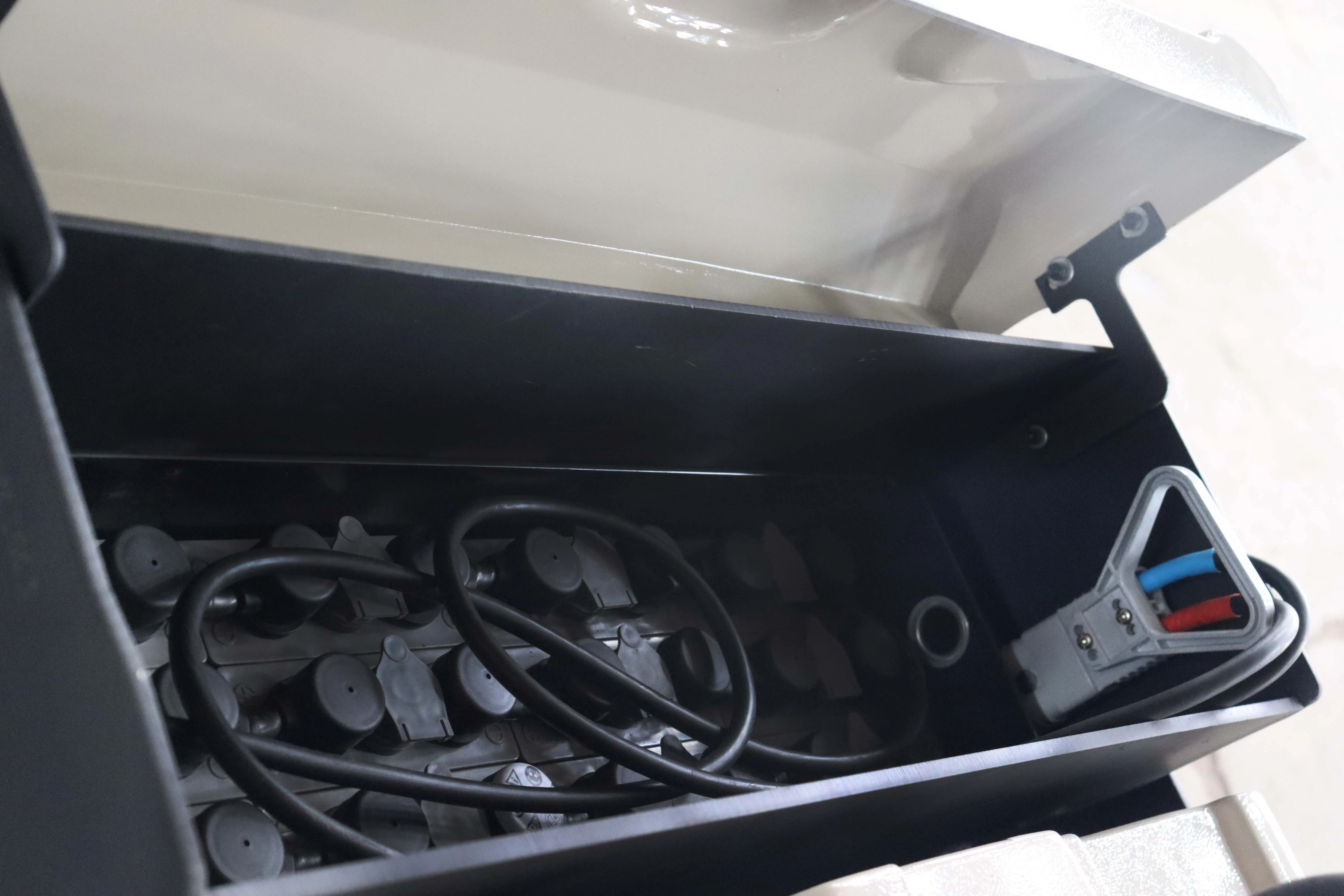

Battery voltage/capacity | (V/Ah) | 48/400 | 48/400 | |
Others | Drive control type | Full AC control | Full AC control | |
Noise level | （dB(A)) | ≤70 | ≤70 | |
steering type | electric steering | electric steering |

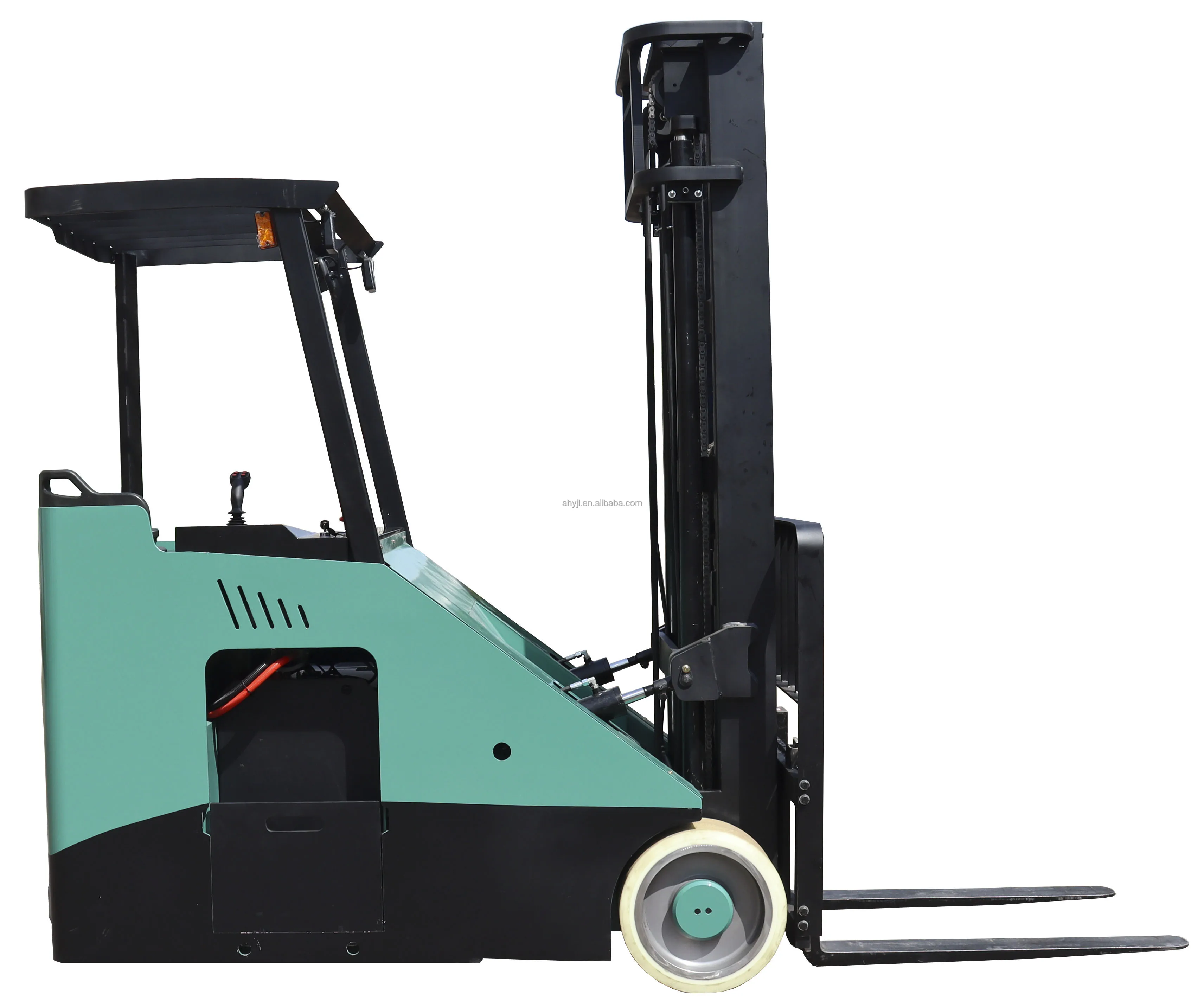

The CPDB counterbalanced forklift is a new product developed by our company to meet market needs and with reference to advanced domestic and foreign technologies. Due to its compact and beautiful appearance and flexible operation, it is particularly suitable for use in warehouses, freight yards, supermarkets, and general factories and mines as a cargo transporter. Loading and unloading, stacking, transportation and other operations.
Since this forklift adopts a wide-view lifting system, fully hydraulic steering, imported international famous brand speed control system and integrated multi-function LCD instrument, it has the characteristics of excellent performance, easy and flexible operation, low noise and no pollution.
Since this forklift adopts a wide-view lifting system, fully hydraulic steering, imported international famous brand speed control system and integrated multi-function LCD instrument, it has the characteristics of excellent performance, easy and flexible operation, low noise and no pollution.
Why Choose Us
Non-standard customization, available solutions
With the design concept of "safety, durability and comfort", we provide "non-standard customized" material handling equipment.
The products involve more than 100 varieties in 9 series, including all-electric pallet stacker, all-electric pallet truck, all-electric forward forklift (standing and seat type), electric traction trailer, electric lift pickup truck and narrow lane forklift, special forklift, AGV and unmanned lane stacker. , to provide customers with 500kg-100000kg material handling solutions.
