Solar and Wind Power 48V 1200W 2kw 3kw 4kw 5kw Vertical Axis Wind Turbine with Inverter

Share on (1601055401561):


Price:$800.00 - $1,200.00

Quantity:


Product Overview

Description





You May Like

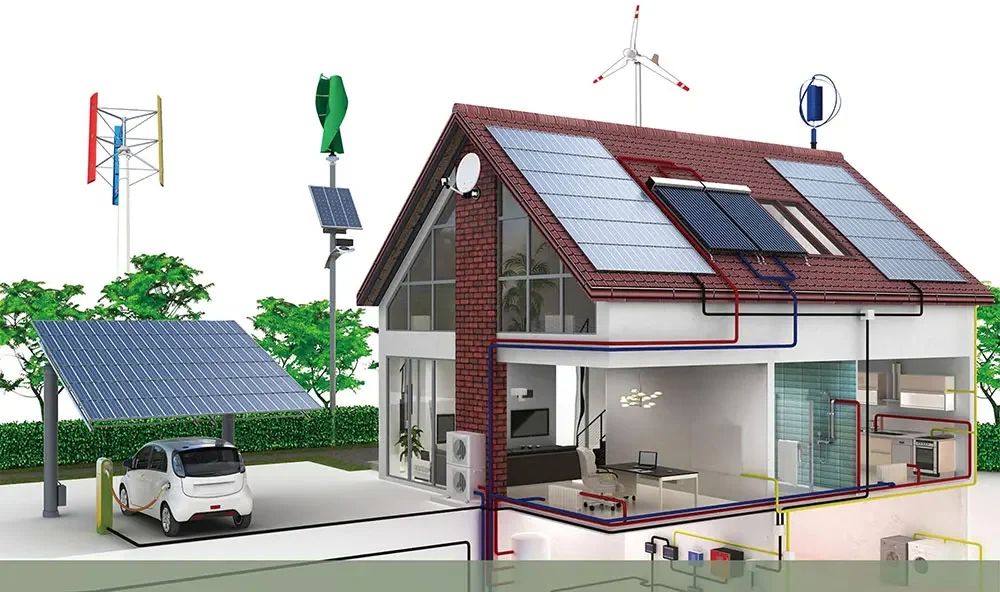

Recommended for


--Household,Garden,Farm,Urban,Rooftop
--Telecom sites
--Rural electrification programs.Island,sentry,island,sight lighting
--Automatic speed reduction protection




Wiring Diagram




Product Description

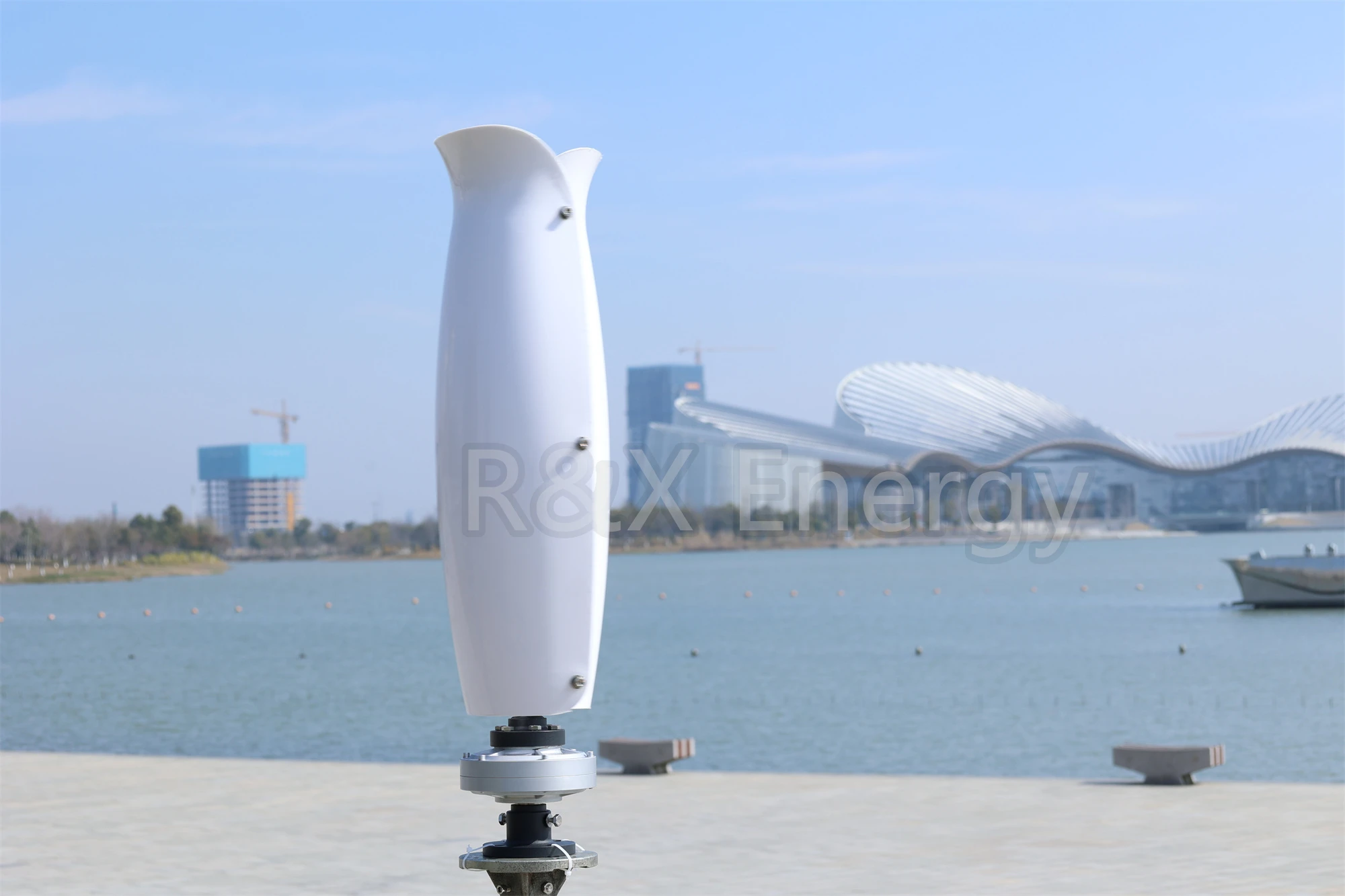

Solar and Wind Power 48V 1200W 2kw 3kw 4kw 5kw Vertical Axis Wind Turbine with Inverter


R&X group is a professional manufacturer with over ten yeas production experience. Currently, New model Tulip-shaped have been developed.Now,we strongly recommend you for as below reasons.


Firstly , We originally adopt new composite flexible material for blades,with the features of longer lifetime,Resistance to strong winds brighter color appearance.

Secondly,Model Tulip is made of vertical maglev generator,lighter but more powerful,more efficient,noiseless, fitting for household.

Thirdly, New patented technology for blades bracket,more stable rotating speed,more sweep wind area.

Fourth,Unique smart controller function, strongly improve the wind energy,efficiently harvest electrical energy.

Fifth:The whole body of wind turbine are coated with anti-corrosive protective coating,effectively prevent wind and rain damage.

Hope to be your trustworthy supplier in China!

Win-win cooperation!



Technical Data


Model
RX-TL600
RX-TL1200
RX-TL2000
RX-TL3000
RX-TL5000
RX-TL10K
Rated Power
600W
1200W
2KW
3KW
5KW
10KW
Max Power
650W
1300W
2100W
3200W
5200W
10500W
Blades Length
0.65M
0.65M
1.2M
1.7M
2.0M
2.0M
Wheel Diameter
0.5M
0.5M
0.7M
1.0M
1.2M
1.2M
Rated Voltage
12~24V
12~48V
12~48V
24V~96V
48V~220V
48V~220
Start Up Speed
1.2m/s
1.5m/s
1.5m/s
2.0m/s
2.0m/s
2.0m/s
Rated Speed
12m/s
12m/s
12m/s
12m/s
12m/s
12m/s
Cut-in Speed
3.5m/s
3.5m/s
4.0m/s
4.0m/s
4.0m/s
4.0m/s
Survival Speed
40m/s
40m/s
45m/s
45m/s
45m/s
45m/s
Blades Quantity
2
Blades Material
Fiber glass
Generator Type
Coreless Disc Type Maglev Levitation Permanent Magnet Generator
Working Temperature
-40℃~+40℃
Protection Level
IP54
Working environment humidness
≤90%
Altitude
≤4500m
Install Height
3~12m
Overload Protection
Electromagnetic Brake

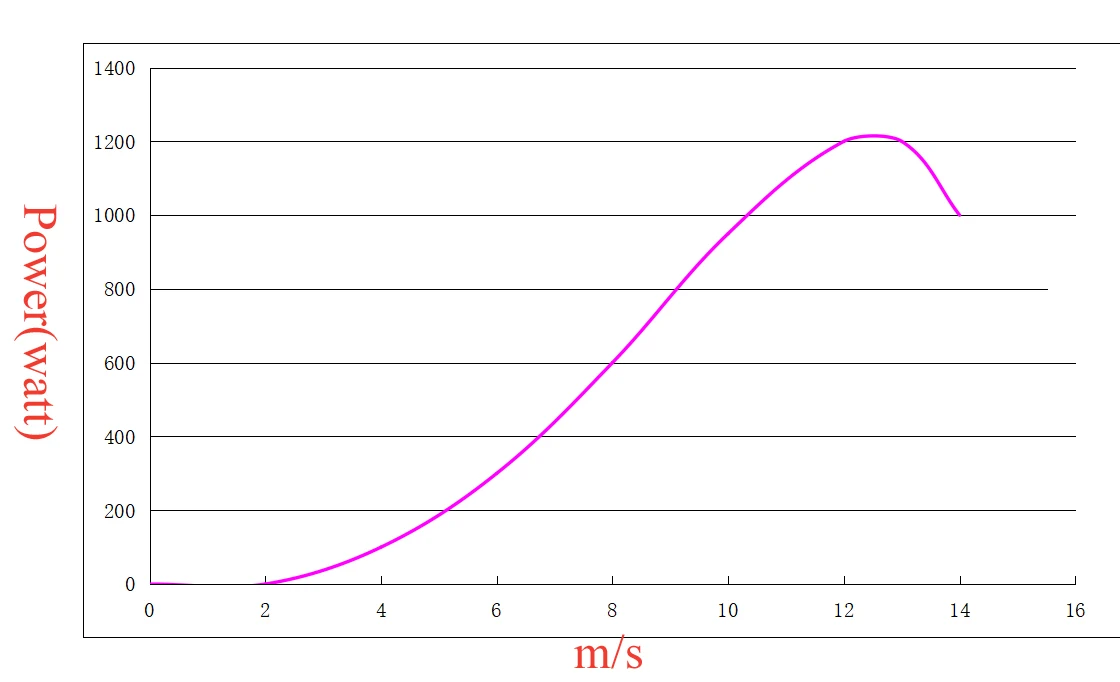

Power Curve

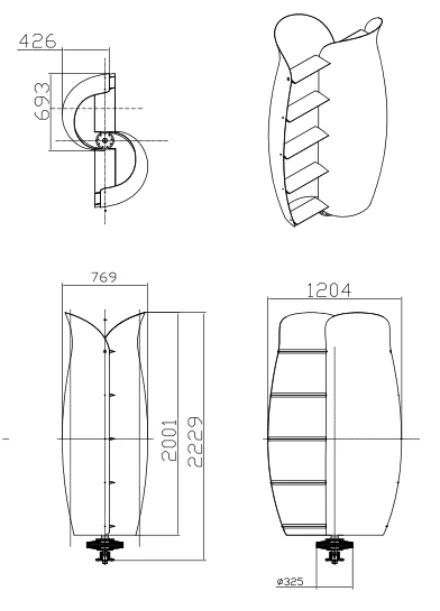

Drawing

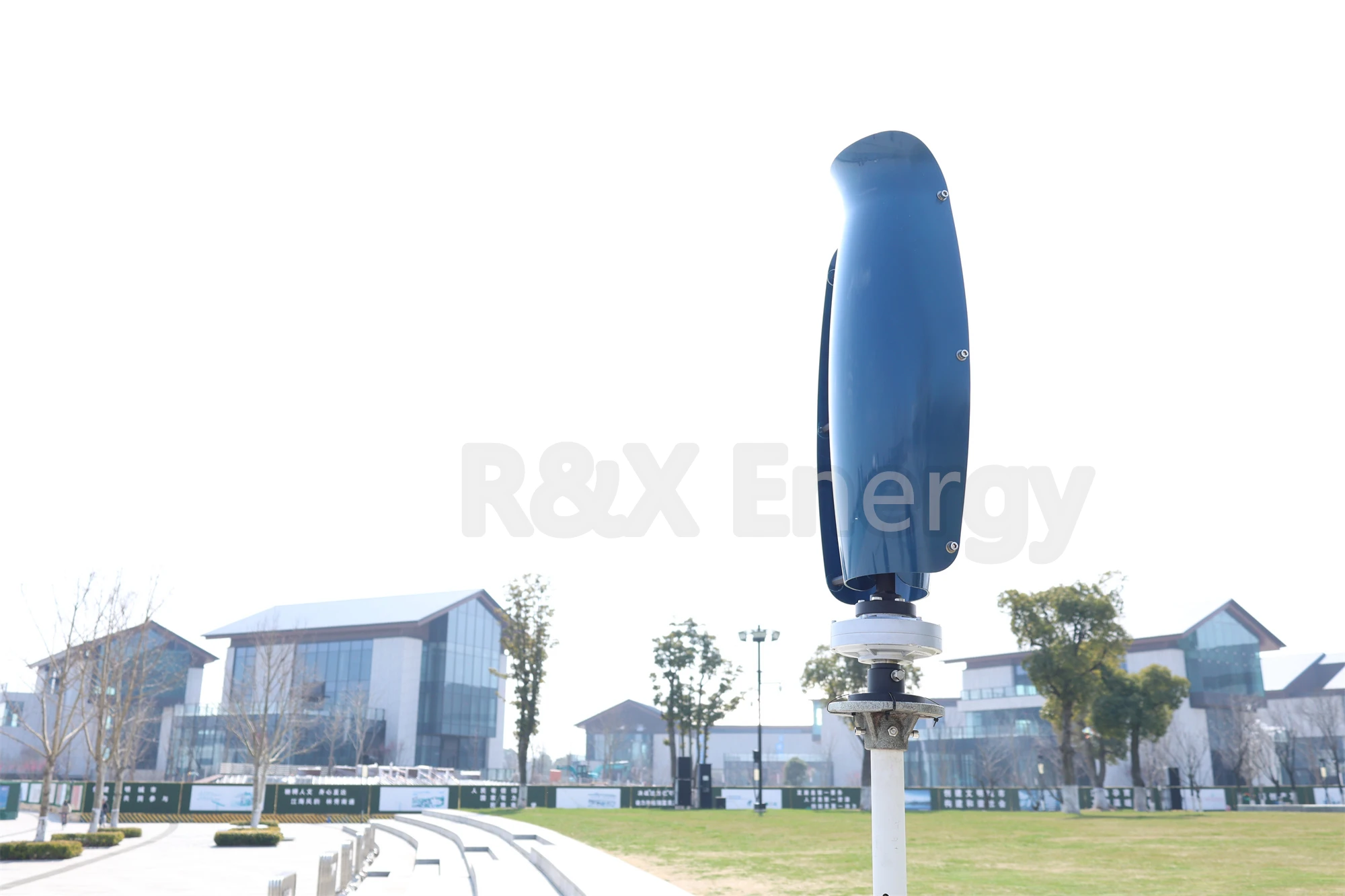

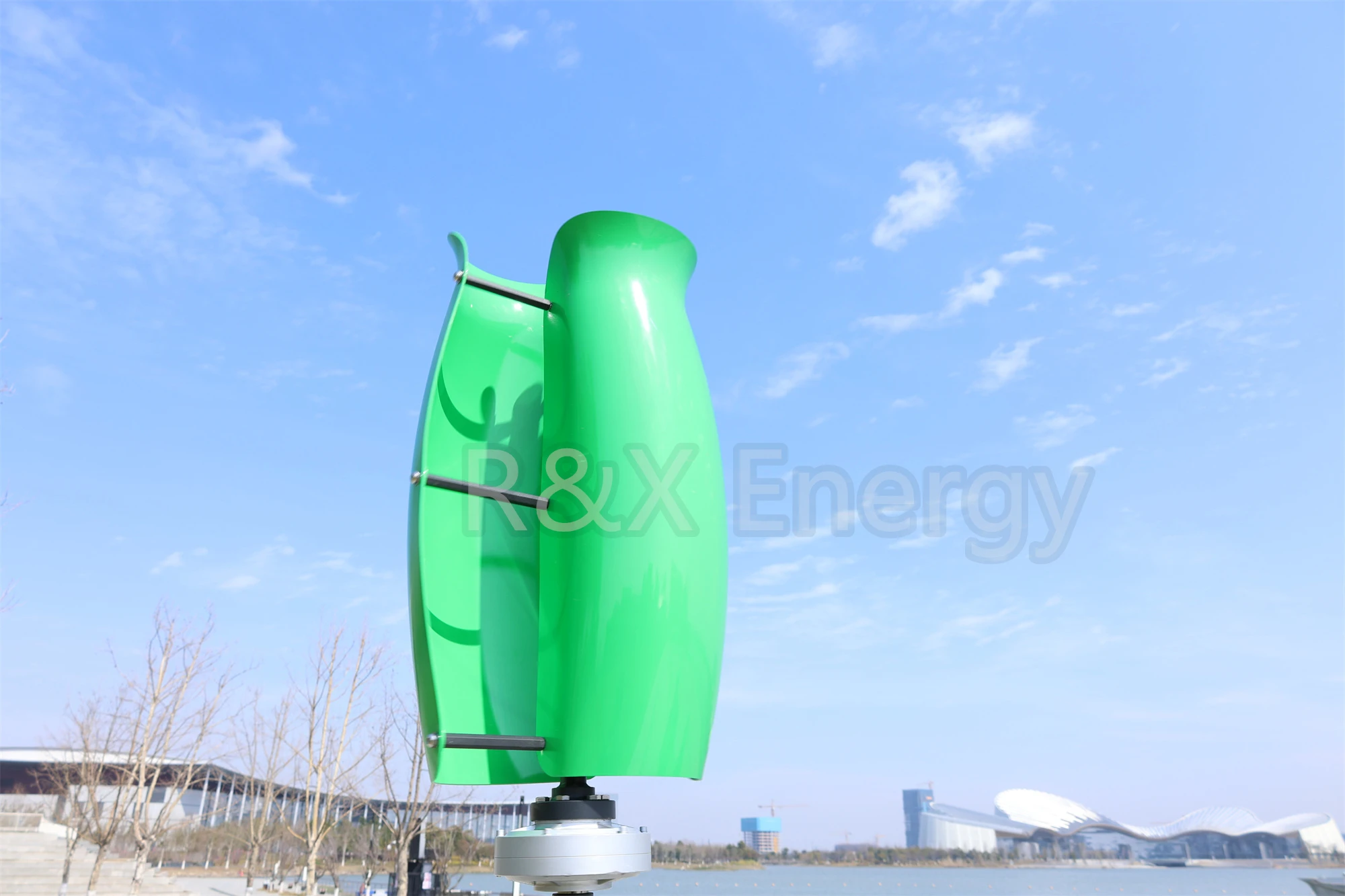

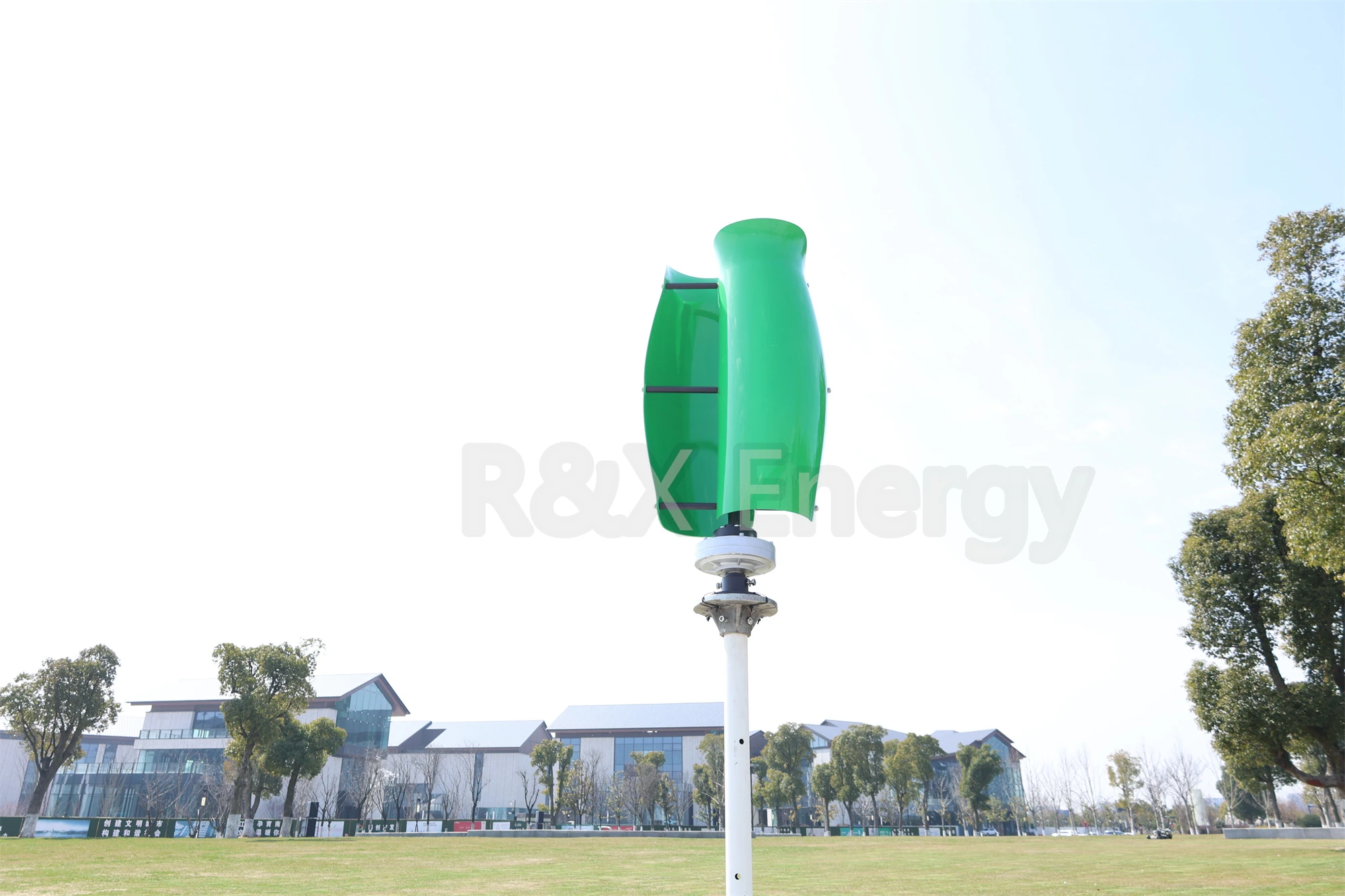

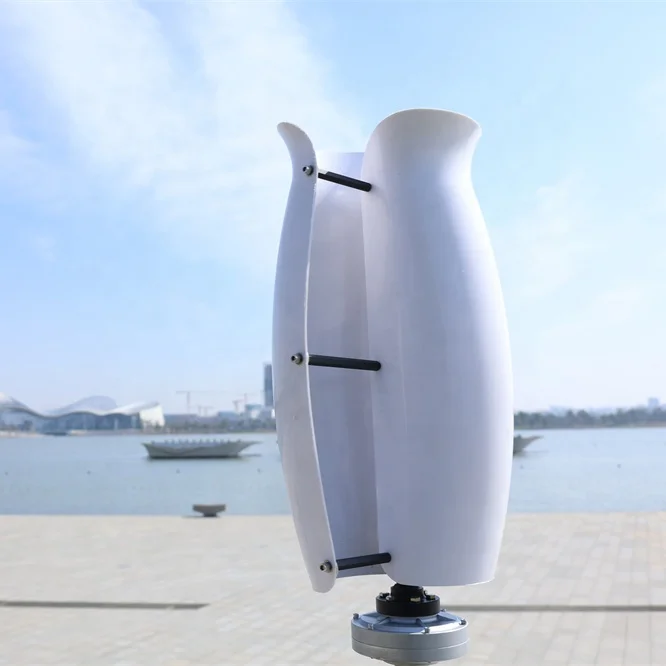

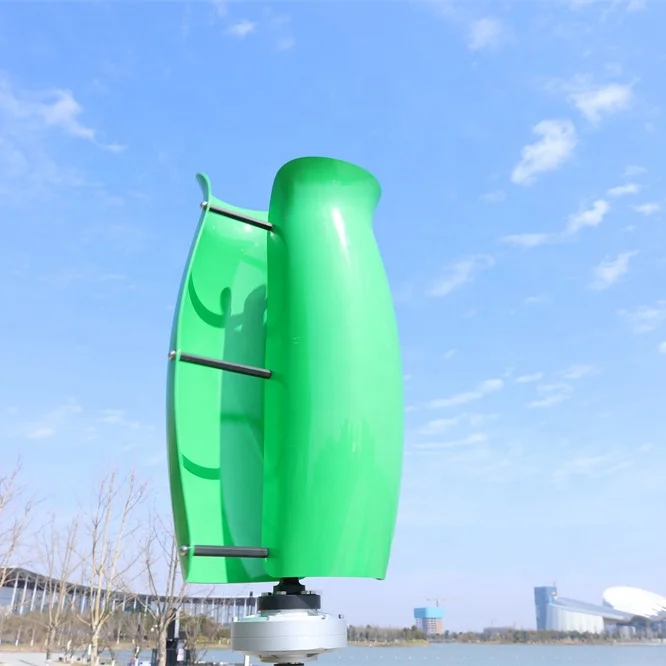

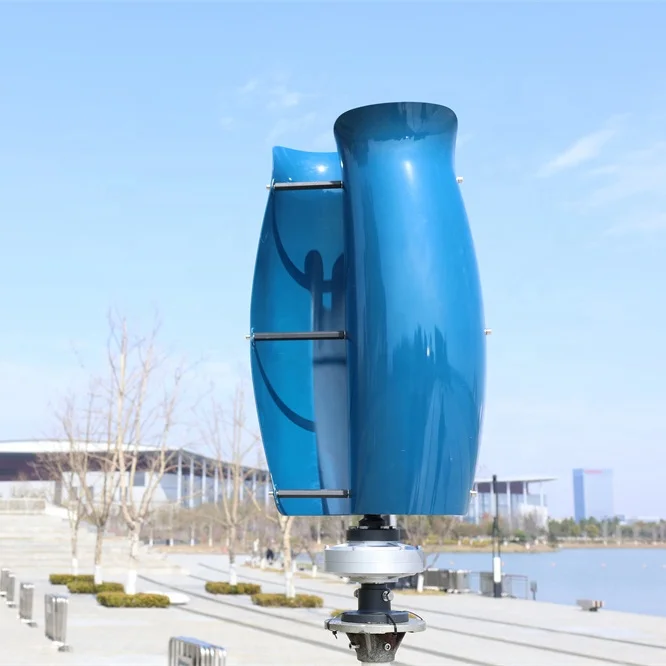

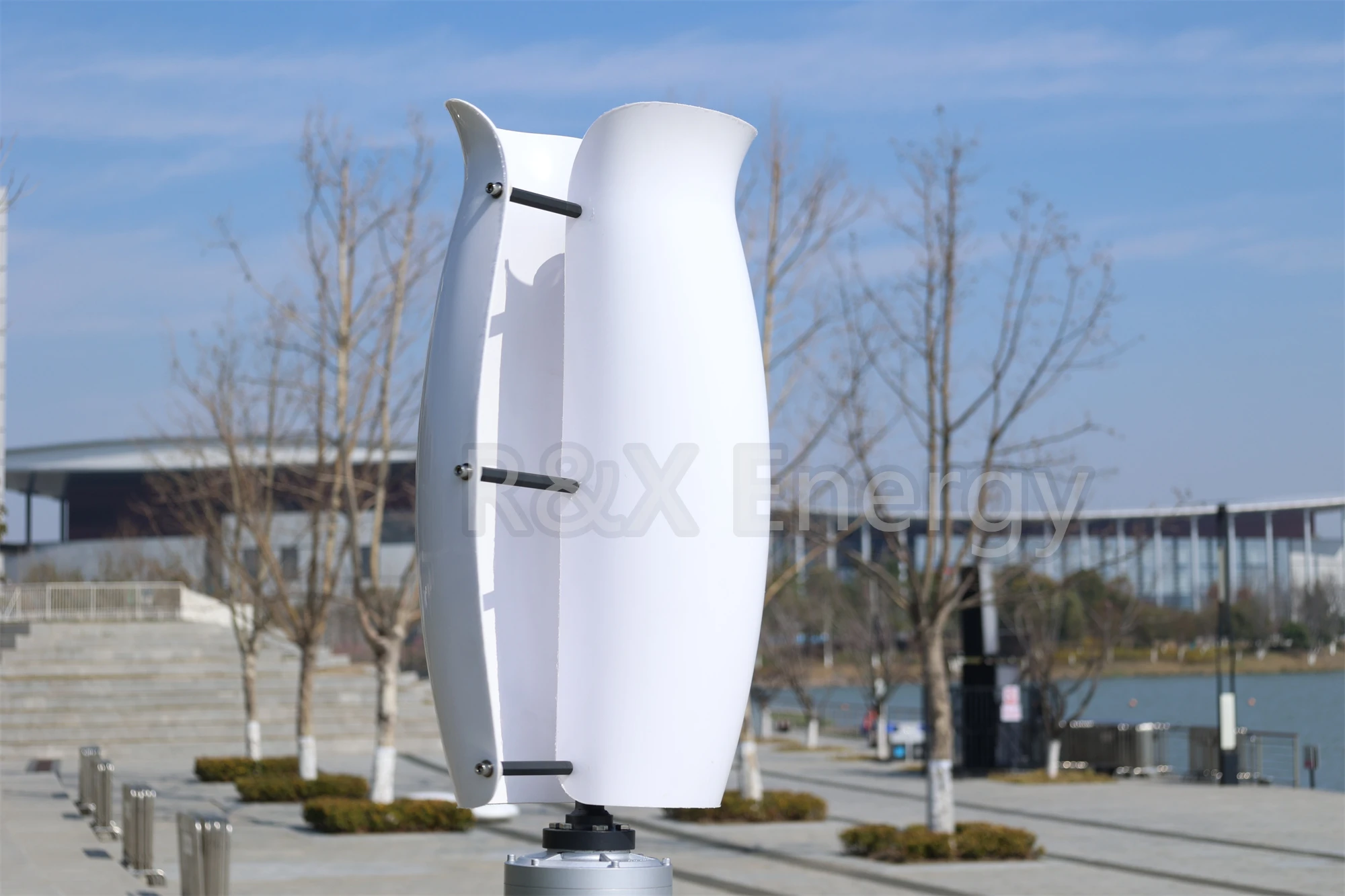

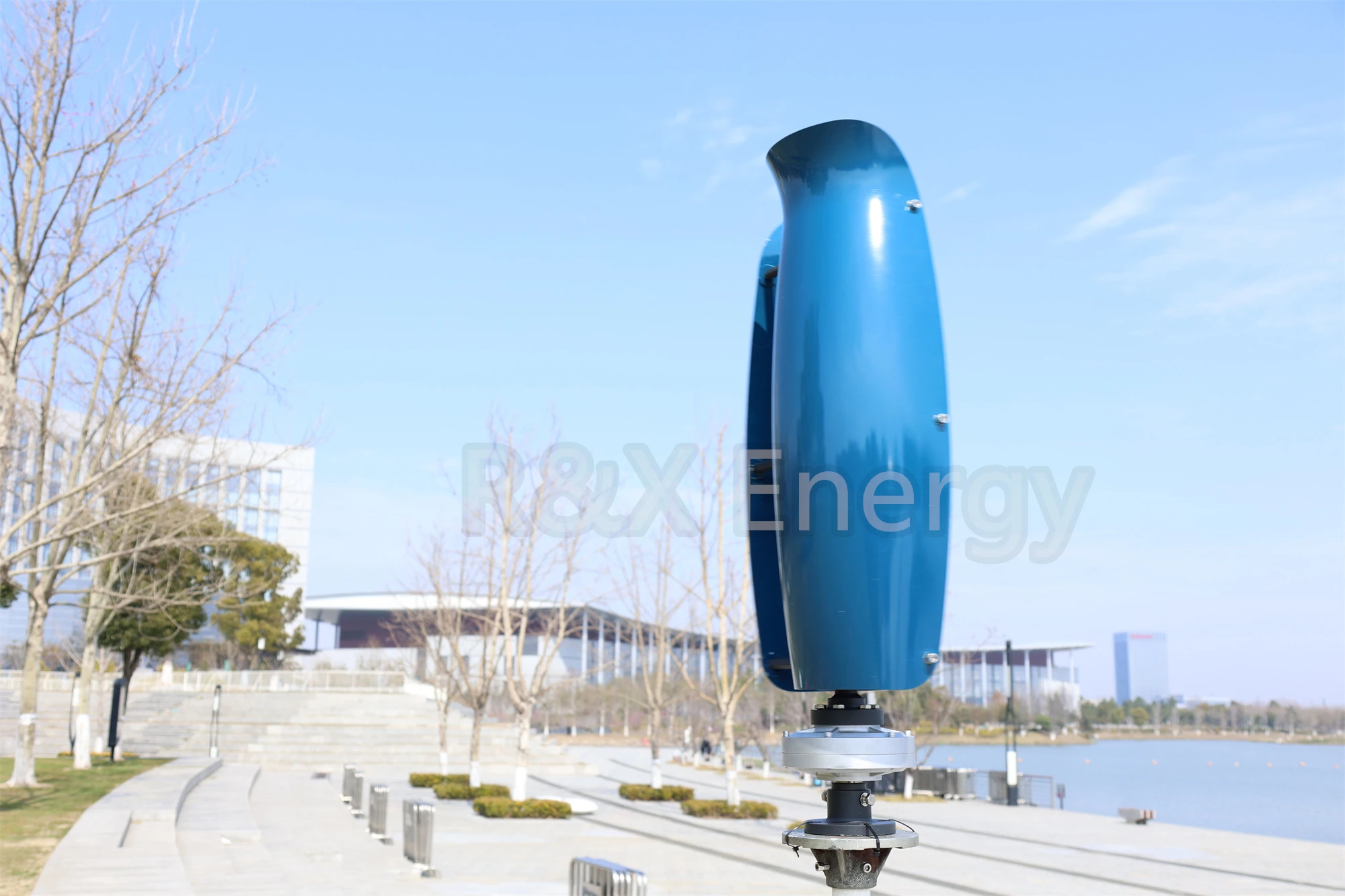

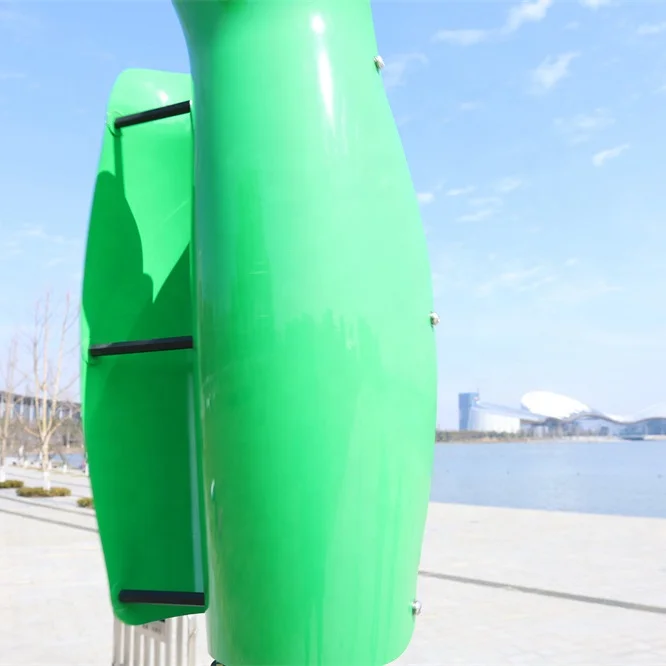

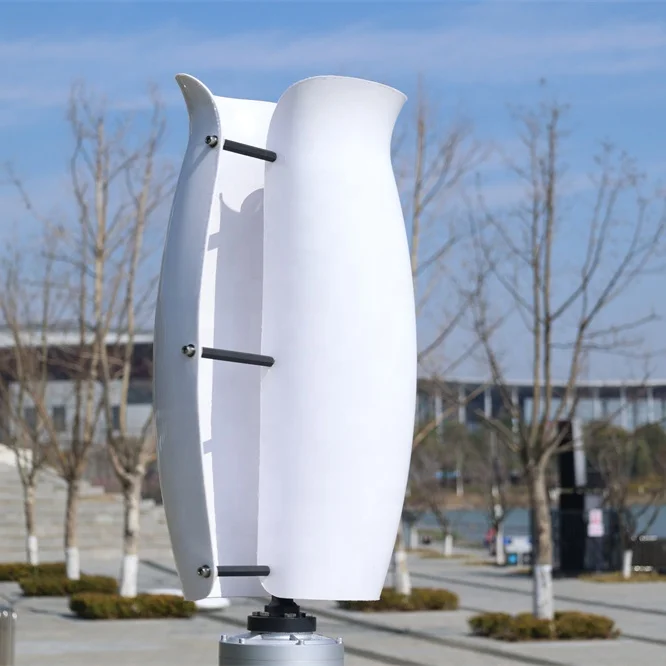

Detailed Images

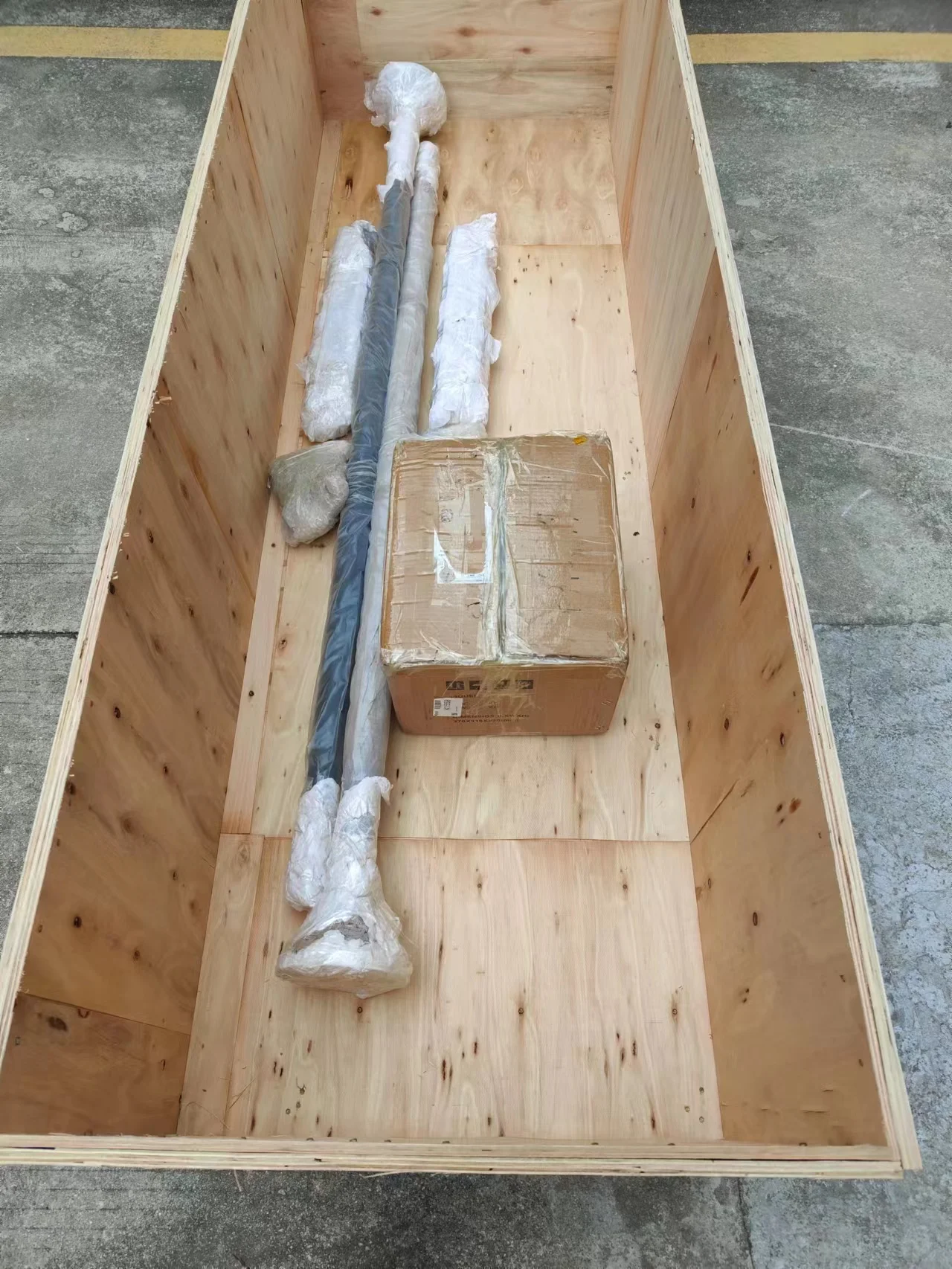

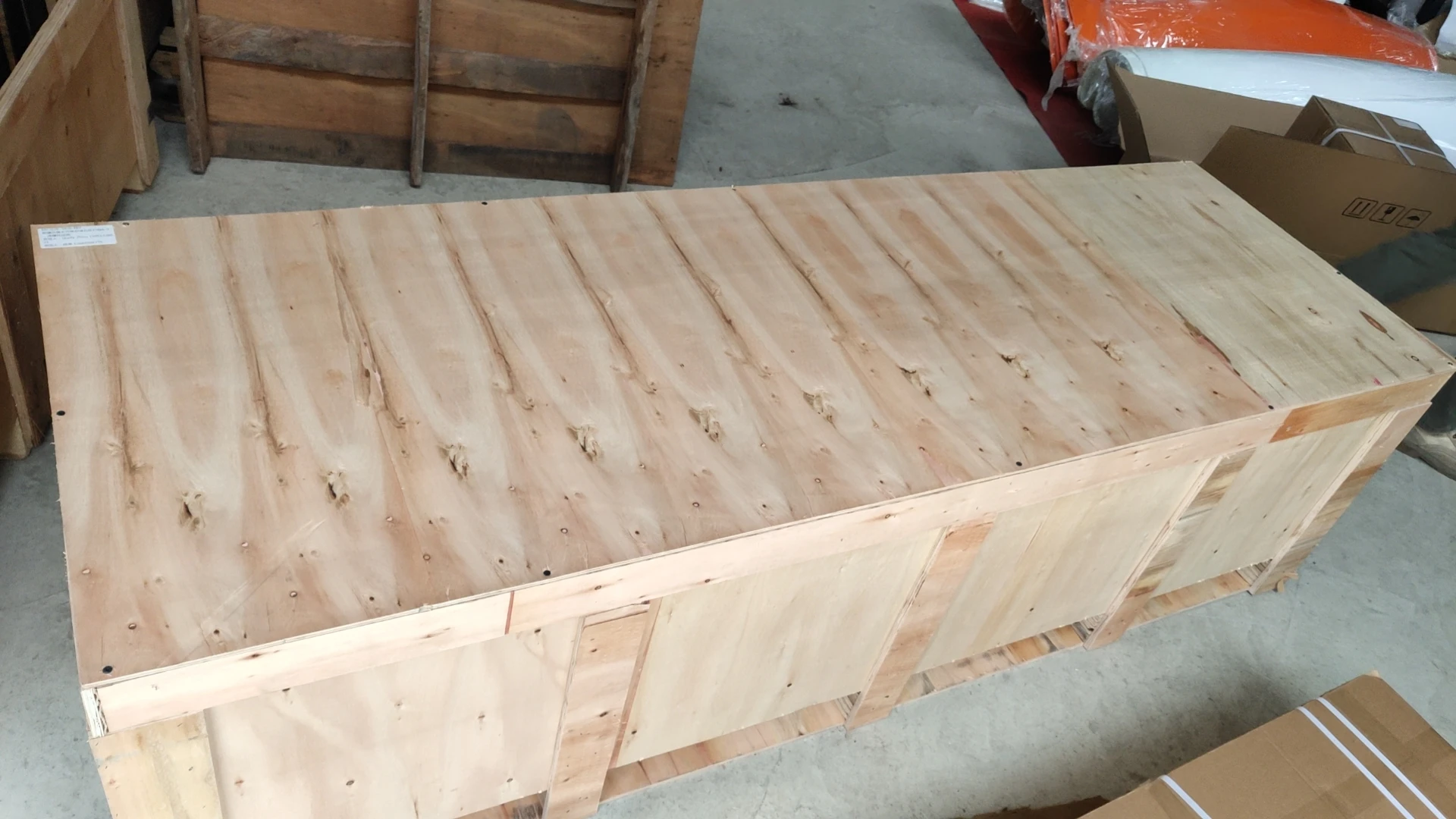

Packing photos
