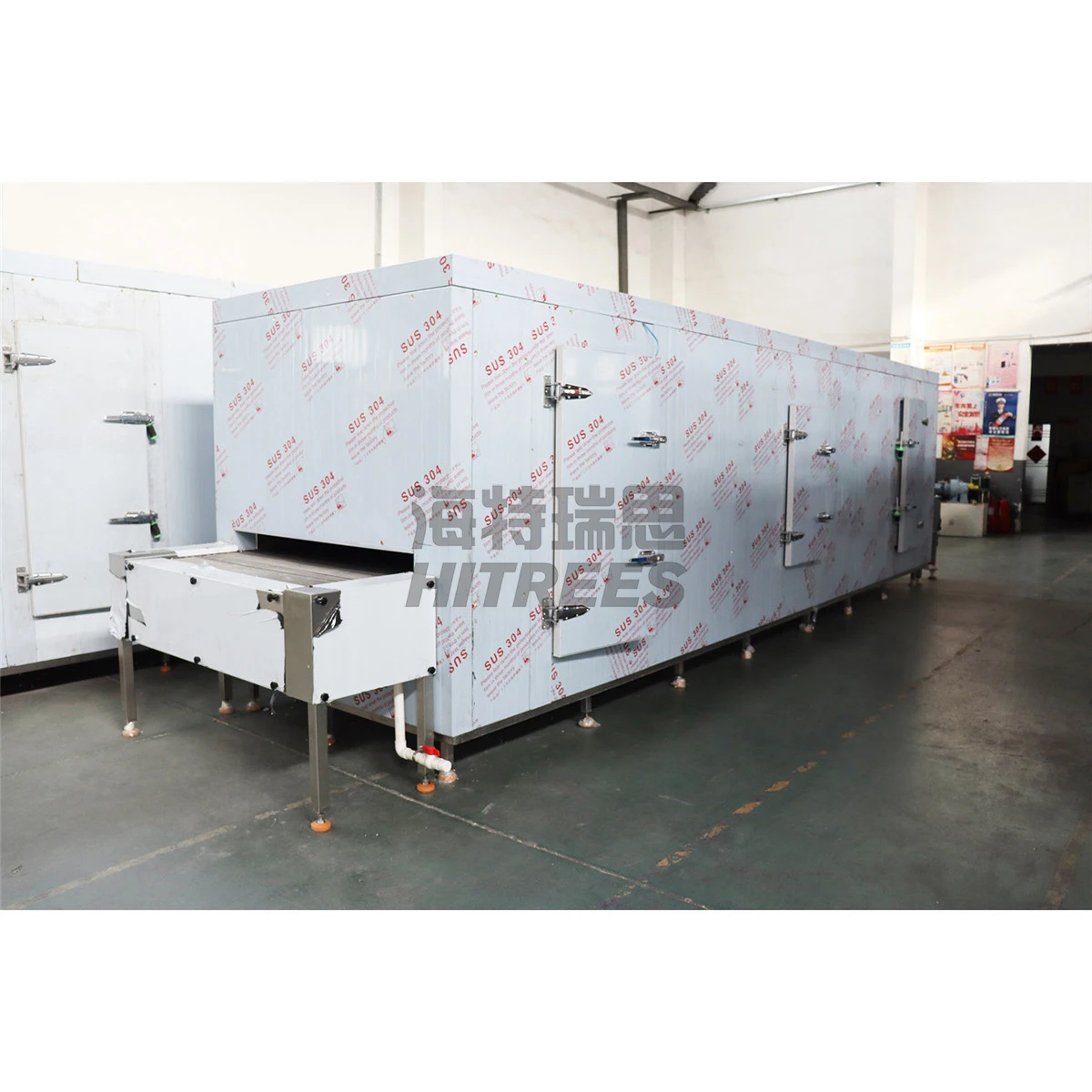

Ce High Quality Cattle Chicken Meat Blast Freezing Equipment IQF Tunnel Blast Freezer Machine Meat Fish Seafood Tunnel Freezer
- Category: >>>
- Supplier: Hitrees (hainan) Industries Co. Ltd.
Share on (1601055429909):
Product Overview
Description
Product Overview

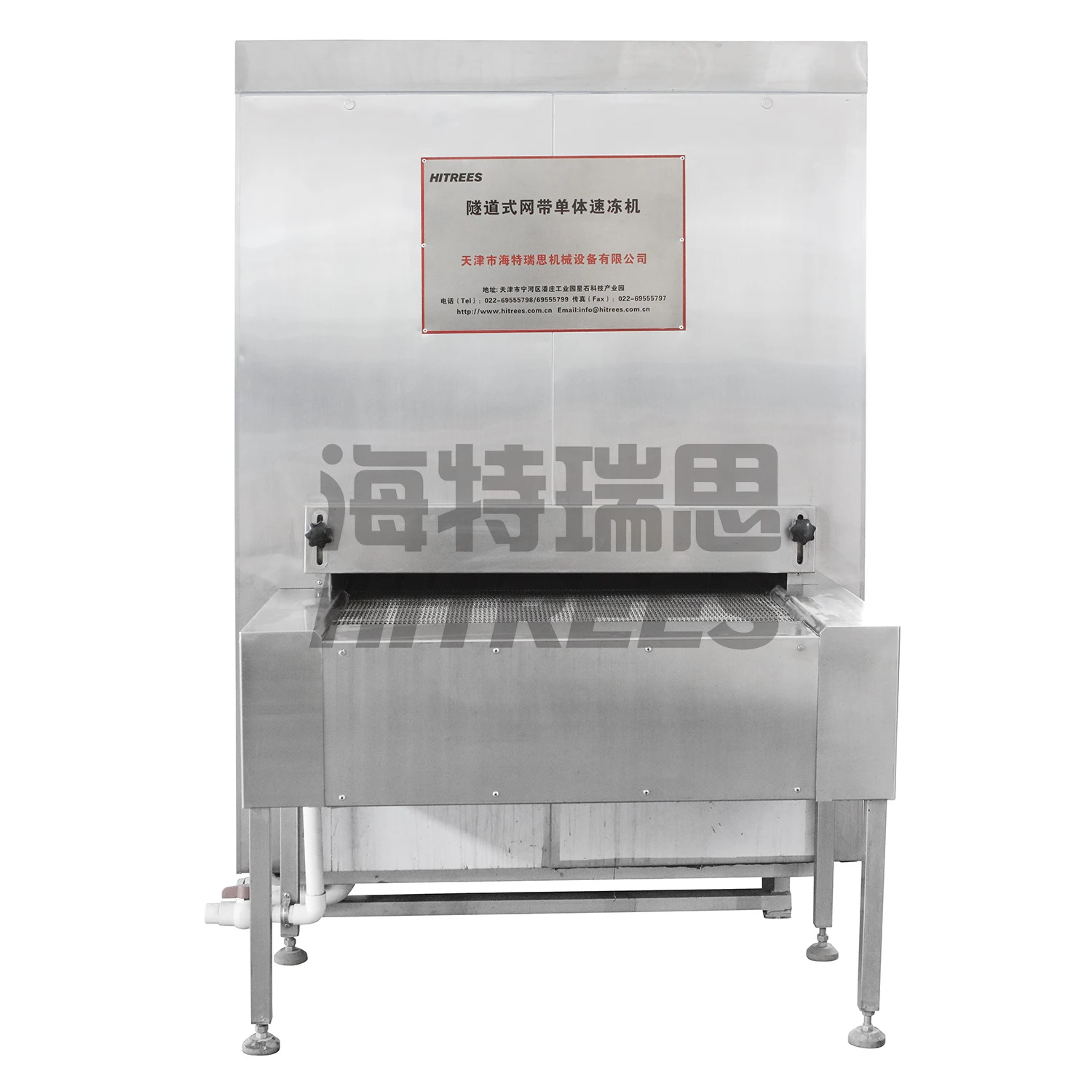

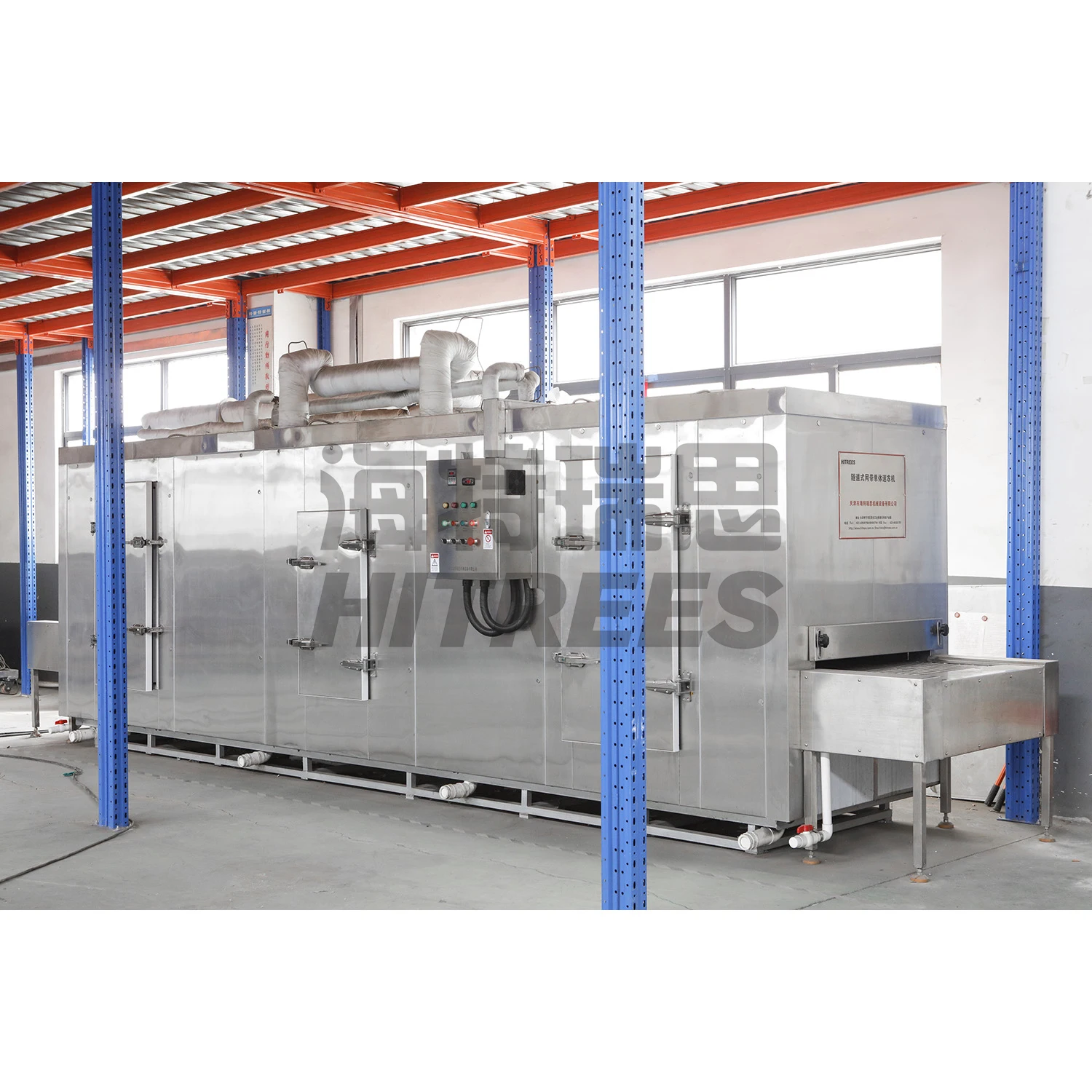

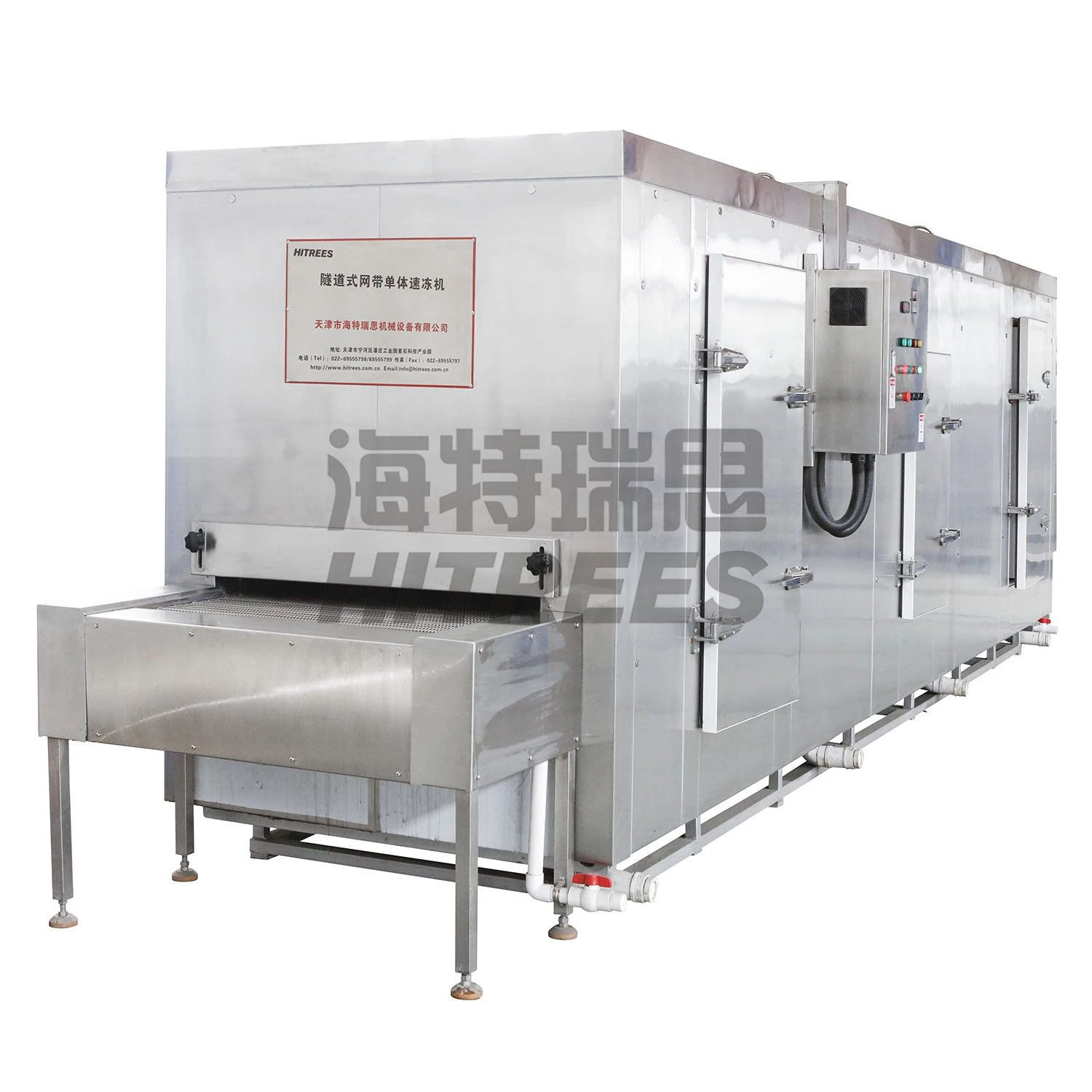

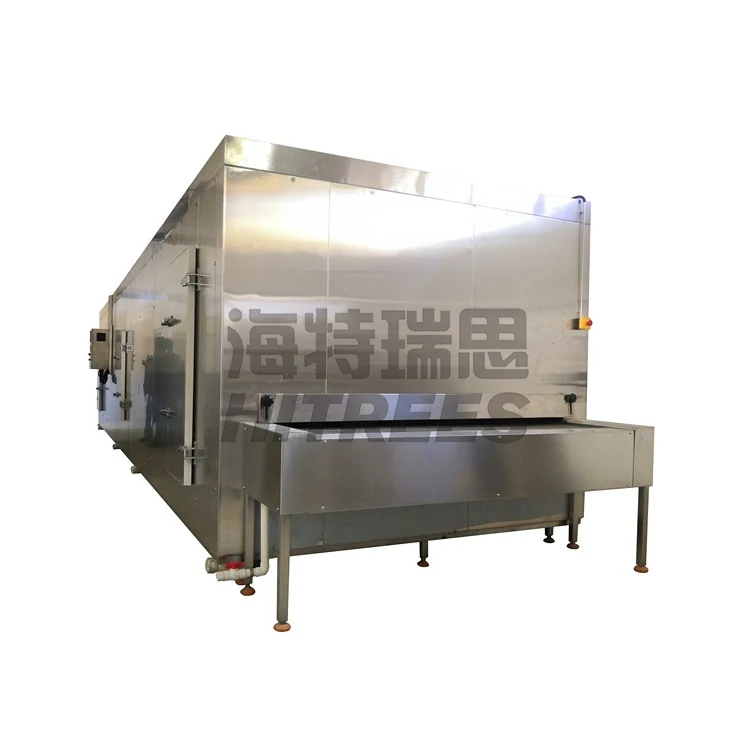

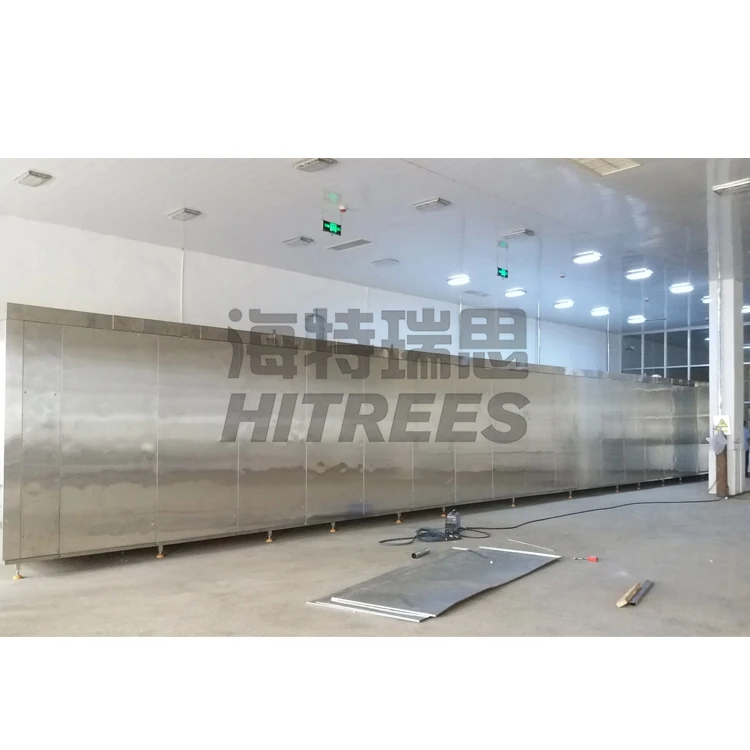

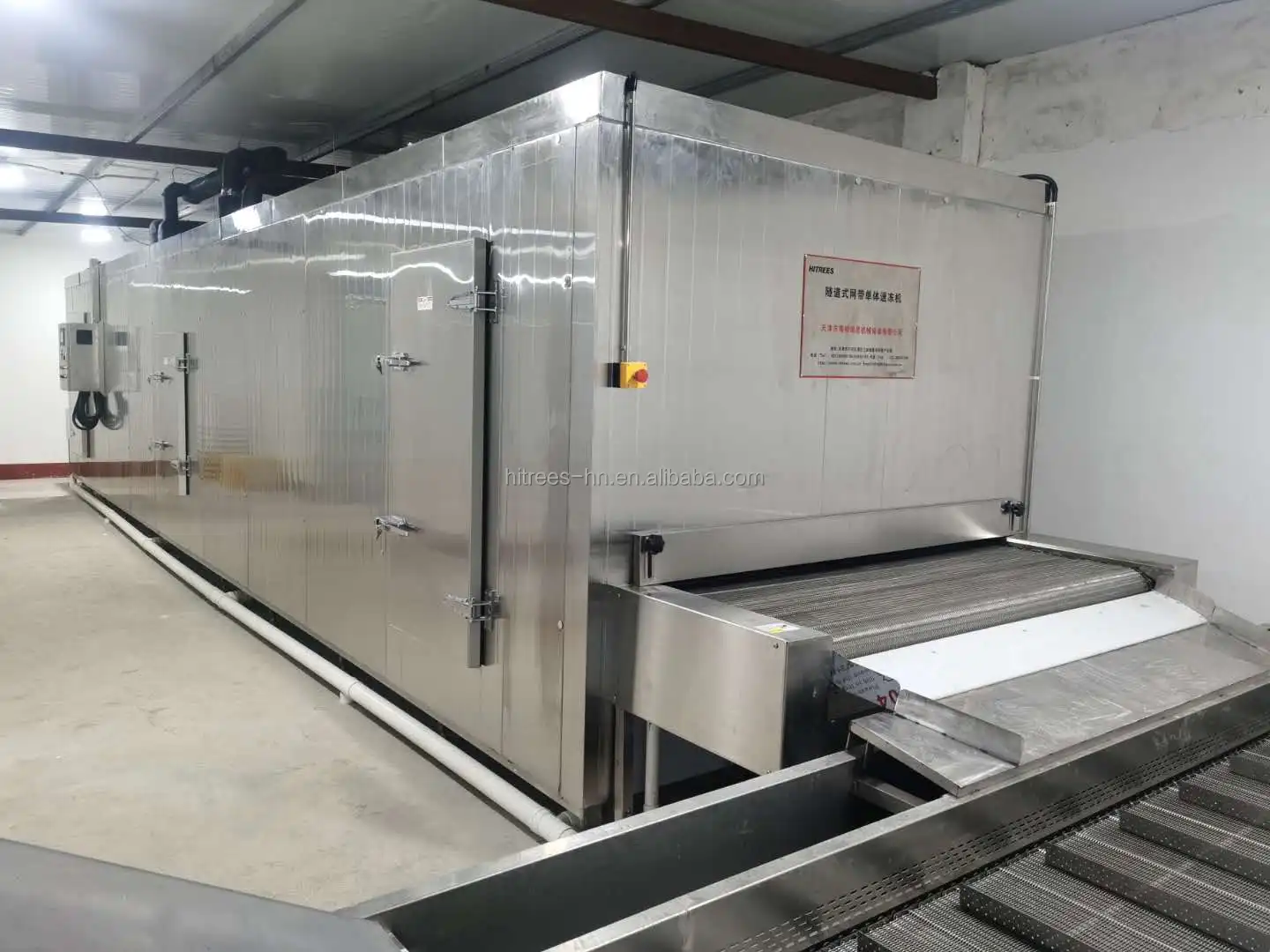

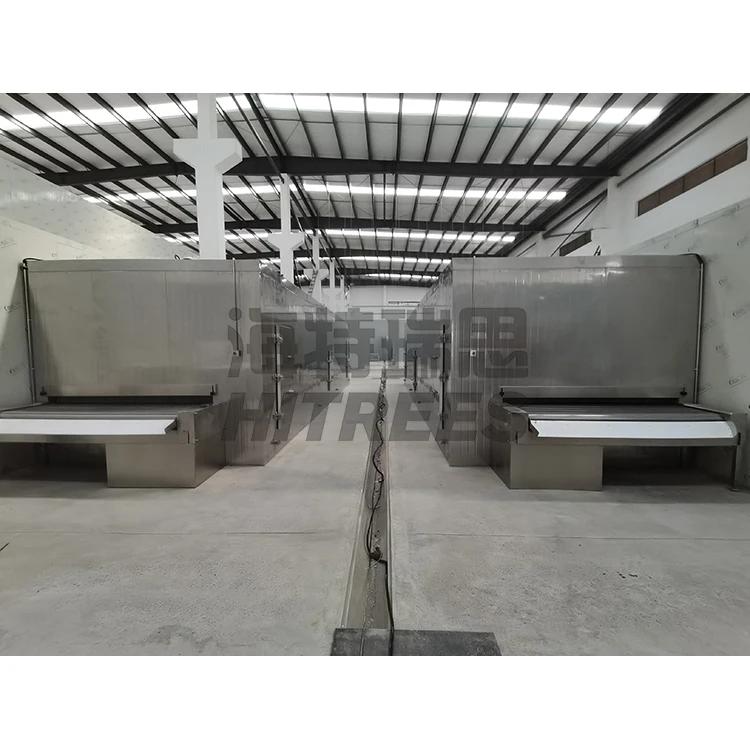

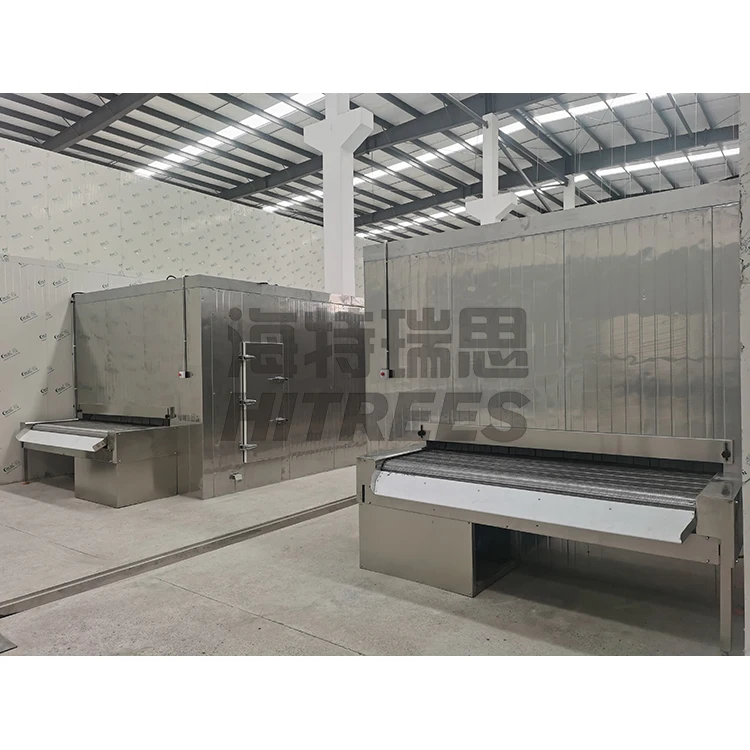

Tunnel Freezer
Hitrees Tunner Freezer is mostly used for flour flood , meat ,seafood and prepared food freezing for food processing plants. It will individually freeze a wide range of fruits and berries, including strawberries, pineapples, blueberries, raspberries, apple dices, peaches, and many others. Also it is good for sensitive vegetables such as broccoli, cauliflower and asparagus etc.
Our tunnel freezers are customized for the type and size of products to be frozen and the capacity needed. Looking for
high-quality IQF vegetables without compromising energy efficiency, or yield? Then you should be checking out our tunnel freezer
high-quality IQF vegetables without compromising energy efficiency, or yield? Then you should be checking out our tunnel freezer
FEATURES AT A GLANCE
SPECIFICATIONS FOR TUNNEL FREEZER | ||||||||||
Model | Output | Installed Power | Referigeration Consumption | Dimension L*W*H | Belt Width | |||||
TF100 | 100kg/h | 2.25kw | 15kw | 7.4*1.5*2.2m | 1000mm | |||||
TF150 | 150kg/h | 2.95kw | 21kw | 8.0*1.8*2.3m | 1300mm | |||||
TF200 | 200kg/h | 4.5kw | 30kw | 10.2*1.8*2.3m | 1300mm | |||||
TF300 | 300kg/h | 6.5kw | 43.5kw | 11.2*2.3*2.3m | 1800mm | |||||
TF500 | 500kg/h | 10.3kw | 75kw | 13.5*3.0*2.5m | 2500mm | |||||
TF1000 | 1000kg/h | 19.8kw | 142kw | 22.9*3.0*2.5m | 2500mm | |||||
TF1500 | 1500kg/h | 28.6kw | 225kw | 26.4*3.5*2.5m | 3000mm | |||||
Frozen fruits before vs. after
a) Natural colour, flavour, texture of fruits and berries well preserved
b) No fruit product damage
Frozen Vegetables before Vs. after
a) Less discoloration and structural damage
a) Less discoloration and structural damage
b) No vegetable damage
Frozen vegetable VS. Frozen Fruit
The natural appearance, texture and colour of the vegetables and fruits can be well maintained during the freezing process.
Inverter control to realize stepless speed regulation, frozen frozen time adjustable, can be applied to a variety of frozen
products processing
products processing
The warehouse board adopts double-sided stainless steel polyurethane sandwich insulation board with good insulation performance.
Main Features

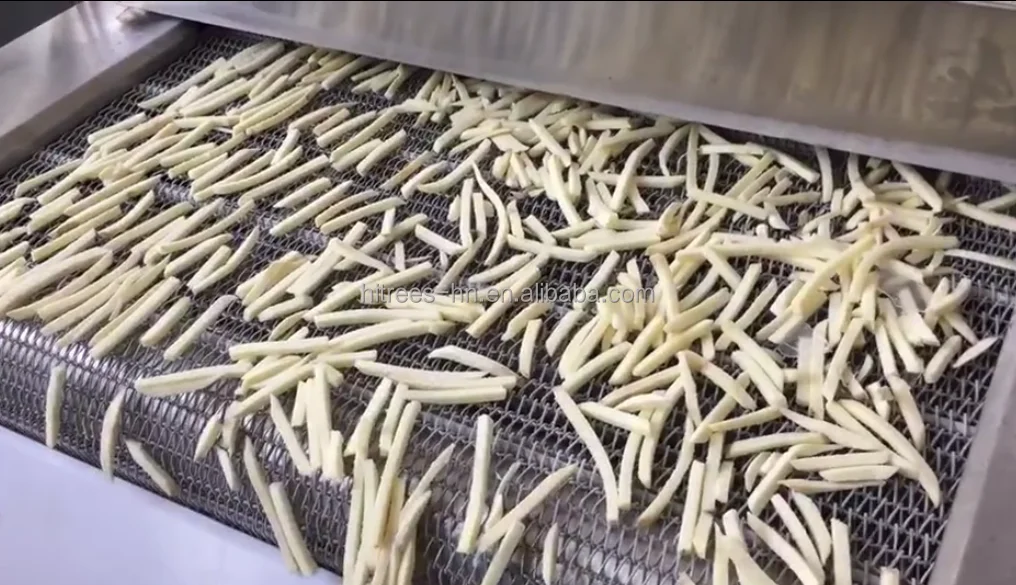

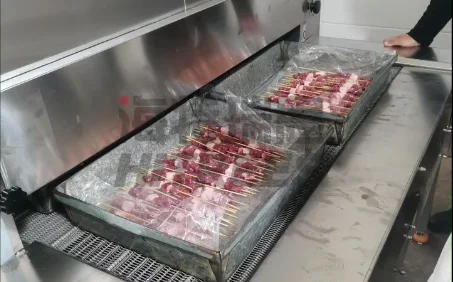

(1) Stainless steel conveyor belt;
(2) Sandwich PUF panels 150mm thick, laminated by stainless steel sheet both sides; floor panels are equipped;
(3) Doors are equipped with frame heating device;
(4) Axial fans: stainless steel air box, aluminum blades;
(5) The inlet device, outlet device and all structure parts are made of stainless steel;

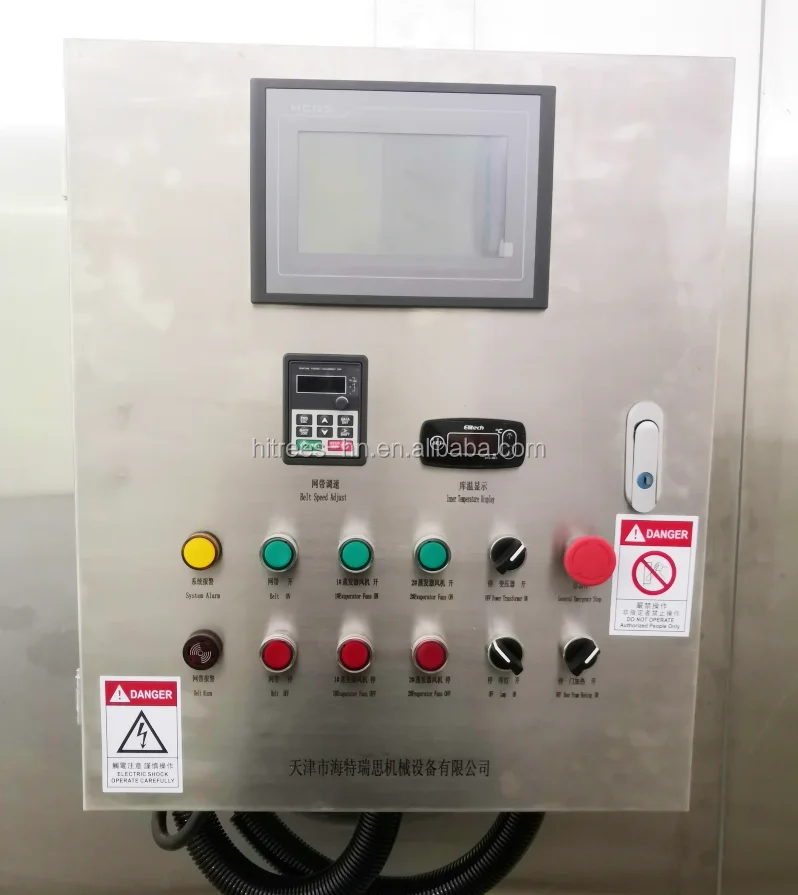

(6) Control panel is made of stainless steel;
(1) Stainless steel conveyor belt;
(2) Sandwich PUF panels 150mm thick, laminated by stainless steel sheet both sides; floor panels are equipped;
(3) Doors are equipped with frame heating device;
(4) Axial fans: stainless steel air box, aluminum blades;
(5) The inlet device, outlet device and all structure parts are made of stainless steel;
(6) Control panel is made of stainless steel;
Tunnel freezers:
Low cost, suitable for freezing fish and meat, thick and heavy foods. The way of blowing is the from the top
Spiral freezers:
Spiral freezers:
Lower energy consumption,small floor occupying,retention time is much flexible,the adjusted range is large.The way of blowing is from the edgeways
Fluidized IFQ Tunnel Freezers:
Fluidized IFQ Tunnel Freezers:

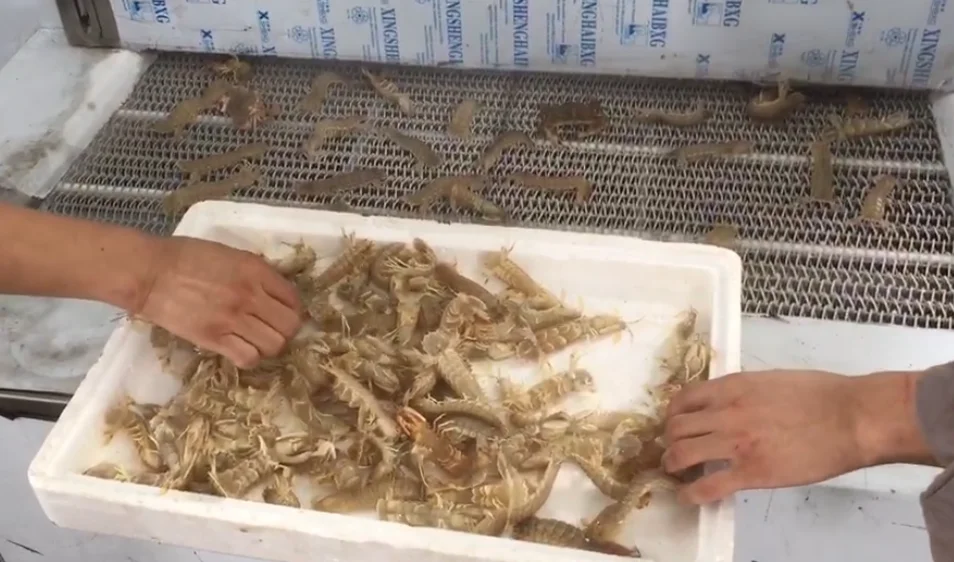

Suitable for freezing small and light materials, such as shrimp, strawberries, beans and granular materials. The way of blowing is from the bottom.

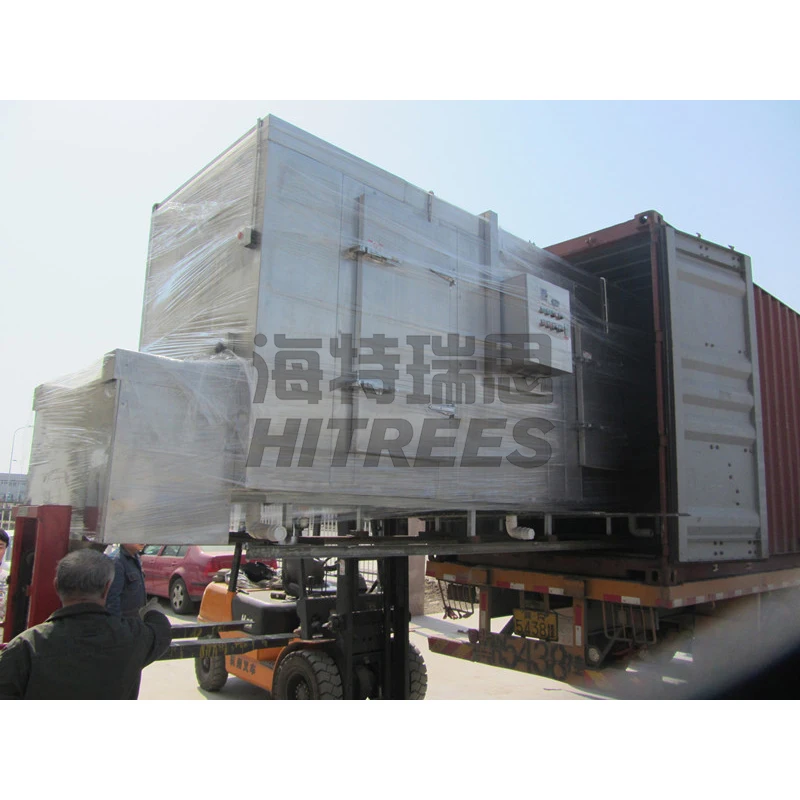

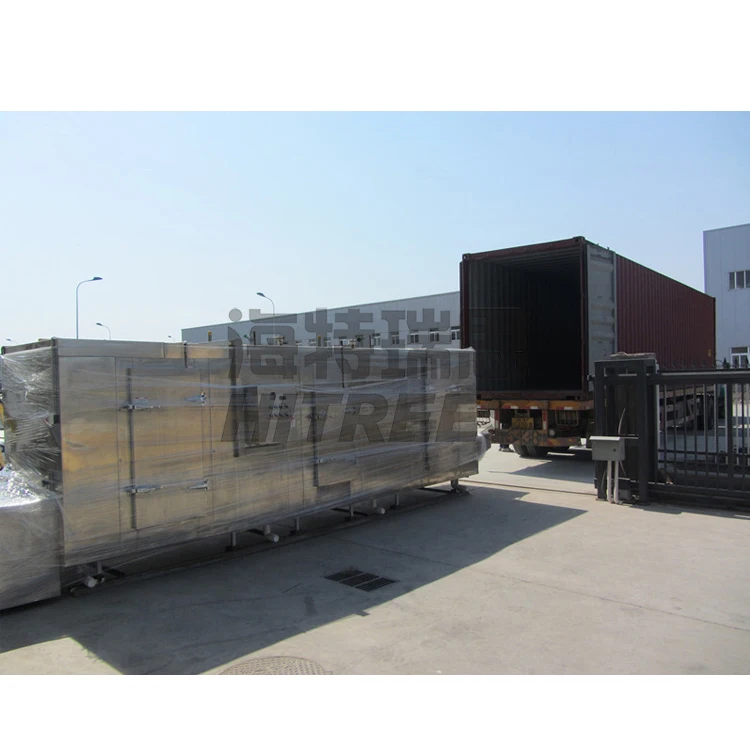

Packing & Shipping
PRODUCT CONFIGURATION

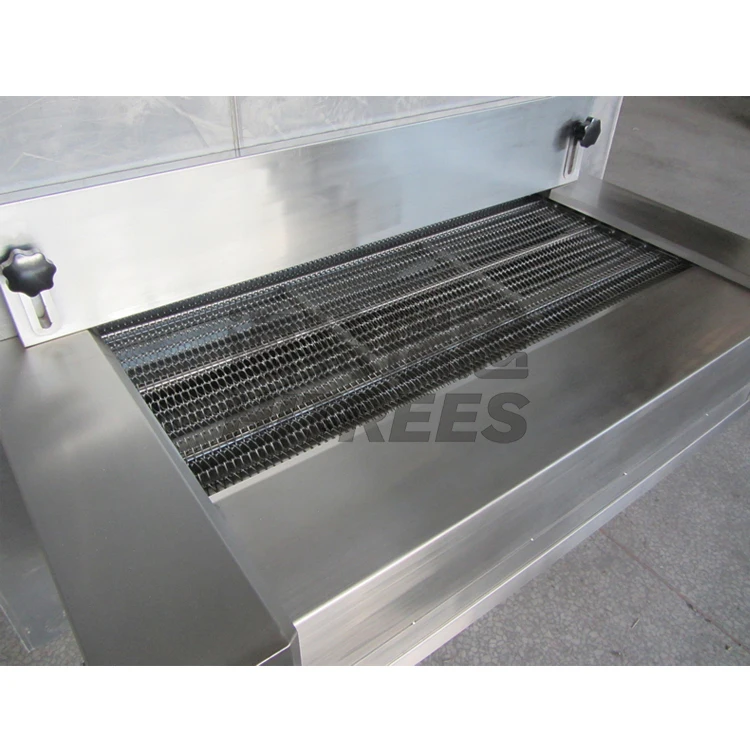

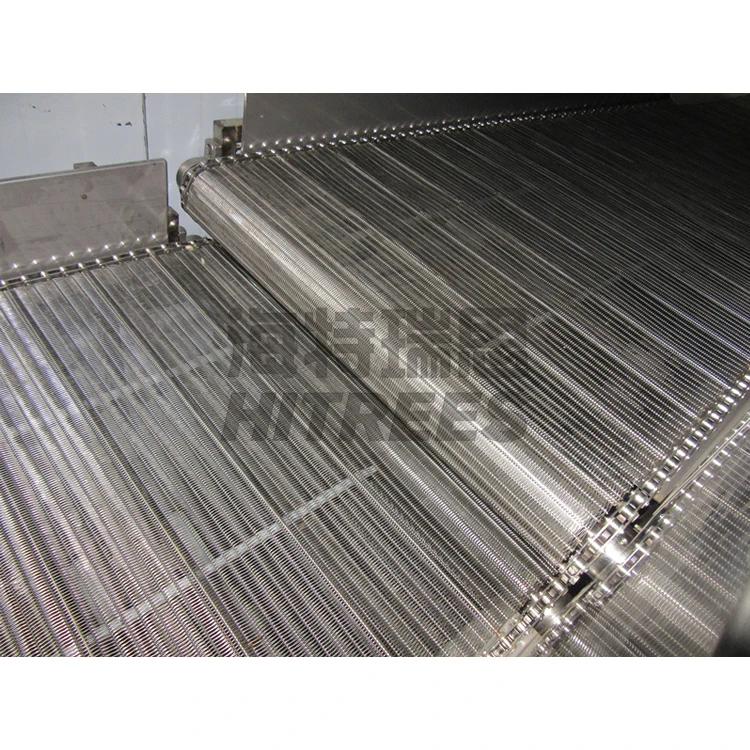

Stailess Steel Belt

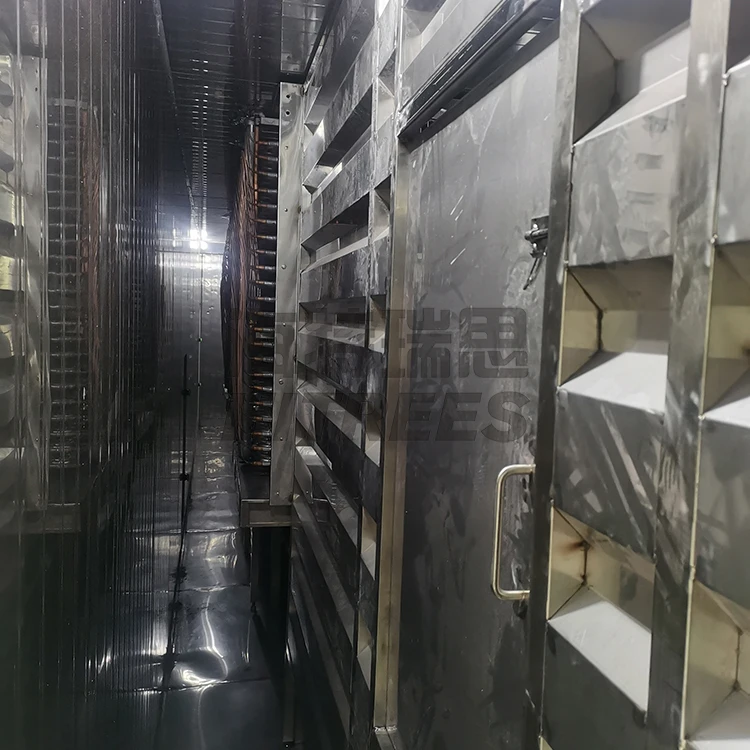

Evaporator
Compressor Unit
Recommend Products
Contact Information

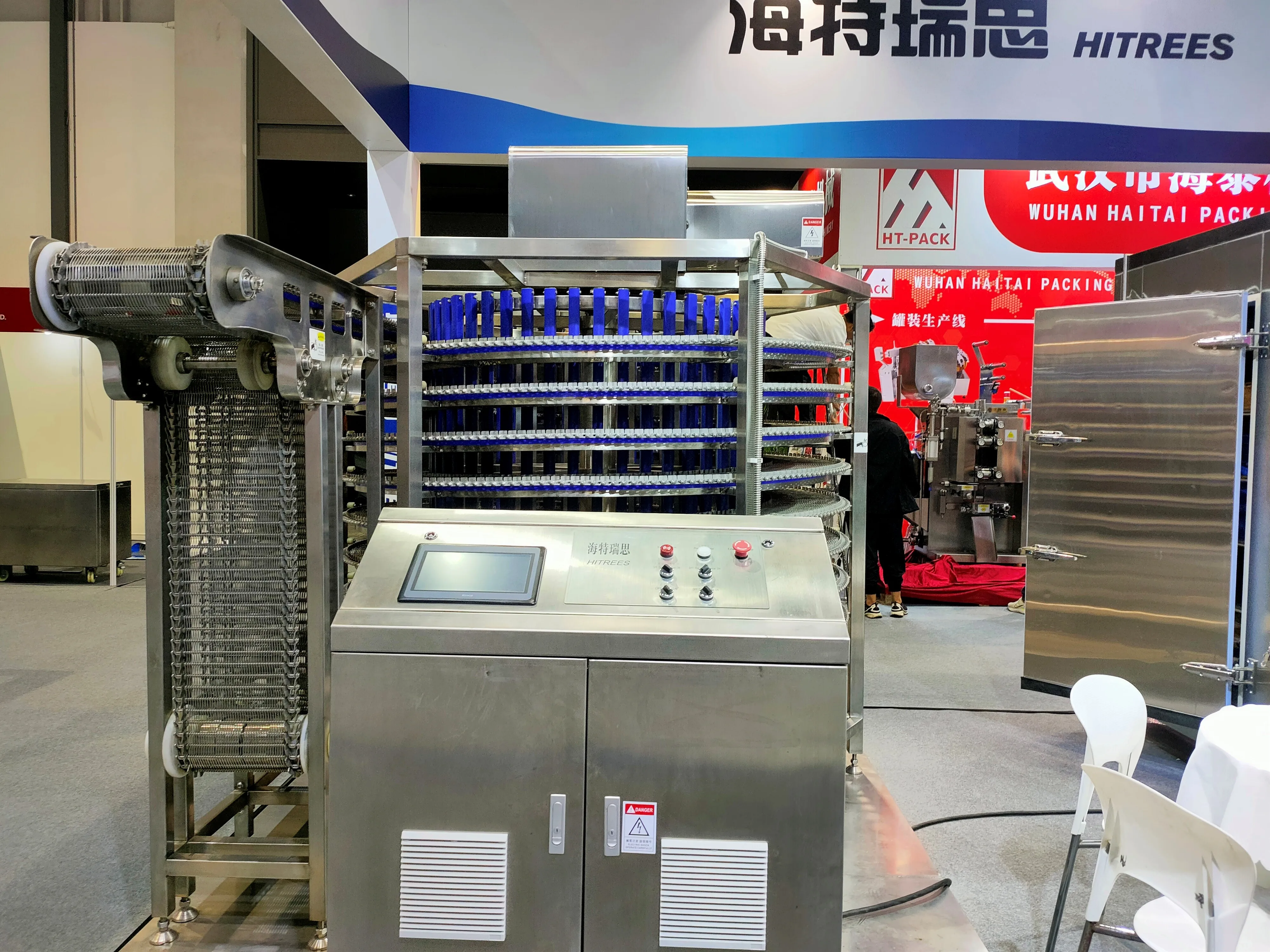

Exhibition
