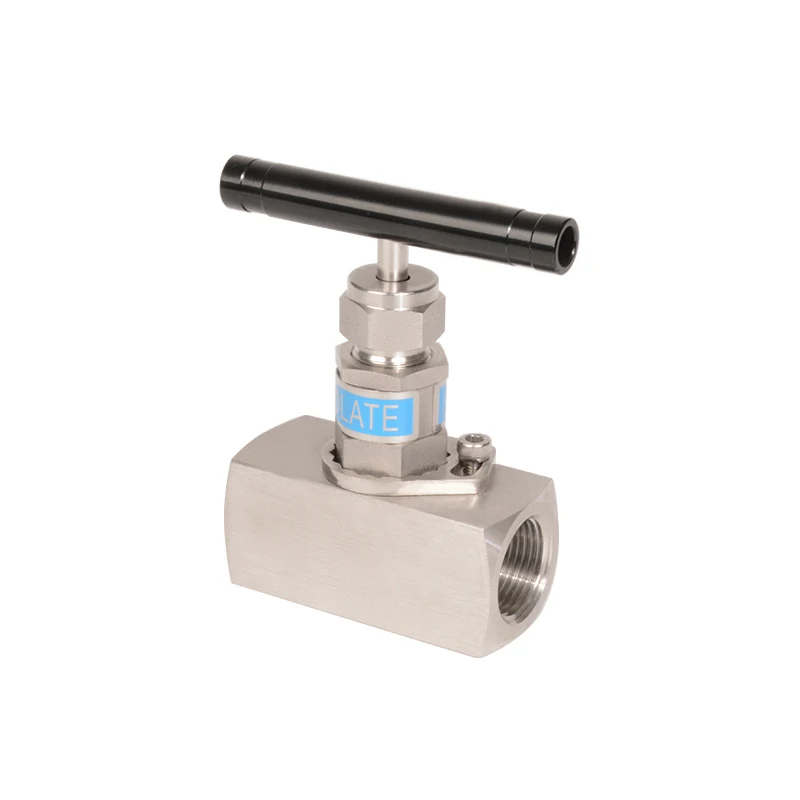

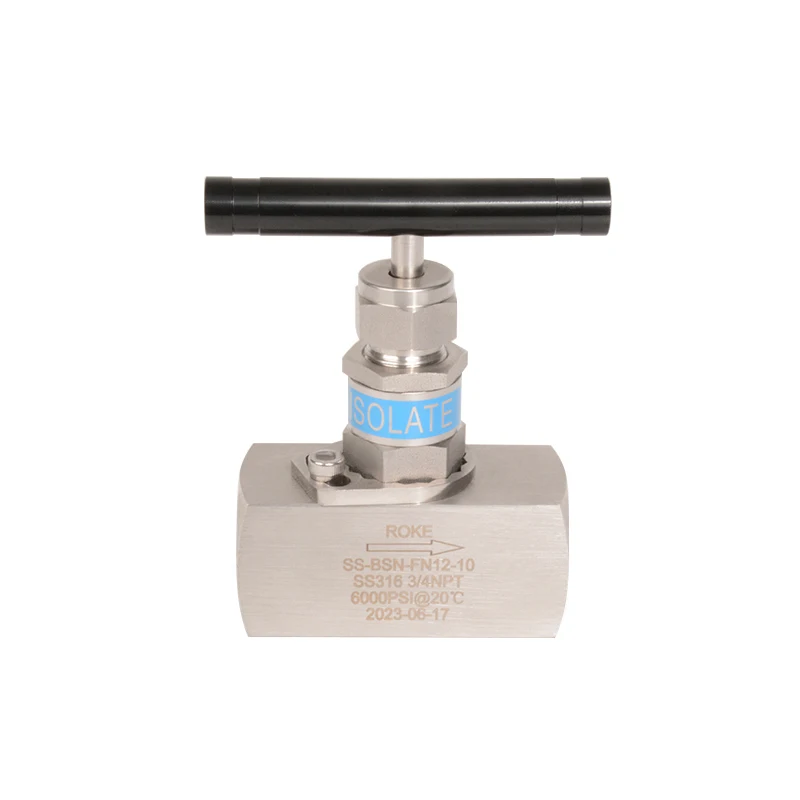

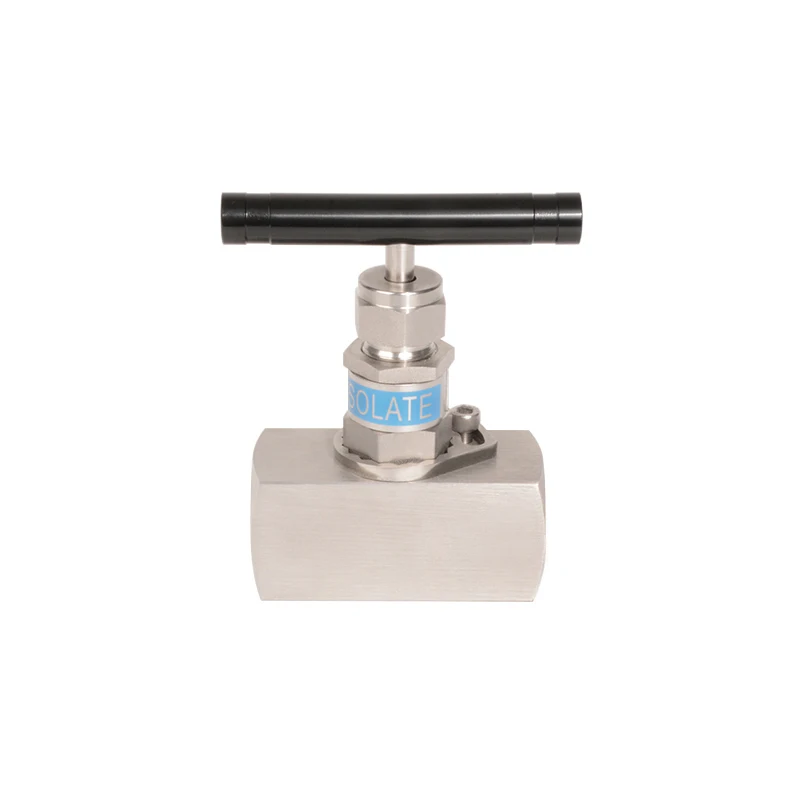

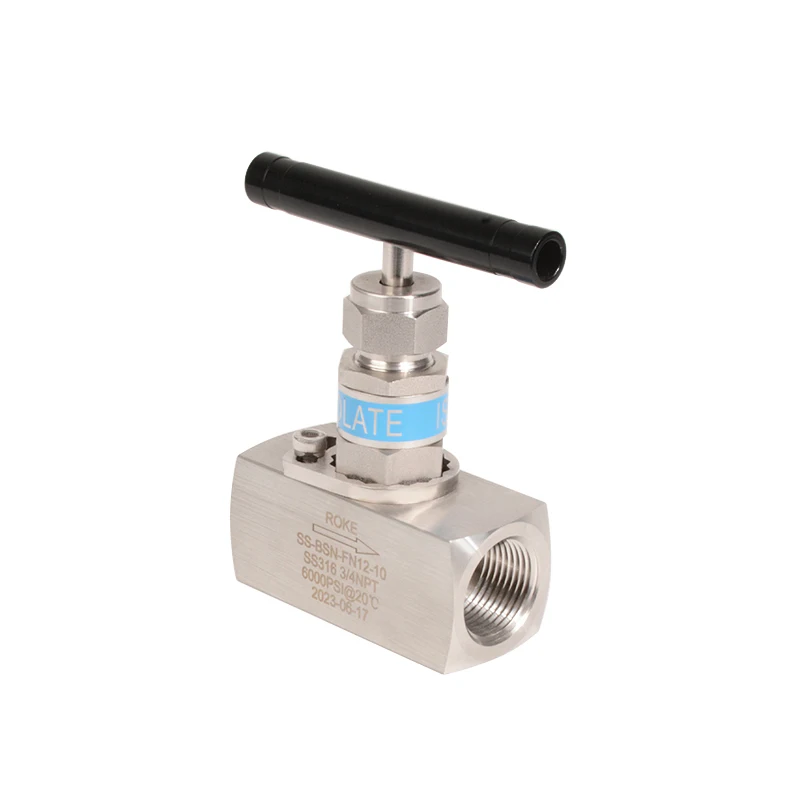

Stainless Steel Female thread high pressure gas needle valve 10000psi

Female thread nitrogen high pressure gas needle valve

Features&Benefits:
1.Bonnet lock pins prevent accidental loosening.
2.Free-swiveling ball end stem(metal seat,std.) assure bubble tight valve closure without seat galling. The special hardened ball seat is ideal for both gas and liquid service.
3.All stem packing is located below the stem threads prevent galling, corrosion and contamination by the process media.
4.The packing is adjustable with less possibility of bonnet/body leaks.
5.Full back-seated bonnets prevent accidental stem removal and blowout. Unique design minimizes emissions while offering easy access to the packing.
6.Maximum working pressure:
   Stainless Steel:6000 psig (414 bar) 10000psig (689bar)
   Alloy C-276:6000 psig (414 bar)
   Alloy 400:5000 psig (345 bar)
   Titanium:3500 psig (241 bar)
   Brass:3000 psig (207 bar)
7.Working temperature:
   PTEE:-65°F to 450°F(-54°C to 232°C)
   PEEK:-65°F to 500°F(-54°C to 260°C)
   Graphite:-65°F to 1200°F(-54°C to 649°C)

Option Available:
1.Ball tip & Vee tip are available.
2.The other material and bonnet type is available upon request.
3.The angle pattern and other size, end connection are available uopn request.

Packing Details  : cartons or wooden case or as customers required

Delivery Details : 3-30 days after down payment.

A: We are factory.

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

A: Yes, we could offer the sample as your requiremed but not for free charge.

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below:
