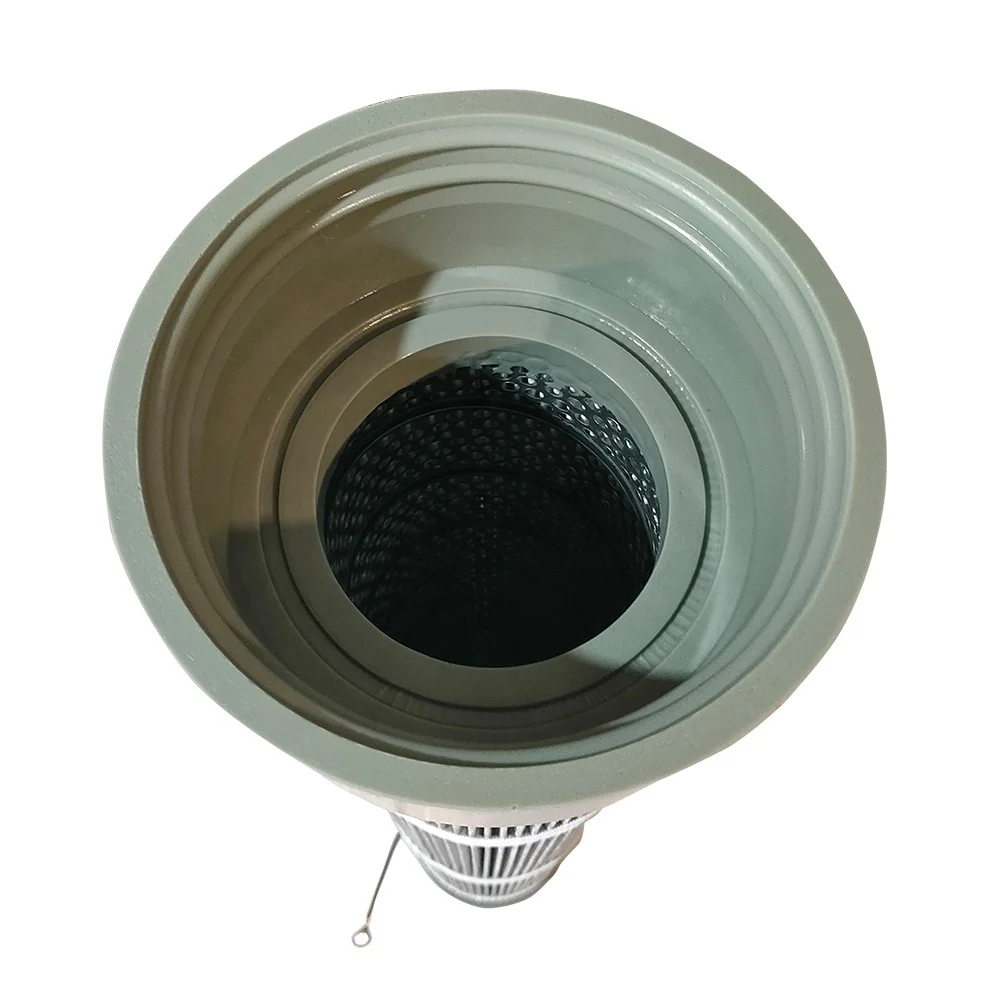

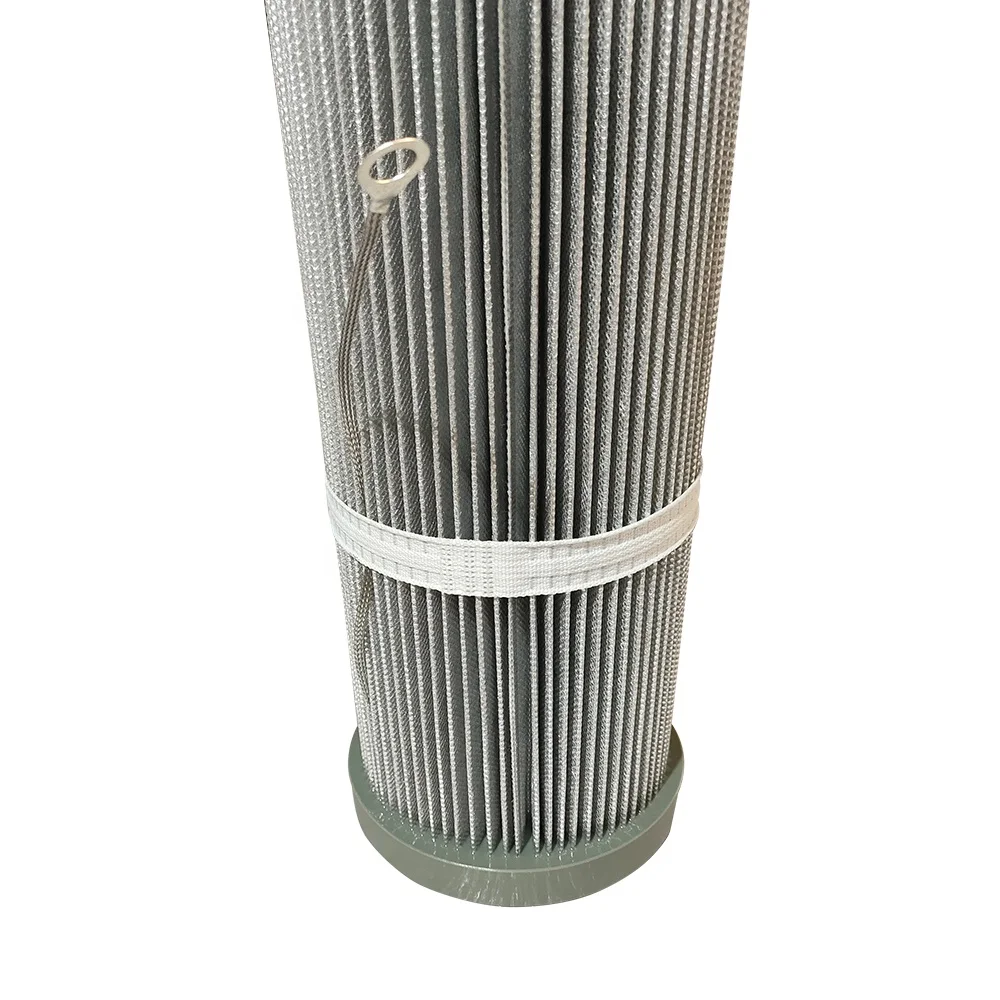

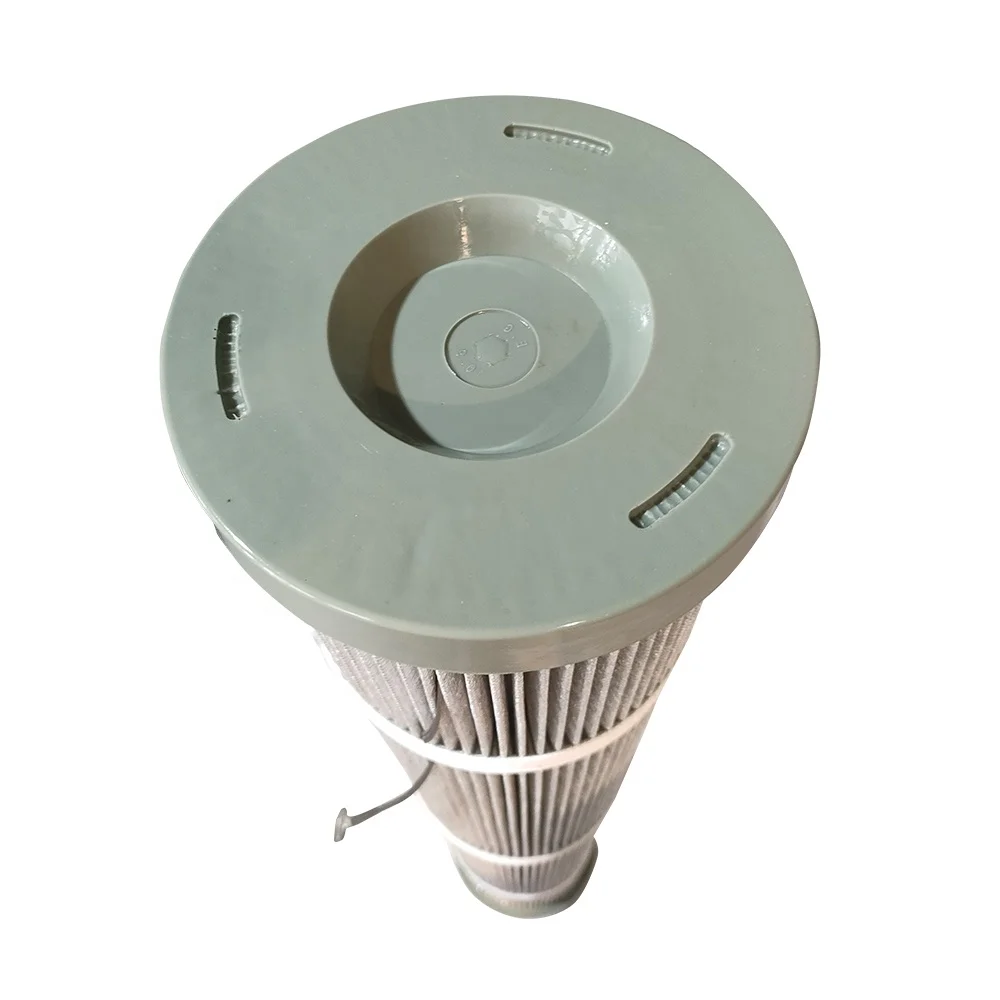

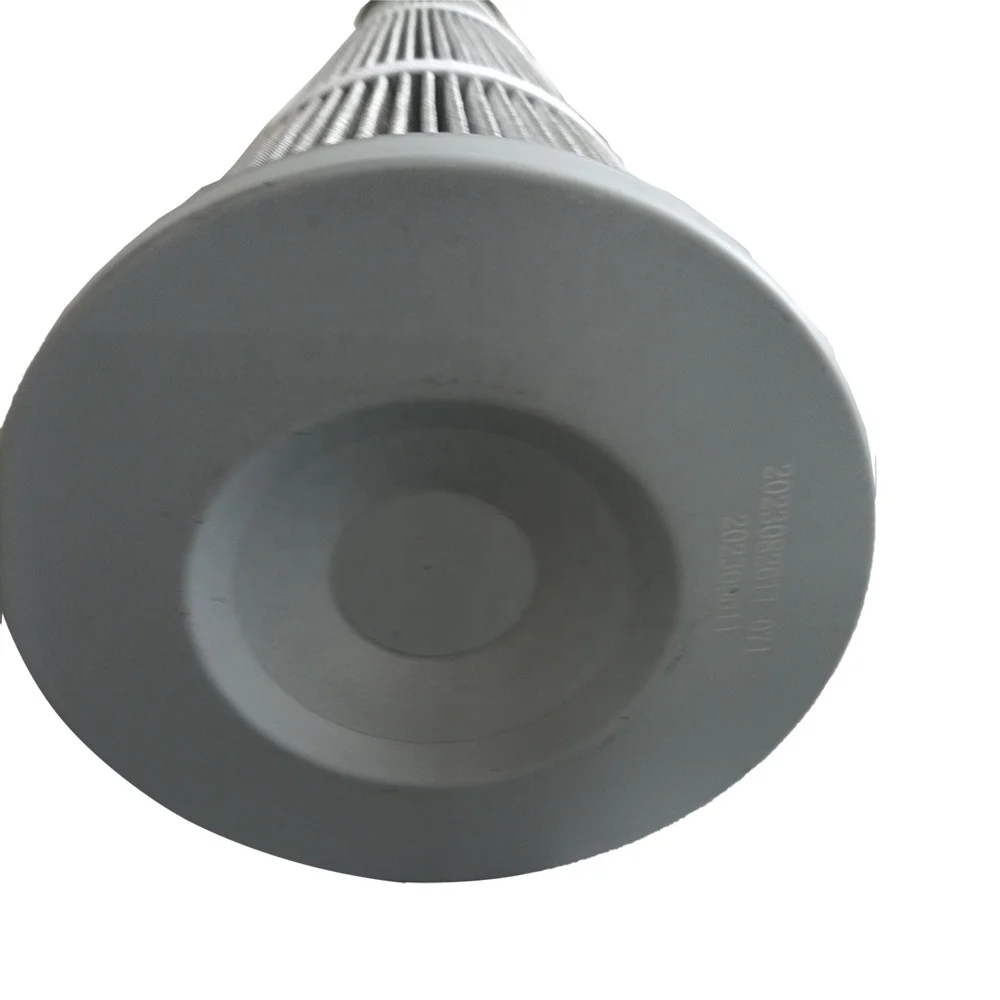

2024 Farrleey UOXXON series CSG150120 oil and waterproof anti static polyester fiber cartridge filter
- Category: >>>
- Supplier: Guangzhou Farrleey Filtration Co. Ltd.
Share on (1601055572071):
Product Overview
Description
Specification
2024 Farrleey UOXXON series oil and waterproof anti-static polyester fiber hepa filter | ||||||
Model | Size of filter(mm) | Cell Plate hole size(mm) | Filter area(㎡) | |||
CSG080120 | Ø120*800 | 118-126 | 1.1 | |||
CSG090120 | Ø120*900 | 118-126 | 1.3 | |||
CSG100120 | Ø120*1000 | 118-126 | 1.4 | |||
CSG150120 | Ø120*1500 | 118-126 | 2.1 | |||
CSG100130 | Ø130*1000 | 128-136 | 1.8 | |||
CSG200130 | Ø130*2000 | 128-136 | 3.6 | |||
CSG240130 | Ø130*2400 | 128-136 | 4.3 | |||
CSG300130 | Ø130*3000 | 128-136 | 5.4 | |||
CSG200150 | Ø150*2000 | 148-155 | 4.6 | |||
CSG240150 | Ø150*2400 | 148-155 | 5.5 | |||
CSG300150 | Ø 150*3000 | 148-155 | 6.9 | |||
CSG200160 | Ø160*2000 | 155*168 | 4.6 | |||
CSG240160 | Ø160*2400 | 155*168 | 5.5 | |||
CSG300160 | Ø160*3000 | 155*168 | 6.9 | |||
CSG350160 | Ø160*3500 | 155*168 | 8.0 | |||

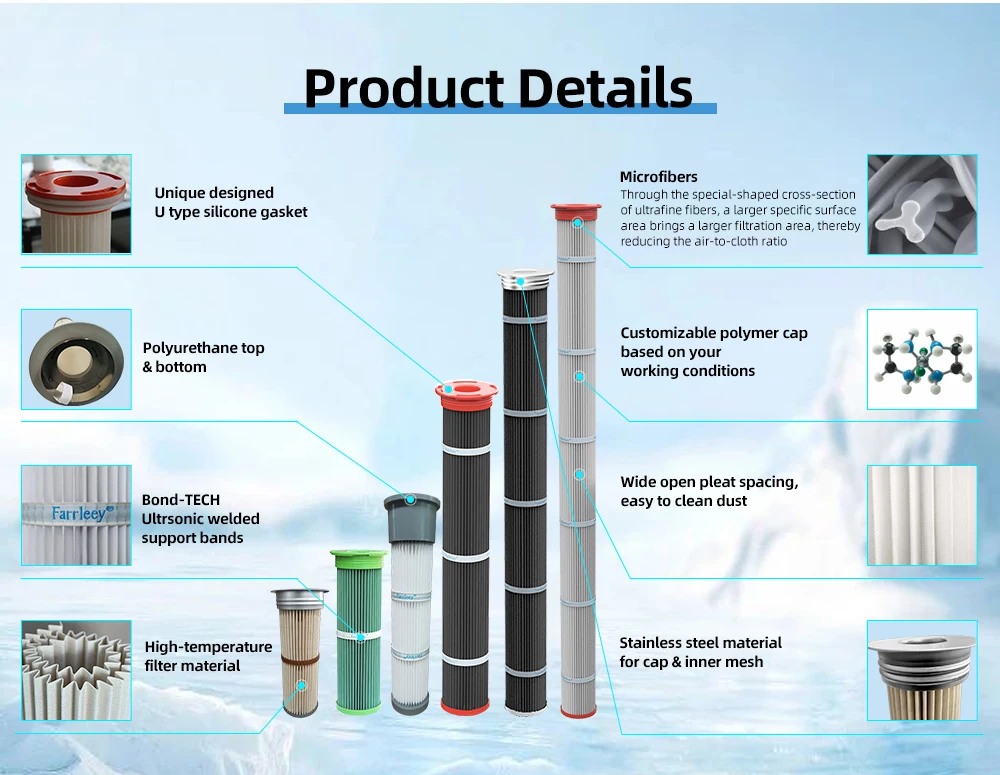

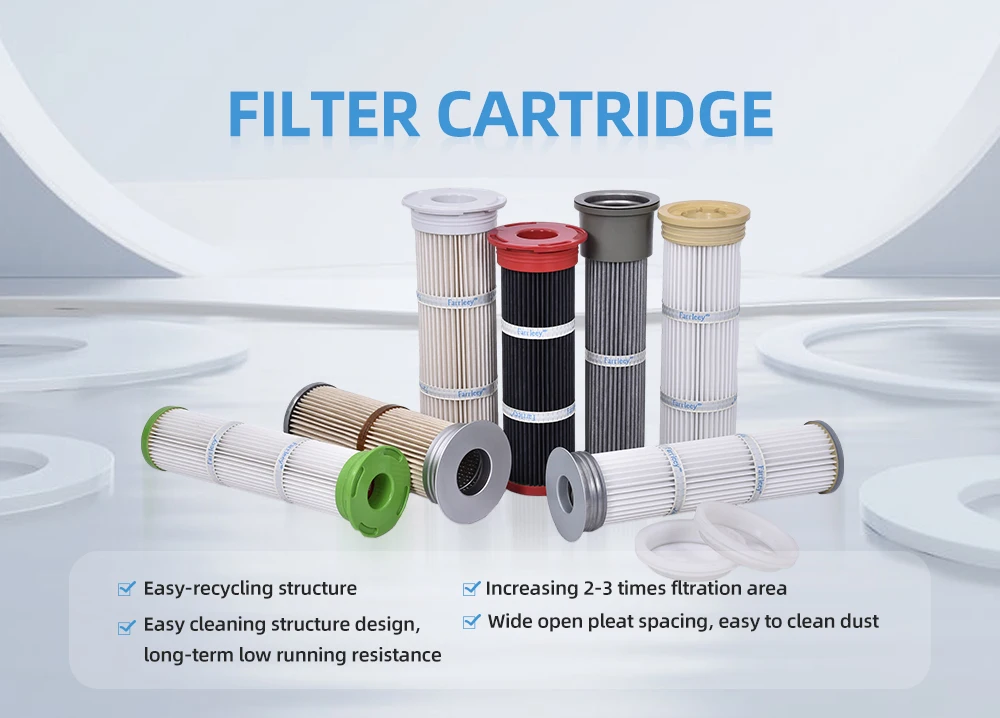

Product characteristics of Farrley UOXXON filter cartridges
Original easy to recycle structure.
Energy-saving functional e-PTFE film, high efficiency and low resistance.
The hot melt technology with equal distance of binding, cleaning ash without dead Angle.
Original card slot, U-shaped design seal ring.
The filter area is 3 to 4 times larger than the filter bag.
Optional galvanized, stainless steel, silicone or PU glue, polymer and other materials of the head and bottom cover.
Optional galvanized, stainless steel, PP, polymer and other materials of the inner mesh.
Energy-saving functional e-PTFE film, high efficiency and low resistance.
The hot melt technology with equal distance of binding, cleaning ash without dead Angle.
Original card slot, U-shaped design seal ring.
The filter area is 3 to 4 times larger than the filter bag.
Optional galvanized, stainless steel, silicone or PU glue, polymer and other materials of the head and bottom cover.
Optional galvanized, stainless steel, PP, polymer and other materials of the inner mesh.

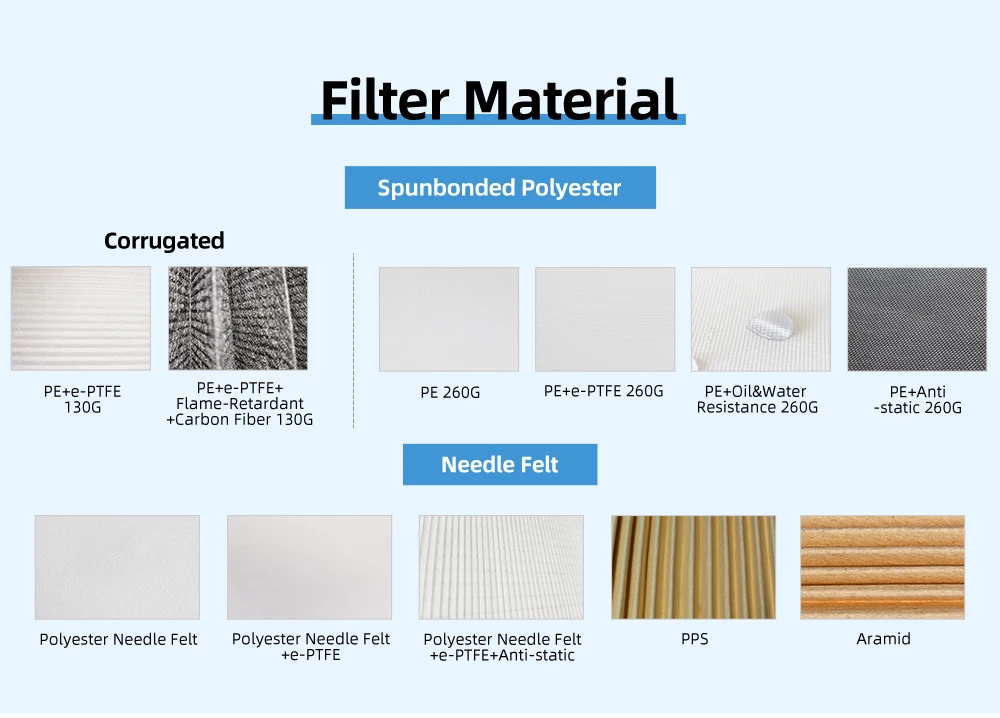

Filter media material selection of Farrley UOXXON filter cartridges
Polyester fiber filter material.
Polyester fiber filter material + oil and waterproof treatment.
Polyester fiber filter material + anti-static treatment.
Polyester filter material +ePTFE coating.
Polyester fiber filter material + anti-static +ePTFE coating.
Polyester needle felt.
Polyester fiber filter material + oil and waterproof treatment.
Polyester fiber filter material + anti-static treatment.
Polyester filter material +ePTFE coating.
Polyester fiber filter material + anti-static +ePTFE coating.
Polyester needle felt.
Q1. What is your product range?
A: Our products include filter material, dust collector cartridge filter, filter bag and other accessories.
Q2. What kinds of filter material do you have?
A: There are three standard types: spunbond polyester, needle felt and sythetic media. Please contact us for more details.
Q3. Can you advise the filter precision of the filter media?
A: Yes, normal polyester is 5 micron, we can also offer you H13 grade media with PTFE membrane.
Q4. Is your product reached the food contact grade?
A: Yes. We can offer you SGS certificate of raw material.
Q5. How about your delivery lead time?
A: Generally, under MOQ quantity take 7 working days after receiving your advance payment. The specific delivery time depends on models and the quantity of your order.
Q6. What is your sample policy?
A: We can supply sample, but the customers have to pay the sample cost and the courier cost at first. Sample cost can be refunded if you place formal orders in the future.
A: Our products include filter material, dust collector cartridge filter, filter bag and other accessories.
Q2. What kinds of filter material do you have?
A: There are three standard types: spunbond polyester, needle felt and sythetic media. Please contact us for more details.
Q3. Can you advise the filter precision of the filter media?
A: Yes, normal polyester is 5 micron, we can also offer you H13 grade media with PTFE membrane.
Q4. Is your product reached the food contact grade?
A: Yes. We can offer you SGS certificate of raw material.
Q5. How about your delivery lead time?
A: Generally, under MOQ quantity take 7 working days after receiving your advance payment. The specific delivery time depends on models and the quantity of your order.
Q6. What is your sample policy?
A: We can supply sample, but the customers have to pay the sample cost and the courier cost at first. Sample cost can be refunded if you place formal orders in the future.
