Brief Introduction of Bitumen Decanter Unit


6-10 t/h Bitumen Melting Machine,Barreled Bitumen Melting,Asphalt Drum Melting Machine For Sale



  • 20s Turning Barrel Into Mixer

  • Automatically Reverses Oil Barrel

  • Internal Circulation Function

  • Automatic Slag Removal

  • Convenient Relocation


 2.jpg3.jpg5.jpgTTFH (5).jpg (1).jpg (2).jpg (3).jpg

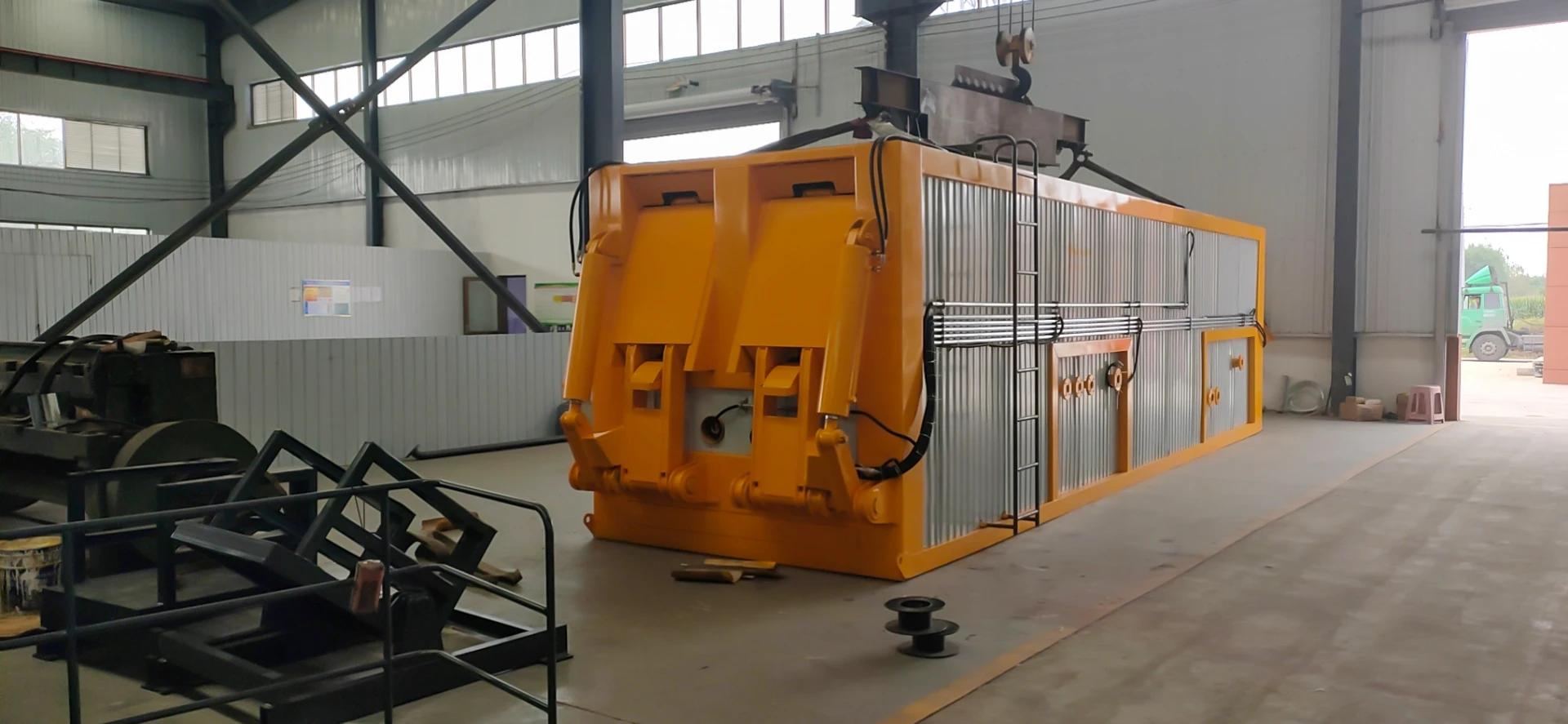

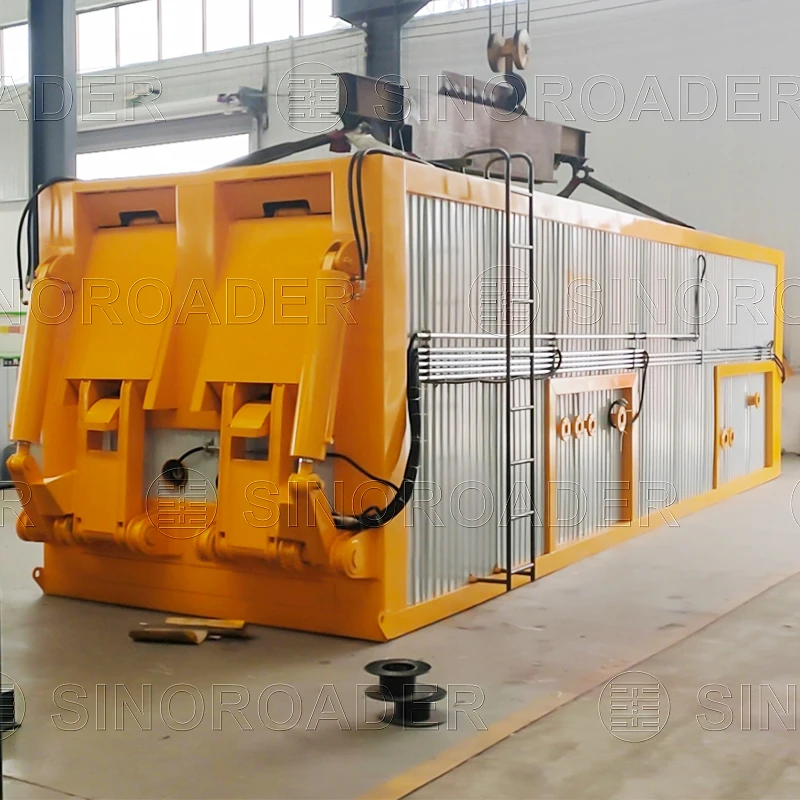

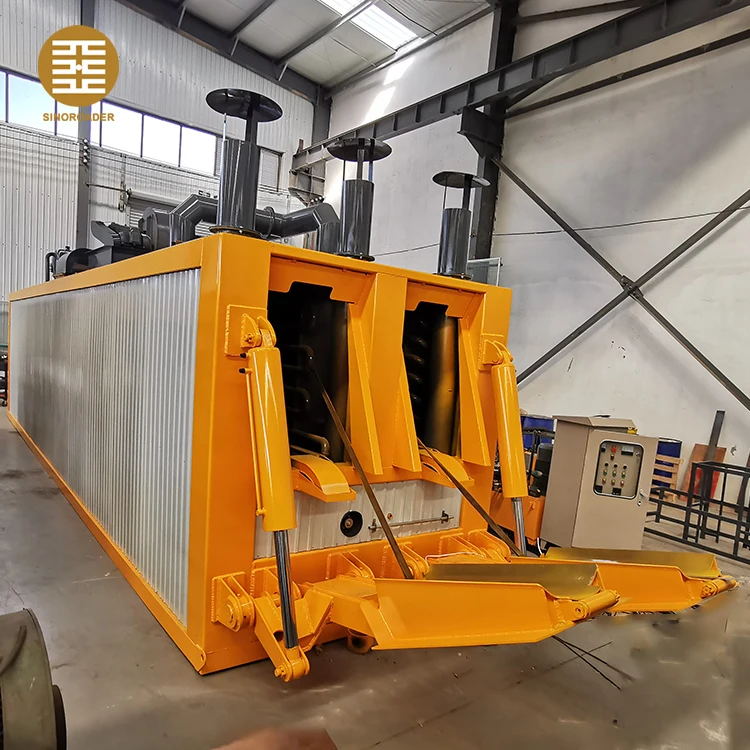

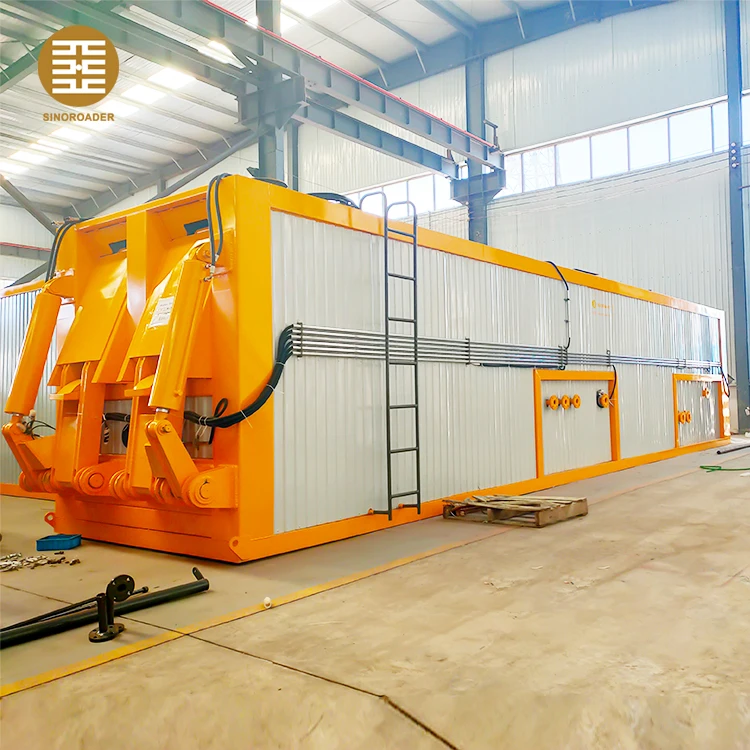

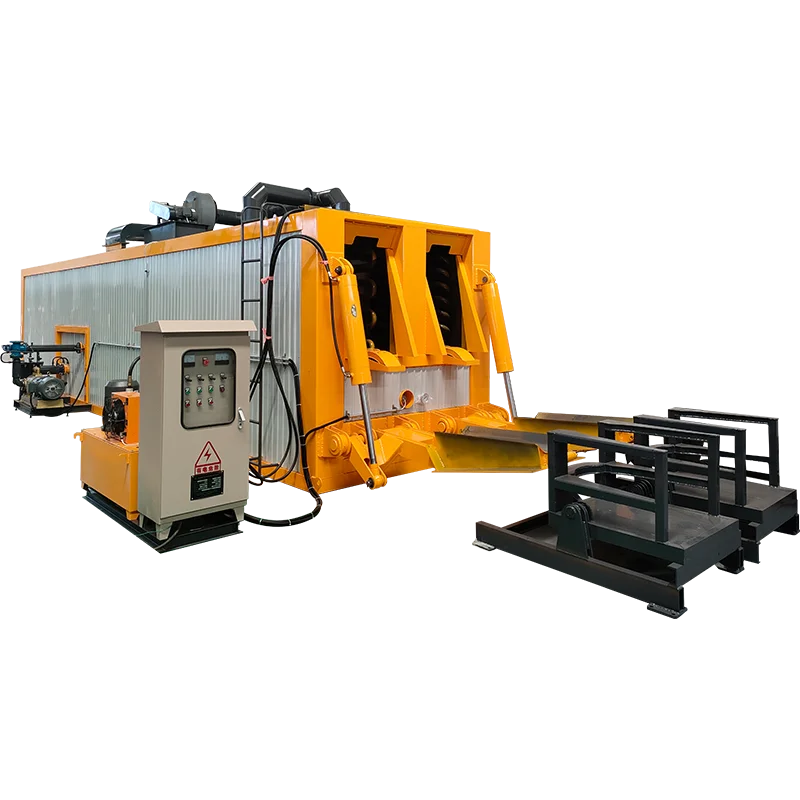

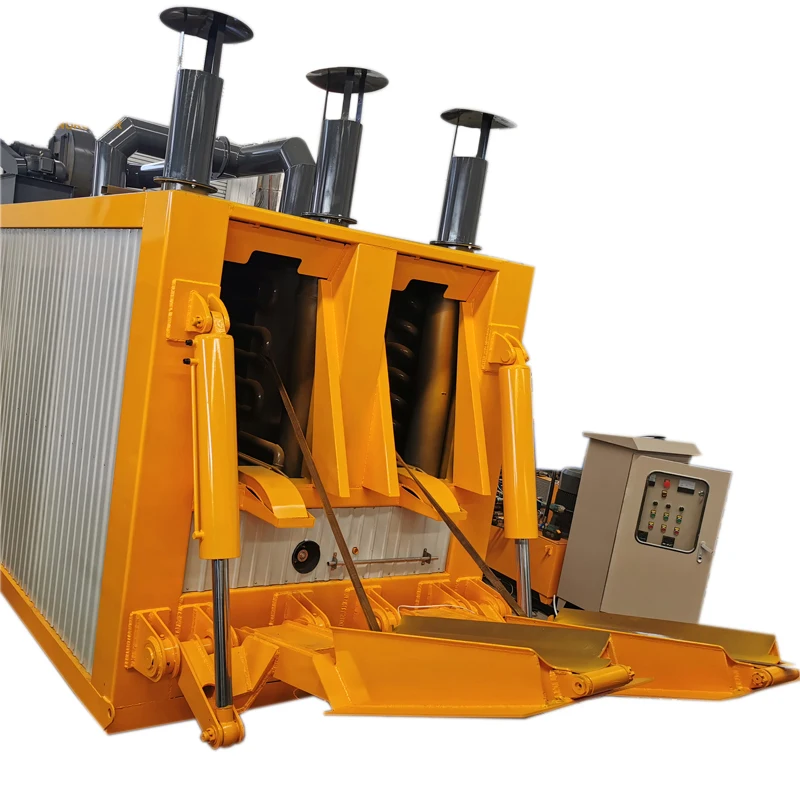

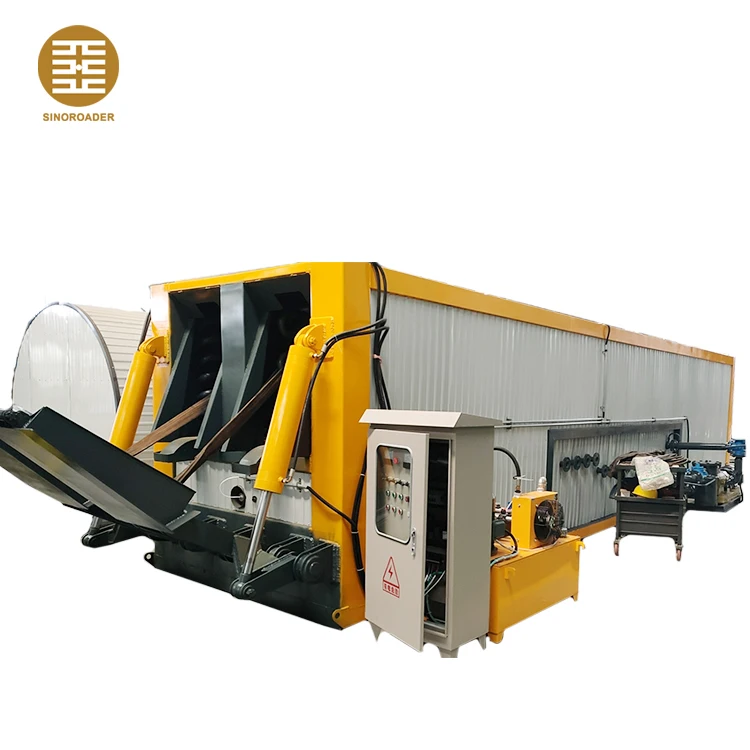

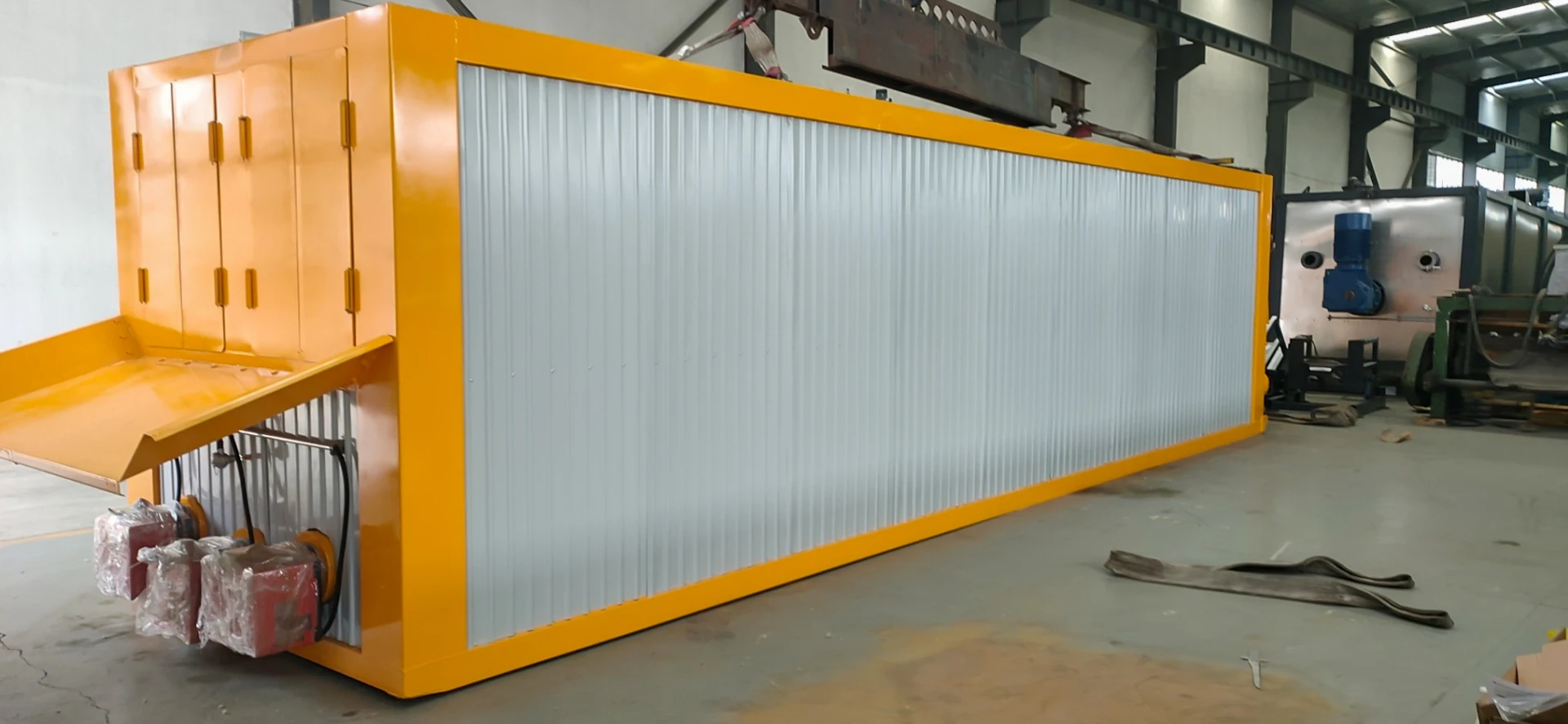

The Directly-heated Drummed Bitumen Decanter asphalt melting equipment is mainly composed of the barrel body, the  barrel platform, the  barrel turning into the barrel integrated device, the heat conducting oil heating system and the electrical control system.


China 6t/h Bitumen Melting Machine,Barreled Bitumen Melting,Asphalt Drum Melting Machine For Sale


Heating chamber consists of two compartment, upper compartment and lower compartment. There are coiled pipelines which convey heat transfer oil in the upper compartment, hot emission air of diesel burner also exhausts into the upper compartment; heat transfer oil and hot emission air work together to heat the asphalt barrel. When bitumen become melt, it drops down to lower compartment, finally the barrel is emptied. The lower compartment is a melting bitumen pool, beneath it is another compartment which has a lot of coiled heat transfer oil pipelines and a duct for the hot emission air to pass through; the heat transfer oil and hot emission air keep heating the melting bitumen until it becomes liquid; then bitumen pump starts and pump the liquid bitumen to bitumen storage tank through bitumen pipelines. Filtrating device is installed in bitumen pipelines to remove the impurities in the bitumen.

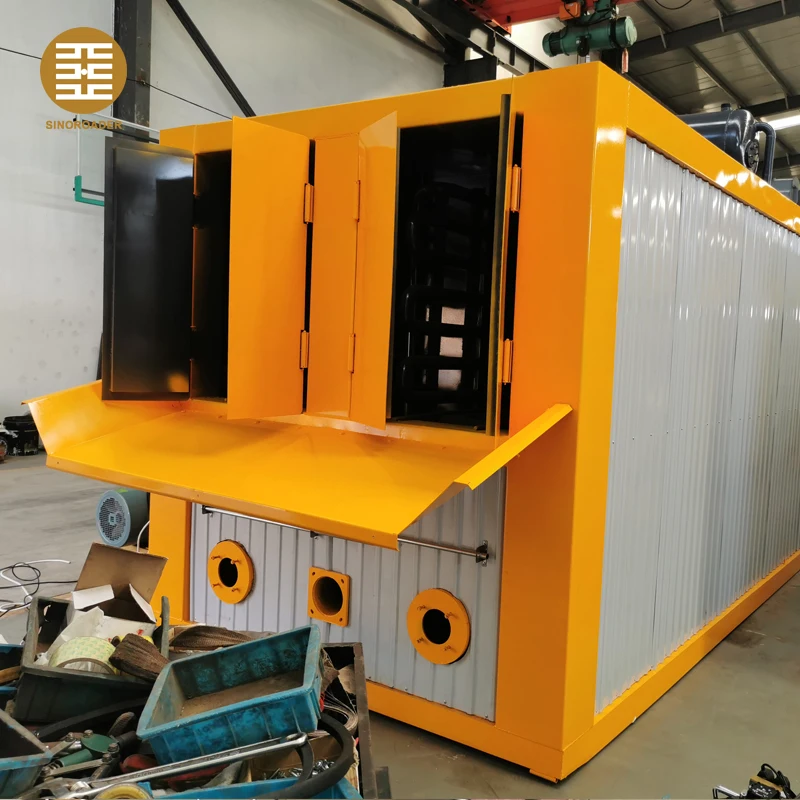

Doors on both end of the heating chamber are spring doors that are automatically shut immediately after barrels come through it. Spring doors are easy for barrels coming in and getting out, and able to minimize heat loss as well.





JIALOGO (1).jpg





Main Feature


China 6t/h Bitumen Melting Machine,Barreled Bitumen Melting,Asphalt Drum Melting Machine For Sale

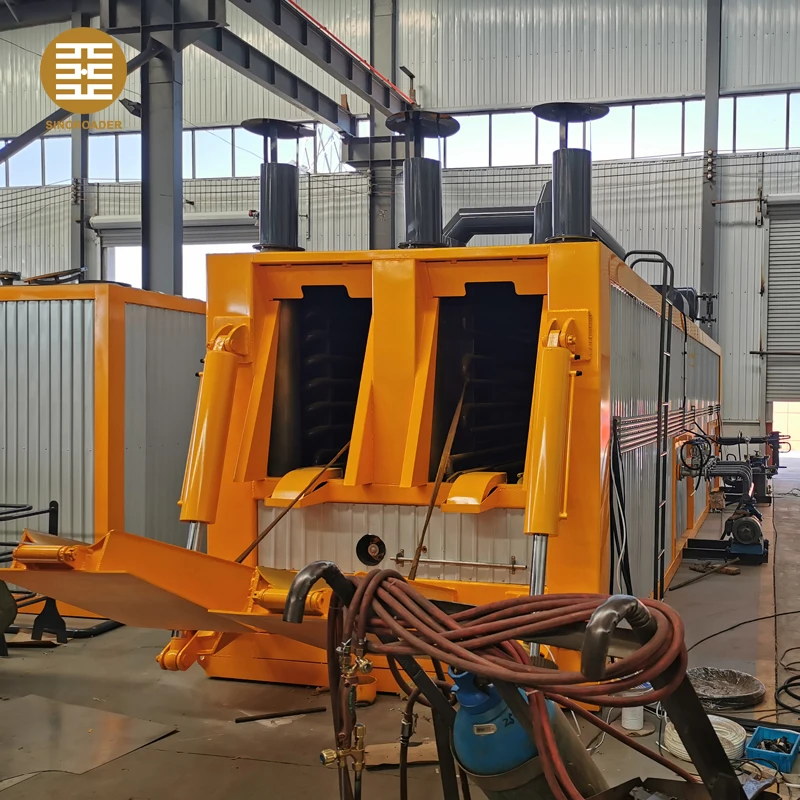

1.Turning over the barrel and turning the barrel into mixer can be completed in one time, single bitumen decanting process takes less than 20s.
2.The machine automatically reverses the oil barrel instead of manually turning over the oil barrel, which greatly reduces the labor intensity of the workers.
3.The bitumen pump set has an internal circulation function to optimize the heat transfer coefficient and increase the bitumen melting speed.
4.The electrical operating system uses in both manual and automatic ways.
5.Hydraulic cylinder speed can be adjusted according to actual needs.
6.Automatic slag removal: The equipment has automatic slag removal function. The asphalt pipeline system is provided with a filtering device, which can automatically remove the slag of the barreled bitumen through the filtration of the filter.
7.Environmental protection: closed structure, no pollution.
8.Adaptability: It can be customized according to various sizes of asphalt drums.

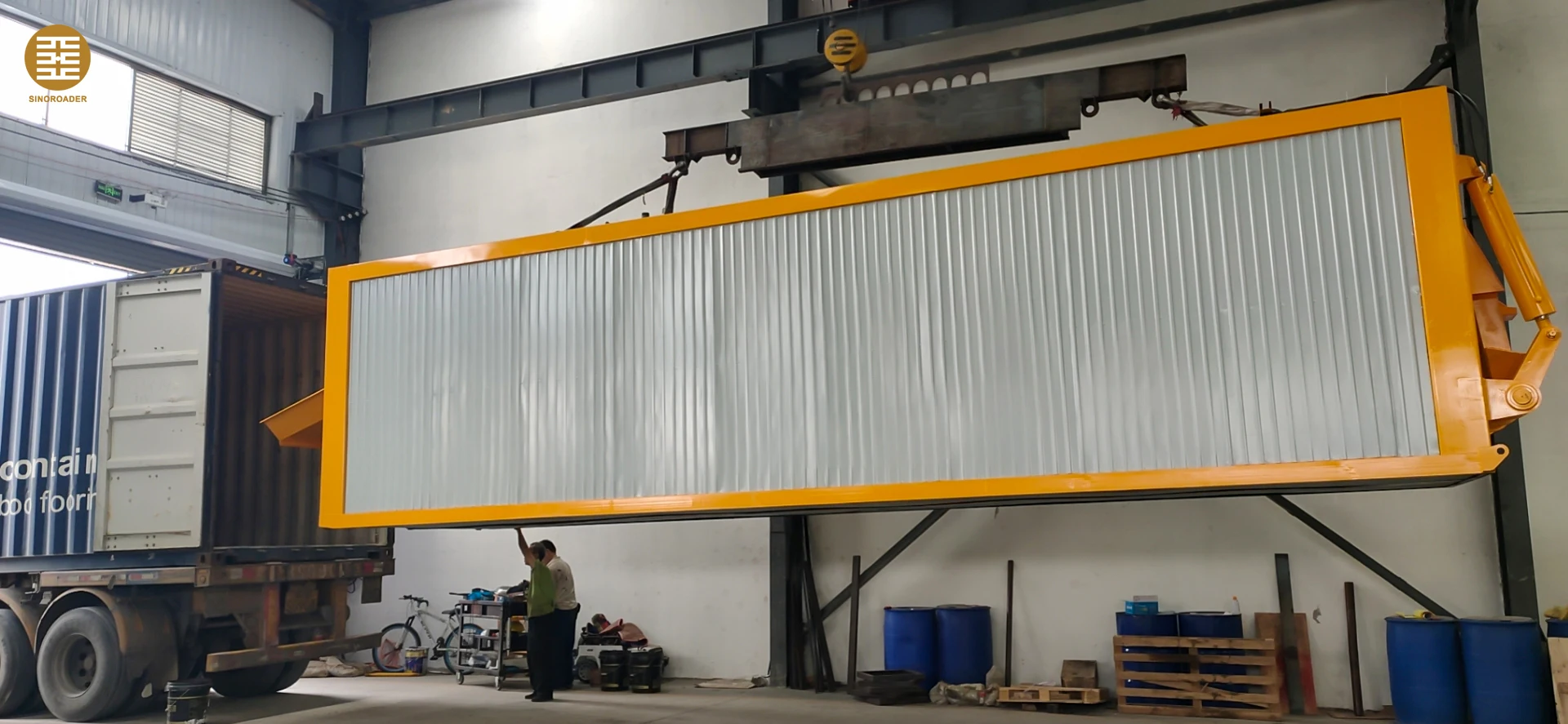

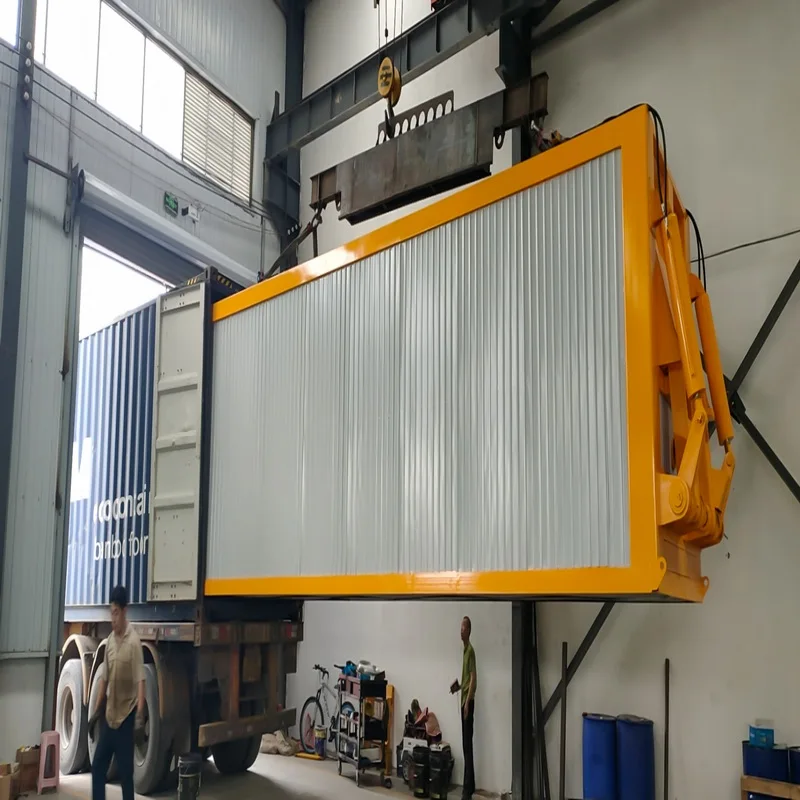

9.Convenient relocation: The whole machine adopts modular design and compact structure, which is convenient for relocation and quick assembly.












Sinoroader | Barrel-melting Body Bitumen

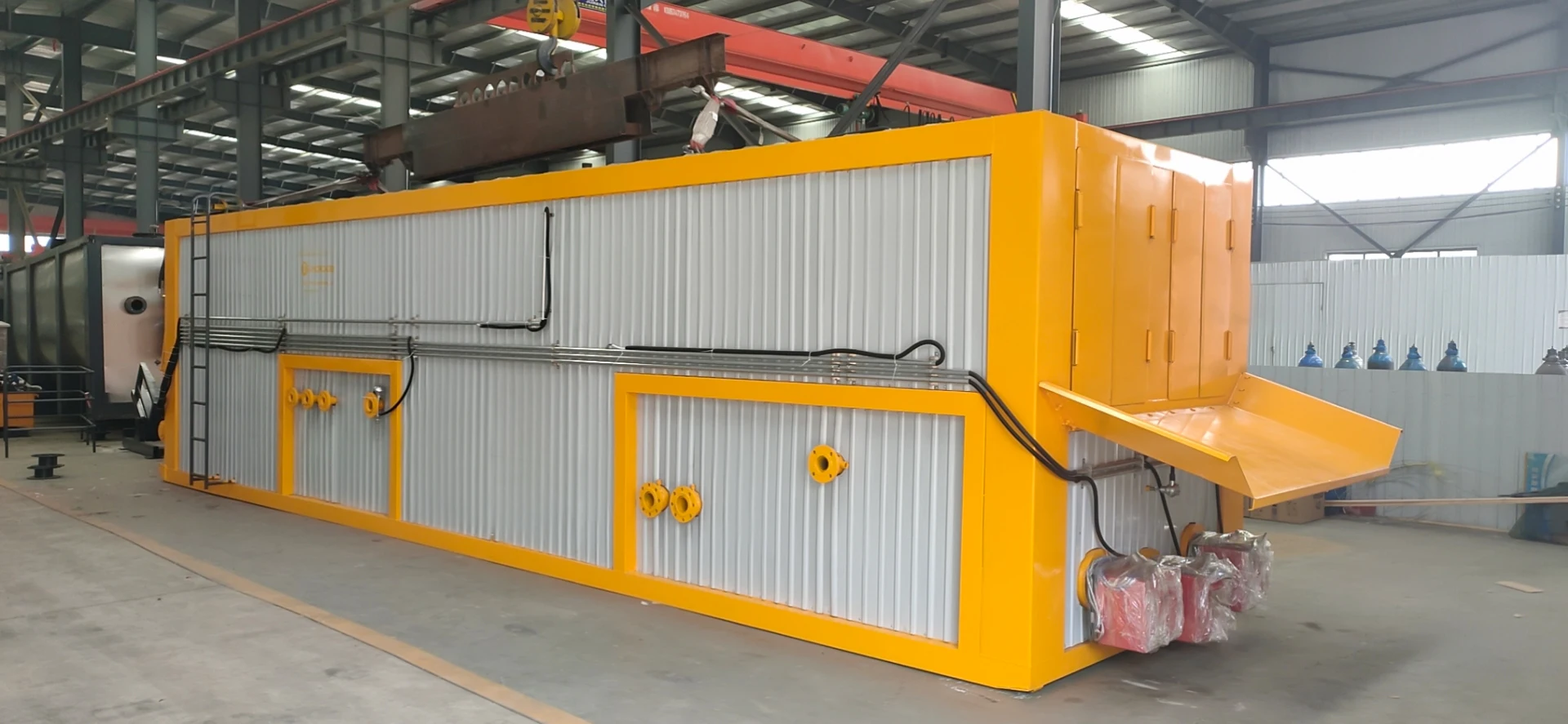

In order to ensure the heat-dissipation efficiency and prevent heat loss,the device is completely insulated with 100 mm rock wool.
The inside of the equipment is divided into upper and lower rooms. The upper room is for heating the bitumen barrel. The upper chamber temperature is kept at about 70 degrees.The bitumen in the barrel is softened by heat and flows out to the lower chamber of the equipment. The melted bitumen continues to be heated in the lower chamber to pumping temperature (120℃).








8.jpgSinoroader | Bitumen Heating system
In the hot oil heating bitumen decanter ,all the heating of the bitumen is done by thermal oil; the equipment with the burner, the heating of the bitumen barrel is completed by the thermal oil, and the heating of the melted bitumen is through the hot steam generated by the burner.

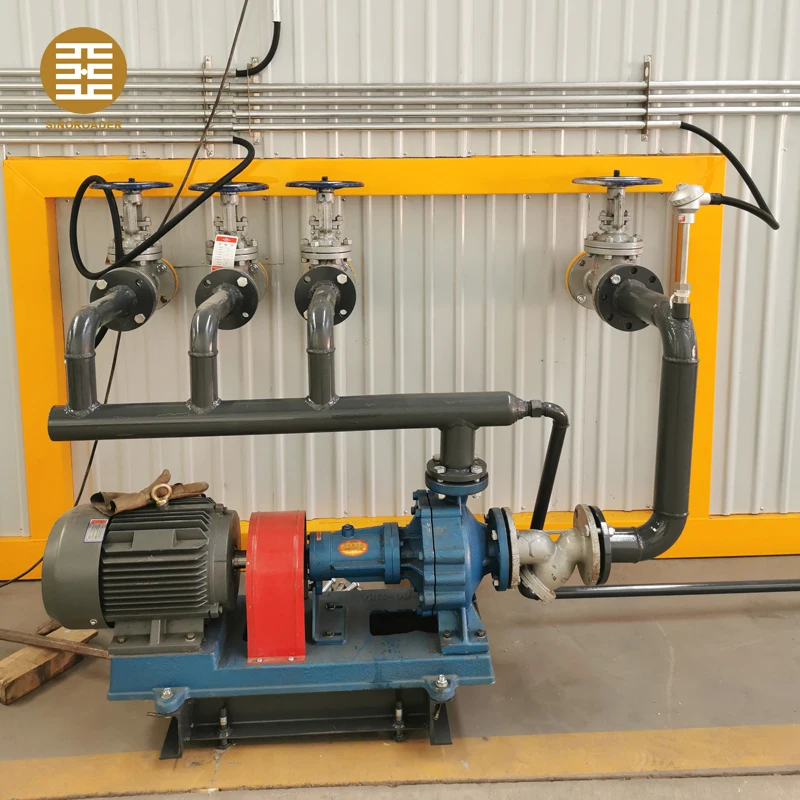

Sinoroader | Pump Set and Asphalt Piping System

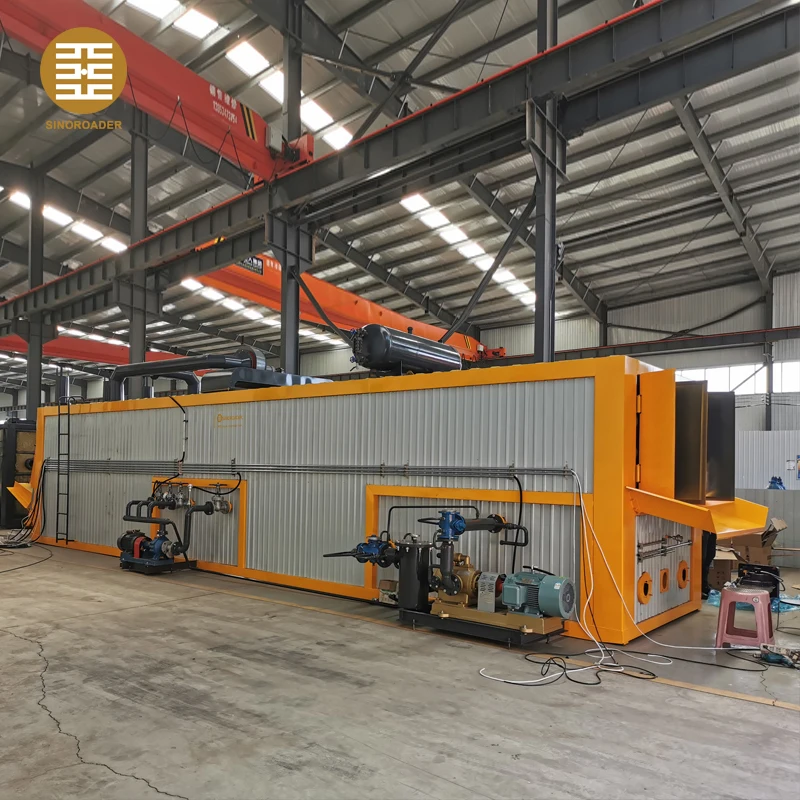

The asphalt pump set adopts a screw pump, and cooperates with the heat preservation three-way valve to complete the pumping and internal circulation functions. In the asphalt pipeline system, a filtering device is provided to automatically remove the barreled asphalt slag. The burner heating device is equipped with a heat-conducting oil pump to accelerate the heat-conducting oil circulation and accelerate the heat exchange rate between the heat-conducting oil on the upper part of the equipment and the asphalt drum.




Technical Parameters













































Productivity(t/h)



4-6



6-8



8-10



Capacity of Melting Pool(m³)



9



14



20



Qty of Barrels Accommodated



18



28



48



Qty of Rails



2 pairs



2 pairs



3 pairs



Overall Dimension (L*W*H)



9.1×2.2×2.55m



12×2.2×2.55m



13.14×2.4×2.6m



Total Power(kW)



15



17



19
