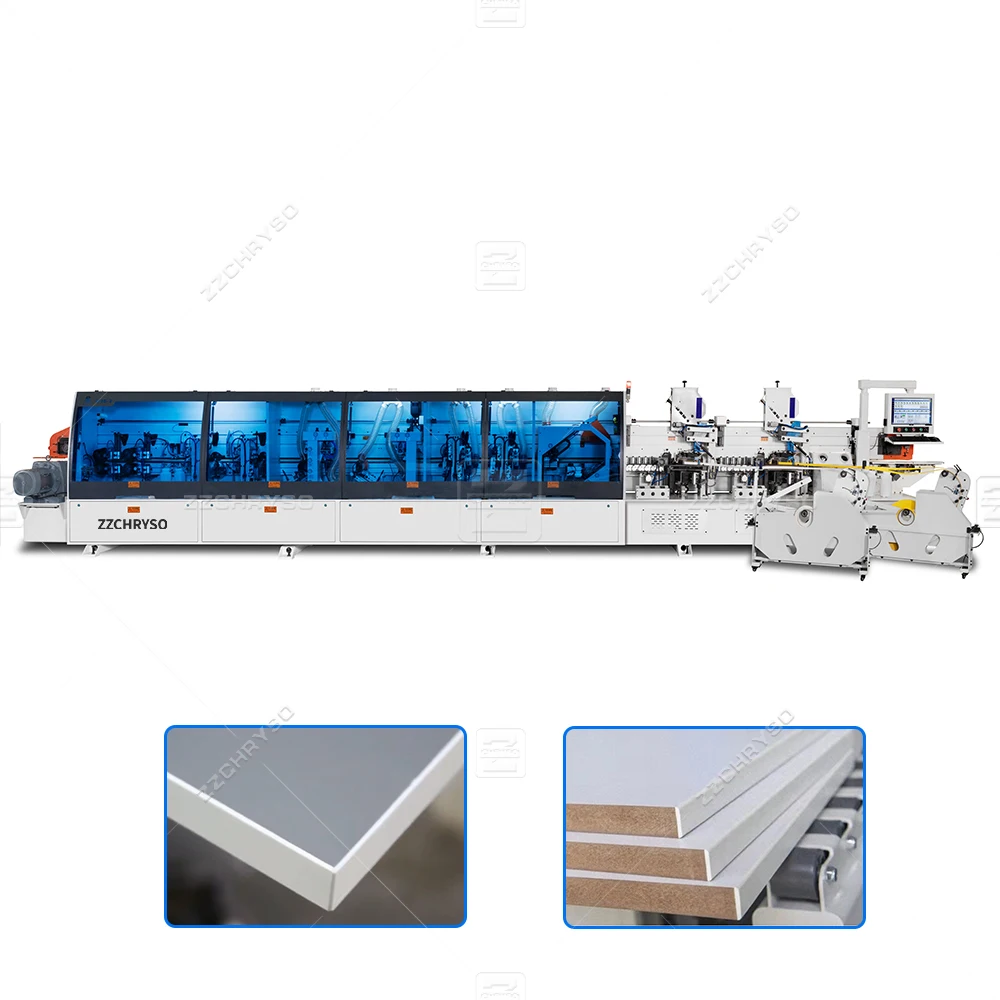

Wood furniture automatic edge banding machine woodworking curve edge banding machine for mdf doors
- Category: >>>
- Supplier: Zhengzhou Chryso Machinery Equipment Co. Ltd.
Share on (1601055956367):
Product Overview
Description
Product Description
Edge banding machine is used to cover the exposed sides of materials such as plywood, particle board or MDF, giving the appearance of a solid or more valuable material.These boards is widely used in banding edge of desks, cabinet, wardrobe and straight line furniture.The edge materials can be PVC, melamine, wood based works and so on.

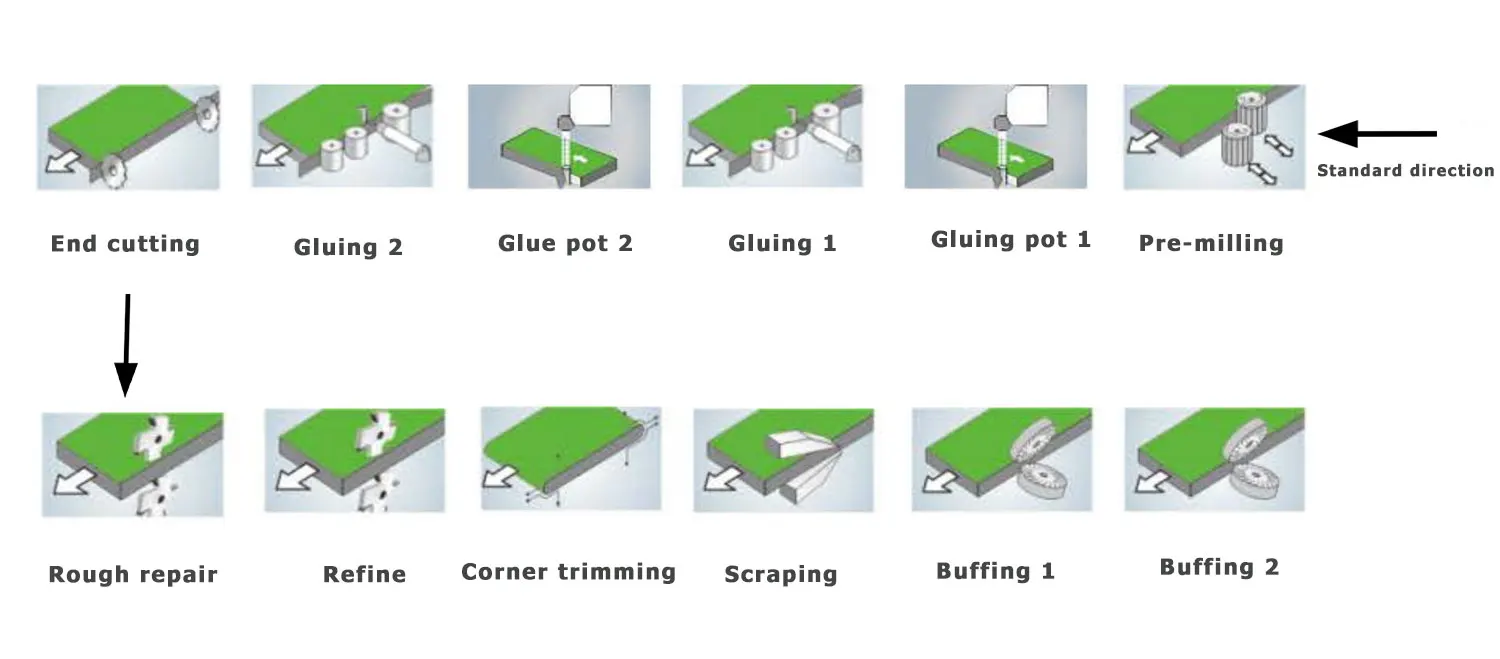

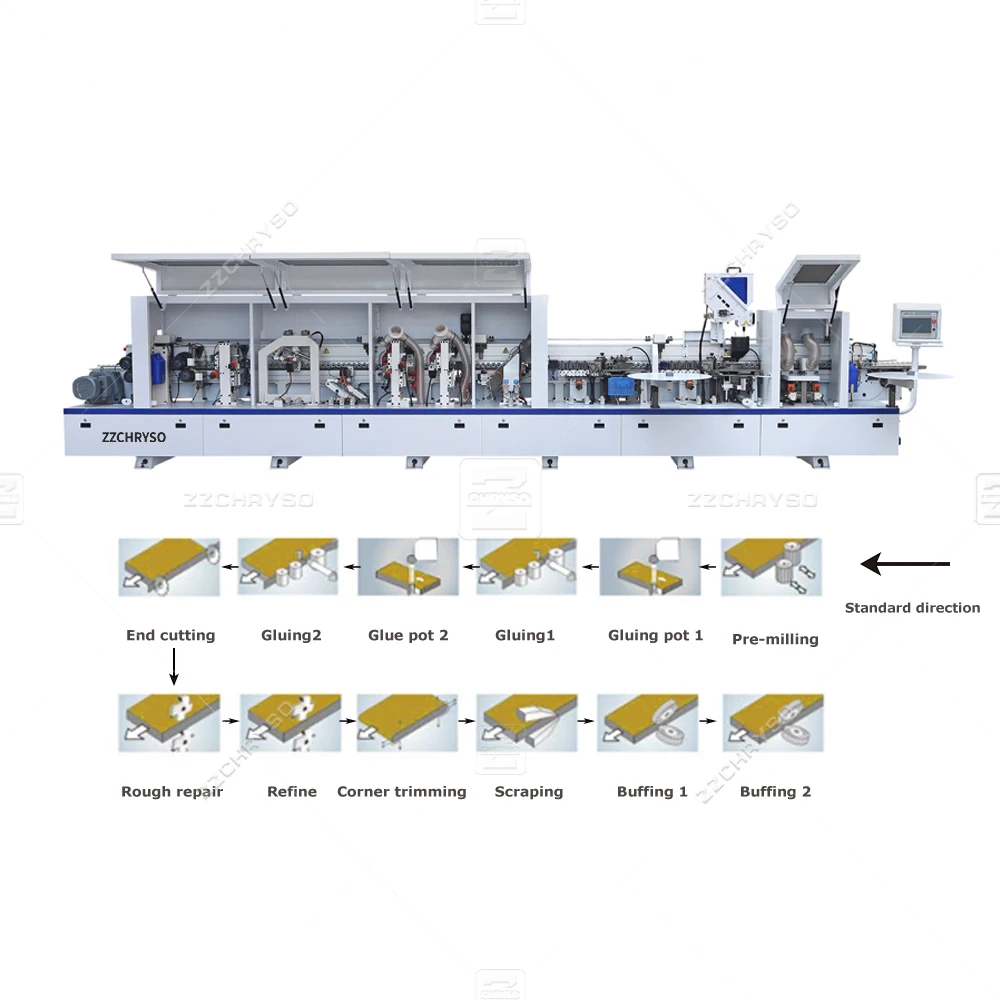

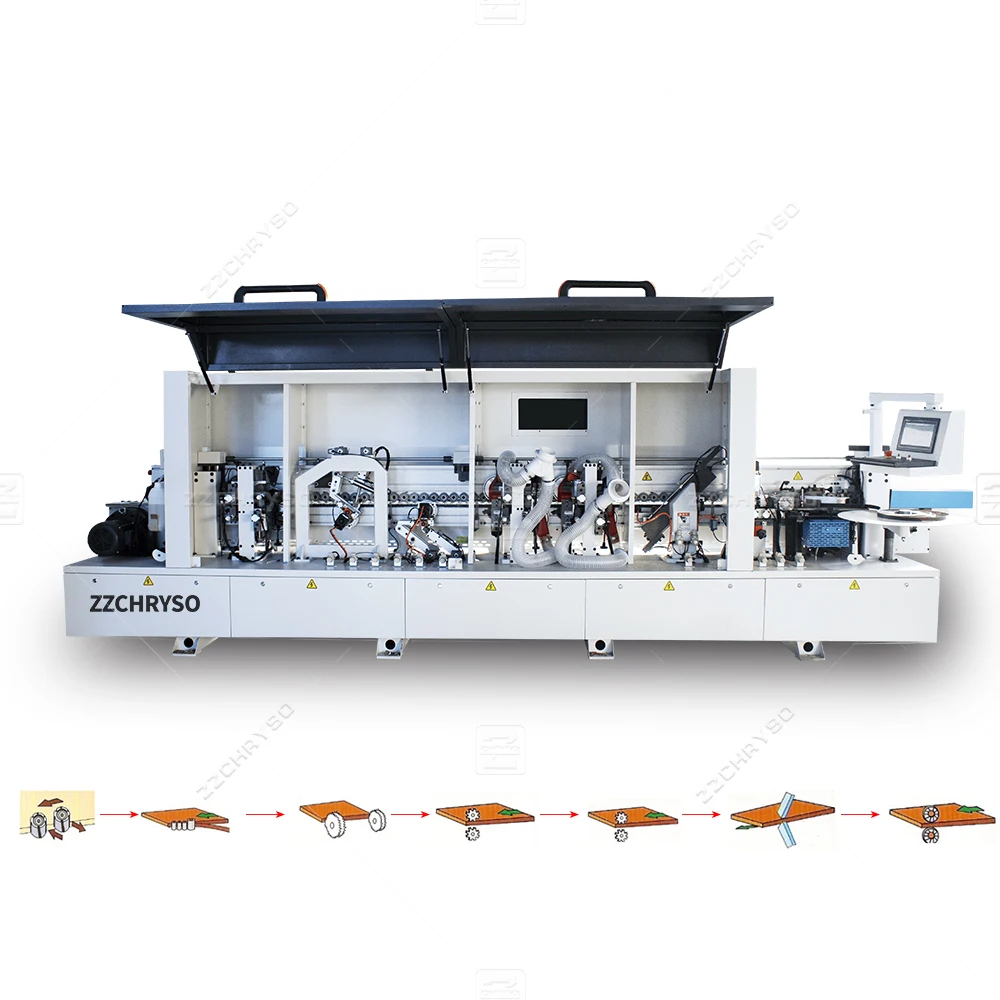

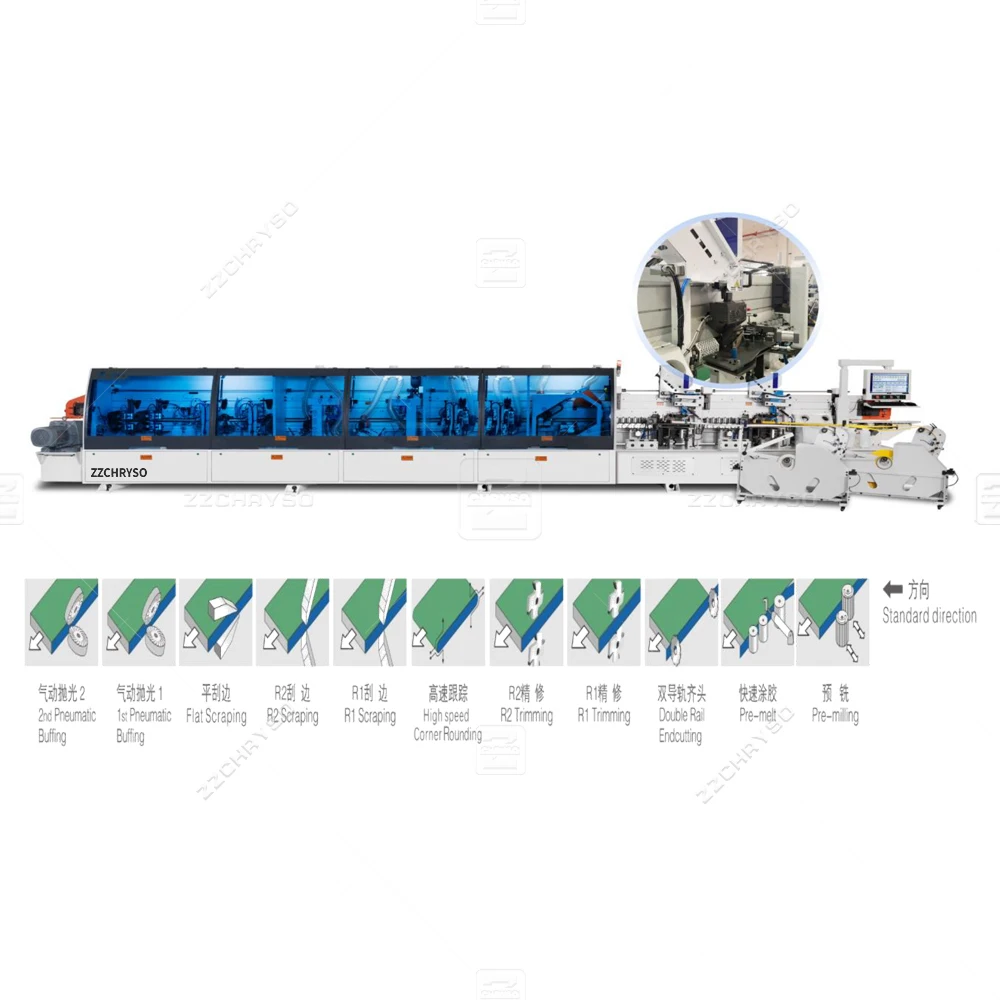

Work Steps

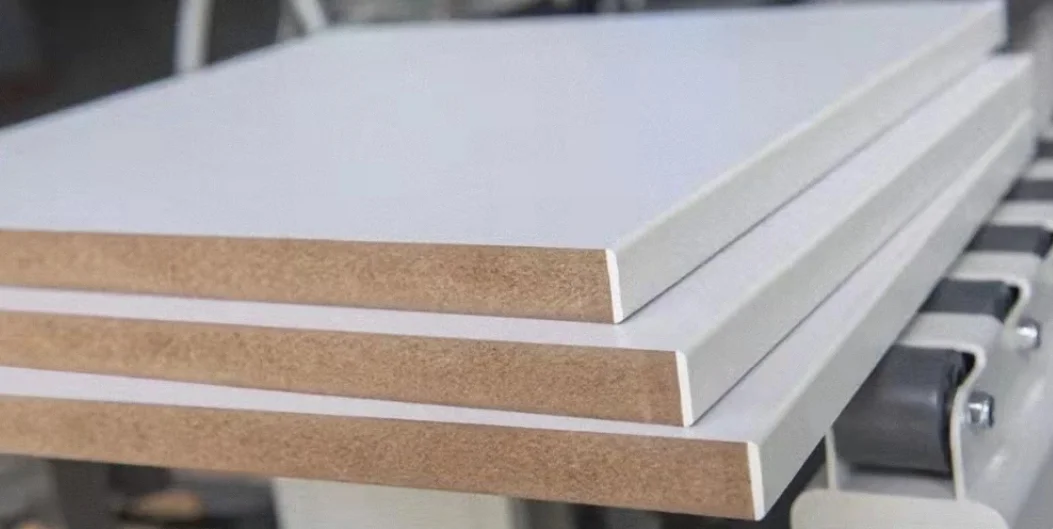

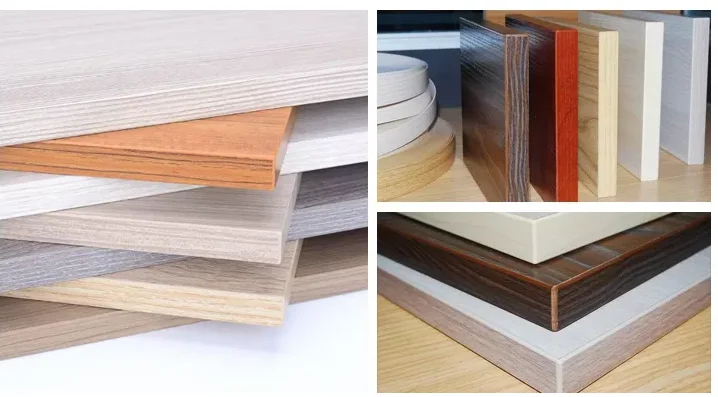

Edge banding effect display
Features:
1. Adopts patent designed appearance, reasonable engineering designed structure, brings you the safe and convenient operation of workers.
2. Adopts imported famous brands of key components.
3. Adopts precisely processed heavy-duty type frame and mechanical parts to ensure the stability and durability of machine.
4. Adopts electric pressure beam for ascending and descending by touch screen control.
5. Optional configurations are available to meet different production requirements.
6. Machine controlled by encoder and limited switch, failures can be highly reduced to ensure a smooth and rapid edge banding process. Remaining edge band can be also accurately controlled.
1. Adopts patent designed appearance, reasonable engineering designed structure, brings you the safe and convenient operation of workers.
2. Adopts imported famous brands of key components.
3. Adopts precisely processed heavy-duty type frame and mechanical parts to ensure the stability and durability of machine.
4. Adopts electric pressure beam for ascending and descending by touch screen control.
5. Optional configurations are available to meet different production requirements.
6. Machine controlled by encoder and limited switch, failures can be highly reduced to ensure a smooth and rapid edge banding process. Remaining edge band can be also accurately controlled.
Application
Specification
Model | CRS-51 | CRS-53KS | CRS106 | CRS-831 (double glue box） | CRS209TAS (double glue pot） |
Total power | 12kw | 21kw | 18.8kw | 20KW | 23.04KW |
Feeding speed | 18-20- 23 m/min | 18-20- 23 m/min | 18m-26m/min (three speed) | 18m-26m/min (three speeds) | 18m-28m/min (feed speed 25 m/min when using tracking) |
Edge strip thickness | 0.4-3mm | 0.4-3mm | 0.4-3mm | 0.4-3mm | 0.4-3mm |
Workpiece thickness | 9-50mm | 9-50mm | 10 - 60 mm | 10 - 60 mm | 10 - 60 mm |
Workpiece length | ≥ 100mm | ≥150mm | 150 mm (230mm when pre-milling) | 150 mm (230mm when pre-milling) | 150 mm (≥250mm when pre-milling) |
Workpiece width | ≥60mm | ≥60mm | ≥60mm | ≥60mm | ≥60mm |
Working air pressure | 0.7Mpa | 0.7Mpa | 0.65Mpa | 0.6Mpa | 0.6Mpa |
Equipment size | 5800*720* 1600mm | 8110*720* 1610mm | 5760*871* 1730 mm | 9750*871* 1730 mm | 10600*1000* 1670mm |

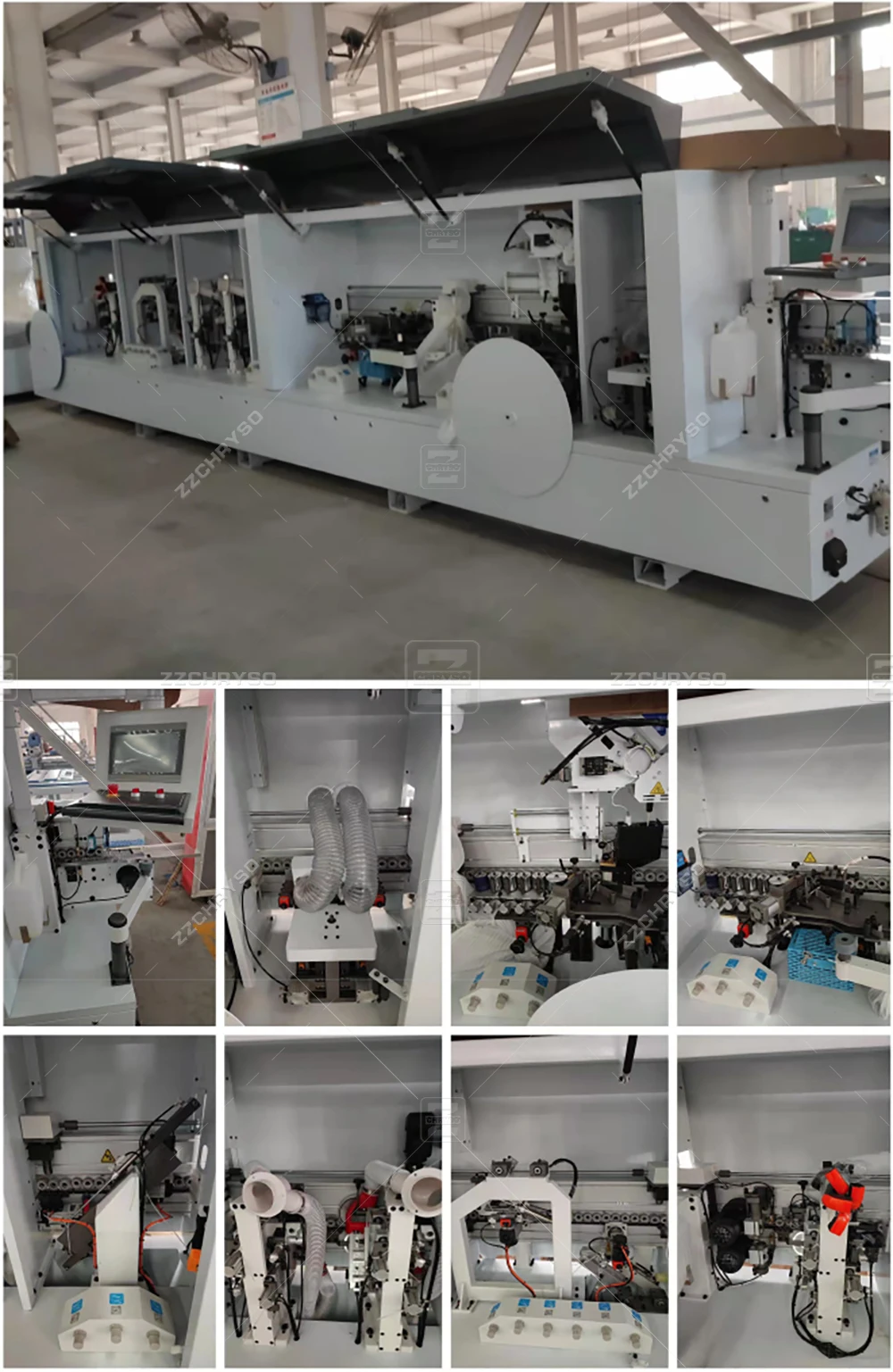

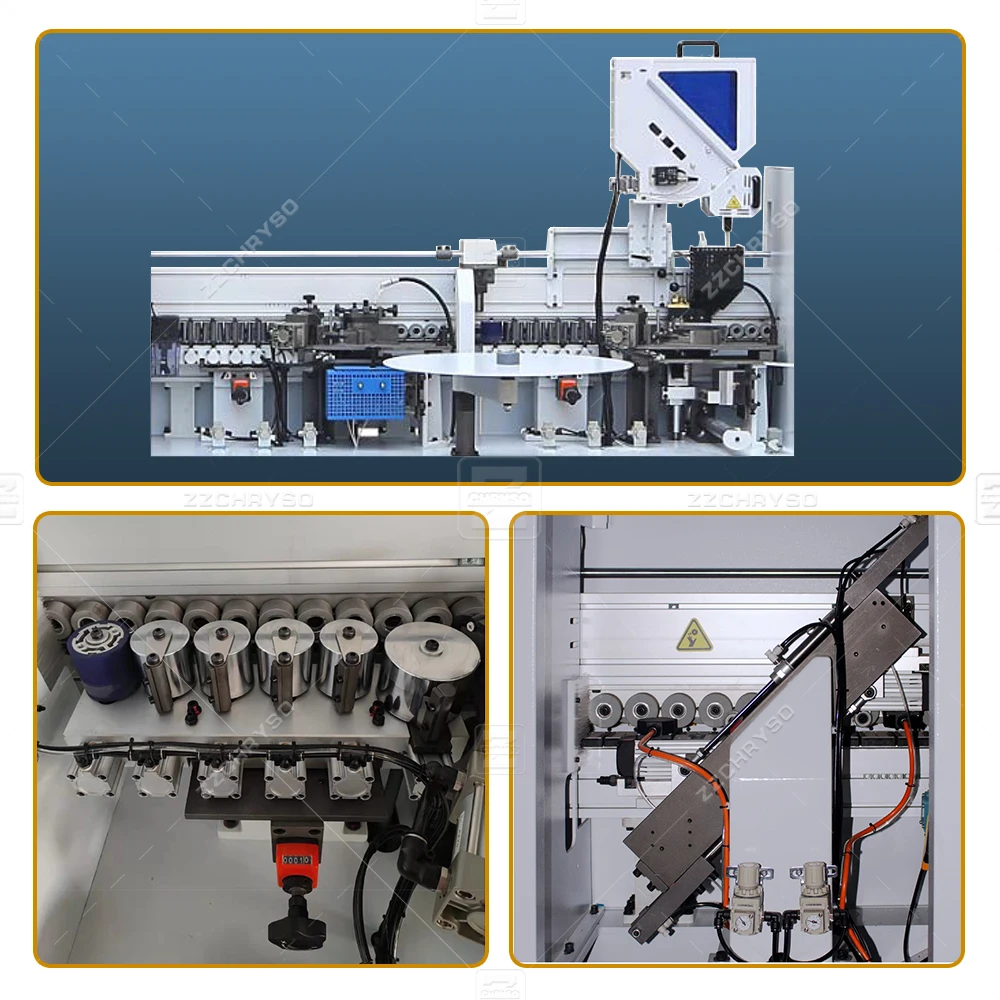

Details Images
Pre Milling
After the iron cutting by the milling mechanism, various defects on the processed surface can be removed, so that the edge banding can reach the best state.
Automatic gluing system (optional)
Automatic glue adding function, timely and automatic glue supply, to ensure the normal operation of the equipment.

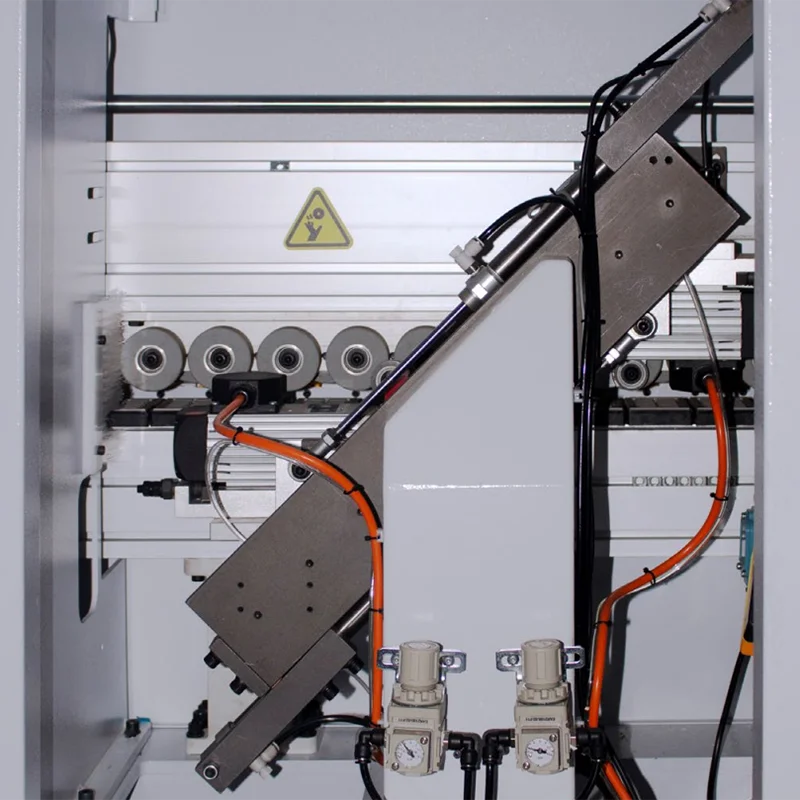

Six pressure rollers
The pressing force is strong, the edge banding is more suitable, and the excess hot melt glue is scraped off the board, so that the glue line is smaller and the edge banding effect is more perfect.
Fast edge trimming
Quickly cut front and rear edge bands with two saw blades aligned front and back to achieve high precision and high efficiency.

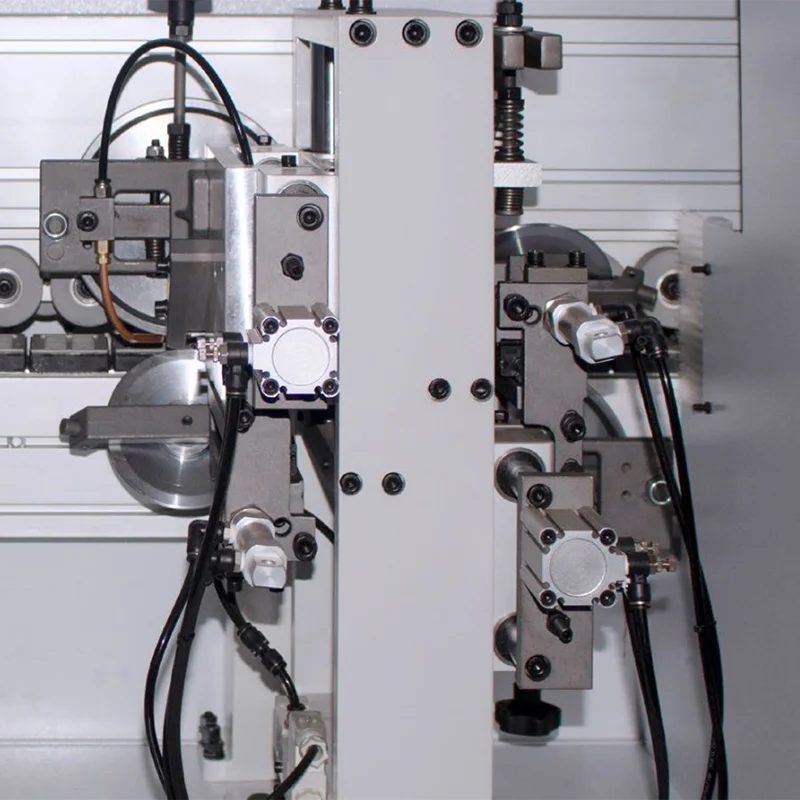

Rough repair + fine repair
Repair and remove the upper and lower excess parts of the edge banding of the processed board, and use the Die automatic follow and high-frequency high-speed motor and other mechanisms to ensure trimming The top and bottom of the board are flat and smooth.
Dual Track Trimming
Profile tracking trimming, up and down rounding device can make the end face of the plate It is smoother and more beautiful, improving production efficiency and edge banding effect.
Scraping
It is used to remove the ripple marks caused by the non-linear motion cutting process of trimming, so as to make the upper and lower parts of the board more smooth and tidy.
Polishing
Clean the processed board with a cotton polishing wheel to remove excess glue, Polish the edge to a smoother finish.

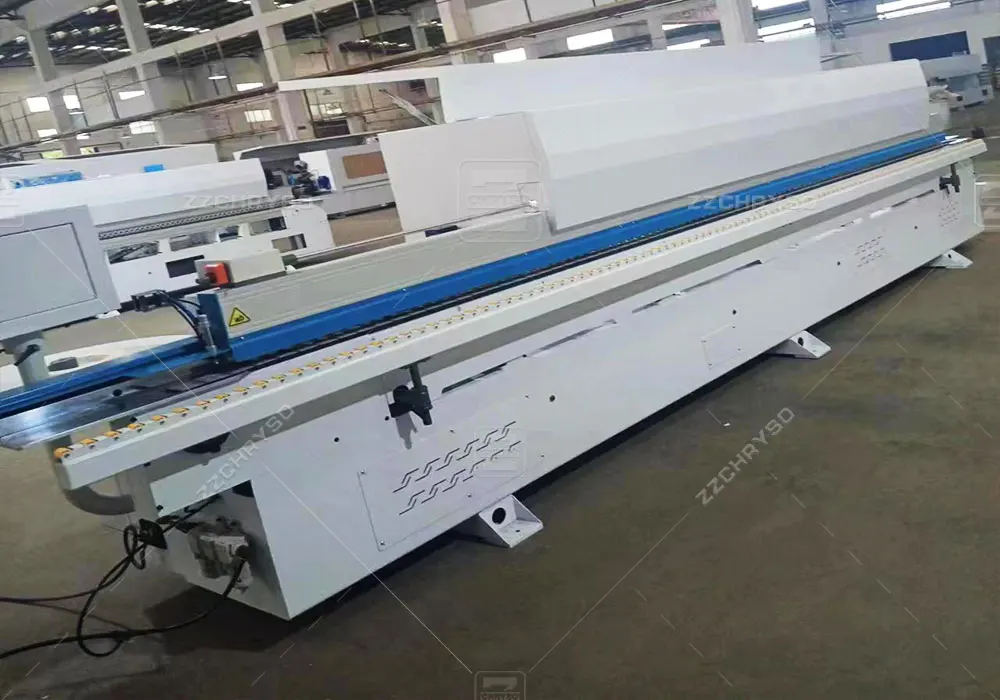

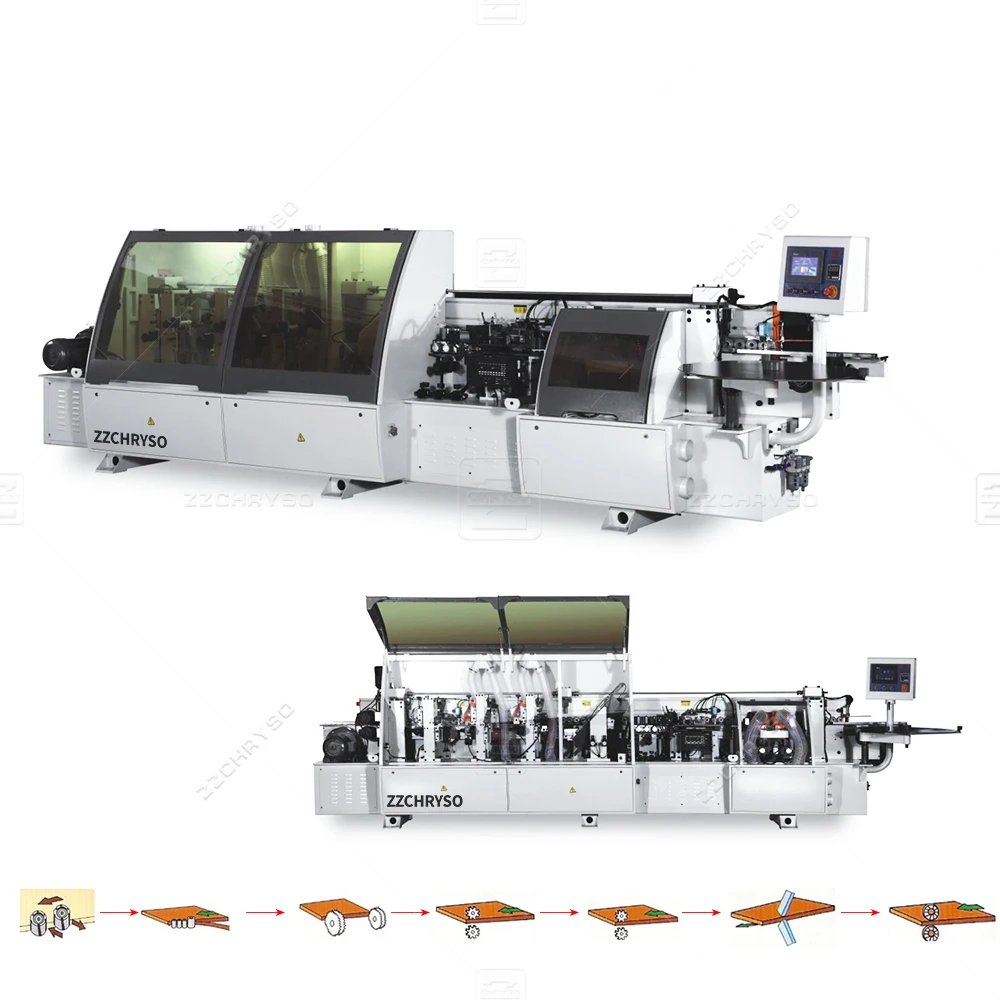

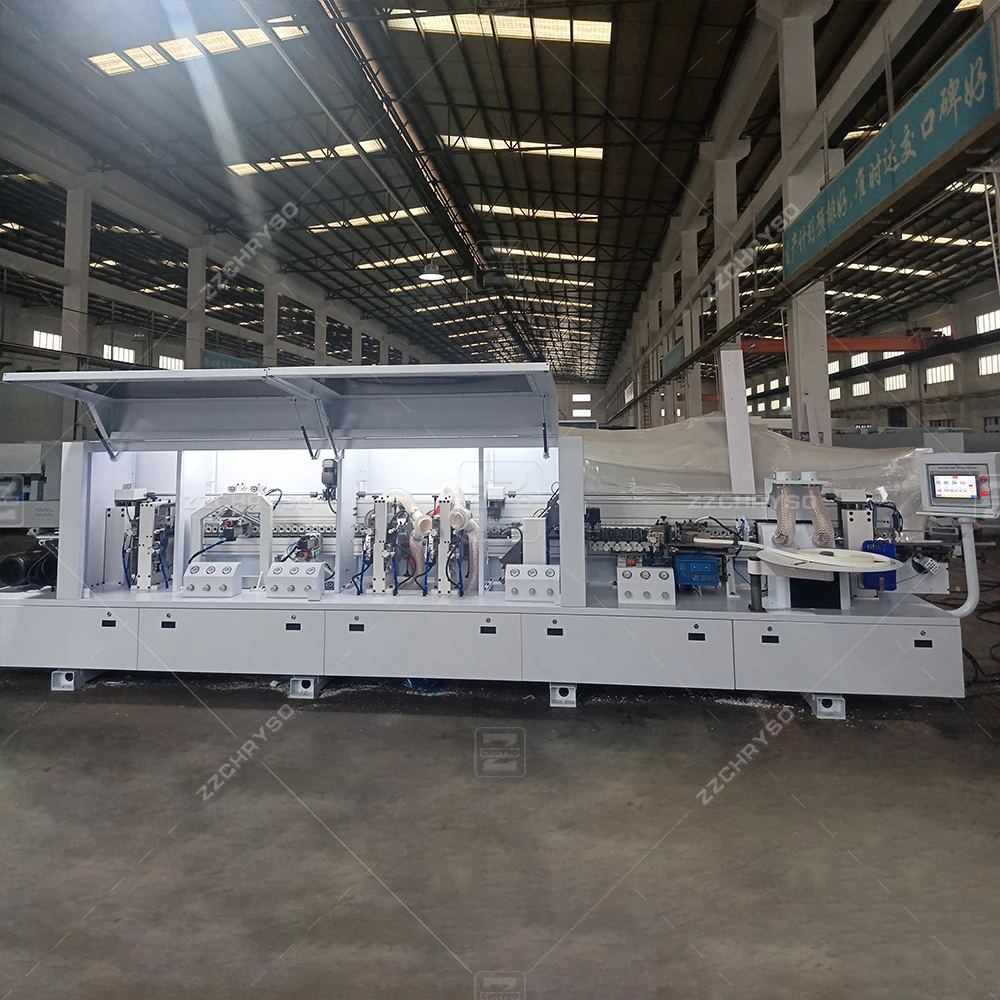

Product Display
Factory View
Company Profile
Zhengzhou CHRYSO is one leading manufacturing and exporting company of wood working machine in China. We are committed to provide one-stop service to our customers all over the world.
CHRYSO focus on Woodworking Machinery, Here we can provide a complete solution for your wood line processing. CHRYSO's products develop and increase not limit to wood working machinery, with main products of Wood pallet production line, wood press machine series,wood saw machine series,wood crusher and chip machine series ,etc.
CHRYSO focus on Woodworking Machinery, Here we can provide a complete solution for your wood line processing. CHRYSO's products develop and increase not limit to wood working machinery, with main products of Wood pallet production line, wood press machine series,wood saw machine series,wood crusher and chip machine series ,etc.
Our company is equipped with a professional team of quality control and after-sales service members to keep track of each order scientifically, so as to provide high-speed services for customers. "To provide a design, production, quality control, inspection, testing, sales and logistics service to companies that need a reliable supply of wood machinery from China. "
All members of CHRYSO welcome new and regular customers to contact us to build long-term and friendly relation of cooperation! We will strive to produce more quality products for you!
After Sales Service
-The main machine has 12 months guarantee and the electric elements have 6 months warranty.
- We respect any feedback from you after receiving the goods.
- We promise all spare parts available in lifetime use.
- We handle your grumble within 48 hours.
Technical Support
- We have sales teams, together with all technical support from our engineering team.
- Before sending machines, test and adjustment service are provided.
- Operating video & instruction will be sent to clients for better use of machines.
- Any problems occur while using, professional advice will be given by us.
-The main machine has 12 months guarantee and the electric elements have 6 months warranty.
- We respect any feedback from you after receiving the goods.
- We promise all spare parts available in lifetime use.
- We handle your grumble within 48 hours.
Technical Support
- We have sales teams, together with all technical support from our engineering team.
- Before sending machines, test and adjustment service are provided.
- Operating video & instruction will be sent to clients for better use of machines.
- Any problems occur while using, professional advice will be given by us.
Packing & Delivery
FAQ
Q1: What's your factory MOQ and best price?
A1: No MOQ and 1 set machine order is also welcomed. We usually quote FOB Qingdao price, but if you want to know the other price
term, we will try our best to meet with your demands.
ZZCHRYSO Furniture Panel Connect Joining Machine HF Wood Board Edge Glue Hot Press Machine
Q2: This is the first time I use this kind of machine, is it easy to operate?
A2: There is English manual that show you how to use machine. If you still have any question,please contact us by e-mail /skype/phone / whatsapp /trademanager online service.
ZZZCHRYSO Furniture Panel Connect Joining Machine HF Wood Board Edge Glue Hot Press Machine
Q3: Is it difficult to maintenance the machine?
A3: If your company have a technician, then with our guiding videos, then it's not difficult we think, our other customers can handle by themselves, we think you also can.
ZZZCHRYSO Furniture Panel Connect Joining Machine HF Wood Board Edge Glue Hot Press Machine
Q4: How to install?
A4: We adjusted machines well before we delivery. When customers receive them, you can work with them directly.
Q5: What to do if the machine has a problem?
A5: 24 hours timely response of mail and phone calls. If the parts broken belong to non-artificial factors within 12 months, we offer free replacement. If beyond 12 months, customers should bear the freight back and forth and accessories cost.
A1: No MOQ and 1 set machine order is also welcomed. We usually quote FOB Qingdao price, but if you want to know the other price
term, we will try our best to meet with your demands.
ZZCHRYSO Furniture Panel Connect Joining Machine HF Wood Board Edge Glue Hot Press Machine
Q2: This is the first time I use this kind of machine, is it easy to operate?
A2: There is English manual that show you how to use machine. If you still have any question,please contact us by e-mail /skype/phone / whatsapp /trademanager online service.
ZZZCHRYSO Furniture Panel Connect Joining Machine HF Wood Board Edge Glue Hot Press Machine
Q3: Is it difficult to maintenance the machine?
A3: If your company have a technician, then with our guiding videos, then it's not difficult we think, our other customers can handle by themselves, we think you also can.
ZZZCHRYSO Furniture Panel Connect Joining Machine HF Wood Board Edge Glue Hot Press Machine
Q4: How to install?
A4: We adjusted machines well before we delivery. When customers receive them, you can work with them directly.
Q5: What to do if the machine has a problem?
A5: 24 hours timely response of mail and phone calls. If the parts broken belong to non-artificial factors within 12 months, we offer free replacement. If beyond 12 months, customers should bear the freight back and forth and accessories cost.
