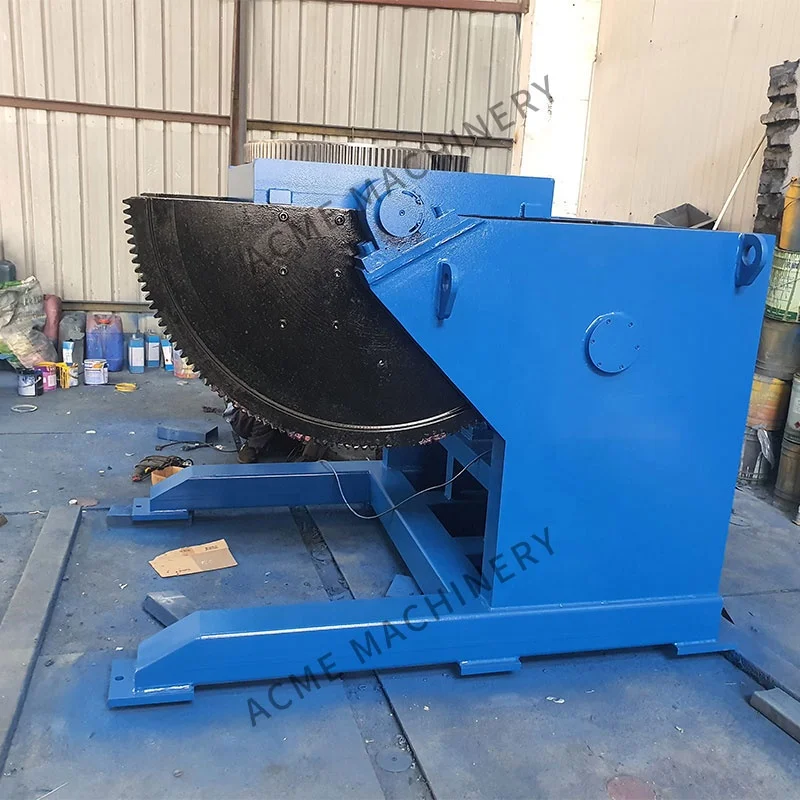

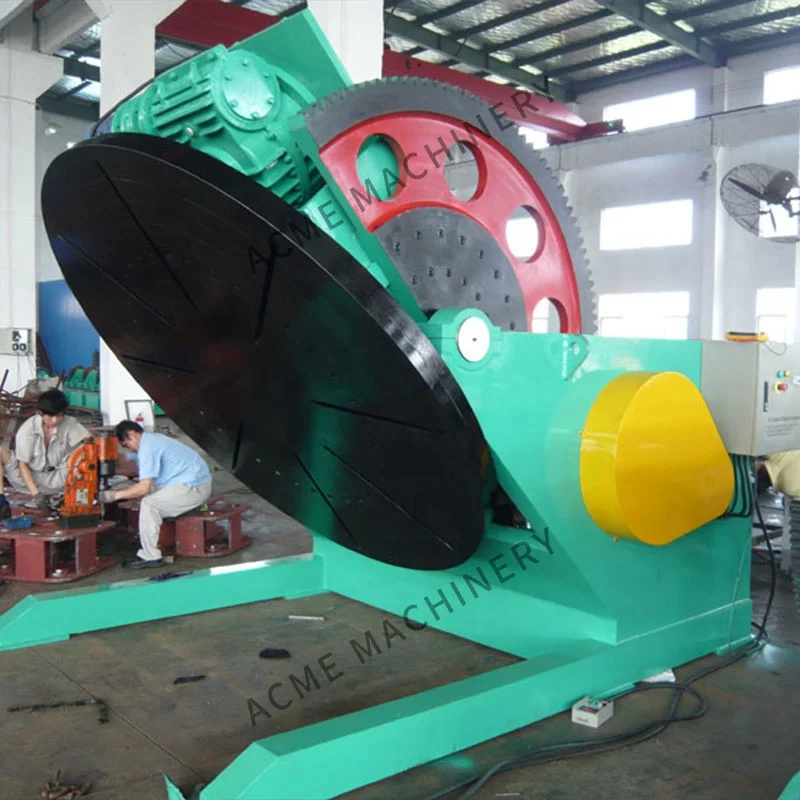

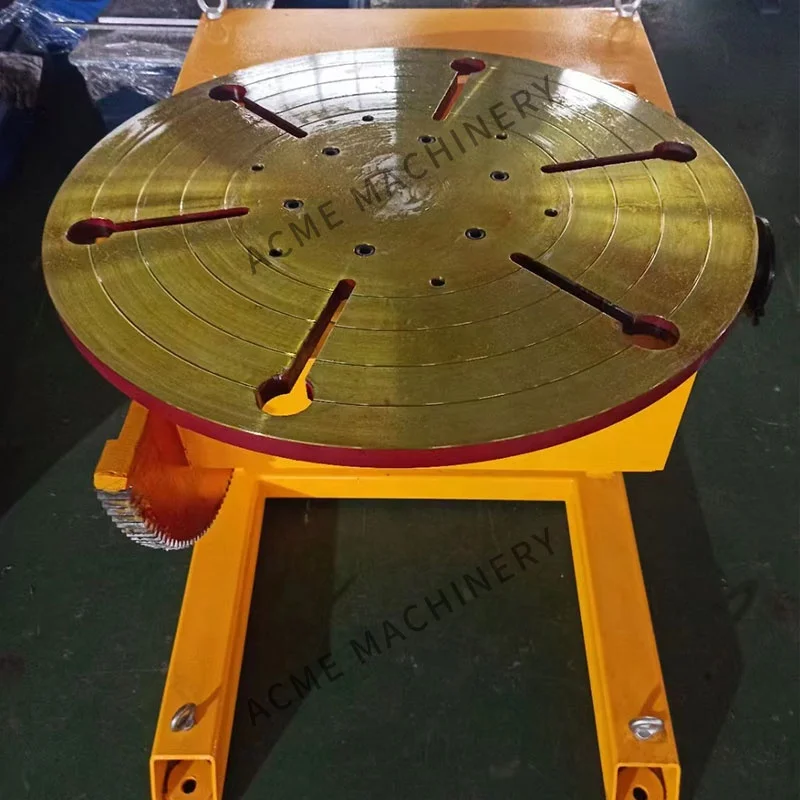

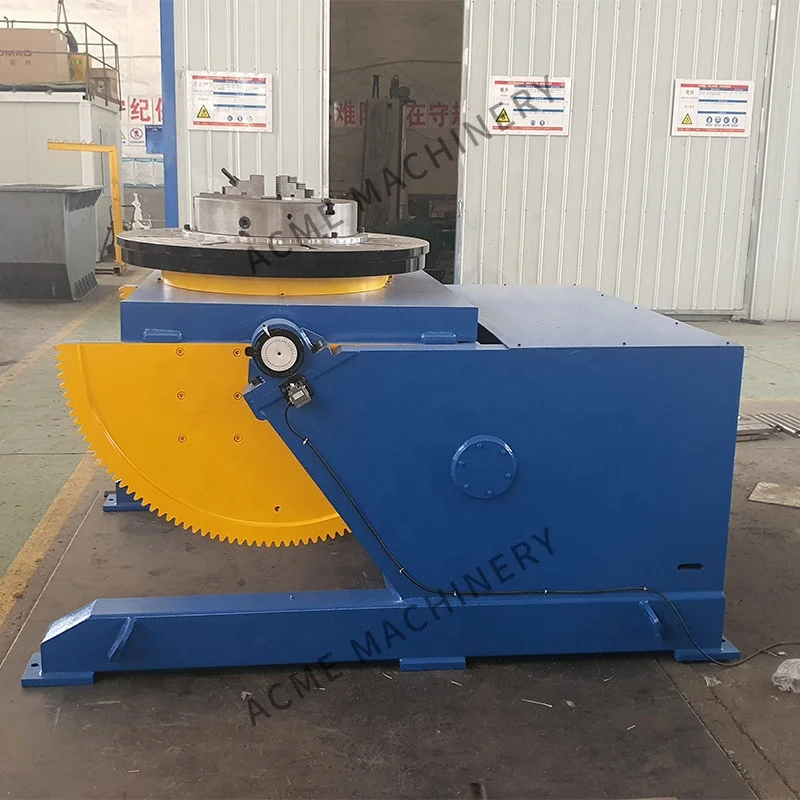

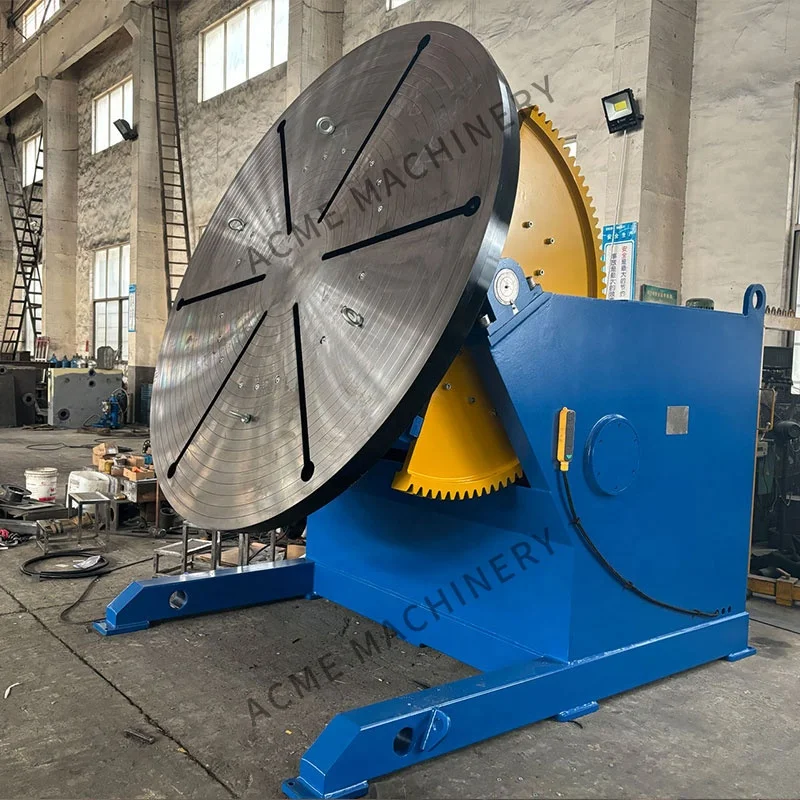

Heavy Duty Turntable Axis Load Welding Positioner Turntable For Welding Systems
- Category: >>>
- Supplier: Wuxi Acme Machinery Co. Ltd.
Share on (1601055992134):
Product Overview
Description
Model | WP3 | WP6 | WP12 | WP30 | WP50 | WP100 | WP150 | WP300 | WP500 | |||||||||
Loading Capacity(kg) | 300 | 600 | 1200 | 3000 | 5000 | 10000 | 15000 | 30000 | 50000 | |||||||||
Worktable Diameter(mm) | 600 | 800 | 1000 | 1400 | 1600 | 2000 | 2200 | 3000 | 4000 | |||||||||
Rotating Speed(rpm) | 0.2-2 | 0.1-1.1 | 0.06-0.8 | 0.05-0.5 | 0.04-0.4 | |||||||||||||
Tilting Speed(rpm) | ≈0.9 | ≈0.8 | ≈0.5 | ≈0.3 | ≈0.15 | ≈0.14 | ≈0.1 | |||||||||||
Tilting Angle(°) | 0-90° | 0-120° | 0-135° | |||||||||||||||
Max.Eccentricity (mm) | 150 | 200 | ||||||||||||||||
Max.Gravity(mm) | 250 | 300 | 400 | 630 | 800 | |||||||||||||
Rotating Motor Power(kw) | 0.37 | 0.75 | 1.1 | 1.1 | 1.5 | 3 | 4 | 5.5 | 11 | |||||||||
Tilting Motor Power(kw) | 0.37 | 0.75 | 1.1 | 2.2 | 3 | 5.5 | 7.5 | 15 | 18.5 | |||||||||
Speed Adjust Mode | AC Frequency conversion stepless speed regulation | |||||||||||||||||
Options | 1. Chuck 2. Remote Control 3. Foot Switch 4. Aviation Plug | |||||||||||||||||
Above are standard parameters, can also design according to customer requirement | ||||||||||||||||||
ACME Machinery Specializes in design, manufacturing and sales of welding equipement. We mainly focus on overseas markets and meet the national standards of different countries. We provide all kinds of standard and non-standard welding equipment including welding rotator, welding positioner, welding manipulator, chuck etc. Our products are widely used in such as offshore wind power, onshore wind power, offshore shipbuilding, pressure vessel, petrochemical and so on. We can OEM/ODM as per the requirements of customers.
