Factory Manufacture 1.5ton Excavator Earth Auger Attachment Soil Drilling Hole Digger Machine With 300mm Auger
Factory Manufacture 1.5ton Excavator Earth Auger Attachment Soil Drilling Hole Digger Machine With 300mm Auger
Factory Manufacture 1.5ton Excavator Earth Auger Attachment Soil Drilling Hole Digger Machine With 300mm Auger
Factory Manufacture 1.5ton Excavator Earth Auger Attachment Soil Drilling Hole Digger Machine With 300mm Auger
Factory Manufacture 1.5ton Excavator Earth Auger Attachment Soil Drilling Hole Digger Machine With 300mm Auger
Factory Manufacture 1.5ton Excavator Earth Auger Attachment Soil Drilling Hole Digger Machine With 300mm Auger
Factory Manufacture 1.5ton Excavator Earth Auger Attachment Soil Drilling Hole Digger Machine With 300mm Auger

Factory Manufacture 1.5ton Excavator Earth Auger Attachment Soil Drilling Hole Digger Machine With 300mm Auger

Share on (1601055994584):


Price:$500.00

Quantity:


Product Overview

Description





Product Paramenters

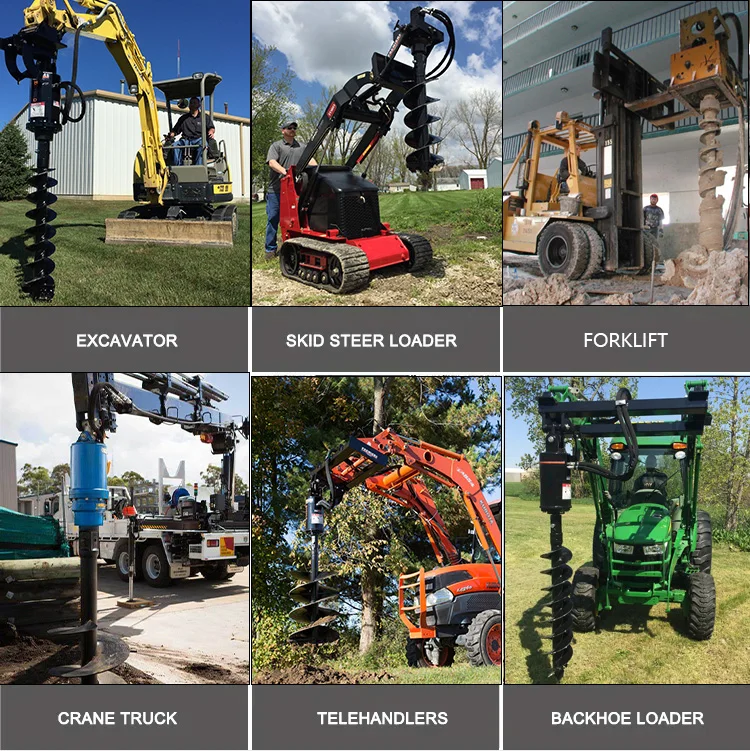

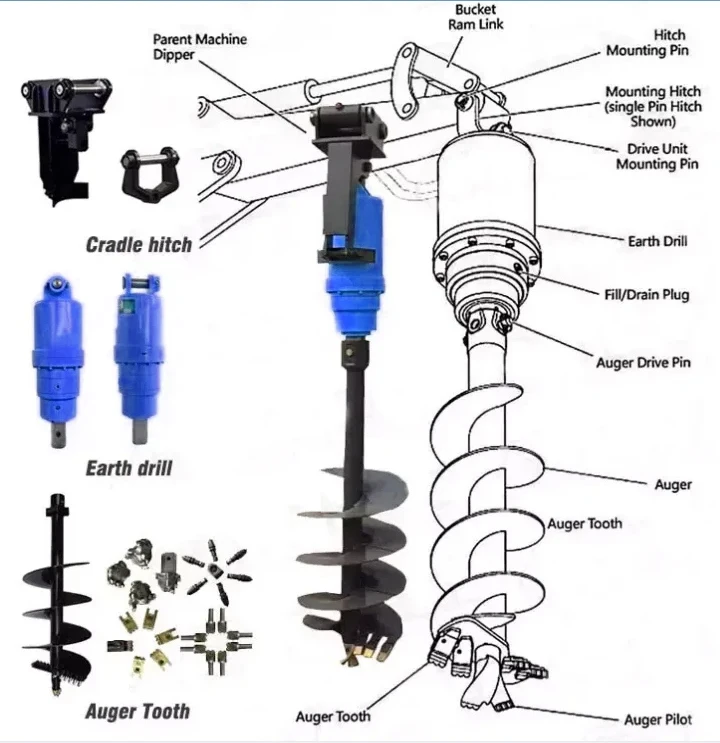

RAY ATTACHMENTS Earth Auger is a kind of digging hole machine. It can be mounted to all common hydraulic excavators as well as mini excavators and other carriers like skid steer loaders, backhoe loaders, telescopic handlers, wheel loaders, and other machinery. Our auger drive can be installed with an earth drill, stump planner, and mixer bowl for different uses.








Model
RB2000
RB2500
RB3000
RB3500
RB4500
RB5500
RB7000
RB8000
Excavator Weight (T)
1-2.5
1.5-3
3.5-4
2.5-4.5
3-5
4.5-6
5-7
6-8

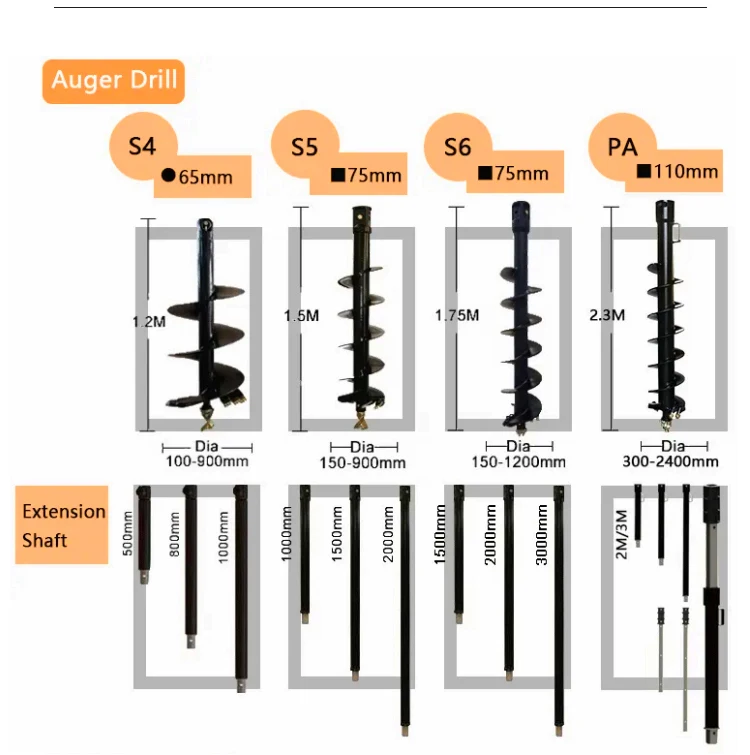

Auger Range
S4
S4
S4
S4
S4
S5
S5
S5
Torque Range (Nm)
≤2031
≤2640
≤2877
≤3614
≤4499
≤5694
≤6931
≤8152
Oil Pressure Range (Bar）
70-220
70-220
80-220
80-220
80-220
80-240
80-240
80-220
Oil Flow Range (lpm)
24-55
28-63
32-70
35-76
39-88
43-99
60-128
66-143
Speed Range (rmp)
42-96
38-47
36-64
37-81
38-73
29-69
36-77
31-67
Hub Norm

65mm ⊘
65mm ⊘
65mm ⊘
65mm ⊘
65mm ⊘
75mm ▨
75mm ▨
75mm ▨
Height (mm)
590
590
683
683
683
780
815
815
Width (mm)
200
200
244
244
244
269
269
269
Weight (kg)
51
53
71
73
75
108
112
116
Hitch Options
Single Pin
Single Pin
Single Pin
Single Pin
Single Pin
Single Pin
Single Pin
Single Pin
Double Pin
Double Pin
Double Pin
Double Pin
Double Pin
Double Pin
Double Pin
Double Pin
Cradle Hitch
Cradle Hitch
Cradle Hitch
Cradle Hitch
Cradle Hitch
Cradle Hitch
Cradle Hitch
Cradle Hitch
Drilling Diameter Range (mm)
100-450
100-500
100-600
100-750
100-900
150-750
150-900
150-1200
Drilling Depth (m)
soft soil
2.2-1.2
2.5-1.5
3.0-1.8
3.0-1.8
4.0-1.5
4.0-3.0
5.0-2.5
6.0-3.0
hard soil
1.8-1.0
2.1-1.3
2.4-1.4
2.4-1.4
3.2-1.3
3.2-2.4
4.1-2.1
4.9-2.4


Model
RB10000
RB15000
RB20000
RB25000
RB35000
Excavator Weight (T)
9-13
10-15
13-20
15-23
20-45
Auger Range
S6
S6
S6
S6
PA
Torque Range (Nm)
≤10662
≤15059
≤19562
≤24852
≤35294
Oil Pressure Range (Bar）
80-240
80-220
160-220
160-220
180-310
Oil Flow Range (lpm)
70-150
70-150
80-170
80-170
80-198
Speed Range (rmp)
25-53
19-41
16-33
12-26
10-28
Hub Norm
75mm▨
75mm▨
75mm▨
75mm▨
110mm▨
Height (mm)
907
907
1140
1140
1410
Width (mm)
290
290
345
345
406
Weight (kg)
163
165
268
269
442


Hitch Options
Single Pin
Single Pin
Single Pin
Single Pin
Single Pin
Double Pin
Double Pin
Double Pin
Double Pin
Double Pin
Cradle Hitch
Cradle Hitch
Cradle Hitch
Cradle Hitch
Cradle Hitch
Drilling Diameter Range (mm)
150-900
150-1200
150-1200
150-1500
300-1500
Drilling Depth (m)
soft soil
6.5-4.0
7.5-4.5
8.5-5.5
9-5
10.5-7
hard soil
5.3-3.2
6.1-3.7
6.9-4.5
7.3-4.1
8.6-5.7




Product Display

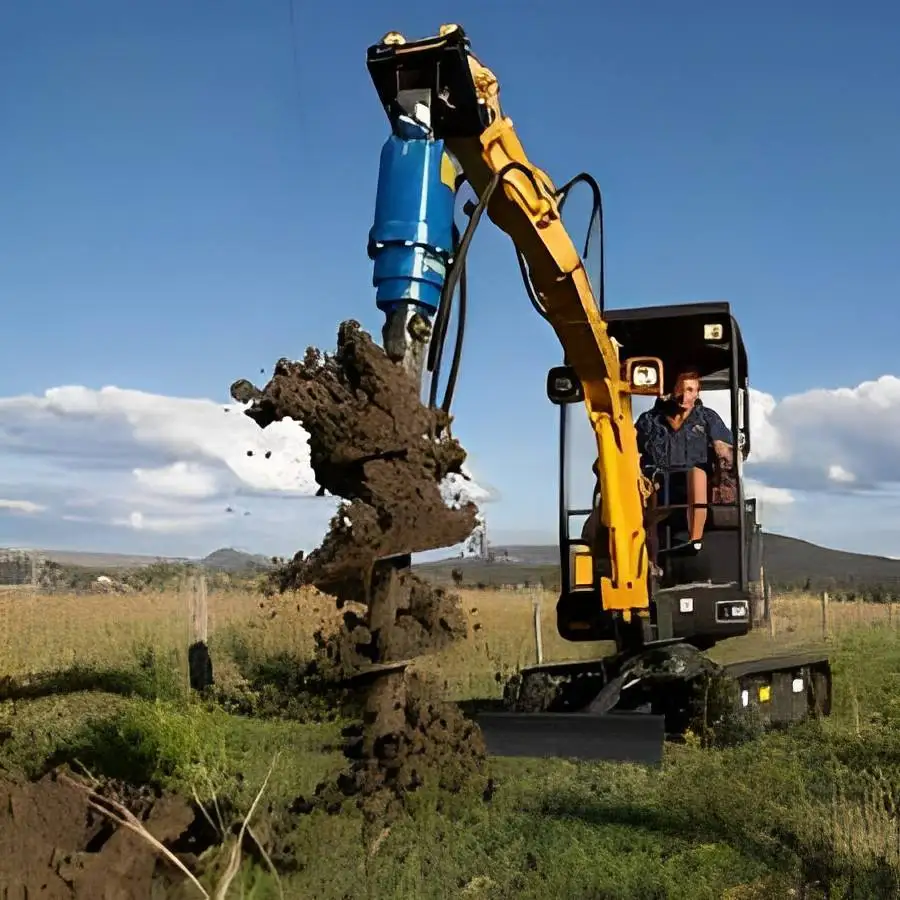

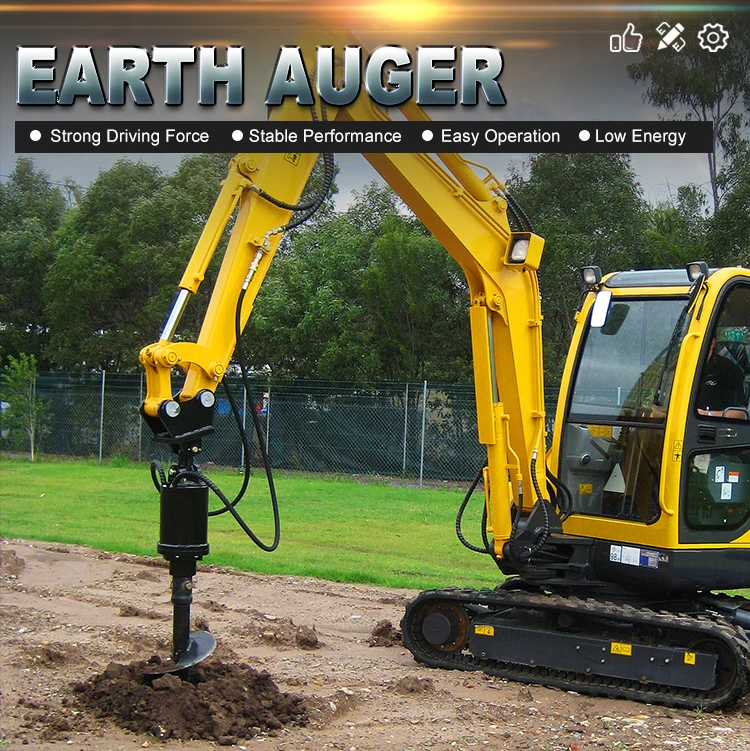

One machine for multiple uses, suitable for various projects, and easily handles various types of soil layers, such as electric drilling, forestry drilling, bridge pier drilling, etc.












FAQ


Q: Are you a trading company or manufacturer?
A: We are a factory.

Q: Can you produce according to the customer’s design?
A: Yes, we can do customized products.

Q：How can we guarantee quality?
A：Always a pre-production sample before mass production; Always final Inspection before shipment;

Q: What's your delivery time?
A: Lead time: we have a lot of products and spare parts in stock. On leading time we have big advantages as a manufacturer, usually within 7-15 days after we receive your payment.

Q: What is your best price?
A: We are a direct manufacturer， and will give you a competitive price.
