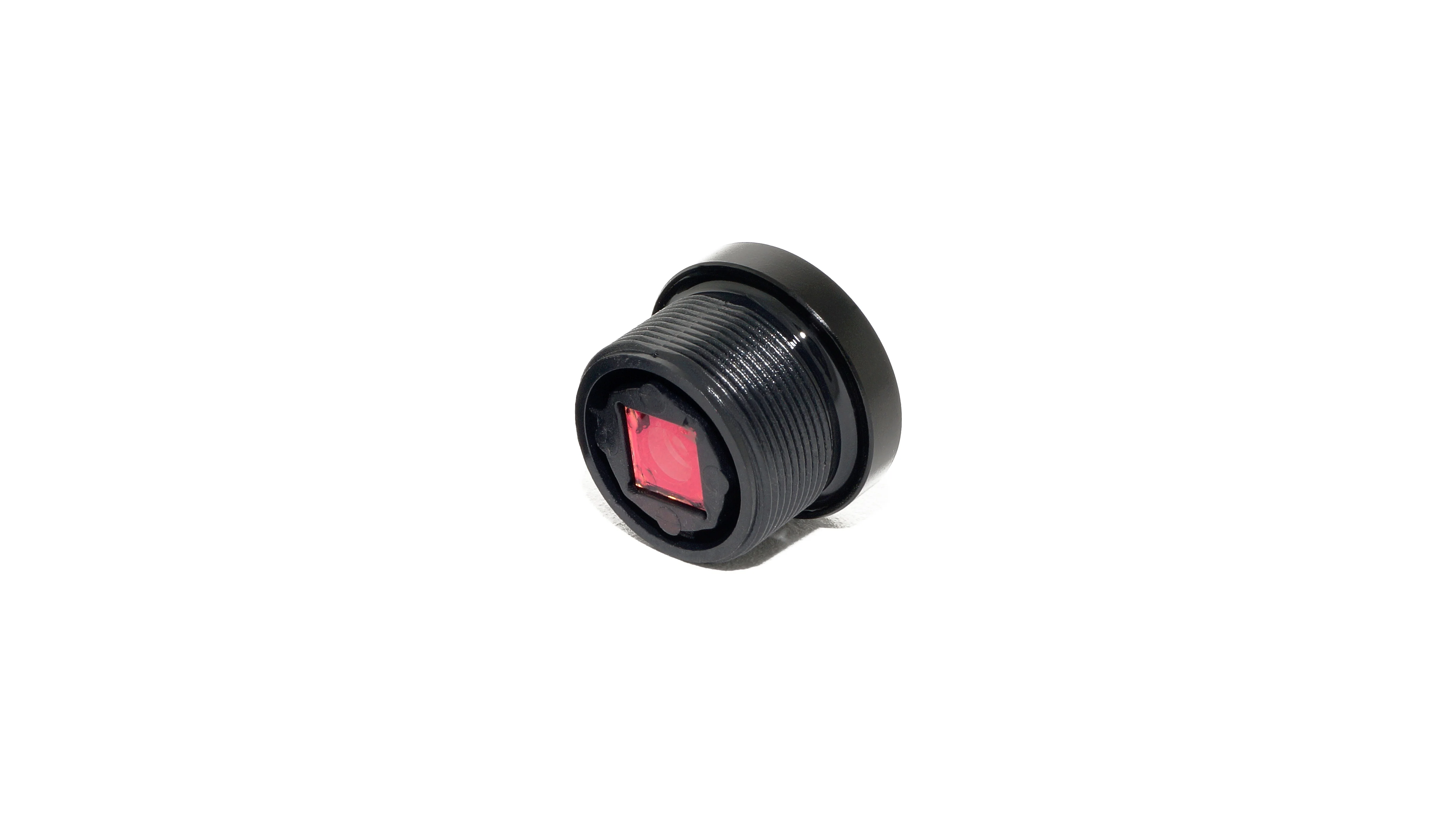

13mm EFL 1.95 F2.70 Rearview Camera System M12 Lenses Dvr Lens for Car
- Category: >>>
- Supplier: Shenzhen Yunding Optical Technology Co. Ltd.
Share on (1601056135039):
Product Overview
Description
Products Description
13mm EFL 1.95 F2.70 Rearview Camera System M12 Lenses Dvr Lens for Car
EFL | 1.95 | |
TTL | 12.79 | |
F/NO | 2.7 | |
FOV(D/H/V) | 131/109/58 degree | |
Sensor size | 1/3.6(1280*720 3um) | |
Thread size | M12*P0.5 | |
TV distortion | -19% | |
1.15+ years of experience in R&D, production, and sales of many kinds of lenses. We will match your requirements with the appropriate product.
2.High quality and Fast delivering.Our own factory has more than .We also support OEM and ODM.
3.Samples for testing.
Recommend Products
How to choose CCTV surveillance lens?
The lens is an important part of the monitoring front-end. Its cooperation with the camera determines the effect of the front-end equipment. By fully understanding the imaging rules of the lens, it can help us choose and match the equipment more appropriately,achieve better effect and reduce the situation of changing equipment. Therefore, the classification and selection of lens is a basic knowledge that monitoring engineers and technicians must understand.
WINTOP optics is a professional manufacturer of optical lenses 17 years！With 100+ utility model design patents, 500+ models of lenses, 500+ workers, 12000㎡ factory, non-dust workshop,TS16949 certificate...
The types of lenses used in different occasions can be roughly divided into:
(1) Wide angle lens:the angle of view is above 90 degrees, which is generally used in places with large angle of view such as automotive lens and front view、surround view、rear view camera;
(2) Normal lens: the viewing angle is about 30 degrees, which is generally used in walkways, community boundaries and other places cctv surveillance;
(3)Low distortion lens: The design purpose of low distortion lenses is to minimize the distortion of images during lens transmission. Low distortion lenses have been widely used in product photography, architectural photography, and other fields.
Company Profile
was established in August 2006, which
focus on developing,manufacturing and marketing all kind of optical fixed lenses. Wintop has a production base of 12000 square meters in Hubei province and a research and development team with 17 years of in-depth professional experience in Shenzhen.We were the first factory to adopt
waterproof gasket into lenses in China in 2008.
focus on developing,manufacturing and marketing all kind of optical fixed lenses. Wintop has a production base of 12000 square meters in Hubei province and a research and development team with 17 years of in-depth professional experience in Shenzhen.We were the first factory to adopt
waterproof gasket into lenses in China in 2008.

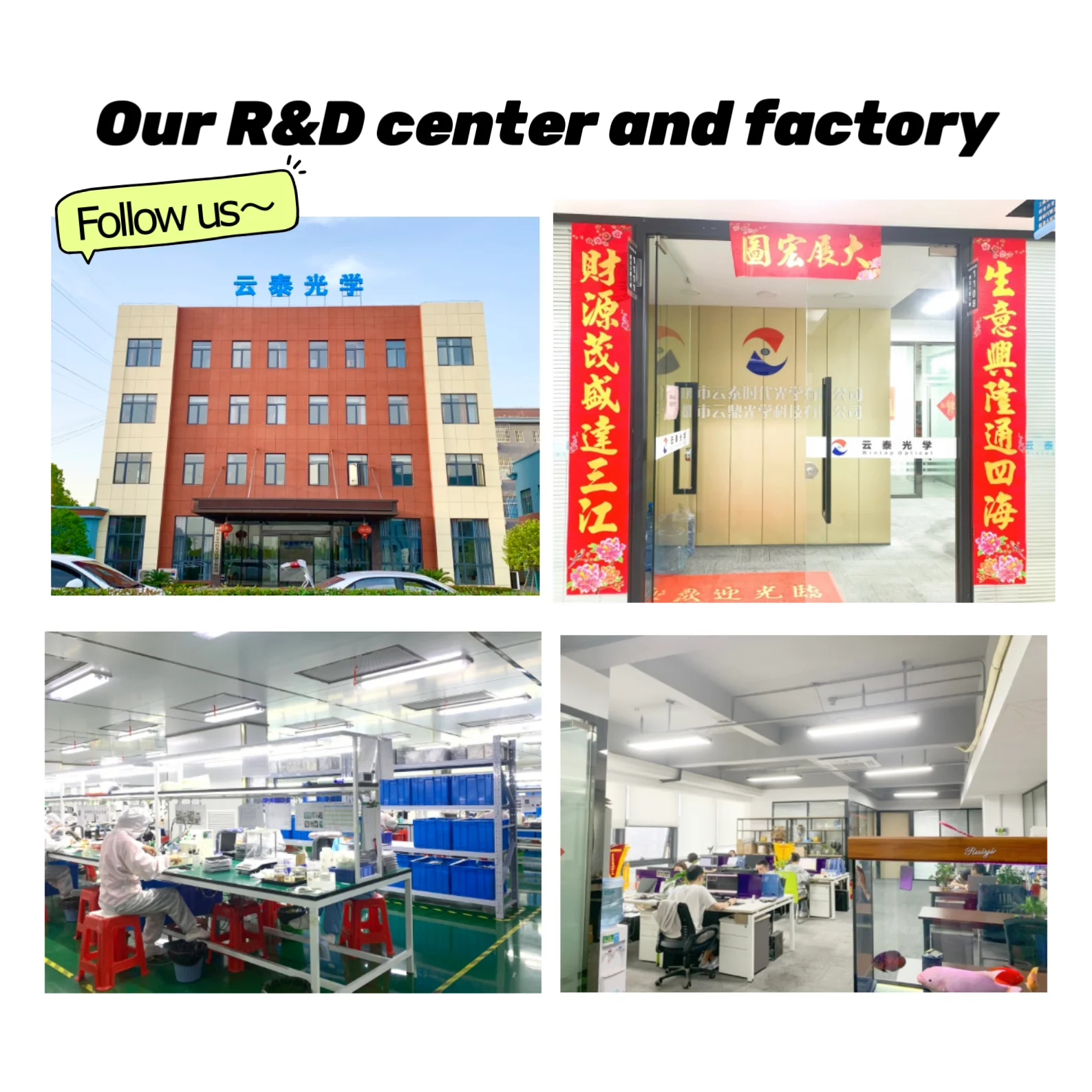

Our Factory & Equipment

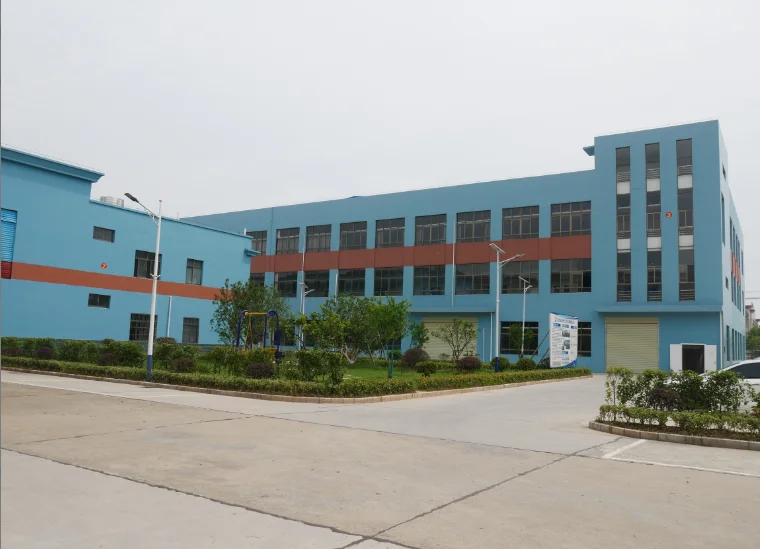

Hubei factory(Hubei Yuntai Era Optical Instrument Co., Ltd.) covers an area of 12000 square meters, glass grinding monthly output value reach 2 million pieces, lens assembly equipped with 1000-level dust-free workshop, which has 8 manual assembly lines and 3 automatic production lines, with monthly output approach 2 million sets optical lenses.
Glass grinding dept
Mold dept
Reliability test equipment
Coating dept
Inking dept
Inking dept
Assembly dept
Assembly dept
Auto assembly dept
Exhibition
FAQ
Q1: What can you get from WINTOP Optics? | ||||||||||||||||
A1: We are specializing in developing and producing all kind of optical fixed lens for 16 years. You can get 1 to 1 professional services at any time here. All the products you buy from WINTOP have unlimited warranty. | ||||||||||||||||
Q2: Can I have some free samples? | ||||||||||||||||
A2: Yes. We can provide several free samples for customers upon request. So if you need some free samples for testing,just contact us right now. | ||||||||||||||||
Q3: What is the MOQ? | ||||||||||||||||
A3: We can accept sample orders within 100 pieces. Don't be hesitated to send us your request. | ||||||||||||||||
Q4: When can I received the products I ordered? | ||||||||||||||||
A4: Sample orders will be sent out within 3-5 working days after payment received. The fast delivery time of massive orders will be 15 working days after receiving 30% deposit. | ||||||||||||||||
If this lens is not what you are looking for, please contact me and tell me your requirements, I will find the most suitable lenses that you want. | |||
