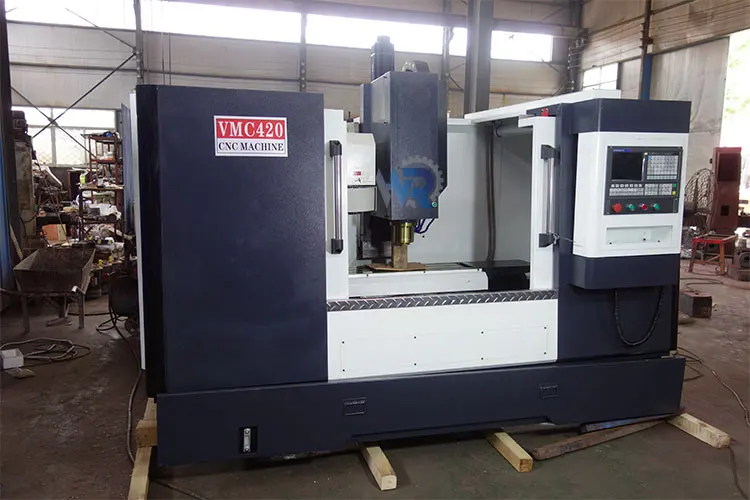

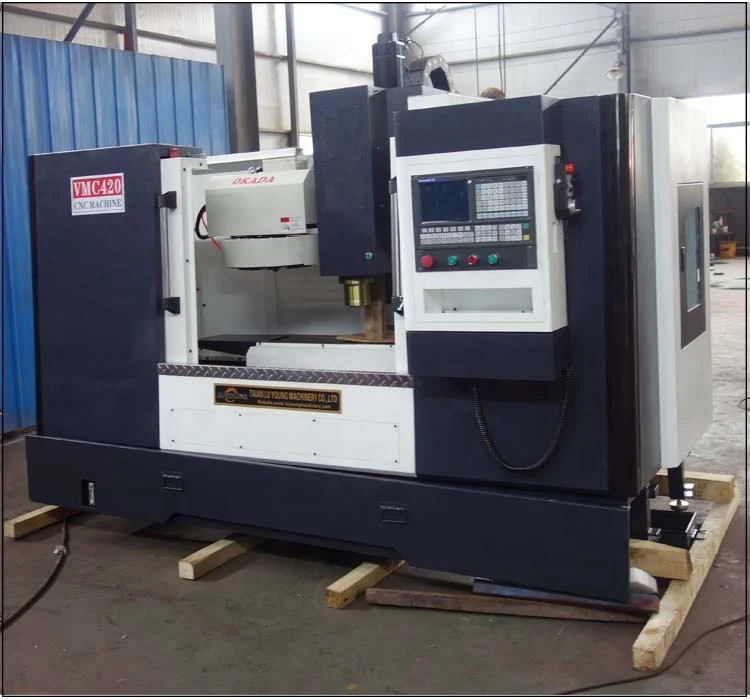

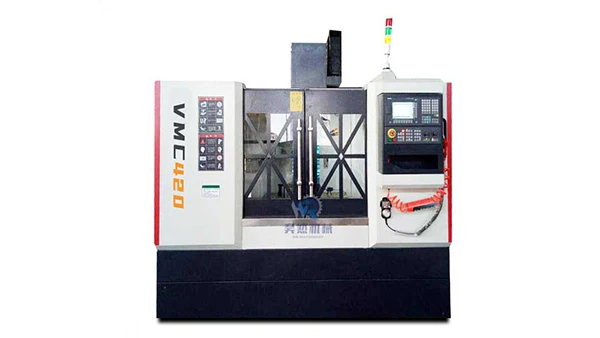

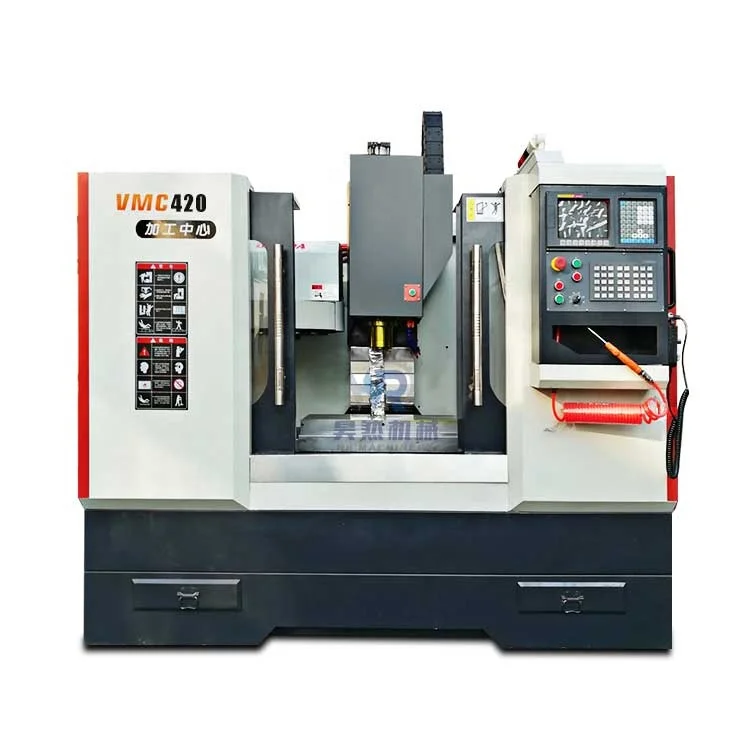

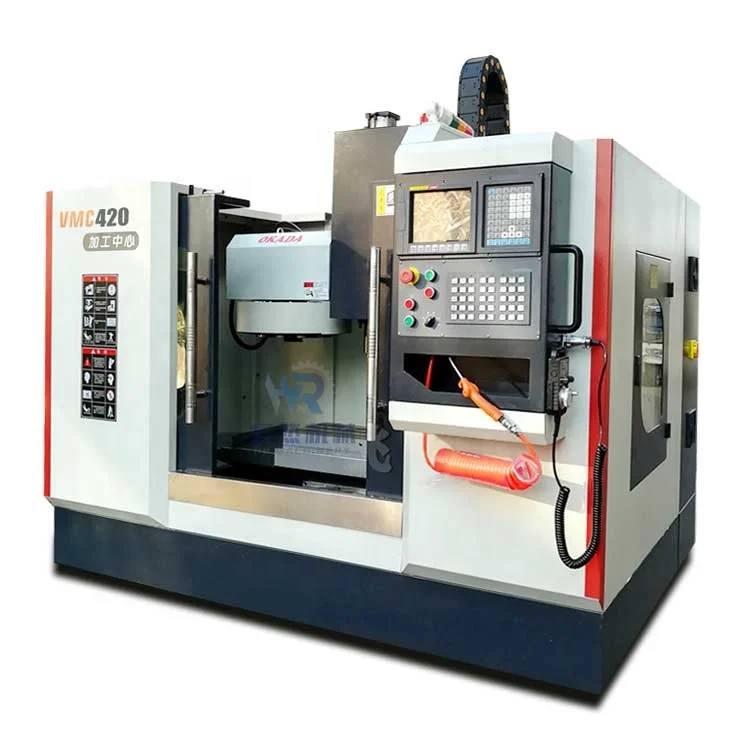

CNC Milling Machine VMC420 CNC Machining Center GSK Fanuc control system
- Category: >>>
- Supplier: Shandong HR Machinery Co. Ltd.
Share on (1601056512220):
Product Overview
Description
Product Description
1.The struction of the precision being connected with automatic lubrication device.
2.Use the ball screw with special bearing for ensuring that location accuracy control precision and mobile season outline of the shaft rigidity.
3.The bed and column etc main structure use reasonable cloth reinforced enhance shockproof sexual structure
4.Precision high speed spindle unit and AC servo motor through a timing belt linked, low noise, small vibration, low in calories and could do milling, drilling, reaming, boring, reaming and tapping
5.All three axis use servo drive shaft. The spindle is servo spindle and with a rigid tapping function. Enhance machining accuracy.
6.Taiwan spindle/ball screw/ bearing is available.
7.X/Y/Z linear guide way is available.
8.Ultimate 12000rpm spindle speed is available
9.Portable hand wheel
10.OEM or ODM is available.
11.Customized color and voltage or LOGO.
12.China top one quality and good after sale service.
2.Use the ball screw with special bearing for ensuring that location accuracy control precision and mobile season outline of the shaft rigidity.
3.The bed and column etc main structure use reasonable cloth reinforced enhance shockproof sexual structure
4.Precision high speed spindle unit and AC servo motor through a timing belt linked, low noise, small vibration, low in calories and could do milling, drilling, reaming, boring, reaming and tapping
5.All three axis use servo drive shaft. The spindle is servo spindle and with a rigid tapping function. Enhance machining accuracy.
6.Taiwan spindle/ball screw/ bearing is available.
7.X/Y/Z linear guide way is available.
8.Ultimate 12000rpm spindle speed is available
9.Portable hand wheel
10.OEM or ODM is available.
11.Customized color and voltage or LOGO.
12.China top one quality and good after sale service.
Table size (mm) | 800×260 | ||||||
T-Slot Q-W(mm)–Distance(mm) | 5-16-50 | ||||||
Max,load (kg) | 150 | ||||||
Travel of X axis(mm) | 410 | ||||||
Travel of Y axis(mm) | 260 | ||||||
Travel of Z axis(mm) | 410 | ||||||
Distance from spindle nose to table (mm) | 70-480 | ||||||
Distance from center of spindle to Column guideway (mm) | 315 | ||||||
Taper hole of spindle | BT40 | ||||||
Max speed of spindle (Rpm) | 8000 | ||||||
Power of main power(kW) | 3.7kw/5.5kw | ||||||
X,Y,Z Rapid feed rate (m/min.) | 15 | ||||||
fast cutting speed (mm/min) | 1-6000 | ||||||
Operation pressure Mpa | 0.6 | ||||||
Weight kg | 1700 | ||||||
Dimension | 1900×1400×2100mm | ||||||

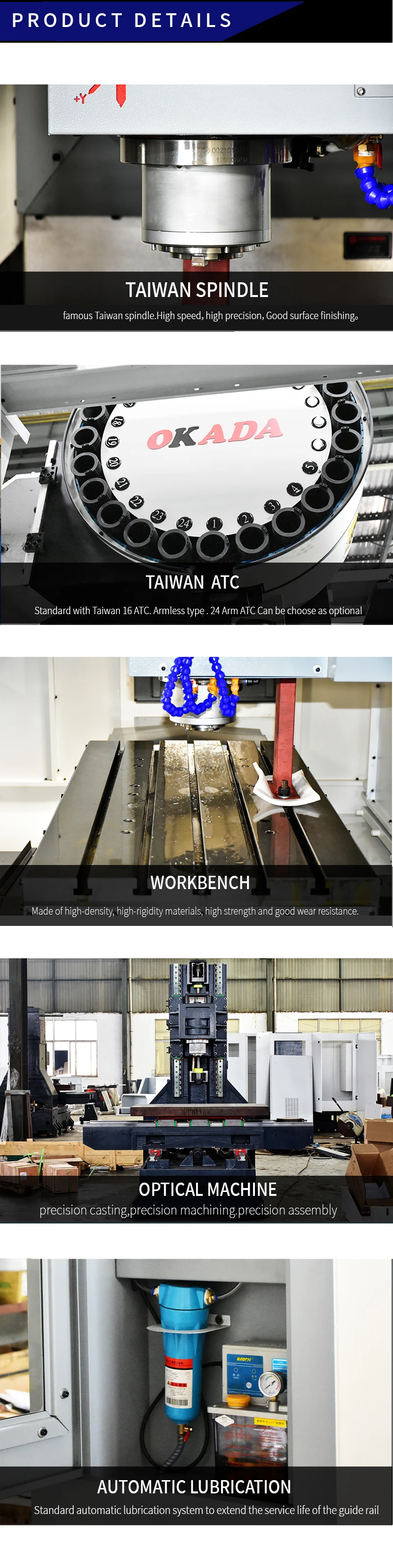

Detailed Images

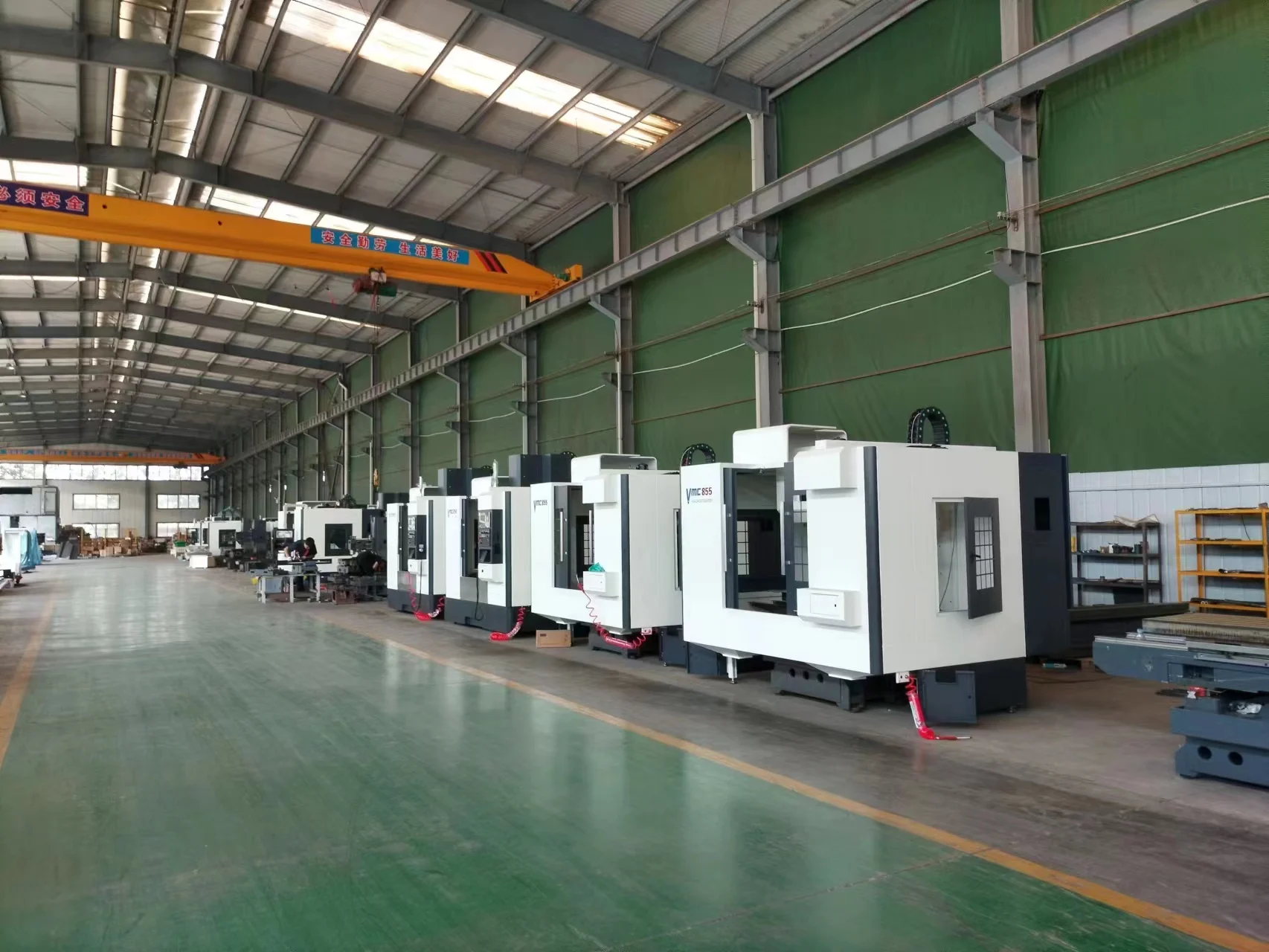

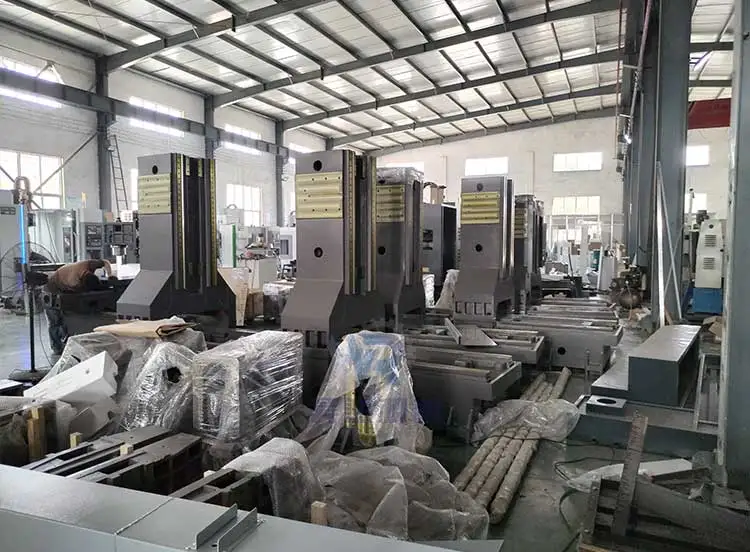

Company Introduction
Shandong HR machine Co., Ltd. is a production-oriented enterprise with import and export rights. The company is equipped with many kinds of machine tools and equipment, including nearly 100 sets of large, fine and sophisticated equipment. The enterprise has 100 employees at present, including more than 10 engineers and dozens of workers and technicians. The company has been insisting on staff training for many years, through changing staff concepts, implementing enterprise reform, introducing new management concepts and methods, using modern management level. The company has hundreds of sales outlets, more than one sales branch or office, 30 provinces, cities, autonomous regions. In Europe, South America, Asia, Hong Kong and other countries and regions have long-term cooperation dealers. In recent years, the company insists on changing the mode and adjusting the structure; Implement
brand strategy and expand foreign market; Control the manufacturing level of company equipment. Formed by CNC lathe, CNC milling machine, vertical machining center, gantry machining center, CNC metal band sawing machine, drilling and milling machine series, milling machine series, turret milling machine series, more than ten categories, hundreds of varieties of production scale. It has achieved the expected goal of CNC product serialization and characteristic product individuation, and formed its own brand while
meeting the personalized needs of users.
brand strategy and expand foreign market; Control the manufacturing level of company equipment. Formed by CNC lathe, CNC milling machine, vertical machining center, gantry machining center, CNC metal band sawing machine, drilling and milling machine series, milling machine series, turret milling machine series, more than ten categories, hundreds of varieties of production scale. It has achieved the expected goal of CNC product serialization and characteristic product individuation, and formed its own brand while
meeting the personalized needs of users.
Customer Visiting
Our Services
1. We supply 24 hours on-line service,you could contact with us by email ,phone ,wechat ,whatsapp,skype etc.
2. Received your phone or mail,we will Analyze the problem immediately.
3.Supply professional solution, after analyze the problem, we give you our best solution. 4. The warranty period of the whole machine is 1 year. Under normal use, if the machine parts are damaged during the warranty period, we will provide free accessories. Outside the warranty period, if the parts are damaged, we only charge the cost price of the parts, and will never overcharge.
5. Provide lifetime free technical support, you can contact us at any time if you encounter difficulties in the process of use.
6. We provide overseas services, engineers can go to the customer's factory for debugging,installation, maintenance, and repair.(In case of non-epidemic situation).
Certificate
All products are available upon request, with or without trademarks. If you need OEM service with your own brand or product,please let us know. If you have any other specific requirements, please feel free to contact us. Our factory has obtained the import and export license issued by the Ministry of foreign trade, and passed the iso9001 quality management system certification and CE certification. In the quality layer by layer, we will wholeheartedly serve for the majority of customers.
