factory hot sale Double Window ASME (Class 150/300/600#) Visual Sight Flow Indicators for Water Systems
- Category: >>>
- Supplier: Hebei Xukang Meter Manufacturing Co. Ltd.
Share on (1601056586207):
Product Overview
Description
Products Description
Standard Features:
* Plain – No indicator for unobstructed view of media flowing in any direction
* Rotator – Paddlewheel indicator used for clear media to enhance flow indication in any direction
* Flapper – Mid Flapper to indicate horizontal flows in both directions for fast moving liquids
* Drip Tube – For vertical downward flows at low flowrates
* Plain – No indicator for unobstructed view of media flowing in any direction

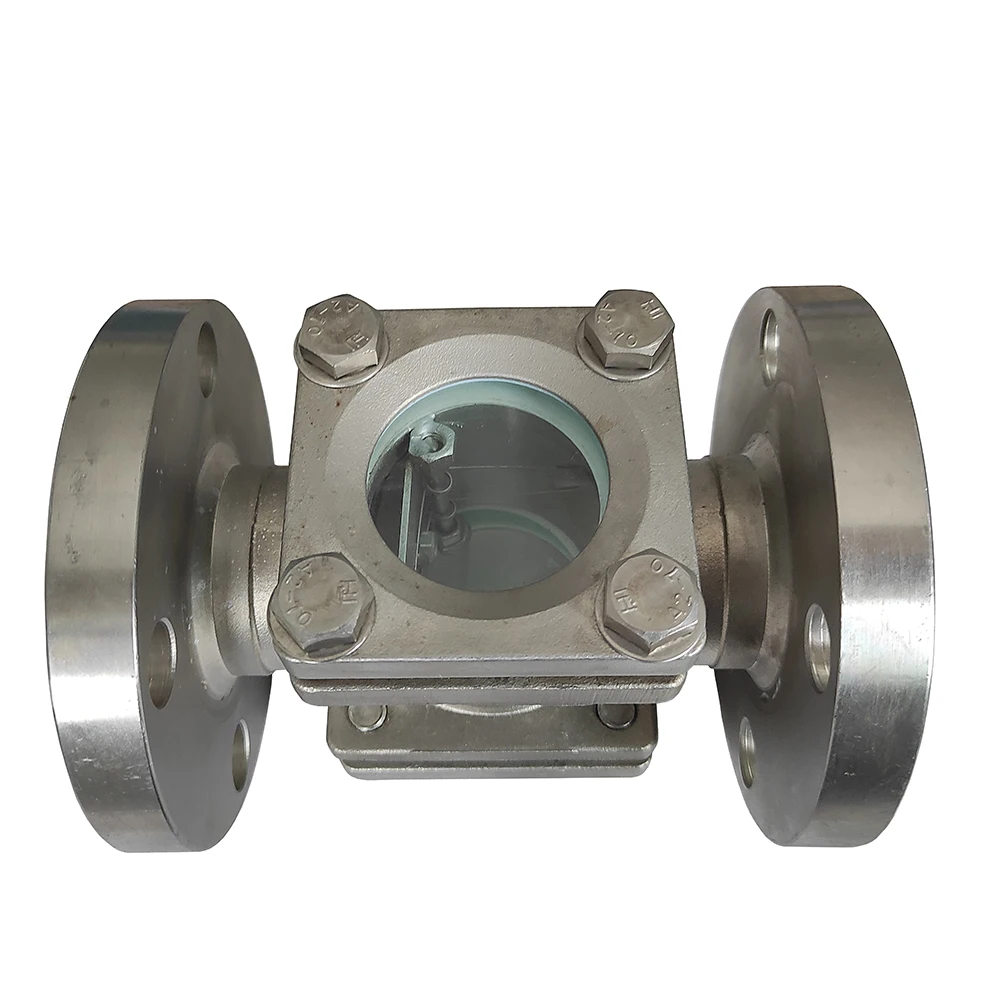

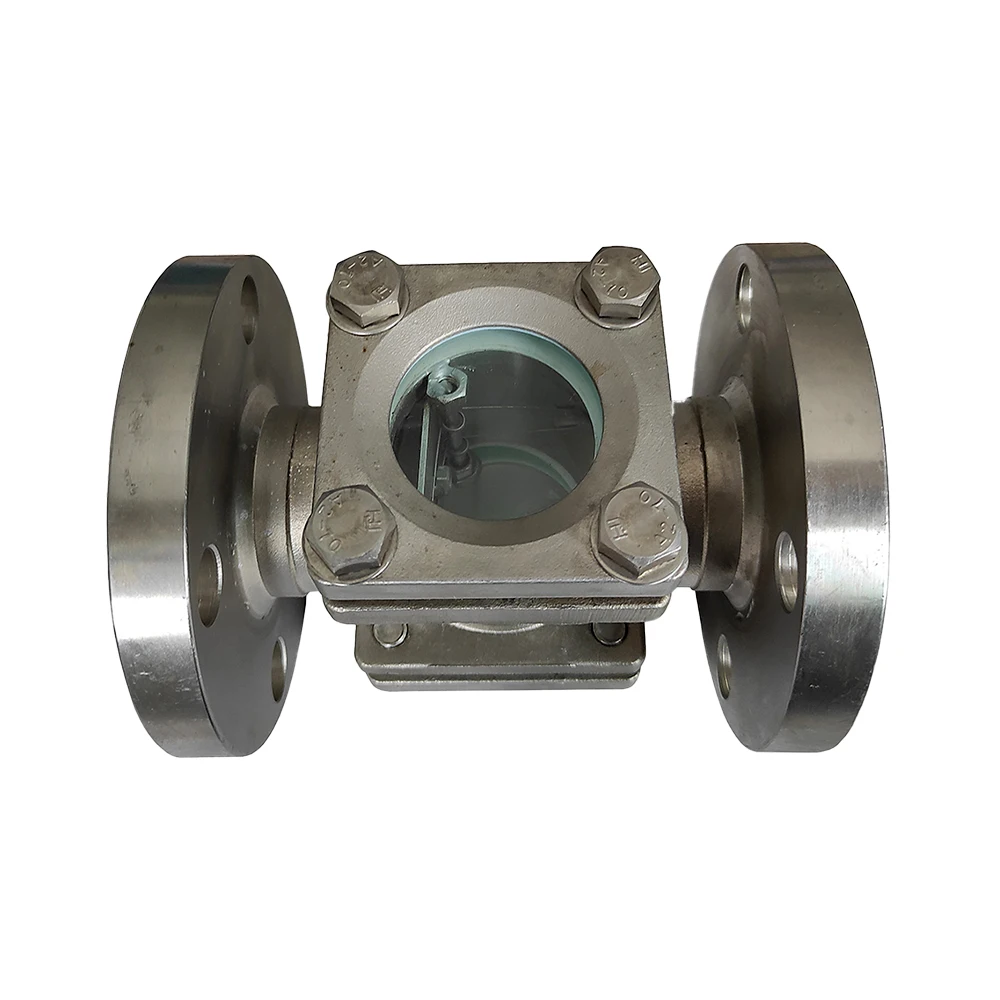

* Rotator – Paddlewheel indicator used for clear media to enhance flow indication in any direction
* Flapper – Mid Flapper to indicate horizontal flows in both directions for fast moving liquids
* Drip Tube – For vertical downward flows at low flowrates

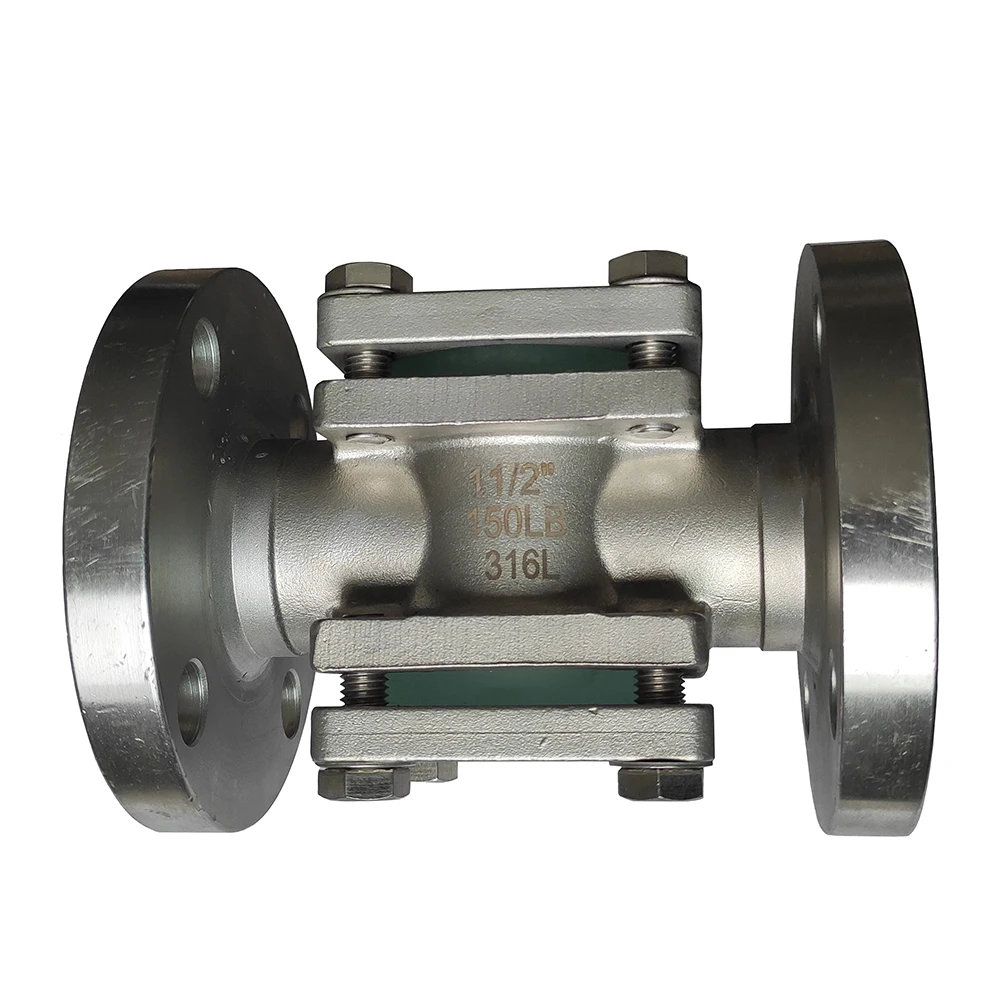

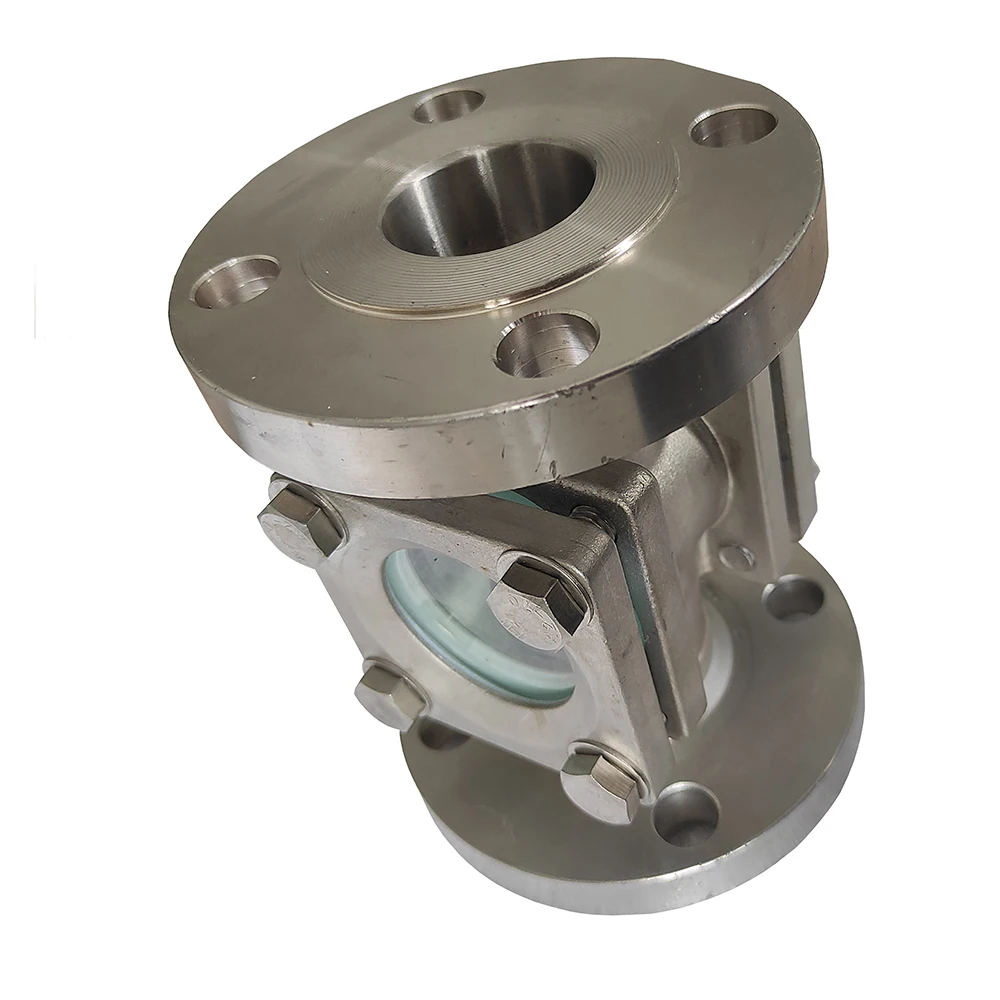

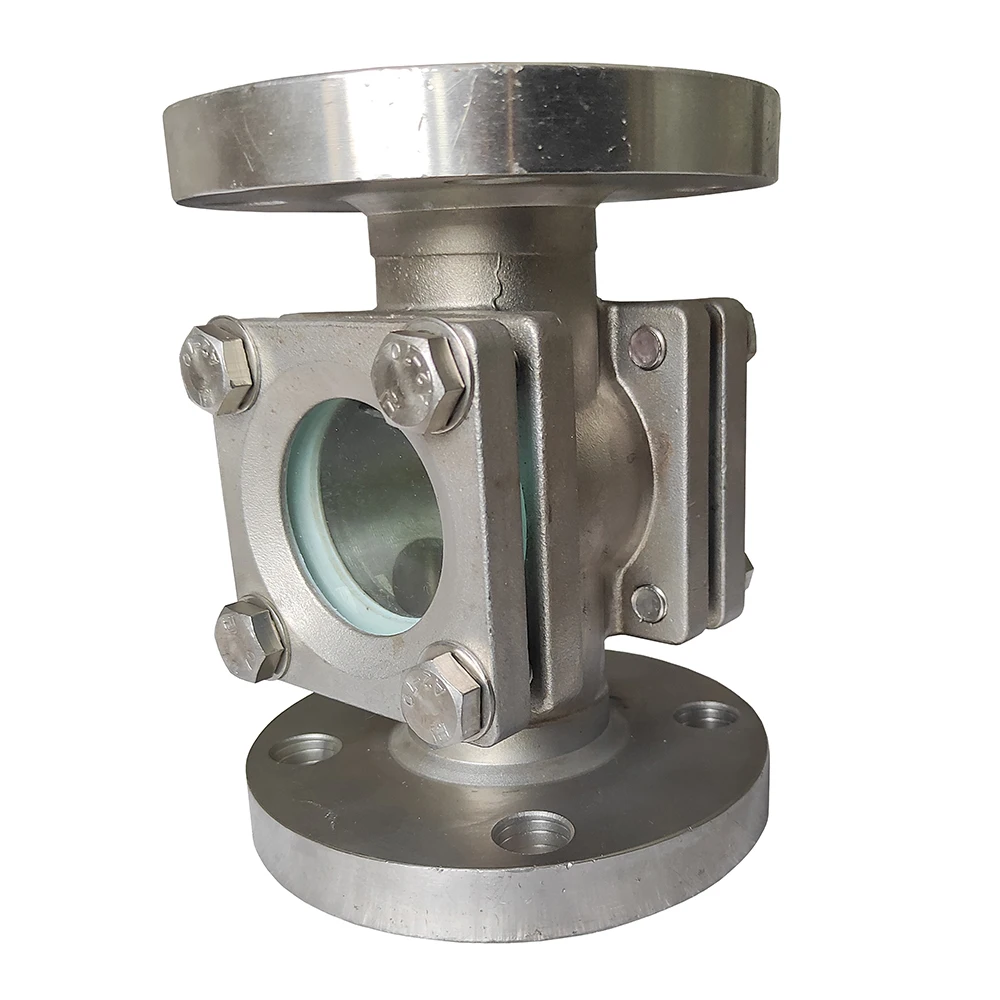

High pressure sight glass stainless steel Double Window Sight Glass
Sight glass is committed to helping customers to monitor and verfify the flowing medium such as petroleum products,liquefied gases,solvents or hazardous and corrosive chemicals and liquids.Monitoring Sensing and Revealing the fluids in operation,to help you keep them under your control for safety and trouble shooting in economical ways.
High - voltage direct - through mirror is widely used in pipelines and equipment important accessories.Suitable for medium measurement in pipelines with high temperature and high pressure, it can also be used normally and effectively when the medium is corrosive.It has the characteristics of small installation size, small driving torque, simple and quick operation, and at the same time it has a good flow regulation function and closed seal characteristics, the sight glass in large and medium caliber, medium and low pressure, it is the dominant form of the sight glass.
Flanged units are available in five styles designed to accommodate various mounting positions, fluid characteristics, flow rates and directions:
1. Anti-corrosion model: It’s suitable for acid, alkali and many organic solvents. It use PTFE lined stainless steel, PPR, PVC as body material.
2. Plain Style - May be installed in any position to observe fluid flow in any direction. These style indicators are usually employed to detect either the presence or absence of solutions, or to observe fluids for turbulence, color or clarity.
3. Drip Tube Style - This style is well suited for vertical lines with downward flow direction. These units are particularly recommended for applications characterized by low or intermittent flow rates, such as distillation processes.

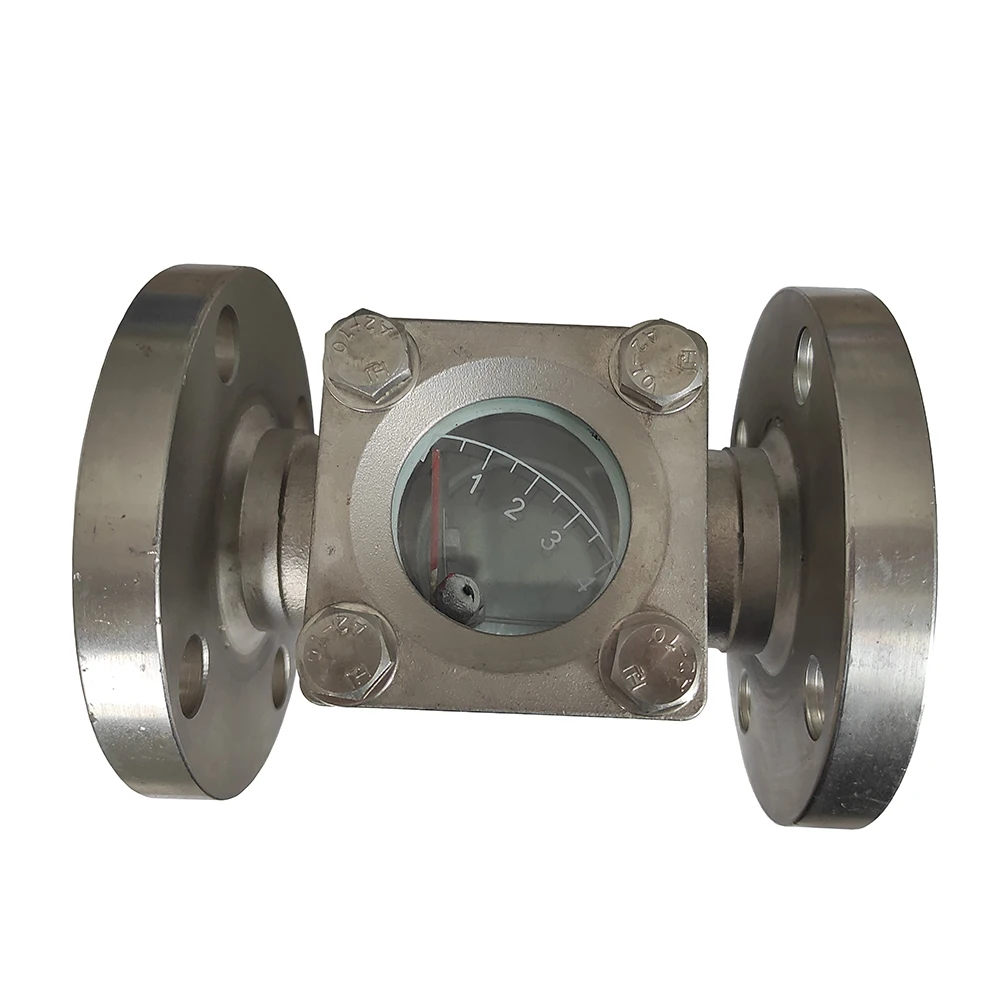

4. Flapper Style - Recommended for monitoring either horizontal or vertical lines with upward flow. The flapper position indicates current flow rate. Flapper style indicators are the appropriate choice for use with clear and semi-opaque solutions.
5. Rotator Style - This style indicator may be installed in any position to indicate flow in any direction. The visibility of rotor motion makes this style particularly well-suited for monitoring clear, translucent or dark solutions.
High - voltage direct - through mirror is widely used in pipelines and equipment important accessories.Suitable for medium measurement in pipelines with high temperature and high pressure, it can also be used normally and effectively when the medium is corrosive.It has the characteristics of small installation size, small driving torque, simple and quick operation, and at the same time it has a good flow regulation function and closed seal characteristics, the sight glass in large and medium caliber, medium and low pressure, it is the dominant form of the sight glass.
Flanged units are available in five styles designed to accommodate various mounting positions, fluid characteristics, flow rates and directions:
1. Anti-corrosion model: It’s suitable for acid, alkali and many organic solvents. It use PTFE lined stainless steel, PPR, PVC as body material.
2. Plain Style - May be installed in any position to observe fluid flow in any direction. These style indicators are usually employed to detect either the presence or absence of solutions, or to observe fluids for turbulence, color or clarity.
3. Drip Tube Style - This style is well suited for vertical lines with downward flow direction. These units are particularly recommended for applications characterized by low or intermittent flow rates, such as distillation processes.
4. Flapper Style - Recommended for monitoring either horizontal or vertical lines with upward flow. The flapper position indicates current flow rate. Flapper style indicators are the appropriate choice for use with clear and semi-opaque solutions.
5. Rotator Style - This style indicator may be installed in any position to indicate flow in any direction. The visibility of rotor motion makes this style particularly well-suited for monitoring clear, translucent or dark solutions.
Product Paramenters
Caliber | DN15 ~ DN500 |
Production Process | Integral Casting/ Welding |
Shell material | carbon steel、stainless steel、glass reinforced plastic、carbon steel lined with fluorine、FRPP plastic、PVC、PVDF+FPR、TI |
Window material | sodium-calcium glass, high borosilicate glass, quartz glass and plexiglass |
Sealing ring material | nitrile rubber, polytetrachloroethylene, graphite composite |
the maximum allowable temperature of sodium-calcium glass is 150℃; The maximum allowable temperature of borosilicate glass is 280℃. The maximum allowable temperature of quartz glass is 550℃. | |
Operating pressure | PN0.6~2.5Mpa（Max 2500LB） |
Connection mode | Flange / Thread/Tri-clamp |
