Product Overview
Description
Product Description

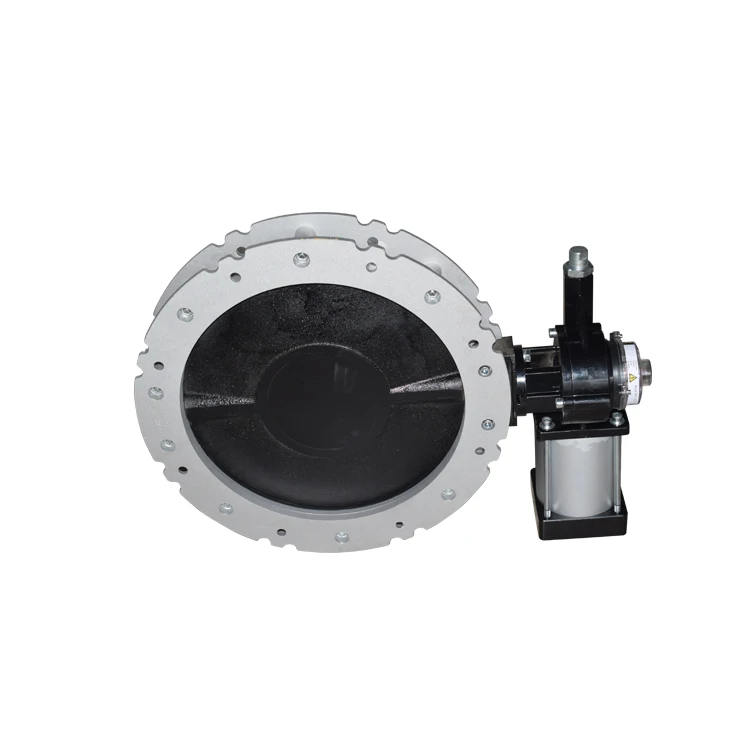

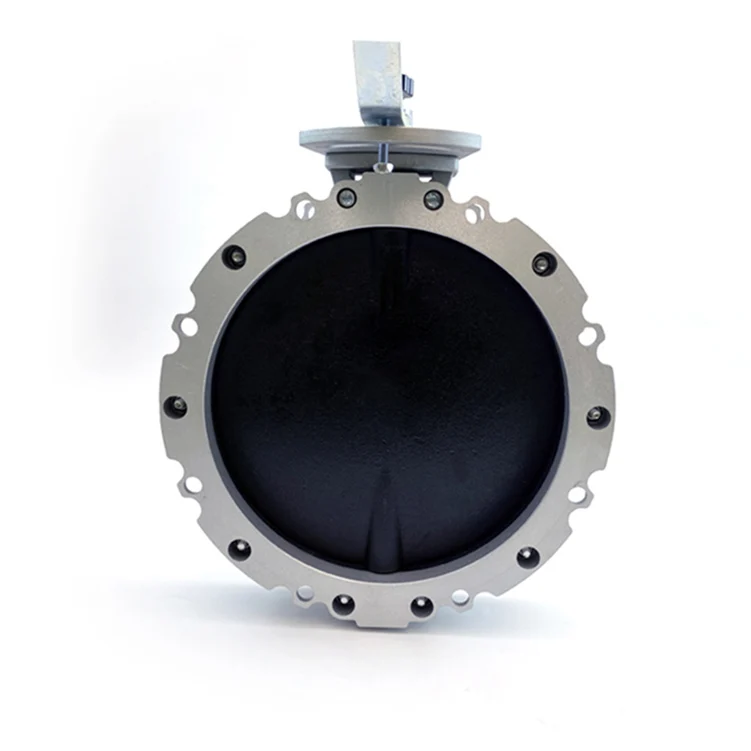

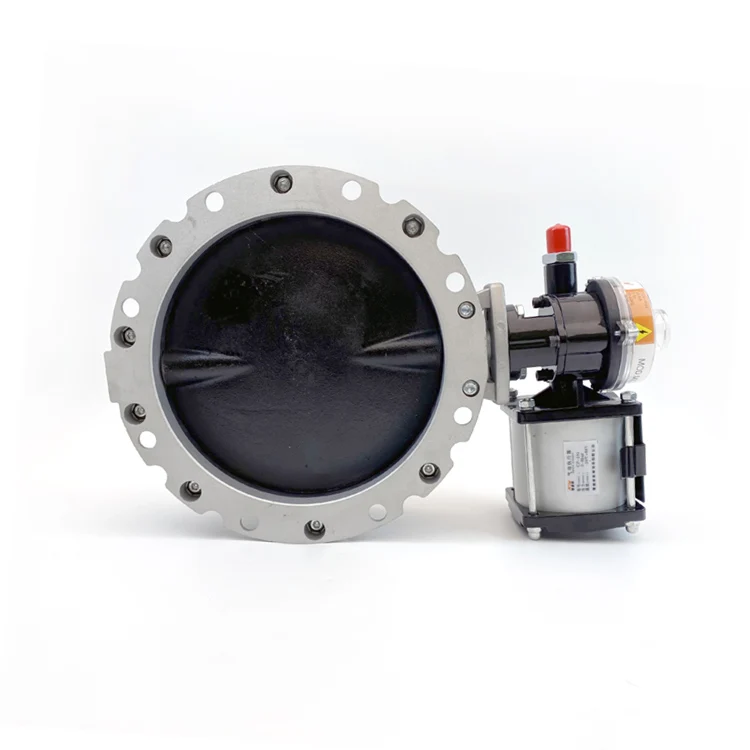

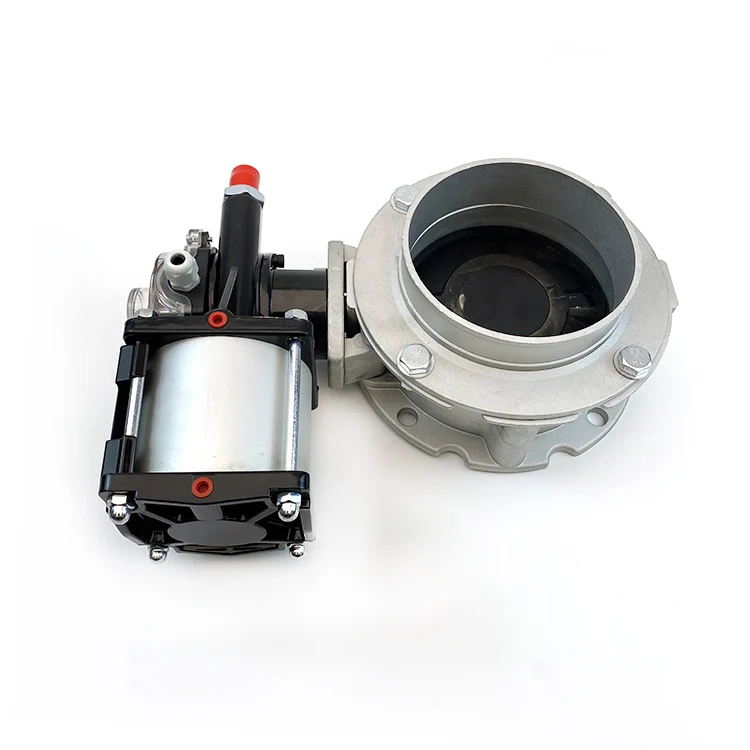

Mandiwi Powder Butterfly Valve Assembly,
Diameter: 150~200mm, single flange, double flange;
high pressure Aluminum Alloy die-cast Body,
Ductile Iron Plate or stainless steel disc;
Option device: pneumatic actuator, Solenoid valves, handle lever
The durability test of opening and closing is more than 100,000 times.
In addition, Mandiwi also focuses on product after-sales service and technical support, providing customers with comprehensive solutions to ensure the long-term and stable operation of butterfly valves.
Features:
1. Small and light, and easy installation and maintenance. It can be mounted wherever needed.
2. Compact structure, 90 degree fast switch.
3. Minimized operating torque, energy saving.
4. Flow curve tending to straight line. Excellent regulation performance.
5. Long service life Standing the test of tens of thousands opening/closing operations.
6. Bubbles-tight sealing with no leakage under the pressure test.
7. Wide selection of materials, applicable for various medium.
2. Compact structure, 90 degree fast switch.
3. Minimized operating torque, energy saving.
4. Flow curve tending to straight line. Excellent regulation performance.
5. Long service life Standing the test of tens of thousands opening/closing operations.
6. Bubbles-tight sealing with no leakage under the pressure test.
7. Wide selection of materials, applicable for various medium.

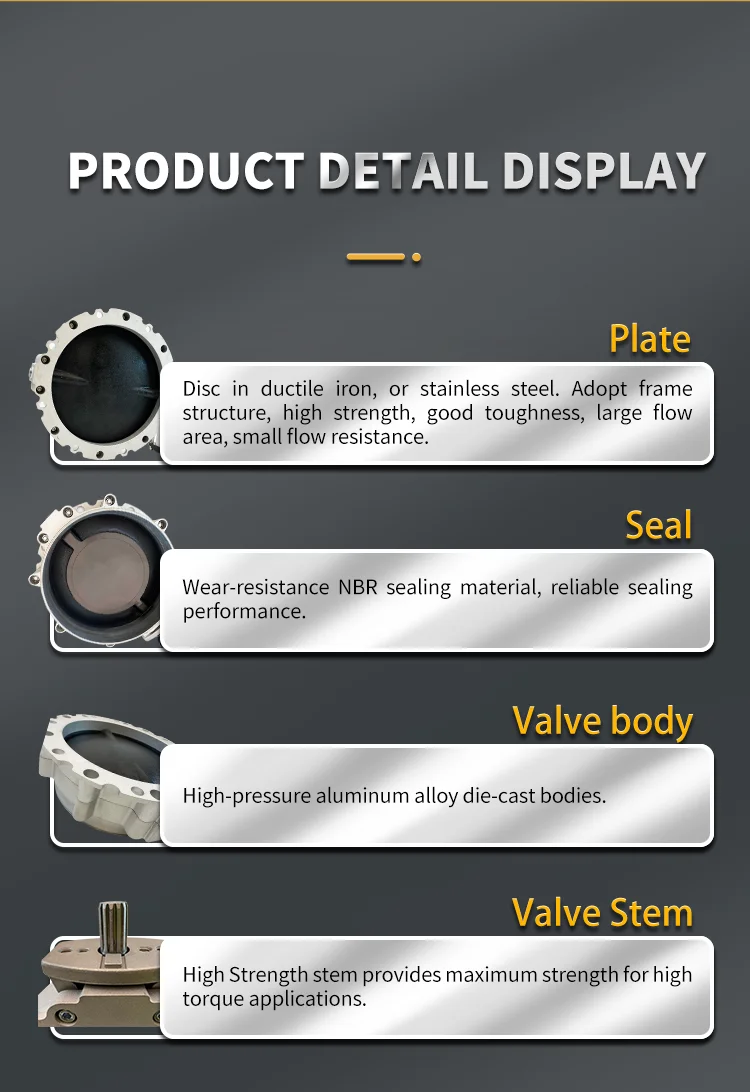

Aluminum Alloy die-cast Valve Body
Pneumatic Actuator (Air Cylinder)

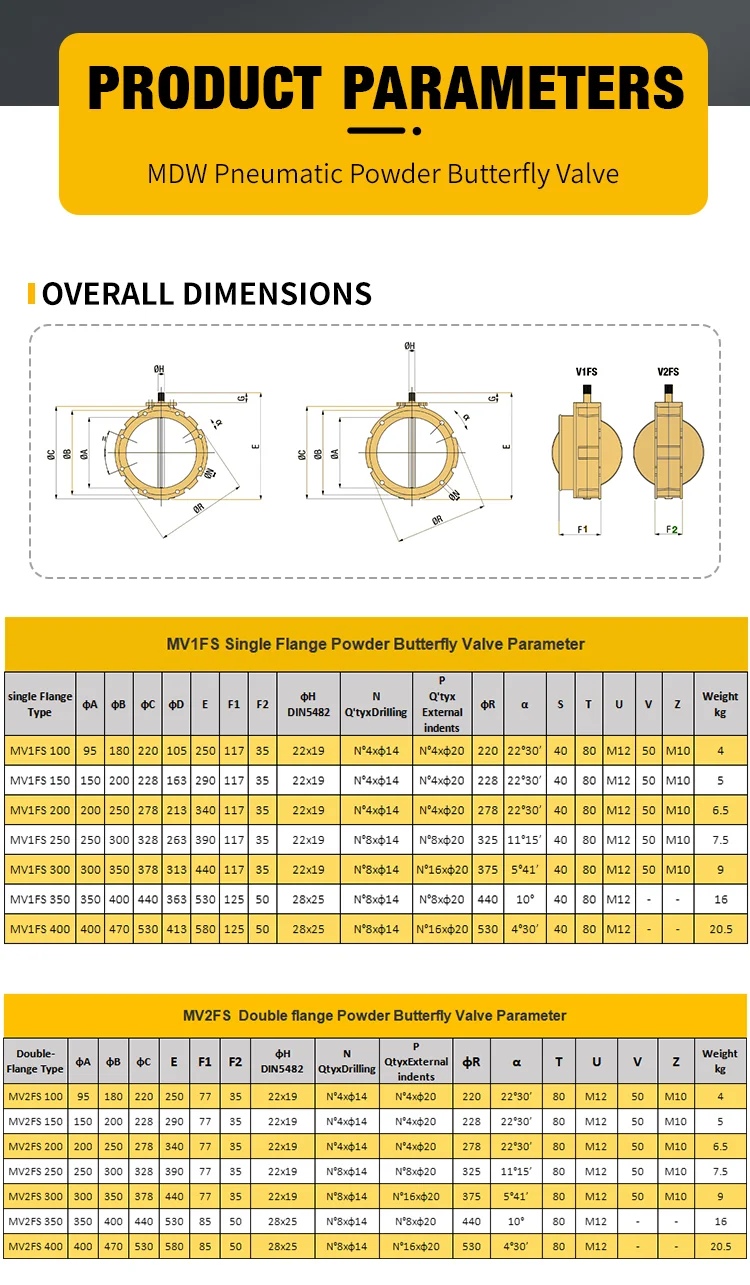

Product Parameters
DN(mm) Nominal Diameter | 100~400mm (4inches~16inches） | ||||||
PN(Mpa) Nominal Pressure | 1.0 | 1.6 | |||||
Testing Pressure (Body) | 1.5Mpa | 2.4Mpa | |||||
Testing pressure (Sealing) | 1.1Mpa | 1.76Mpa | |||||
Working Temperature | -20℃ ~ +80℃ | ||||||
Ambient Temperature | -20℃ ~ +70℃ | ||||||
Applicable Medium | Water, steam, gas, dust, oil, nitric acid, acetic acid, alkali, etc. | ||||||
Product Advantage
Company Profile
MANDIWI, Makes Pneumatic Products More Reliable!
Hunan Mandiwi Automation Equipment Co., Ltd is a professional manufacturer focus on pneumatic products and solutions that are efficient, energy-saving , environmentally and friendly for our customers. Our main business line includes air compressors, air dryers, butterfly valves, air cylinders, pneumatic actuators, etc.

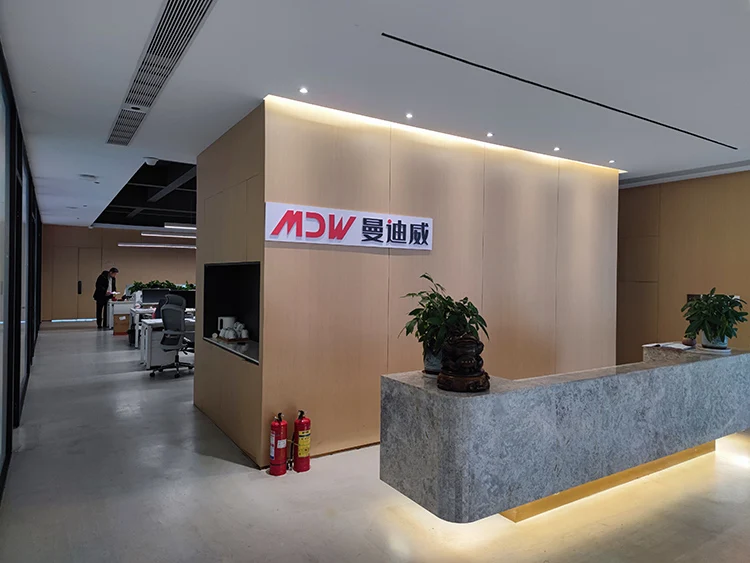

Our marketing and sales headquarter locates in Changsha, a world famous city of construction machinery. Our products have been widely used by SANY group, Xinzhu Group, CRCC, Shantui, etc, well-known enterprises, and established deep and long-term business cooperation relation with them.

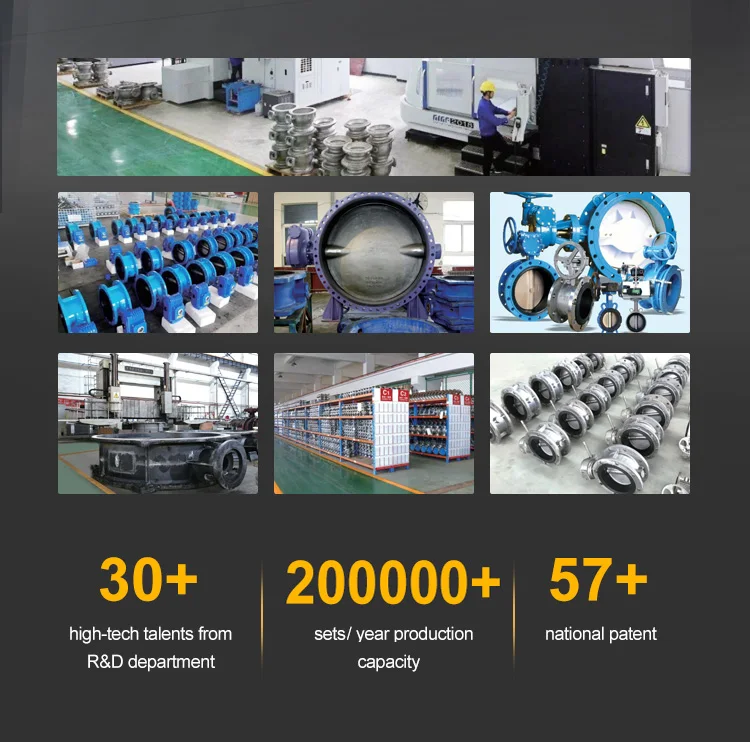

More than 20,000sqm production plant, 20+ years professional experiences of production, 200,000+sets annual production capacity, 57 national patents, 30+ high-tech talents from R&D Department, all are ready to provide efficient and no-worry products and services for you!
Our marketing and sales headquarter locates in Changsha, a world famous city of construction machinery. Our products have been widely used by SANY group, Xinzhu Group, CRCC, Shantui, etc, well-known enterprises, and established deep and long-term business cooperation relation with them.
More than 20,000sqm production plant, 20+ years professional experiences of production, 200,000+sets annual production capacity, 57 national patents, 30+ high-tech talents from R&D Department, all are ready to provide efficient and no-worry products and services for you!
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
FAQ
Quality service, brings you worry-free after sale.
