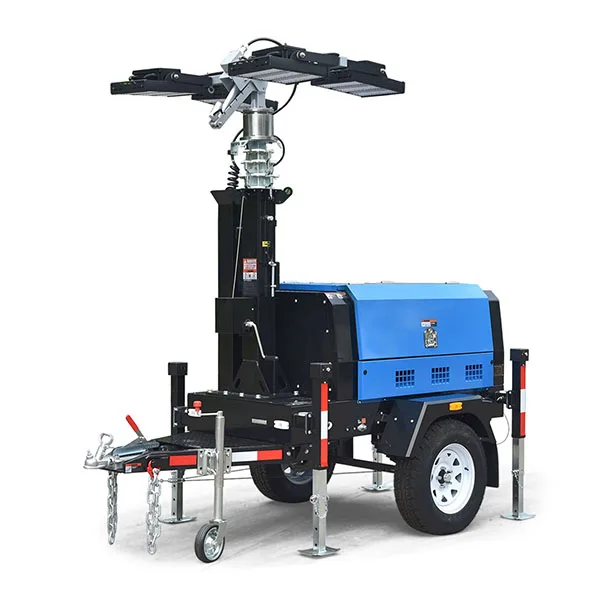

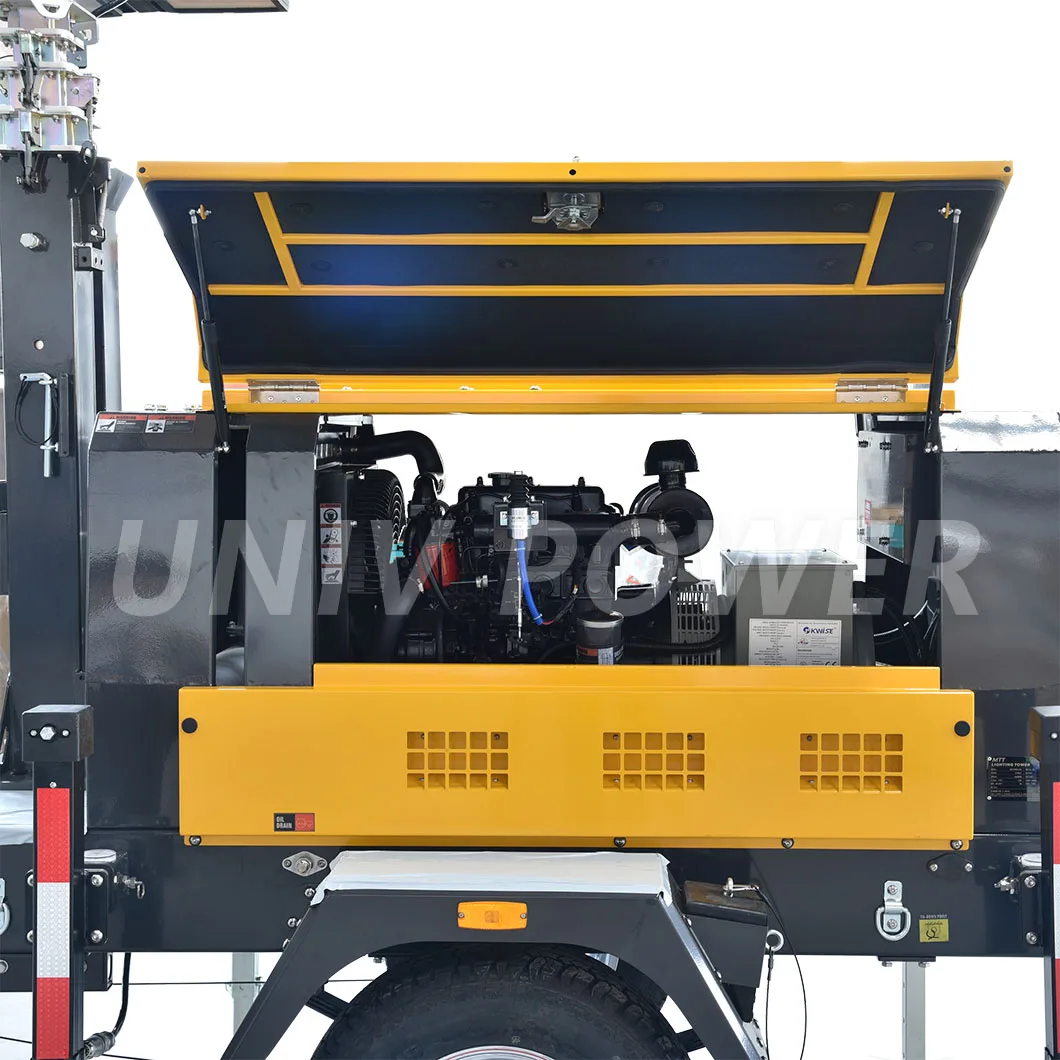

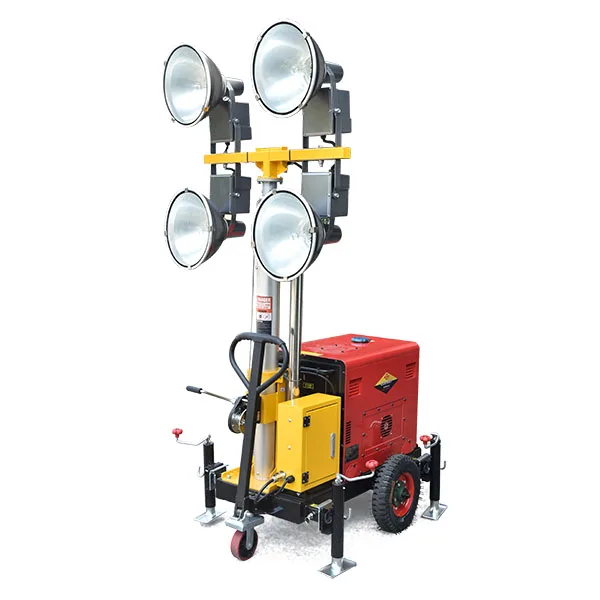

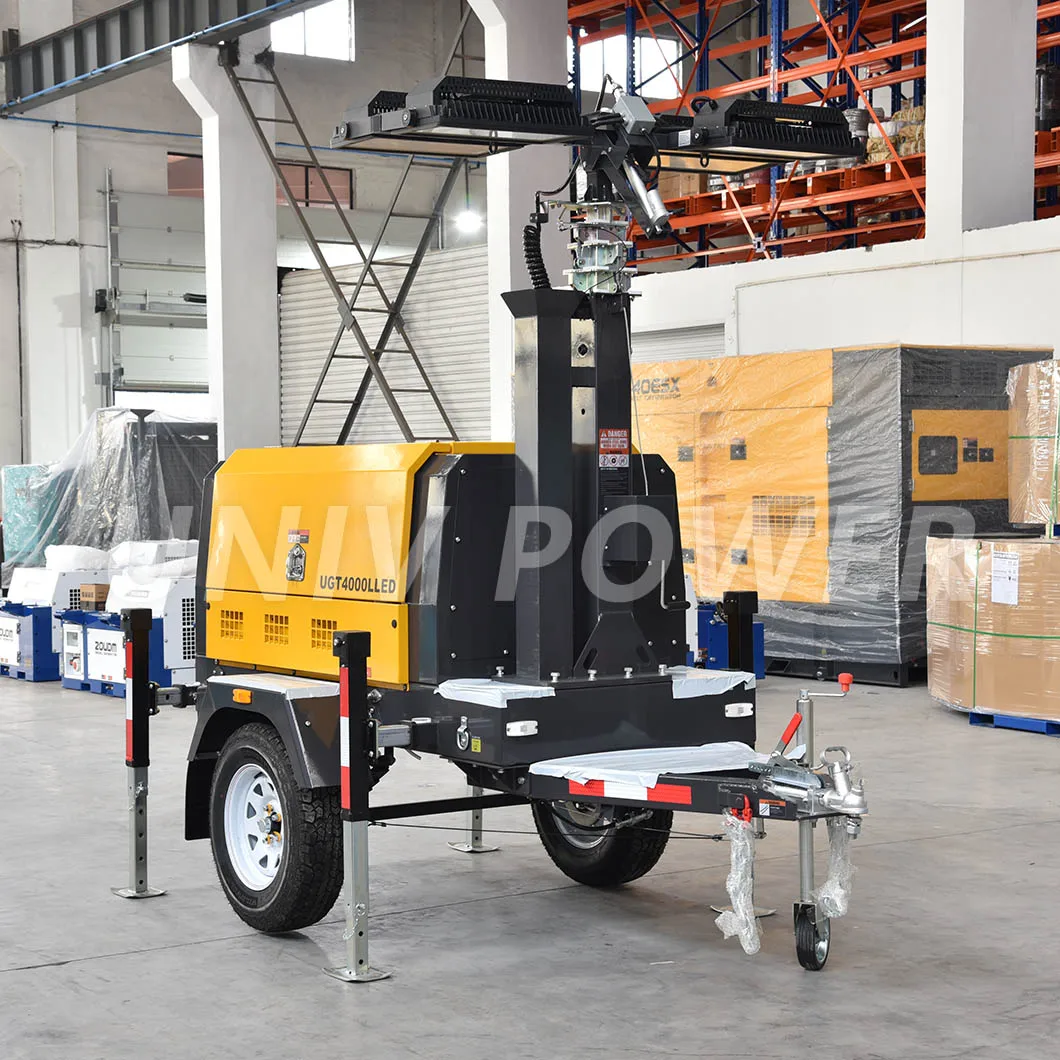

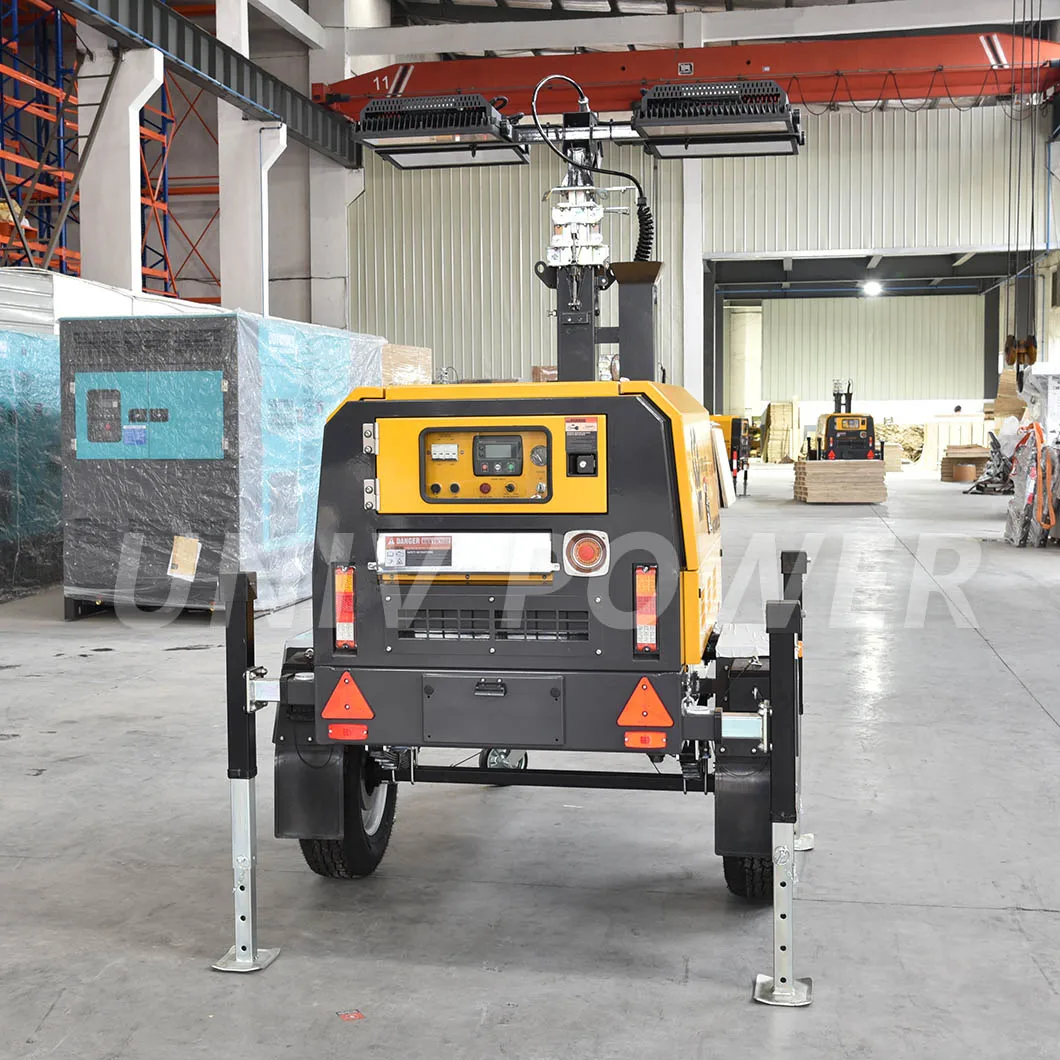

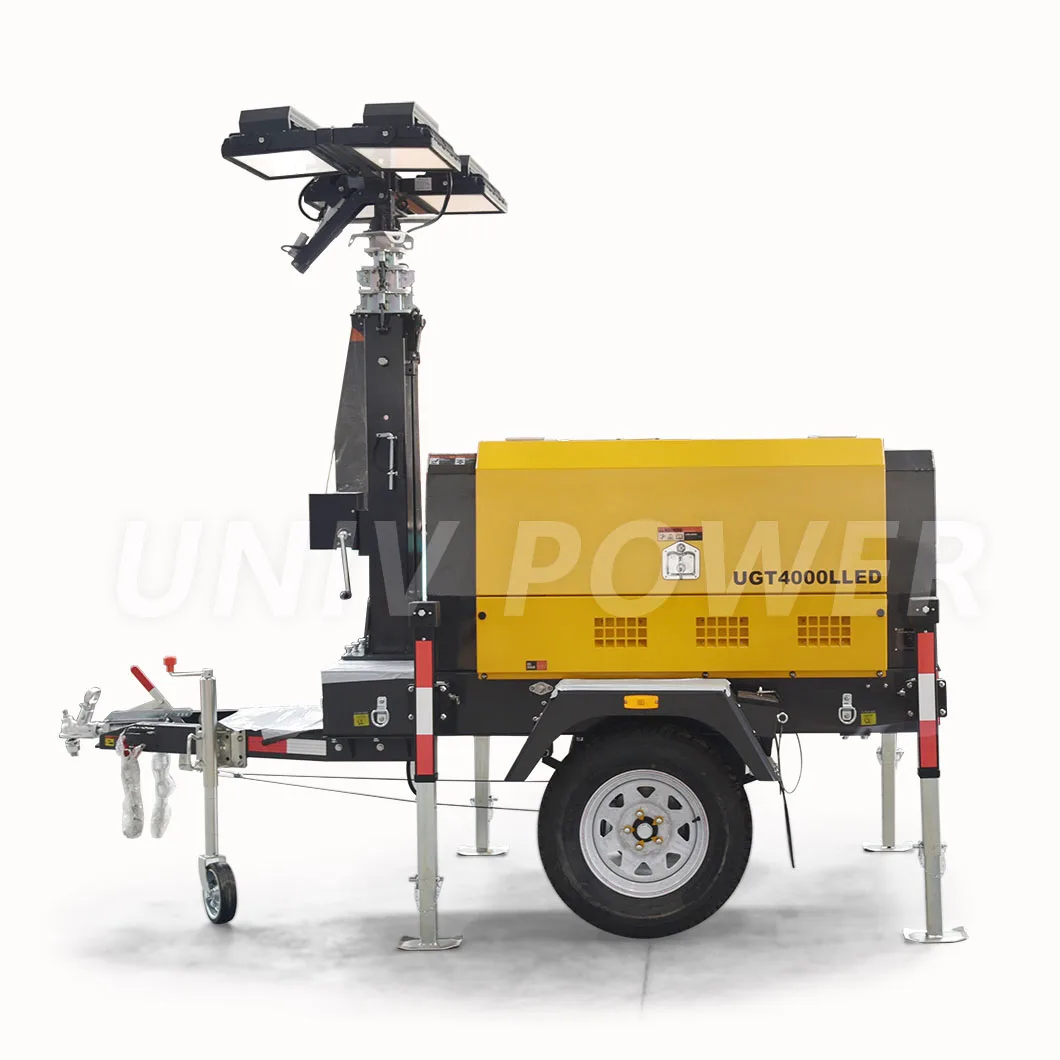

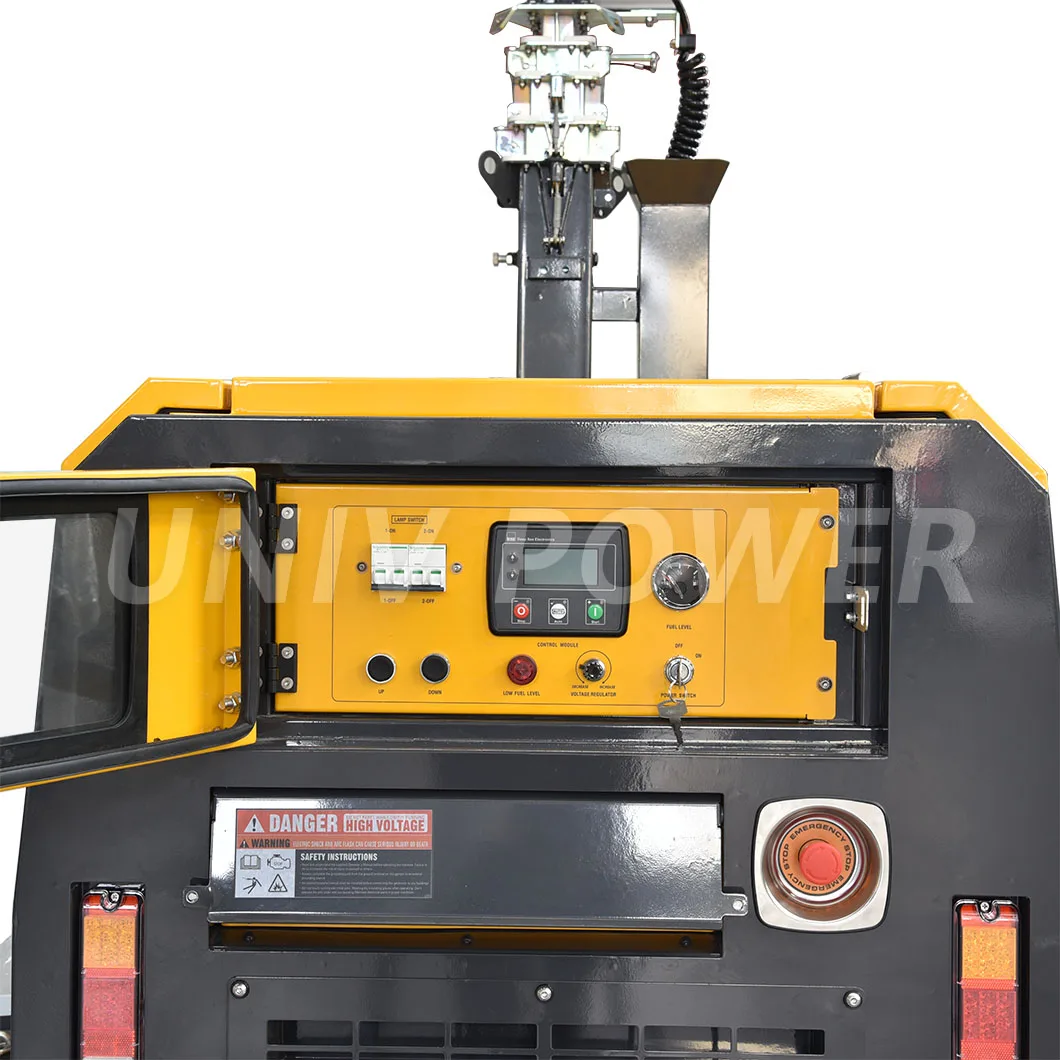

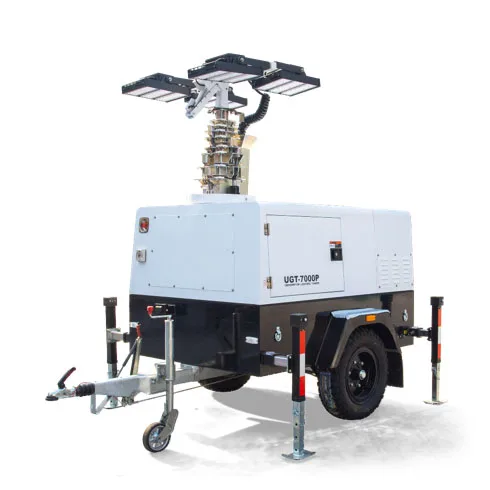

Portable Diesel LED Light Towers outdoor mobile type
Portable Diesel LED Light Towers outdoor mobile type
Portable Diesel LED Light Towers outdoor mobile type
Portable Diesel LED Light Towers outdoor mobile type
Portable Diesel LED Light Towers outdoor mobile type
Portable Diesel LED Light Towers outdoor mobile type
Portable Diesel LED Light Towers outdoor mobile type

Portable Diesel LED Light Towers outdoor mobile type

Share on (1601056940595):


Price:$6,450.00 - $6,850.00

Quantity:


Product Overview

Description



Product Series


Model
UGT-1600 Simple
UGT-1600
UGT-4000 LM
UGT-4000 PM
UGT-4000 PL
Frequency
50/60 Hz
50/60 Hz
50/60 Hz
50/60 Hz
50/60 Hz
Voltage
230/110 VAC
230/110 VAC
230/110 VAC
230/110 VAC
230/110 VAC
Phase
Single
Single
Single
Single
Single
Rated Power
5kW/5kVA
5kW/5kVA
8kW/8kVA
8kW/8kVA
8kW/8kVA
Engine
Chinese 186FA
Chinese 192FA
Laidong KM385BD
Perkins 403D-11G
Perkins 403D-11G
Alternator
Chinese
Chinese
Brushless
STAMFORD
STAMFORD
Lamp
4 × 400W MHD,176000Lms
4 × 1000W MHD,440000Lms
4 × 1000W MHD,440000Lms
4 × 1000W MHD,440000Lms
4 × 500W LED,290000Lms
Rotation
No
No
No
No
350° Electric
Tilt
No
No
90° Electric
90° Electric
90° Electric
Controller
Chinese
Chinese
DSE 4620
DSE 4620
DSE 4620
Mast
4.5M 4 Sections
4.5M 4 Sections
6.5M 5 Sections
6.5M 5 Sections
9M 9 Sections
Mast Lifting
Manual Winch
Manual Winch
Manual Winch
Manual Winch
Hydraulic
Trailer Standard
US / AU / EU
US / AU / EU
US / AU / EU
US / AU / EU
US / AU / EU
Hitch
Handle
2'' Ball / 3'' Ring
2'' Ball / 3'' Ring
2'' Ball / 3'' Ring
2'' Ball / 3'' Ring
Brake
No
No
Mechanical
Mechanical
Mechanical
Axle
Single
Single
Single
Single
Single
Tire
8 inch
12 inch
15 inch
15 inch
15 inch
Outriggers
4 ×
4 ×
4 ×
4 ×
4 ×
Forklift Holes
No
2 ×
2 ×
2 ×
2 ×
Wokring Temp
-30ºC~50ºC
-30ºC~50ºC
-30ºC~50ºC
-30ºC~50ºC
-30ºC~50ºC
Fuel Tank
12L
12L
45L
45L
45L
Running Time
8 hours
8 hours
22 hours
22 hours
22 hours
Dimension(mm)
1400*1100*2350
2400*1100*2500
3000*1500*2700
3000*1500*2700
3200*1500*2700
Weight
350kg
550kg
1275kg
1325kg
1725kg
QTY in 20' / 40'
16 units / 48 units
12 units / 28 units
4 units / 8 units
4 units / 8 units
3 units / 7 units


Model
UGT-1600 Simple
UGT-1600
UGT-4000 LM
UGT-4000 PM
UGT-4000 PL
Frequency
50/60 Hz
50/60 Hz
50/60 Hz
50/60 Hz
50/60 Hz
Voltage
230/110 VAC
230/110 VAC
230/110 VAC
230/110 VAC
230/110 VAC
Phase
Single
Single
Single
Single
Single
Rated Power
5kW/5kVA
5kW/5kVA
8kW/8kVA
8kW/8kVA
8kW/8kVA
Engine
Chinese 186FA
Chinese 192FA
Laidong KM385BD
Perkins 403D-11G
Perkins 403D-11G
Alternator
Chinese
Chinese
Brushless
STAMFORD
STAMFORD
Lamp
4 × 400W MHD,176000Lms
4 × 1000W MHD,440000Lms
4 × 1000W MHD,440000Lms
4 × 1000W MHD,440000Lms
4 × 500W LED,290000Lms
Rotation
No
No
No
No
350° Electric
Tilt
No
No
90° Electric
90° Electric
90° Electric
Controller
Chinese
Chinese
DSE 4620
DSE 4620
DSE 4620
Mast
4.5M 4 Sections
4.5M 4 Sections
6.5M 5 Sections
6.5M 5 Sections
9M 9 Sections
Mast Lifting
Manual Winch
Manual Winch
Manual Winch
Manual Winch
Hydraulic
Trailer Standard
US / AU / EU
US / AU / EU
US / AU / EU
US / AU / EU
US / AU / EU
Hitch
Handle
2'' Ball / 3'' Ring
2'' Ball / 3'' Ring
2'' Ball / 3'' Ring
2'' Ball / 3'' Ring
Brake
No
No
Mechanical
Mechanical
Mechanical
Axle
Single
Single
Single
Single
Single
Tire
8 inch
12 inch
15 inch
15 inch
15 inch
Outriggers
4 ×
4 ×
4 ×
4 ×
4 ×
Forklift Holes
No
2 ×
2 ×
2 ×
2 ×
Wokring Temp
-30ºC~50ºC
-30ºC~50ºC
-30ºC~50ºC
-30ºC~50ºC
-30ºC~50ºC
Fuel Tank
12L
12L
45L
45L
45L
Running Time
8 hours
8 hours
22 hours
22 hours
22 hours
Dimension(mm)
1400*1100*2350
2400*1100*2500
3000*1500*2700
3000*1500*2700
3200*1500*2700
Weight
350kg
550kg
1275kg
1325kg
1725kg
QTY in 20' / 40'
16 units / 48 units
12 units / 28 units
4 units / 8 units
4 units / 8 units
3 units / 7 units






Our Service


Warranty service
Warranty for 1 year or 1000 running hours.During the warranty period, if any accessories are damaged, free accessories will be provided.

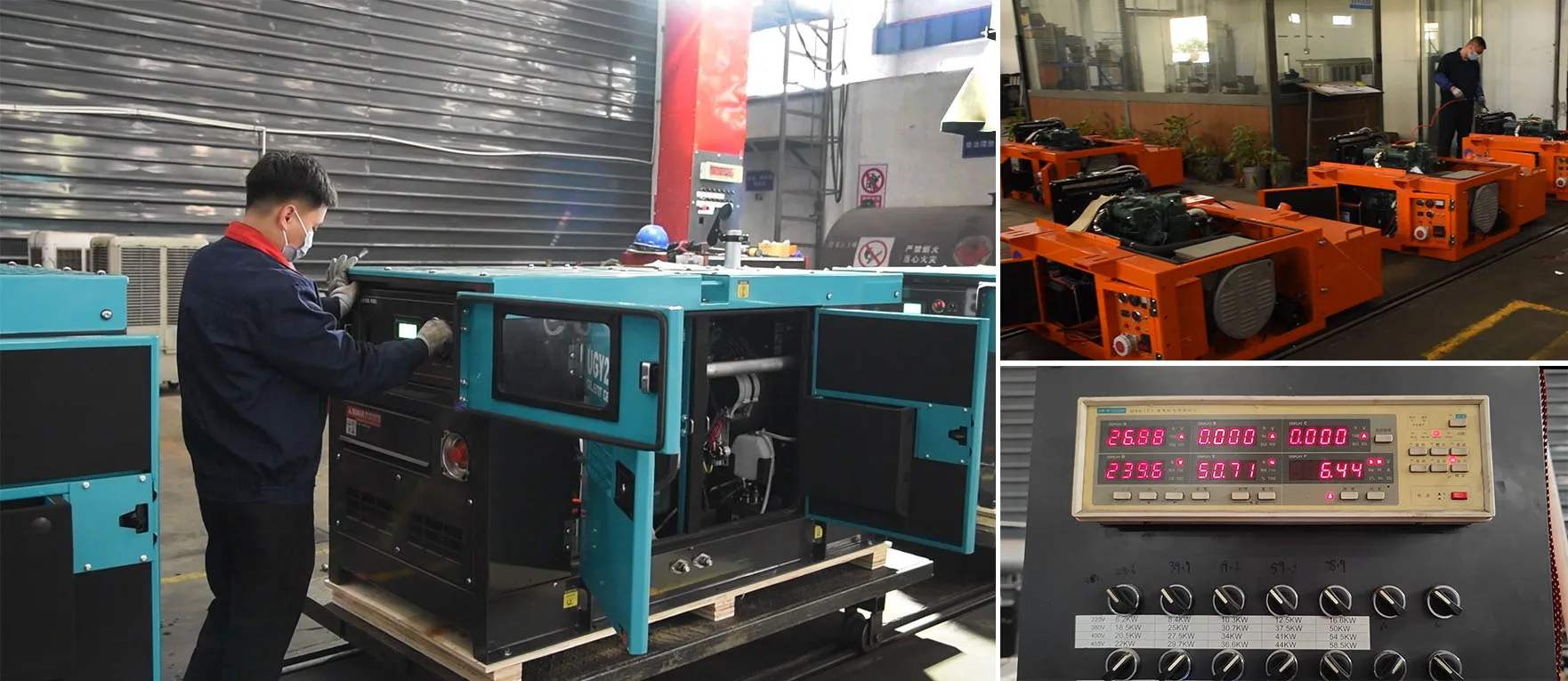

Test for high performance
A professional team will provide good service, advanced equipment provide a strict checking and measuring environment for high quality product, low fuel level, oil presssure, water temperature, full load test, over load 110% etc. we will test all function to make sure our production running good, so we use load bank for test more stabilized and reliable.

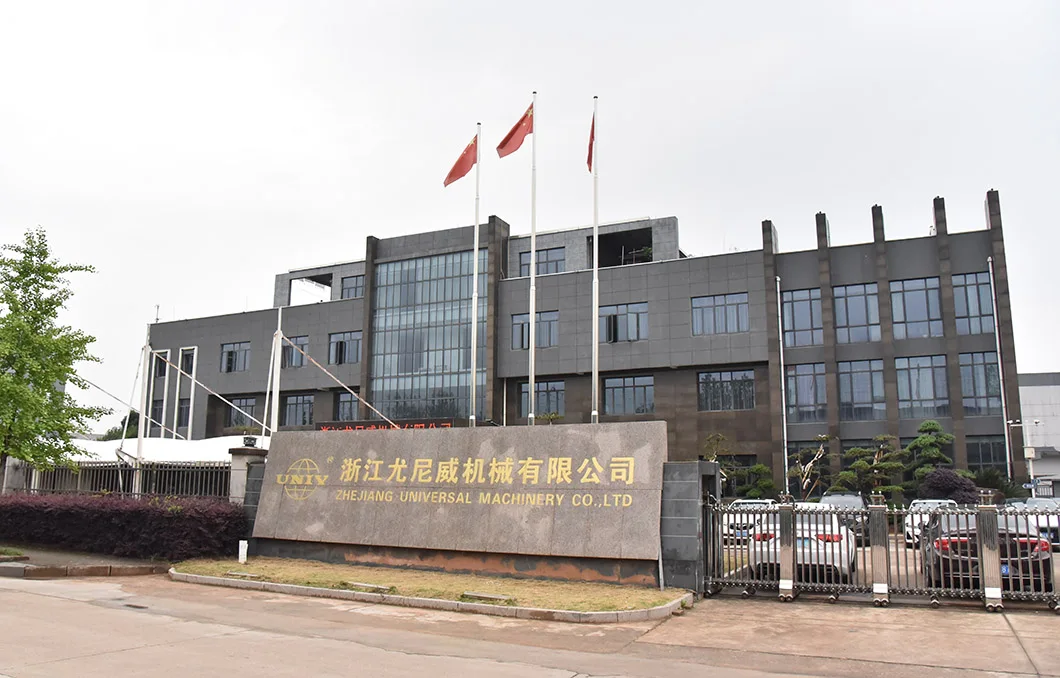

Company Profile




ZHEJIANG UNIVERSAL MACHINERY CO.,LTD. since 2007 specialized in production and slaes of Diesel generators, Super-silent generator,REEFER CONTAINER generator, Solar light tower,Mobile generator light tower, Air compressor, and other the development of new products.
Our factory locaed in Quzhou city, west of Zhejiang provice in China, Factory occupies over sixteen thousand square meters and has a beautiful, clean and tidy environment. "strict management, brave innovation, customer satisfaction and strive for the brand." is our manufacturing principle. Through the improvement of the production process, we have accumulated rich experience in design,manufacture and debugging. We used the most advanced full-automatic laser cutting machine and automatic bending machine to improve production level.High-quality raw materials, advanced technology and equipment as well as good management enable us to provide customers with good-quality products and international-level service.Ensuring reliable and steady performance of our products.
We set branch in DUBAI,for spare parts supply and after sales.Till nowadays we developed agent in main countries all over theworld like USA Australia,France,Indinesia,Palestine,Nigeria,Venezuelia,Philppines,Malasia,Singapore ect.
Our products are sold all over the world. We offering UNIV power system equipment and high-quality sevice to over 100 contries.






production process

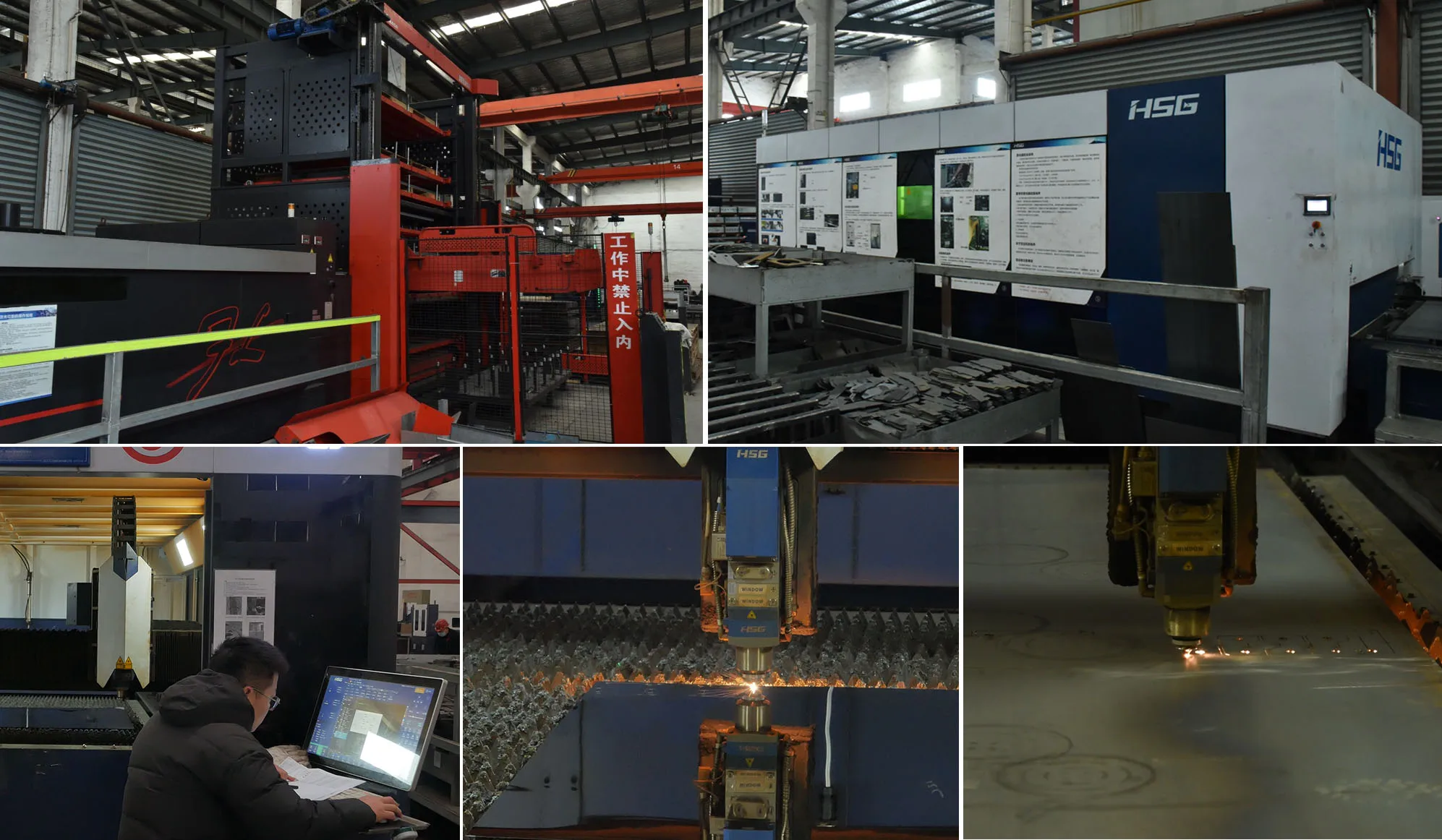

Full-automatic laser cutting machine
High precision equipments have the ability to ensure the consistency of product high quality, The canopy is formed by cutting and bending using 2 mm cold-rolled sheets from big company in China, without burr, every part of canopy smooth and beautiful, artwork standards.

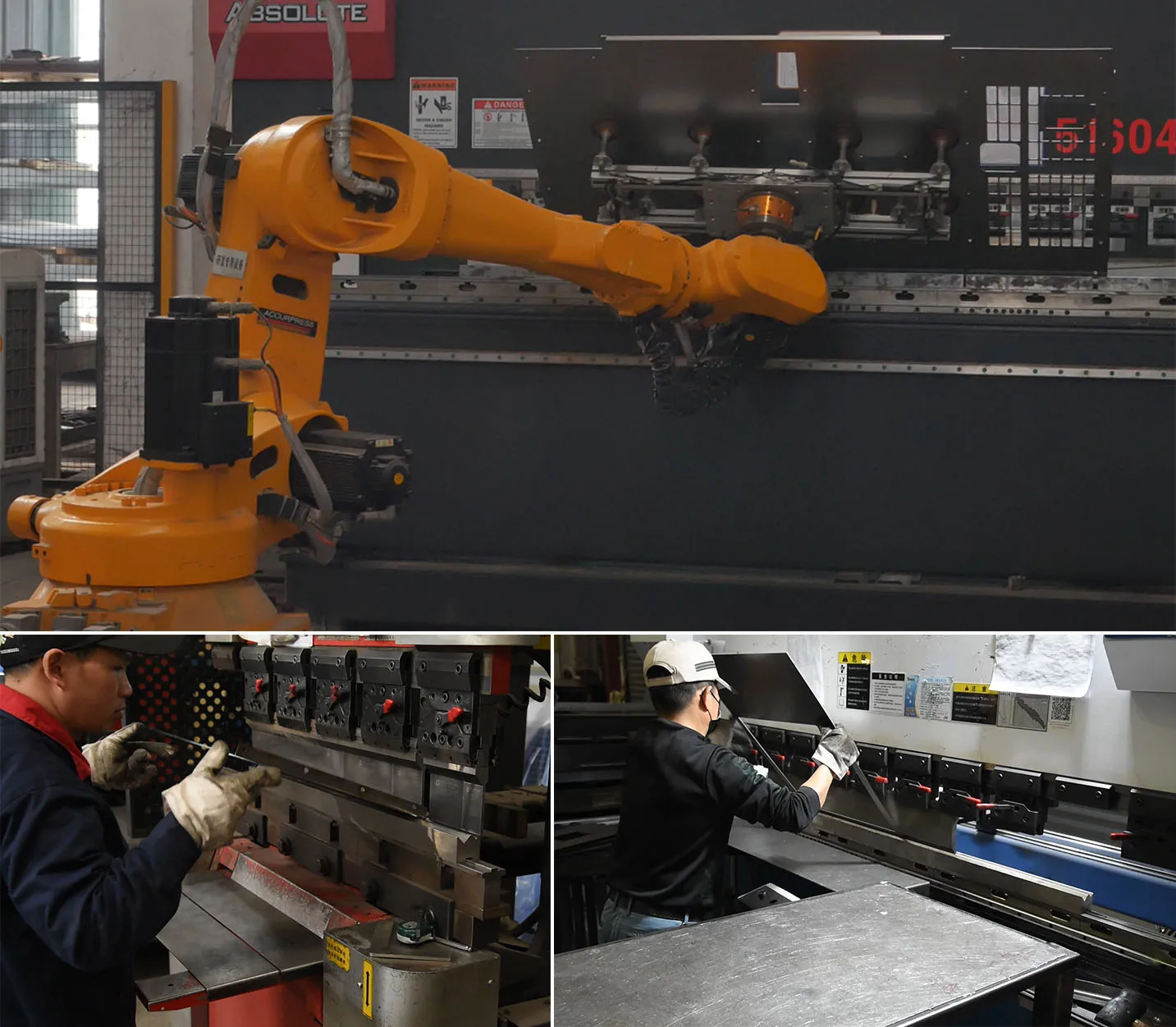

Automatic bending machine
Advanced system that achieves precise (0.03mm) and economical bending results even in lot sizes of less than ten. All related sheet-mental parts can be treated self-directed.Ensure the efficiency and pertinency. Setting complete manufacturing system to ensure batch consistency of the quality.

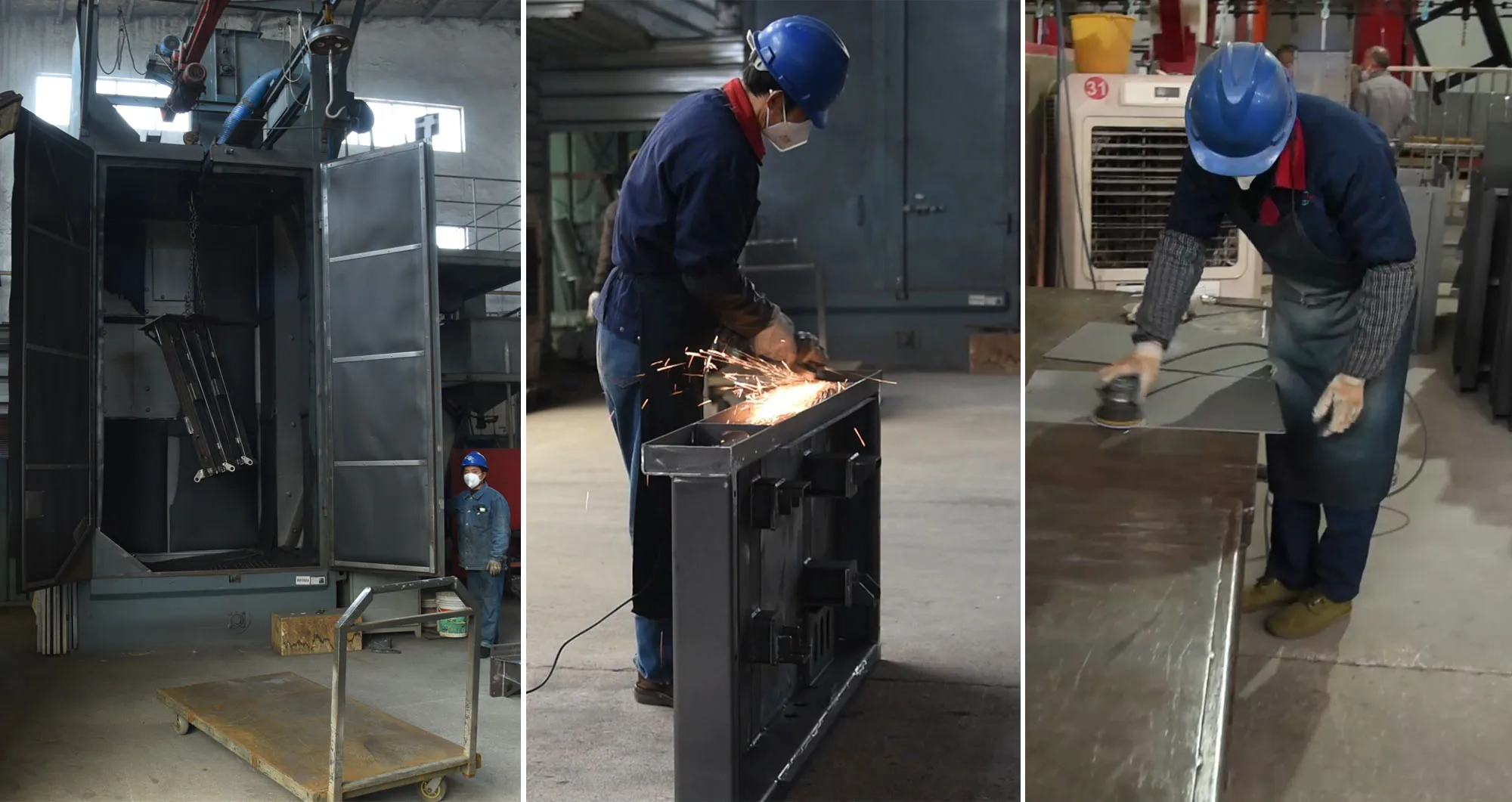

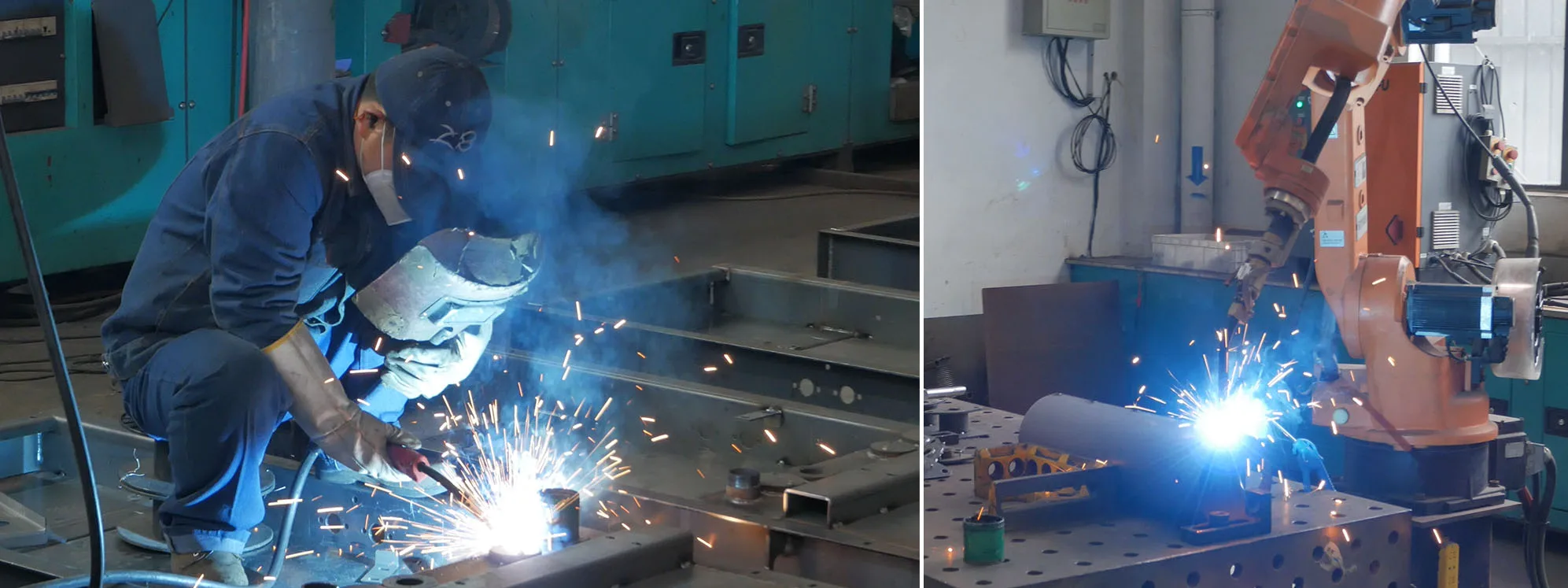

Welding
You know good welding technology not only affects the aesthetic degree of product, but also decide the quality of product, we use 3 types welding equipment: electrowelding, argon arc welding and GMAW-MIG for different parts connect.




Polishing
We pay attention to every details, after welding and poslish every parts, Its function is to clear the surface of the surface of
burr, rust, oil, dust, and remove coarse particles and impurities on the coating surface and obtain flat surfaces, so when powder coating canopy for get stronger adsorption force.

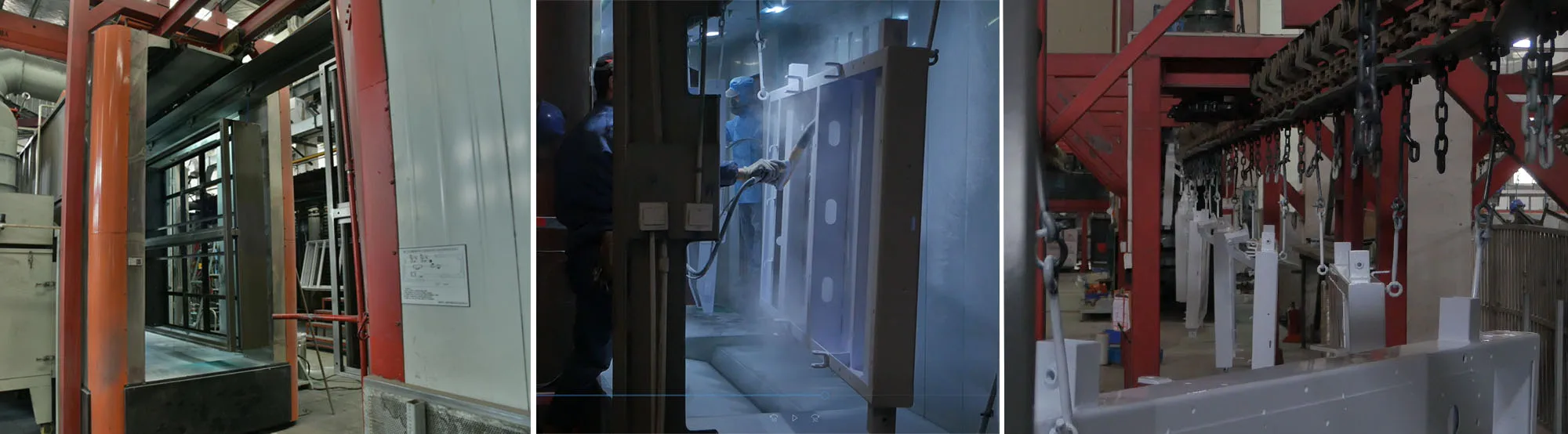

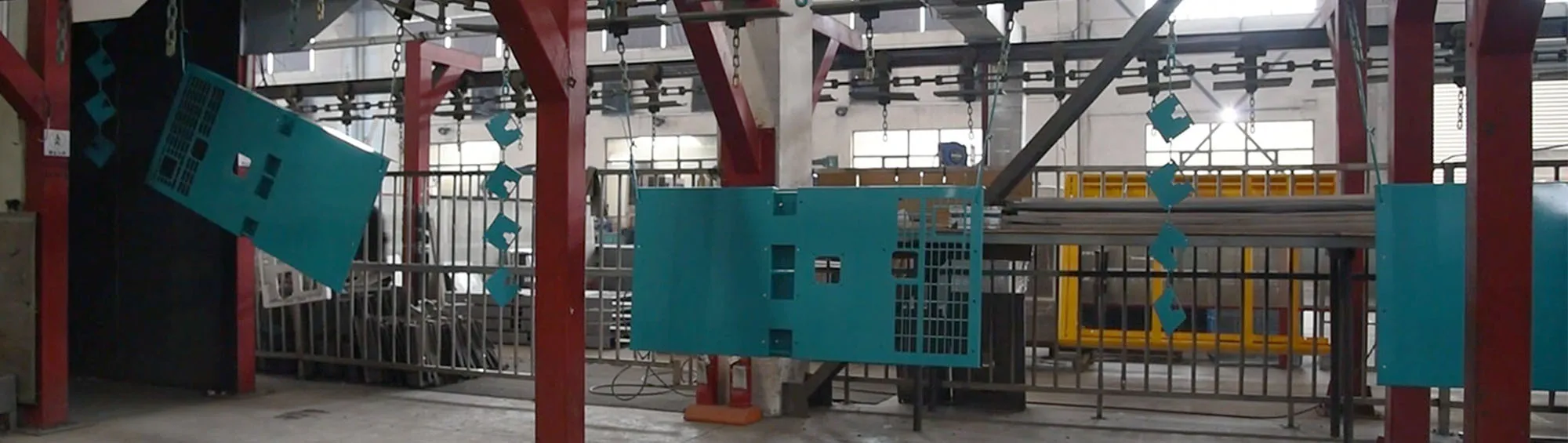

Plastic coating Powder
Canopy surface by the phosphate treatment using, oil and rust removing, using special plastic powder electrostatic spraying,coating adhesion, strong, bright color, Adopting outdoor use plastic coating powder, with accurate color,beautiful appearance,and durable on rustproof performance, also have specialized equipment to protect environment for longer development in the future.

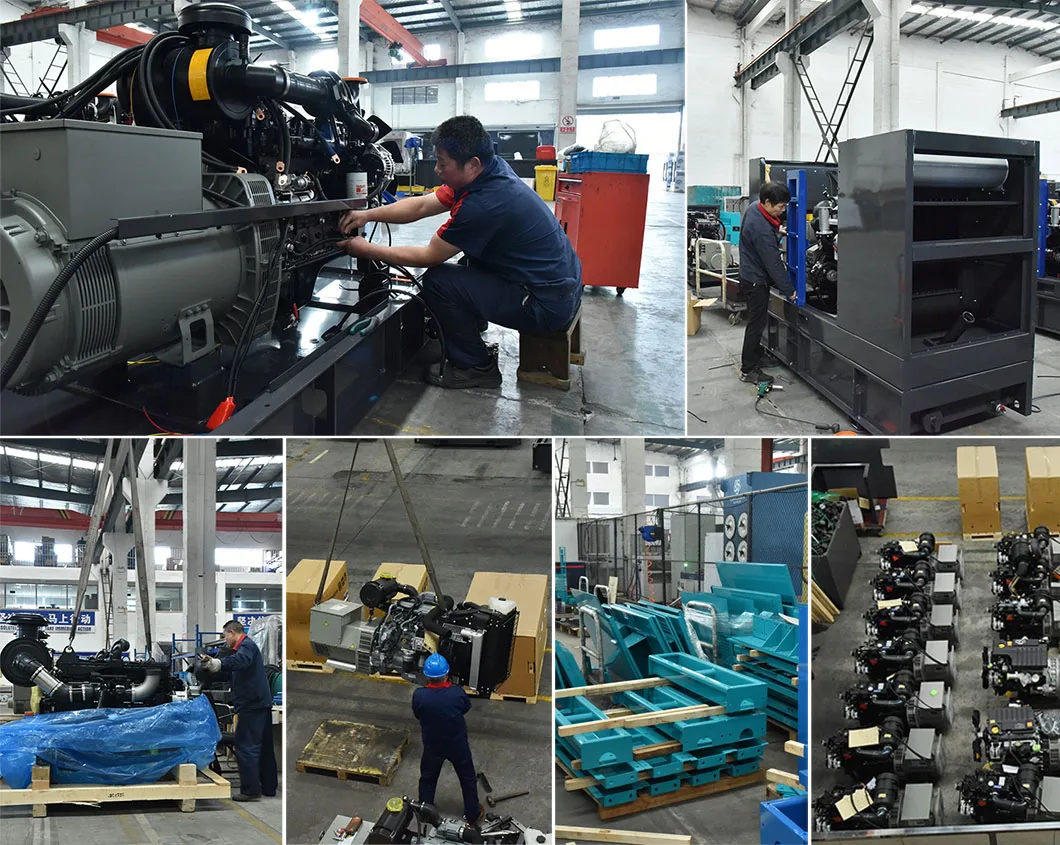

Assemble
Good management and operation to provide a shorter delivery time.
