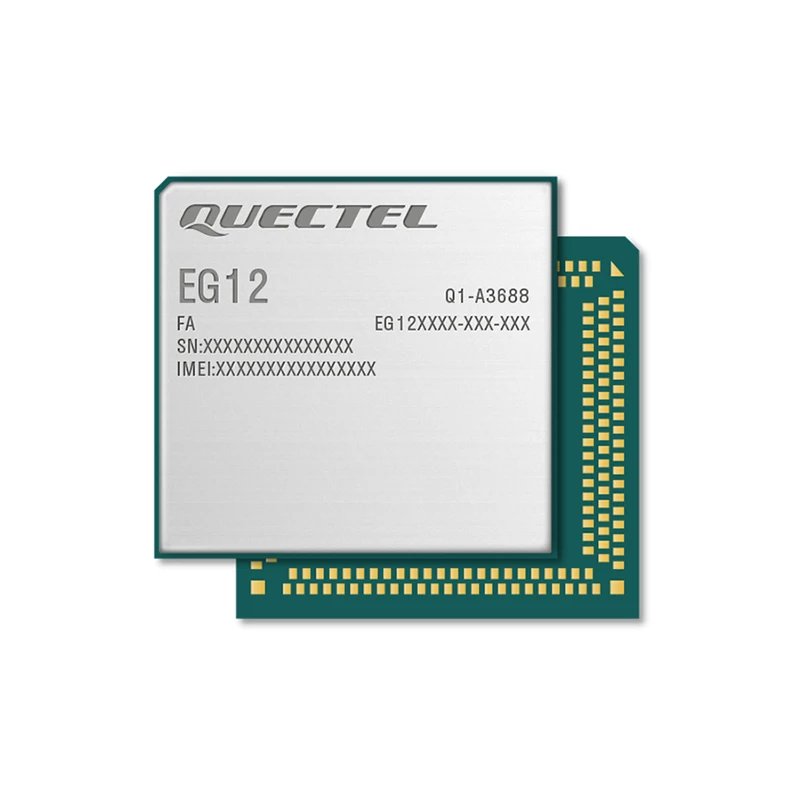

HUASIFEI Original 4G LTE Wireless module EG12 EA EG12 GT cate 12 for M2M Max downlink 600Mbps/uplink 150Mbps module

 Overview

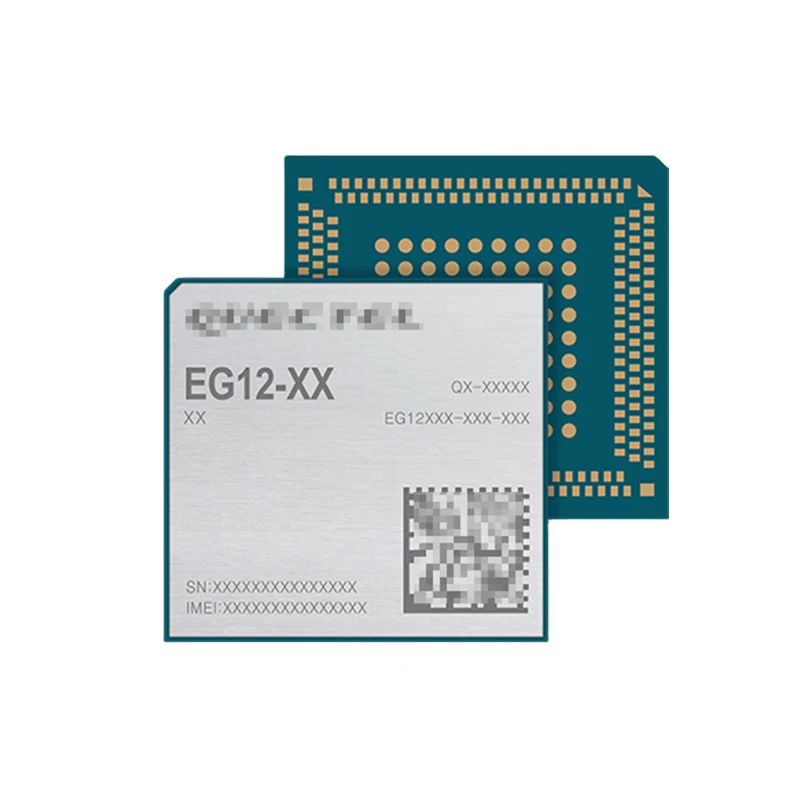

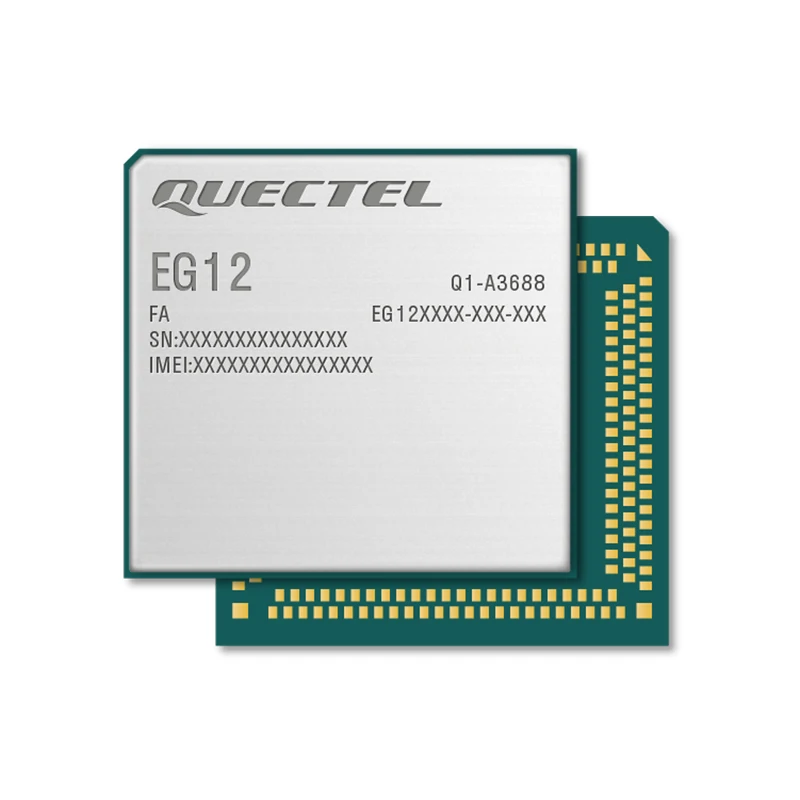

Quectel EG12 is a series of LTE Advanced category 12 module optimized specially for M2M and IoT applications. Adopting the 3GPP Rel. 12 LTE technology, it delivers M2M-optimized speeds of 600Mbps downlink and 150Mbps uplink peak data rates. Designed in an LGA form factor, EG12 is compatible with Quectel Cat 6/18 module EG06/EG18, which will help customers to migrate between different categories.

EG12 supports Qualcomm® IZat™ location technology Gen9HT-Lite (GPS, GLONASS, BeiDou, Galileo and QZSS). The integrated GNSS greatly simplifies product design, and provides quicker, more accurate and more dependable positioning capability.

A rich set of Internet protocols, industry-standard interfaces and abundant functionalities (USB drivers for Windows 7/8/8.1/10, Linux, Android) extend the applicability of the module to a wide range of M2M and IoT applications such as 4G router, CPE, wireless POS terminal, consumer laptop, industrial PDA, rugged tablet PC and video surveillance.

The EG12-EA is an LTE-A category 12 module in an LGA form factor measuring 39.5mm x 37mm x 2.8mm, which meets the 3GPP Release 12 standard. The EG12-EA is compatible with Quectel’s category 6 and 18 modules EG06 and EG18, to enable ease of migration between different categories. The EG12-EA is optimized for networks in EMEA, APAC, and Brazil.

Delivering maximum downlink rates of 600Mbps and uplink rates of 150Mbps under LTE, the EG12-EA supports a range of applications that require fast and reliable transmission of large amounts of data, and multiple-input multiple-output (MIMO) technology meets demands for data rate and link reliability. A wide range of internet protocols, industry-standard interfaces and functionalities (such as USB serial drivers for Windows 7/8/8.1/10, Linux, Android) allow the module to serve a wide range of IoT applications with demanding data transmission requirements.

Features

• LTE-A category 12 module


• 39.5mm x 37mm x 2.8mm


• 9.0g


• LGA form factor


• Max. 600Mbps downlink / 150Mbps uplink under LTE


• Extended temperature range of -40°C to +85°C


• Compatible with Quectel’s category 6 and 18 modules EG06 and EG18


• Supports DFOTA and DTMF


• Supports DL 3CA, 256QAM and 4x4 MIMO


• Multi-constellation GNSS receiver available


• USB 2.0/3.0, supports master and slave modes
