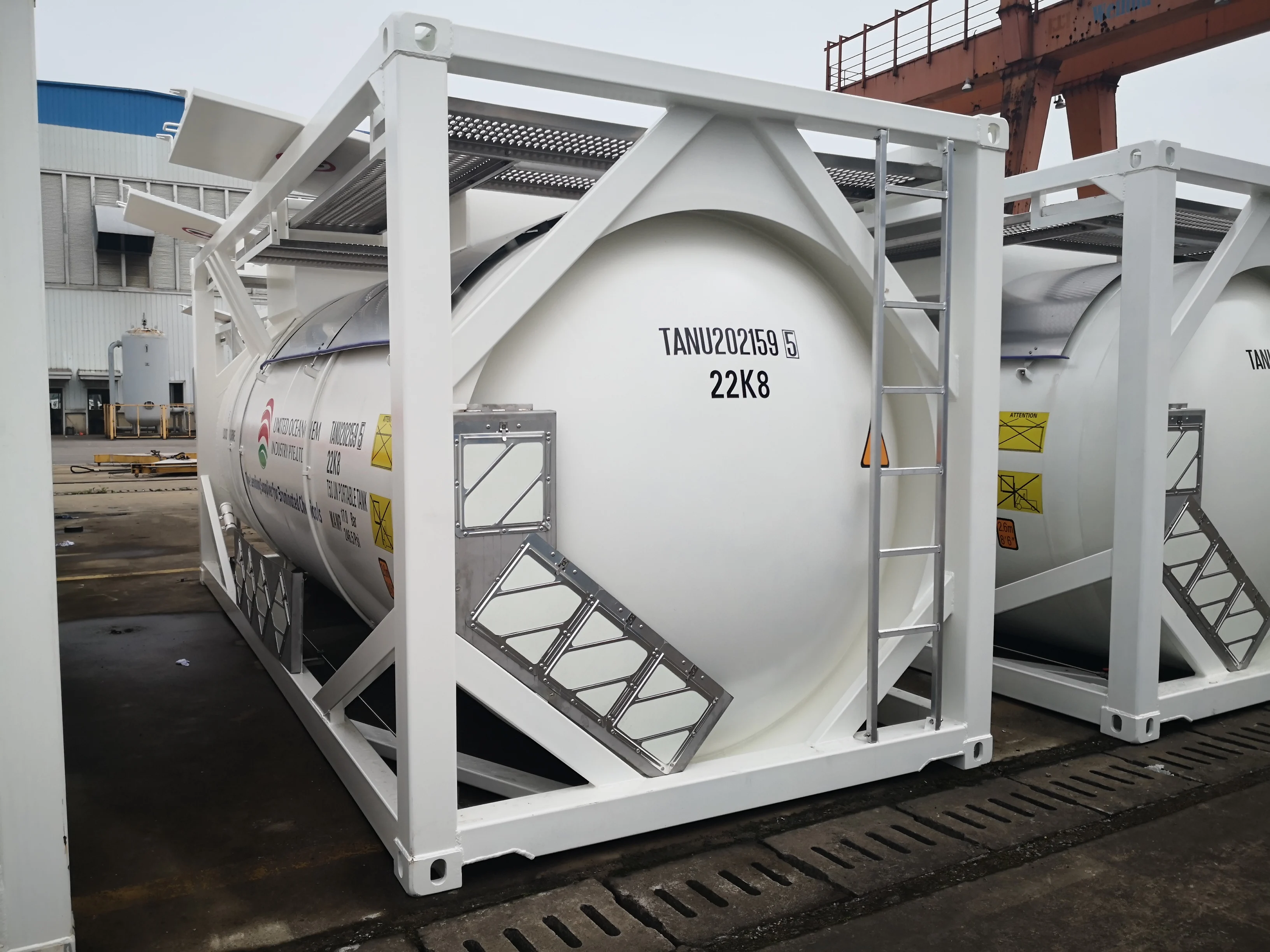

Professional manufacturer 20ft 24.5CBM T50 LPG propane/liquid chlorine storage tank container
- Category: >>>
- Supplier: Henan Jushixin Transportation Equipment Co. Ltd.Henan Ltd.
Share on (1601057453544):
Product Overview
Description
Products showing
1. The internal pressure of the tank is low, and the safety accessories are complete, which can effectively avoid the danger of high-pressure explosion caused by various reasons.
2. Liquefied gas tank containers have a very large capacity to accommodate low-temperature liquids, and their performance in ensuring gas purity is excellent.
3. Liquefied gas tank containers greatly shorten the gas supply time and ensure the gas source. Gas may have a fixed filling rate.
3. Liquefied gas tank containers greatly shorten the gas supply time and ensure the gas source. Gas may have a fixed filling rate.

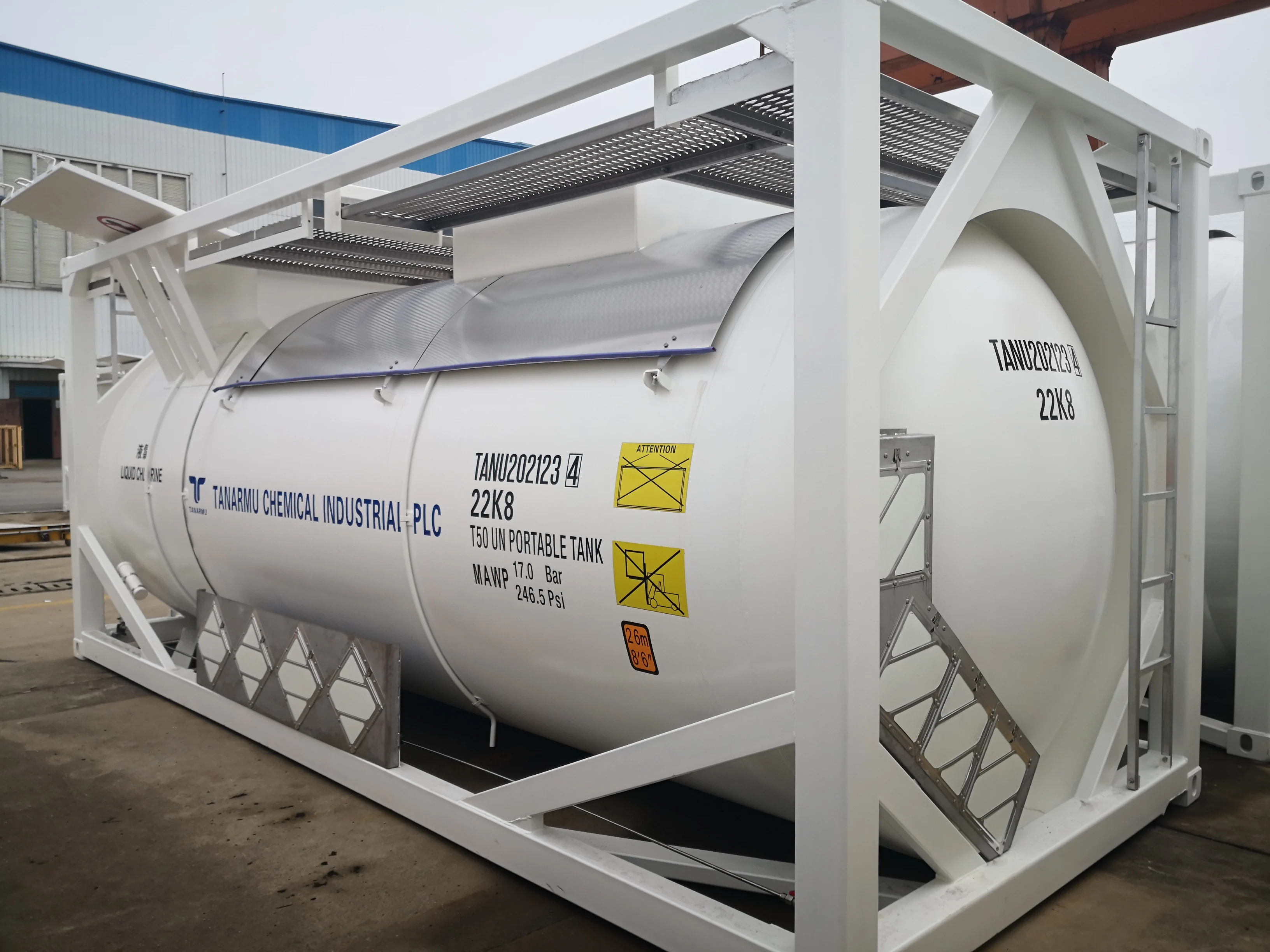

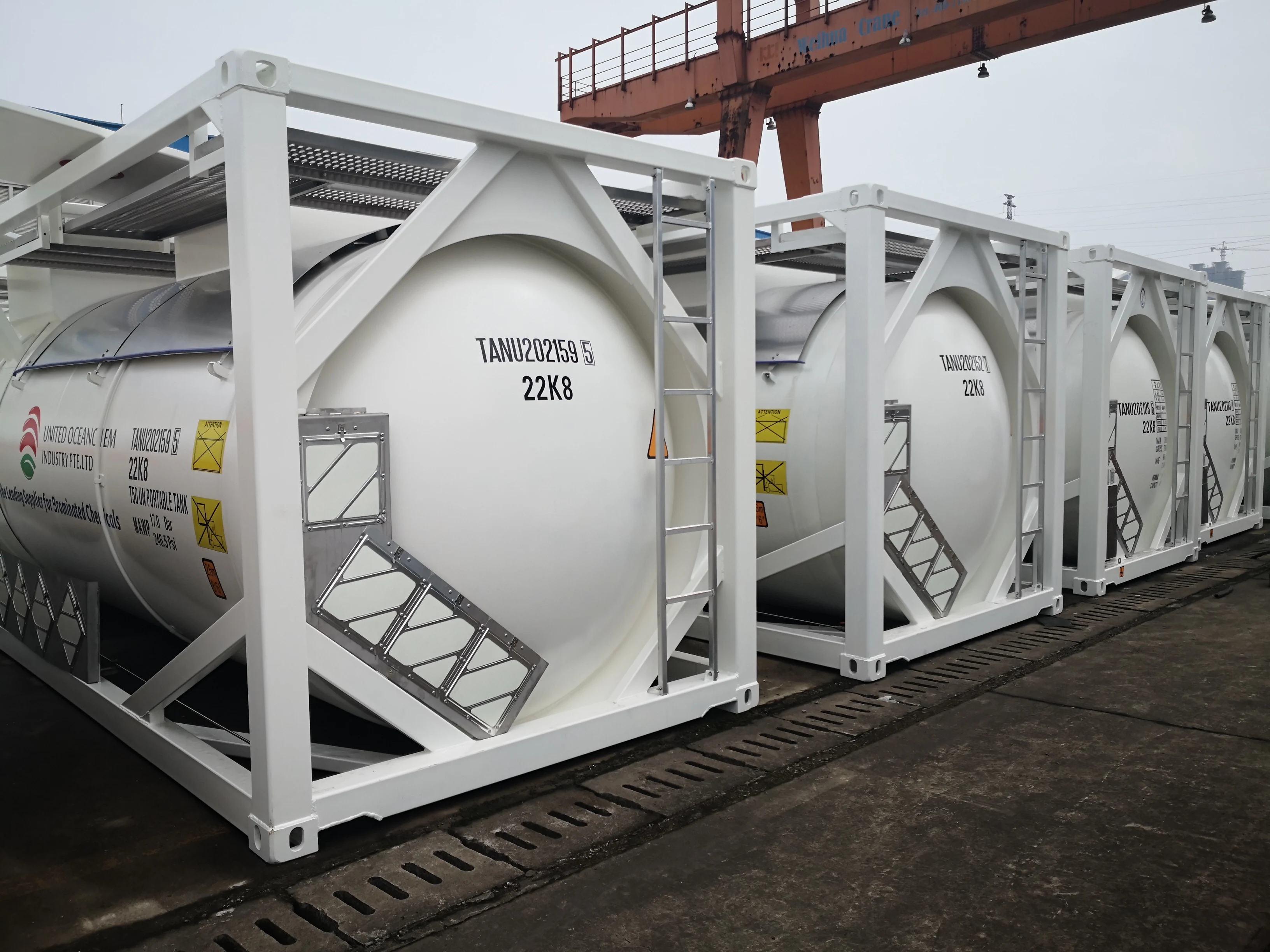

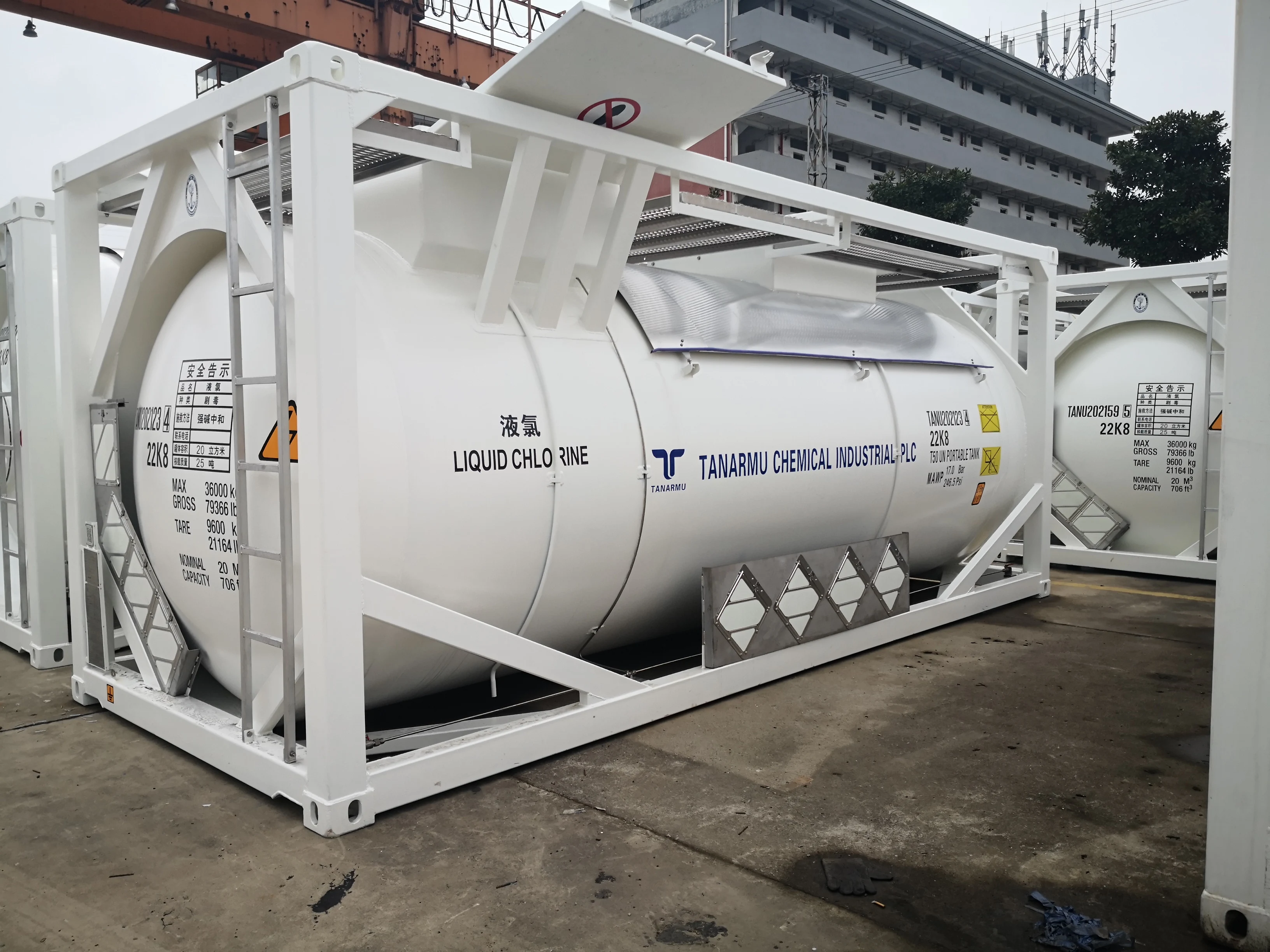

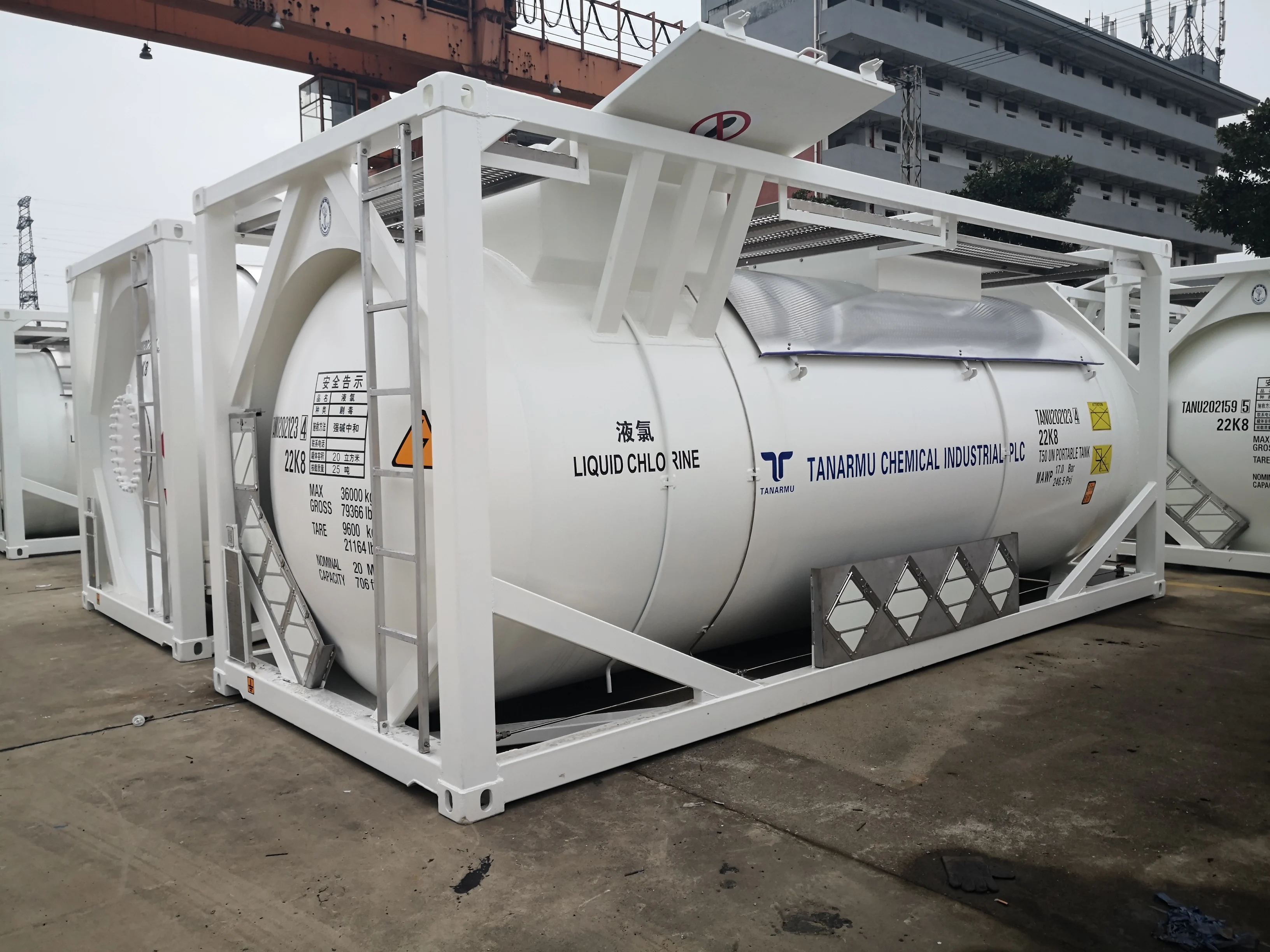

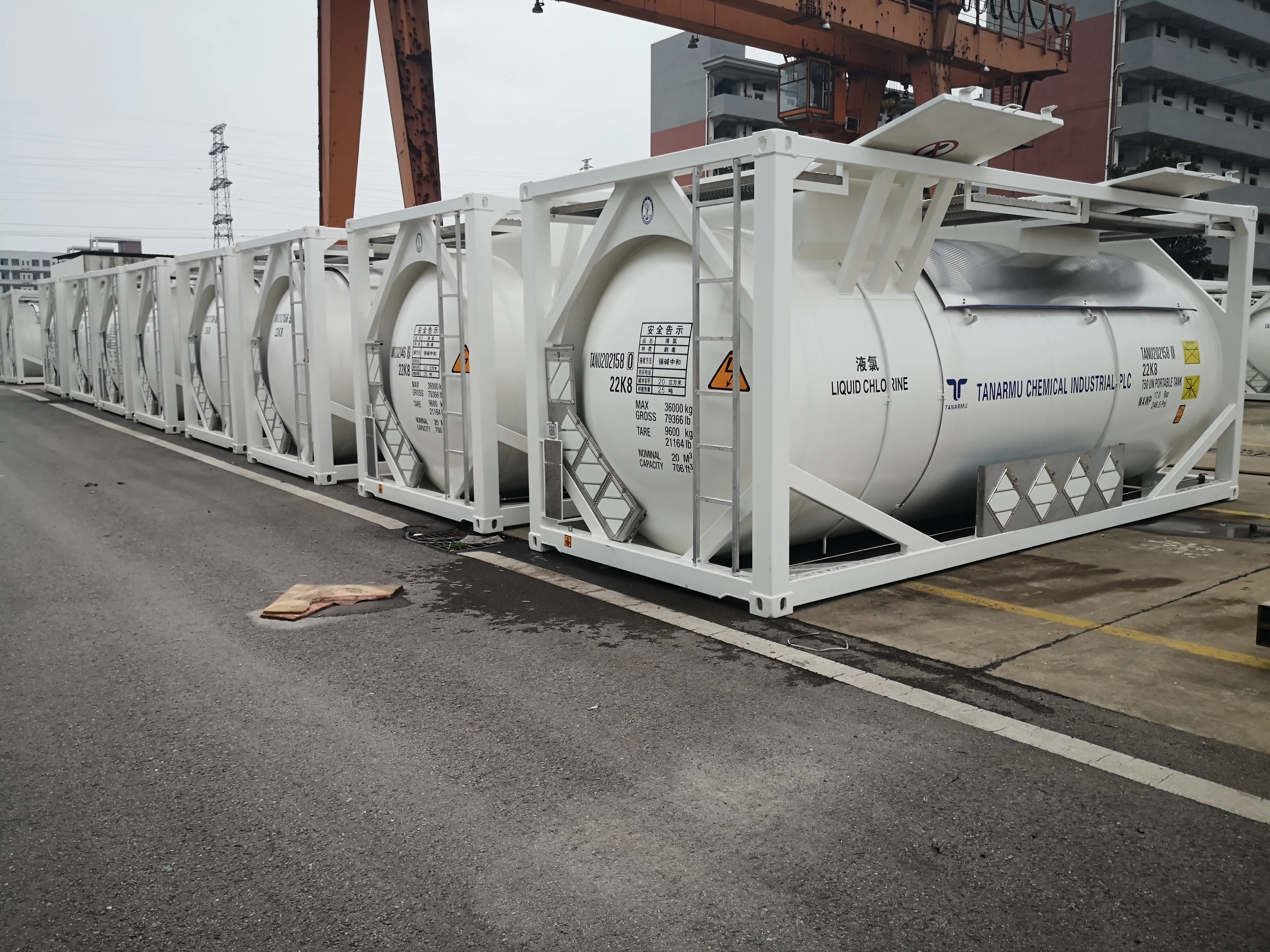

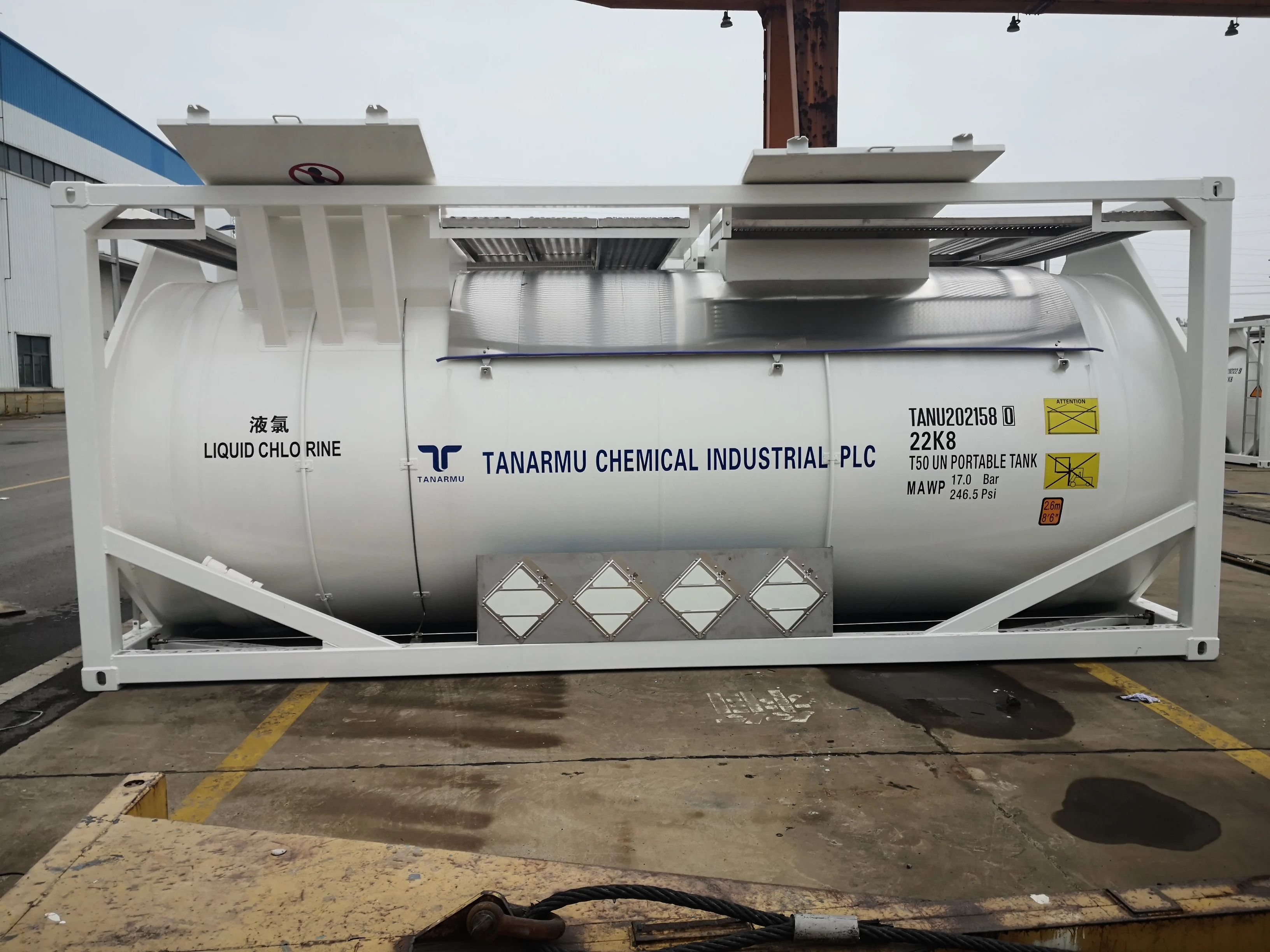

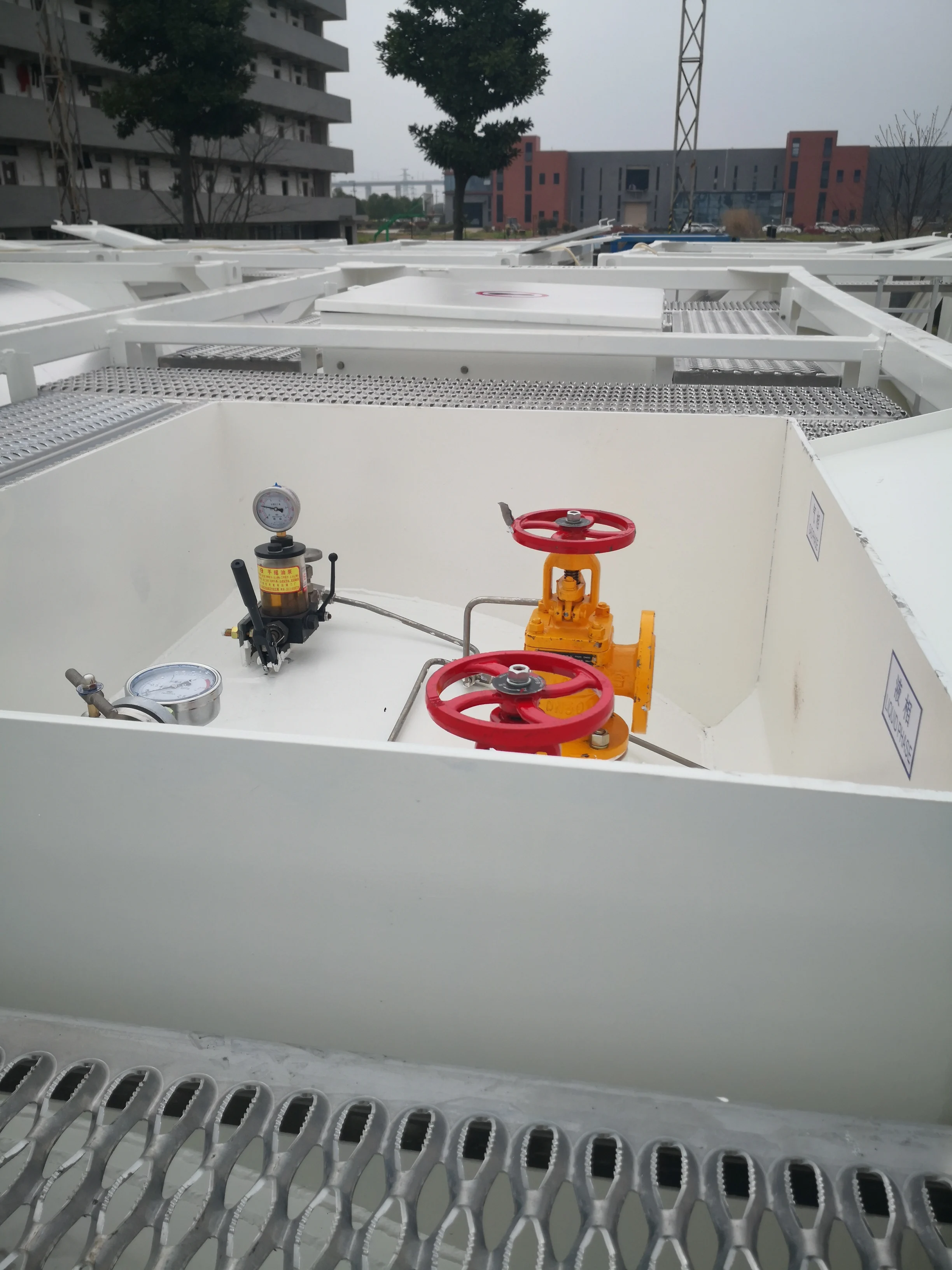

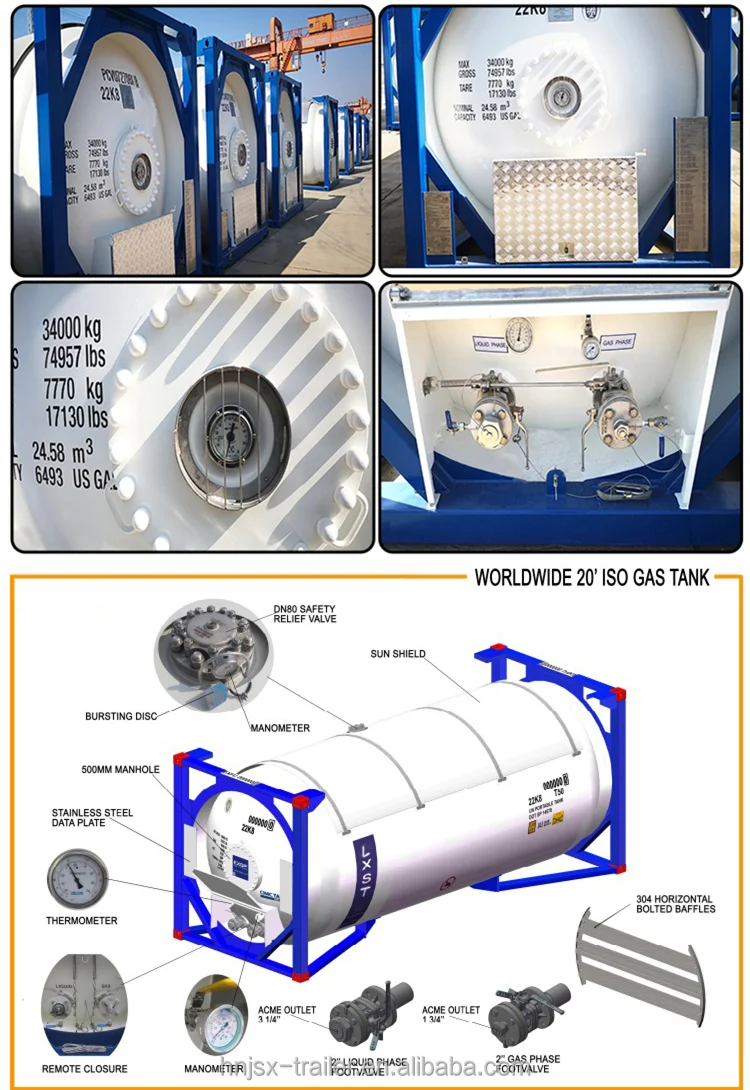

Detailed Images
Product Parameters
Items | Parameter | ||||
DESIGN REFERENCE TEMPERATURE | USDOT | 46.1℃ | |||
IMDG /RID/ADR | 55℃ | ||||
MAWP | USDOT | 1.64/-0.103 MPa AT 55℃ | |||
IMDG /RID/ADR | 1.8/-0.103 MPa AT 55℃ | ||||
DESIGN TEMPERATURE | - 40/+55℃ | ||||
M.D.M. T | -40℃ | ||||
HYDROST ATIC TEST PRESSURE | 2.41 MPa AT 4~48℃ | ||||
P.R.V SETTING | 1.8 MPa | ||||
CORROSION ALLOWANCE | 1 mm | ||||
NOMINAL THICKNESS OF SHELL | 12.5 mm | ||||
THICKNESS OF HEAD | 12.5(min11.2) mm | ||||
HEAT TREATMENT | Postweld heat treatment | ||||
JOINT EFFICINCY (SHEL/HEAD) | 1.0/1.0 | ||||
LEAKAGE TEST | 0.6 MPa | ||||
CONTENTS | propano | ||||
TOTAL VOLUME (NOMINAL t1%) | 24,800 L | ||||
M.P.C.M. | 34,000 kg | ||||
ALLOWANCE STACKING MASS | 192,000 kg | ||||

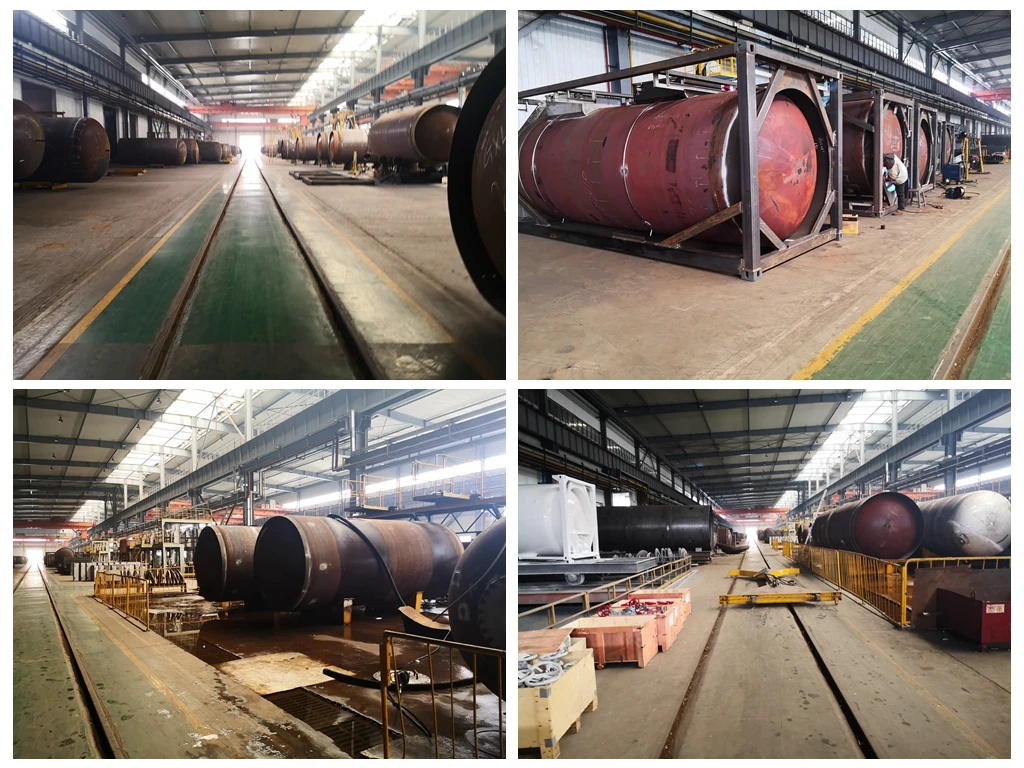

workshop
