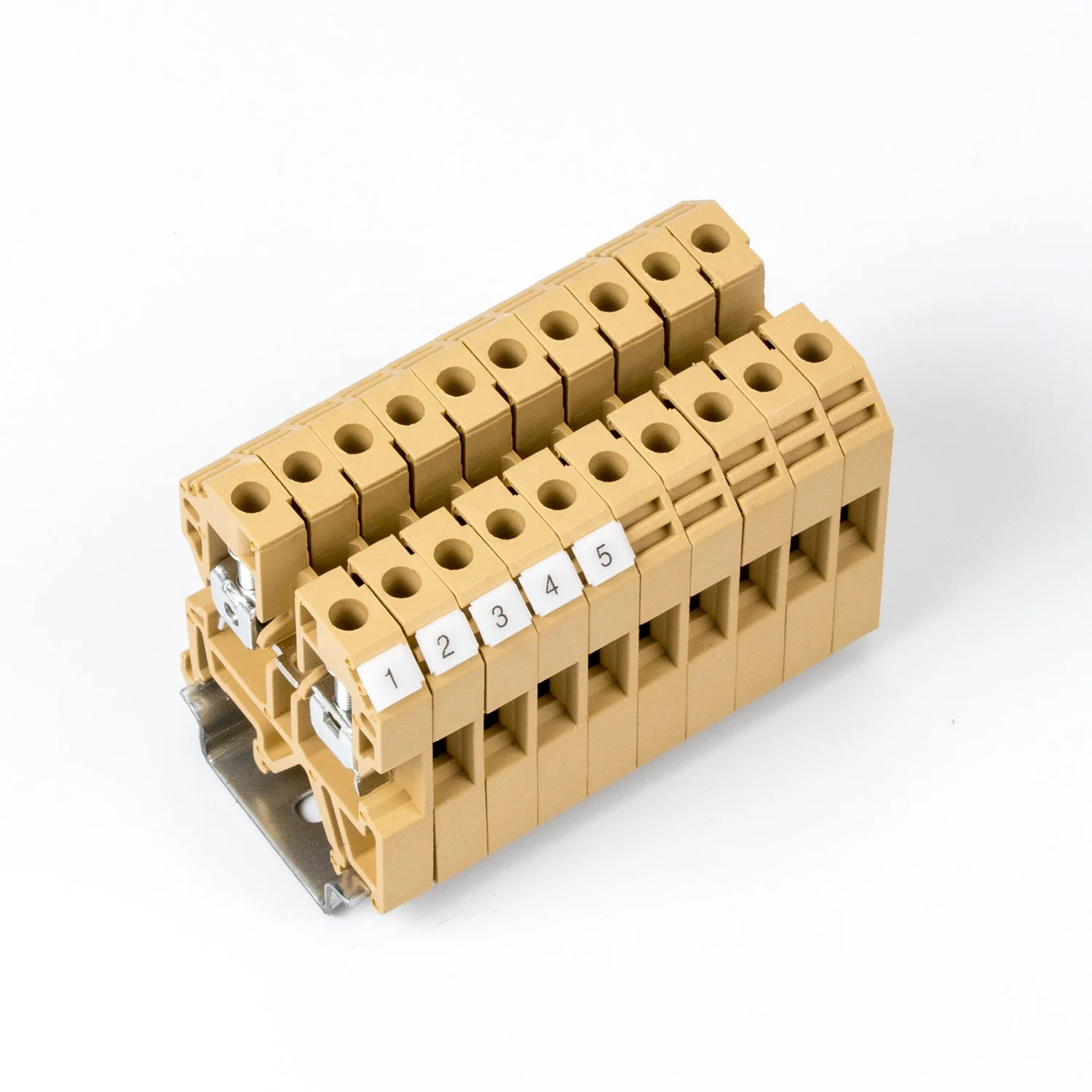

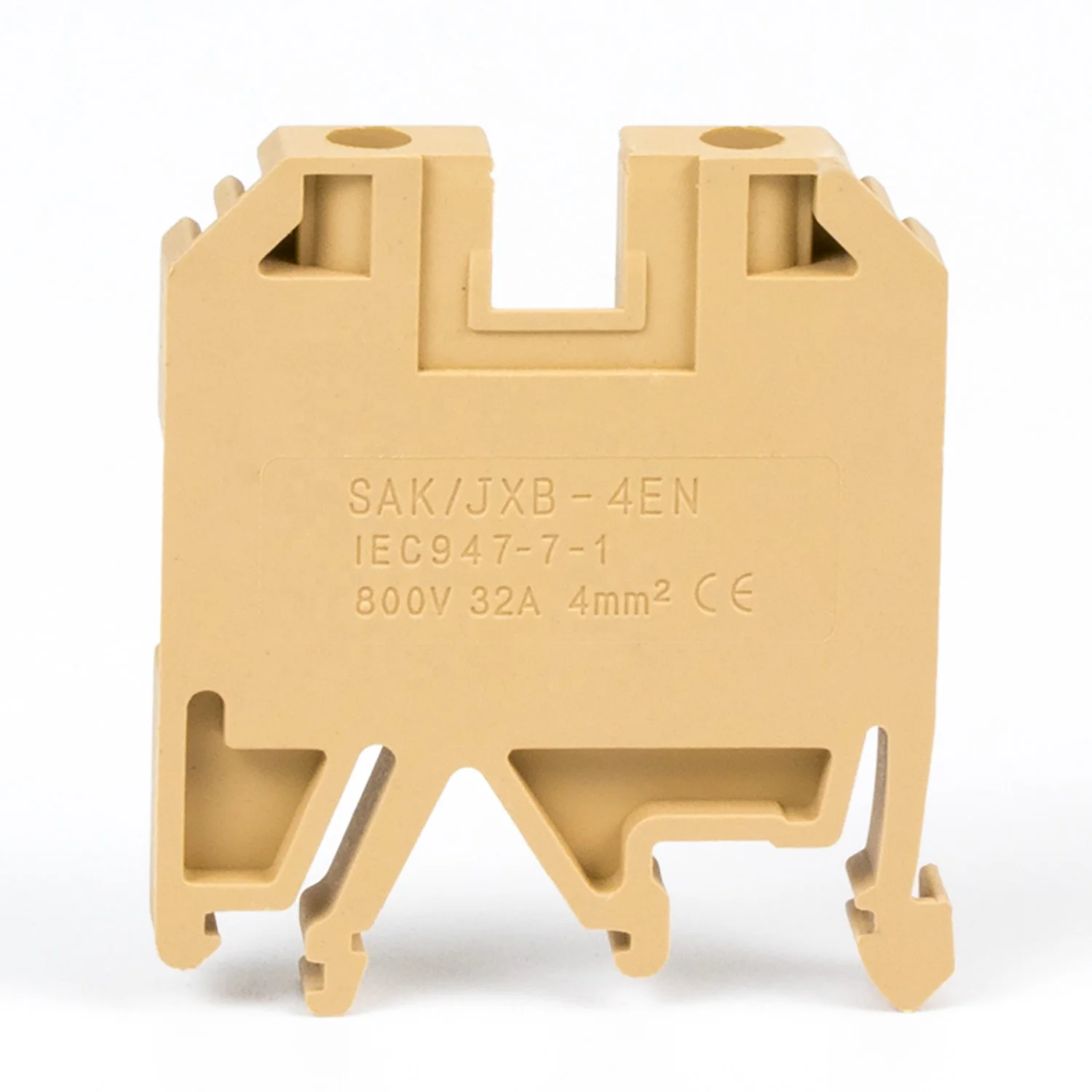

  • 800V 32A 0.2 4mm2 screw terminal block brass conductor 24 12awg JXB/SAK 4EN used for automation control cabinet I/O

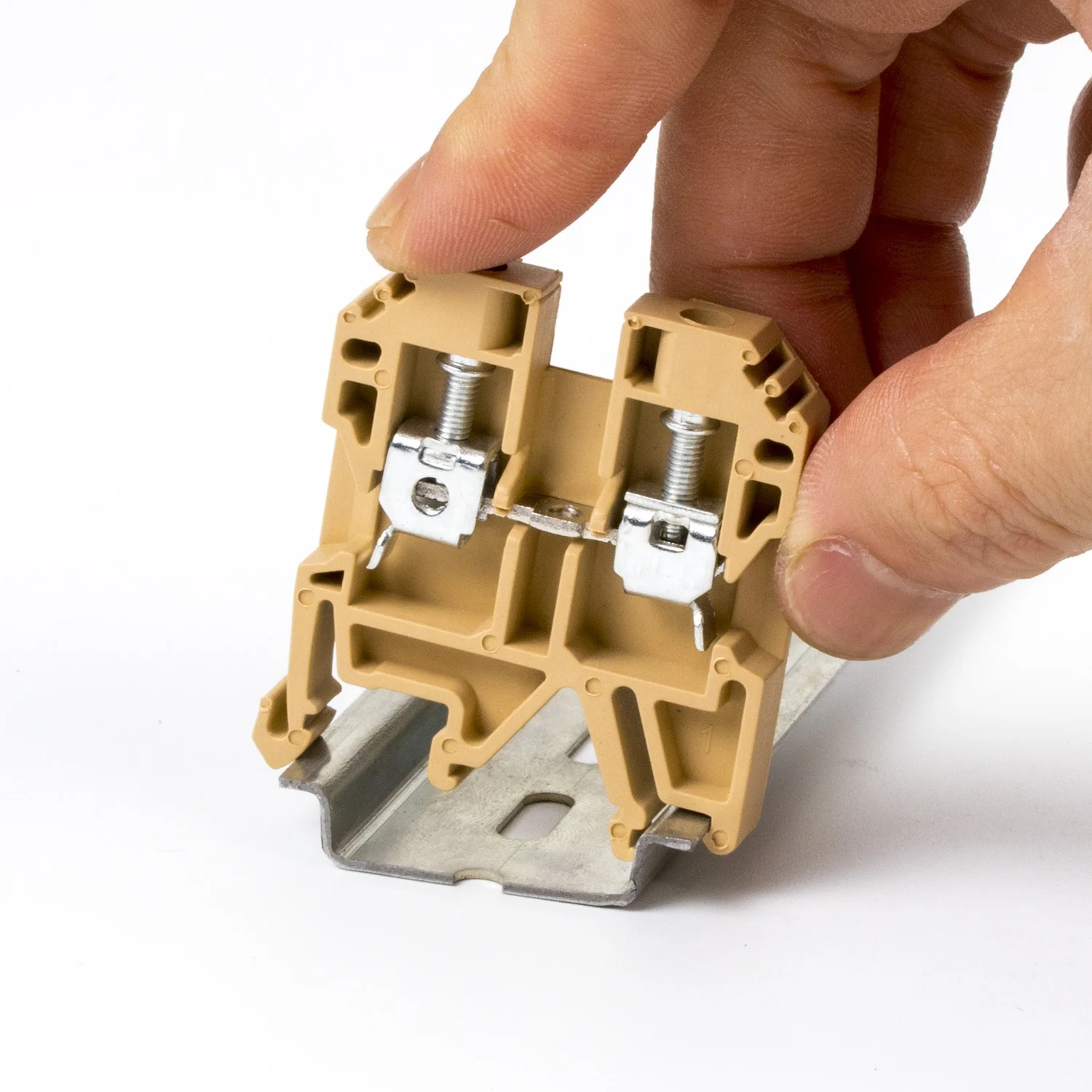

800V 32A 0.2 4mm2 screw terminal block brass conductor 24 12awg JXB/SAK 4EN used for automation control cabinet I/O

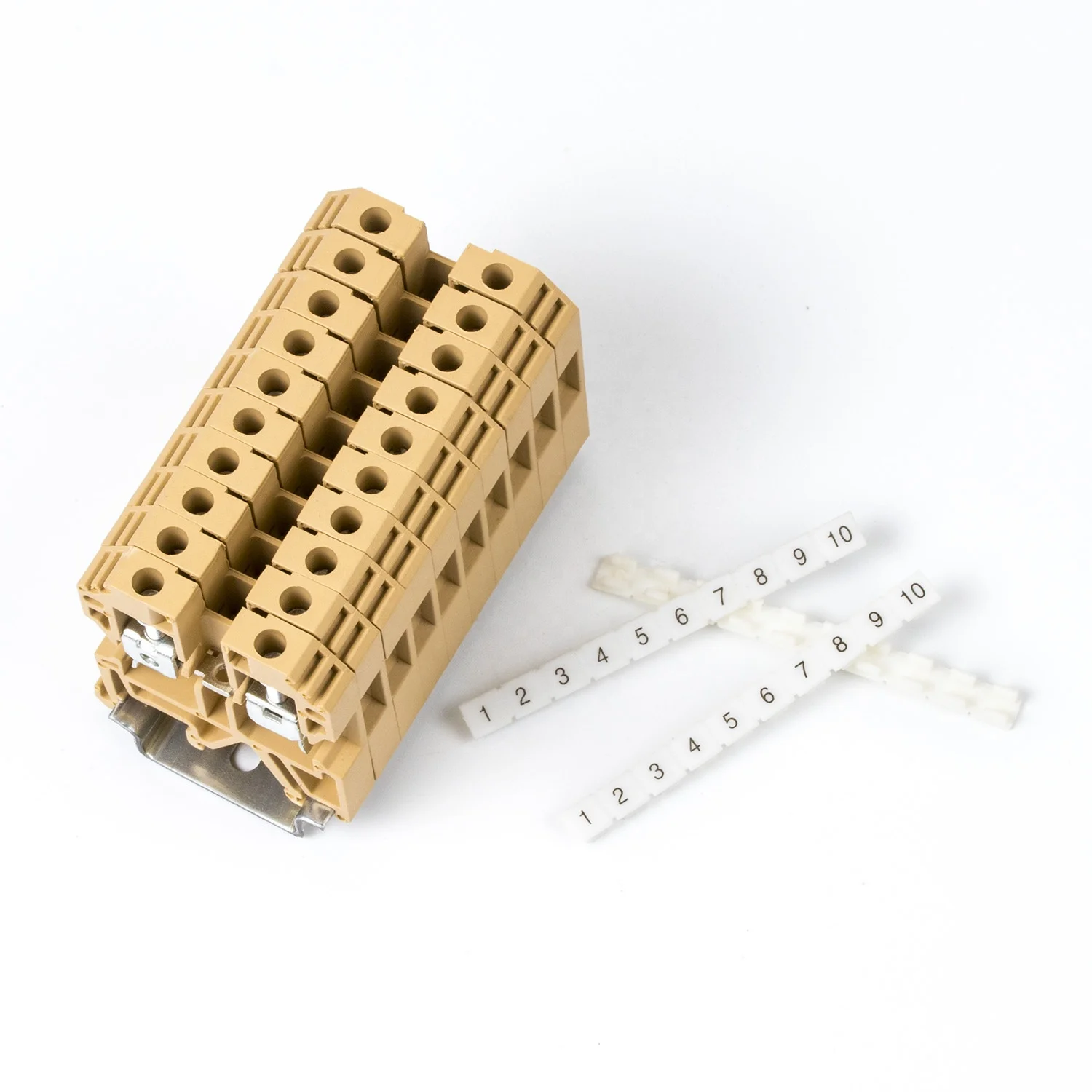

800V 32A 0.2-4mm2 screw terminal block brass conductor 24-12awg JXB/SAK-4EN used for automation control cabinet I/O
800V 32A 0.2-4mm2 screw terminal block brass conductor 24-12awg JXB/SAK-4EN used for automation control cabinet I/O
800V 32A 0.2-4mm2 screw terminal block brass conductor 24-12awg JXB/SAK-4EN used for automation control cabinet I/O
800V 32A 0.2-4mm2 screw terminal block brass conductor 24-12awg JXB/SAK-4EN used for automation control cabinet I/O
800V 32A 0.2-4mm2 screw terminal block brass conductor 24-12awg JXB/SAK-4EN used for automation control cabinet I/O
800V 32A 0.2-4mm2 screw terminal block brass conductor 24-12awg JXB/SAK-4EN used for automation control cabinet I/O

800V 32A 0.2 4mm2 screw terminal block brass conductor 24 12awg JXB/SAK 4EN used for automation control cabinet I/O

Share on (1601057457591):


Price:

Quantity:


Product Overview

Description



Product Description




FACTORY STRENGTH CERTIFICATION WELCOMES FIELD INVESTIGATION
WE LOOK FORWARD TO ESTABLISHING COOPERATIVE RELATIONS WITH YOU

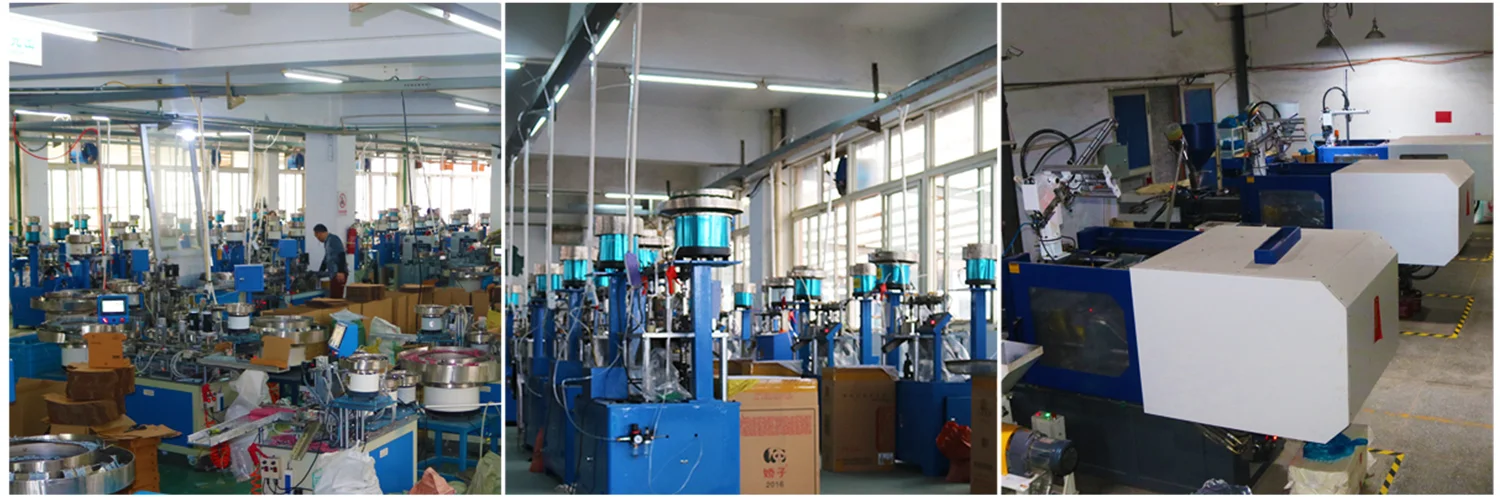

Multiple automated production equipment/automated finished product assembly production/injection molding

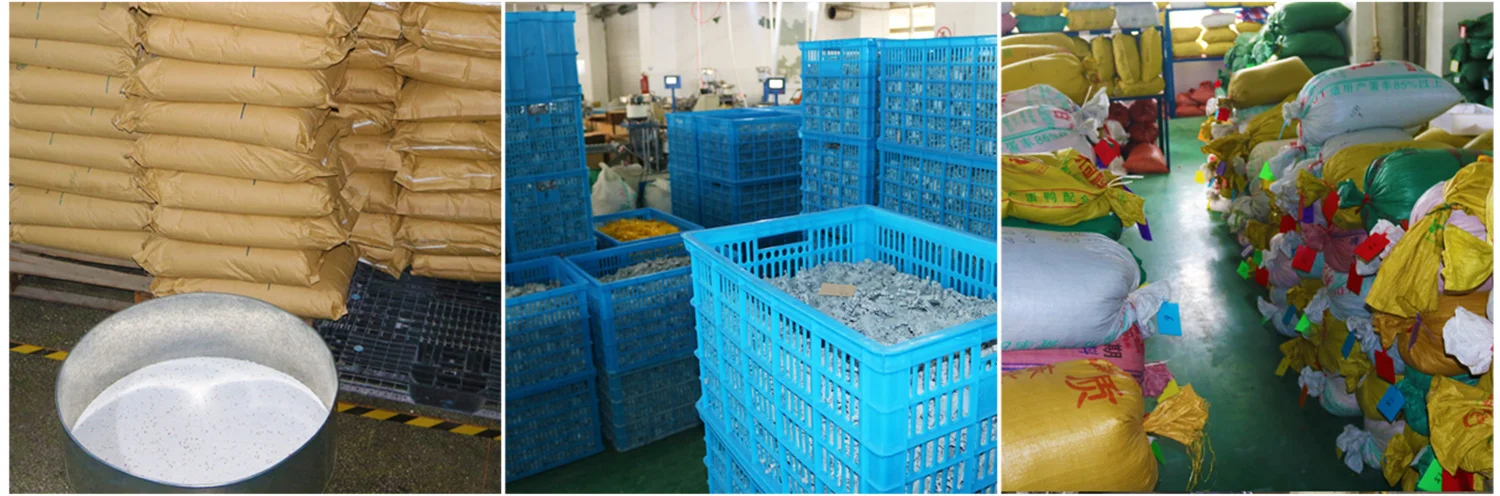

Large reserve of raw materials/various plastic shells/various copper materials, copper pipes, and copper blocks

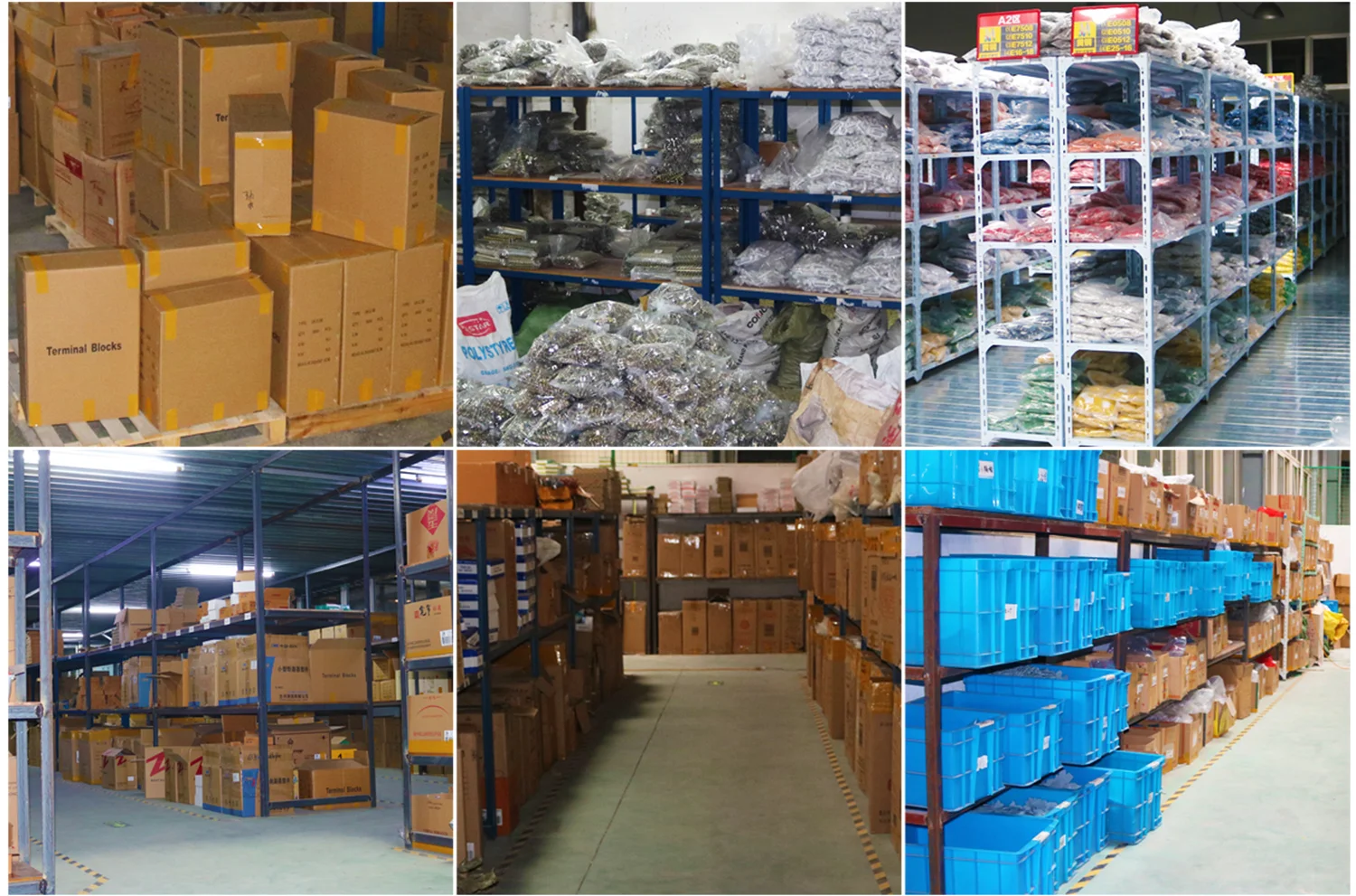

Large inventory of finished products/storage of various terminals/auxiliary materials for various distribution cabinets and other finished products

Product Comparison

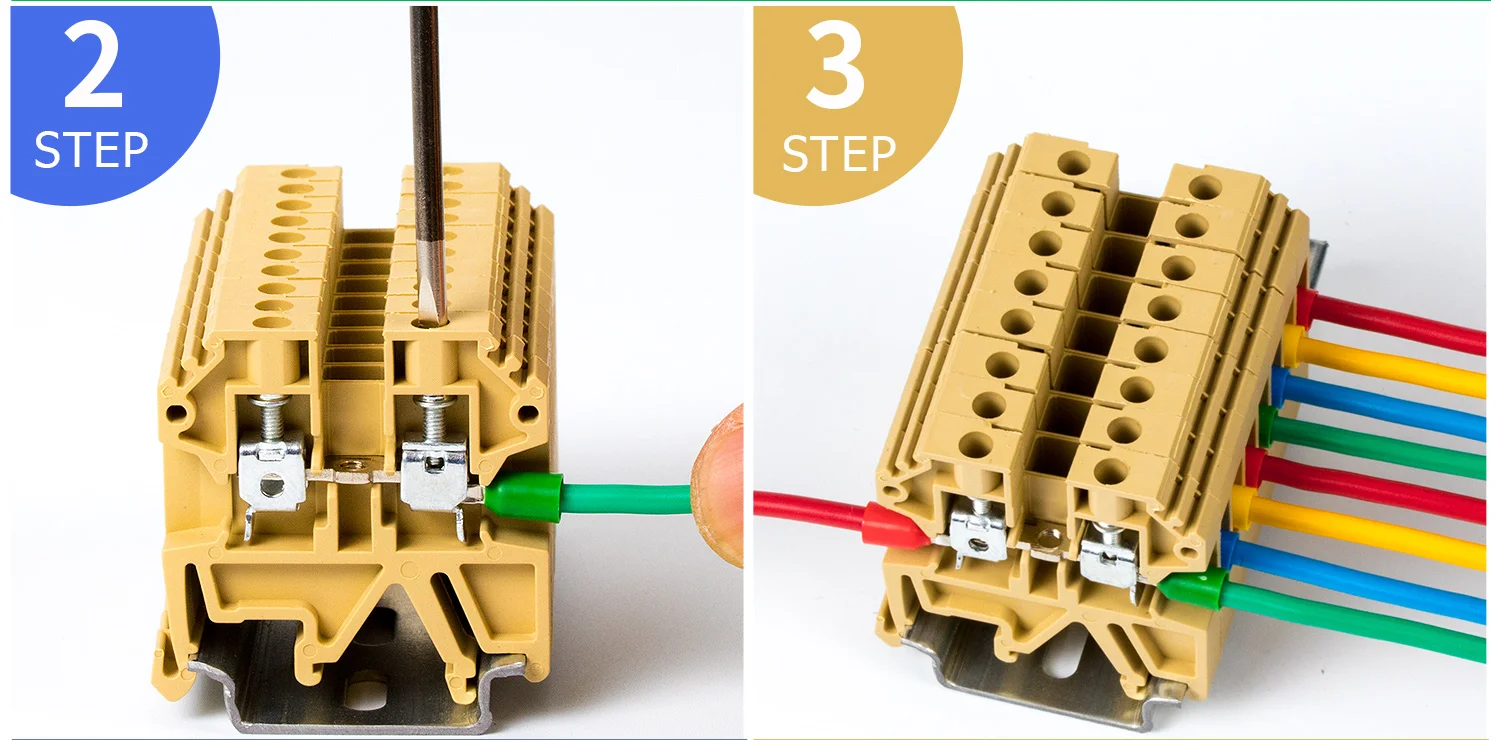

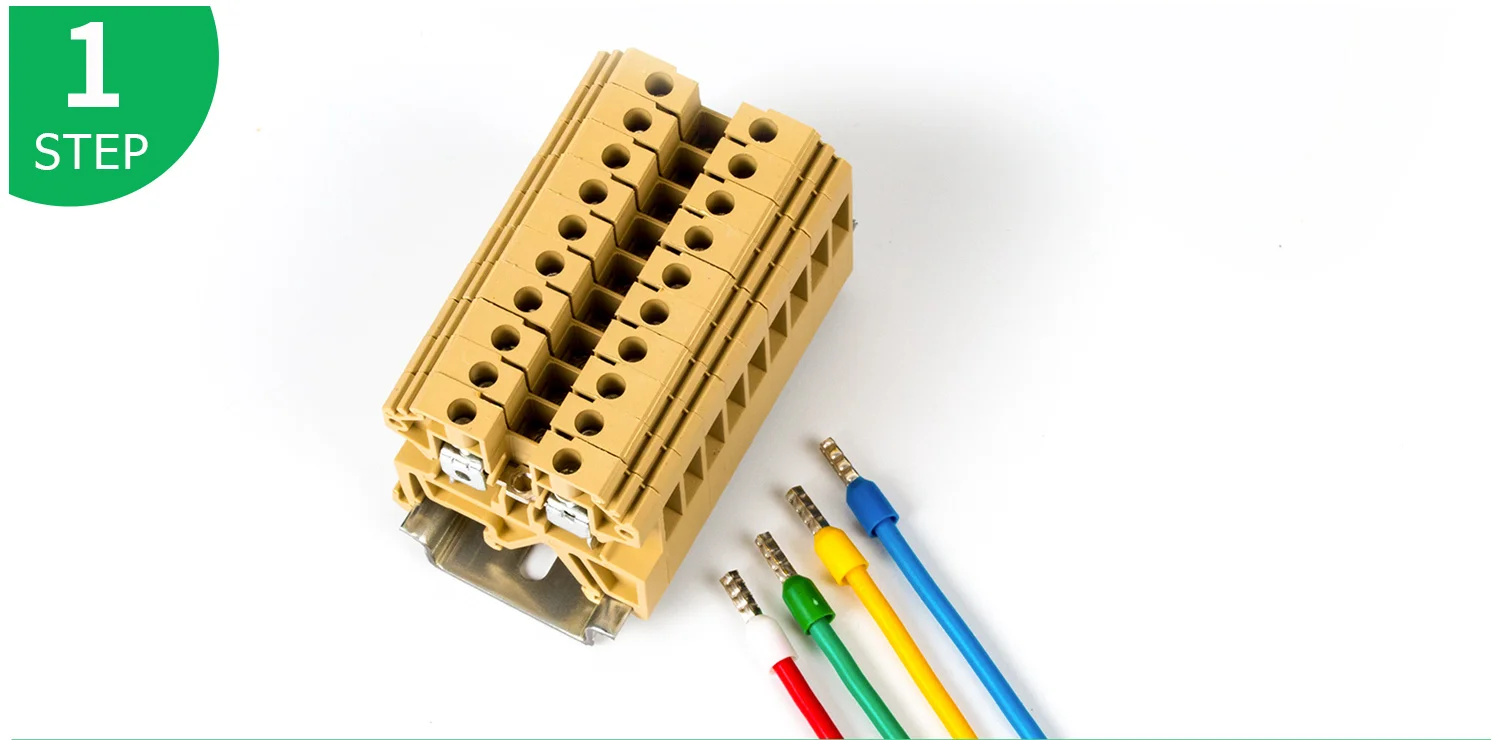

Product wiring

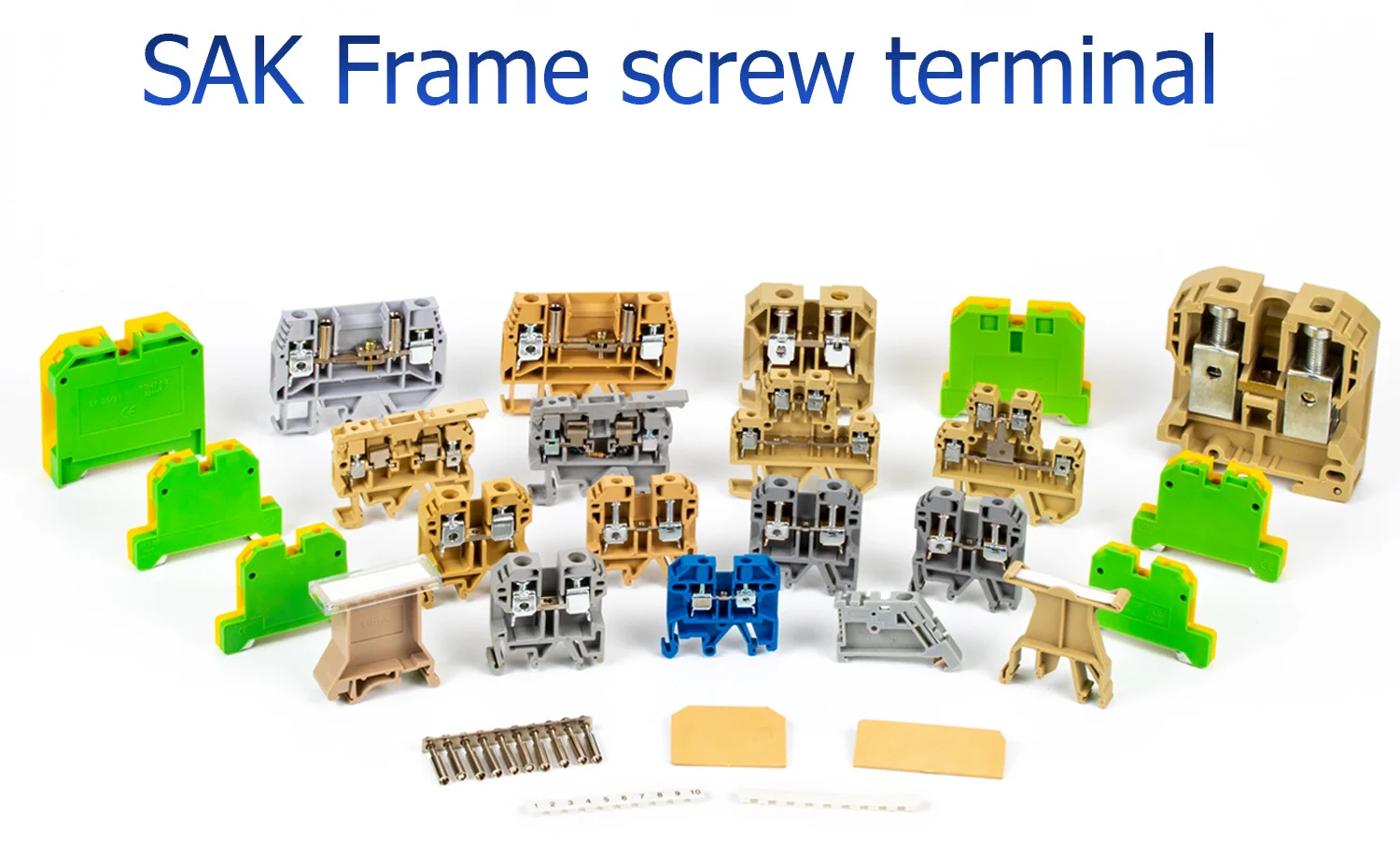

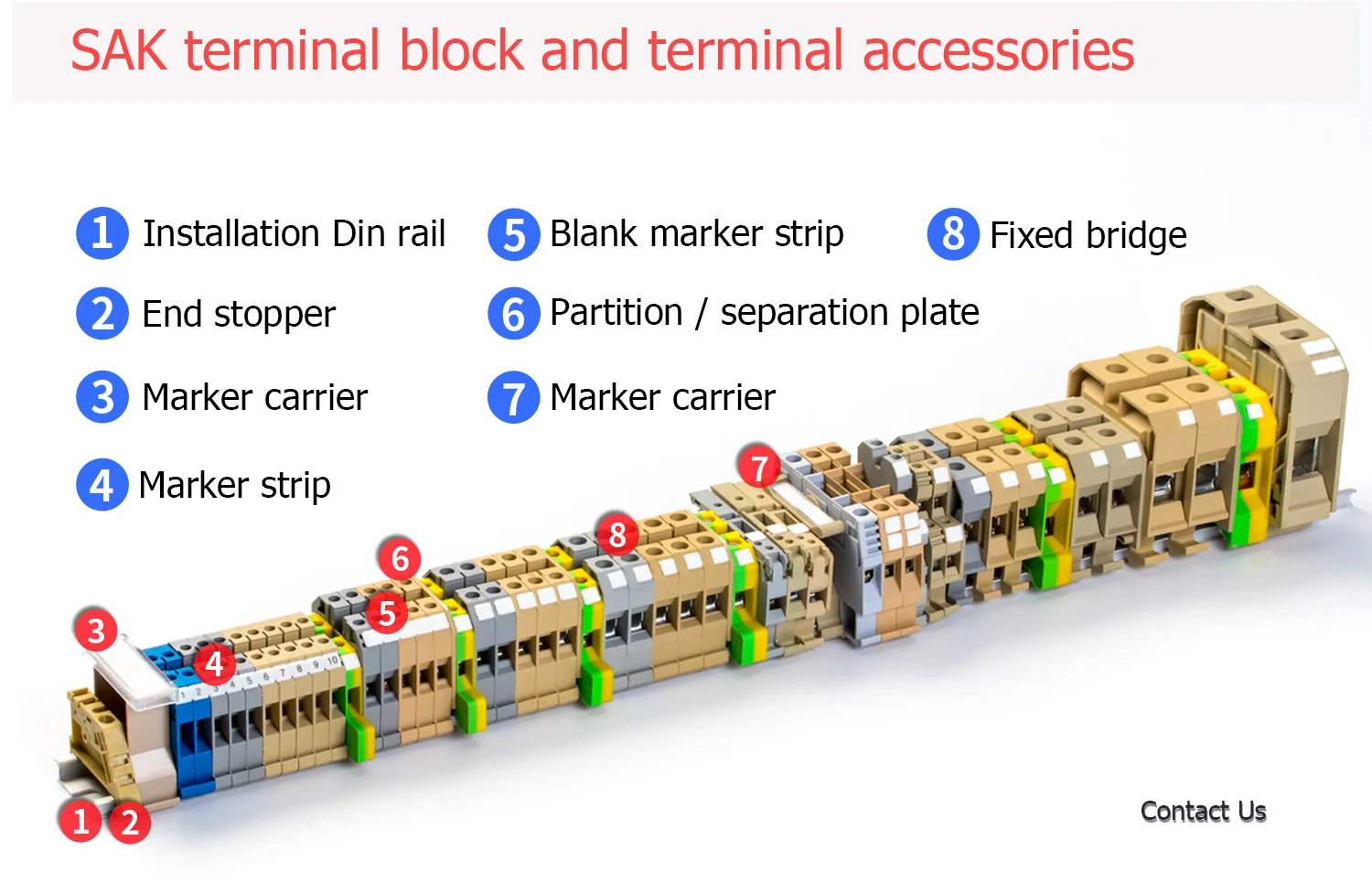

SAK series display

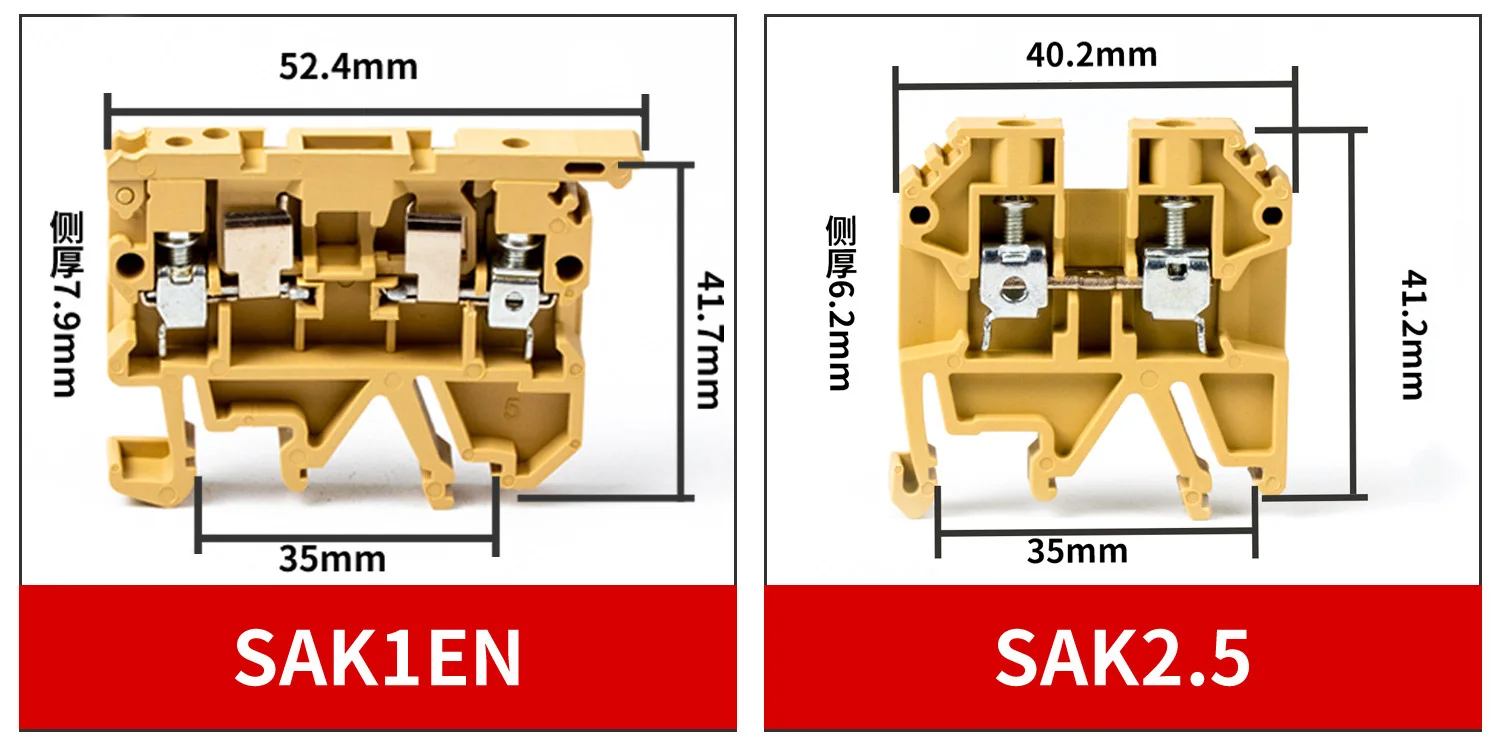

SAK1EN
L/H/W(mm): 52.4/41.7/7.9
Voltage: 500V
Wire range: 0.2-4mm²
AWG: 12-24
End cover: D-ASK1EN
Marker strip: DEK6
Screw: M3
SAK2.5
L/H/W(mm): 52.4/41.7/7.9
Voltage: 800V
Current: 32A
Wire range: 0.2-2.5mm²
AWG: 14-24
End cover: D-SAK2.5
Fixed bridge: FBI-SAK2.5
Marker strip: DEK6
Screw: M3

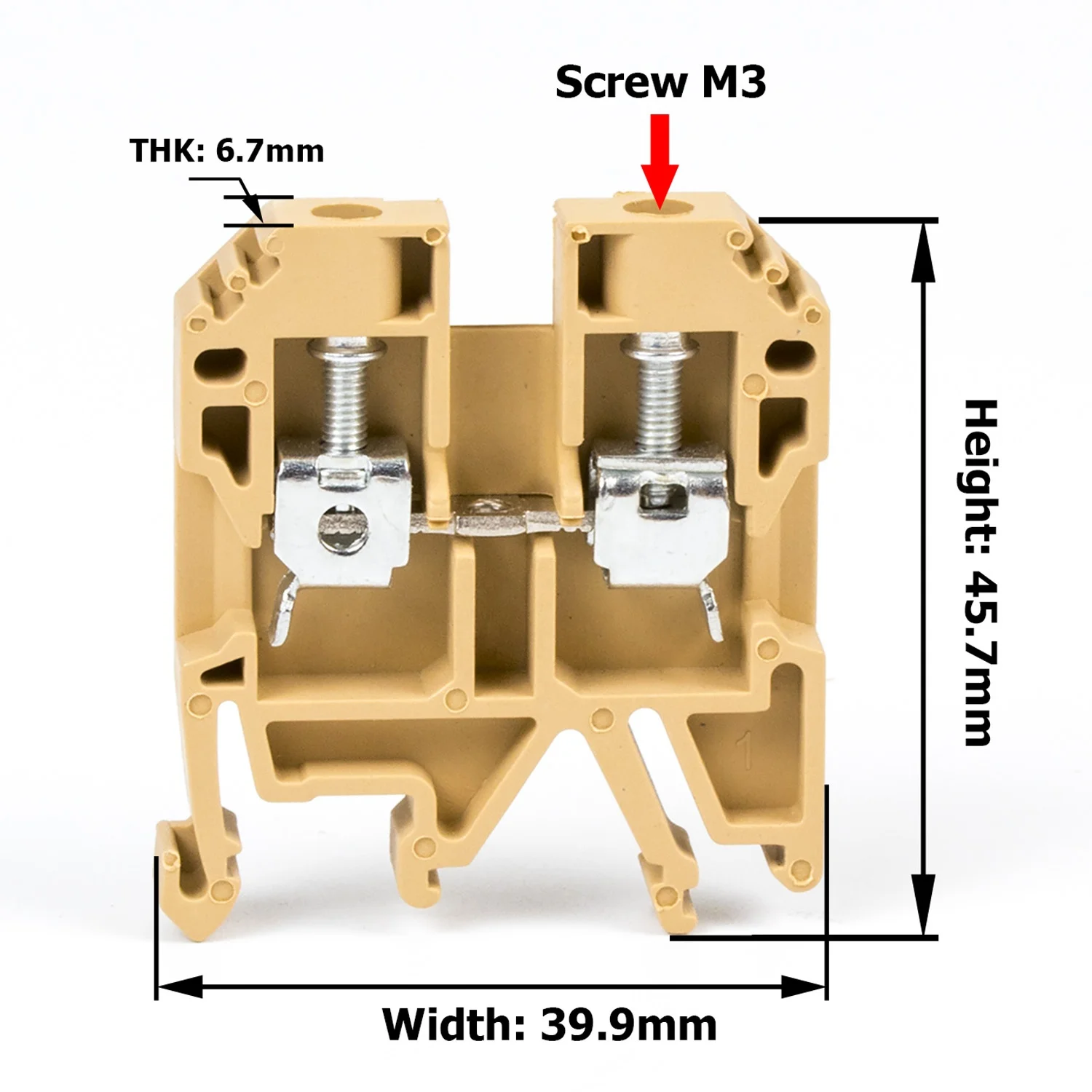

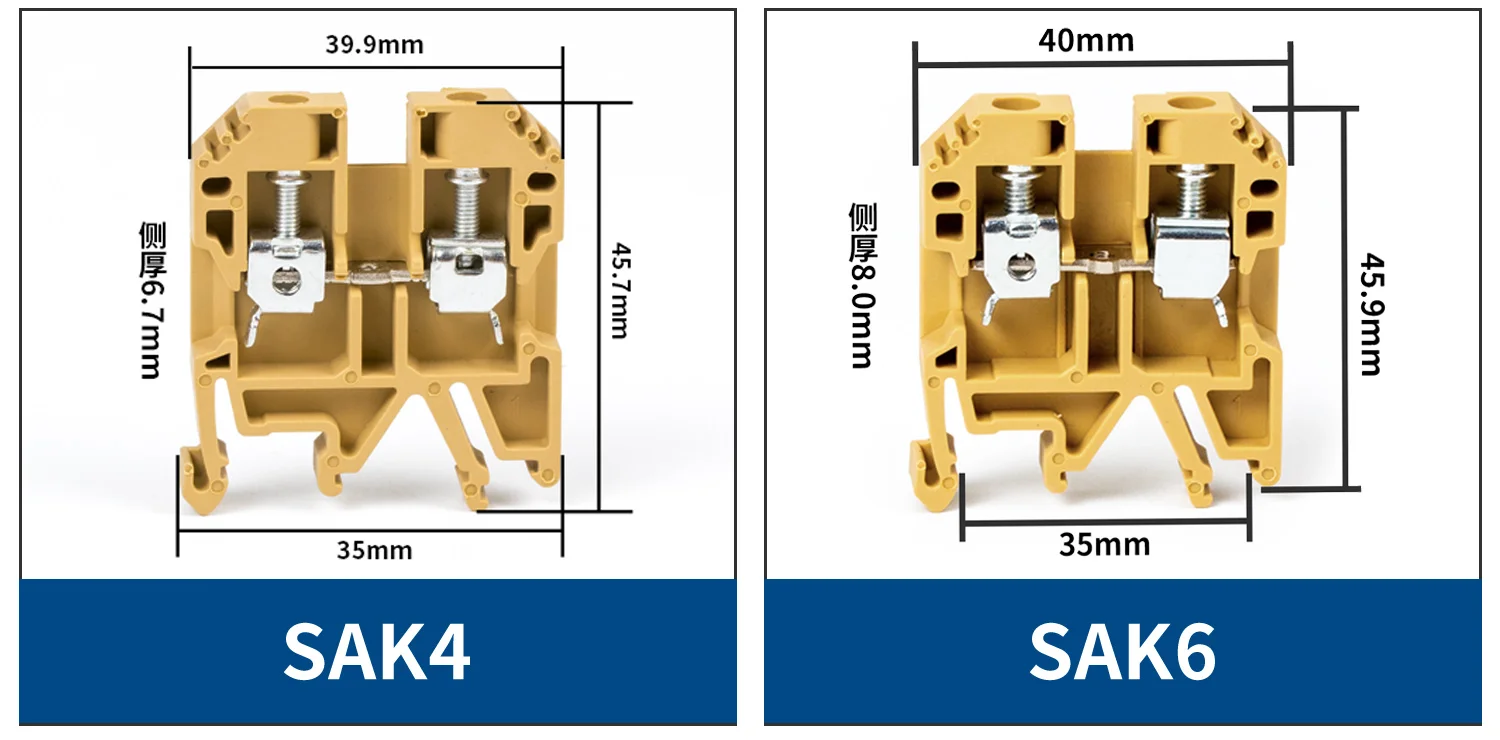

SAK4
L/H/W(mm): 39.9/45.7/6.7
Voltage: 800V
Current: 32A
Wire range: 0.2-4mm²
AWG: 12-24
End cover: D-SAK4/10
Fixed bridge: FBI-SAK4
Marker strip: DEK6
Screw: M3
SAK6
L/H/W(mm): 40/45.9/8
Voltage: 800V
Current: 41A
Wire range: 0.2-6mm²
AWG: 10-24
End cover: D-SAK4/10
Fixed bridge: FBI-SAK6
Marker strip: DEK6
Screw: M4

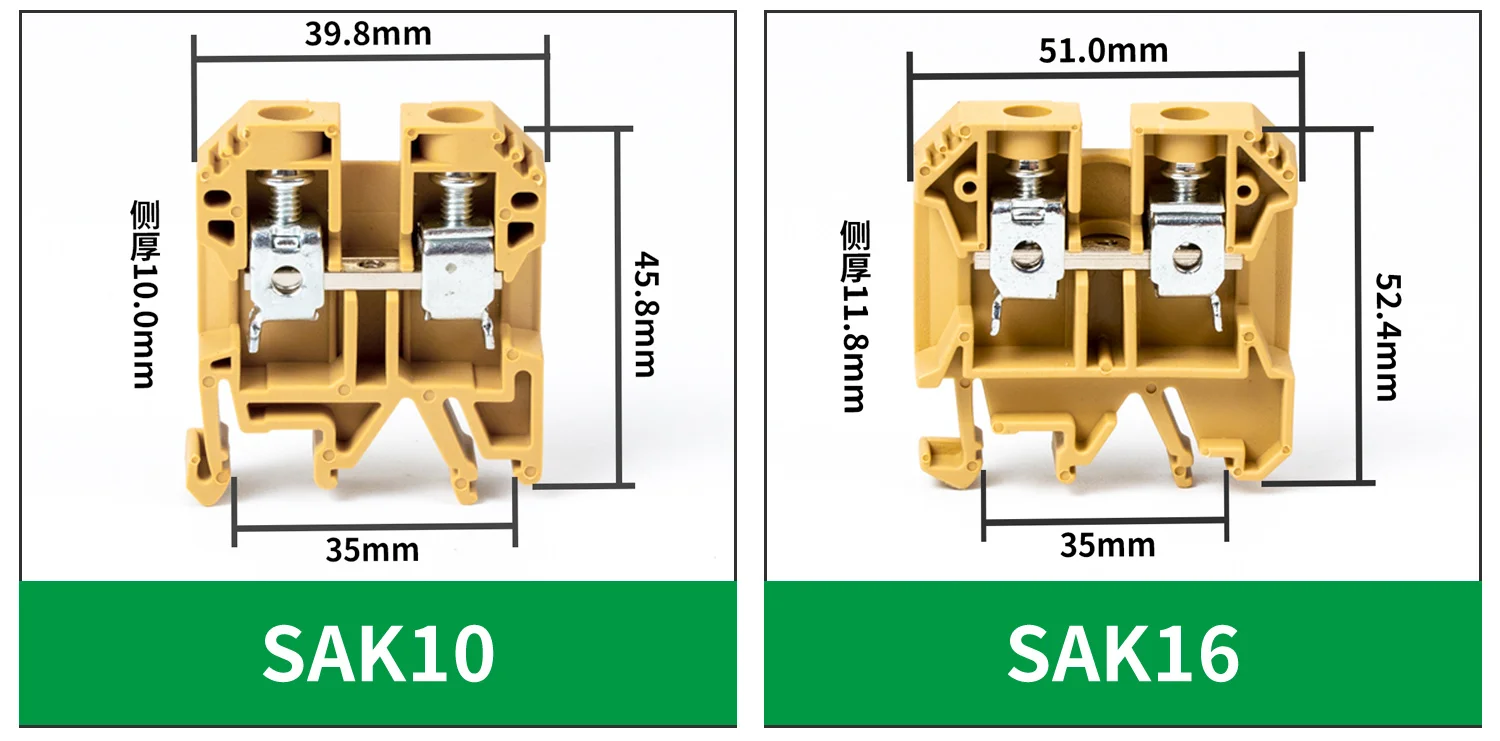

SAK10
L/H/W(mm): 39.8/45.8/10
Voltage: 800V
Current: 57A
Wire range: 1.5-10mm²
AWG: 8-15
End cover: D-SAK4/10
Fixed bridge: FBI-SAK10
Marker strip: DEK6
Screw: M4
SAK16
L/H/W(mm): 41/52.4/11.8
Voltage: 800V
Current: 76A
Wire range: 4-16mm²
AWG: 6-11
End cover: D-SAK16
Fixed bridge: FBI-SAK16
Marker strip: DEK6
Screw: M4

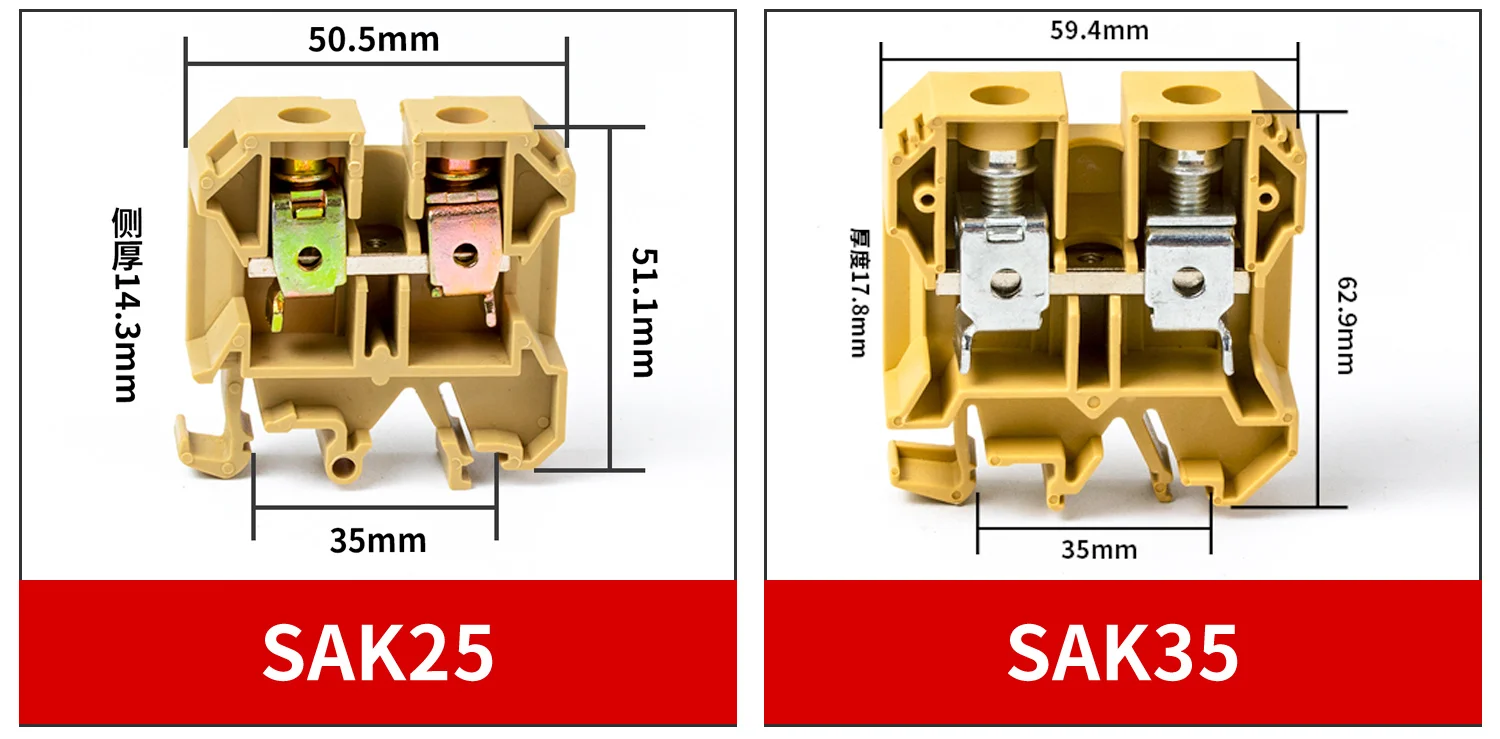

SAK25
L/H/W(mm): 50.5/51.1/14.3
Voltage: 800V
Current: 100A
Wire range: 4-25mm²
AWG: 4-11
End cover: D-SAK16
Fixed bridge: FBI-SAK25
Marker strip: DEK6
Screw: M5
SAK35
L/H/W(mm): 59.4/62.9/17.8
Voltage: 800V
Current: 125A
Wire range: 4-35mm²
AWG: 2-11
End cover: D-SAK35
Fixed bridge: FBI-SAK35
Marker strip: DEK6
Screw: M6

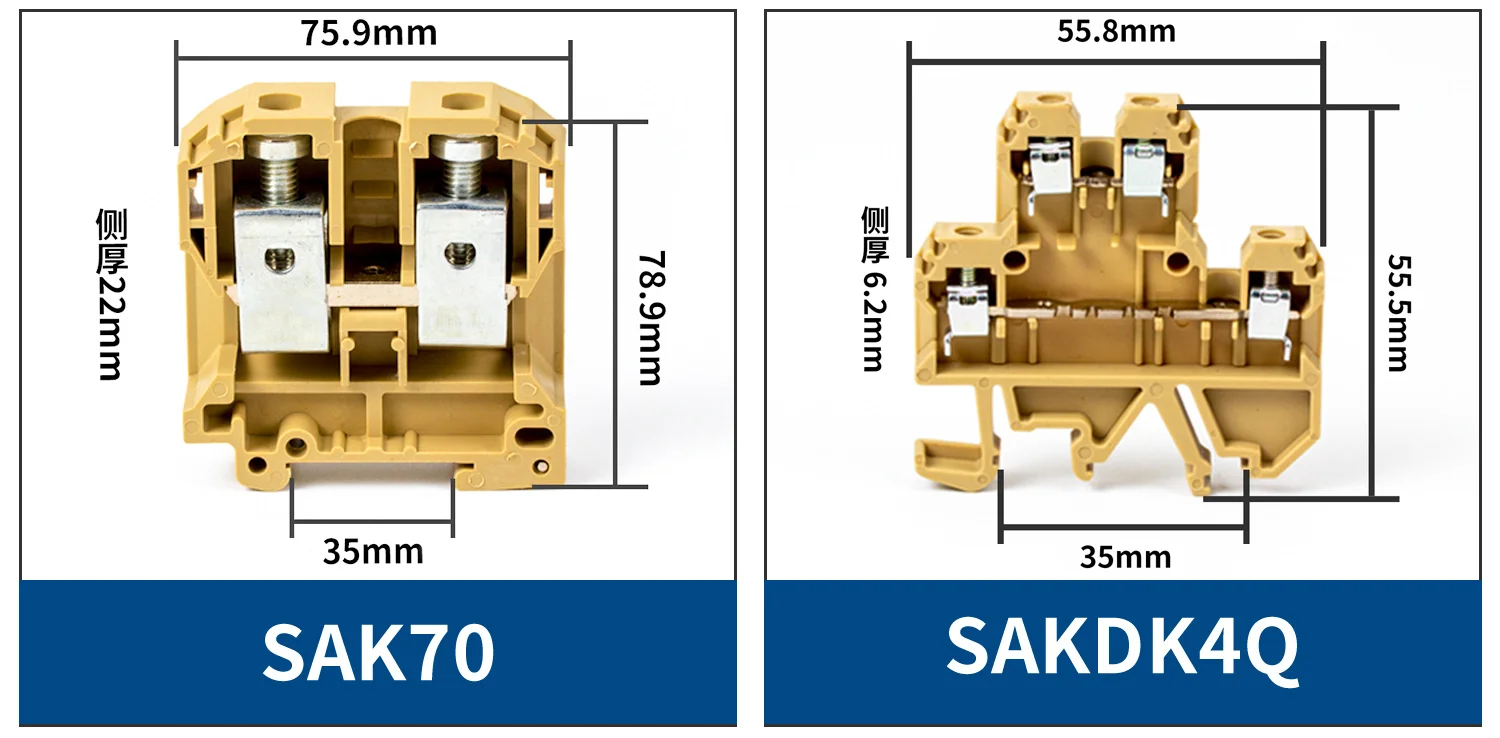

SAK70
L/H/W(mm): 75.9/78.9/22
Voltage: 800V
Current: 192A
Wire range: 4-70mm²
AWG: 4-2/0
End cover: D-SAK70
Fixed bridge: FBI-SAK70
Marker strip: DEK6
Screw: M8
SAKDK4Q
L/H/W(mm): 55.8/55.5/6.2
Voltage: 500V
Current: 32A
Wire range: 0.2-2.5mm²
AWG: 14-24
End cover: D-DK4Q/35
Fixed bridge: FBI-SAK2.5
Marker strip: DEK6
Screw: M3
