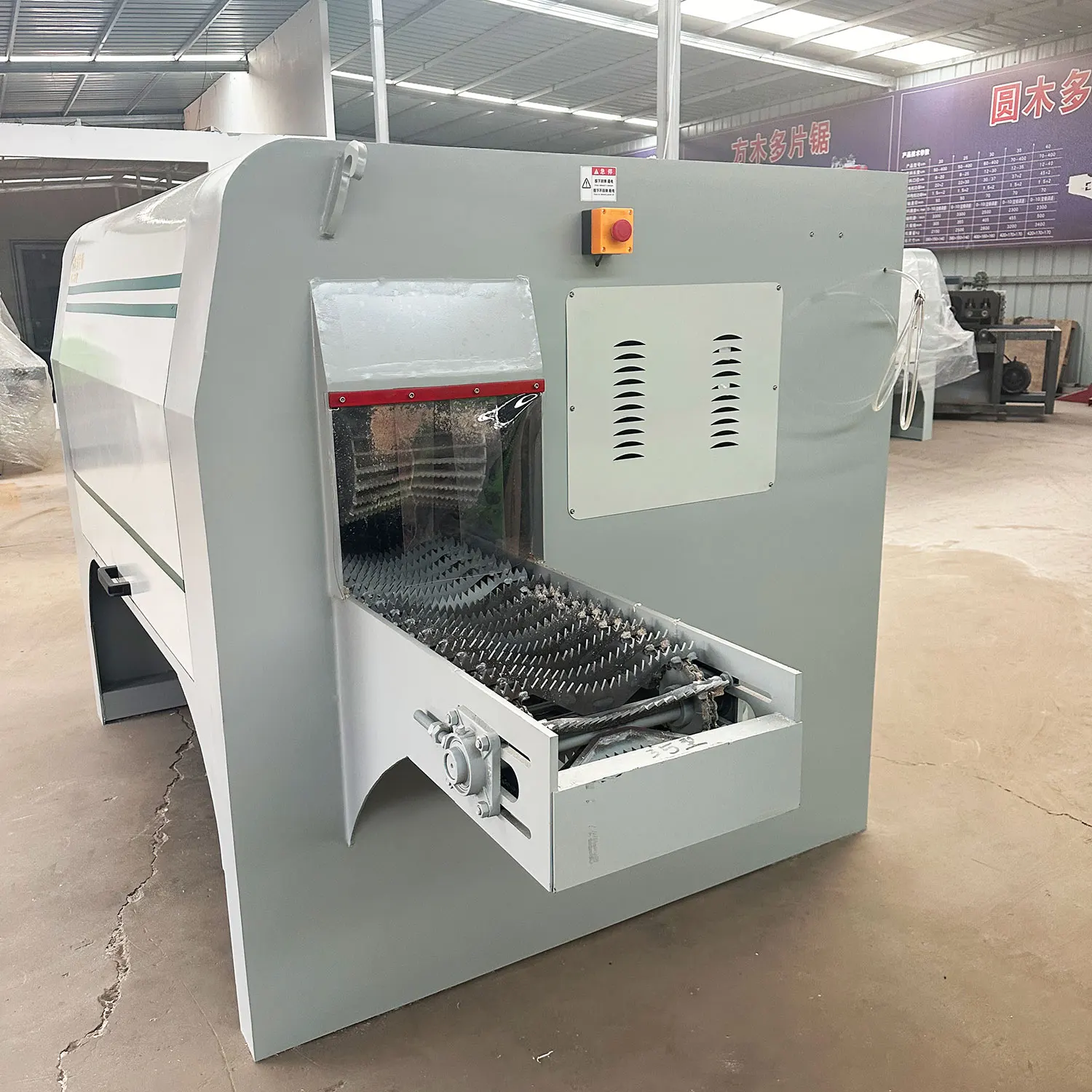

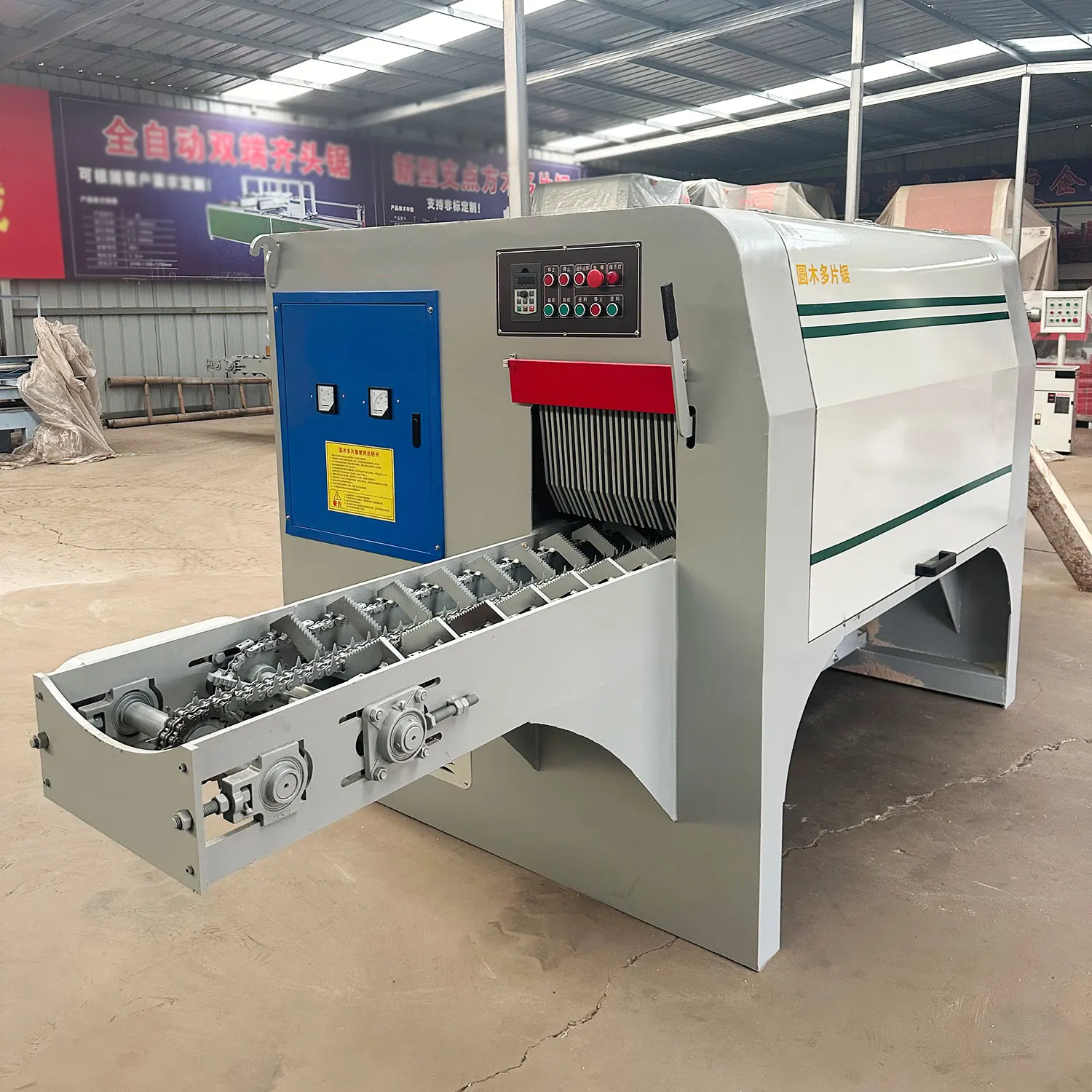

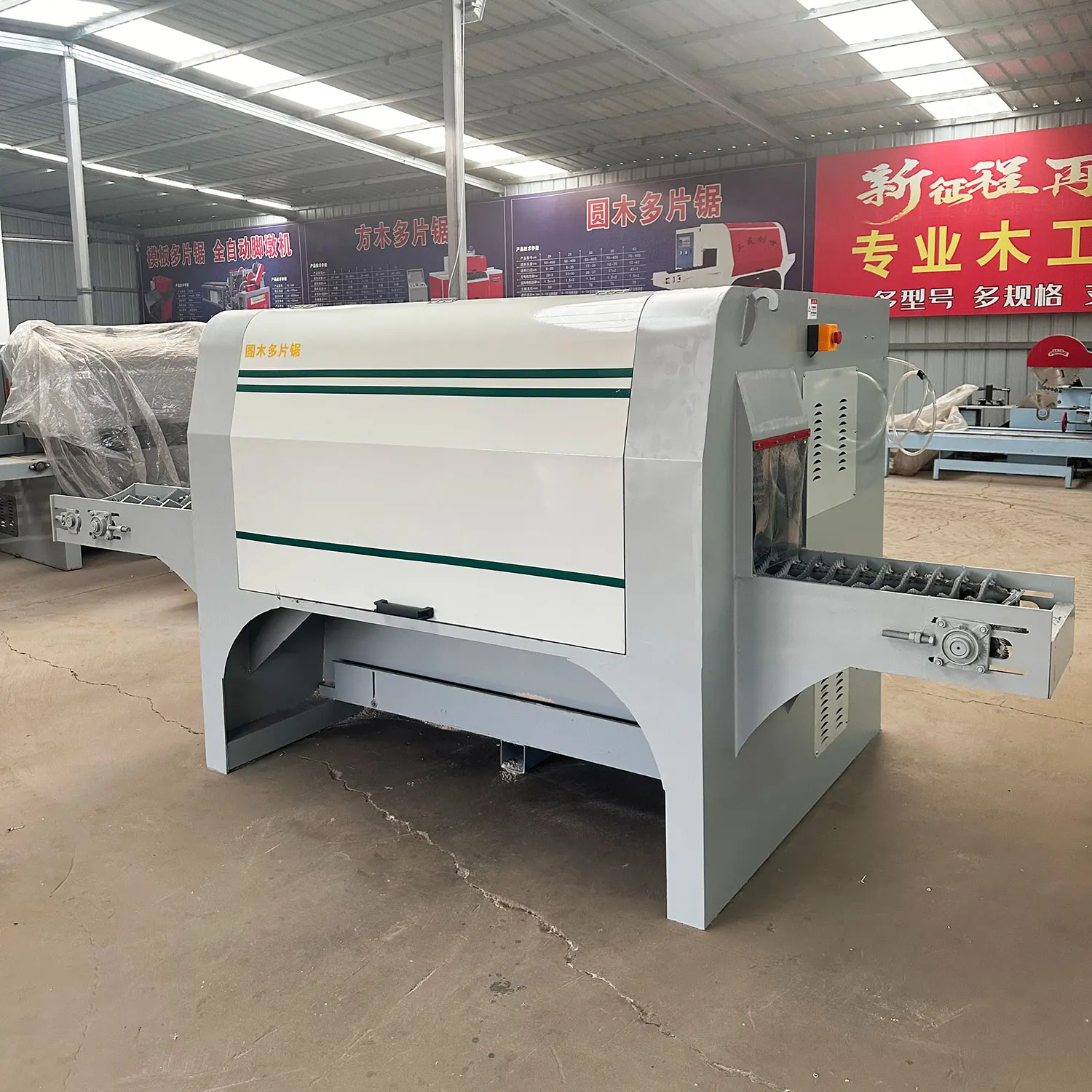

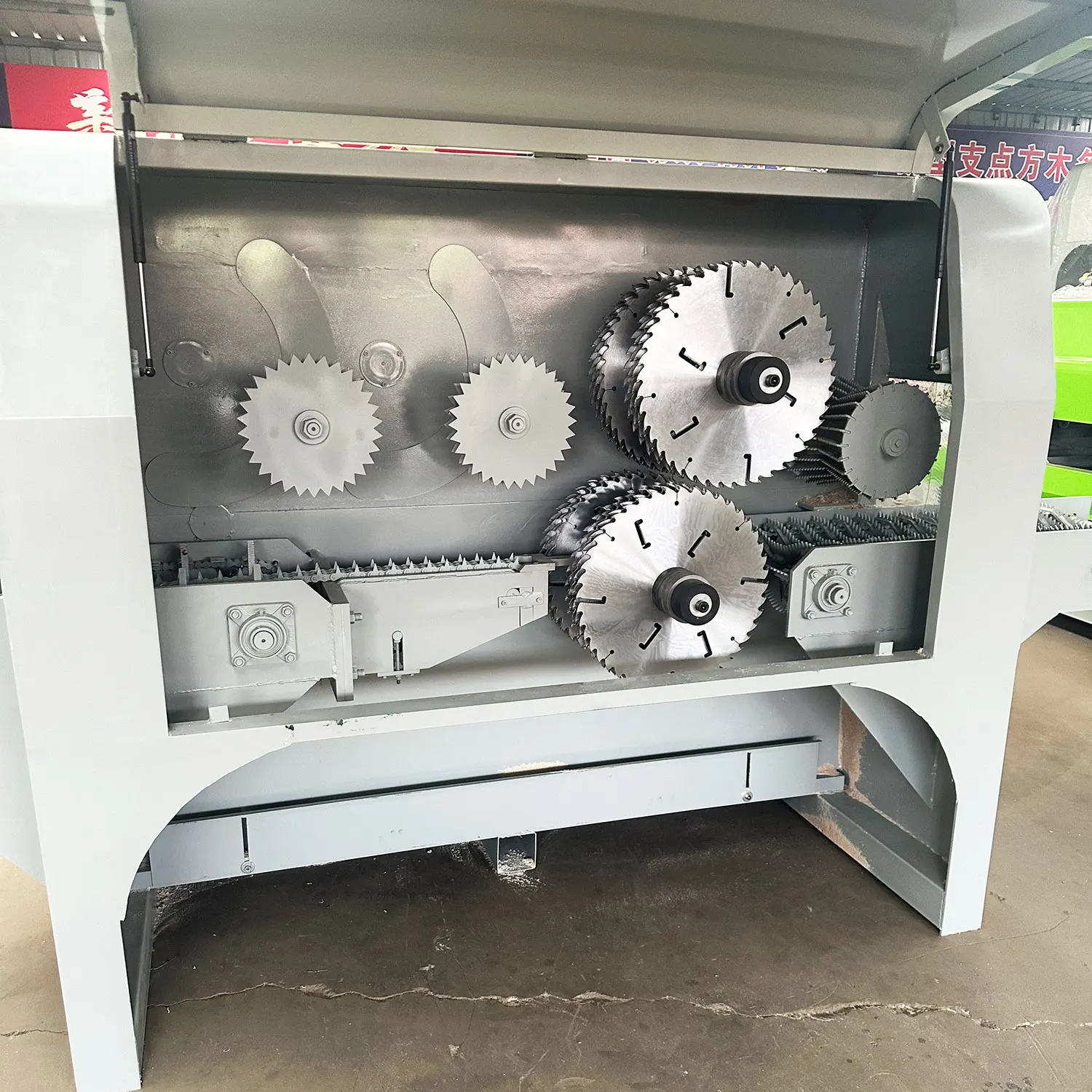

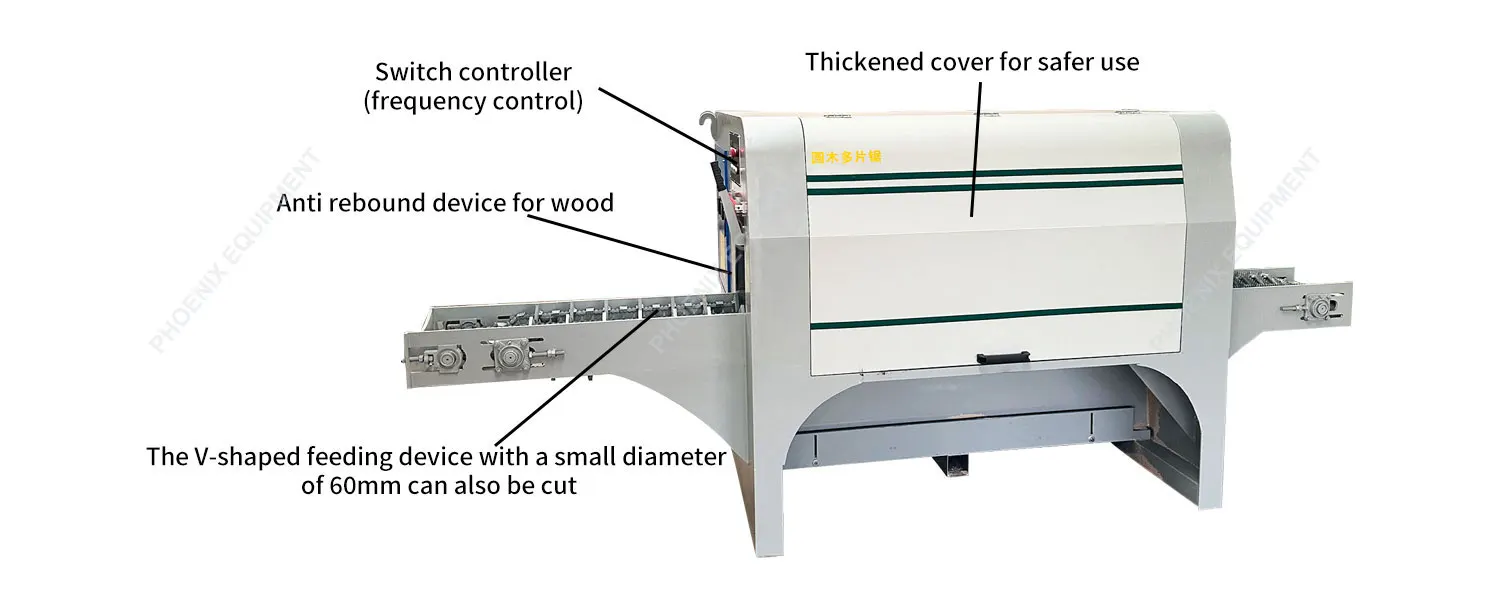

PYM200 Multi blade saw mechanical round wood integrated machine automatic cutting machine
- Category: >>>
- Supplier: Qingdao Phoenix Machinery Co. Ltd.
Share on (1601057489694):
Product Overview
Description
Products Description
Specification
Model | PYM200 | PYM250 | PYM-300 | PYM-350 | PYM-400 | ||||
Sawing Log Diameter | 60mm--200mm | 80---250mm | 100---300mm | 100---350mm | 120---400mm | ||||
Sawing Log Length | 650---4000mm | 700---4000mm | 750--4000mm | 800--4000mm | 900-4000mm | ||||
Spindle speed | 3300r/min | 3300r/min | 2500r/min | 2300r/min | 2300r/min | ||||
Main Motor power | 22KW*2 | 22KW+30KW | 30KW+37KW | 37KW*2 | 45KW*2 | ||||
Feeding Motor | 1.5KW*2 | 1.5KW*2 | 1.5KW*2 | 1.5KW*2 | 1.5KW*2 | ||||
Feed speed ( Frequency Control ) | 0-10m/min | 0-10m/min | 0-10m/min | 0-10m/min | 0-10m/min | ||||
Saw blade diameter | 305mm | 355mm | 405mm | 455mm | 500mm | ||||
Spindle diameter | 50mm | 50mm | 70mm | 70mm | 70mm | ||||
Cooling mode | Spindle water cooling | Spindle water cooling | Spindle water cooling | Spindle water cooling | Spindle water cooling | ||||
Overall dimension | 3420*1550*1530mm | 3500*1550*1530mm | 3800*1680*1600mm | 3860*1680*1600mm | 3900*1680*1600mm | ||||
Machine weight | 2100kg | 2500kg | 2800kg | 3200kg | 3400kg | ||||
Remarks optional | Accept customization | ||||||||
Packing Delivery
1. Outside package: Standard marine export plywood cases.
2. Inner package: Stretch film and plastic film for humidity.
We can package according to your requests
Product Name | woodworking round log cutting saw multi blade rip saw machine multiple rip saw machine |
Brand | PHOENIX EQUIPMENT |
Customized | color, logo, voltage |
MOQ | 1 set |
Package | plywood wooden box |
Payment terms | Alibaba Trade Assurance, T/T, Alipay |
Usage | cut wood logs into boards |
