6KW Electric power hybrid solar inverter 6KW single phase solar inverter SAJ brand cheap price
- Category: >>>
- Supplier: Kowint Energy (shenzhen) Co. Ltd.
Share on (1601057526544):
Product Overview
Description
Big Promotion - 6kw Hybrid Inverter Single Phase EU Version Inverter for Low Voltage 48V Batteries

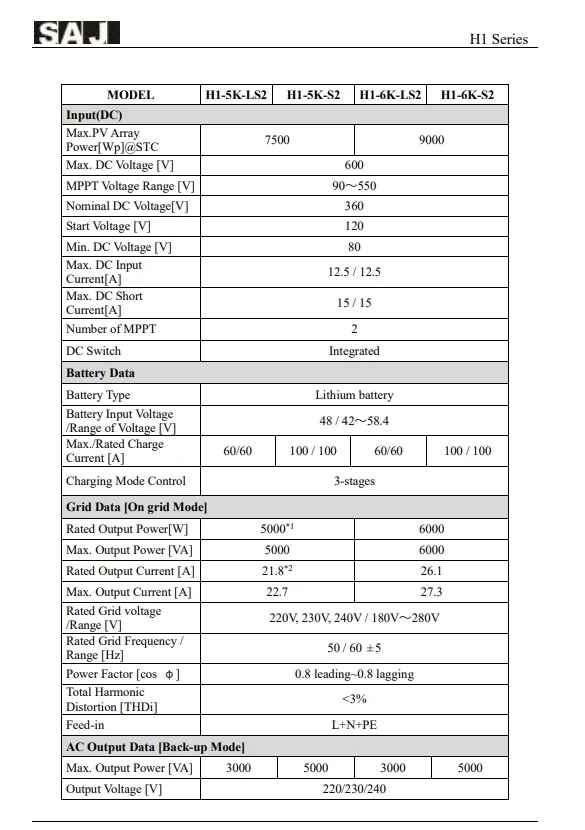

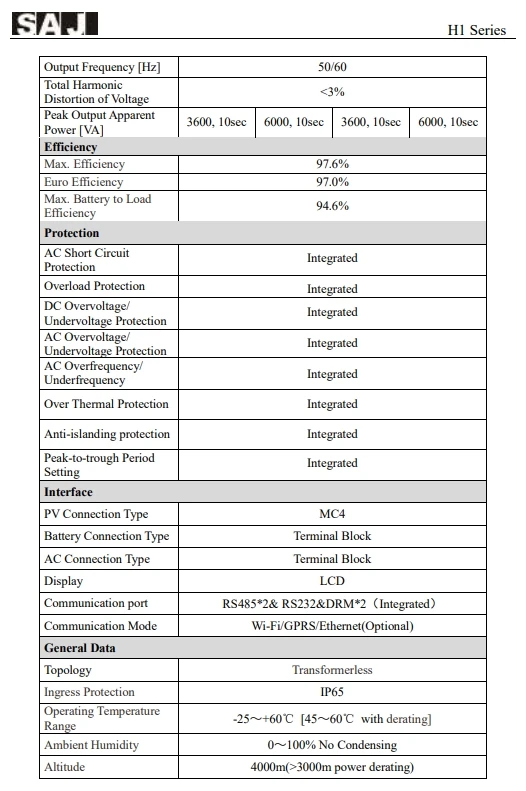

Specification
Technical specifification | H1-6K-S2 | |
Input (PV) | ||
Maximum input power (Wp) @STC | 9000 | |
Max. input voltage (V) | 600 | |
MPPT voltage range(V) | 90~550 | |
Max.Input current(A) | 12.5/12.5 | |
Number of MPPT tracker | 2 | |
AC output | ||
Rated output power(kVA) | 6 | |
Rated output power(W) | 6000 | |
Rated output current (A)@230Vac | 26.1 | |
Max. output current(A) | 27.3 | |
Frequency (Hz) | 50/60 | |
Max. Efficiency | 97.6% | |
Nominal Output Voltage | 220/230/240V | |
Weight (kg) | 23 | |
Dimensions H* W *D (mm) | 470*470*190 | |
Product Description

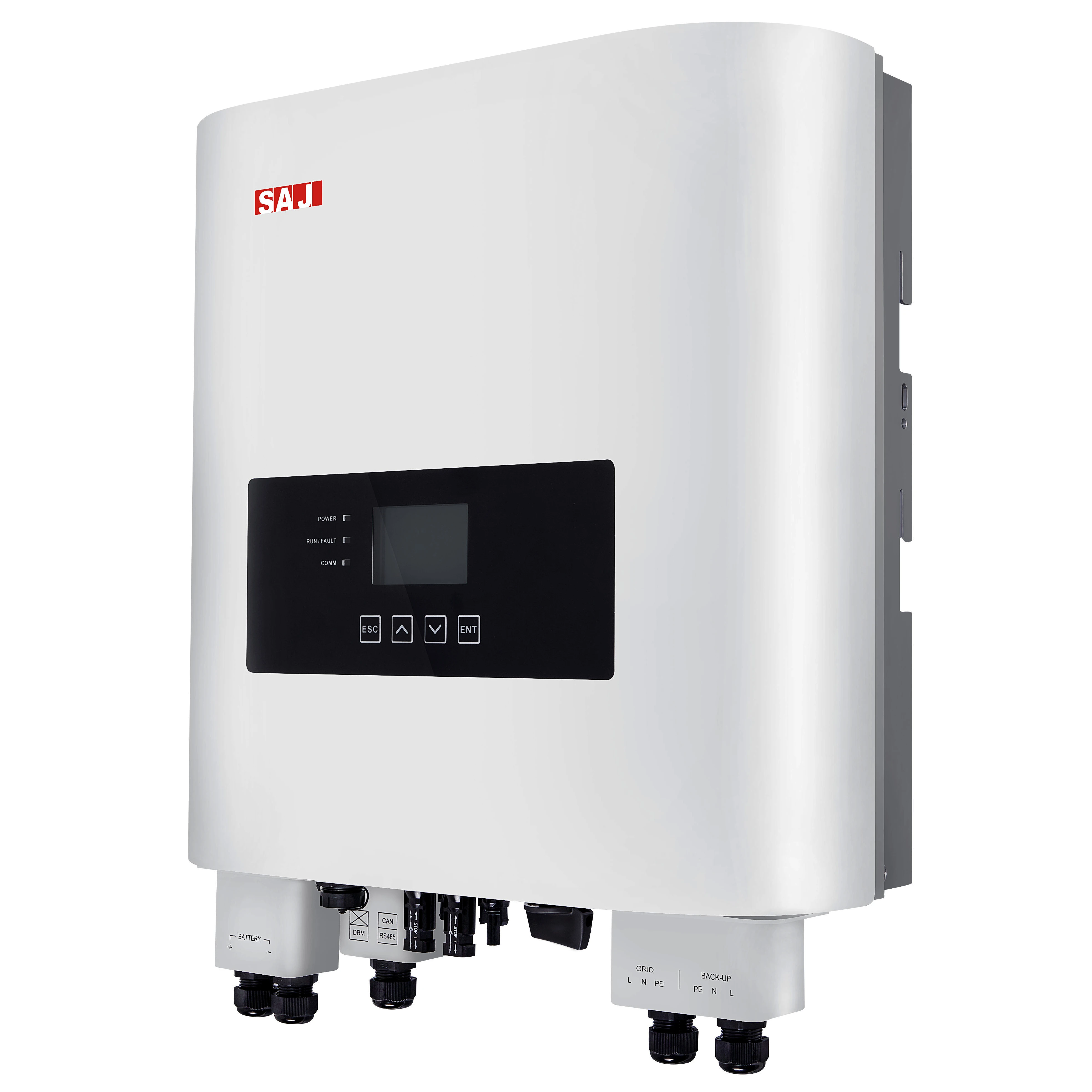

Front View

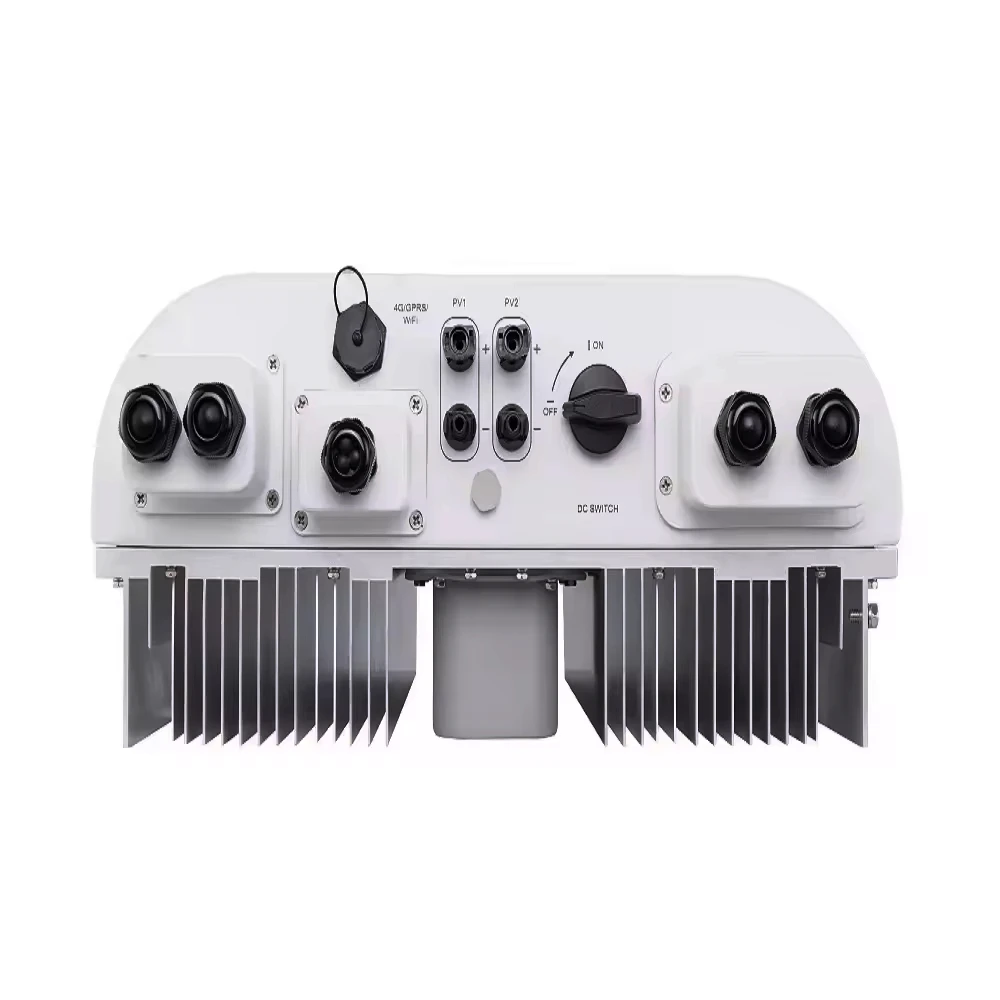

Bottom View

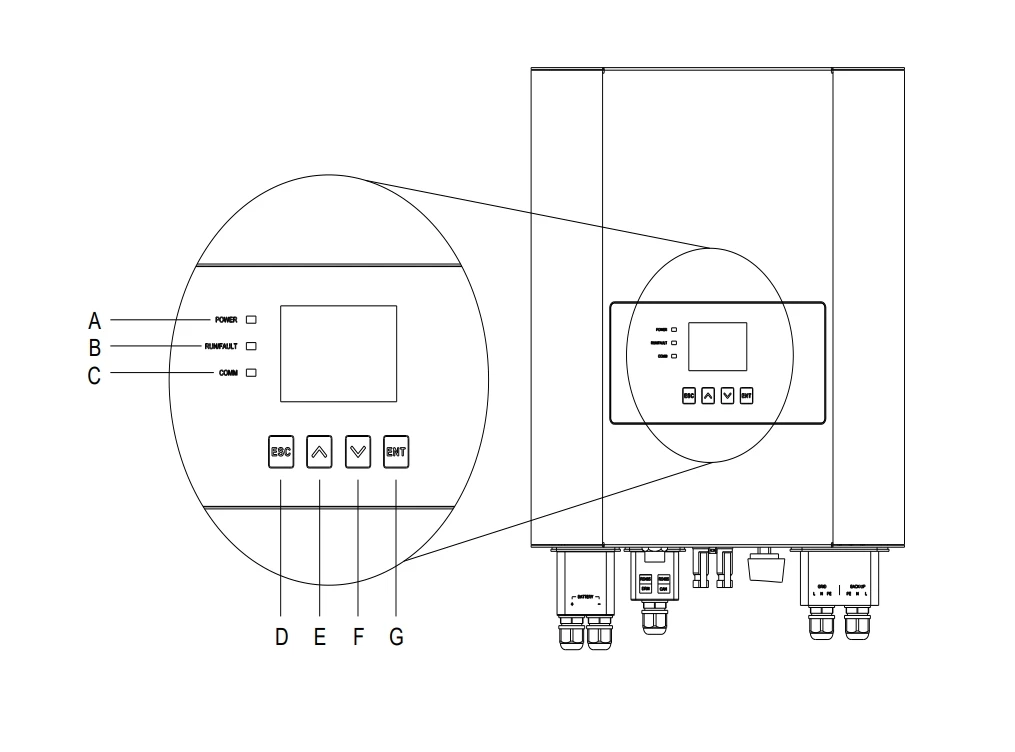

LCD Display
This Model Designed for EU Market
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Recommend Products
Company Profile
KOWINT ENERGY (SHENZHEN) CO., LTD. established in 2014, is a high-tech enterprise focusing on the R&D, design, production and sales of lithium battery energy storage systems, BMS, EMS and lithium battery modules.
We have continuous independent innovation capabilities, excellent lithium battery module development & design abilities and advanced manufacturing technology. Our products have passed UL, CE, ROHS, TUV, PSE and other related certifications, our factory has passed ISO9001 and ISO14000 system certification.
We have continuous independent innovation capabilities, excellent lithium battery module development & design abilities and advanced manufacturing technology. Our products have passed UL, CE, ROHS, TUV, PSE and other related certifications, our factory has passed ISO9001 and ISO14000 system certification.
Production Process
Cell sorting
Preload section
Polarity test
Highly automated laser spot welding
Welding Section
Integration section
Dielectric Withstand Voltage Test
Packing
Aging test
Automated production lines are equipped with MEX systems, traceable to every production link of every product
100% Aging Test & Connection Test for each battery before leaving the factory
