Automatic Hot Melt Extruder Butyl Rubber Sealing Coating Machine For Insulating Glass Hollow Glass Double Glazing Processing

Product Overview

Description

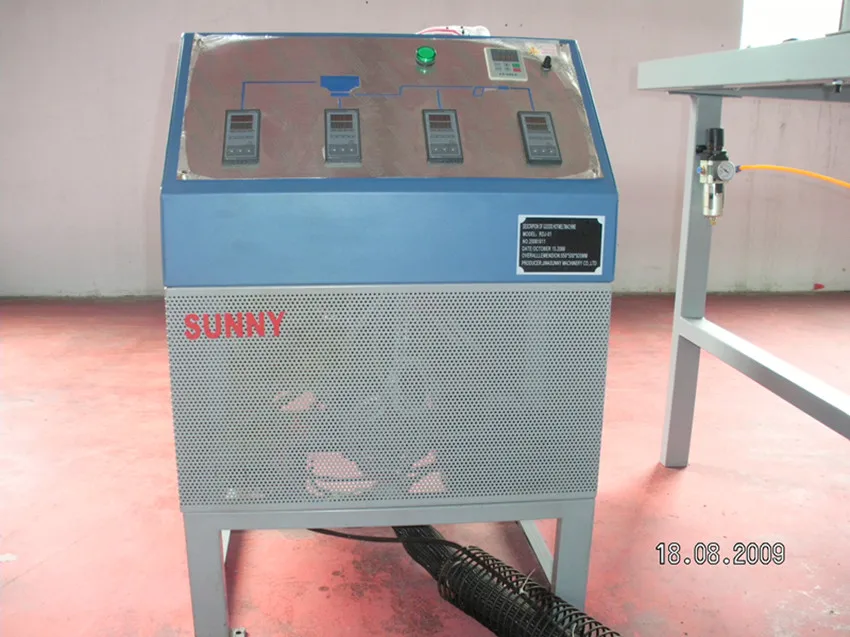

Product Name: YG-01 Hot Melt Butyl Sealant Extruder Machine for double glazing insulating glass



1. Instruction

YG-01 Hot Melt Machine is the specialized machine in the process of producing spacer insulating glass. It is the second generation of our company, it is smart, space-saving and easy to operate, and has stable performance in temperature control, and easy to maintain. You should preheat half an hour before operating (there is sealant table can help to make it)



2.      Technical data



Power Supply	380v 50hz 3p/ 5.5kw
the Amount of output	≥400L/min
Overall Dimension	550(L)*500(W)*920(H) mm
Weight	100kgs



3.      Installing, Adjusting

1)It need clear atmosphere for the working place, nothing special.

2)Put through the power

3)Put the sealant into the rubber warehouse, heat and set the temperature (between 150°C to 170°C), the heating time at about 30 minutes.

4)When the temperature of sealant and pipe is Ok, it can work while you make the trigger of Rubber Gun.
